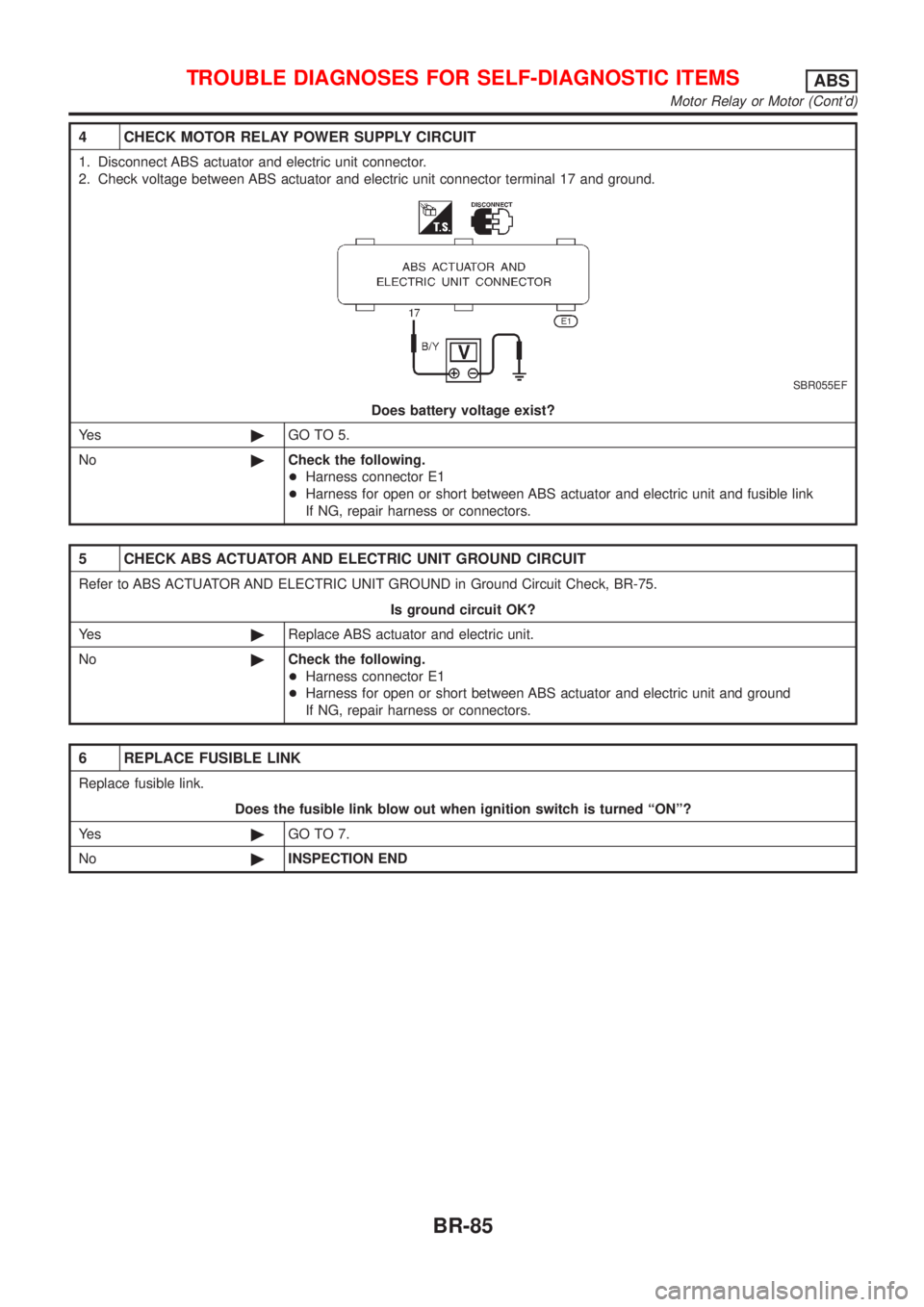

Page 601 of 2898

NISSAN ALMERA 2001 Service Manual 4 CHECK MOTOR RELAY POWER SUPPLY CIRCUIT 1. Disconnect ABS actuator and electric unit connector. 2. Check voltage between ABS actuator and electric unit connector terminal 17 and ground. SBR055EF Does

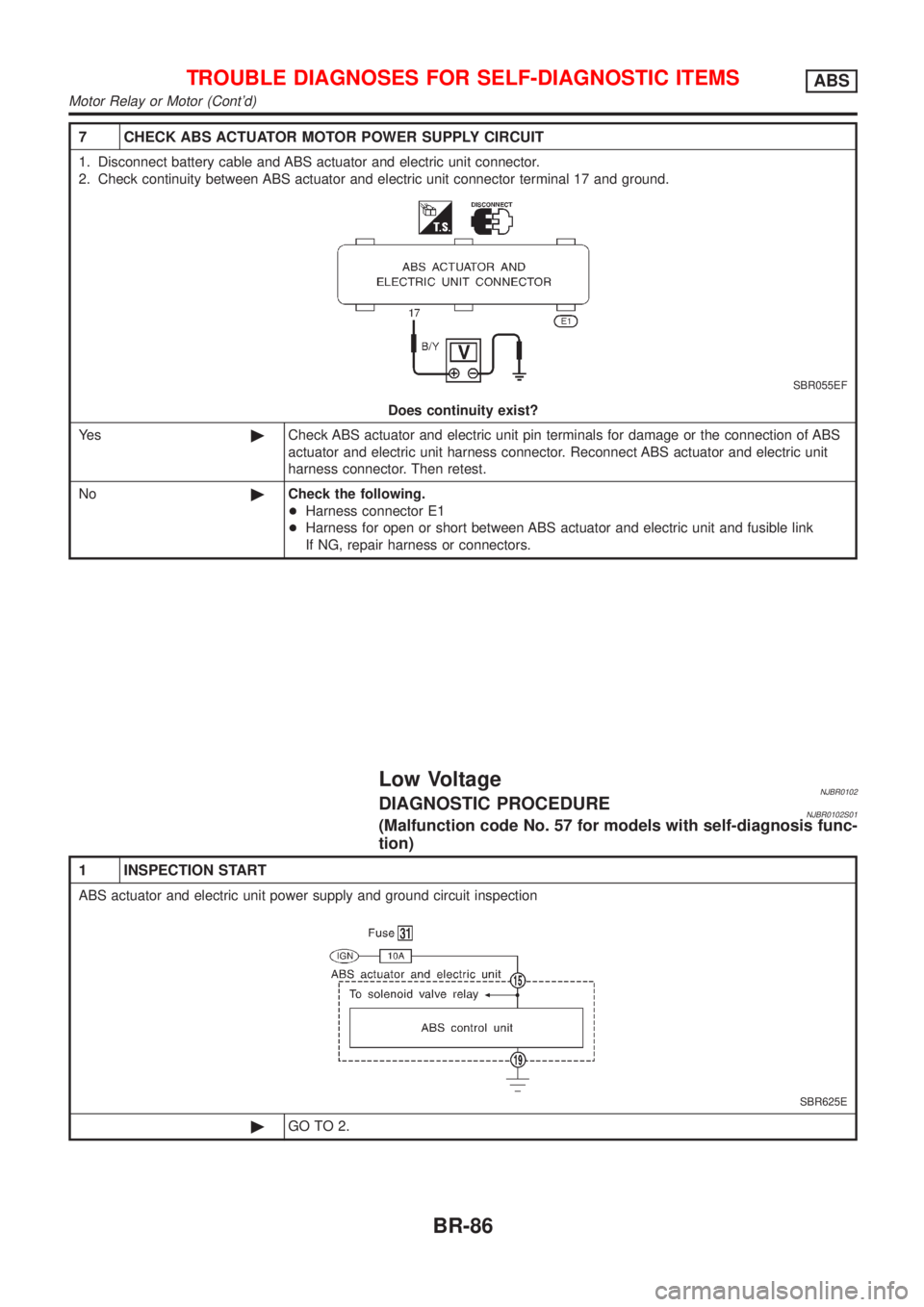

Page 602 of 2898

NISSAN ALMERA 2001 Service Manual 7 CHECK ABS ACTUATOR MOTOR POWER SUPPLY CIRCUIT 1. Disconnect battery cable and ABS actuator and electric unit connector. 2. Check continuity between ABS actuator and electric unit connector terminal

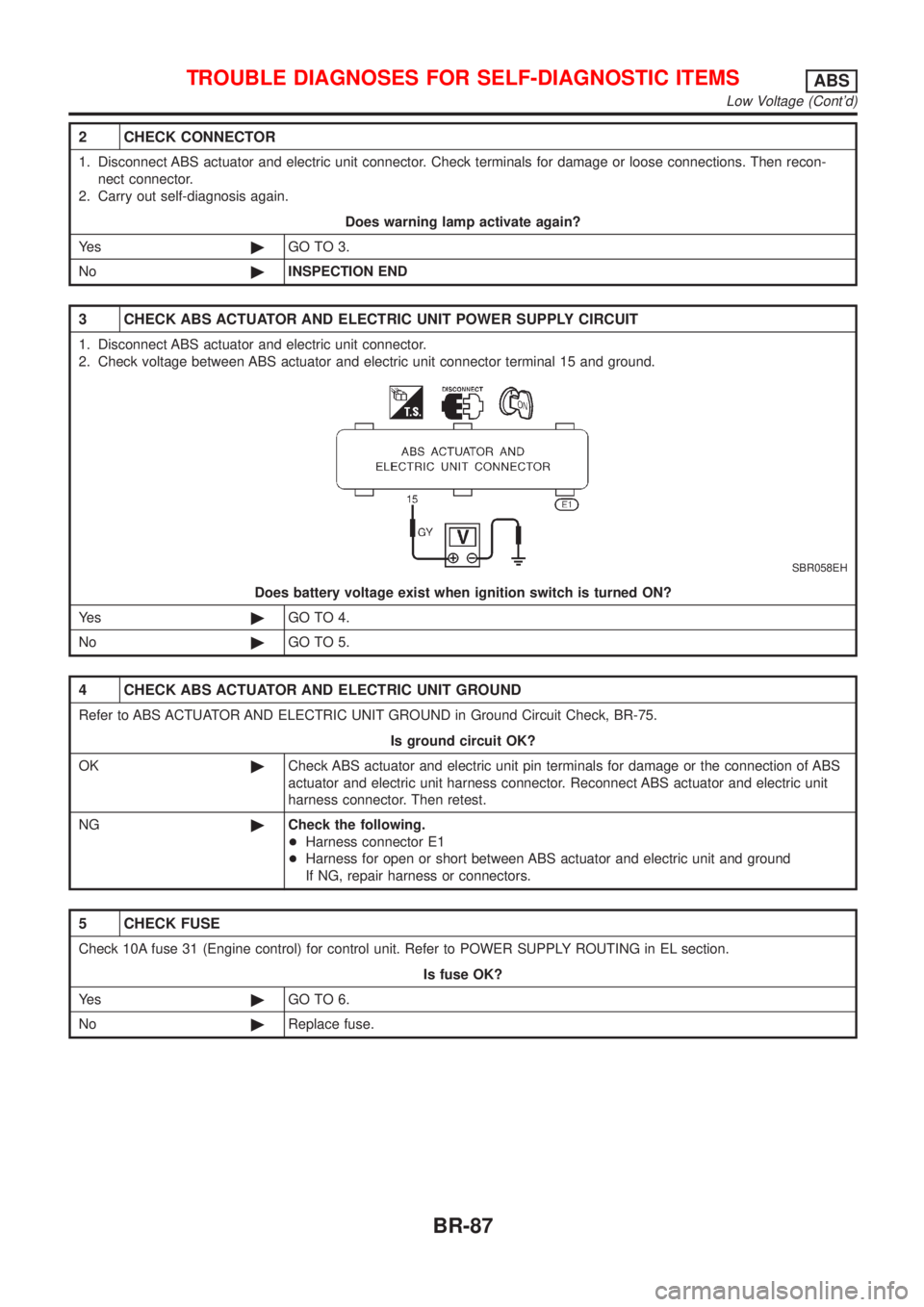

Page 603 of 2898

NISSAN ALMERA 2001 Service Manual 2 CHECK CONNECTOR 1. Disconnect ABS actuator and electric unit connector. Check terminals for damage or loose connections. Then recon- nect connector. 2. Carry out self-diagnosis again. Does warning l

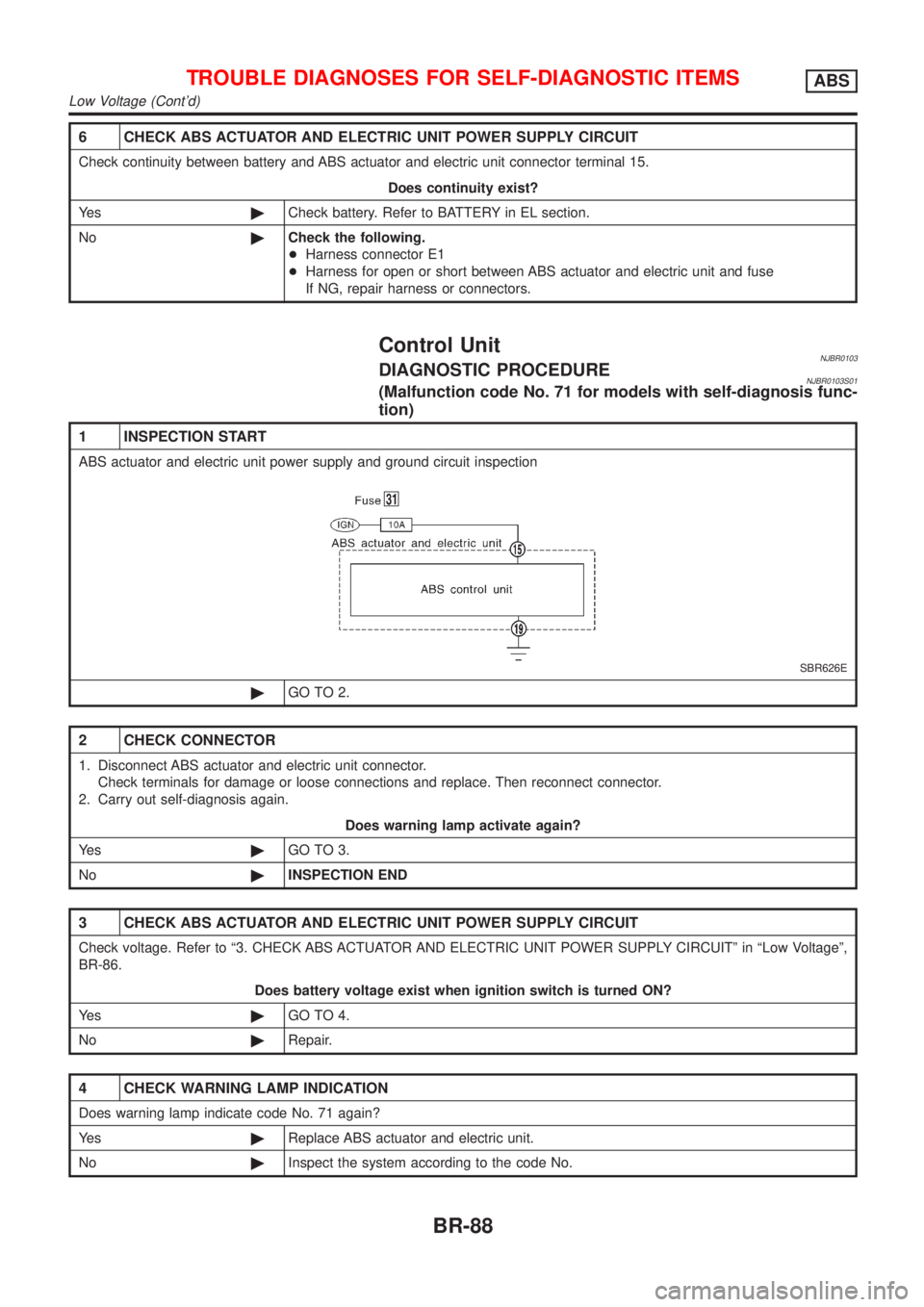

Page 604 of 2898

NISSAN ALMERA 2001 Service Manual 6 CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY CIRCUIT Check continuity between battery and ABS actuator and electric unit connector terminal 15. Does continuity exist? Ye s©Check battery. Refer

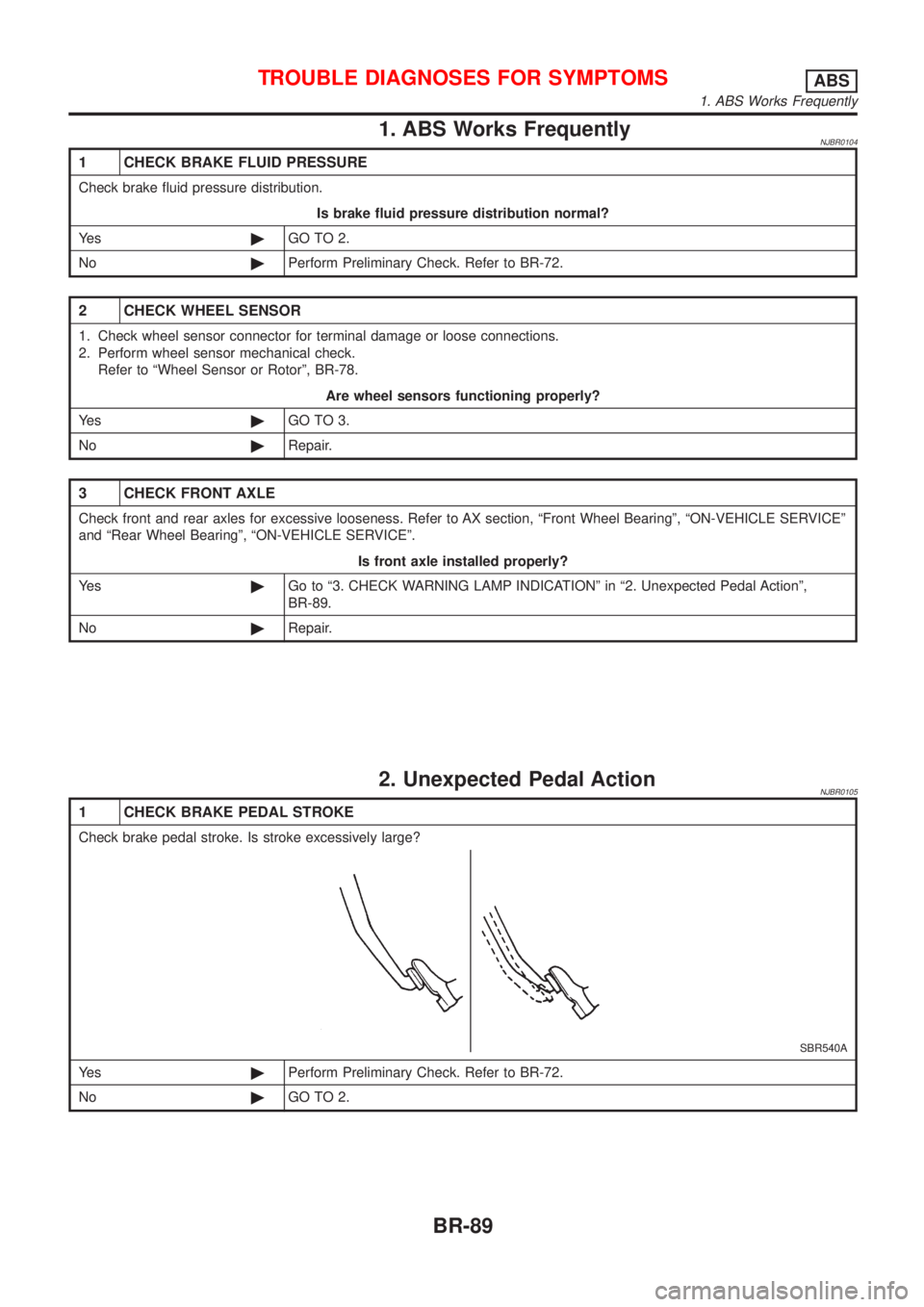

Page 605 of 2898

NISSAN ALMERA 2001 Service Manual 1. ABS Works FrequentlyNJBR0104 1 CHECK BRAKE FLUID PRESSURE Check brake fluid pressure distribution. Is brake fluid pressure distribution normal? Ye s©GO TO 2. No©Perform Preliminary Check. Refer t

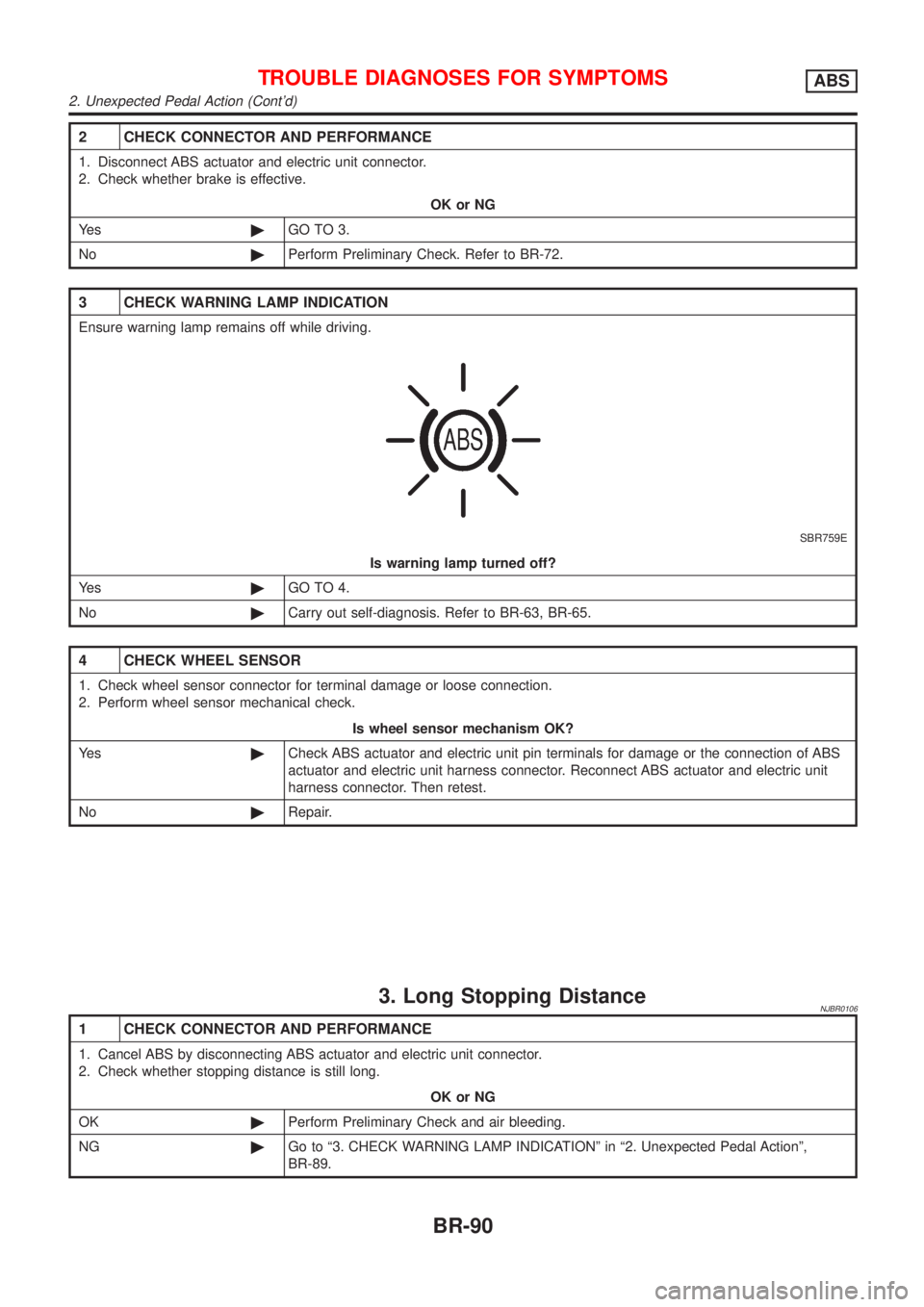

Page 606 of 2898

NISSAN ALMERA 2001 Service Manual 2 CHECK CONNECTOR AND PERFORMANCE 1. Disconnect ABS actuator and electric unit connector. 2. Check whether brake is effective. OK or NG Ye s©GO TO 3. No©Perform Preliminary Check. Refer to BR-72. 3

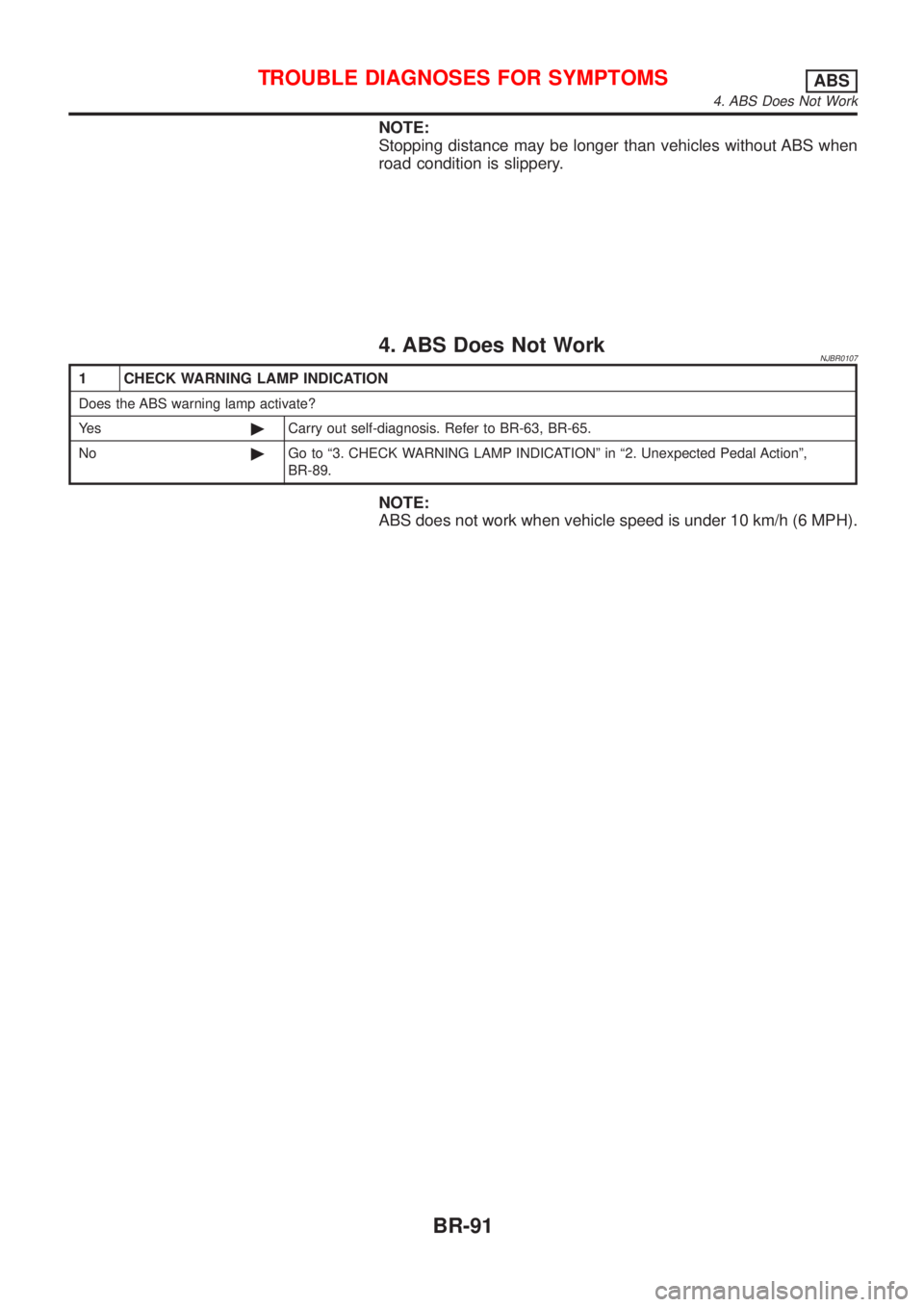

Page 607 of 2898

NISSAN ALMERA 2001 Service Manual NOTE: Stopping distance may be longer than vehicles without ABS when road condition is slippery. 4. ABS Does Not WorkNJBR0107 1 CHECK WARNING LAMP INDICATION Does the ABS warning lamp activate? Ye s©

Page 608 of 2898

NISSAN ALMERA 2001 Service Manual 5. Pedal Vibration and Noise=NJBR0108 1 INSPECTION START Pedal vibration and noise inspection SAT797A ©GO TO 2. 2 CHECK SYMPTOM 1. Apply brake. 2. Start engine. Does the symptom appear only when engi
