Diagnostic ProcedureNJAT0309

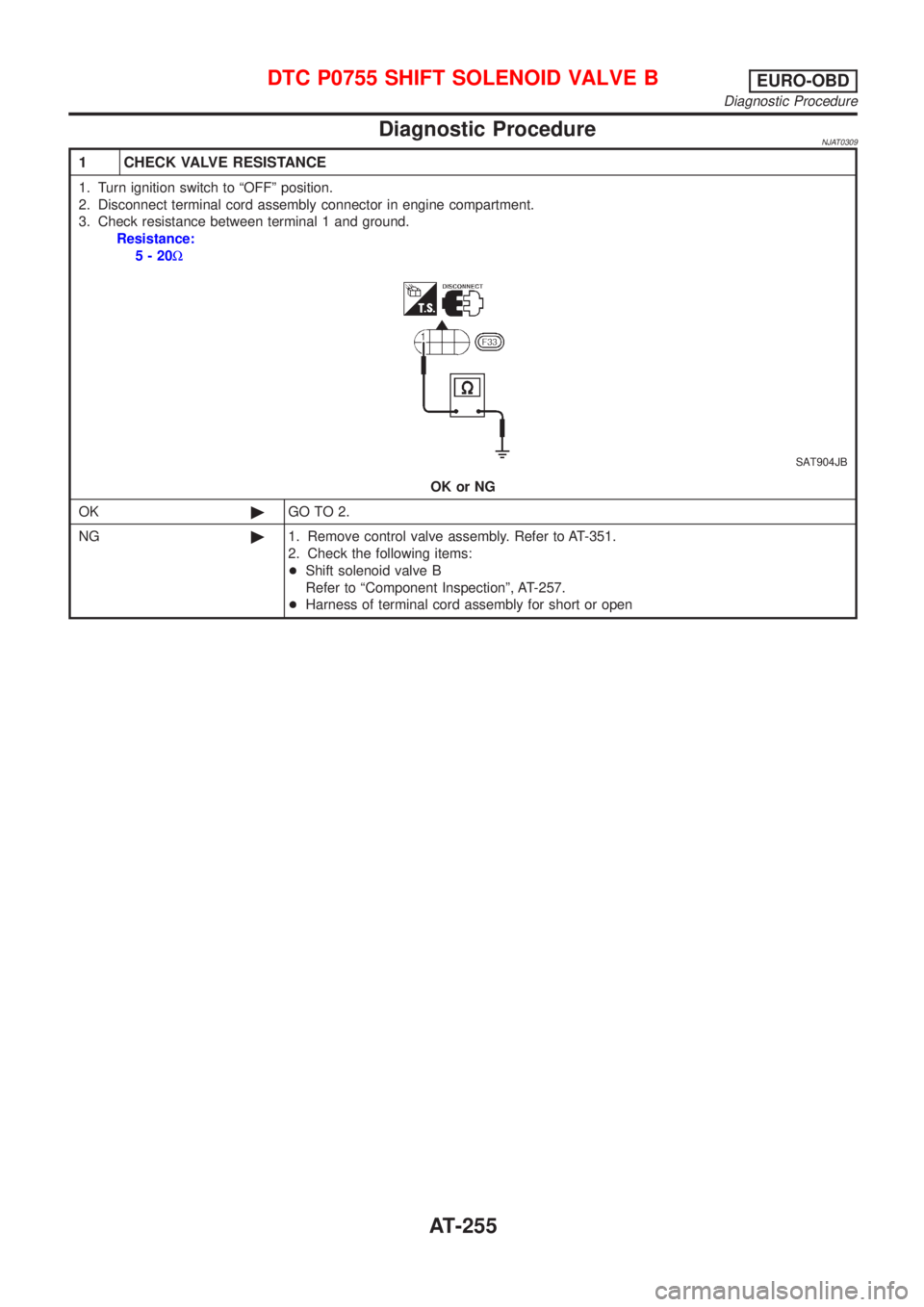

1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 1 and ground.
Resistance:
5-20W
SAT904JB
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Shift solenoid valve B
Refer to ªComponent Inspectionº, AT-257.
+Harness of terminal cord assembly for short or open
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Diagnostic Procedure
AT-255
Page 258 of 2898

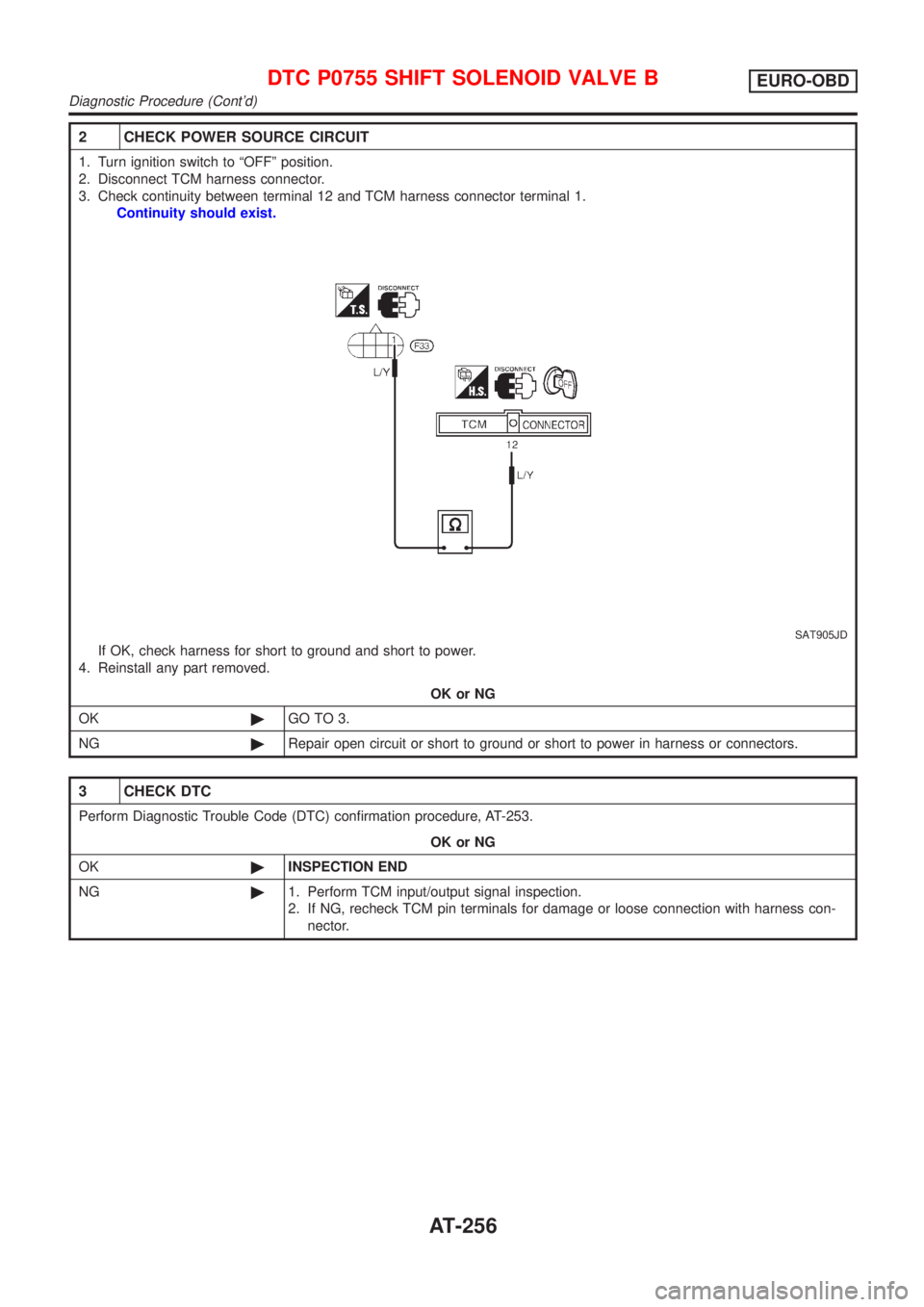

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 12 and TCM harness connector terminal 1.
Continuity should exist.
SAT905JD
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-253.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Diagnostic Procedure (Cont'd)
AT-256
Page 259 of 2898
SAT057KA

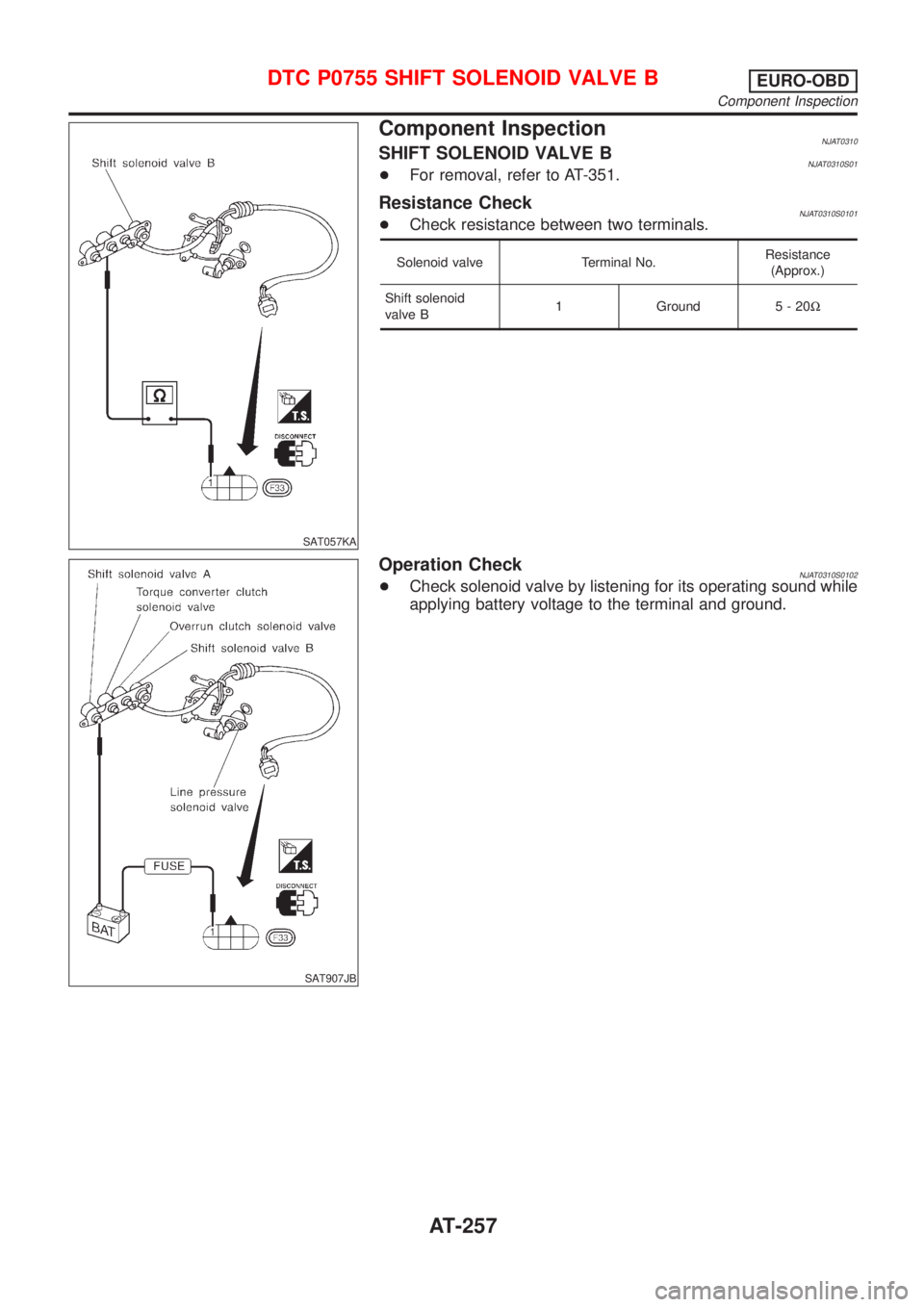

Component InspectionNJAT0310SHIFT SOLENOID VALVE BNJAT0310S01+For removal, refer to AT-351.
Resistance CheckNJAT0310S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve B1 Ground 5 - 20W
SAT907JB
Operation CheckNJAT0310S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DTC P0755 SHIFT SOLENOID VALVE BEURO-OBD
Component Inspection
AT-257
Page 260 of 2898

SAT004K
DescriptionNJAT0311+Throttle position sensor
The throttle position sensor detects the throttle valve position
and sends a signal to the TCM.
+Throttle position switch
Consists of a wide open throttle position switch and a closed
throttle position switch.
The wide open throttle position switch sends a signal to the
TCM when the throttle valve is open at least 1/2 of the full
throttle position. The closed throttle position switch sends a
signal to the TCM when the throttle valve is fully closed.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NJAT0311S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Throttle position sensorFully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
TCM TERMINALS AND REFERENCE VALUENJAT0311S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
16 Y/PUClosed throttle
position switch
(in throttle position
switch)
When releasing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªTCM SELF-
DIAGNOSTIC PROCEDURE (No
Tools)º, AT-63.Battery voltage
When depressing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªTCM SELF-
DIAGNOSTIC PROCEDURE (No
Tools)º, AT-63.1V or less
17 LGWide open throttle
position switch
(in throttle position
switch)When depressing accelerator pedal
more than half-way after warming
up engine.Battery voltage
When releasing accelerator pedal
after warming up engine.1V or less
32 RThrottle position
sensor
(Power source)Ð 4.5 - 5.5V
41 GYThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle:
Approximately
0.5V
Fully-open
throttle:
Approximately
4V
42 BGround
(Throttle position
sensor)ÐÐ
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description
AT-258
Page 261 of 2898

ON BOARD DIAGNOSIS LOGICNJAT0311S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: TP SEN/CIRC A/T
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Throttle position sensor
+Throttle position switch
: P1705
SAT014K
SAT971J
SAT014K
SAT020K
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0311S04CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DUREº has been previously conducted, always turn ignition
switch ªOFFº and wait at least 5 seconds before conducting
the next test.
After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Apply vacuum to the throttle opener, then check the following.
Refer to steps from 1 to 5 of ªPreparationº, ªTCM SELF-DIAG-
NOSTIC PROCEDURE (No Tools)º, AT-63.
2) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªA/Tº with CONSULT-II.
3) Check the following.
Accelerator pedal
conditionTHRTL POS SEN CLOSED THL/SW W/O THRL/P´SW
Fully released Less than 4.7V ON OFF
Partially
depressed0.1 - 4.6V OFF OFF
Fully depressed 1.9 - 4.6V OFF ON
If the check result is NG, go to ªDIAGNOSTIC PROCEDUREº,
AT-263.
If the check result is OK, go to following step.
4) Turn ignition switch ªONº and select ªDATA MONITORº mode
for ªENGINEº with CONSULT-II.
5) Start engine and maintain the following conditions for at least
3 consecutive seconds. Then release accelerator pedal com-
pletely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3V or less
Selector lever: D position (OD ªONº)
If the check result is NG, go to ªDIAGNOSTIC PROCEDUREº,
AT-263.
If the check result is OK, go to following step.
6) Maintain the following conditions for at least 3 consecutive
seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
Accelerator pedal: Wide open throttle
Selector lever: D position (OD ªONº)
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description (Cont'd)
AT-259
Page 262 of 2898
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Description (Cont'd)
AT-260
Page 263 of 2898
Wiring Diagram Ð AT Ð TPSNJAT0312MODELS WITH JOINT CONNECTOR-6NJAT0312S01
HAT142
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Wiring Diagram Ð AT Ð TPS
AT-261
Page 264 of 2898
MODELS WITH JOINT CONNECTOR-3 AND 4NJAT0312S02
HAT093
DTC P1705 THROTTLE POSITION SENSOREURO-OBD
Wiring Diagram Ð AT Ð TPS (Cont'd)
AT-262
