Page 1257 of 2898

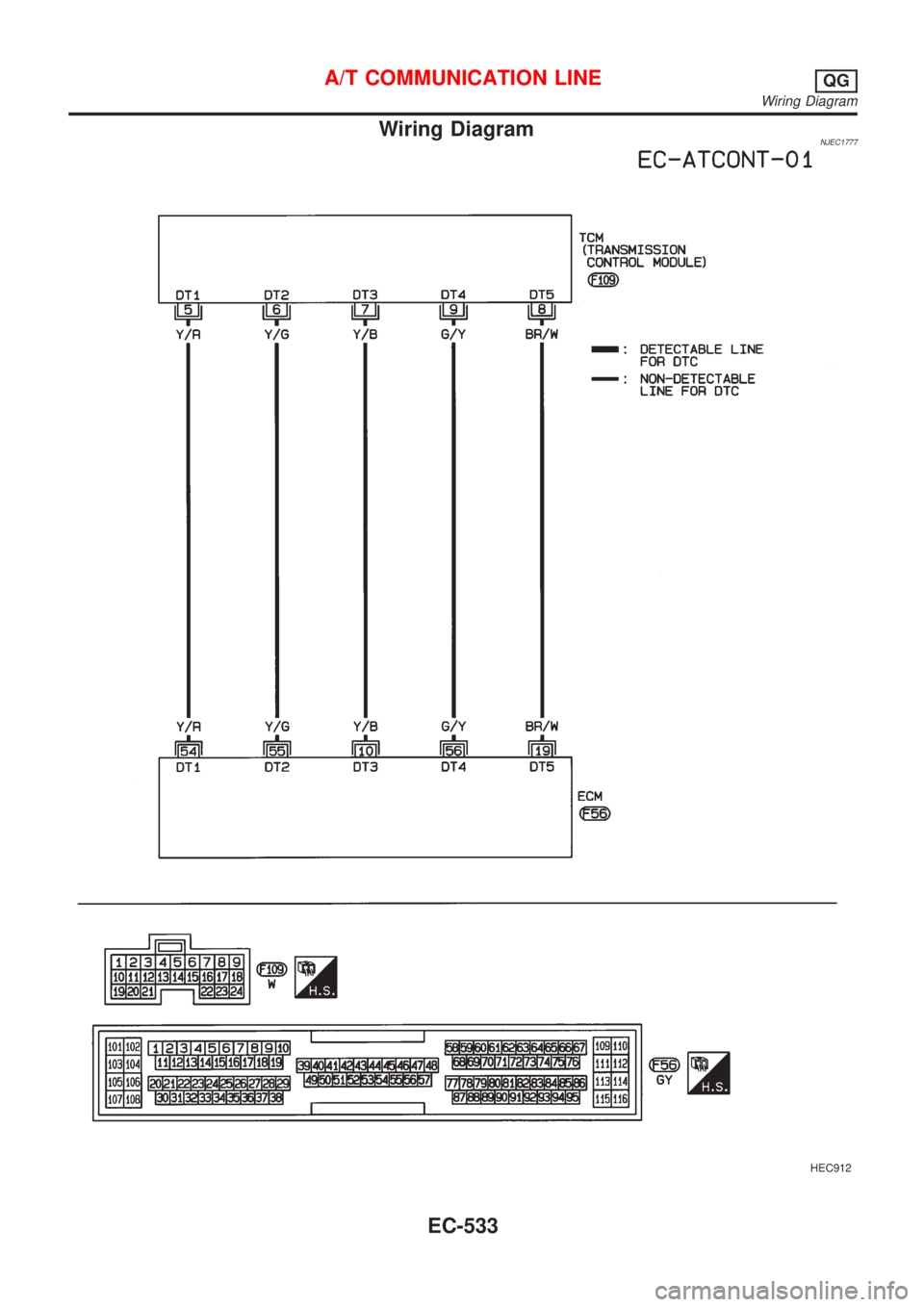

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC1777 HEC912 A/T COMMUNICATION LINEQG Wiring Diagram EC-533

Page 1258 of 2898

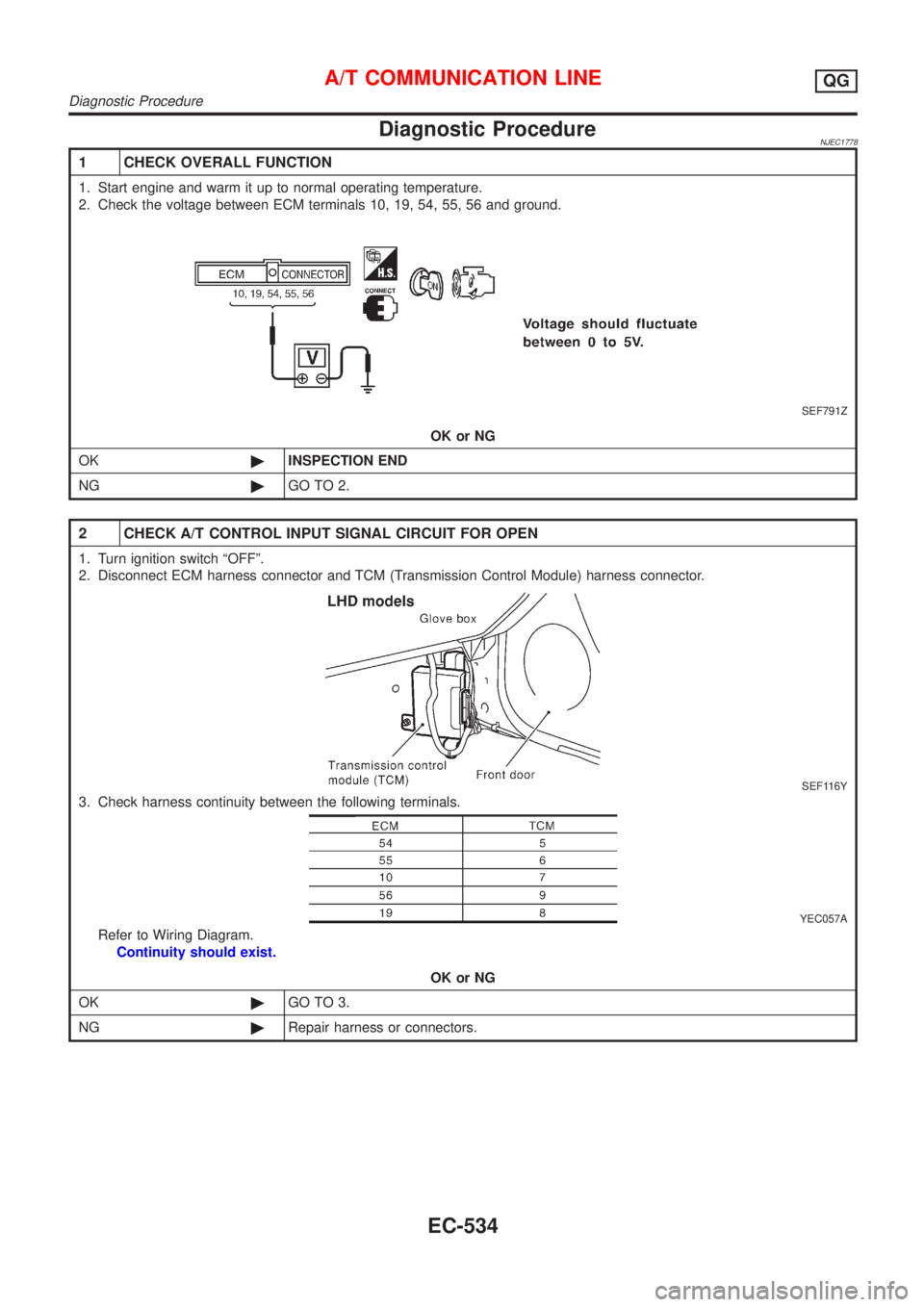

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC1778 1 CHECK OVERALL FUNCTION 1. Start engine and warm it up to normal operating temperature. 2. Check the voltage between ECM terminals 10, 19, 54, 55, 56 and ground. SEF791Z

Page 1259 of 2898

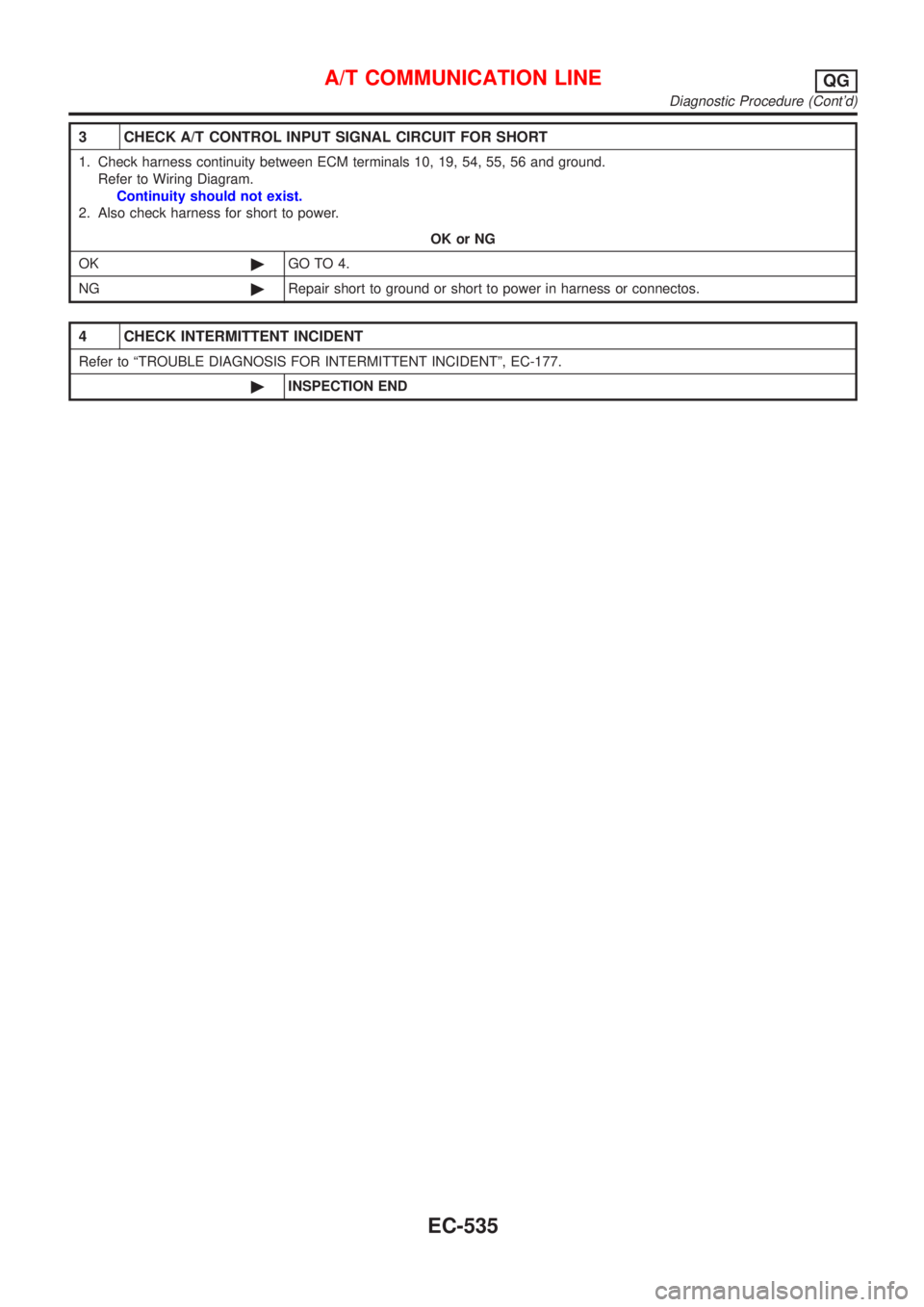

NISSAN ALMERA 2001 Service Manual 3 CHECK A/T CONTROL INPUT SIGNAL CIRCUIT FOR SHORT 1. Check harness continuity between ECM terminals 10, 19, 54, 55, 56 and ground. Refer to Wiring Diagram. Continuity should not exist. 2. Also check

Page 1260 of 2898

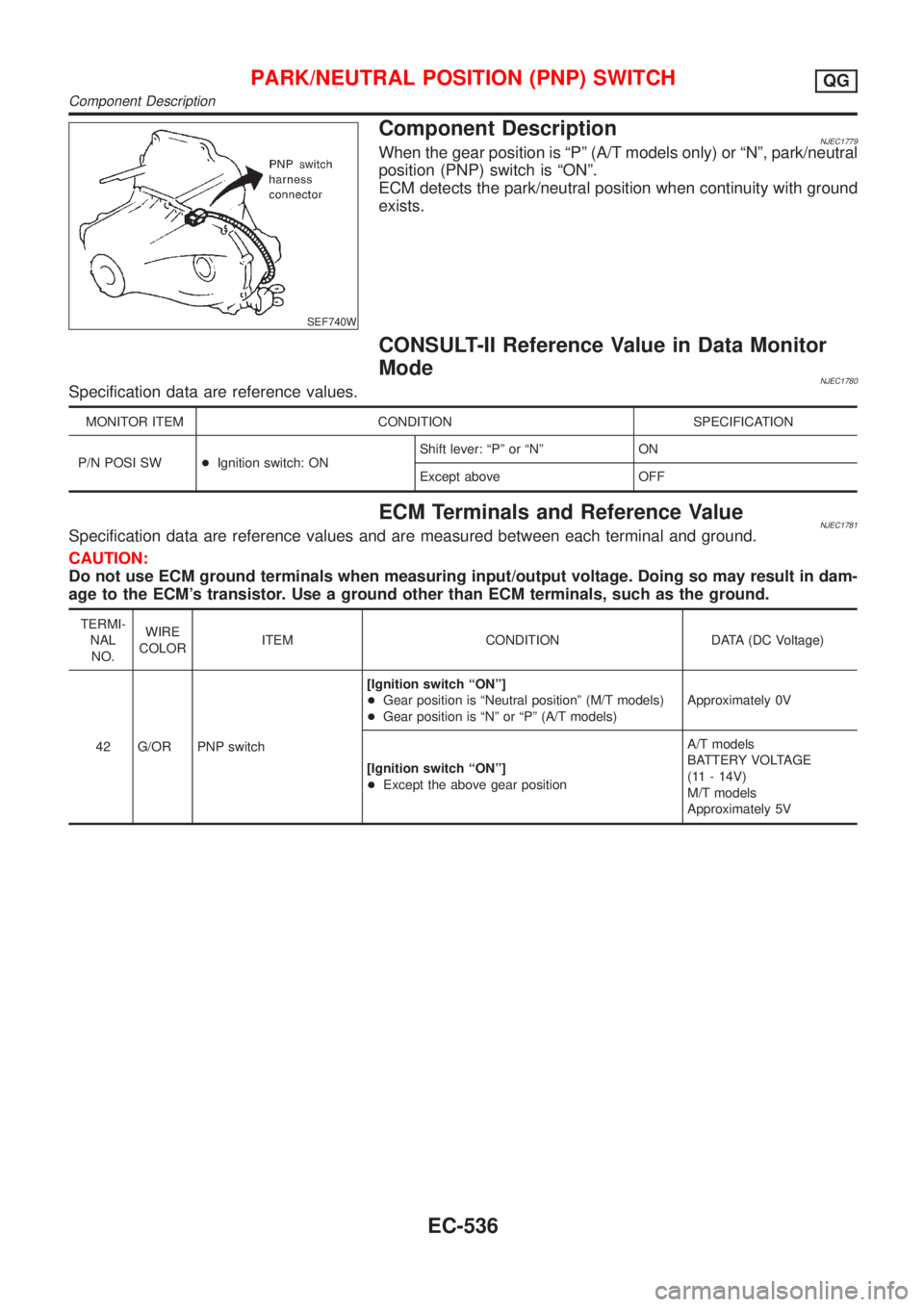

NISSAN ALMERA 2001 Service Manual SEF740W Component DescriptionNJEC1779When the gear position is ªPº (A/T models only) or ªNº, park/neutral position (PNP) switch is ªONº. ECM detects the park/neutral position when continuity wit

Page 1261 of 2898

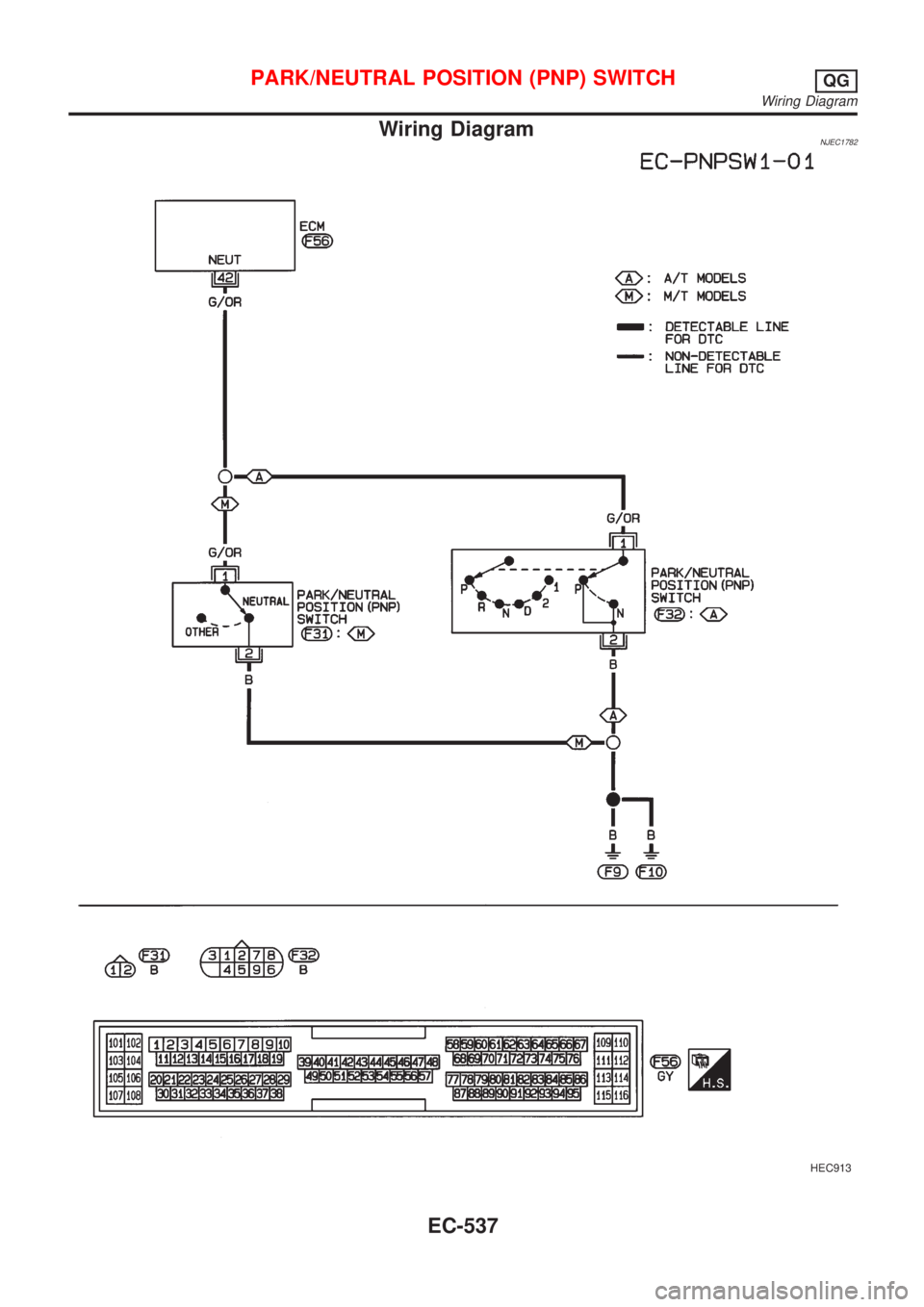

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC1782 HEC913 PARK/NEUTRAL POSITION (PNP) SWITCHQG Wiring Diagram EC-537

Page 1262 of 2898

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC1783 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK OVERALL FUNCTION With CONSULT-II 1. Turn ignition switch ªONº. 2. Select ªP/N POS

Page 1263 of 2898

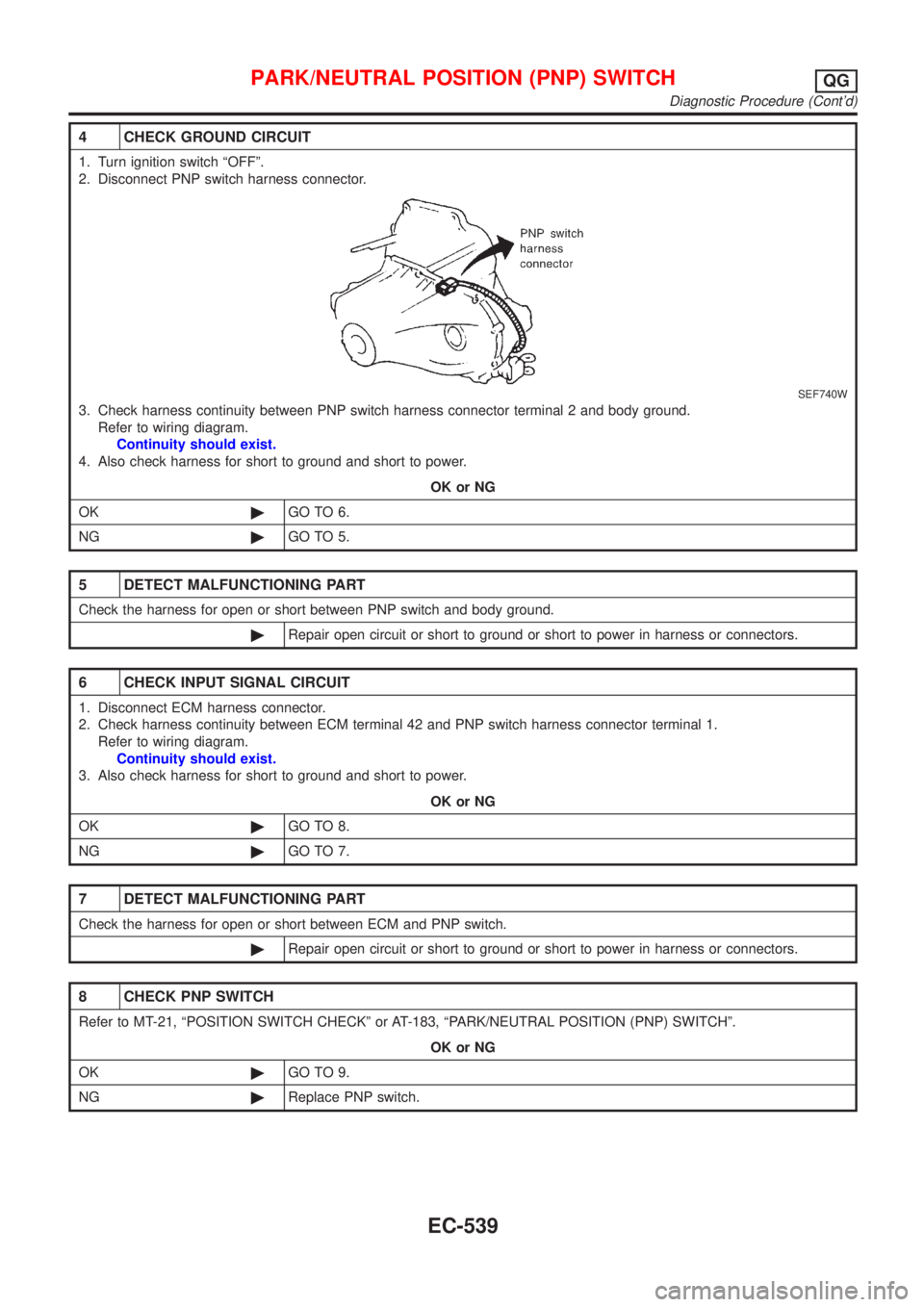

NISSAN ALMERA 2001 Service Manual 4 CHECK GROUND CIRCUIT 1. Turn ignition switch ªOFFº. 2. Disconnect PNP switch harness connector. SEF740W 3. Check harness continuity between PNP switch harness connector terminal 2 and body ground.

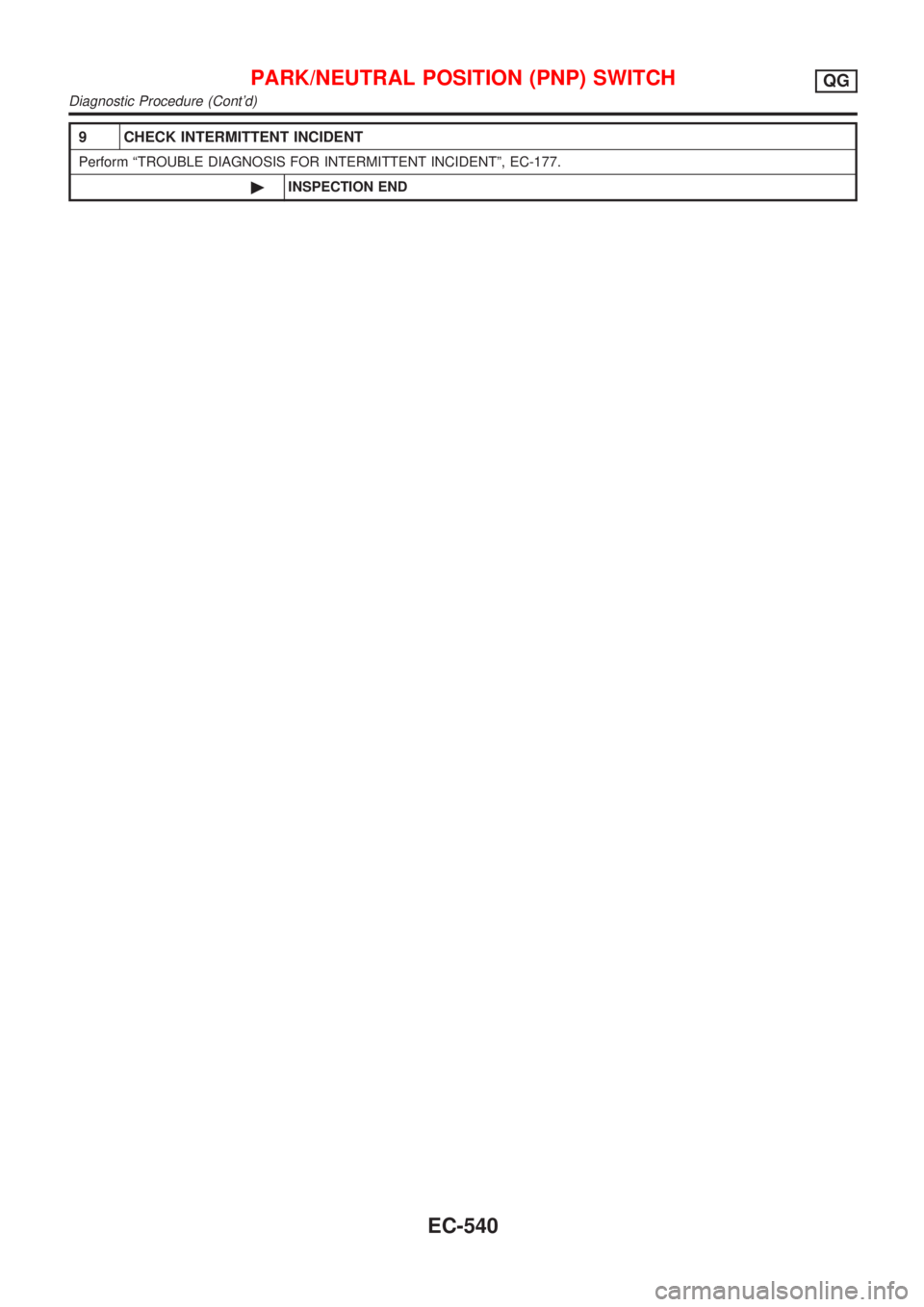

Page 1264 of 2898

NISSAN ALMERA 2001 Service Manual 9 CHECK INTERMITTENT INCIDENT Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-177. ©INSPECTION END PARK/NEUTRAL POSITION (PNP) SWITCHQG Diagnostic Procedure (Contd) EC-540
