2001 NISSAN ALMERA Service Manual

Page 593 of 2898

NISSAN ALMERA 2001  Service Manual a conventional brake system. After the power supply has resumed, the warning lamp goes off, making it possible for the ABS to be
re-engaged.
TROUBLE DIAGNOSIS Ð GENERAL DESCRIPTIONABS
Malfunction Cod

Page 594 of 2898

NISSAN ALMERA 2001  Service Manual Wheel Sensor or RotorNJBR0098DIAGNOSTIC PROCEDURENJBR0098S01(Malfunction code No. 21, 22, 25, 26, 31, 32, 35, 36 or 18 for
models with self-diagnosis function)
NOTE:
Wheel position should be identifie

Page 595 of 2898

NISSAN ALMERA 2001  Service Manual 3 CHECK WHEEL SENSOR CIRCUIT
1. Disconnect control unit connector.
2. Check resistance between control unit connector terminals.
Code No. 21 or 22 (Front RH wheel)
Terminals 4 and 5
Code No. 25 or 26

Page 596 of 2898

NISSAN ALMERA 2001  Service Manual 6 CHECK WHEEL BEARING
Check wheel bearing axial end play.
Check clearance between sensor and rotor.
Clearance:
Front
0.7 - 1.8 mm (0.028 - 0.071 in)
Rear
0.4 - 1.5 mm (0.016 - 0.059 in)
SBR333E
SBR069

Page 597 of 2898

NISSAN ALMERA 2001  Service Manual ABS Actuator Solenoid Valve or Solenoid Valve

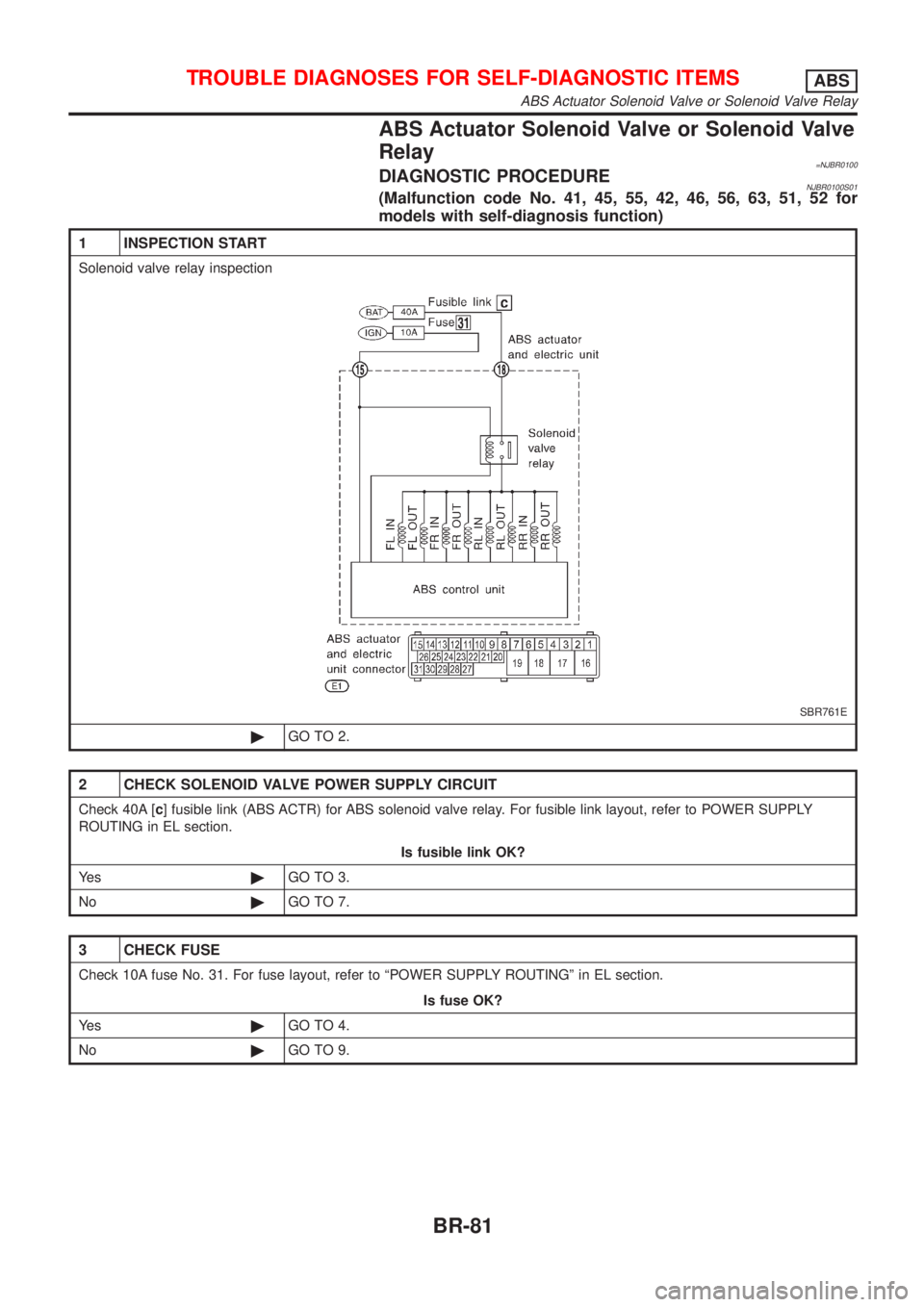

Relay
=NJBR0100DIAGNOSTIC PROCEDURENJBR0100S01(Malfunction code No. 41, 45, 55, 42, 46, 56, 63, 51, 52 for
models with self-diagnosis function)
1 INSPECTI

Page 598 of 2898

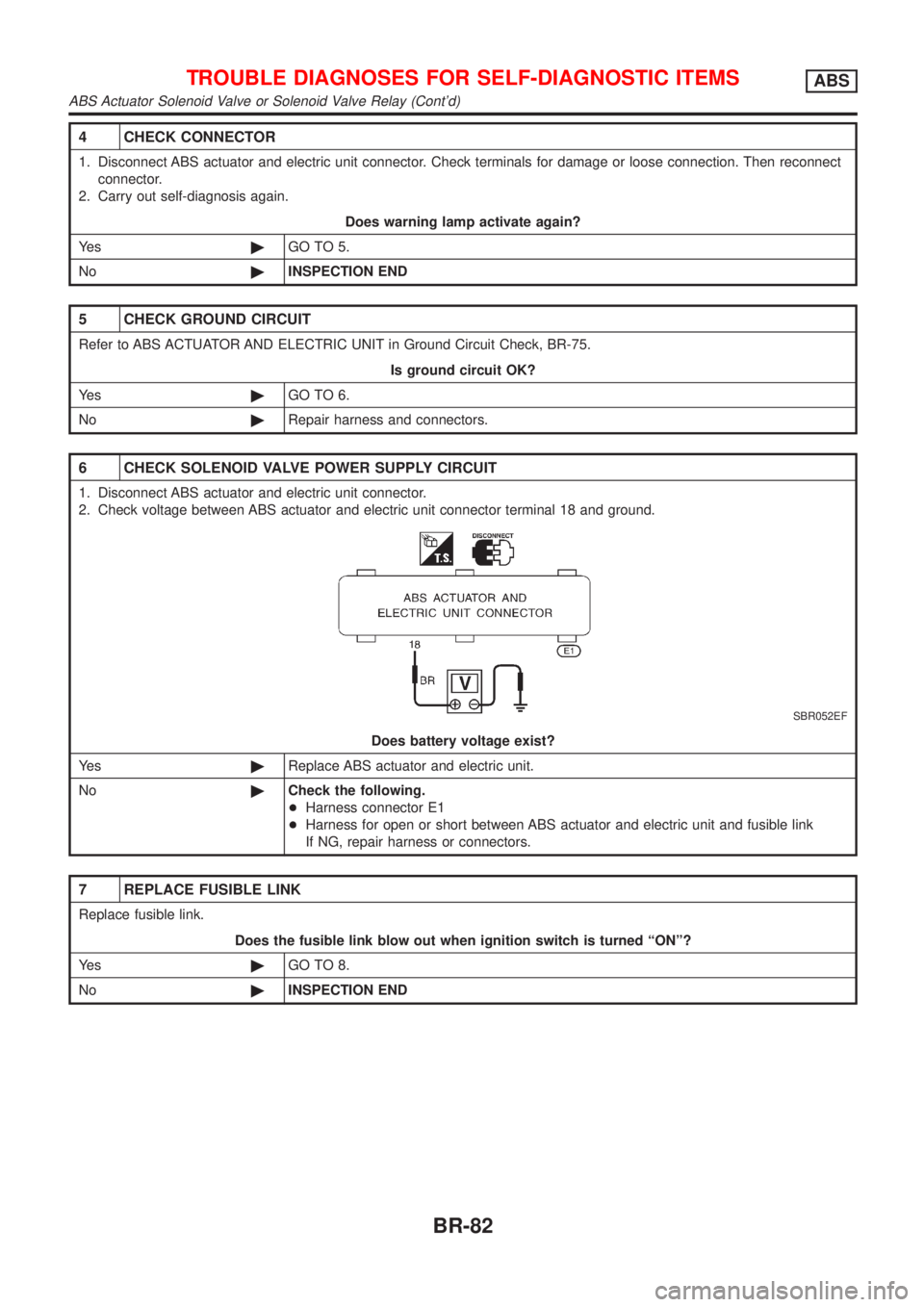

NISSAN ALMERA 2001  Service Manual 4 CHECK CONNECTOR
1. Disconnect ABS actuator and electric unit connector. Check terminals for damage or loose connection. Then reconnect
connector.
2. Carry out self-diagnosis again.
Does warning lamp

Page 599 of 2898

NISSAN ALMERA 2001  Service Manual 8 CHECK RELAY UNIT POWER SUPPLY CIRCUIT
1. Disconnect ABS actuator and electric unit connector.
2. Check continuity between ABS actuator and electric unit connector terminal 18 and ground.
SBR052EF
Do

Page 600 of 2898

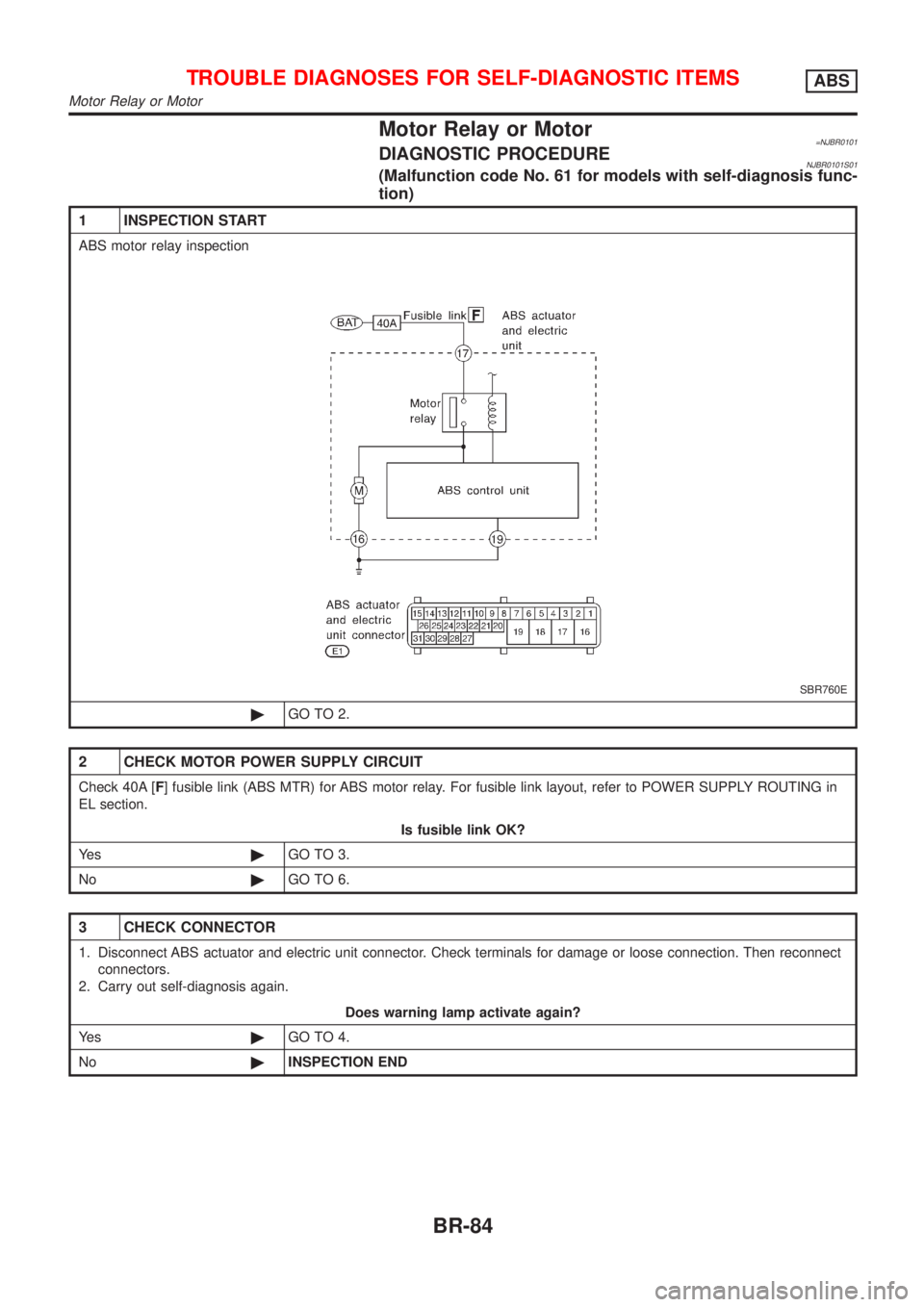

NISSAN ALMERA 2001  Service Manual Motor Relay or Motor=NJBR0101DIAGNOSTIC PROCEDURENJBR0101S01(Malfunction code No. 61 for models with self-diagnosis func-
tion)
1 INSPECTION START
ABS motor relay inspection
SBR760E
©GO TO 2.
2 CHECK
