Page 1225 of 2898

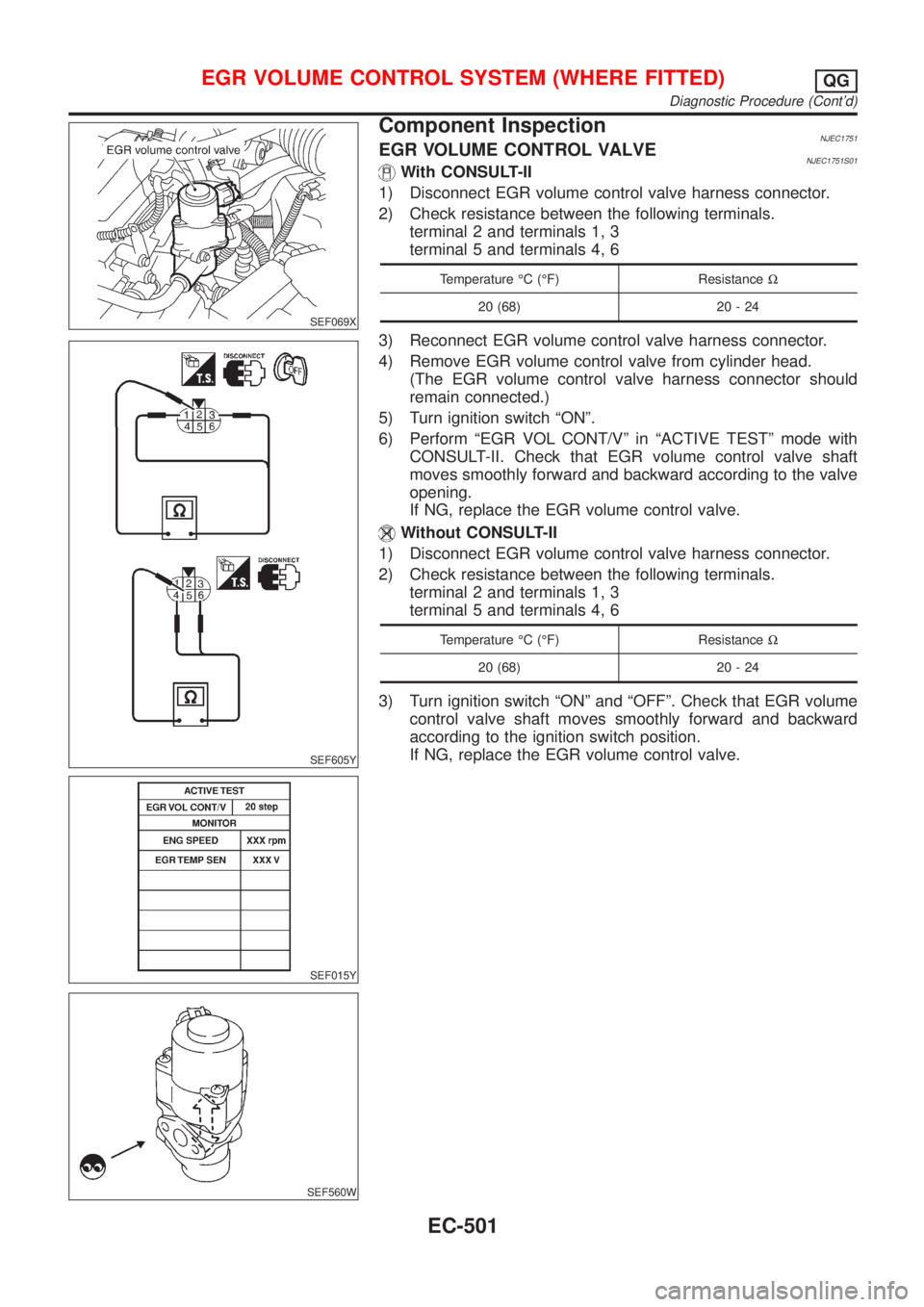

NISSAN ALMERA 2001 Service Manual SEF069X SEF605Y SEF015Y SEF560W Component InspectionNJEC1751EGR VOLUME CONTROL VALVENJEC1751S01With CONSULT-II 1) Disconnect EGR volume control valve harness connector. 2) Check resistance between the

Page 1226 of 2898

NISSAN ALMERA 2001 Service Manual SEF611Y SEF068X EGR TEMPERATURE SENSORNJEC1751S02Check resistance change and resistance value. <Reference data> EGR temperature ÉC (ÉF)Voltage VResistance MW 0 (32) 4.56 0.62 - 1.05 50 (122) 2.25 0.

Page 1227 of 2898

NISSAN ALMERA 2001 Service Manual DescriptionNJEC1752SYSTEM DESCRIPTIONNJEC1752S01 Sensor Input Signal to ECMECM func- tionActuator Crankshaft position sensor (POS) Engine speed EVAP can- ister purge controlEVAP canister purge volume

Page 1228 of 2898

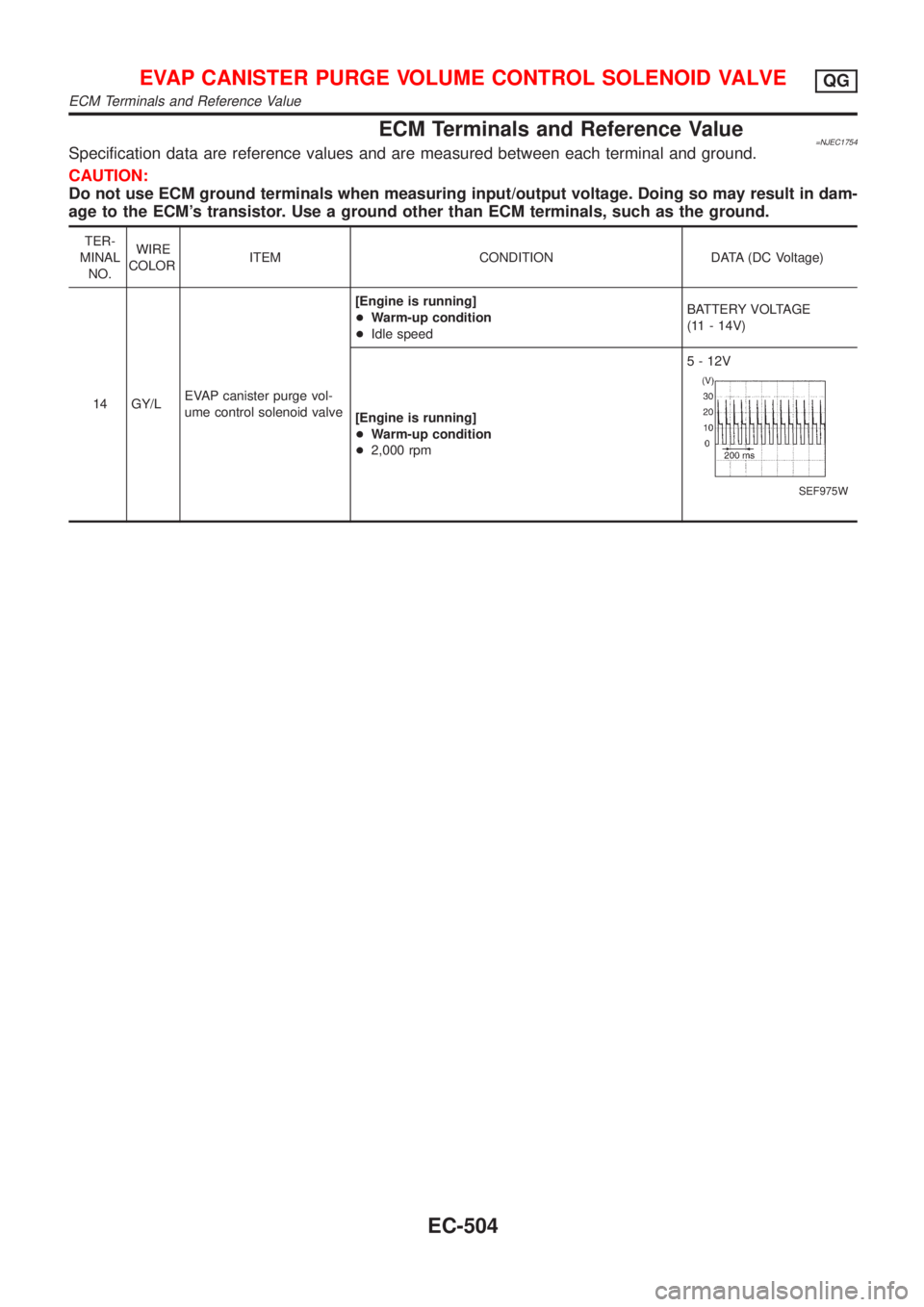

NISSAN ALMERA 2001 Service Manual ECM Terminals and Reference Value=NJEC1754Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/outpu

Page 1229 of 2898

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC1755HATCHBACK MODELS WITH ECM IN CABINNJEC1755S01 HEC969 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEQG Wiring Diagram EC-505

Page 1230 of 2898

NISSAN ALMERA 2001 Service Manual SEDAN MODELS AND HATCHBACK MODELS WITH ECM IN ENGINE COMPARTMENT NJEC1755S02 NEF332A EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEQG Wiring Diagram (Contd) EC-506

Page 1231 of 2898

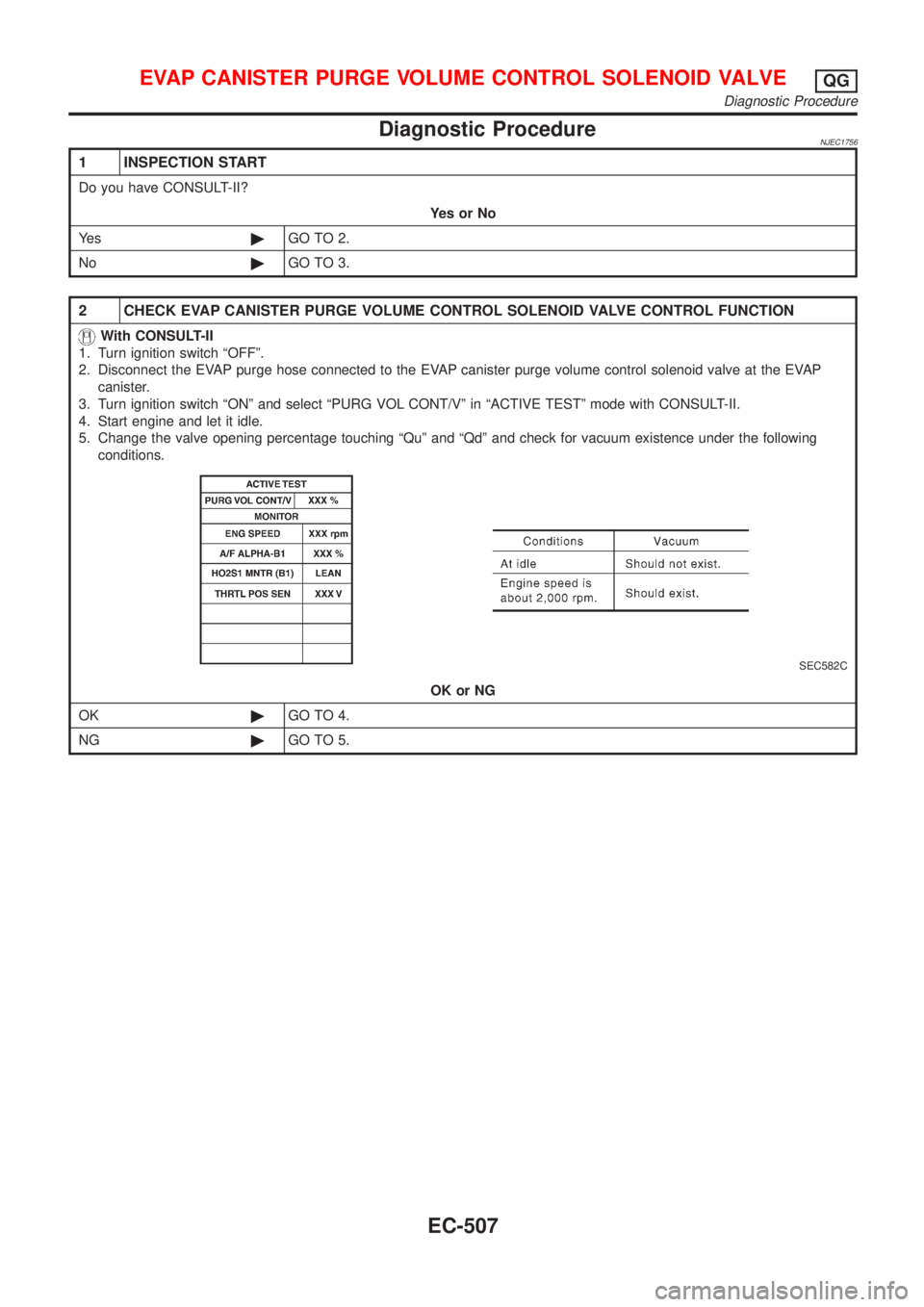

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC1756 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 3. 2 CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE CONTROL FUNCTION With CONSULT-II 1

Page 1232 of 2898

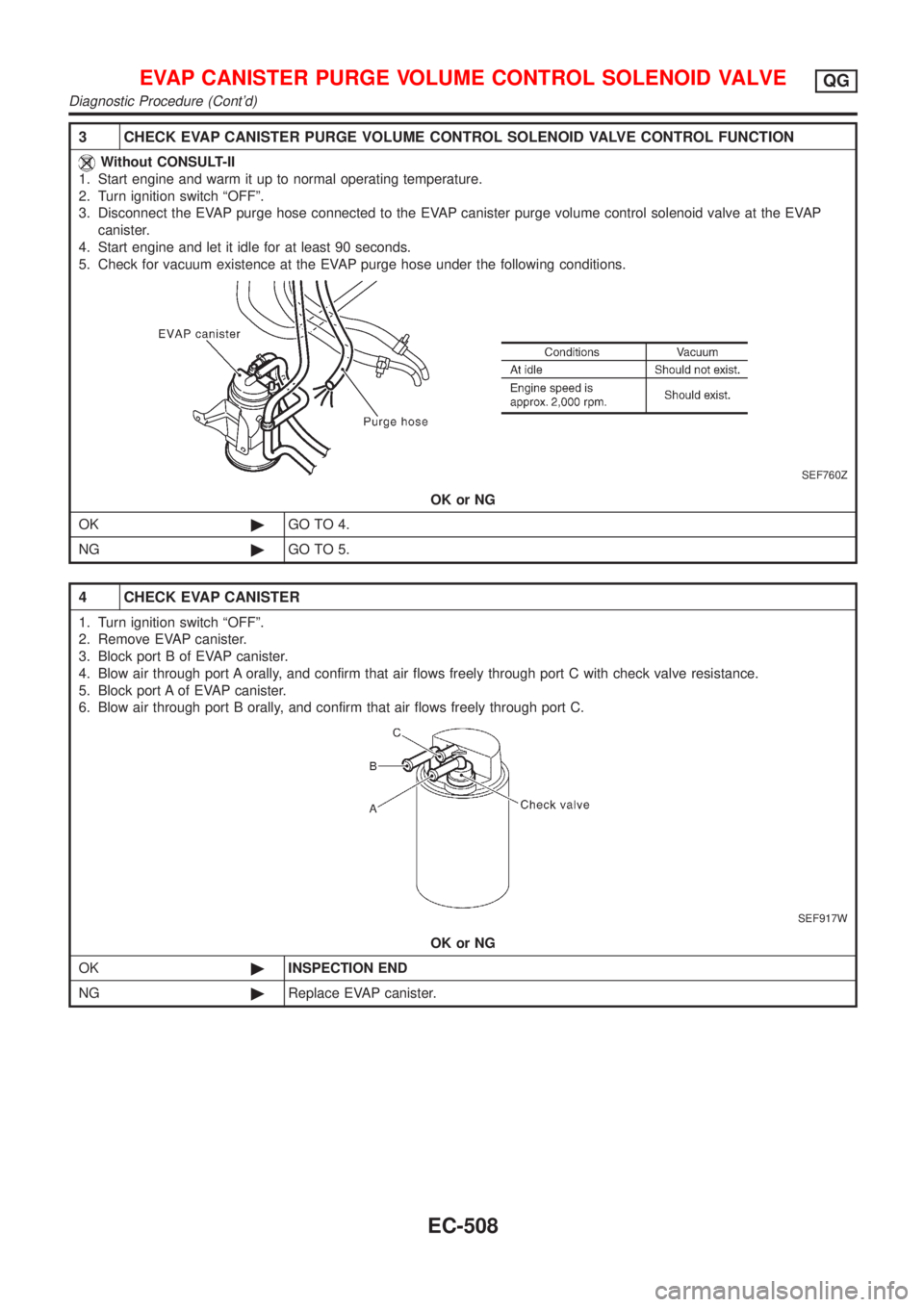

NISSAN ALMERA 2001 Service Manual 3 CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE CONTROL FUNCTION Without CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Turn ignition switch ªOFFº. 3. Discon
