Page 1457 of 2898

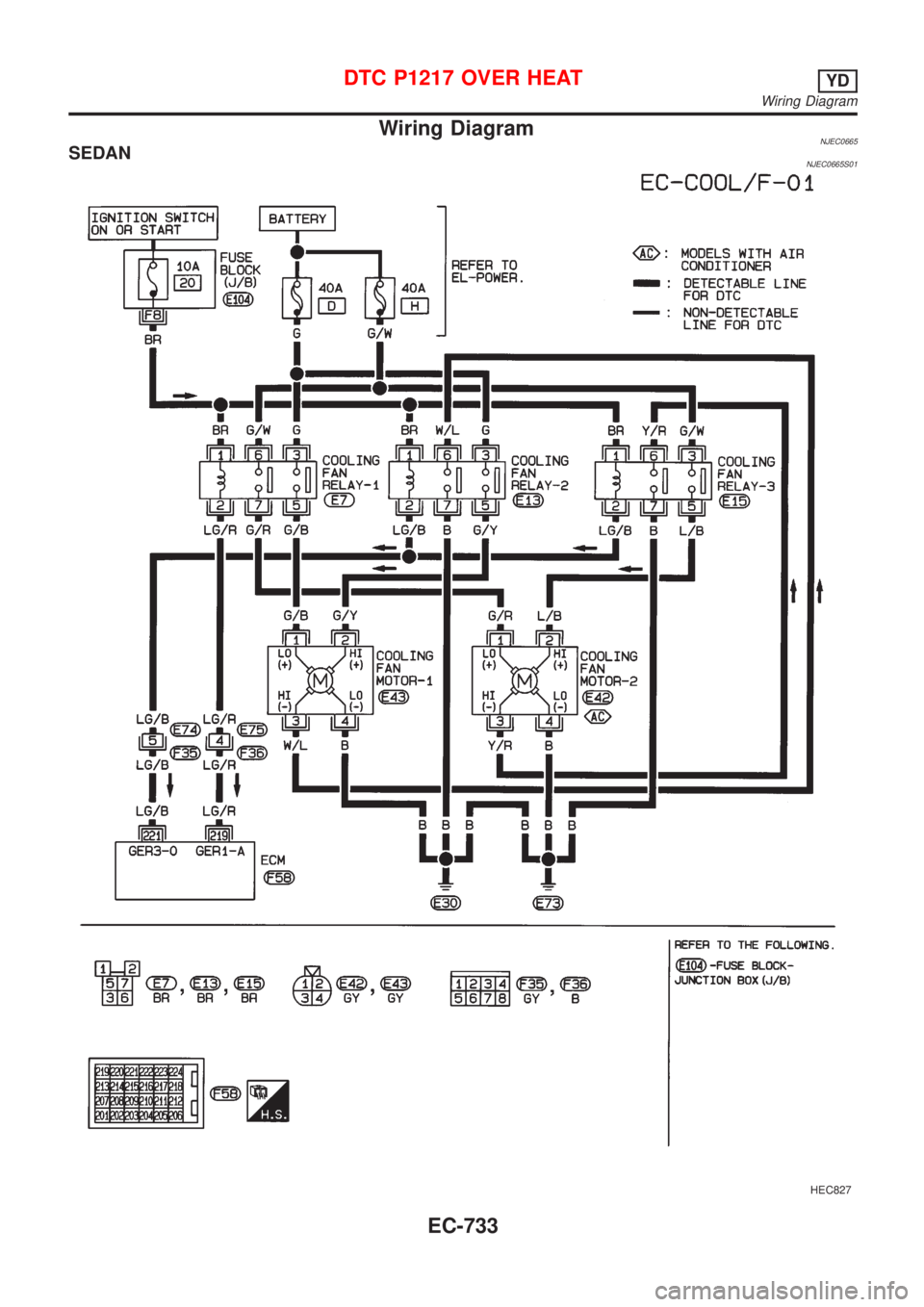

NISSAN ALMERA 2001 Service Manual Wiring DiagramNJEC0665SEDANNJEC0665S01 HEC827 DTC P1217 OVER HEATYD Wiring Diagram EC-733

Page 1458 of 2898

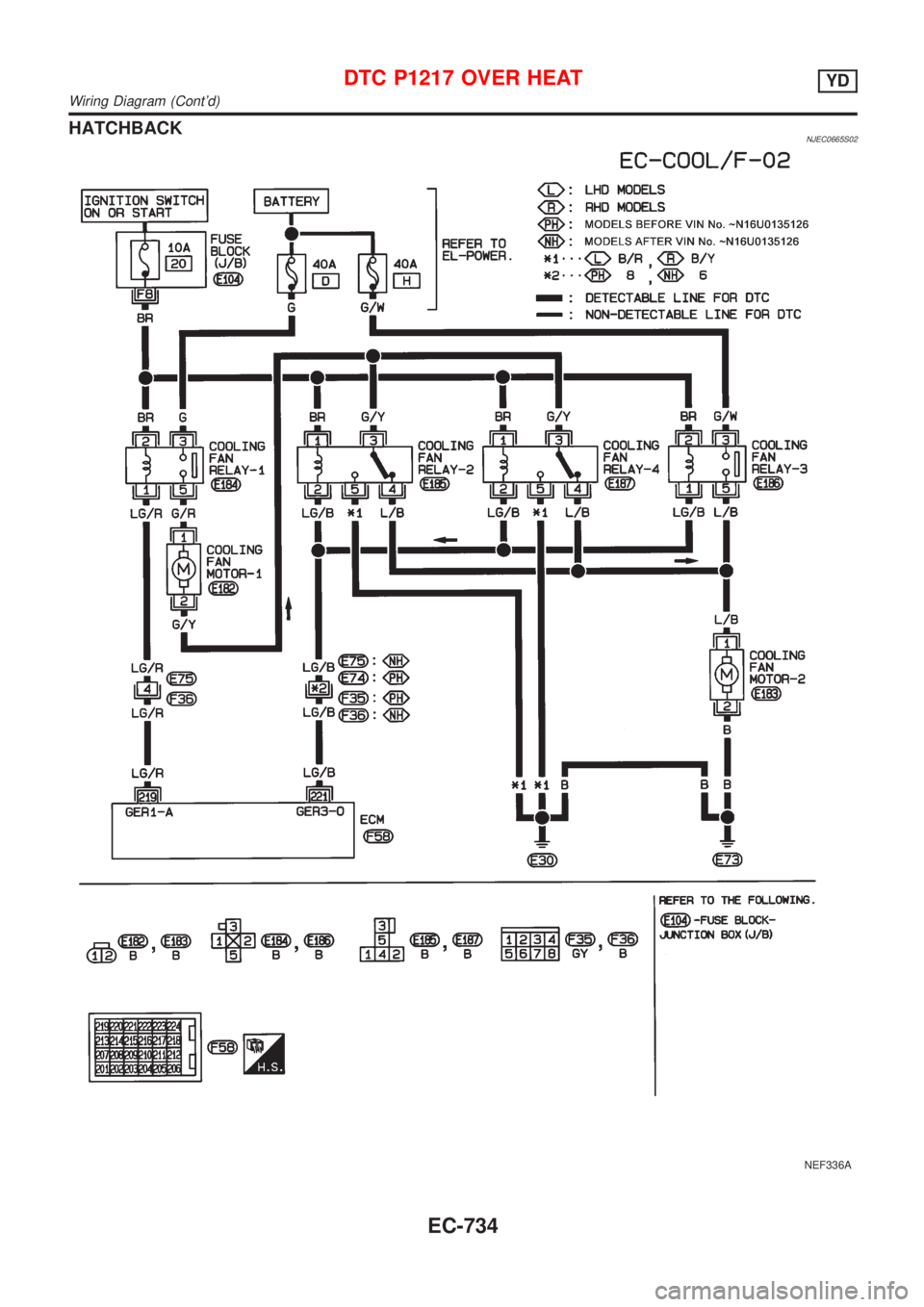

NISSAN ALMERA 2001 Service Manual HATCHBACKNJEC0665S02 NEF336A DTC P1217 OVER HEATYD Wiring Diagram (Contd) EC-734

Page 1459 of 2898

NISSAN ALMERA 2001 Service Manual Diagnostic ProcedureNJEC0666SEDANNJEC0666S03 1 INSPECTION START Do you have CONSULT-II? YesorNo Ye s©GO TO 2. No©GO TO 4. 2 CHECK COOLING FAN LOW SPEED OPERATION With CONSULT-II 1. Disconnect coolin

Page 1460 of 2898

NISSAN ALMERA 2001 Service Manual 3 CHECK COOLING FAN HIGH SPEED OPERATION With CONSULT-II 1. Turn ignition switch ªOFFº. 2. Reconnect cooling fan relays-2 and -3. 3. Turn ignition switch ªONº. 4. Perform ªCOOLING FANº in ªACTI

Page 1461 of 2898

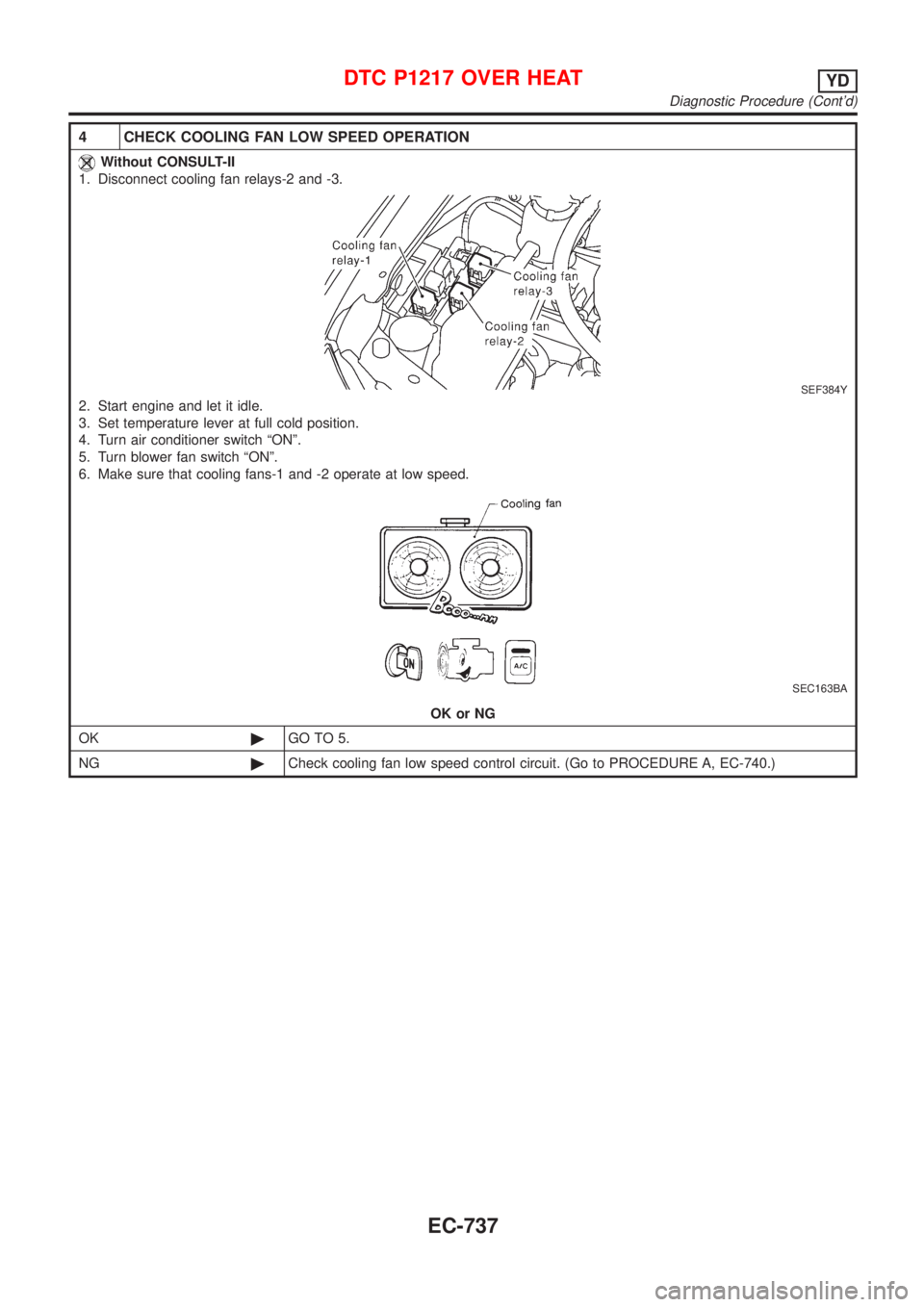

NISSAN ALMERA 2001 Service Manual 4 CHECK COOLING FAN LOW SPEED OPERATION Without CONSULT-II 1. Disconnect cooling fan relays-2 and -3. SEF384Y 2. Start engine and let it idle. 3. Set temperature lever at full cold position. 4. Turn a

Page 1462 of 2898

NISSAN ALMERA 2001 Service Manual 5 CHECK COOLING FAN HIGH SPEED OPERATION Without CONSULT-II 1. Turn ignition switch ªOFFº. 2. Reconnect cooling fan relays-2 and -3. 3. Turn air conditioner switch and blower fan switch ªOFFº. 4.

Page 1463 of 2898

NISSAN ALMERA 2001 Service Manual 8 CHECK RADIATOR CAP Apply pressure to cap with a tester and check radiator cap relief pressure. SLC755A Radiator cap relief pressure: 59 - 98 kPa (0.59 - 0.98 bar, 0.6 - 1.0 kg/cm2,9-14psi) OK or NG

Page 1464 of 2898

NISSAN ALMERA 2001 Service Manual 10 CHECK ENGINE COOLANT TEMPERATURE SENSOR 1. Remove engine coolant temperature sensor. 2. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure. SEF304X
