Page 305 of 2898

NISSAN ALMERA 2001 Service Manual 5. Large Shock. ªNº®ªRº Position=NJAT0335SYMPTOM: There is large shock when changing from ªNº to ªRº position. 1 CHECK SELF-DIAGNOSTIC RESULTS Does self-diagnosis show damage to A/T fluid tem

Page 306 of 2898

NISSAN ALMERA 2001 Service Manual 3 CHECK LINE PRESSURE Check line pressure at idle with selector lever in ªDº position. Refer to ªLine Pressure Testº, AT-84. SAT494G OK or NG OK©GO TO 4. NG©1. Remove control valve assembly. Ref

Page 307 of 2898

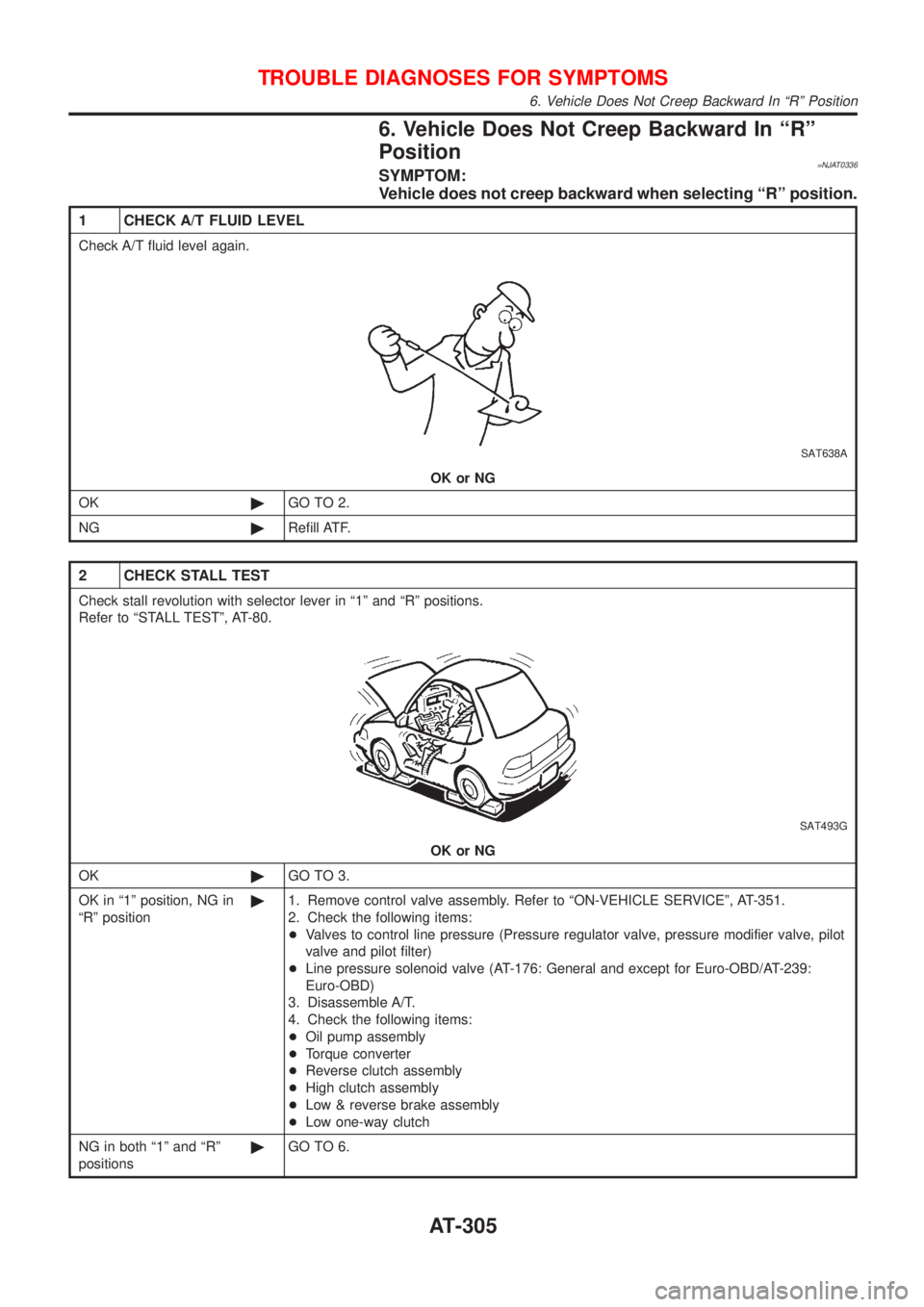

NISSAN ALMERA 2001 Service Manual 6. Vehicle Does Not Creep Backward In ªRº Position =NJAT0336SYMPTOM: Vehicle does not creep backward when selecting ªRº position. 1 CHECK A/T FLUID LEVEL Check A/T fluid level again. SAT638A OK or

Page 308 of 2898

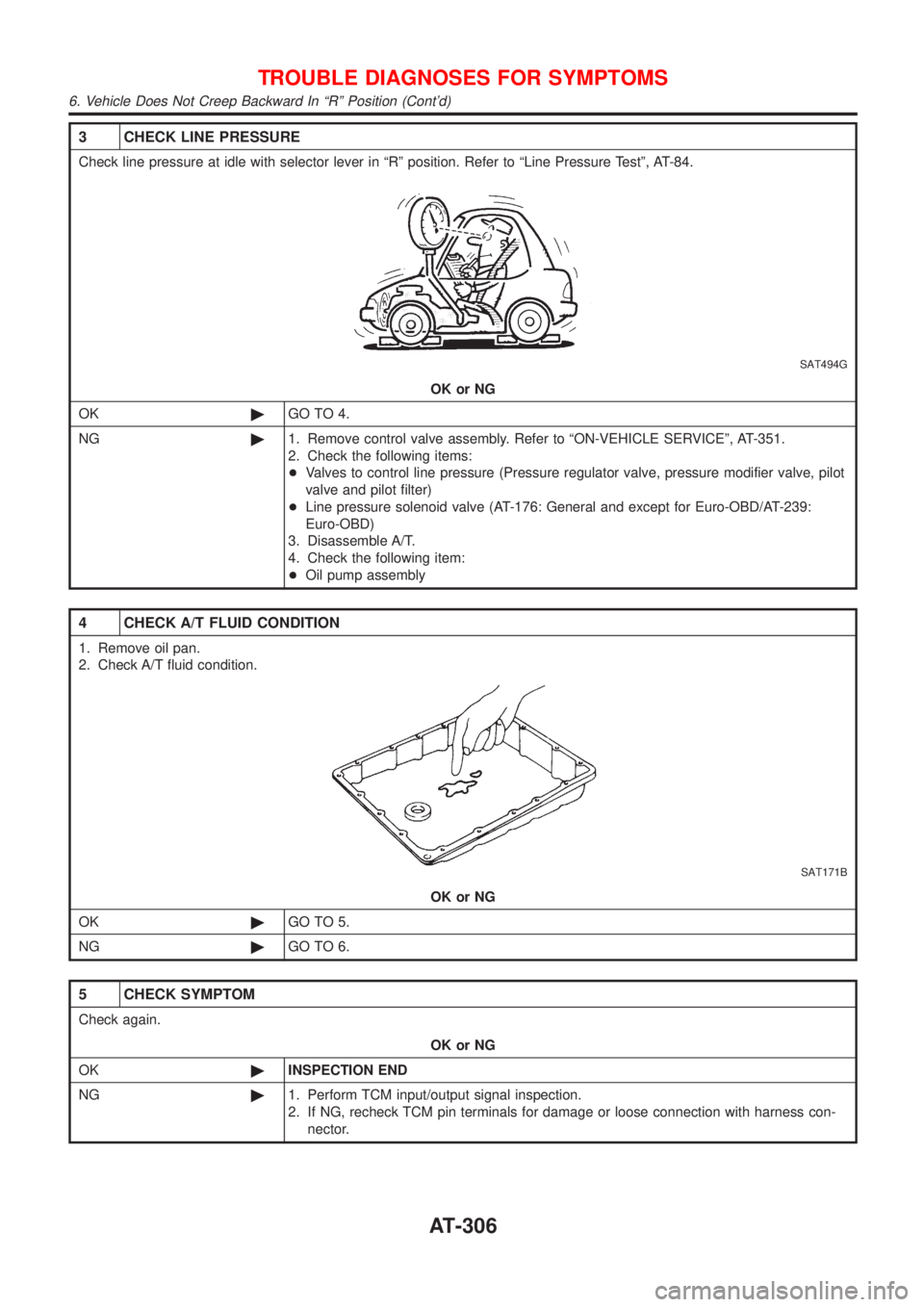

NISSAN ALMERA 2001 Service Manual 3 CHECK LINE PRESSURE Check line pressure at idle with selector lever in ªRº position. Refer to ªLine Pressure Testº, AT-84. SAT494G OK or NG OK©GO TO 4. NG©1. Remove control valve assembly. Ref

Page 309 of 2898

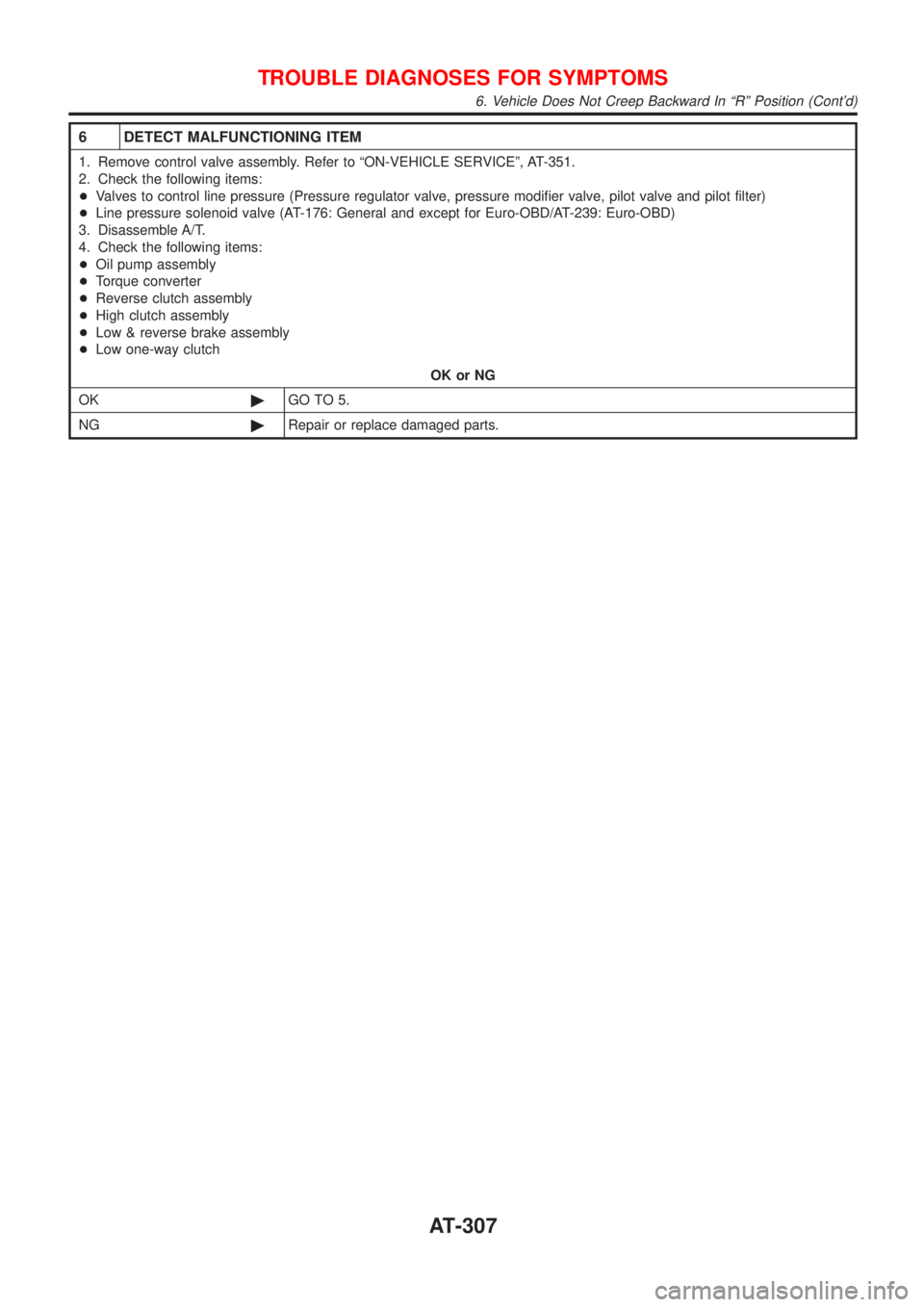

NISSAN ALMERA 2001 Service Manual 6 DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-351. 2. Check the following items: +Valves to control line pressure (Pressure regulator valve, pressu

Page 310 of 2898

NISSAN ALMERA 2001 Service Manual 7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position =NJAT0337SYMPTOM: Vehicle does not creep forward when selecting ªDº, ª2º or ª1º position. 1 CHECK A/T FLUID LEVEL Check A/T fl

Page 311 of 2898

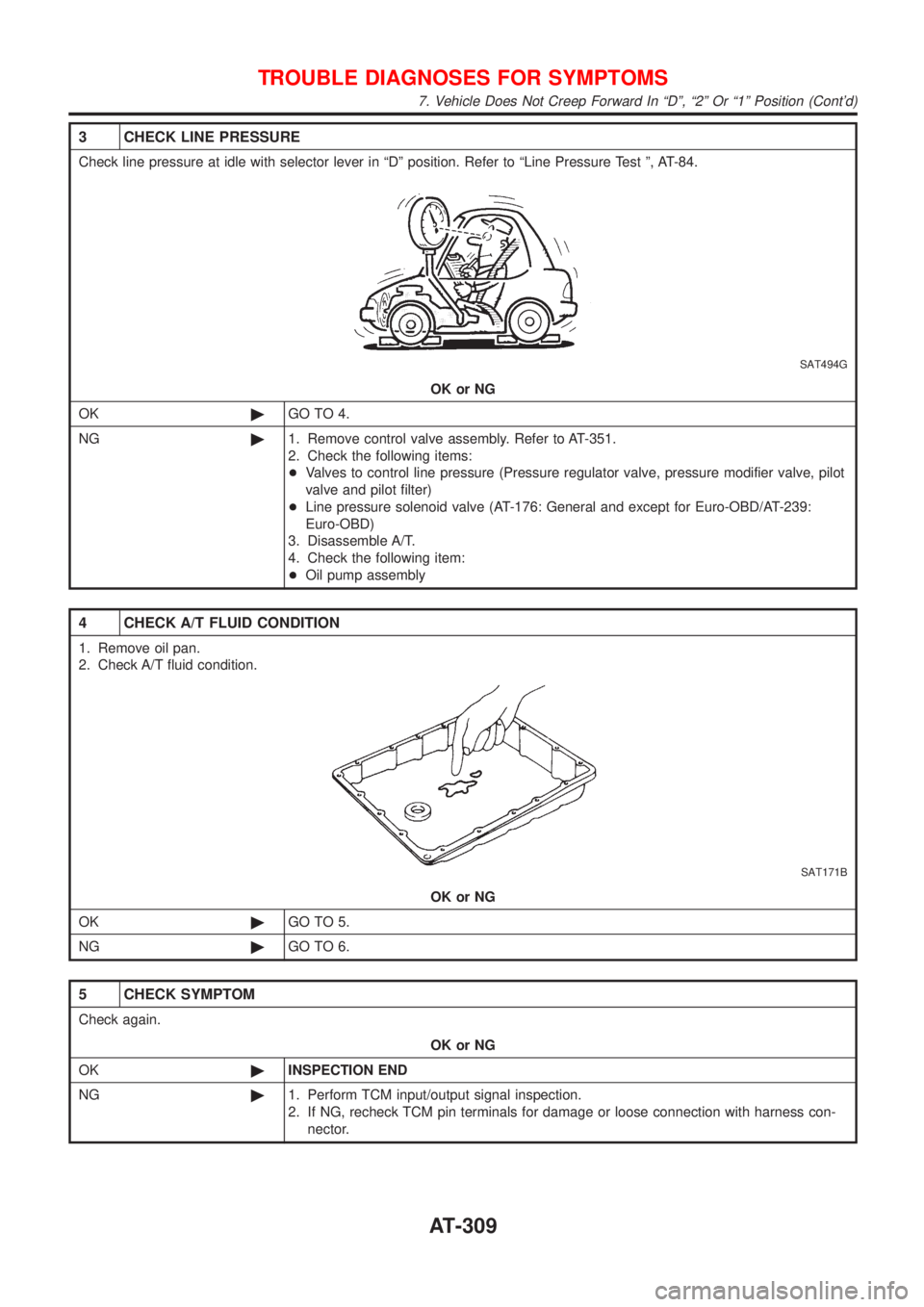

NISSAN ALMERA 2001 Service Manual 3 CHECK LINE PRESSURE Check line pressure at idle with selector lever in ªDº position. Refer to ªLine Pressure Test º, AT-84. SAT494G OK or NG OK©GO TO 4. NG©1. Remove control valve assembly. Re

Page 312 of 2898

NISSAN ALMERA 2001 Service Manual 6 DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to AT-351. 2. Check the following items: +Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
