7. Diagnostic codes are displayed on ªSELF-DIAG [CURRENT]º.
SRS701
4-door Sedan
If no malfunction is detected on ªSELF-DIAG [CURRENT]º even
though malfunction is detected in ªSRS Operation NISSAN ALMERA 2001 Service Manual SRS772
7. Diagnostic codes are displayed on ªSELF-DIAG [CURRENT]º.
SRS701
4-door Sedan
If no malfunction is detected on ªSELF-DIAG [CURRENT]º even
though malfunction is detected in ªSRS Operation](/manual-img/5/57348/w960_57348-2768.png)
SRS772
7. Diagnostic codes are displayed on ªSELF-DIAG [CURRENT]º.
SRS701
4-door Sedan
If no malfunction is detected on ªSELF-DIAG [CURRENT]º even
though malfunction is detected in ªSRS Operation Checkº, check
the battery voltage.
If the battery voltage is less than 9V, charge the battery. Then go
to DIAGNOSTIC PROCEDURE 3, page RS-66.
If the battery voltage is OK, go to DIAGNOSTIC PROCEDURE 4,
page RS-68, to diagnose the following cases:
+Self-diagnostic result ªSELF-DIAG [PAST]º (previously stored
in the memory) might not be erased after repair.
+The SRS system malfunctions intermittently.
Hatchback
If no malfunction is detected on ªSELF-DIAG [CURRENT]º but mal-
function is indicated by the ªAIR BAGº warning lamp, go to DIAG-
NOSTIC PROCEDURE 4, page RS-68, to diagnose the following
situations:
+Self-diagnostic result ªSELF-DIAG [PAST]º (previously stored
in the memory) might not be erased after repair.
+The SRS system malfunctions intermittently.
8. Touch ªPRINTº.
9. Compare diagnostic codes to ªCONSULT-II Diagnostic Code
Chartº, page RS-62 (4-door Sedan) or RS-64 (Hatchback).
10. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears in order to return to User mode from Diagnosis mode.
11. Turn ignition switch ªOFFº, then turn off and disconnect
CONSULT-II, and disconnect both battery cables.
12. Repair the system as outlined by the ªRepair orderº in ªCON-
SULT-II Diagnostic Code Chartº, that corresponds to the self-
diagnostic result. For replacement procedure of component
parts, refer to RS-26.
13. After repairing the system, go to DIAGNOSTIC PROCEDURE
3, page RS-66 for final checking.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-61
Page 2770 of 2898
![NISSAN ALMERA 2001 Service Manual CONSULT-II Diagnostic Code Chart (ªSELF-DIAG
[CURRENT]º)/4-door Sedan
NJRS0048S0101
Diagnostic item ExplanationRepair order
ªRecheck SRS at each replace-
ment.º
NO DTC IS
DETECTED.When malfunction NISSAN ALMERA 2001 Service Manual CONSULT-II Diagnostic Code Chart (ªSELF-DIAG
[CURRENT]º)/4-door Sedan
NJRS0048S0101
Diagnostic item ExplanationRepair order
ªRecheck SRS at each replace-
ment.º
NO DTC IS
DETECTED.When malfunction](/manual-img/5/57348/w960_57348-2769.png)
CONSULT-II Diagnostic Code Chart (ªSELF-DIAG
[CURRENT]º)/4-door Sedan
NJRS0048S0101
Diagnostic item ExplanationRepair order
ªRecheck SRS at each replace-
ment.º
NO DTC IS
DETECTED.When malfunction is
indicated by the ªAIR
BAGº warning lamp in
User mode+Low battery voltage (Less than 9V)+Go to DIAGNOSTIC PROCEDURE
3 (RS-66) after charging battery.
+Self-diagnostic result ªSELF-DIAG
[PAST]º (previously stored in the
memory) might not be erased after
repair.
+Intermittent malfunction has been
detected in the past.+Go to DIAGNOSTIC PROCEDURE
4 (RS-68).
+No malfunction is detected.+Go to DIAGNOSTIC PROCEDURE
3 (RS-66).
AIRBAG MODULE
[OPEN]+Driver air bag module circuit is open. (including the spiral
cable)1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace driver air bag module.
(Before disposal, it must be
deployed.)
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness.
AIRBAG MODULE
[VB-SHORT]+Driver air bag module circuit is shorted to a power supply
circuit. (including the spiral cable)1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the spiral cable.
4. Replace driver air bag module.
(Before disposal, it must be
deployed.)
5. Replace the diagnosis sensor unit.
6. Replace the related harness. AIRBAG MODULE
[GND-SHORT]+Driver air bag module circuit is shorted to ground. (including
the spiral cable)
AIRBAG MODULE
[SHORT]+Driver air bag module circuits are shorted to each other.
ASSIST A/B MODULE
[VB-SHORT]+Front passenger air bag module circuit is shorted to a power
supply circuit.1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front passenger air bag
module. (Before disposal, it must
be deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. ASSIST A/B MODULE
[OPEN]+Front passenger air bag module circuit is open.
ASSIST A/B MODULE
[GND-SHORT]+Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]+Front passenger air bag module circuits are shorted to each
other.
SIDE MODULE LH
[OPEN]+Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front LH side air bag mod-
ule.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE LH
[VB-SHORT]+Front LH side air bag module circuit is shorted to a power
supply circuit.
SIDE MODULE LH
[GND-SHORT]+Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]+Front LH side air bag module circuits are shorted to each
other.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-62
Page 2771 of 2898
![NISSAN ALMERA 2001 Service Manual Diagnostic item ExplanationRepair order
ªRecheck SRS at each replace-
ment.º
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. R NISSAN ALMERA 2001 Service Manual Diagnostic item ExplanationRepair order
ªRecheck SRS at each replace-
ment.º
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. R](/manual-img/5/57348/w960_57348-2770.png)
Diagnostic item ExplanationRepair order
ªRecheck SRS at each replace-
ment.º
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front RH side air bag mod-
ule.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE RH
[VB-SHORT]+Front RH side air bag module circuit is shorted to a power
supply circuit.
SIDE MODULE RH
[GND-SHORT]+Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]+Front RH side air bag module circuits are shorted to each
other.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]+LH side air bag (satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]+RH side air bag (satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[OPEN/VB-SHORT]+The circuit for front LH seat belt pre-tensioner is open or
shorted to a power supply circuit.1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat belt.
(Before disposal, it must be deacti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[GND-SHORT]+The circuit for front LH seat belt pre-tensioner is shorted to
ground.
PRE-TEN FRONT RH
[OPEN/VB-SHORT]+The circuit for front RH seat belt pre-tensioner is open or
shorted to some power supply circuit.1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat belt.
(Before disposal, it must be deacti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[GND-SHORT]+The circuit for front RH seat belt pre-tensioner is shorted to
ground.
CONTROL UNIT+Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the diagnosis sensor unit.
* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated
using the air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, proceed to the next
step. When malfunction is eliminated, further repair work is not required.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-63
Page 2772 of 2898
![NISSAN ALMERA 2001 Service Manual CONSULT-II DIAGNOSTIC CODE CHART (ªSELF-DIAG
[CURRENT]º)/Hatchback
NJRS0048S0102
Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
NO DTC IS DETECTED When malfunction is indic NISSAN ALMERA 2001 Service Manual CONSULT-II DIAGNOSTIC CODE CHART (ªSELF-DIAG
[CURRENT]º)/Hatchback
NJRS0048S0102
Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
NO DTC IS DETECTED When malfunction is indic](/manual-img/5/57348/w960_57348-2771.png)

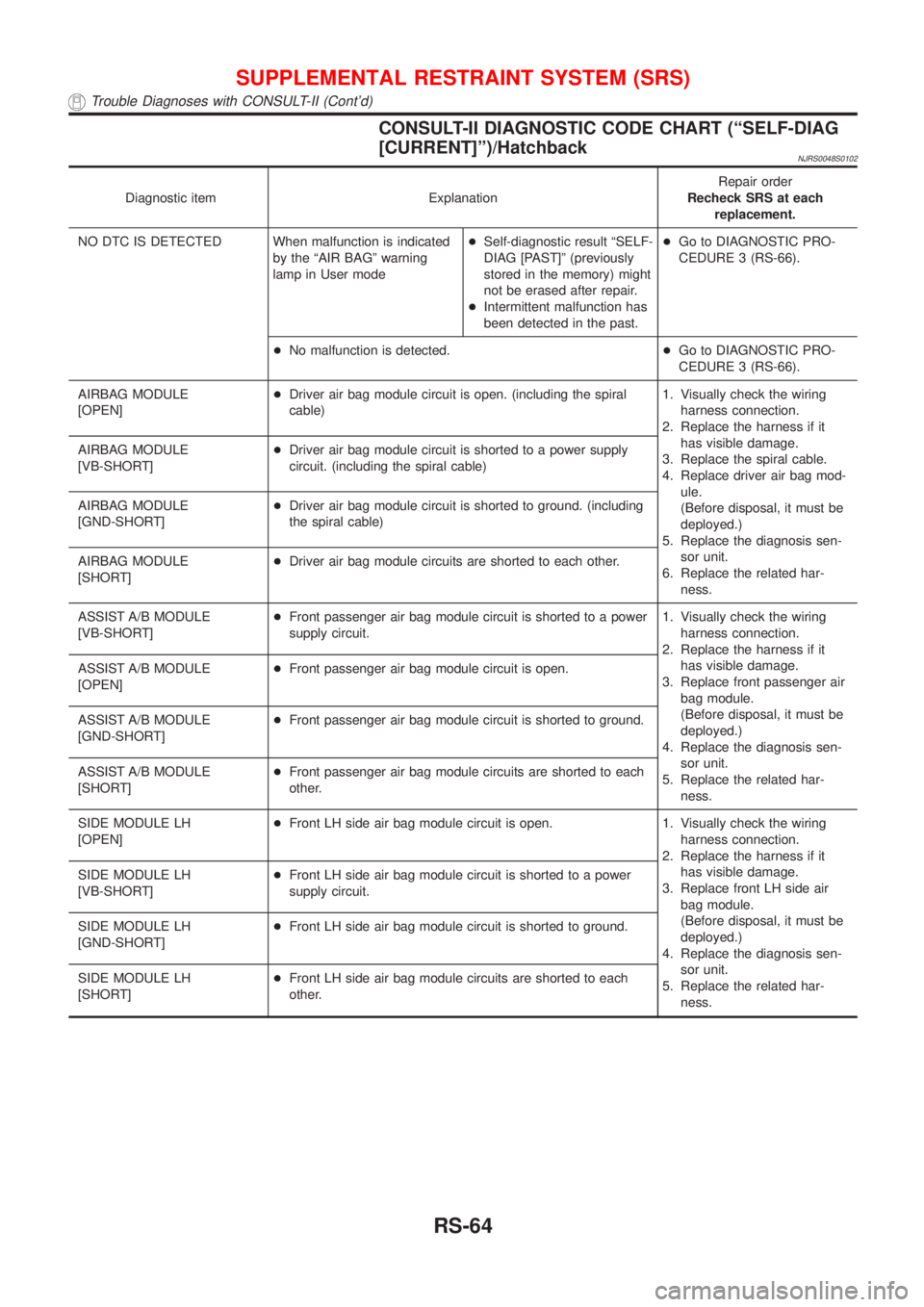

CONSULT-II DIAGNOSTIC CODE CHART (ªSELF-DIAG
[CURRENT]º)/Hatchback
NJRS0048S0102
Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
NO DTC IS DETECTED When malfunction is indicated
by the ªAIR BAGº warning
lamp in User mode+Self-diagnostic result ªSELF-
DIAG [PAST]º (previously
stored in the memory) might
not be erased after repair.
+Intermittent malfunction has
been detected in the past.+Go to DIAGNOSTIC PRO-
CEDURE 3 (RS-66).
+No malfunction is detected.+Go to DIAGNOSTIC PRO-
CEDURE 3 (RS-66).
AIRBAG MODULE
[OPEN]+Driver air bag module circuit is open. (including the spiral
cable)1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace the spiral cable.
4. Replace driver air bag mod-
ule.
(Before disposal, it must be
deployed.)
5. Replace the diagnosis sen-
sor unit.
6. Replace the related har-
ness. AIRBAG MODULE
[VB-SHORT]+Driver air bag module circuit is shorted to a power supply
circuit. (including the spiral cable)
AIRBAG MODULE
[GND-SHORT]+Driver air bag module circuit is shorted to ground. (including
the spiral cable)
AIRBAG MODULE
[SHORT]+Driver air bag module circuits are shorted to each other.
ASSIST A/B MODULE
[VB-SHORT]+Front passenger air bag module circuit is shorted to a power
supply circuit.1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace front passenger air
bag module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. ASSIST A/B MODULE
[OPEN]+Front passenger air bag module circuit is open.
ASSIST A/B MODULE
[GND-SHORT]+Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]+Front passenger air bag module circuits are shorted to each
other.
SIDE MODULE LH
[OPEN]+Front LH side air bag module circuit is open. 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace front LH side air
bag module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. SIDE MODULE LH
[VB-SHORT]+Front LH side air bag module circuit is shorted to a power
supply circuit.
SIDE MODULE LH
[GND-SHORT]+Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]+Front LH side air bag module circuits are shorted to each
other.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-64
Page 2773 of 2898
![NISSAN ALMERA 2001 Service Manual Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is open. 1. Visually check the wiring
harness connection.
2. Replace NISSAN ALMERA 2001 Service Manual Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is open. 1. Visually check the wiring
harness connection.
2. Replace](/manual-img/5/57348/w960_57348-2772.png)
Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
SIDE MODULE RH
[OPEN]+Front RH side air bag module circuit is open. 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace front RH side air
bag module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. SIDE MODULE RH
[VB-SHORT]+Front RH side air bag module circuit is shorted to a power
supply circuit.
SIDE MODULE RH
[GND-SHORT]+Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]+Front RH side air bag module circuits are shorted to each
other.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]+LH side air bag (satellite) sensor 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace the LH side air bag
(satellite) sensor.
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]+RH side air bag (satellite) sensor 1. Visually check the wiring
harness connection.
2. Replace the harness if it
has visible damage.
3. Replace the RH side air
bag (satellite) sensor.
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness.
PRE-TEN FRONT LH
[OPEN/VB-SHORT]+The circuit for the front LH pre-tensioner is open or shorted
to a power supply circuit.1. Visually check the wiring
harness connections.
2. Replace the harness if it
has visible damage.
3. Replace the front LH seat
belt.
(Before disposal, it must be
deactivated.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. PRE-TEN FRONT LH
[GND-SHORT]+The circuit for the front LH pre-tensioner is shorted to
ground.
PRE-TEN FRONT RH
[OPEN/VB-SHORT]+The circuit for the front RH pre-tensioner is open or shorted
to a power supply circuit.1. Visually check the wiring
harness connections.
2. Replace the harness if it
has visible damage.
3. Replace the front RH seat
belt.
(Before disposal, it must be
deactivated.)
4. Replace the diagnosis sen-
sor unit.
5. Replace the related har-
ness. PRE-TEN FRONT RH
[GND-SHORT]+The circuit for the front RH pre-tensioner is shorted to
ground.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-65
Page 2774 of 2898

Diagnostic item ExplanationRepair order
Recheck SRS at each
replacement.
CONTROL UNIT+Low battery voltage (Less than 9V)+Go to DIAGNOSTIC PRO-
CEDURE 3 (RS-66) after
charging battery.
+Diagnosis sensor unit is malfunctioning. 1. Visually check wiring har-
ness connections.
2. Replace the harness if it
has visible damage.
3. Replace diagnosis sensor
unit.
4. Replace the related har-
ness.
* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated
using the air bag or seat belt warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, pro-
ceed to the next step. When malfunction is eliminated, further repair work is not required.
SRS834-A
SRS872
DIAGNOSTIC PROCEDURE 3NJRS0048S02Final checking after repairing SRS by using CONSULT-II Ð
Diagnosis mode
1. After repairing SRS, connect both battery cables.
2. Connect CONSULT-II to data link connector.
3. Turn ignition switch from ªOFFº to ªONº.
SRS695
4. Touch ªSTARTº.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-66
Page 2775 of 2898
SRS771
5. Touch ªAIR BAGº.
SRS697
6. Touch ªSELF-DIAG [CURRENT]º.
SRS701
7. If no malfunction is detected on ªSELF-DIAG [CURRENT]º,
repair of SRS is completed. Go to step 8.
If any malfunction is displayed on ªSELF-DIAG [CURRENT]º,
the malfunctioning part is not repaired completely or another
malfunctioning part is detected. Go to DIAGNOSTIC PROCE-
DURE 2, page RS-60, and repair malfunctioning part com-
pletely.
SRS773
8. Touch ªERASEº.
NOTE:
Touch ªERASEº to clear the memory of the malfunction
(ªSELF-DIAG [PAST]º).
If the memory of the malfunction in ªSELF-DIAG [PAST]º is not
erased, the User mode shows the system malfunction by the
operation of the warning lamp even if the malfunction is repaired
completely.
SRS697
9. Touch ªBACKº key of CONSULT-II to ªSELECT SYSTEMº
screen. Touch ªSELF-DIAG [PAST]º.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-67
Page 2776 of 2898
![NISSAN ALMERA 2001 Service Manual SRS702
10. Check that no malfunction is detected on ªSELF-DIAG
[PAST]º.
11. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears in order to return to User mode from Diagnosis mode.
12. NISSAN ALMERA 2001 Service Manual SRS702
10. Check that no malfunction is detected on ªSELF-DIAG
[PAST]º.
11. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears in order to return to User mode from Diagnosis mode.
12.](/manual-img/5/57348/w960_57348-2775.png)
SRS702
10. Check that no malfunction is detected on ªSELF-DIAG
[PAST]º.
11. Touch ªBACKº key of CONSULT-II until ªSELECT SYSTEMº
appears in order to return to User mode from Diagnosis mode.
12. Turn ignition switch ªOFFº, then turn off and disconnect CON-
SULT-II.
13. Go to ªSRS Operation Checkº, page RS-59 to check SRS
operation by using ªAIR BAGº warning lamp with User mode.
DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)
NJRS0048S03Inspecting SRS malfunctioning record
1 CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING
Is it the first time for maintenance of SRS?
YesorNo
Ye s©Go to DIAGNOSTIC PROCEDURE 5 (RS-68).
No©Self-diagnostic result ªSELF-DIAG [PAST]º (previously stored in the memory) might not
be erased after repair. Go to DIAGNOSTIC PROCEDURE 3, step 8 (RS-66).
SRS834-A
SRS872
DIAGNOSTIC PROCEDURE 5NJRS0048S04Inspecting SRS intermittent malfunction by using CONSULT-II
Ð Diagnosis mode
1. Turn ignition switch ªOFFº.
2. Connect CONSULT-II to data link connector.
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Trouble Diagnoses with CONSULT-II (Cont'd)
RS-68
