2001 NISSAN ALMERA Service Manual

Page 1961 of 2898

NISSAN ALMERA 2001  Service Manual Remote Controller Battery Replacement/SedanNJEL0479
SEL241X
System Description/HatchbackNJEL0480FUNCTIONNJEL0480S01Multi-remote control system has the following function.
+Door lock (and set super loc

Page 1962 of 2898

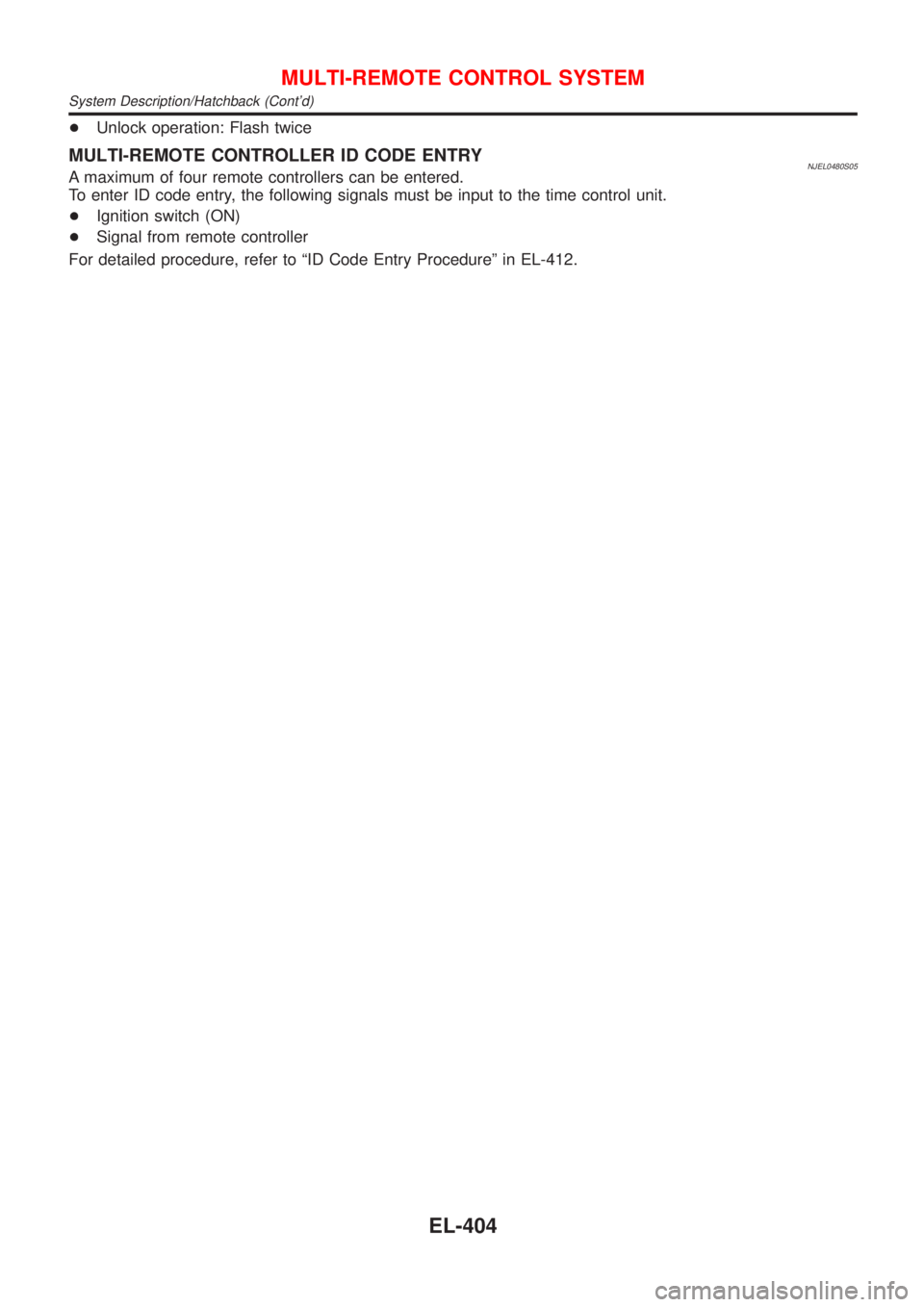

NISSAN ALMERA 2001  Service Manual +Unlock operation: Flash twice
MULTI-REMOTE CONTROLLER ID CODE ENTRYNJEL0480S05A maximum of four remote controllers can be entered.
To enter ID code entry, the following signals must be input to the t

Page 1963 of 2898

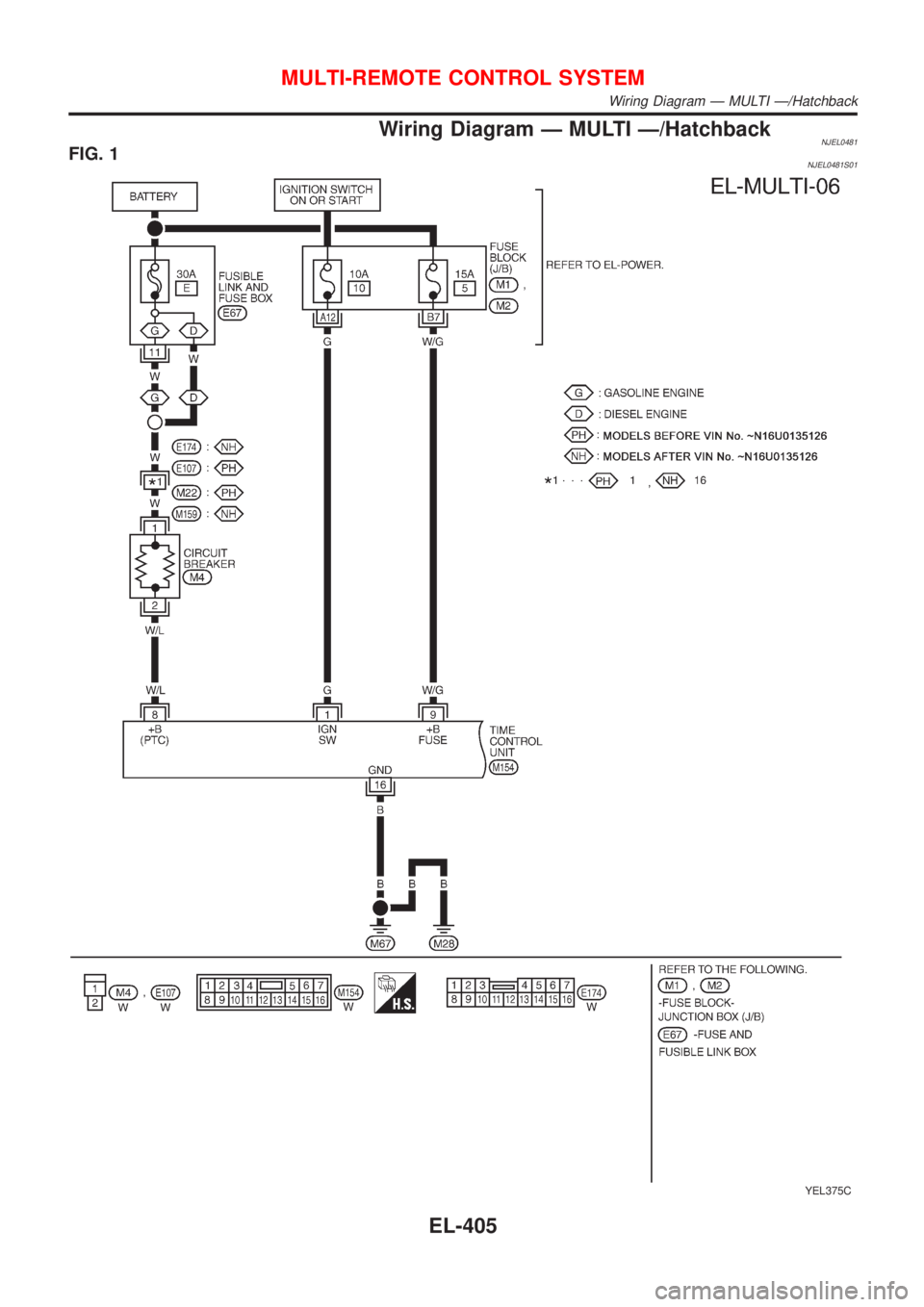

NISSAN ALMERA 2001  Service Manual Wiring Diagram Ð MULTI Ð/HatchbackNJEL0481FIG. 1NJEL0481S01
YEL375C
MULTI-REMOTE CONTROL SYSTEM
Wiring Diagram Ð MULTI Ð/Hatchback
EL-405

Page 1964 of 2898

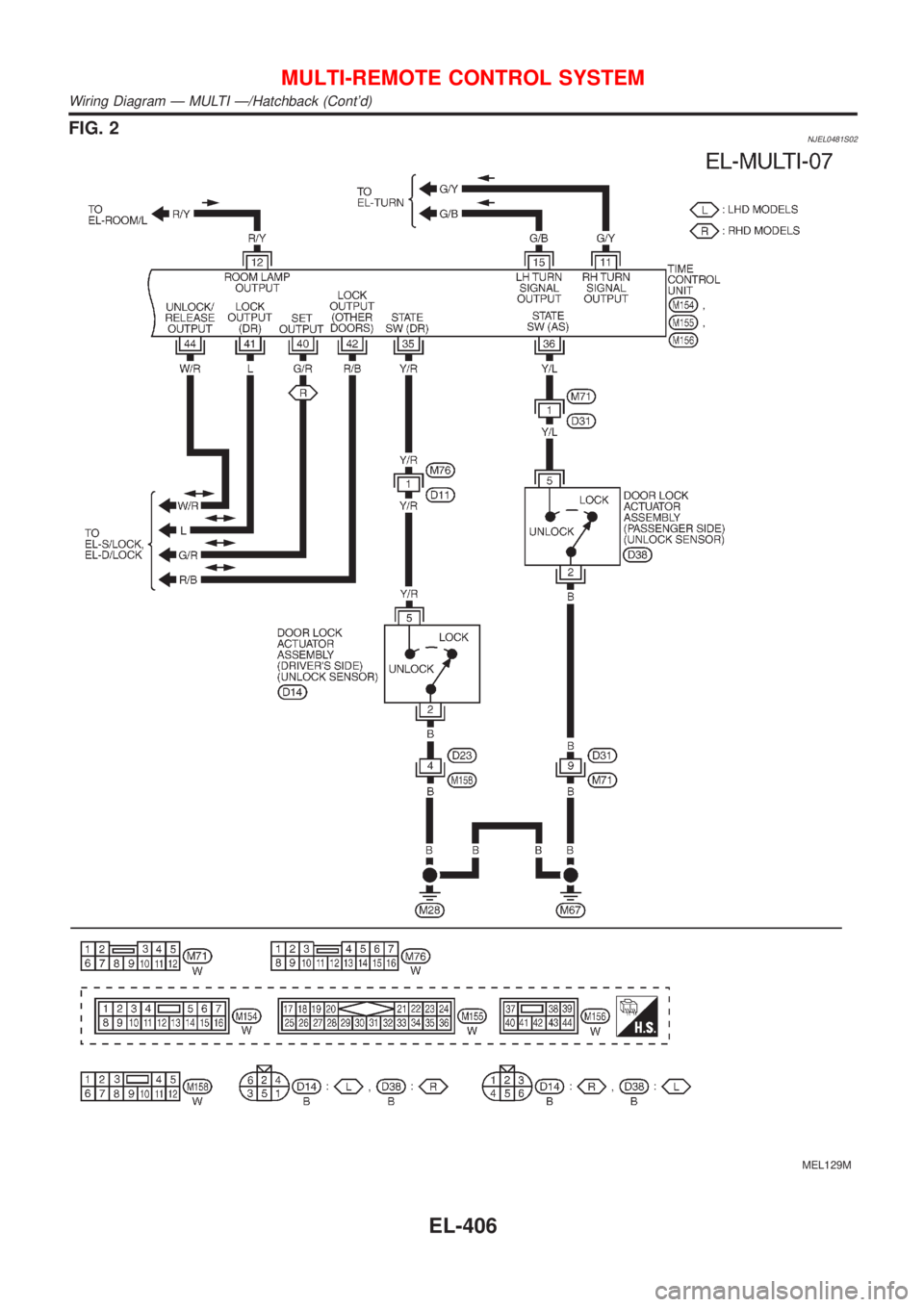

NISSAN ALMERA 2001  Service Manual FIG. 2NJEL0481S02
MEL129M
MULTI-REMOTE CONTROL SYSTEM
Wiring Diagram Ð MULTI Ð/Hatchback (Contd)
EL-406

Page 1965 of 2898

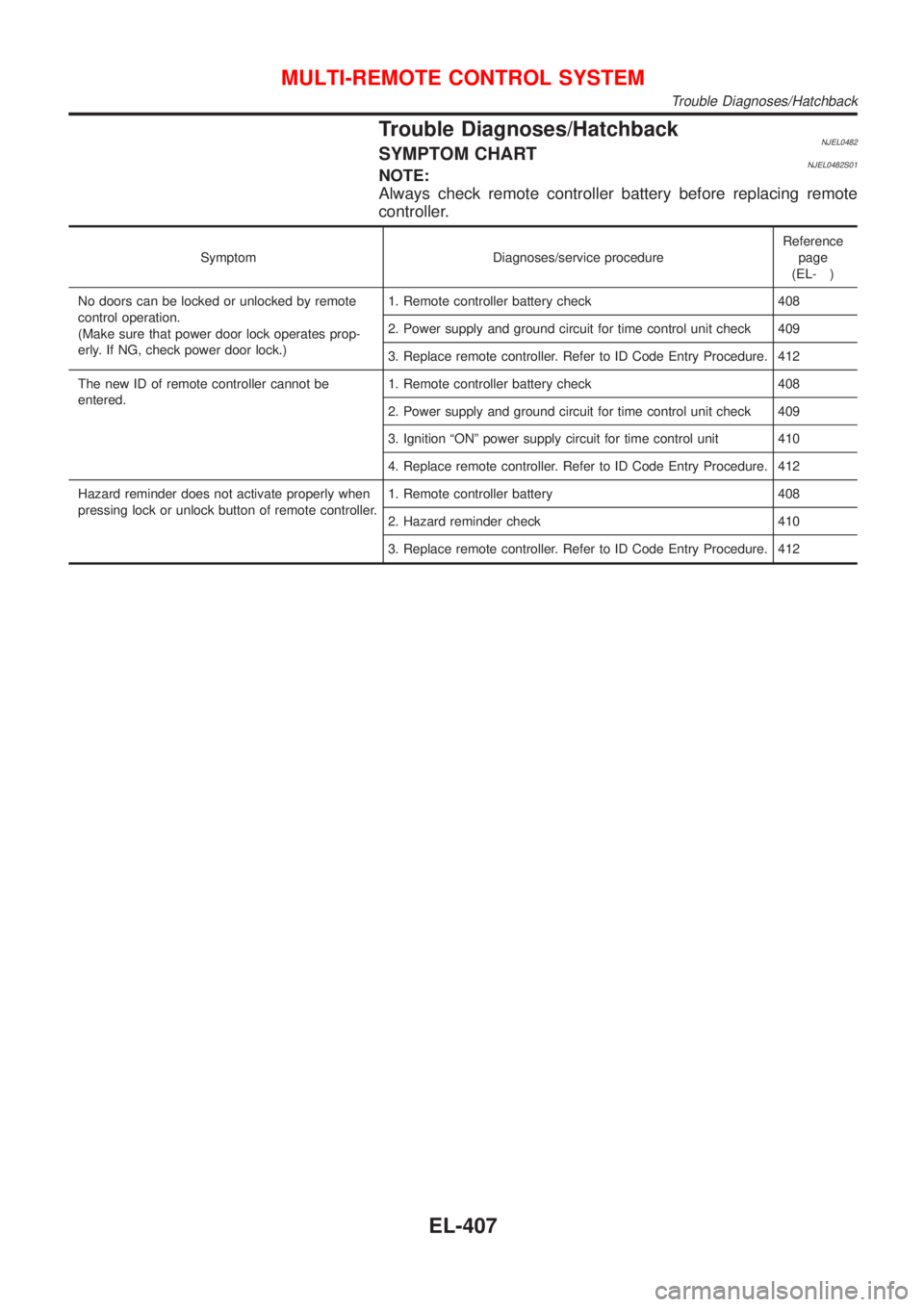

NISSAN ALMERA 2001  Service Manual Trouble Diagnoses/HatchbackNJEL0482SYMPTOM CHARTNJEL0482S01NOTE:
Always check remote controller battery before replacing remote
controller.
Symptom Diagnoses/service procedureReference
page
(EL- )
No

Page 1966 of 2898

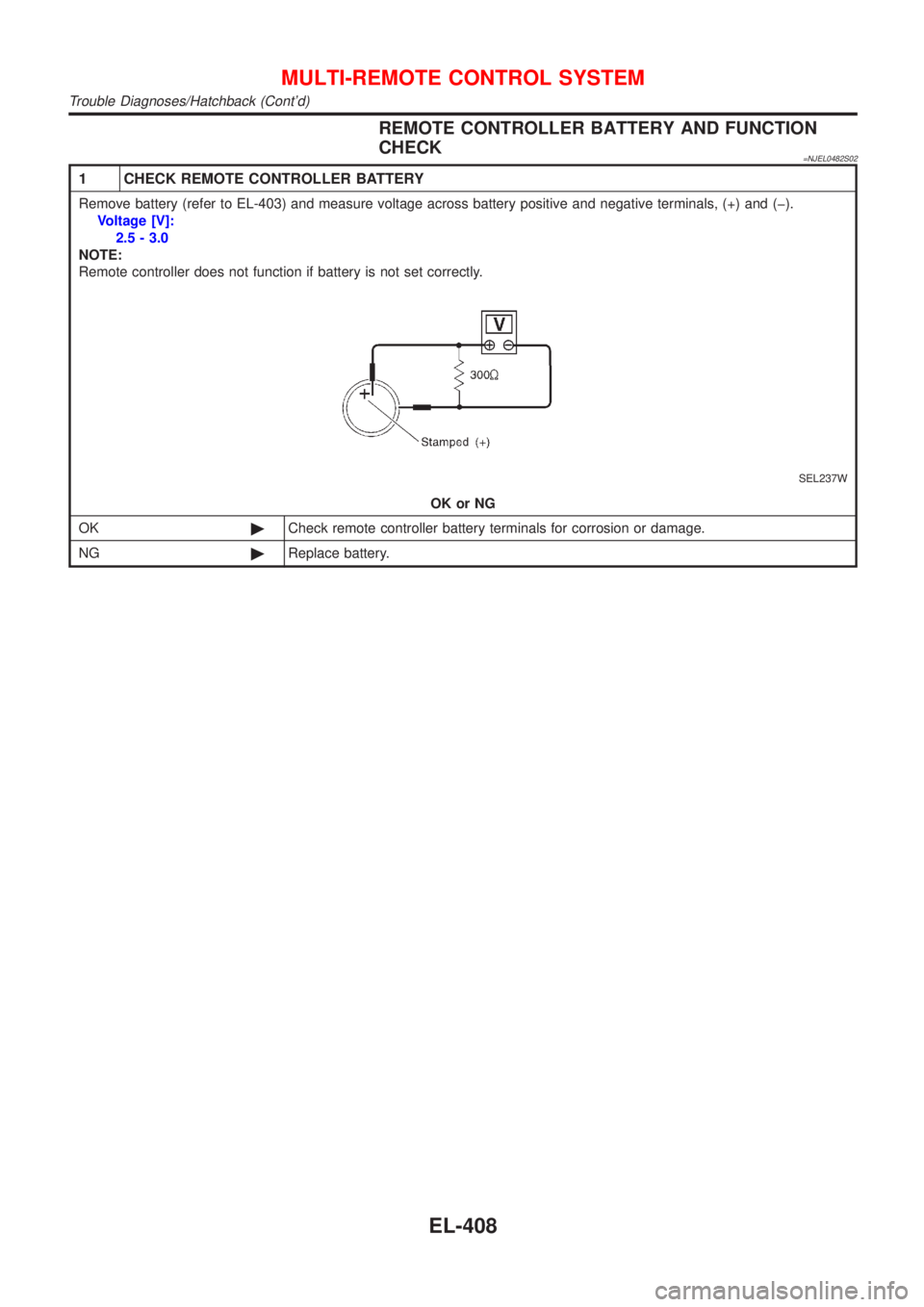

NISSAN ALMERA 2001  Service Manual REMOTE CONTROLLER BATTERY AND FUNCTION
CHECK
=NJEL0482S02
1 CHECK REMOTE CONTROLLER BATTERY
Remove battery (refer to EL-403) and measure voltage across battery positive and negative terminals, (+) and

Page 1967 of 2898

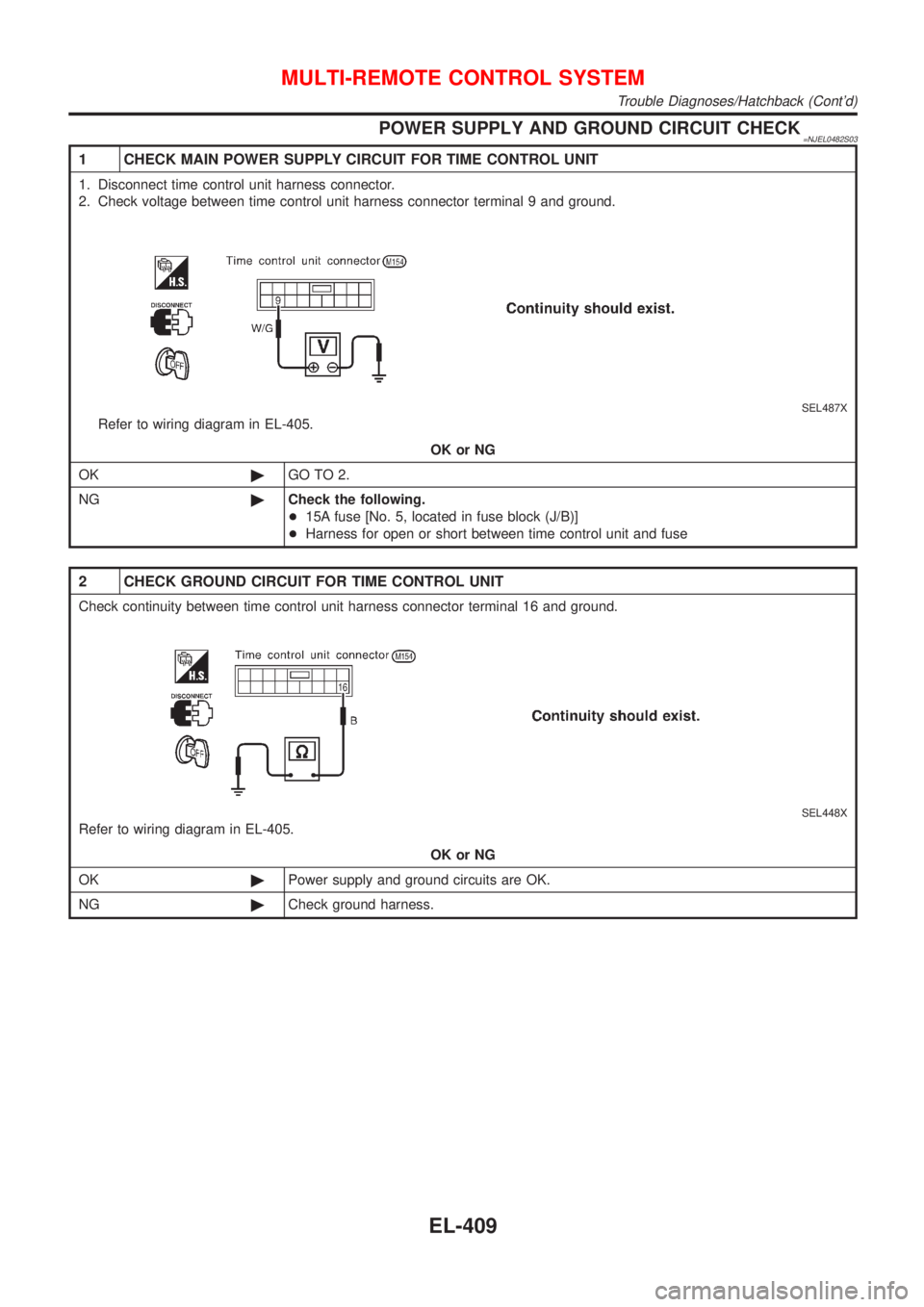

NISSAN ALMERA 2001  Service Manual POWER SUPPLY AND GROUND CIRCUIT CHECK=NJEL0482S03
1 CHECK MAIN POWER SUPPLY CIRCUIT FOR TIME CONTROL UNIT
1. Disconnect time control unit harness connector.
2. Check voltage between time control unit

Page 1968 of 2898

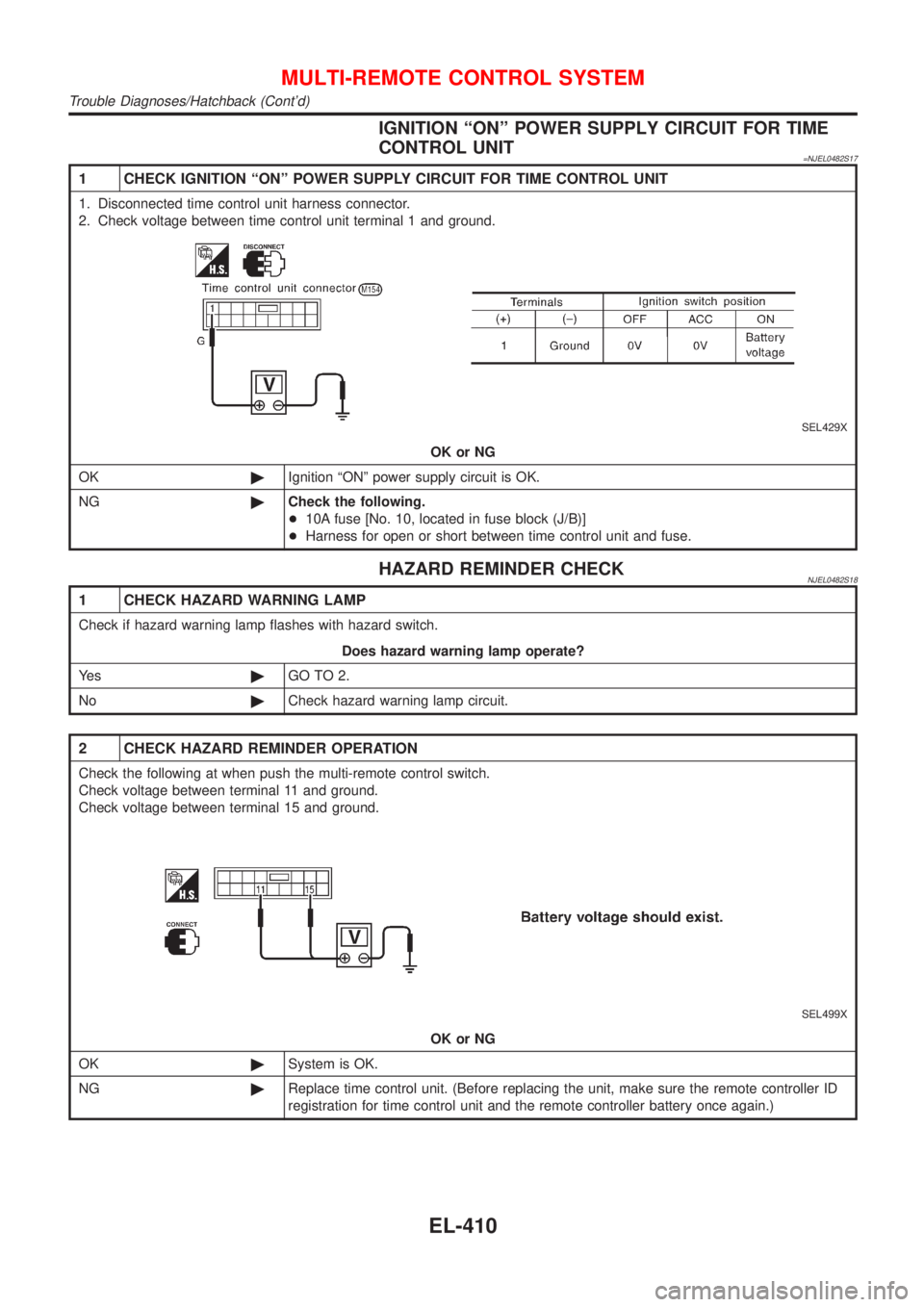

NISSAN ALMERA 2001  Service Manual IGNITION ªONº POWER SUPPLY CIRCUIT FOR TIME
CONTROL UNIT
=NJEL0482S17
1 CHECK IGNITION ªONº POWER SUPPLY CIRCUIT FOR TIME CONTROL UNIT
1. Disconnected time control unit harness connector.
2. Check
