Page 1873 of 2898

NISSAN ALMERA 2001 Service Manual NOTE: POWER DOOR LOCK System Description/Hatchback (Contd) EL-315

Page 1874 of 2898

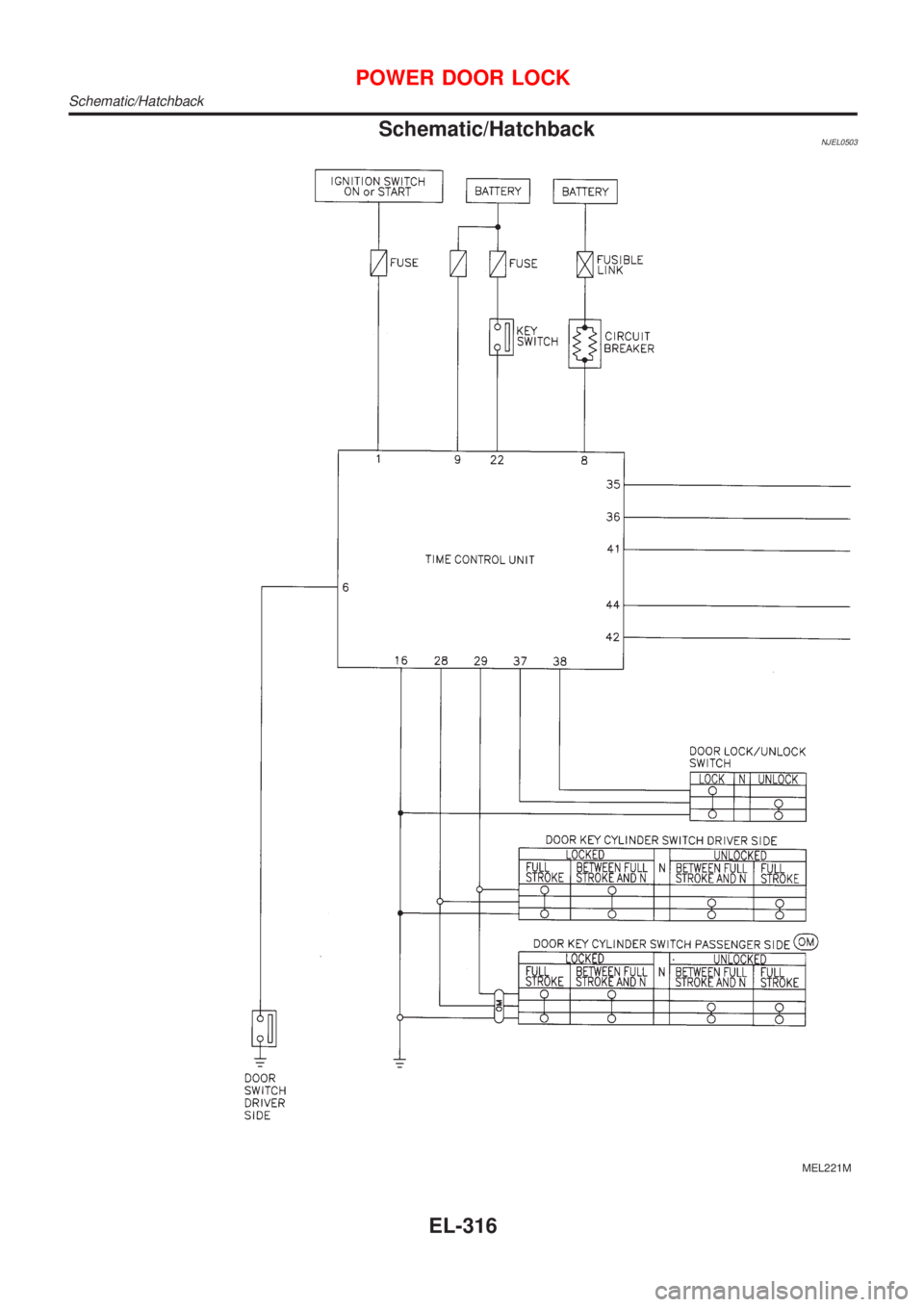

NISSAN ALMERA 2001 Service Manual Schematic/HatchbackNJEL0503 MEL221M POWER DOOR LOCK Schematic/Hatchback EL-316

Page 1875 of 2898

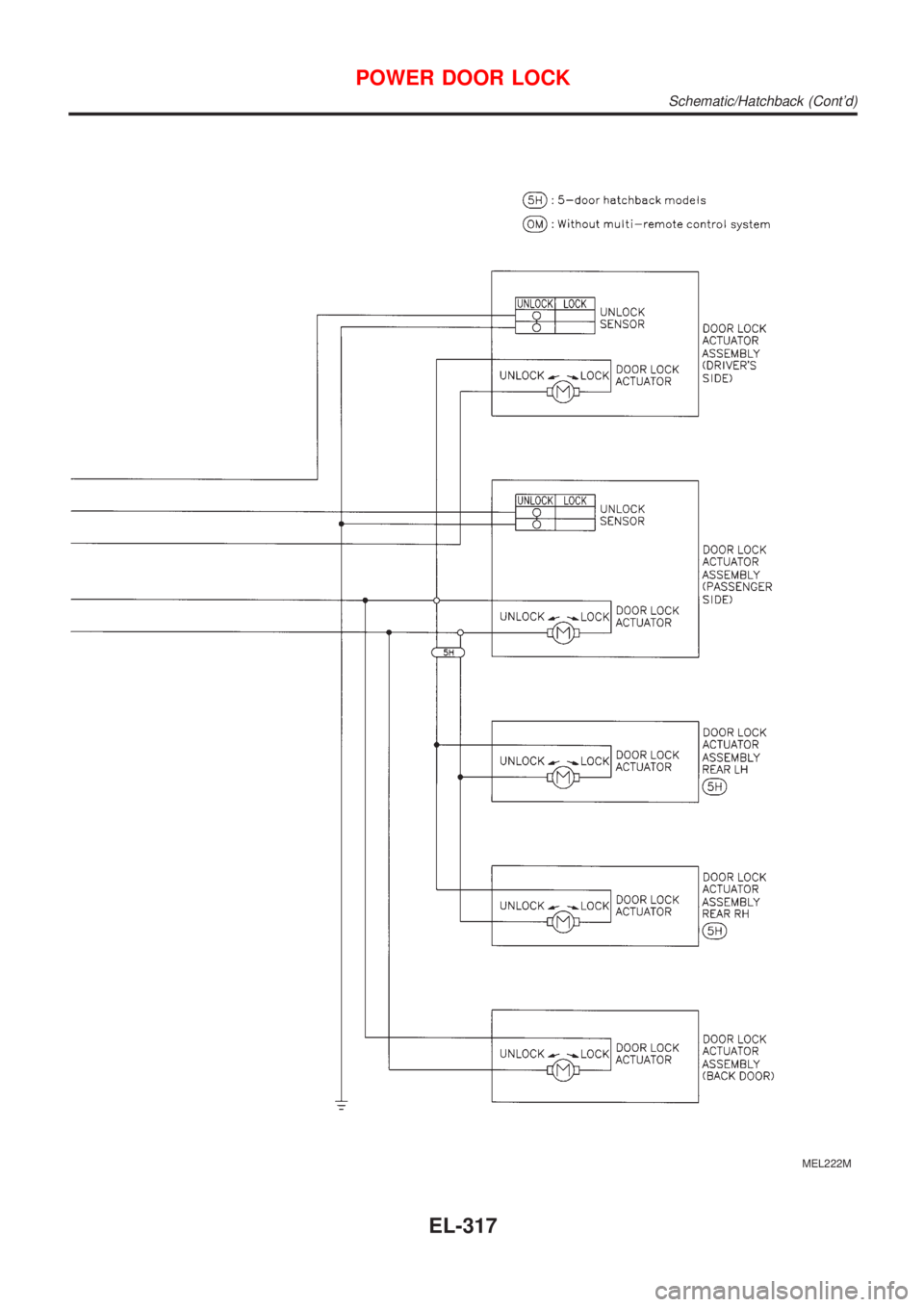

NISSAN ALMERA 2001 Service Manual MEL222M POWER DOOR LOCK Schematic/Hatchback (Contd) EL-317

Page 1876 of 2898

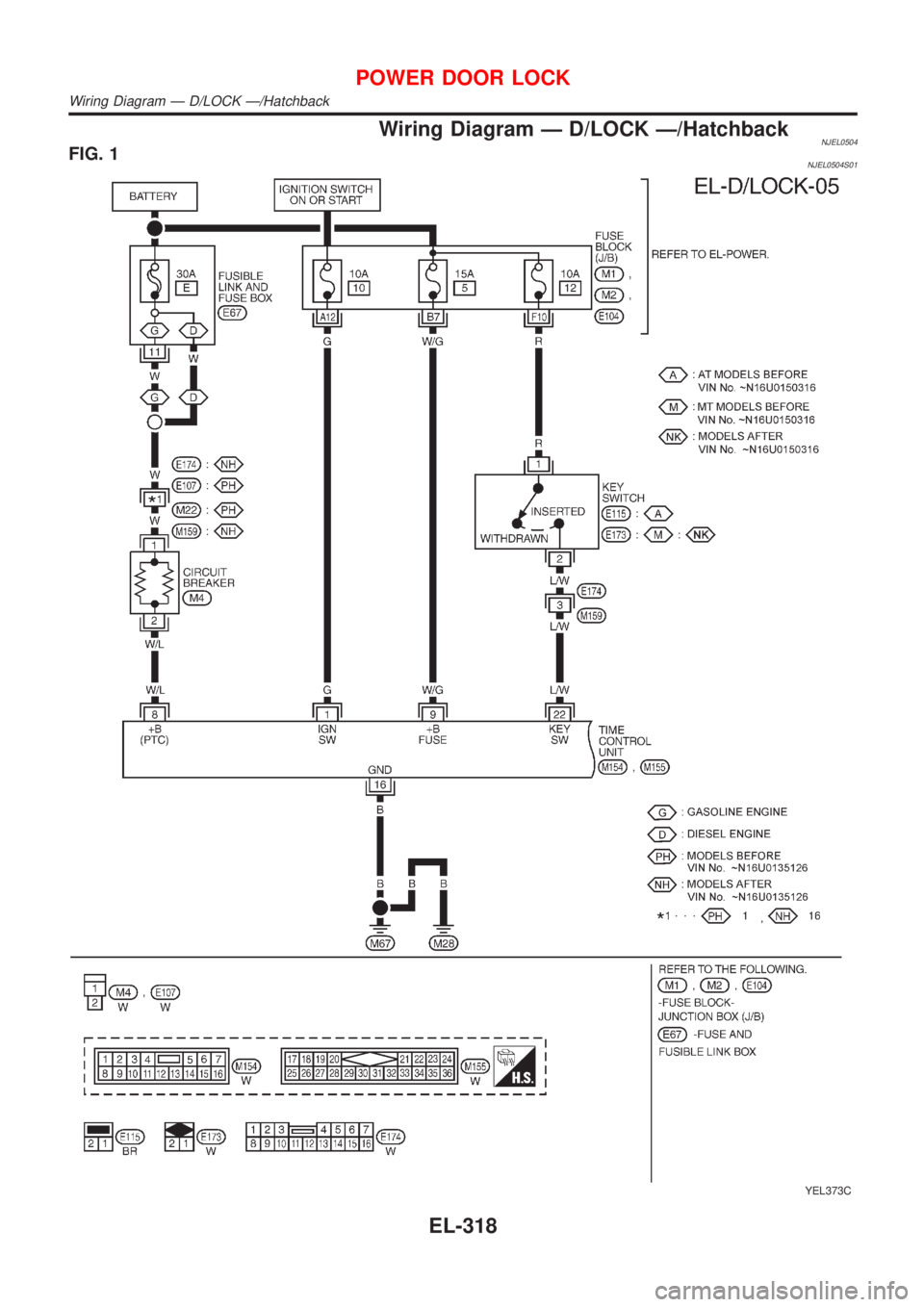

NISSAN ALMERA 2001 Service Manual Wiring Diagram Ð D/LOCK Ð/HatchbackNJEL0504FIG. 1NJEL0504S01 YEL373C POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð/Hatchback EL-318

Page 1877 of 2898

NISSAN ALMERA 2001 Service Manual FIG. 2NJEL0504S02 MEL224M POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð/Hatchback (Contd) EL-319

Page 1878 of 2898

NISSAN ALMERA 2001 Service Manual FIG. 3NJEL0504S03 MEL226M POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð/Hatchback (Contd) EL-320

Page 1879 of 2898

NISSAN ALMERA 2001 Service Manual FIG. 4NJEL0504S04 MEL225M POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð/Hatchback (Contd) EL-321

Page 1880 of 2898

NISSAN ALMERA 2001 Service Manual FIG. 5NJEL0504S05 MEL227M POWER DOOR LOCK Wiring Diagram Ð D/LOCK Ð/Hatchback (Contd) EL-322
