Page 321 of 2898

NISSAN ALMERA 2001 Service Manual 7 DETECT MALFUNCTIONING ITEM 1. Remove control valve assembly. Refer to AT-351. 2. Check the following items: +Shift valve B +Shift solenoid valve B (AT-148: General and except for Euro-OBD/AT-252: Eu

Page 322 of 2898

NISSAN ALMERA 2001 Service Manual 11. A/T Does Not Shift: D3®D4=NJAT0341SYMPTOM: +A/T does not shift from D 3to D4at the specified speed. +A/T must be warm before D 3to D4shift will occur. 1 CHECK SYMPTOM Are 7. Vehicle Does Not Cree

Page 323 of 2898

NISSAN ALMERA 2001 Service Manual 3 CHECK THROTTLE POSITION SENSOR Check throttle position sensor. Refer to EC-207, ªDTC P0120 THROTTLE POSITION SENSORº. SAT004K OK or NG OK©GO TO 4. NG©Repair or replace throttle position sensor.

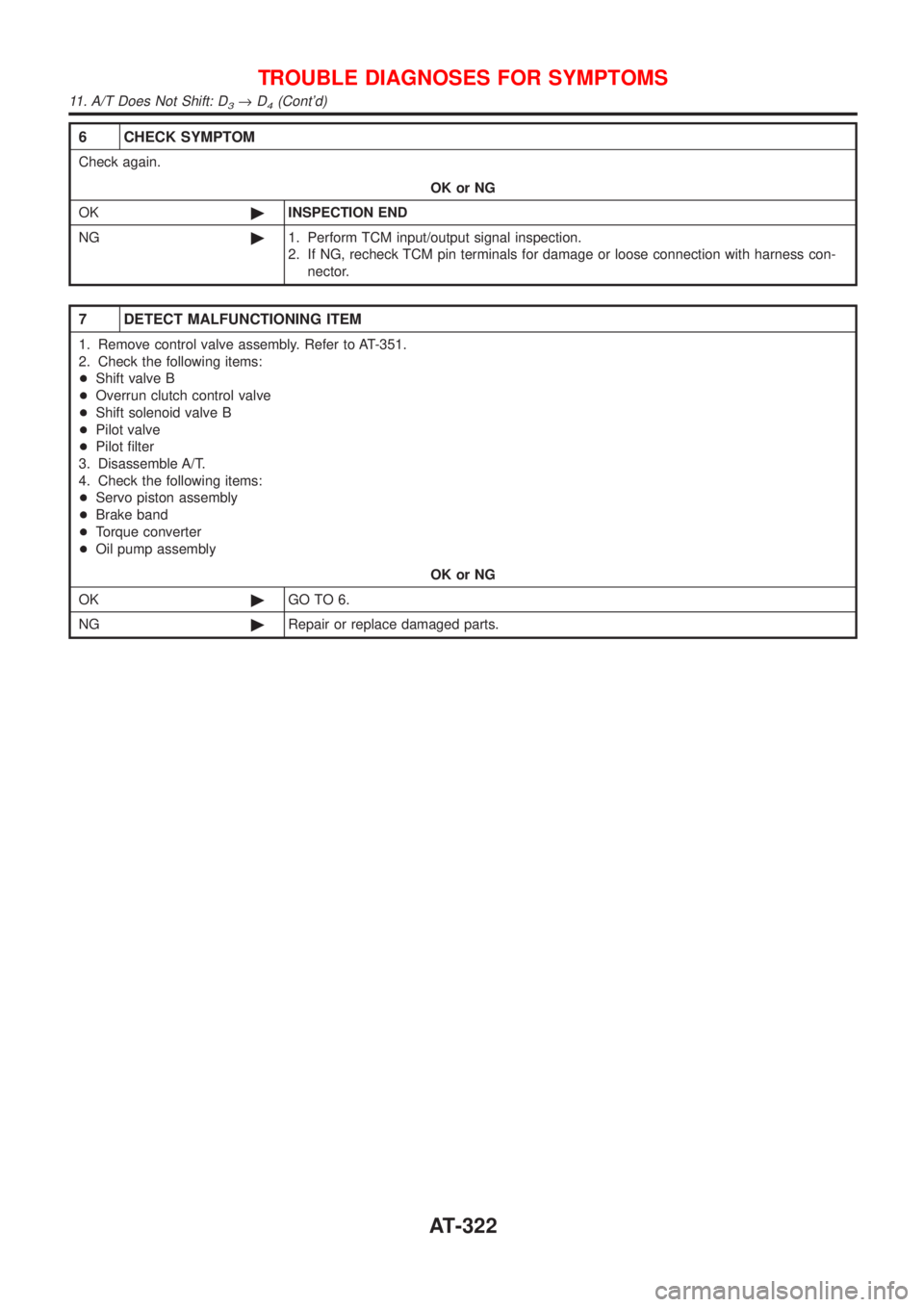

Page 324 of 2898

NISSAN ALMERA 2001 Service Manual 6 CHECK SYMPTOM Check again. OK or NG OK©INSPECTION END NG©1. Perform TCM input/output signal inspection. 2. If NG, recheck TCM pin terminals for damage or loose connection with harness con- nector.

Page 325 of 2898

NISSAN ALMERA 2001 Service Manual 12. A/T Does Not Perform Lock-up=NJAT0342SYMPTOM: A/T does not perform lock-up at the specified speed. 1 CHECK SELF-DIAGNOSTIC RESULTS Does self-diagnosis show damage to torque converter clutch soleno

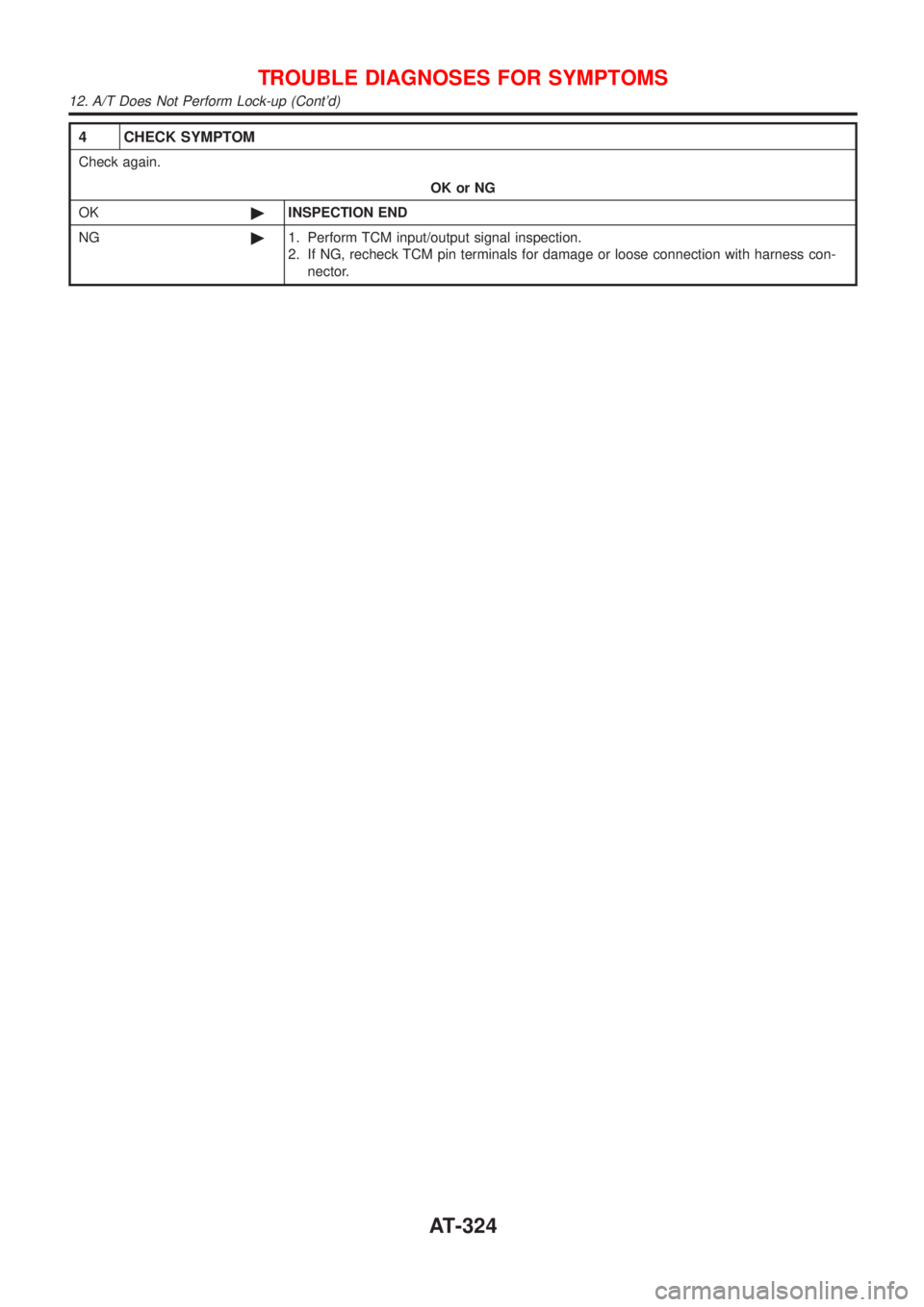

Page 326 of 2898

NISSAN ALMERA 2001 Service Manual 4 CHECK SYMPTOM Check again. OK or NG OK©INSPECTION END NG©1. Perform TCM input/output signal inspection. 2. If NG, recheck TCM pin terminals for damage or loose connection with harness con- nector.

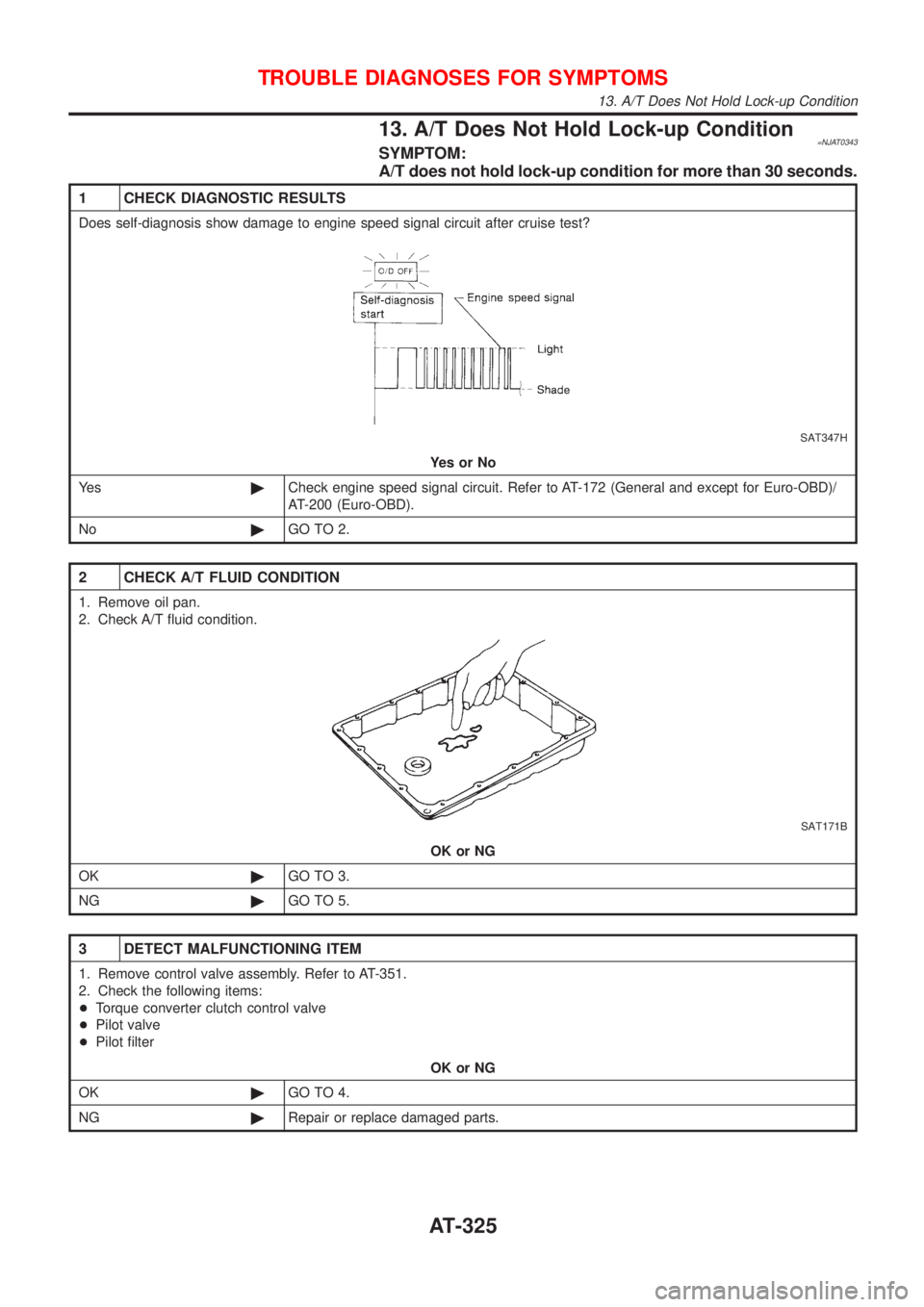

Page 327 of 2898

NISSAN ALMERA 2001 Service Manual 13. A/T Does Not Hold Lock-up Condition=NJAT0343SYMPTOM: A/T does not hold lock-up condition for more than 30 seconds. 1 CHECK DIAGNOSTIC RESULTS Does self-diagnosis show damage to engine speed signal

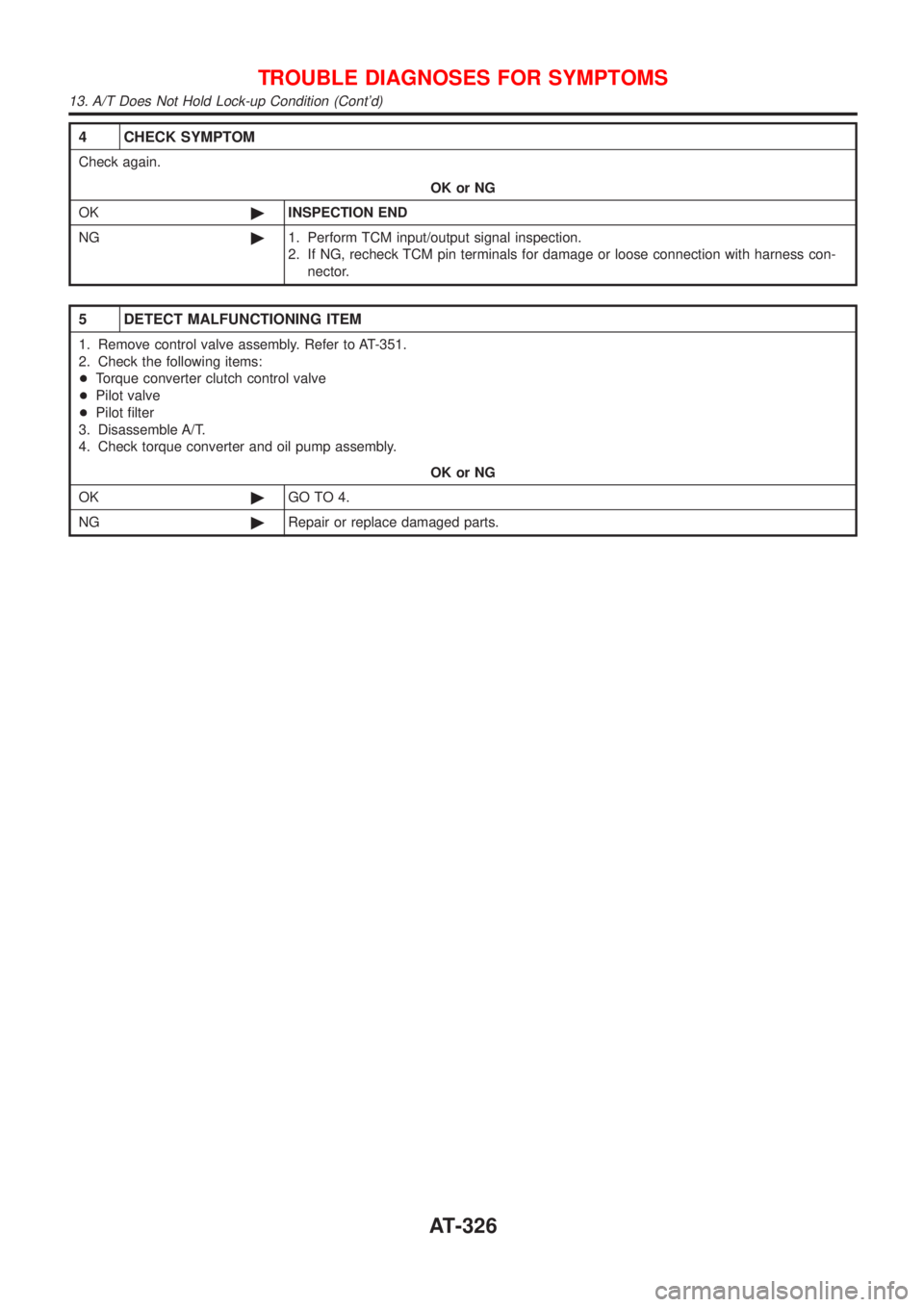

Page 328 of 2898

NISSAN ALMERA 2001 Service Manual 4 CHECK SYMPTOM Check again. OK or NG OK©INSPECTION END NG©1. Perform TCM input/output signal inspection. 2. If NG, recheck TCM pin terminals for damage or loose connection with harness con- nector.
