Page 425 of 2898

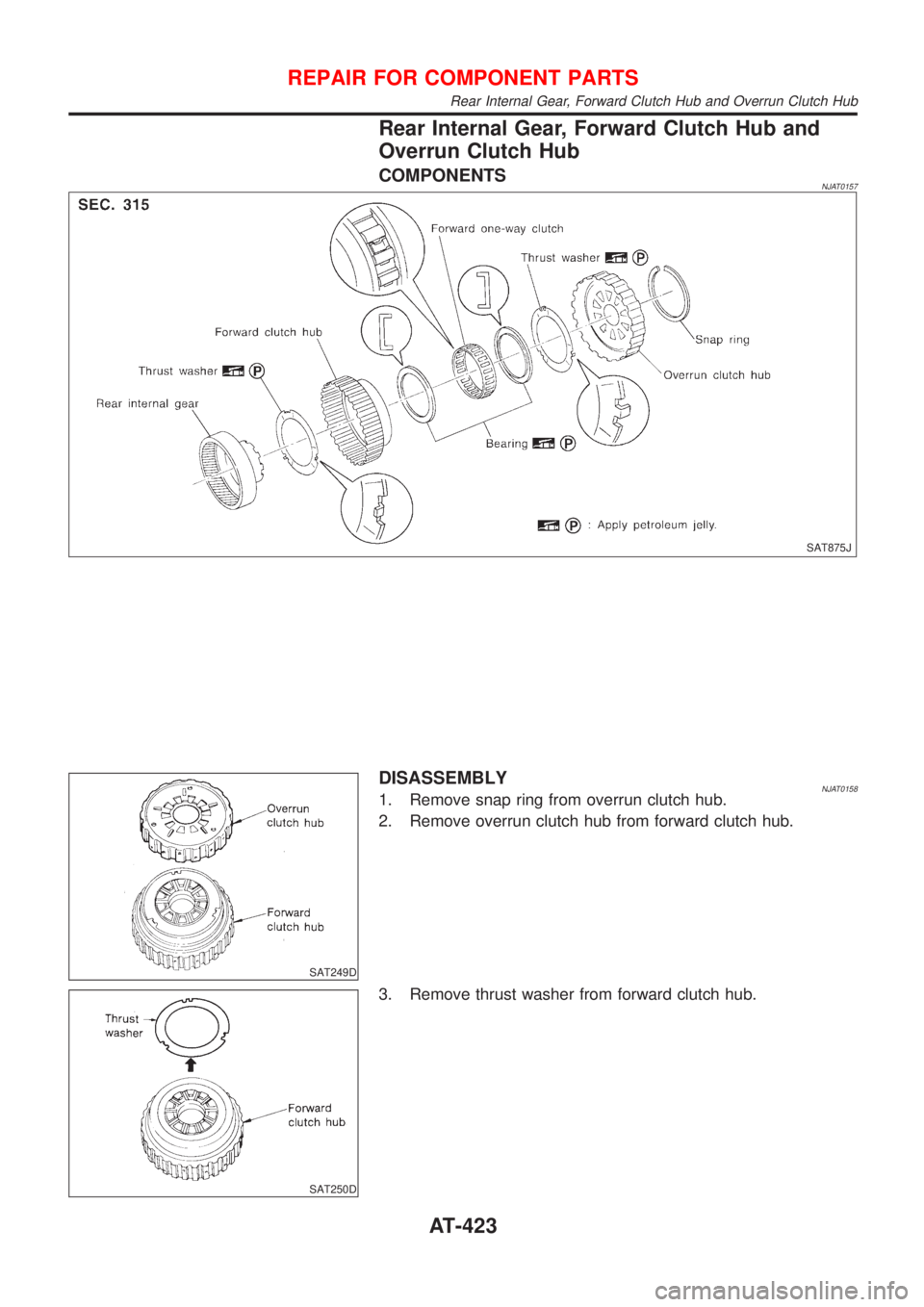

NISSAN ALMERA 2001 Service Manual Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub COMPONENTSNJAT0157 SAT875J SAT249D DISASSEMBLYNJAT01581. Remove snap ring from overrun clutch hub. 2. Remove overrun clutch hub from forwa

Page 426 of 2898

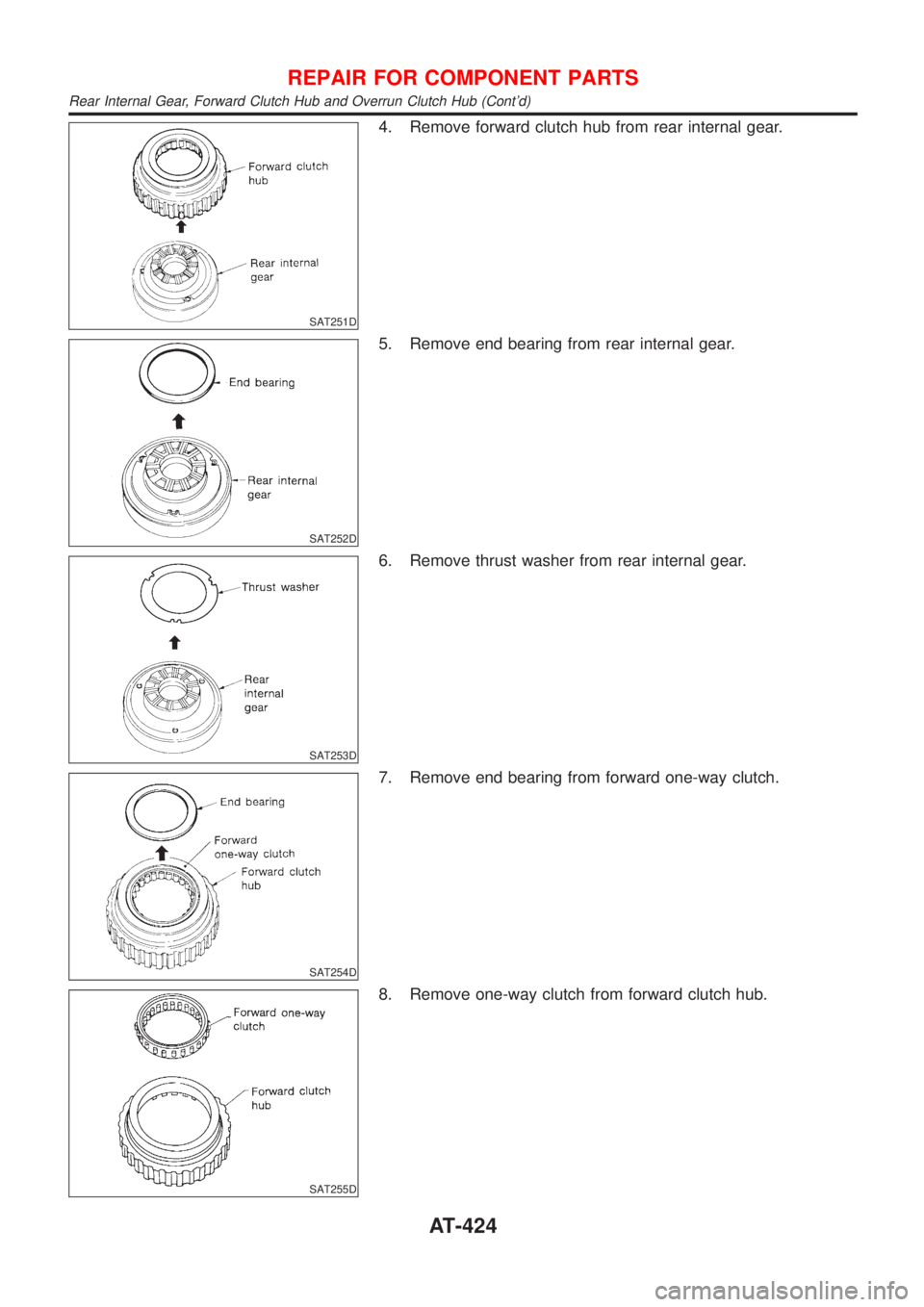

NISSAN ALMERA 2001 Service Manual SAT251D 4. Remove forward clutch hub from rear internal gear. SAT252D 5. Remove end bearing from rear internal gear. SAT253D 6. Remove thrust washer from rear internal gear. SAT254D 7. Remove end bear

Page 427 of 2898

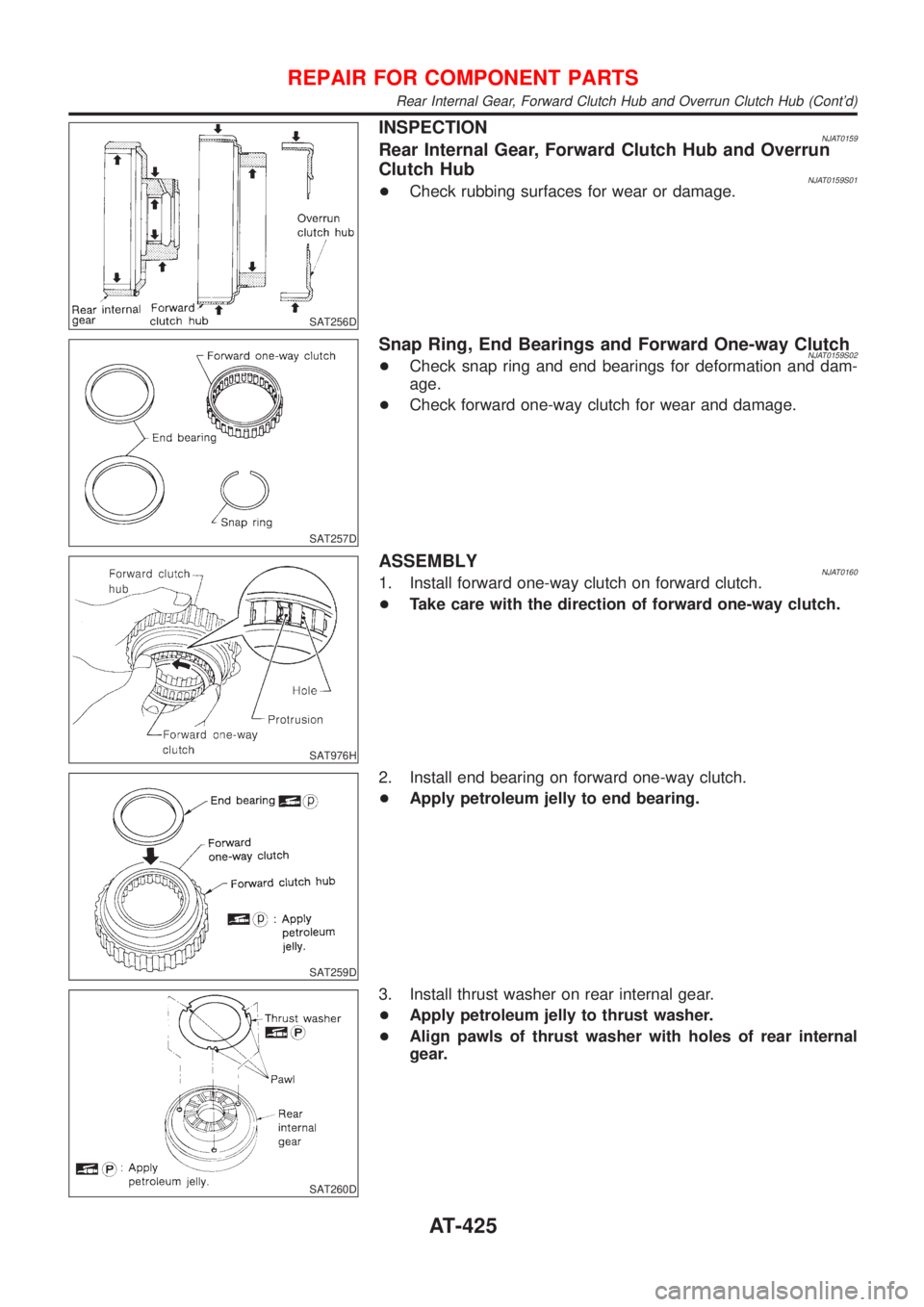

NISSAN ALMERA 2001 Service Manual SAT256D INSPECTIONNJAT0159Rear Internal Gear, Forward Clutch Hub and Overrun Clutch Hub NJAT0159S01+Check rubbing surfaces for wear or damage. SAT257D Snap Ring, End Bearings and Forward One-way Clutc

Page 428 of 2898

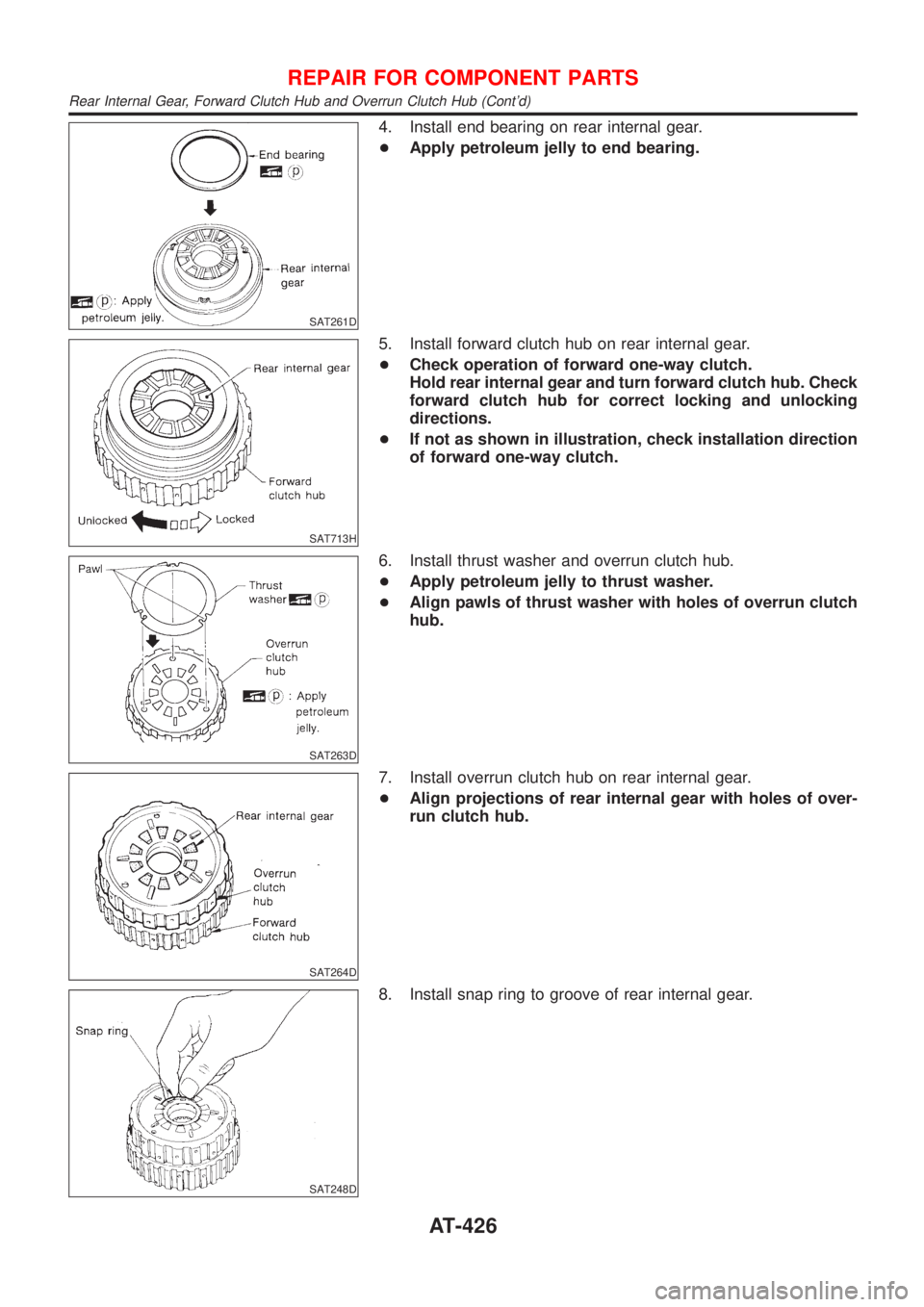

NISSAN ALMERA 2001 Service Manual SAT261D 4. Install end bearing on rear internal gear. +Apply petroleum jelly to end bearing. SAT713H 5. Install forward clutch hub on rear internal gear. +Check operation of forward one-way clutch. Ho

Page 429 of 2898

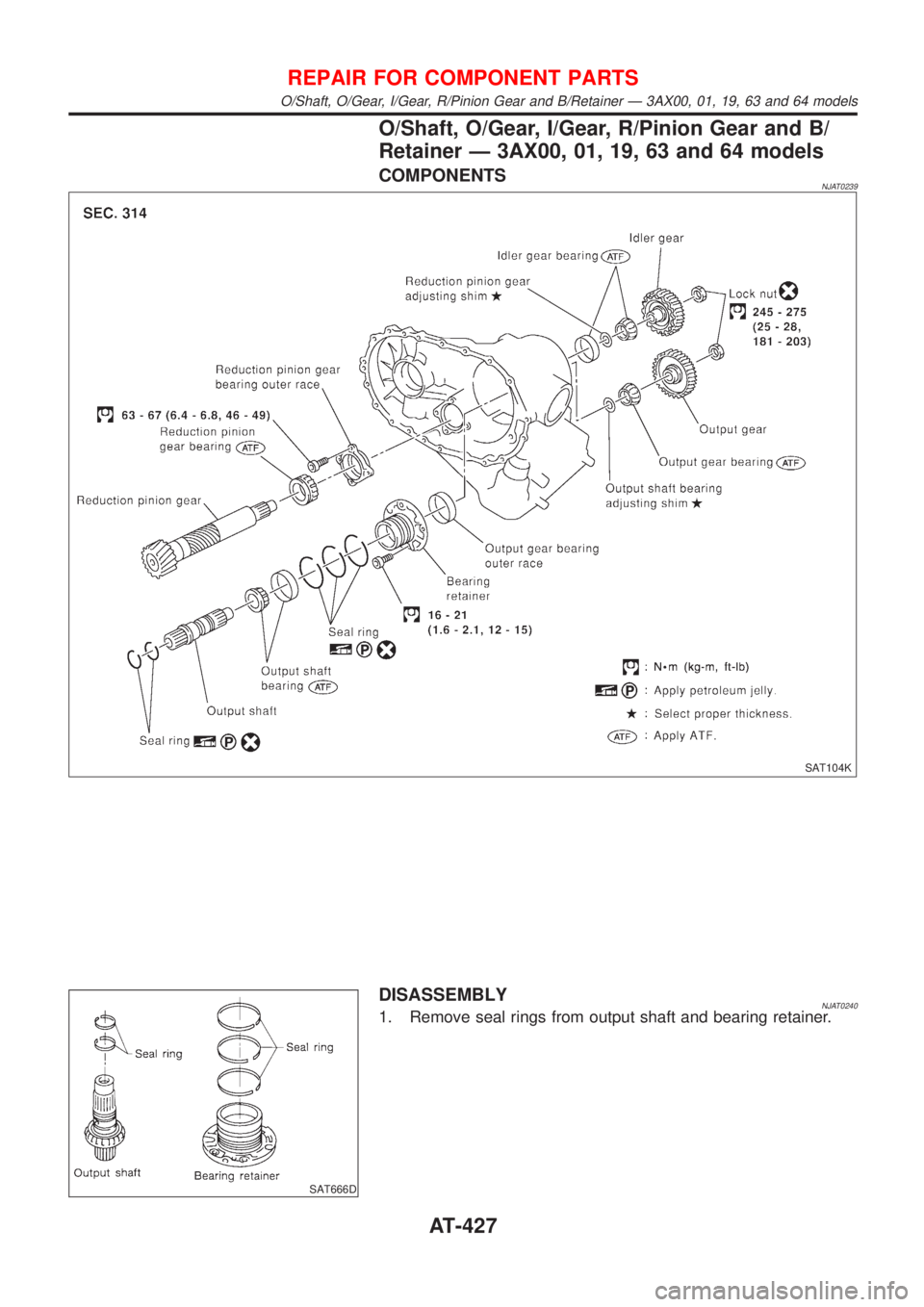

NISSAN ALMERA 2001 Service Manual O/Shaft, O/Gear, I/Gear, R/Pinion Gear and B/ Retainer Ð 3AX00, 01, 19, 63 and 64 models COMPONENTSNJAT0239 SAT104K SAT666D DISASSEMBLYNJAT02401. Remove seal rings from output shaft and bearing retai

Page 430 of 2898

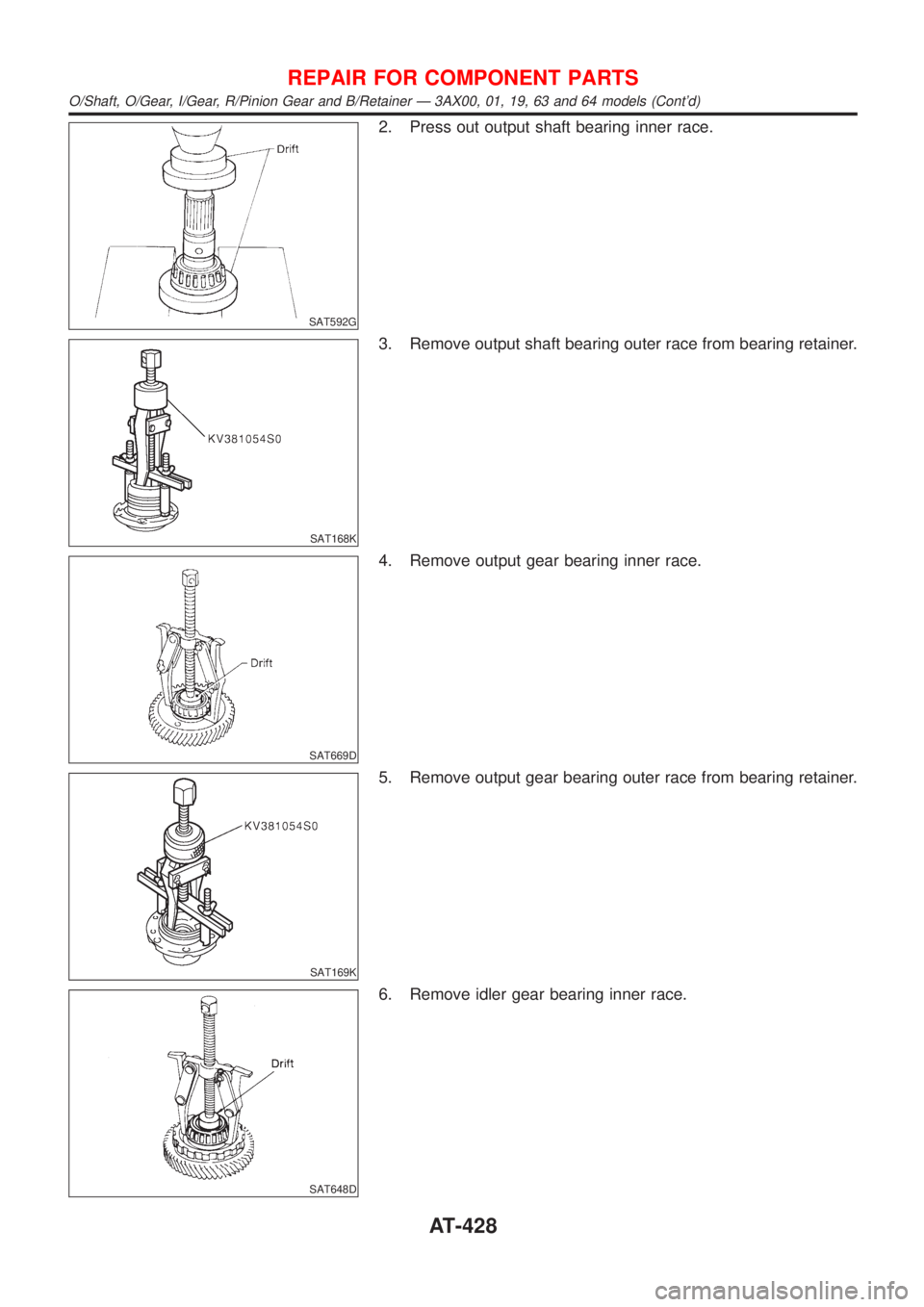

NISSAN ALMERA 2001 Service Manual SAT592G 2. Press out output shaft bearing inner race. SAT168K 3. Remove output shaft bearing outer race from bearing retainer. SAT669D 4. Remove output gear bearing inner race. SAT169K 5. Remove outpu

Page 431 of 2898

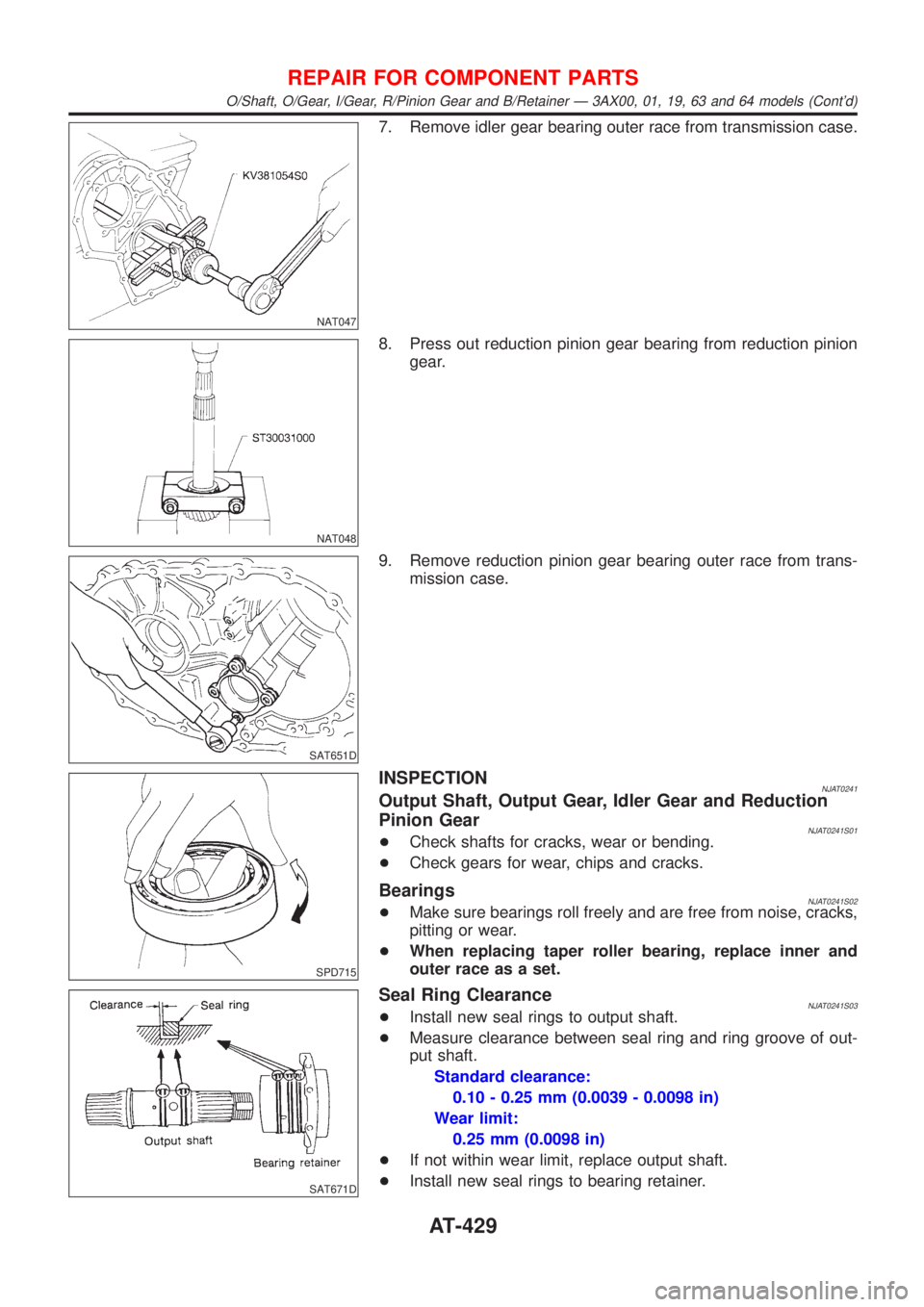

NISSAN ALMERA 2001 Service Manual NAT047 7. Remove idler gear bearing outer race from transmission case. NAT048 8. Press out reduction pinion gear bearing from reduction pinion gear. SAT651D 9. Remove reduction pinion gear bearing out

Page 432 of 2898

NISSAN ALMERA 2001 Service Manual +Measure clearance between seal ring and ring groove of bear- ing retainer. Standard clearance: 0.10 - 0.25 mm (0.0039 - 0.0098 in) Wear limit: 0.25 mm (0.0098 in) +If not within wear limit, replace b
