Page 4129 of 4366

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-91 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 4. CHECK LUMBAR SUPPORT SWITCH GROUND CIRCUIT Check continuity between lumbar support switc

Page 4130 of 4366

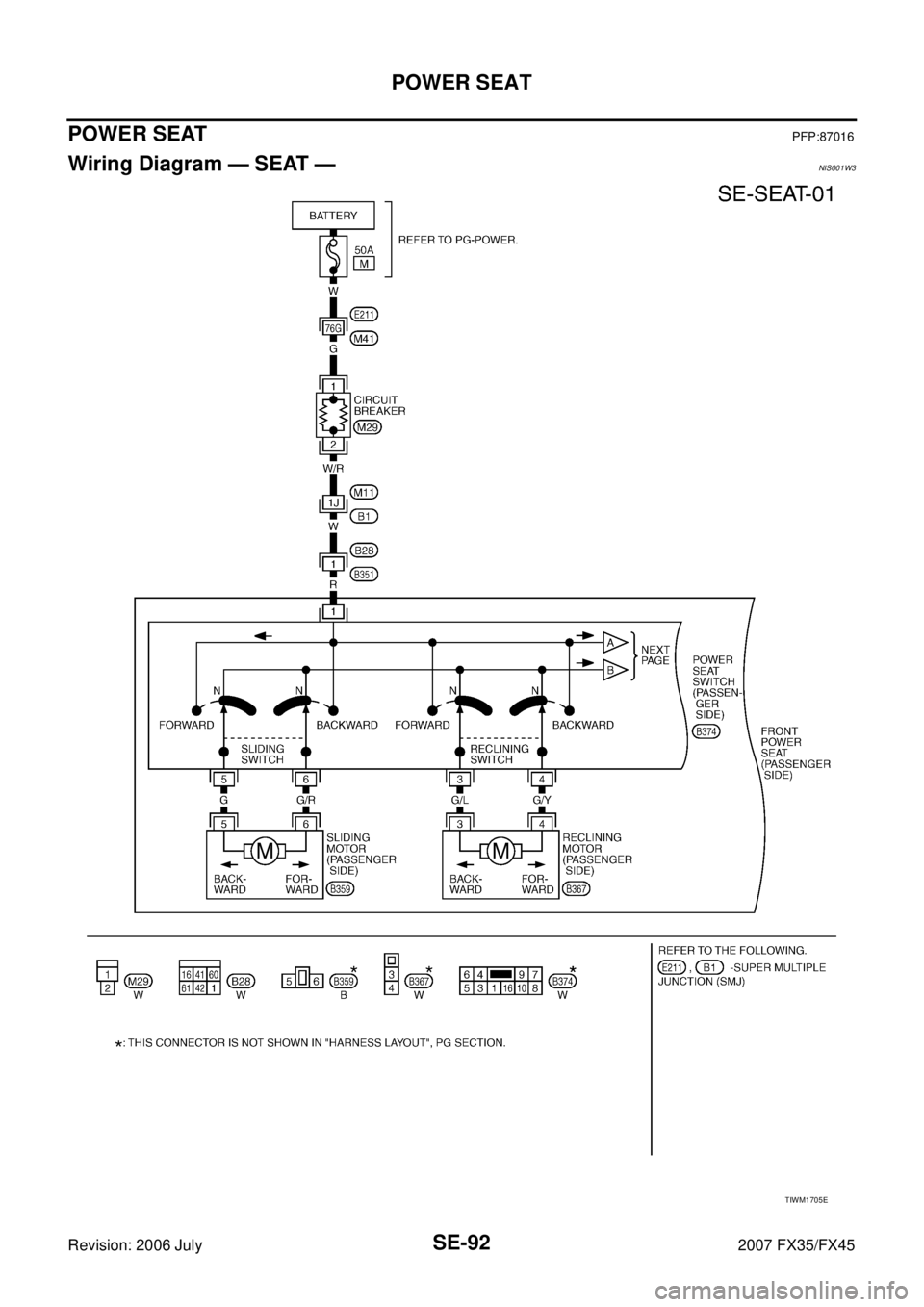

INFINITI FX35 2007 Service Manual SE-92 POWER SEAT Revision: 2006 July 2007 FX35/FX45 POWER SEATPFP:87016 Wiring Diagram — SEAT —NIS001W3 TIWM1705E

Page 4131 of 4366

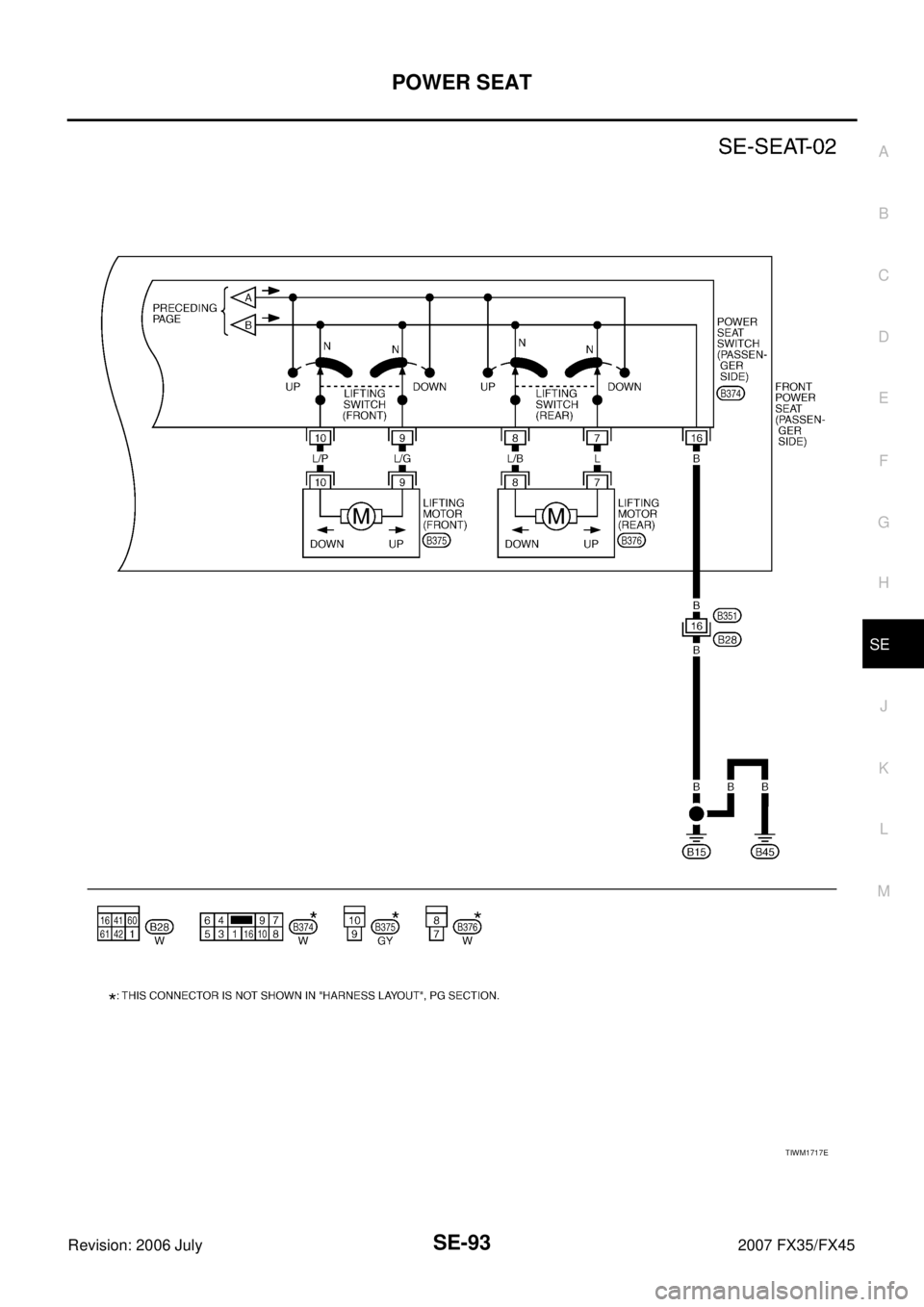

INFINITI FX35 2007 Service Manual POWER SEAT SE-93 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 TIWM1717E

Page 4132 of 4366

INFINITI FX35 2007 Service Manual SE-94 HEATED SEAT Revision: 2006 July 2007 FX35/FX45 HEATED SEATPFP:87335 DescriptionNIS001W5 When handling seat, be extremely careful not to scratch heating unit. To replace heating unit, seat trim

Page 4133 of 4366

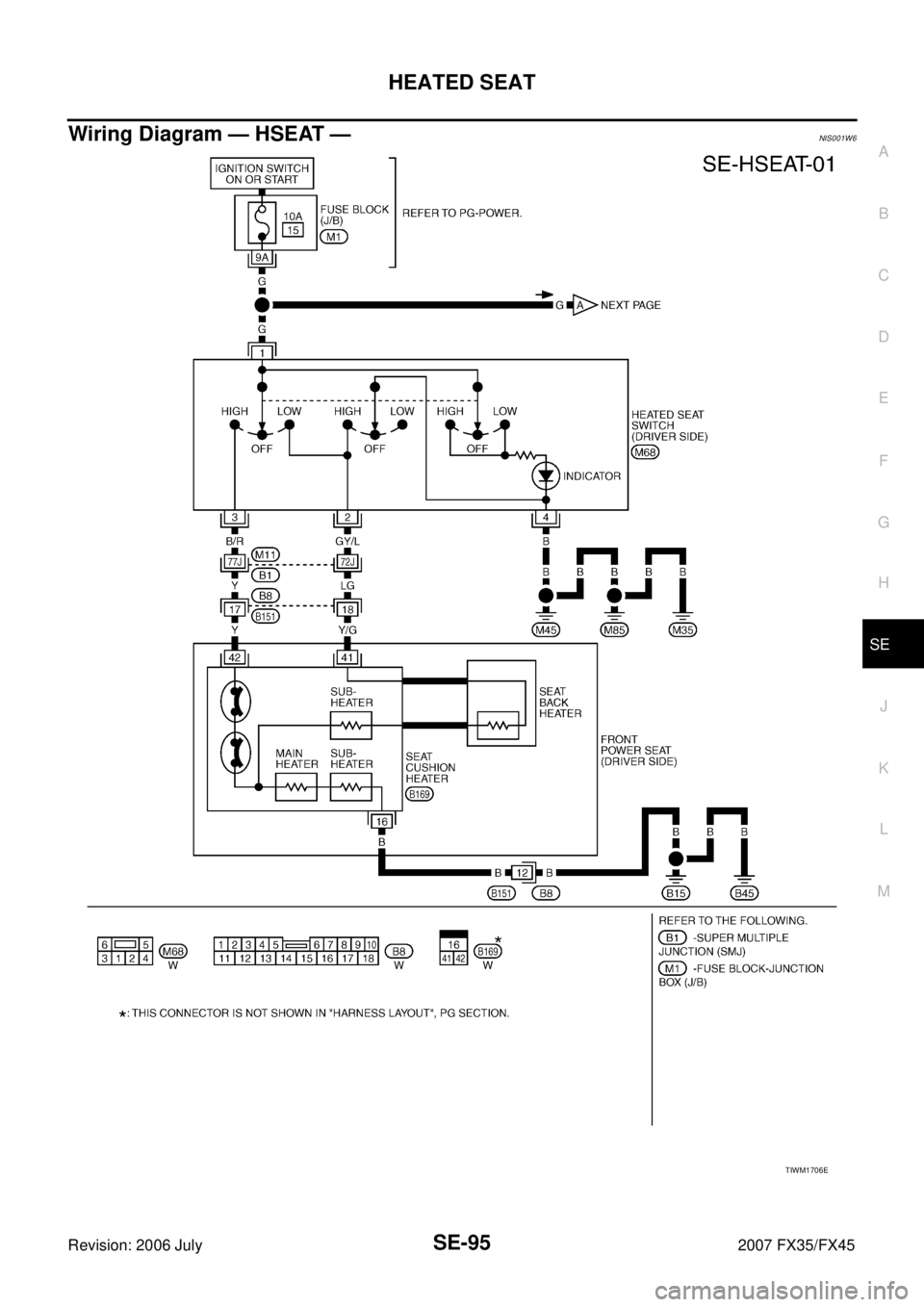

INFINITI FX35 2007 Service Manual HEATED SEAT SE-95 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 Wiring Diagram — HSEAT —NIS001W6 TIWM1706E

Page 4134 of 4366

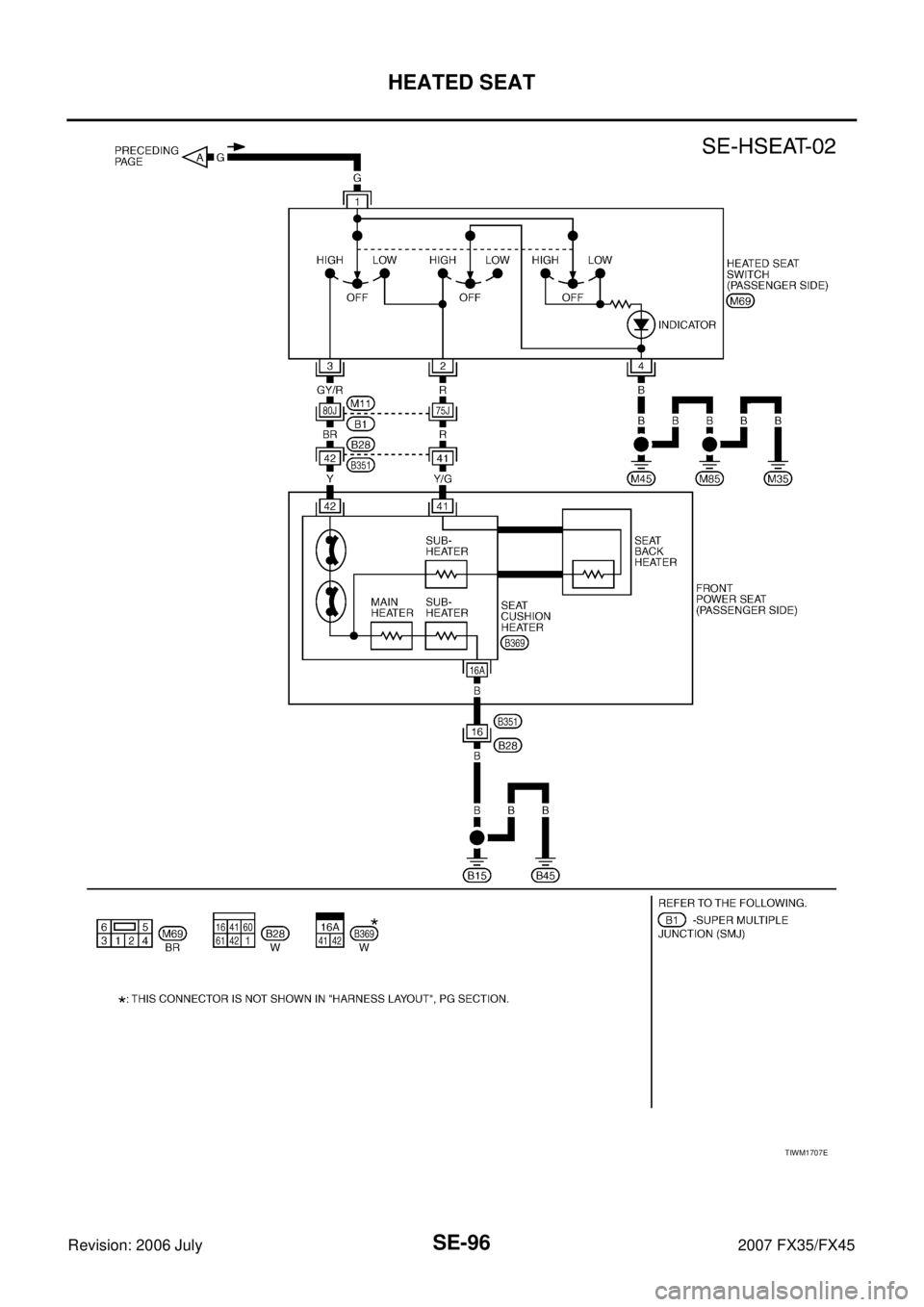

INFINITI FX35 2007 Service Manual SE-96 HEATED SEAT Revision: 2006 July 2007 FX35/FX45 TIWM1707E

Page 4135 of 4366

INFINITI FX35 2007 Service Manual FRONT SEAT SE-97 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 FRONT SEATPFP:87000 Removal and InstallationNIS001W7 CAUTION: Do not disassembly the component parts of onl

Page 4136 of 4366

INFINITI FX35 2007 Service Manual SE-98 FRONT SEAT Revision: 2006 July 2007 FX35/FX45 1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked) 4. Seatback pad 5. Seatback trim 6. Seat cushion inner finisher 7. Screw 8. Seat
