TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionNBS003MA

TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-137
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
TROUBLE DIAGNOSIS - SPECIFICATION VALUEPFP:00031
DescriptionNBS003MA
The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:
B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)
A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)
MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)
Testing ConditionNBS003MB
Vehicle driven distance: More than 5,000 km (3,107 miles)
Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm2 , 14.25 - 15.12 psi)
Atmospheric temperature: 20 - 30 °C (68 - 86 °F)
Engine coolant temperature: 75 - 95 °C (167 - 203 °F)
Transmission: Warmed-up
–After the engine is warmed up to normal operating temperature, drive vehicle until “ATF TEMP 1” (A/T
fluid temperature sensor signal) indicates more than 60 °C (140 °F).
Electrical load: Not applied
–Rear window defogger switch, air conditioner switch, lighting switch are OFF. Steering wheel is straight
ahead.
Engine speed: Idle
Inspection ProcedureNBS003MC
NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.
1. Perform EC-76, "
Basic Inspection" .
2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2” and “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode with
CONSULT-II.
4. Make sure that monitor items are within the SP value.
5. If NG, go to EC-138, "
Diagnostic Procedure" .

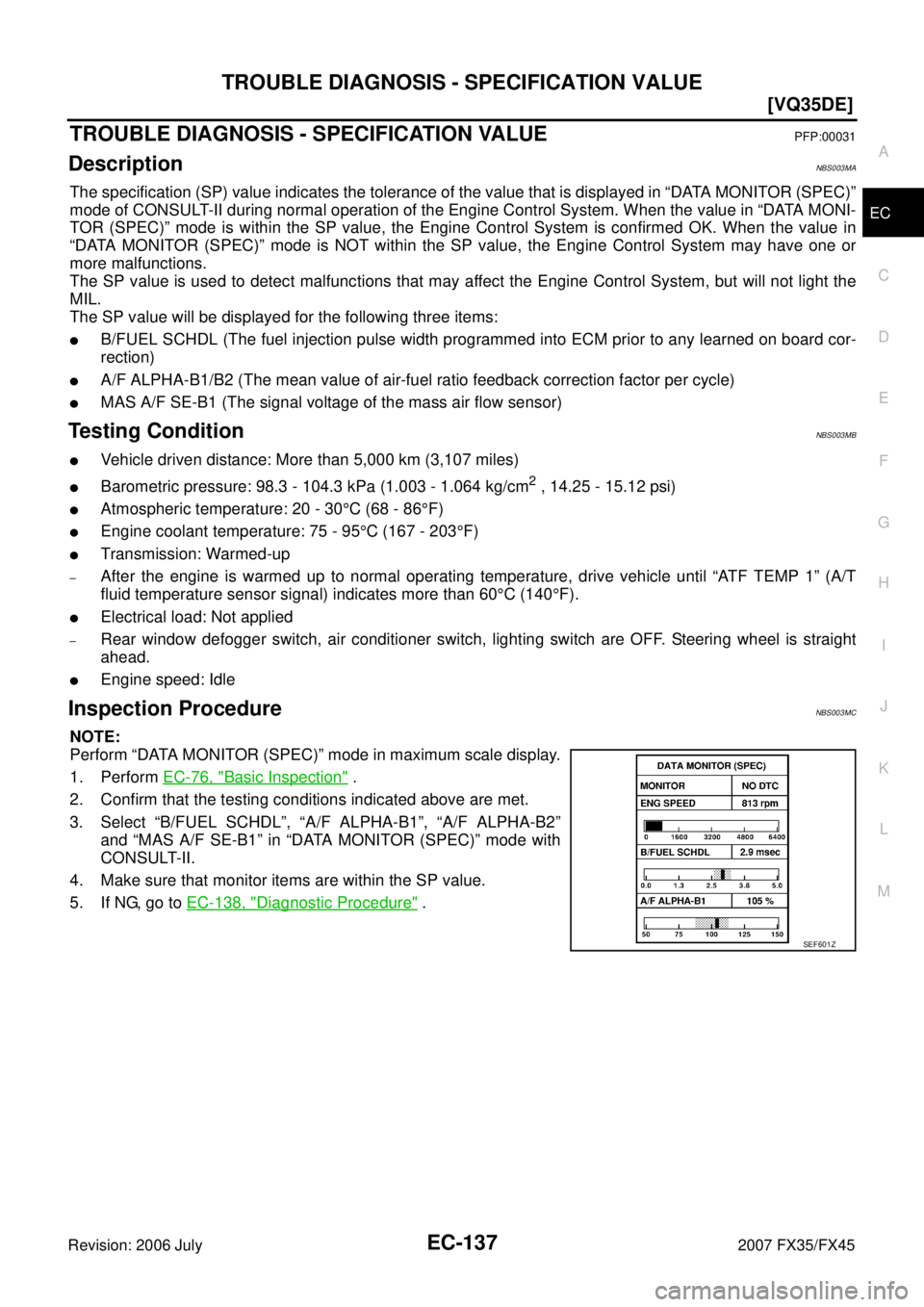

SEF601Z

Page 1514 of 4366

INFINITI FX35 2007 Service Manual EC-138
[VQ35DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNBS003MD

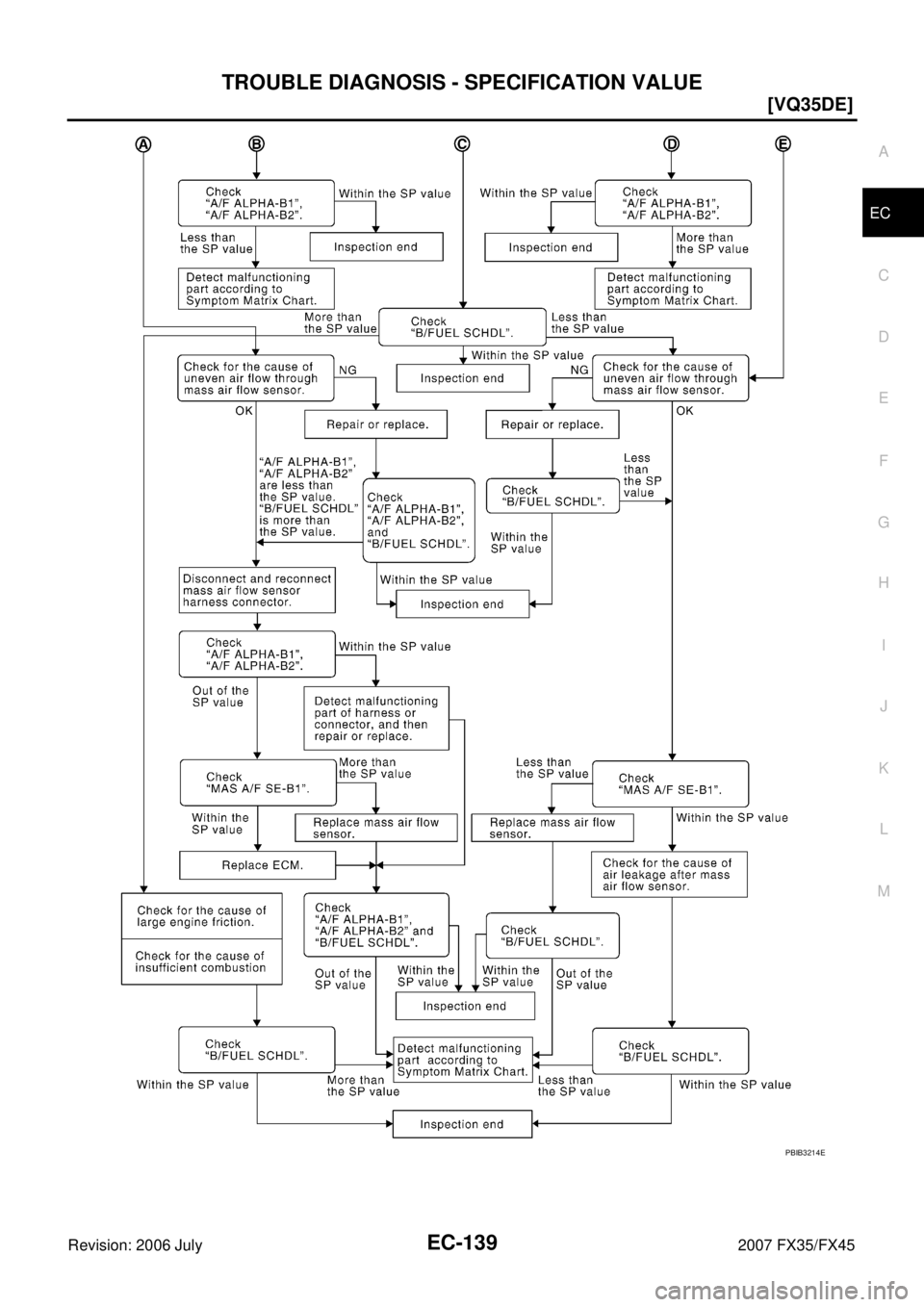

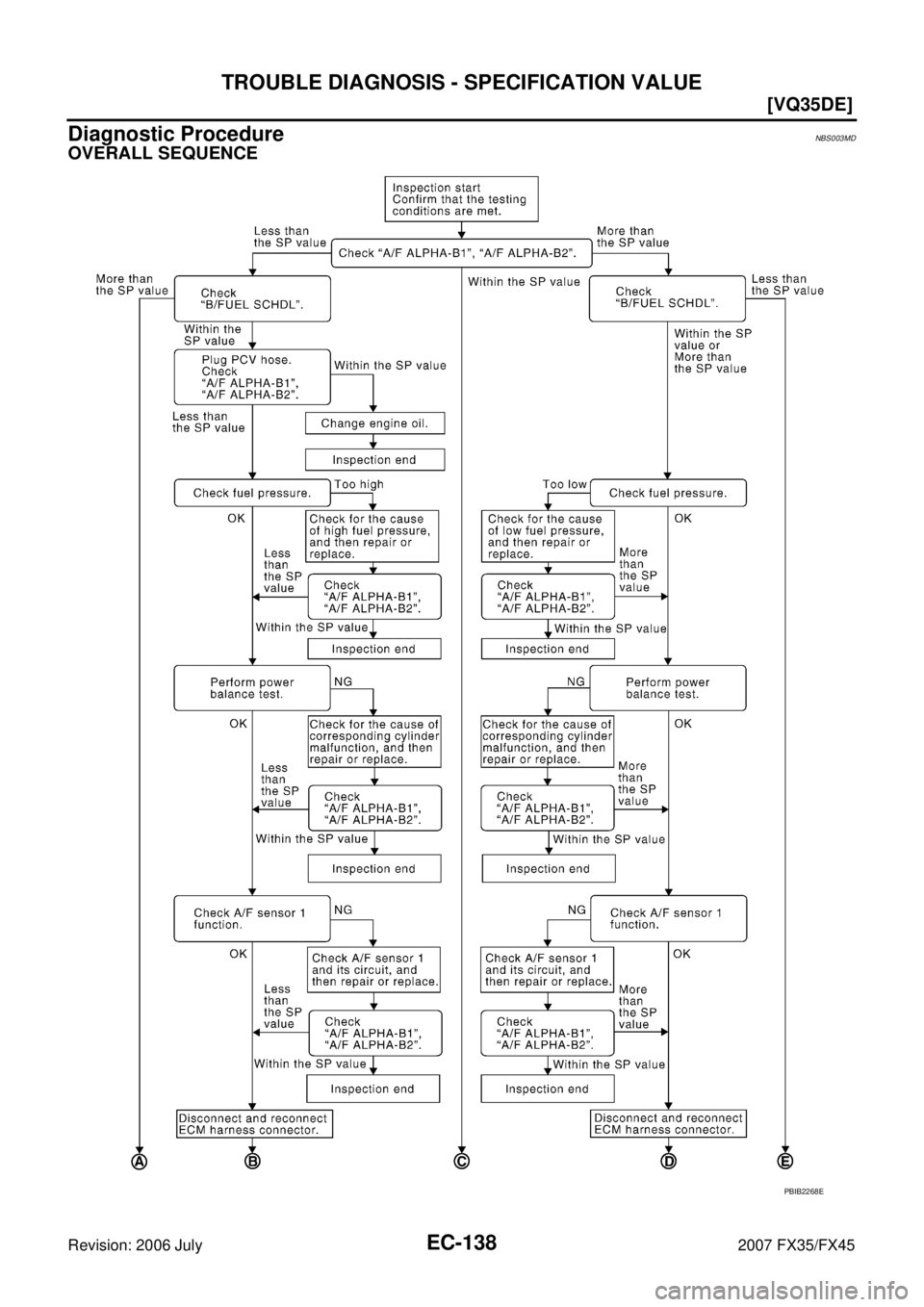

OVERALL SEQUENCE
PBIB2268E

Page 1515 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-139
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
PBIB3214E

Page 1516 of 4366

INFINITI FX35 2007 Service Manual EC-140
[VQ35DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 July 2007 FX35/FX45
DETAILED PROCEDURE
1. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Confirm that the tes

Page 1517 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-141
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
5. CHANGE ENGINE OIL
1. Stop the engine.
2. Change engine oil. NOTE

Page 1518 of 4366

INFINITI FX35 2007 Service Manual EC-142
[VQ35DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 July 2007 FX35/FX45
10. DETECT MALFUNCTIONING PART
1. Check the following.
–Ignition coil and its circuit (Refer to EC-650,

Page 1519 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS - SPECIFICATION VALUE EC-143
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
16. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2

Page 1520 of 4366

INFINITI FX35 2007 Service Manual EC-144
[VQ35DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 July 2007 FX35/FX45
20. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”, AND “B/FUEL SCHDL”
Select “A/F ALPHA-B1”, “A/F A
