Page 3945 of 4366

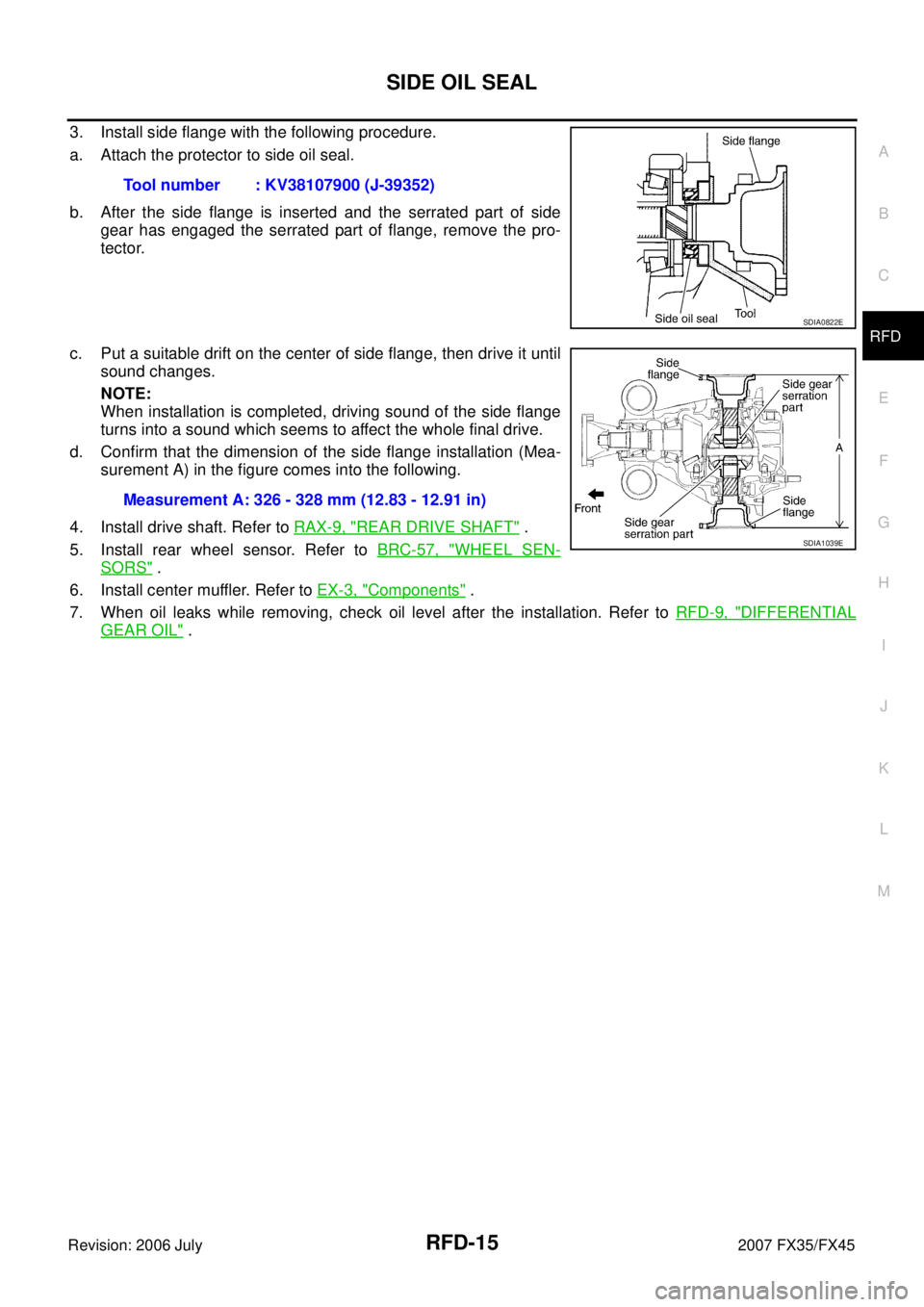

INFINITI FX35 2007 Service Manual SIDE OIL SEAL RFD-15 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 3. Install side flange with the following procedure. a. Attach the protector to side oil seal. b. Afte

Page 3946 of 4366

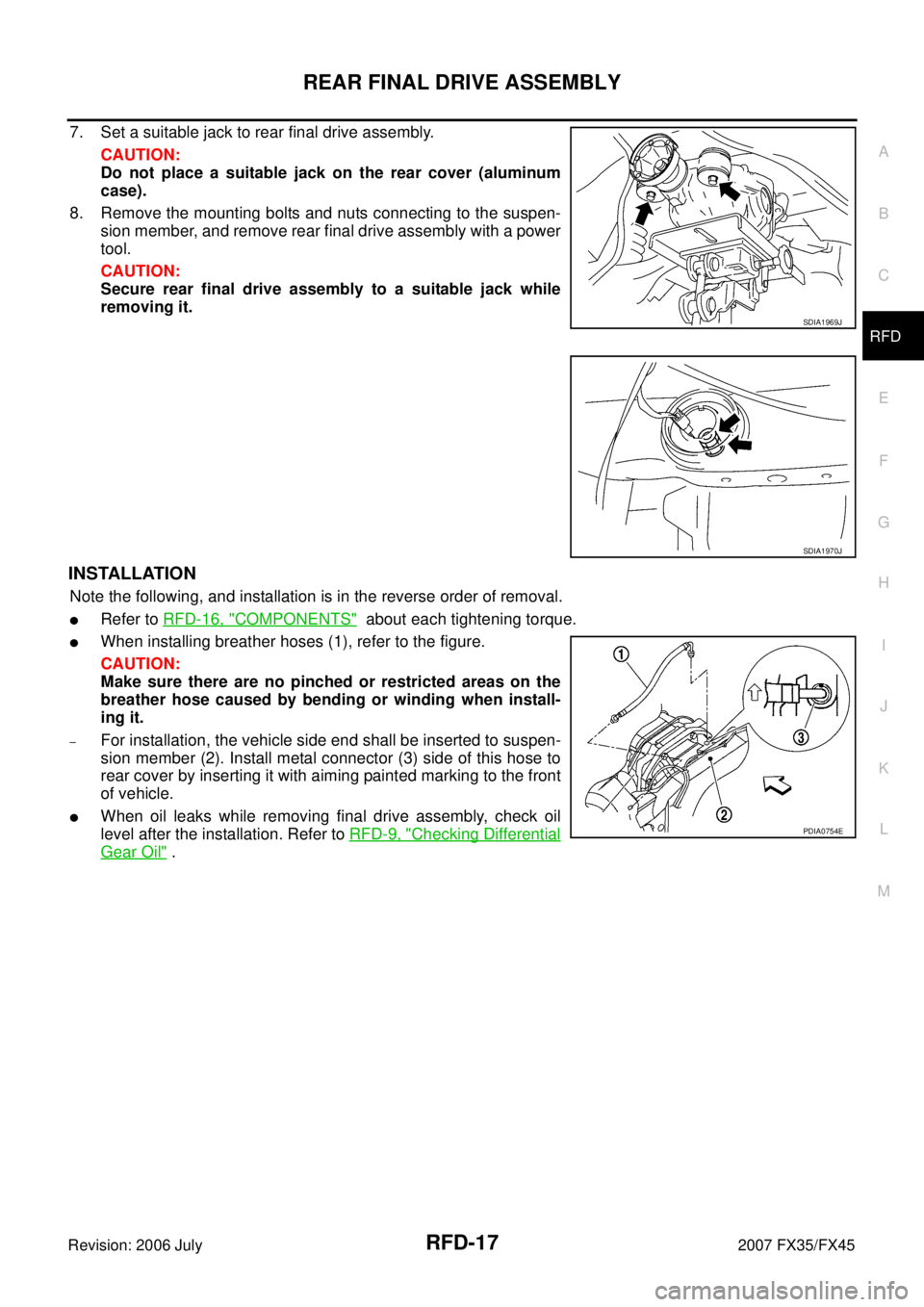

INFINITI FX35 2007 Service Manual RFD-16 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 REAR FINAL DRIVE ASSEMBLYPFP:38300 Removal and InstallationNDS000CW COMPONENTS REMOVAL 1. Remove center muffler with a power tool.

Page 3947 of 4366

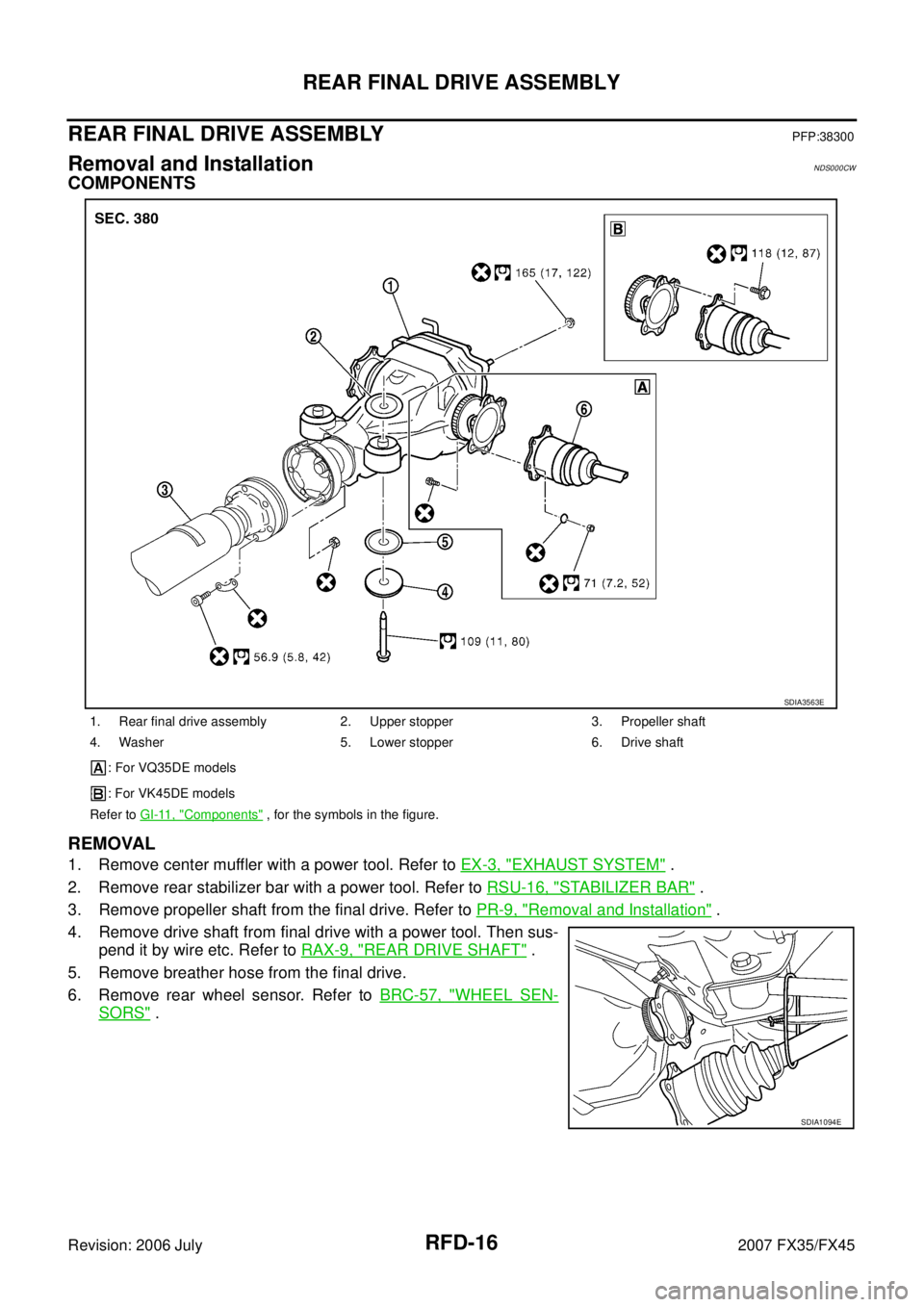

INFINITI FX35 2007 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-17 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 7. Set a suitable jack to rear final drive assembly. CAUTION: Do not place a suitable jack

Page 3948 of 4366

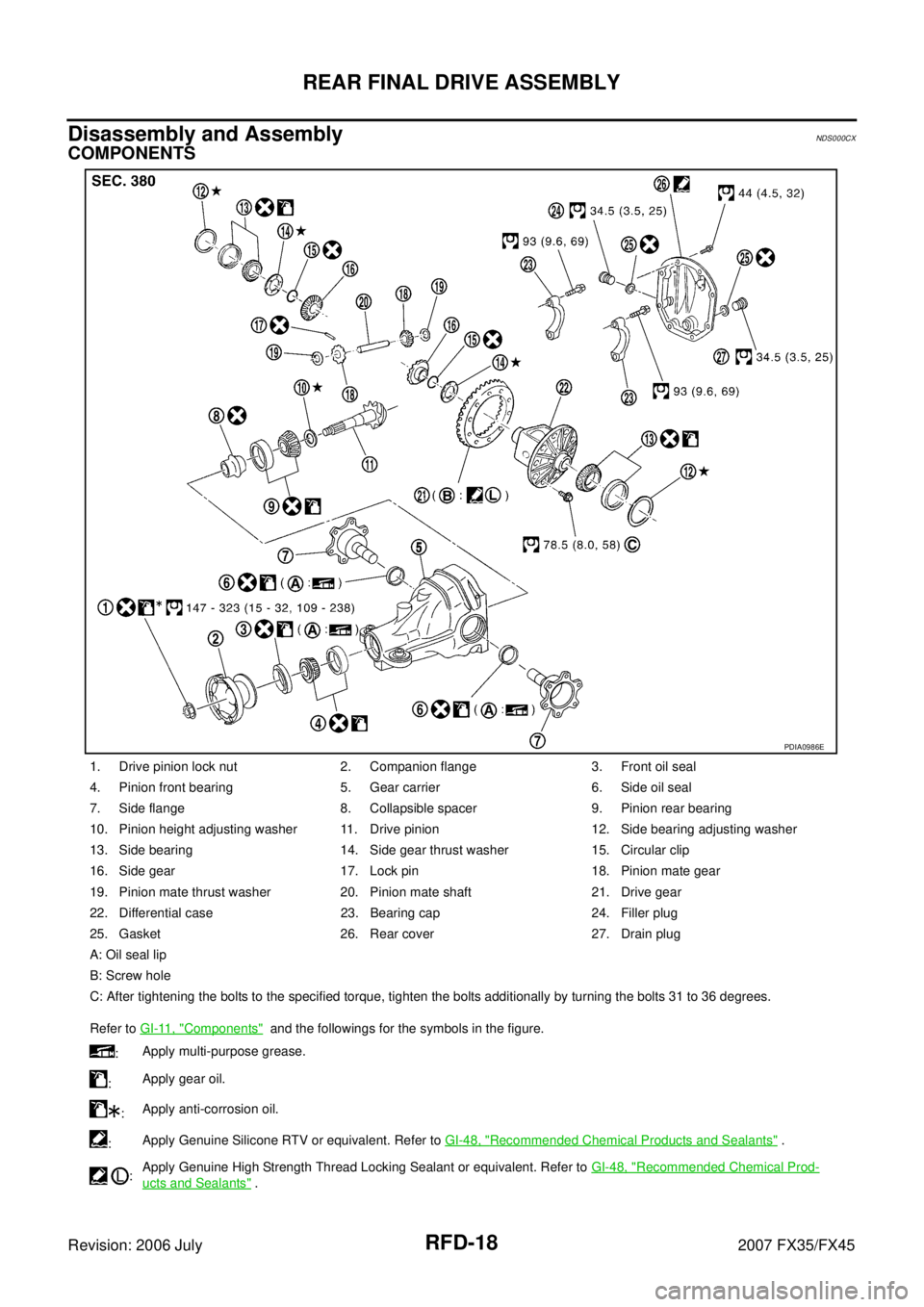

INFINITI FX35 2007 Service Manual RFD-18 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 Disassembly and AssemblyNDS000CX COMPONENTS 1. Drive pinion lock nut 2. Companion flange 3. Front oil seal 4. Pinion front bearing

Page 3949 of 4366

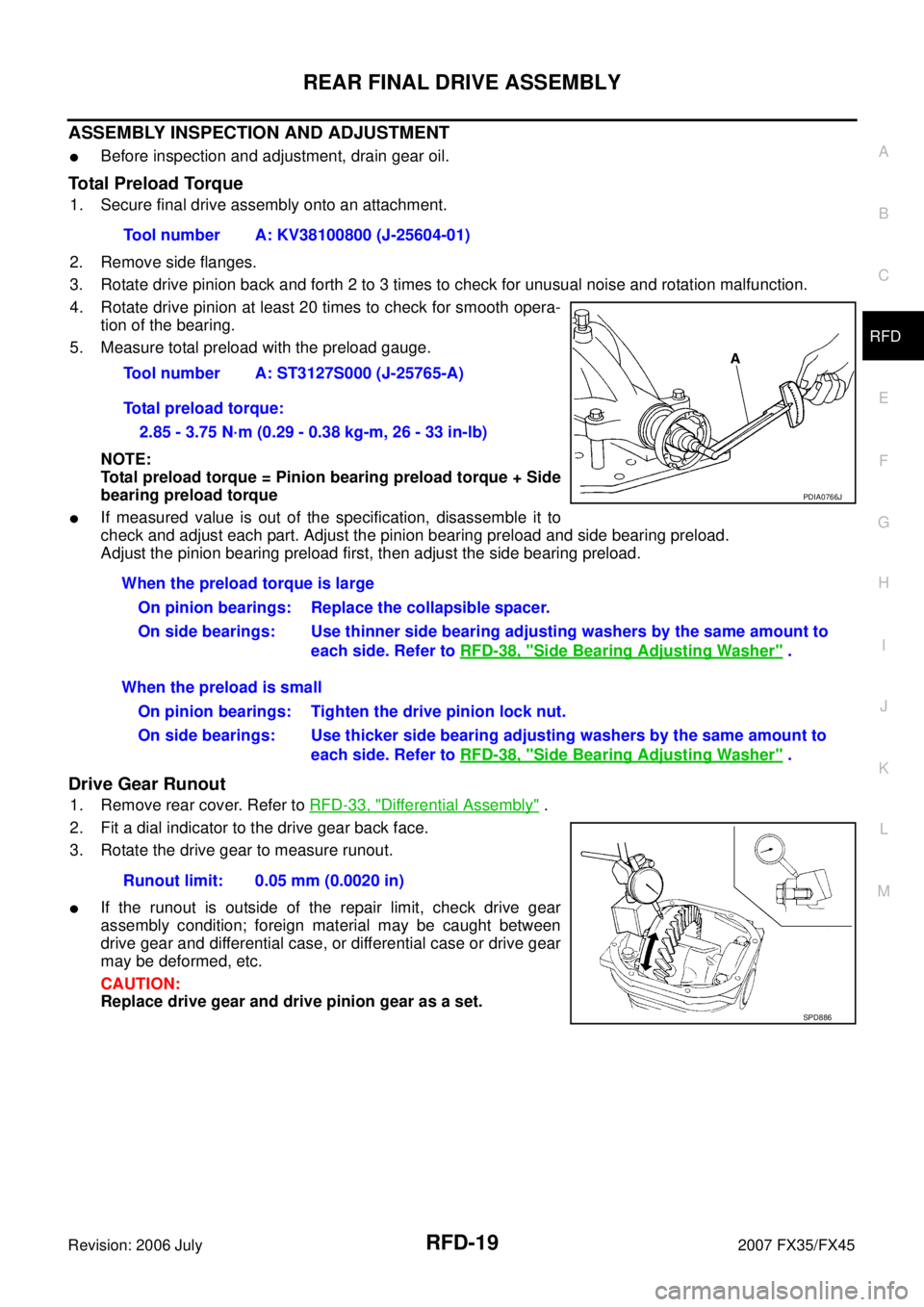

INFINITI FX35 2007 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-19 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 ASSEMBLY INSPECTION AND ADJUSTMENT Before inspection and adjustment, drain gear oil. Total

Page 3950 of 4366

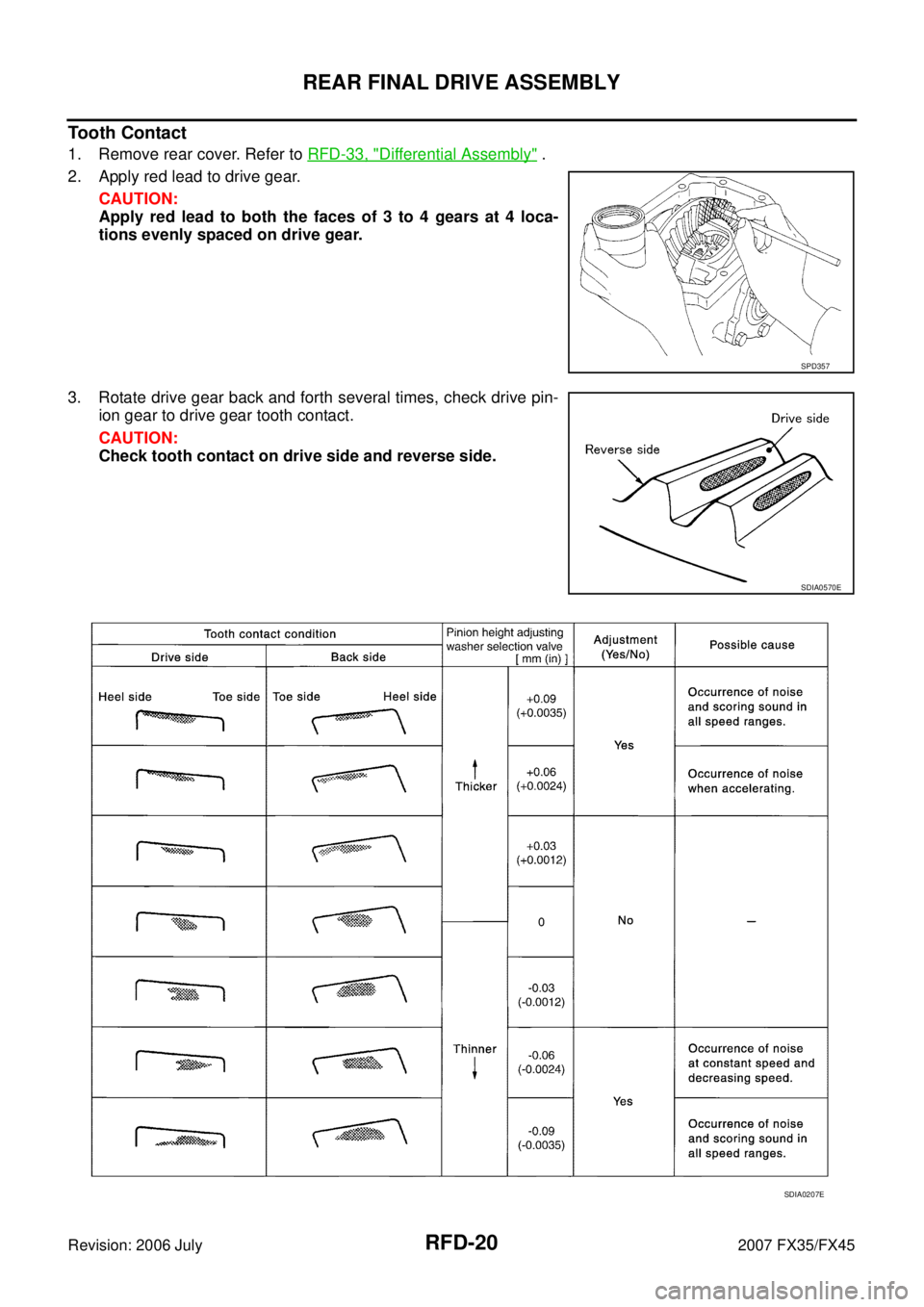

INFINITI FX35 2007 Service Manual RFD-20 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 Tooth Contact 1. Remove rear cover. Refer to RFD-33, "Differential Assembly" . 2. Apply red lead to drive gear. CAUTION: Apply re

Page 3951 of 4366

INFINITI FX35 2007 Service Manual REAR FINAL DRIVE ASSEMBLY RFD-21 C E F G H I J K L M A B RFD Revision: 2006 July 2007 FX35/FX45 4. If tooth contact is improperly adjusted, follow the procedure below to adjust the pinion

Page 3952 of 4366

INFINITI FX35 2007 Service Manual RFD-22 REAR FINAL DRIVE ASSEMBLY Revision: 2006 July 2007 FX35/FX45 Companion Flange Runout 1. Fit a test indicator to the inner side of companion flange (socket diameter). 2. Rotate companion flang
