Page 1713 of 4366

INFINITI FX35 2007 Service Manual DTC P0182, P0183 FTT SENSOR EC-337
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Component InspectionNBS003PO
FUEL TANK TEMPERATURE SENSOR
1. Remove fuel level se

Page 1714 of 4366

INFINITI FX35 2007 Service Manual EC-338
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2006 July 2007 FX35/FX45
DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionNBS003PQ
Electric throttle control actuator consists of throttle

EC-338
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2006 July 2007 FX35/FX45
DTC P0222, P0223 TP SENSORPFP:16119
Component DescriptionNBS003PQ
Electric throttle control actuator consists of throttle control motor,
throttle position (TP) sensor, etc. The throttle position sensor
responds to the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
CONSULT-II Reference Value in Data Monitor ModeNBS003PR
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicNBS003PS
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222 Throttle position sensor
1 circuit low input An excessively low voltage from the TP sensor
1 is sent to ECM.
Harness or connectors
(TP sensor 1 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 1)
Accelerator pedal position sensor.
(APP sensor 2)
P0223
0223 Throttle position sensor
1 circuit high input An excessively high voltage from the TP sen-
sor 1 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 1715 of 4366

INFINITI FX35 2007 Service Manual DTC P0222, P0223 TP SENSOR EC-339
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC Confirmation ProcedureNBS003PT
NOTE:
If DTC Confirmation Procedure has been p

Page 1716 of 4366

INFINITI FX35 2007 Service Manual EC-340
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2006 July 2007 FX35/FX45

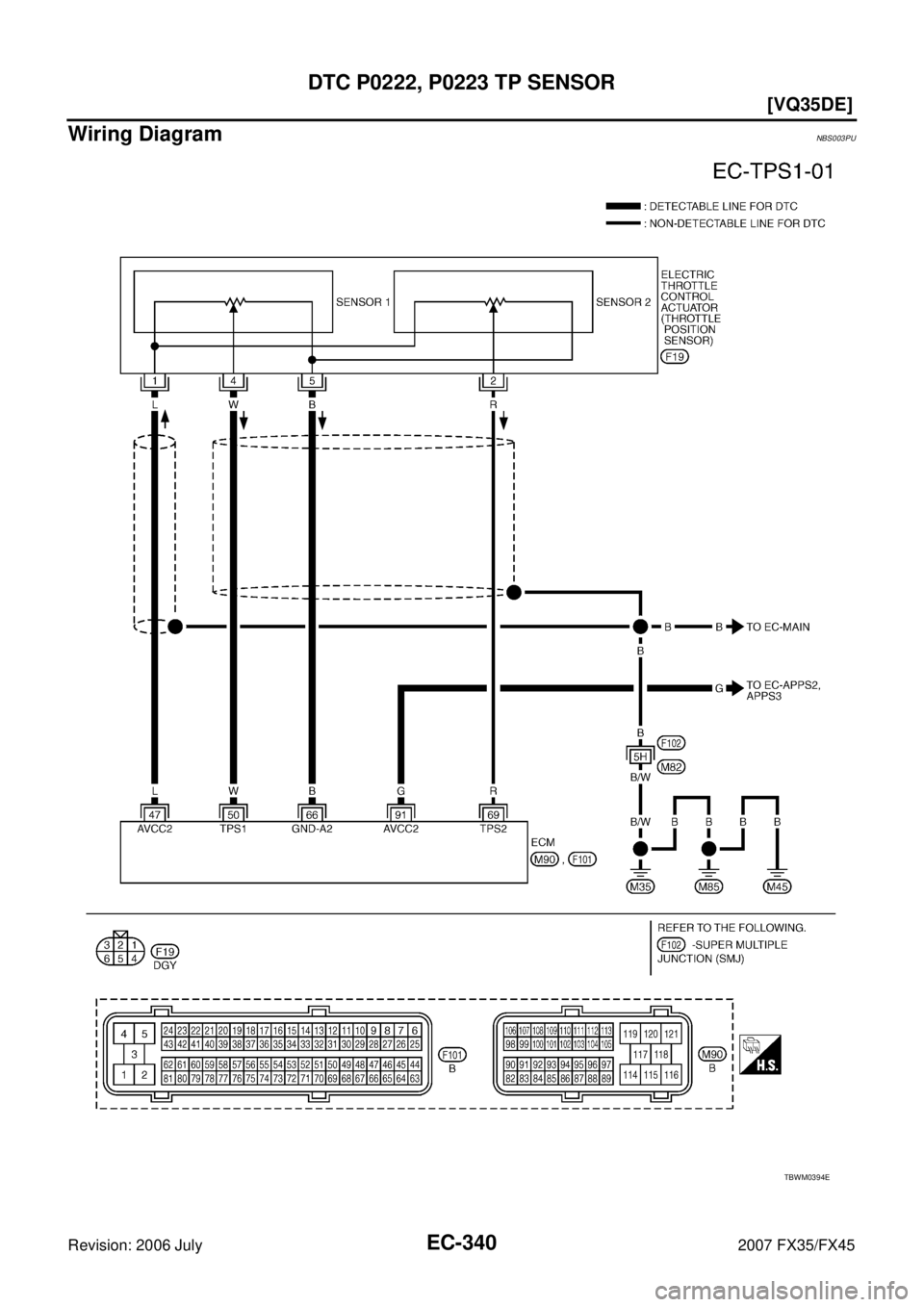

Wiring DiagramNBS003PU
TBWM0394E

Page 1717 of 4366

INFINITI FX35 2007 Service Manual DTC P0222, P0223 TP SENSOR EC-341
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and

Page 1718 of 4366

INFINITI FX35 2007 Service Manual EC-342
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2006 July 2007 FX35/FX45
2. CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness conne

Page 1719 of 4366

INFINITI FX35 2007 Service Manual DTC P0222, P0223 TP SENSOR EC-343
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2.

Page 1720 of 4366

INFINITI FX35 2007 Service Manual EC-344
[VQ35DE]
DTC P0222, P0223 TP SENSOR
Revision: 2006 July 2007 FX35/FX45
Component InspectionNBS003PW
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-8
