Page 3385 of 4366

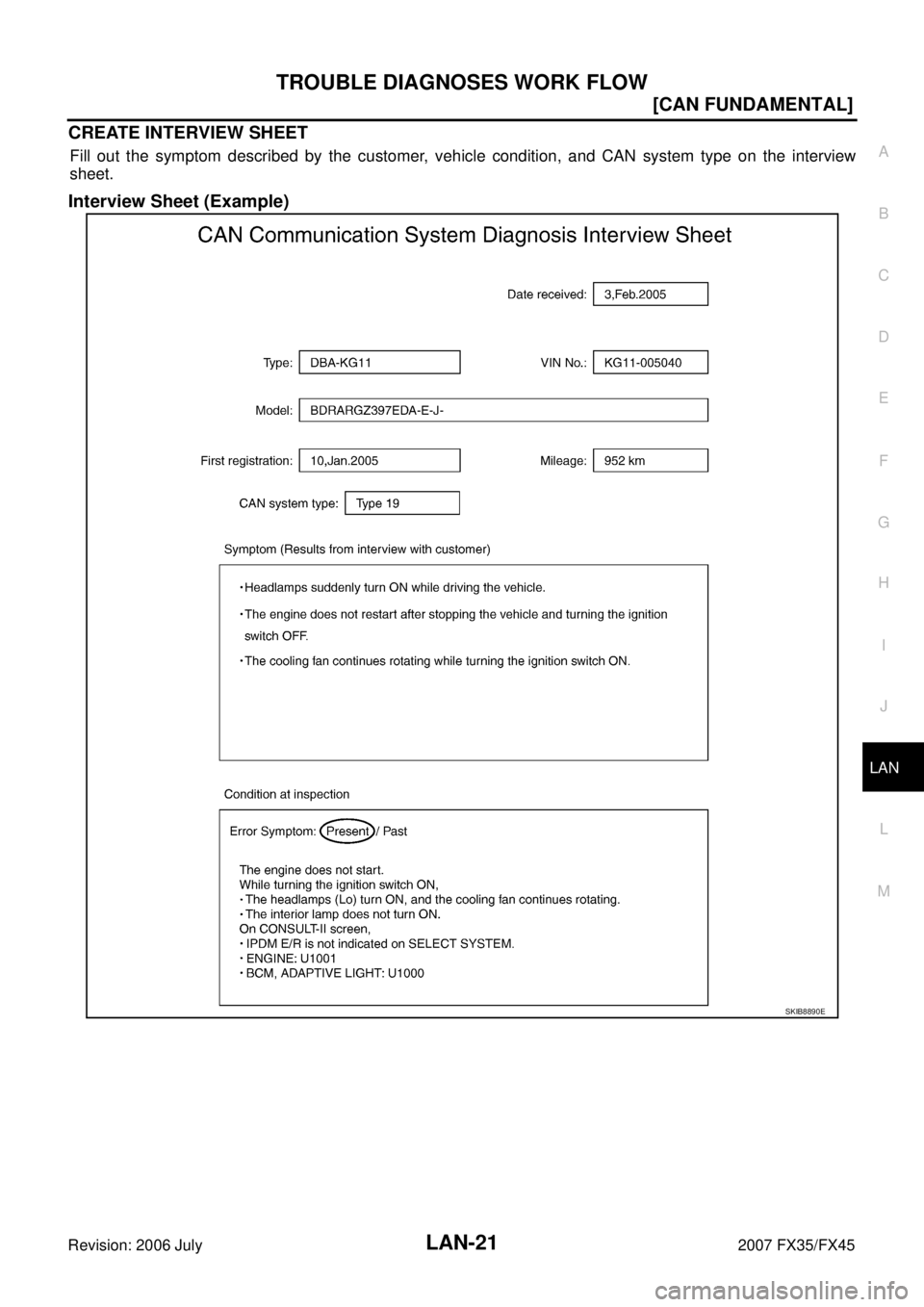

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-21 [CAN FUNDAMENTAL] C D E F G H I J L M A B LAN Revision: 2006 July 2007 FX35/FX45 CREATE INTERVIEW SHEET Fill out the symptom described by the customer,

Page 3386 of 4366

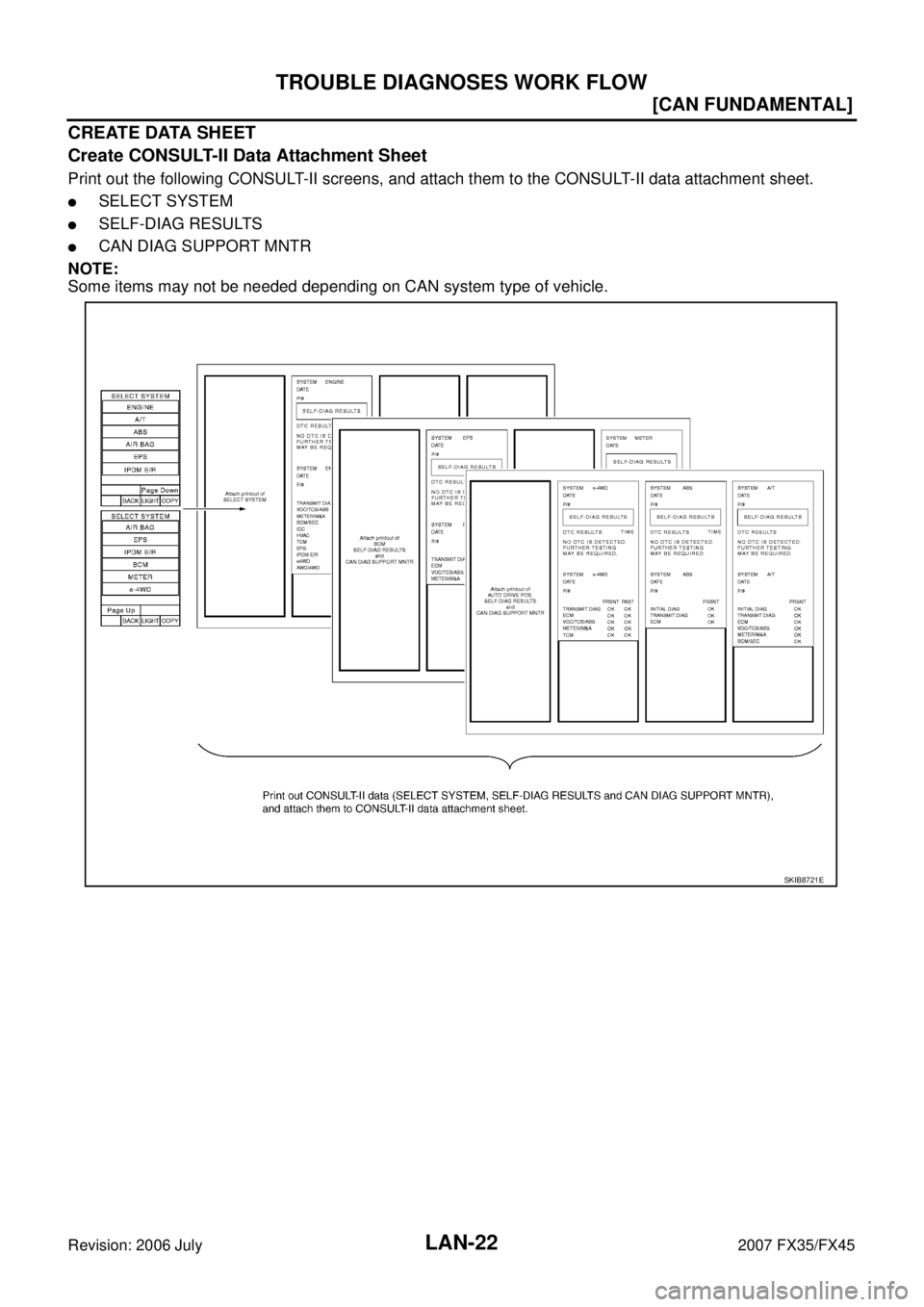

INFINITI FX35 2007 Service Manual LAN-22 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 July 2007 FX35/FX45 CREATE DATA SHEET Create CONSULT-II Data Attachment Sheet Print out the following CONSULT-II screens, and attac

Page 3387 of 4366

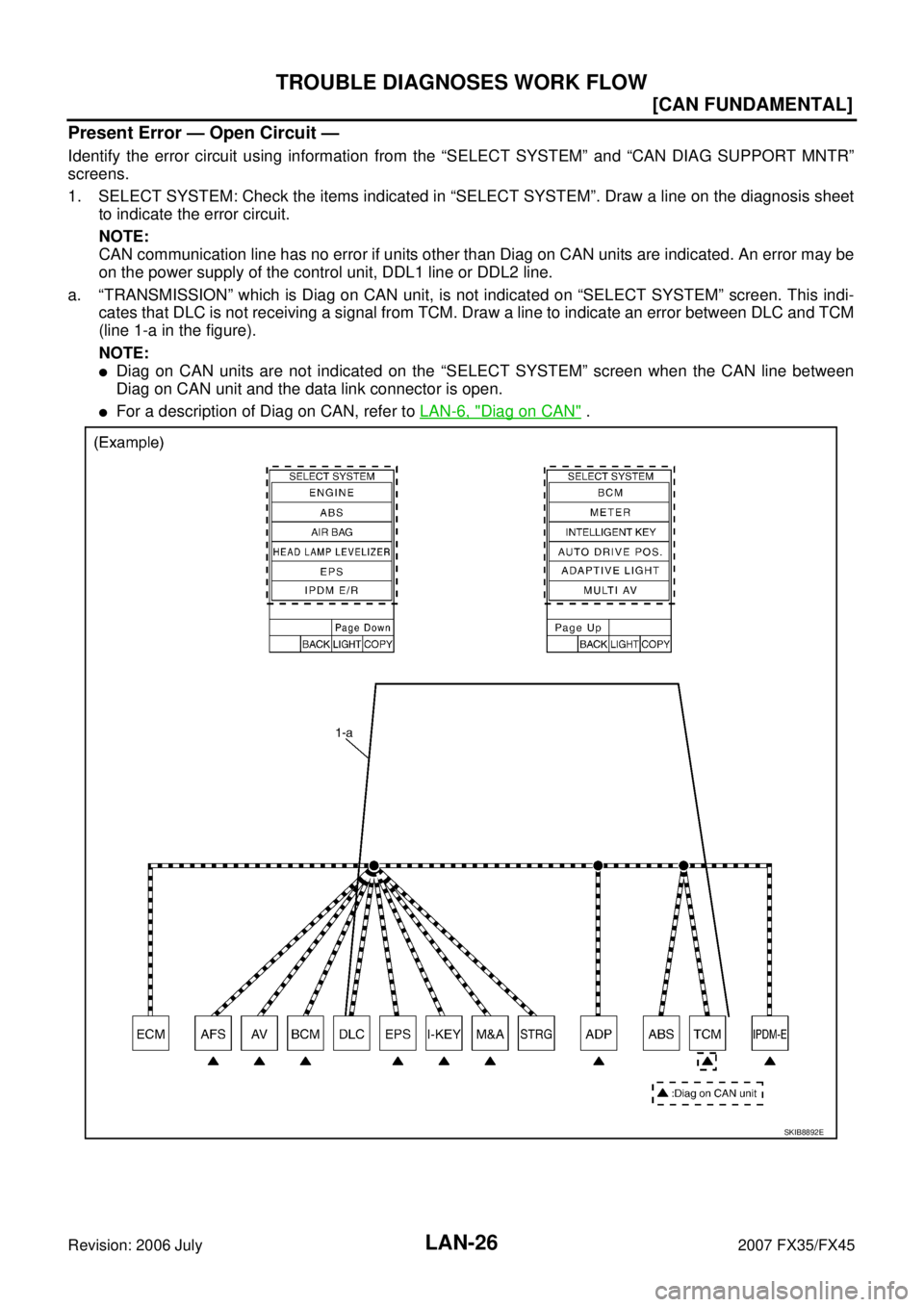

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-23 [CAN FUNDAMENTAL] C D E F G H I J L M A B LAN Revision: 2006 July 2007 FX35/FX45 Create On-board Diagnosis Copy Sheet Display the trouble diagnosis resu

Page 3388 of 4366

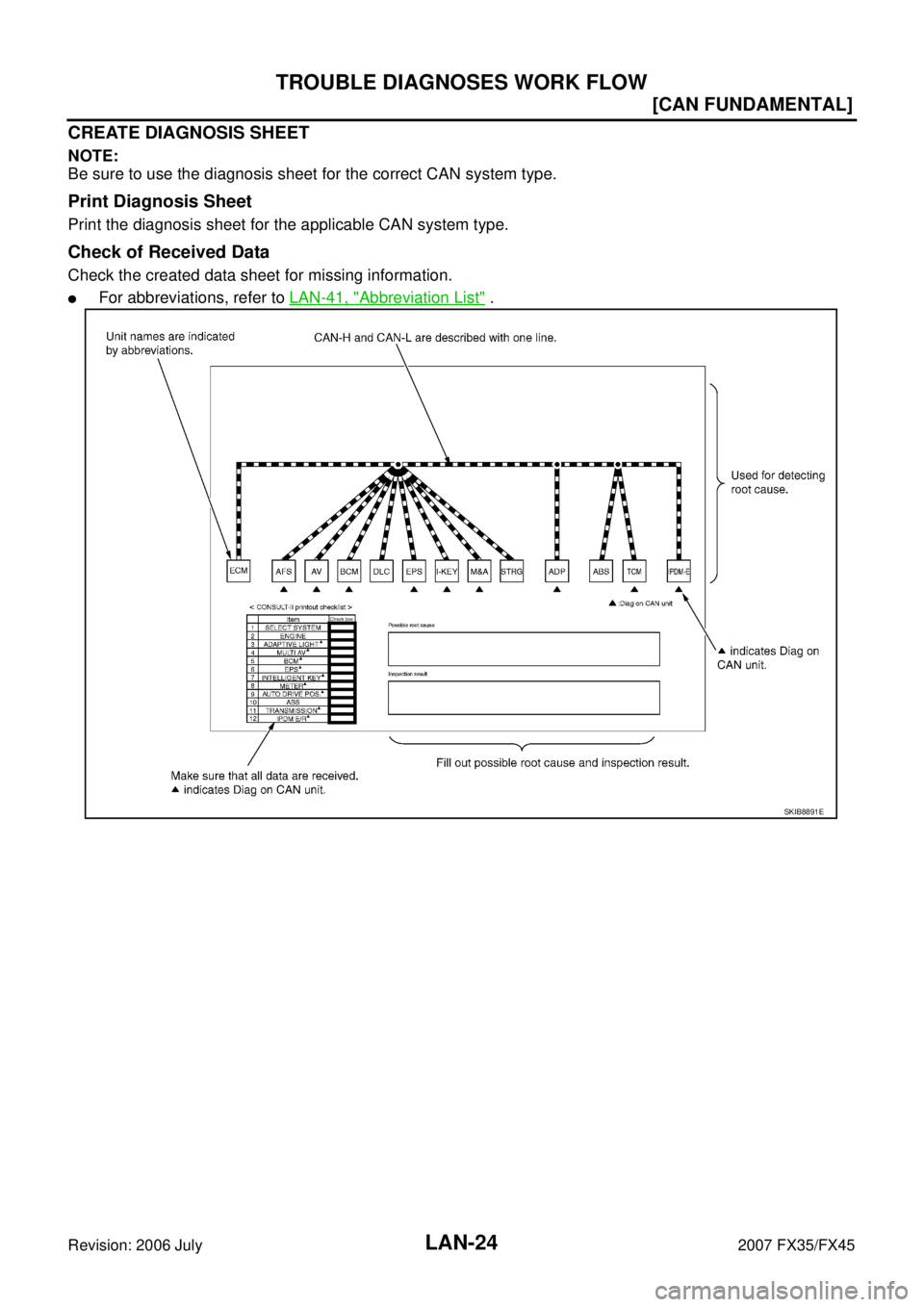

INFINITI FX35 2007 Service Manual LAN-24 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 July 2007 FX35/FX45 CREATE DIAGNOSIS SHEET NOTE: Be sure to use the diagnosis sheet for the correct CAN system type. Print Diagnosi

Page 3389 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-25 [CAN FUNDAMENTAL] C D E F G H I J L M A B LAN Revision: 2006 July 2007 FX35/FX45 DETECT THE ROOT CAUSE Identify the root cause using the created diagnos

Page 3390 of 4366

INFINITI FX35 2007 Service Manual LAN-26 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 July 2007 FX35/FX45 Present Error — Open Circuit — Identify the error circuit using information from the “SELECT SYSTEM” and

Page 3391 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSES WORK FLOW LAN-27 [CAN FUNDAMENTAL] C D E F G H I J L M A B LAN Revision: 2006 July 2007 FX35/FX45 2. CAN DIAG SUPPORT MNTR: Check each item on “CAN DIAG SUPPORT MNTR

Page 3392 of 4366

INFINITI FX35 2007 Service Manual LAN-28 [CAN FUNDAMENTAL] TROUBLE DIAGNOSES WORK FLOW Revision: 2006 July 2007 FX35/FX45 d. Reception item of “BCM”: On “TCM”, “UNKWN” is indicated. This means BCM cannot receive the signal
