2007 INFINITI FX35 Service Manual

CD changer child restraint flat tire fuse diagram TPMS snow chains

Page 3041 of 4366

INFINITI FX35 2007 Service Manual CYLINDER BLOCK EM-249
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Refer to GI-11, "Components" for symbol marks in the figure.
Disassembly and AssemblyNBS003I

CYLINDER BLOCK EM-249
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Refer to GI-11, "Components" for symbol marks in the figure.
Disassembly and AssemblyNBS003IR
DISASSEMBLY
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note with difference in steps and etc.
1. Remove engine assembly from vehicle, and separate front suspension member, transmission and front final drive from engine. Refer to EM-243, "
ENGINE ASSEMBLY" .
2. Remove the parts that may restrict installation of engine to widely use engine stand.
NOTE:
The procedure is described assuming that you use widely use engine holding the surface, to which trans-
mission is installed.
a. Remove drive plate.
Holding ring gear with ring gear stopper (SST).
Loosen mounting bolts diagonally order.
CAUTION:
Do not disassemble drive plate.
Do not place drive plate with signal plate facing down.
When handling signal plate, take care not to damage or
scratch it.
Handle signal plate in a manner that prevents it from
becoming magnetized.
b. Remove engine rear plate.
3. Lift engine with hoist to install it onto widely use engine stand. CAUTION:
Use engine stand that has a load capacity [approximately 240 kg (529 lb) or more] large enough for
supporting the engine weight.
If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the
potential risk of overturning stand.
13. Piston pin 14. Connecting rod bearing 15. Connecting rod bearing cap
16. Block heater protector 17. Connector cap 18. Cylinder block heater
19. Gasket 20. Main bearing cap 21. Thrust bearing
22. Main bearing 23. Rear plate 24. Crankshaft
25. Pilot converter 26. Drive plate 27. Thrust bearing
28. Side bolt 29. Reinforcement plate 30. Crankshaft position sensor (POS)
31. O-ring 32. Rear oil seal 33. Rear oil seal retainer
A. Refererence: Installed on transmis-
sion B. Refer to
EM-253
C. Right bank
D. Cylinder block heater (For Canada) E. Chamfered F. Crankshaft side : Engine front
PBIC1656E
PBIC2367E

Page 3042 of 4366

INFINITI FX35 2007 Service Manual EM-250
[VK45DE]
CYLINDER BLOCK
Revision: 2006 July 2007 FX35/FX45
–Intake manifolds (upper and lower): Refer to EM-179, "INTAKE MANIFOLD" .
–Exhaust manifold: Refer to EM-183, "EXHAUST MANIFOLD A

Page 3043 of 4366

INFINITI FX35 2007 Service Manual CYLINDER BLOCK EM-251
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

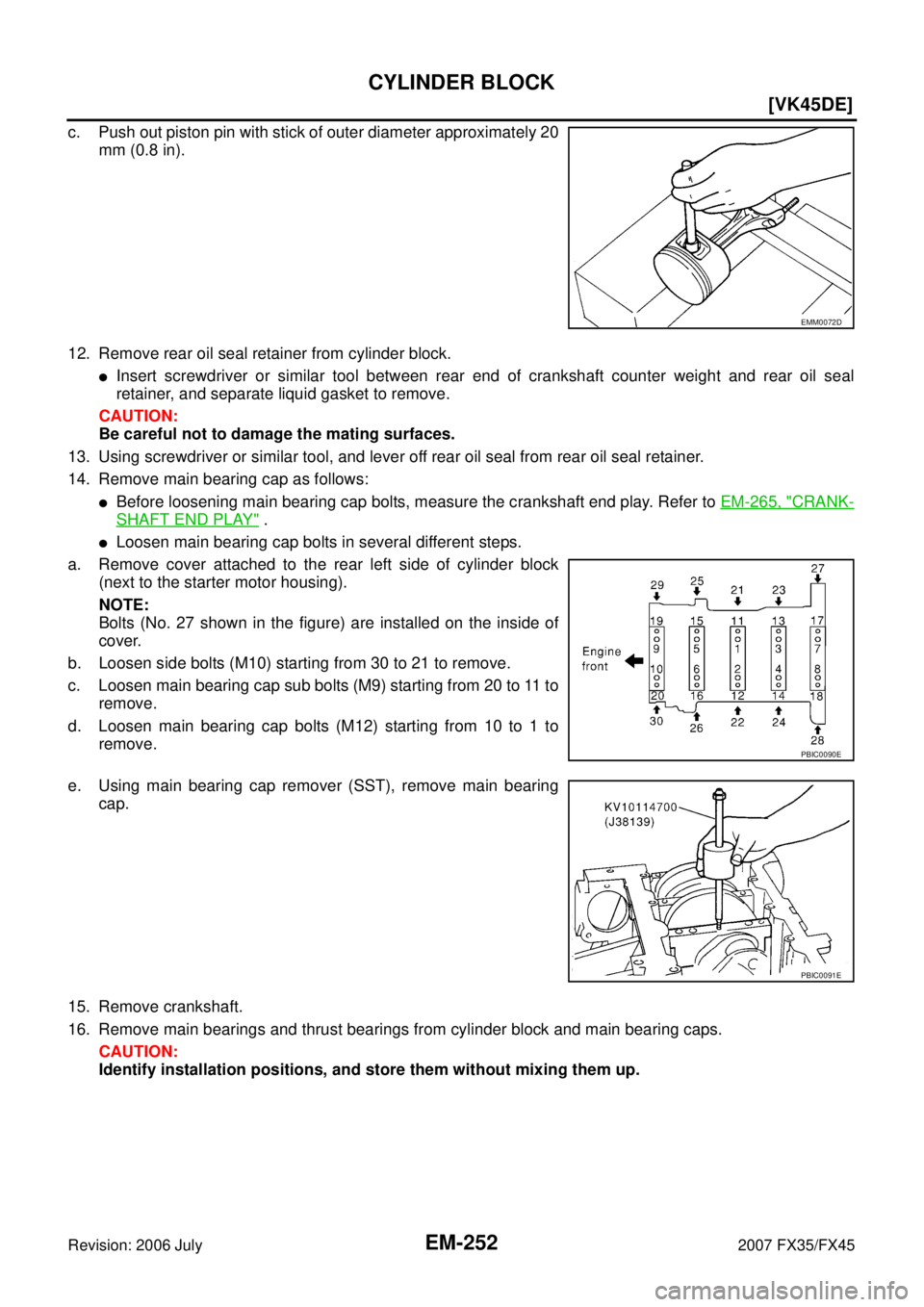

c. Using hammer handle or similar tool, push piston and connect-
ing rod assembly out to the

Page 3044 of 4366

INFINITI FX35 2007 Service Manual EM-252
[VK45DE]
CYLINDER BLOCK
Revision: 2006 July 2007 FX35/FX45
c. Push out piston pin with stick of outer diameter approximately 20
mm (0.8 in).
12. Remove rear oil seal retainer from cylinder bl

Page 3045 of 4366

INFINITI FX35 2007 Service Manual CYLINDER BLOCK EM-253
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
17. If pilot converter must be removed, remove it from the rear end
of the crankshaft using p

Page 3046 of 4366

INFINITI FX35 2007 Service Manual EM-254
[VK45DE]
CYLINDER BLOCK
Revision: 2006 July 2007 FX35/FX45
c. Install main bearings paying attention to the direction.
Main bearing with oil hole and groove goes on cylinder block.
The one wi

Page 3047 of 4366

INFINITI FX35 2007 Service Manual CYLINDER BLOCK EM-255
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
7. Install each main bearing cap bolt as follows:
a. Apply new engine oil to threads and seat

Page 3048 of 4366

INFINITI FX35 2007 Service Manual EM-256
[VK45DE]
CYLINDER BLOCK
Revision: 2006 July 2007 FX35/FX45
Apply a continuous bead of liquid gasket with tube presser
[SST: WS39930000 ( — )] to rear oil seal retainer as
shown in the figur
