2007 INFINITI FX35 Service Manual

navigation system ignition cruise control roof rack snow chains lug pattern

Load previous 8 pages

Page 1409 of 4366

INFINITI FX35 2007 Service Manual ENGINE CONTROL SYSTEM EC-33
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
During acceleration
The knock sensor retard system is designed only for emergencies. T

Page 1410 of 4366

INFINITI FX35 2007 Service Manual EC-34
[VQ35DE]
AIR CONDITIONING CUT CONTROL
Revision: 2006 July 2007 FX35/FX45
AIR CONDITIONING CUT CONTROLPFP:23710
Input/Output Signal ChartNBS003L5
*1: This signal is sent to the ECM through CAN co

Page 1411 of 4366

INFINITI FX35 2007 Service Manual AUTOMATIC SPEED CONTROL DEVICE (ASCD) EC-35
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionNBS003L

AUTOMATIC SPEED CONTROL DEVICE (ASCD) EC-35
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionNBS003L7
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line.
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE indicator and SET indicator in combination meter. If any
malfunction occurs in ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (The CRUISE indicator in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch. (Then SET indicator in combination meter illuminates.)
ACCELERATOR OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.
CANCEL switch is pressed
More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)
Brake pedal is depressed
Selector lever is changed to N, P, R position
Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed
VDC/TCS system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.
Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will
stop blinking and the cruise operation will be able to work by depressing SET/COAST switch or RESUME/
ACCELERATE switch.
Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
COAST OPERATION
When the SET/COAST switch is pressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed control Electric throttle control
actuator
Stop lamp switch Brake pedal operation
ASCD steering switch ASCD steering switch operation
Park/neutral position (PNP) switch Gear position
Wheel sensor. Vehicle speed*
TCM Powertrain revolution*

Page 1412 of 4366

INFINITI FX35 2007 Service Manual EC-36
[VQ35DE]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Revision: 2006 July 2007 FX35/FX45
RESUME OPERATION
When the RESUME/ACCELERATE switch is pressed after cancel operation other than depressing MAIN

Page 1413 of 4366

INFINITI FX35 2007 Service Manual CAN COMMUNICATION EC-37
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
CAN COMMUNICATIONPFP:23710
System DescriptionNBS003L9
CAN (Controller Area Network) is a ser

Page 1414 of 4366

INFINITI FX35 2007 Service Manual EC-38
[VQ35DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 July 2007 FX35/FX45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionNBS003LA

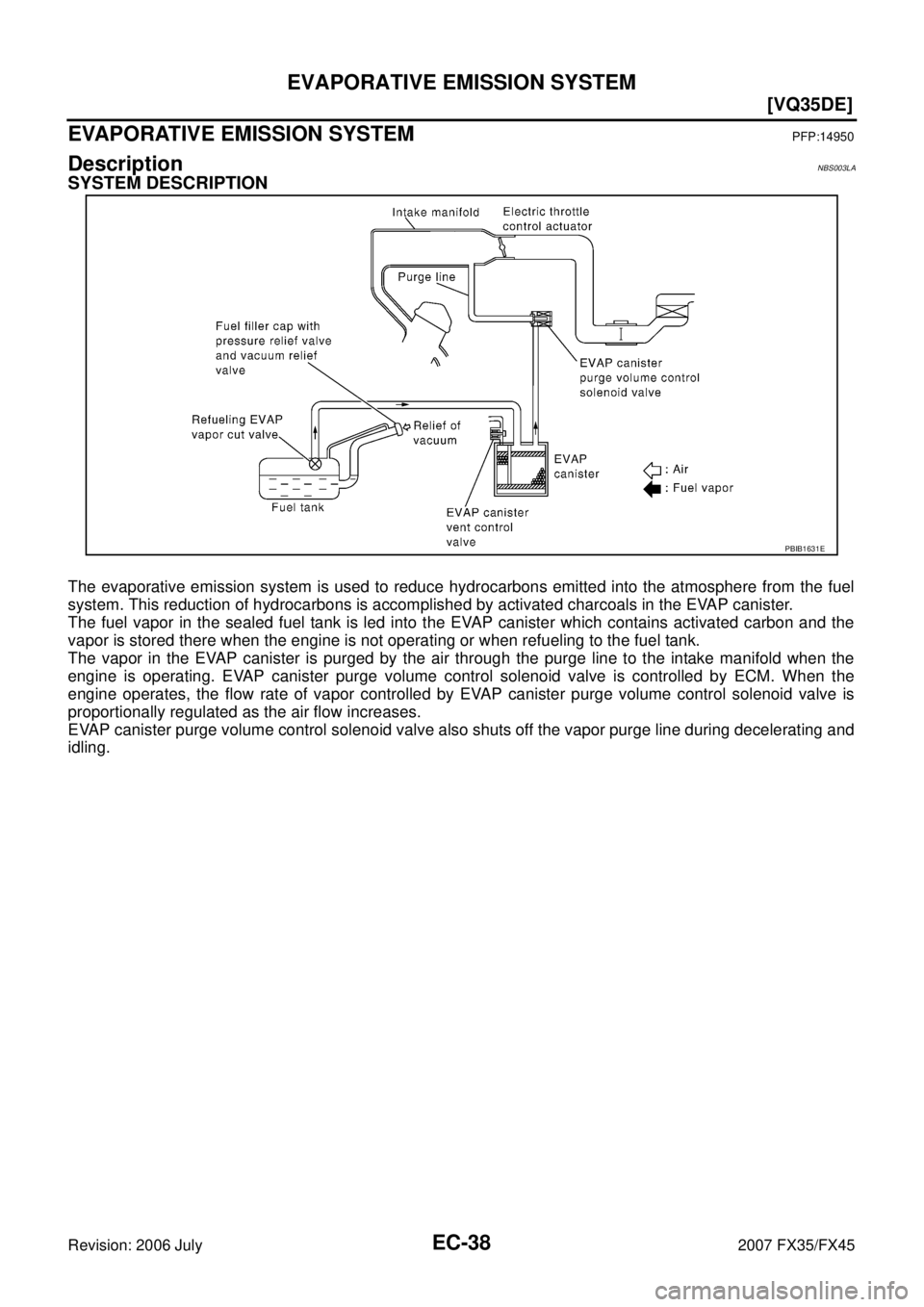

SYSTEM DESCRIPTION
The evaporative emission system is used to red

Page 1415 of 4366

INFINITI FX35 2007 Service Manual EVAPORATIVE EMISSION SYSTEM EC-39
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

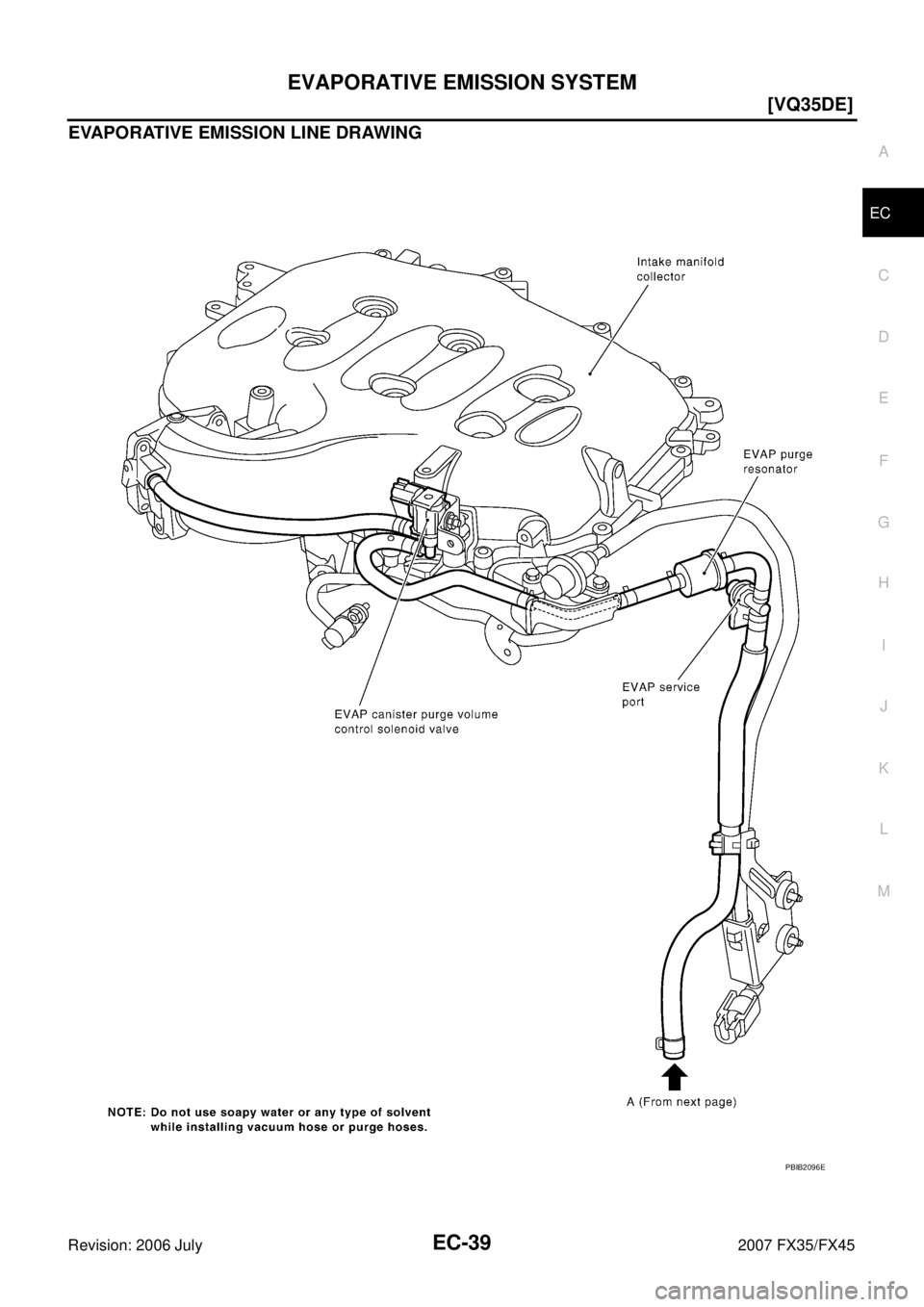

EVAPORATIVE EMISSION LINE DRAWING
PBIB2096E

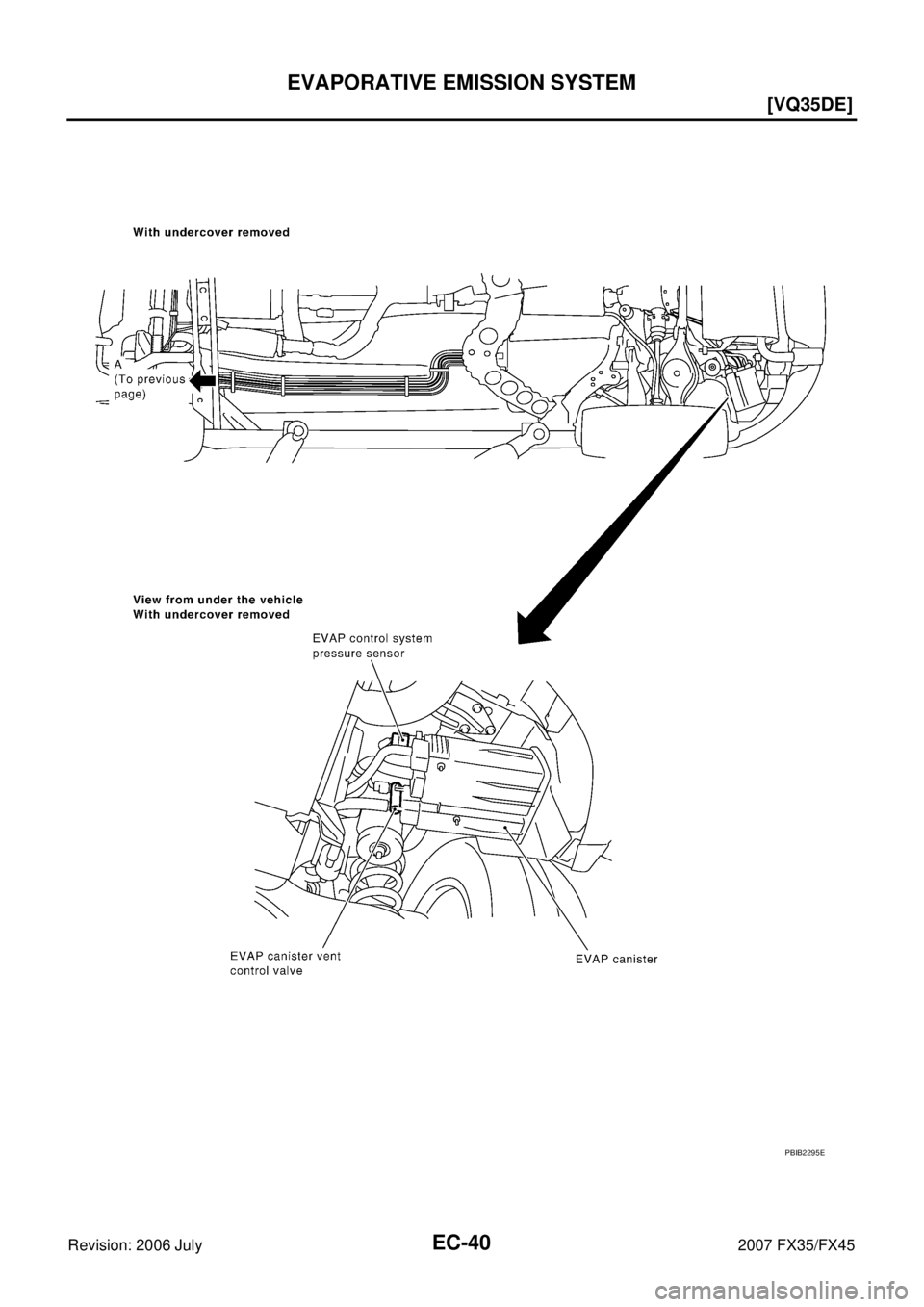

Page 1416 of 4366

INFINITI FX35 2007 Service Manual EC-40
[VQ35DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 July 2007 FX35/FX45
PBIB2295E
