Page 1073 of 4366

INFINITI FX35 2007 Service Manual BODY REPAIR BL-261 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 Front pillar butt joint can be determined anywhere within shaded area as shown in the figure. The best l

Page 1074 of 4366

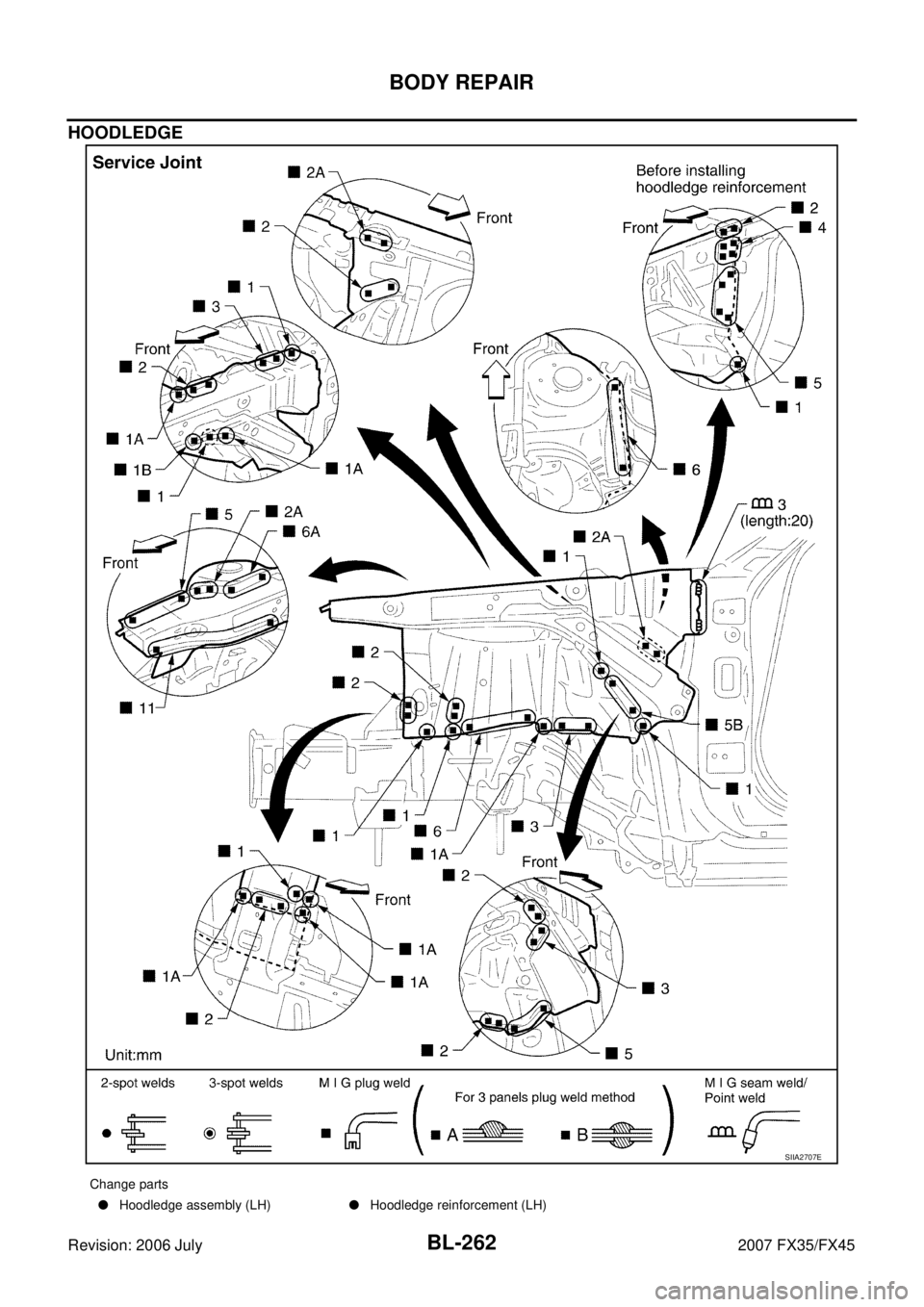

INFINITI FX35 2007 Service Manual BL-262 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 HOODLEDGE SIIA2707E Change parts  Hoodledge assembly (LH) Hoodledge reinforcement (LH)

Page 1075 of 4366

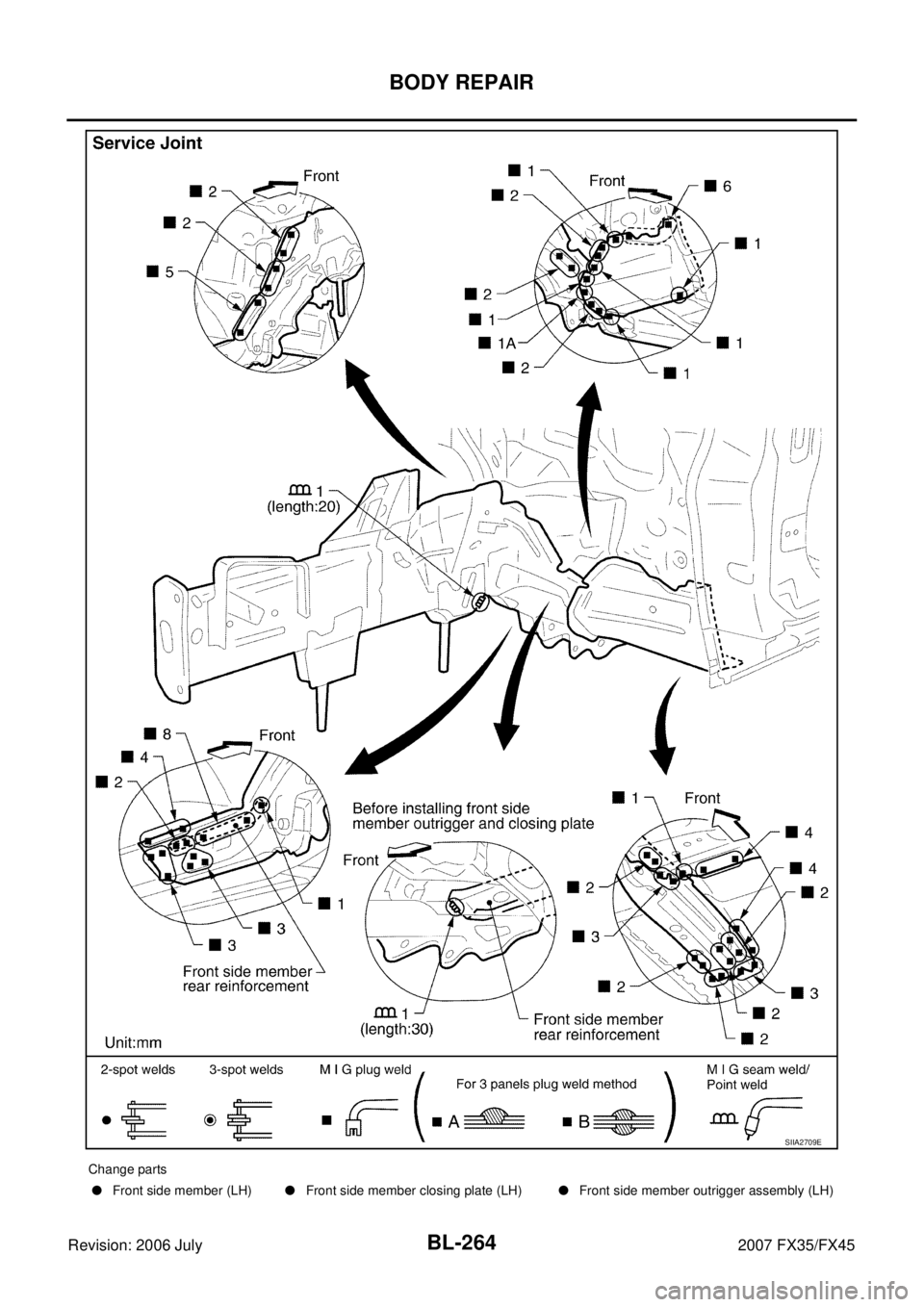

INFINITI FX35 2007 Service Manual BODY REPAIR BL-263 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 FRONT SIDE MEMBER Work after hoodledge has been removed. SIIA2708E

Page 1076 of 4366

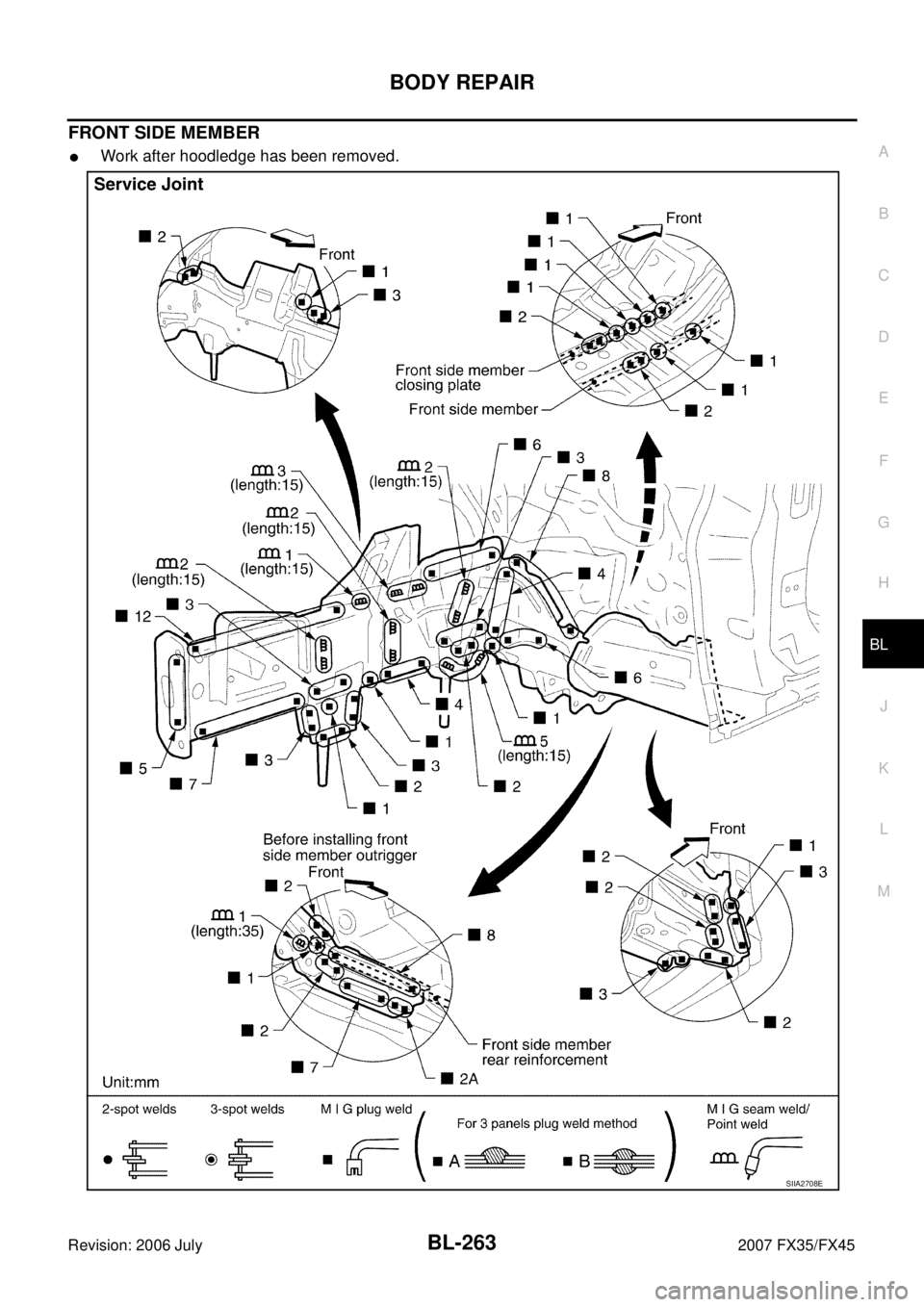

INFINITI FX35 2007 Service Manual BL-264 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 SIIA2709E Change parts  Front side member (LH) Front side member closing plate (LH) Front side member outrigger assembly (LH)

Page 1077 of 4366

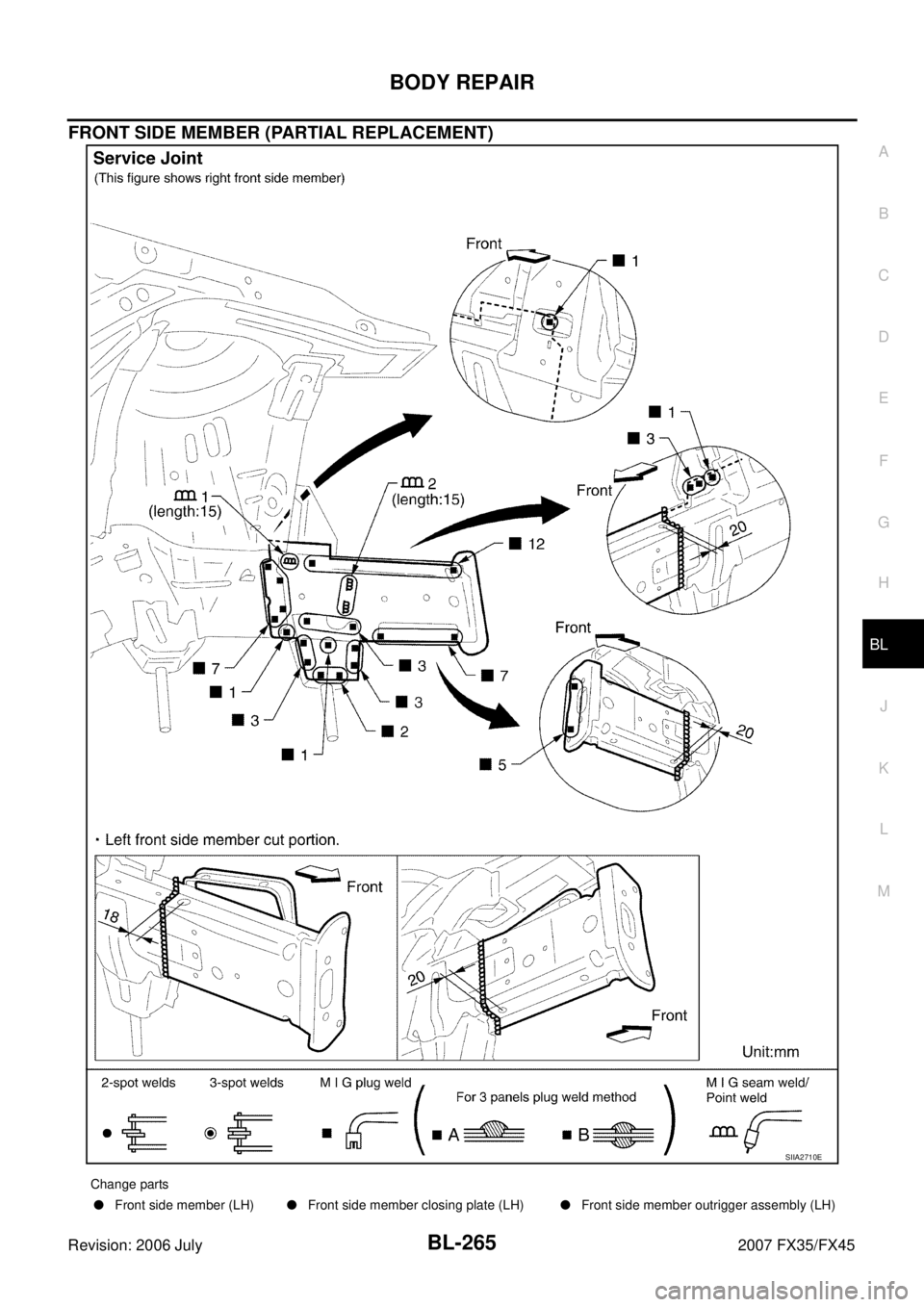

INFINITI FX35 2007 Service Manual BODY REPAIR BL-265 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 FRONT SIDE MEMBER (PARTIAL REPLACEMENT) SIIA2710E Change parts  Front side member (LH) Front side memb

Page 1078 of 4366

INFINITI FX35 2007 Service Manual BL-266 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 FRONT PILLAR Work after hoodledge reinforcement has been removed. SIIA2711E

Page 1079 of 4366

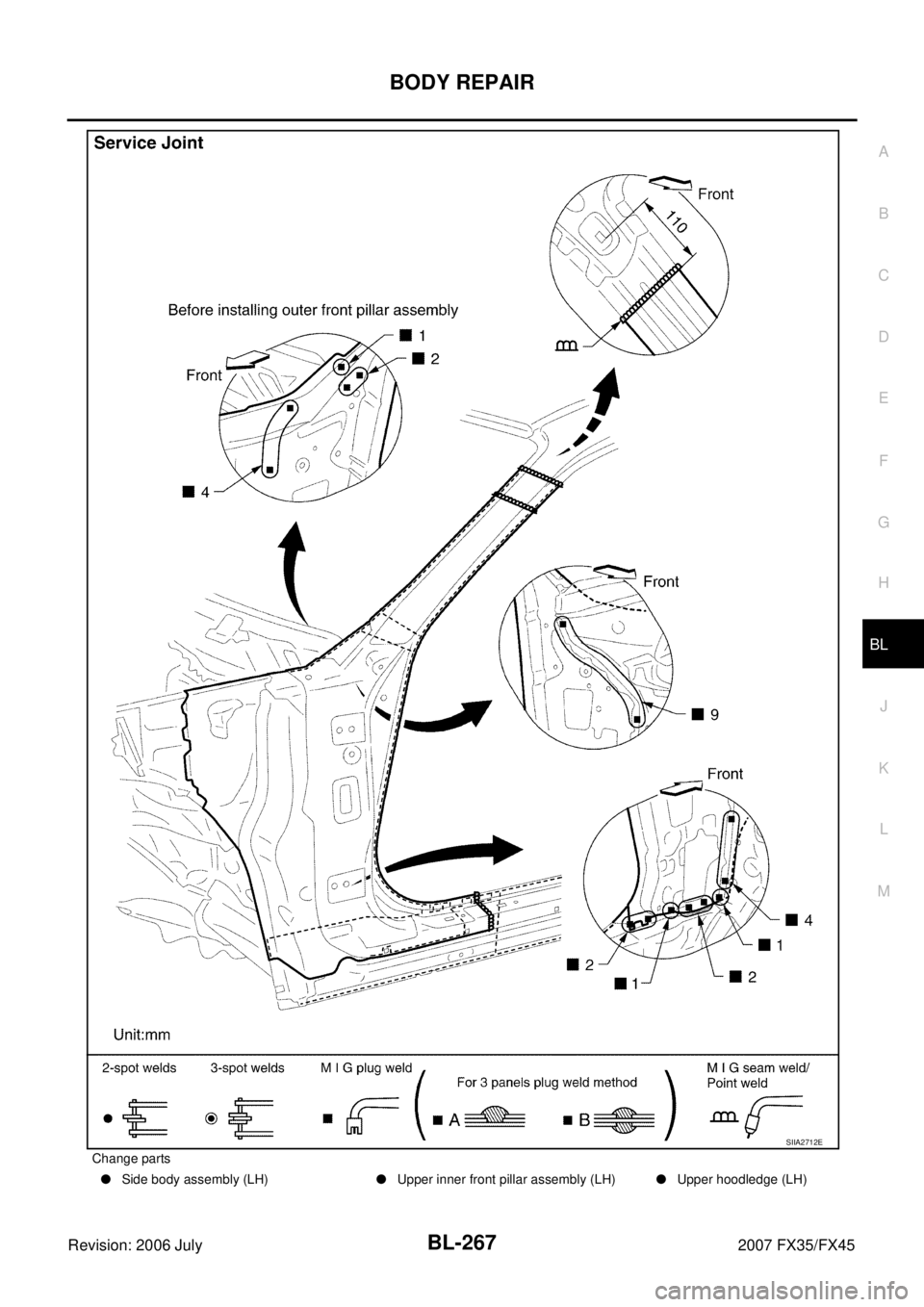

INFINITI FX35 2007 Service Manual BODY REPAIR BL-267 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 Change parts  Side body assembly (LH) Upper inner front pillar assembly (LH) Upper hoodledge (LH) SII

Page 1080 of 4366

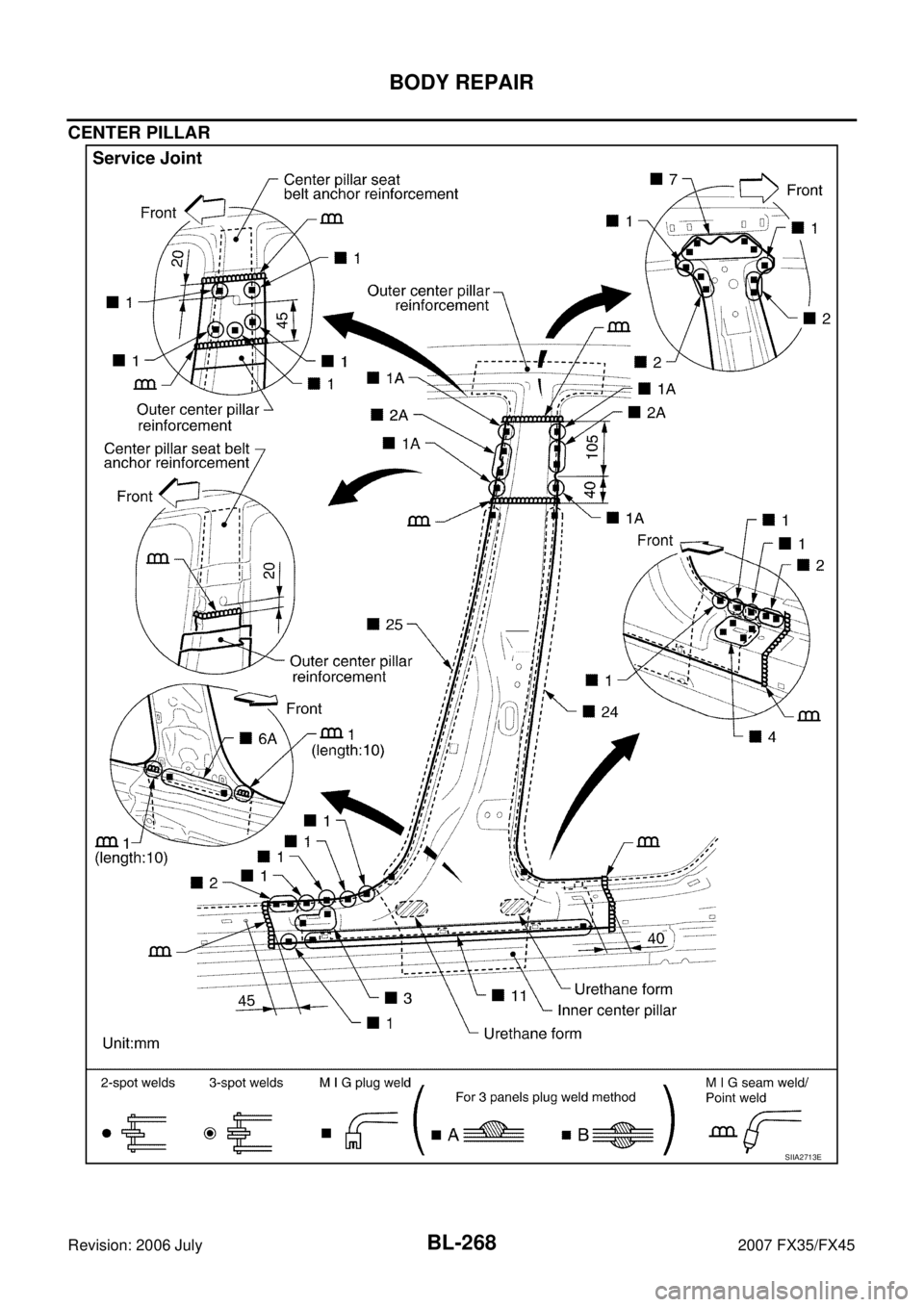

INFINITI FX35 2007 Service Manual BL-268 BODY REPAIR Revision: 2006 July 2007 FX35/FX45 CENTER PILLAR SIIA2713E
