Page 3673 of 4366
![INFINITI FX35 2007 Service Manual OIL COOLER LU-15
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
AWD models
Removal and InstallationNBS003J6
REMOVAL
WARNING:
Be careful not to get burn yourself, INFINITI FX35 2007 Service Manual OIL COOLER LU-15
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
AWD models
Removal and InstallationNBS003J6
REMOVAL
WARNING:
Be careful not to get burn yourself,](/manual-img/42/57018/w960_57018-3672.png)
OIL COOLER LU-15
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
AWD models
Removal and InstallationNBS003J6
REMOVAL
WARNING:
Be careful not to get burn yourself, as engine oil and engine coolant may be hot.
NOTE:
When removing oil cooler only, step 2 is unnecessary.
1. Remove front engine undercover with power tool.
2. Drain engine coolant from radiator and cylinder block. Refer to CO-11, "
Changing Engine Coolant" and
EM-124, "
DISASSEMBLY" .
NOTE:
Perform this step when removing water pipes.
3. Disconnect water hoses from oil cooler.
When removing oil cooler only, pinching water hoses near oil cooler to prevent engine coolant from
spilling out.
Remaining engine coolant in piping will come out. Use a tray to collect it.
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
4. Using oil filter wrench [SST: KV10115801 (J38956)], remove oil filter. Refer to LU-10, "
OIL FILTER" .
CAUTION:
Do not spill engine oil on drive belts.
5. Remove connector bolt, and remove oil cooler.
SBIA0584E
1. Oil filter 2. Connector bolt 3. Oil cooler
4. O-ring 5. Relief valve 6. Oil filter bracket
7. Water hose 8. Water hose 9. Water pipe
10. Water hose
Page 3674 of 4366
![INFINITI FX35 2007 Service Manual LU-16
[VQ35DE]
OIL COOLER
Revision: 2006 July 2007 FX35/FX45
CAUTION:
Do not spill engine oil to rubber parts such as drive belts and engine mounting insulator.
6. Remove water pipes, as necessary.
INFINITI FX35 2007 Service Manual LU-16
[VQ35DE]
OIL COOLER
Revision: 2006 July 2007 FX35/FX45
CAUTION:
Do not spill engine oil to rubber parts such as drive belts and engine mounting insulator.
6. Remove water pipes, as necessary.](/manual-img/42/57018/w960_57018-3673.png)
LU-16
[VQ35DE]
OIL COOLER
Revision: 2006 July 2007 FX35/FX45
CAUTION:
Do not spill engine oil to rubber parts such as drive belts and engine mounting insulator.
6. Remove water pipes, as necessary.
INSPECTION AFTER REMOVAL
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler.
Relief Valve
Inspect relief valve for movement, cracks and breaks by pushing ball. If replacement is necessary, remove
relief valve by prying it out with a suitable tool. Install a new relief valve in place by tapping it.
INSTALLATION
Note the following, and install in the reverse order of removal.
Make sure that no foreign objects are adhering to the installation planes of oil cooler, oil pan (upper) (2WD
models) or oil cooler bracket (AWD models).
2WD Models
Align cutout on oil cooler with protrusion on oil pan (upper) side, and
tighten connector bolt.
AW D M od e ls
Align cutout on oil cooler with protrusion on oil cooler bracket side,
and tighten connector bolt.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to LU-7, "
ENGINE OIL" and refer to CO-11, "ENGINE COOLANT" .
2. Start the engine, and check there is no leaks of engine oil or engine coolant.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and the engine coolant level again. Refer to LU-7, "
ENGINE OIL" and refer to
CO-11, "
ENGINE COOLANT" .
SBIA0459E
SBIA0460E
Page 3675 of 4366
![INFINITI FX35 2007 Service Manual OIL PUMP LU-17
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
OIL PUMPPFP:15010
ComponentsNBS003J7
Removal and InstallationNBS003J8
REMOVAL
1. Remove oil pans (low INFINITI FX35 2007 Service Manual OIL PUMP LU-17
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
OIL PUMPPFP:15010
ComponentsNBS003J7
Removal and InstallationNBS003J8
REMOVAL
1. Remove oil pans (low](/manual-img/42/57018/w960_57018-3674.png)
OIL PUMP LU-17
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
OIL PUMPPFP:15010
ComponentsNBS003J7
Removal and InstallationNBS003J8
REMOVAL
1. Remove oil pans (lower and upper) and oil strainer. Refer to EM-30, "OIL PAN AND OIL STRAINER" .
2. Remove front timing chain case and timing chain (primary). Refer to EM-64, "
TIMING CHAIN" .
3. Remove oil pump assembly.
INSTALLATION
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
Note the following, and install in the reverse order of removal.
When installing, align crankshaft flat faces with oil pump inner rotor flat faces.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-7, "ENGINE OIL" .
2. Start the engine, and check there is no leaks of engine oil.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and adjust the level. Refer to LU-7, "
ENGINE OIL" .
Disassembly and AssemblyNBS003J9
DISASSEMBLY
1. Remove oil pump cover.
2. Remove oil pump inner rotor and oil pump outer rotor from oil pump body.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.
1. Oil pump body 2. Oil pump outer rotor 3. Oil pump inner rotor
4. Oil pump cover 5. Regulator valve plug 6. Regulator valve spring
7. Regulator valve
SBIA0481E
Page 3676 of 4366
![INFINITI FX35 2007 Service Manual LU-18
[VQ35DE]
OIL PUMP
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and oil INFINITI FX35 2007 Service Manual LU-18
[VQ35DE]
OIL PUMP
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and oil](/manual-img/42/57018/w960_57018-3675.png)
LU-18
[VQ35DE]
OIL PUMP
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER DISASSEMBLY
Oil Pump Clearance
Measure the clearance with feeler gauge.
–Clearance between oil pump outer rotor and oil pump body
(position “1”)
–Tip clearance between oil pump inner rotor and oil pump outer
rotor (position “2”)
Measure the clearance with feeler gauge and straightedge.
–Side clearance between oil pump inner rotor and oil pump body
(position “3”)
–Side clearance between oil pump outer rotor and oil pump body
(position “4”)
Calculate the clearance between oil pump inner rotor and oil pump body as follows:
OIL PUMP BODY INNER DIAMETER
–Measure the inner diameter of oil pump body with inside
micrometer. (Position “5”)
OIL PUMP INNER ROTOR OUTER DIAMETER
–Measure the outer diameter of protruded portion of oil pump
inner rotor with micrometer. (Position “6”)
OIL PUMP INNER ROTOR TO OIL PUMP BODY CLEARANCE
–(Clearance) = (Oil pump body inner diameter) – (Oil pump inner rotor outer diameter)
If measured/calculated values are out of the standard, replace oil pump assembly. Standard : 0.114 - 0.260 mm (0.004 - 0.010 in)
Standard : Below 0.180 mm (0.007 in)
SLC932A
Standard : 0.030 - 0.070 mm (0.001 - 0.003 in)
Standard : 0.050 - 0.110 mm (0.002 - 0.004 in)
SLC933A
PBIC0821E
Standard : 0.045 - 0.091 mm (0.0018 - 0.0036 in)
Page 3677 of 4366
OIL PUMP LU-19
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45

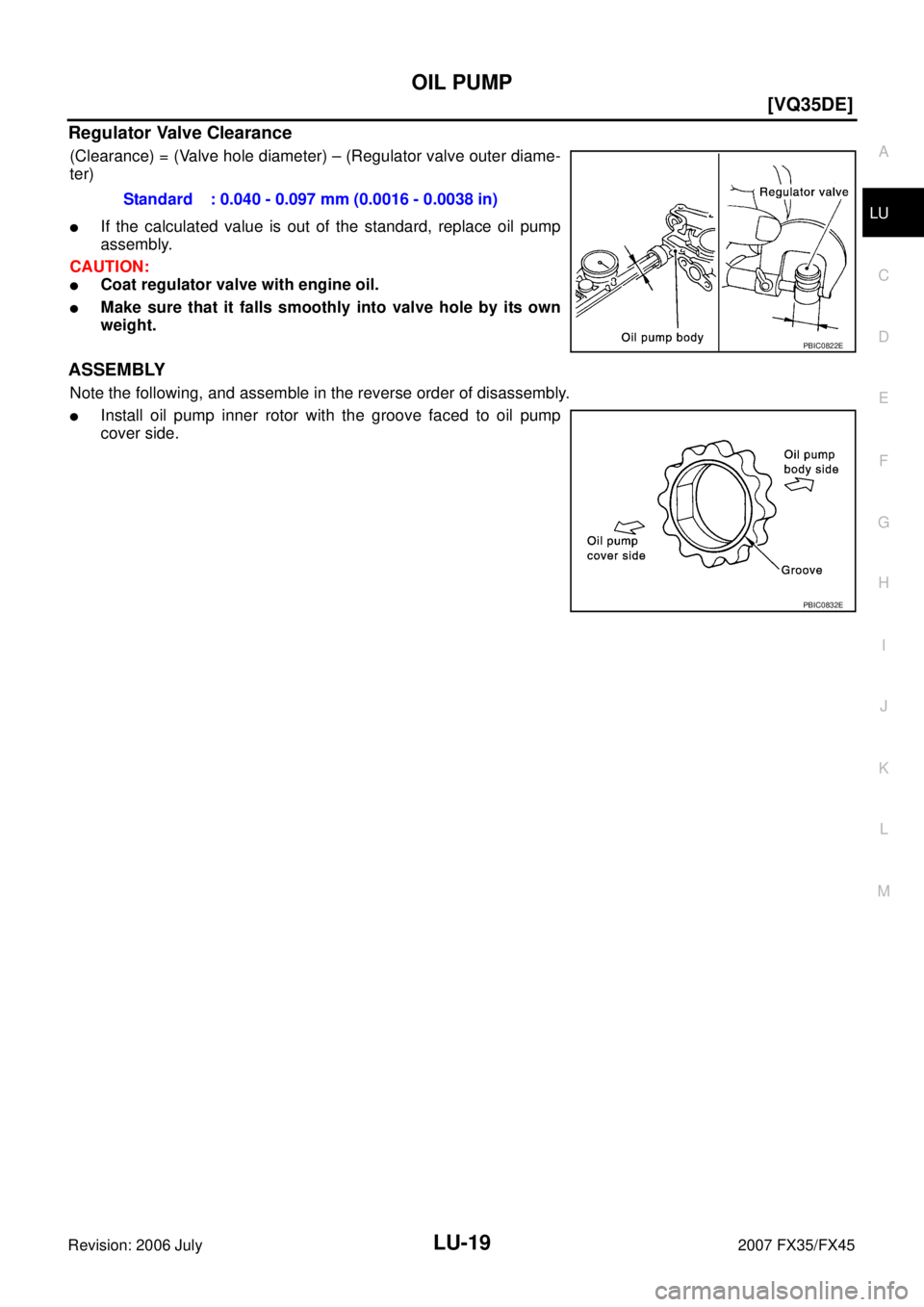

Regulator Valve Clearance
(Clearance) = (Valve hole diameter) – (Regulator valve outer diame-
ter)
If the calculated value is out of the standard, replace oil pump
assembly.
CAUTION:
Coat regulator valve with engine oil.
Make sure that it falls smoothly into valve hole by its own
weight.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
Install oil pump inner rotor with the groove faced to oil pump
cover side. Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC0822E
PBIC0832E
Page 3678 of 4366
![INFINITI FX35 2007 Service Manual LU-20
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS003JA
ENGINE OIL PRESSURE
*: Engine oil temp INFINITI FX35 2007 Service Manual LU-20
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS003JA
ENGINE OIL PRESSURE
*: Engine oil temp](/manual-img/42/57018/w960_57018-3677.png)
LU-20
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitNBS003JA
ENGINE OIL PRESSURE
*: Engine oil temperature at 80°C (176 °F)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (US qt, lmp qt)
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
Engine speed (rpm)
Approximate discharge pressure* [kPa (kg/cm
2 , psi)]
Idle speed More than 98 (1.0, 14) 2,000 More than 294 (3.0, 43)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul) 5.4 (5-3/4, 4-3/4)
Oil pump body to oil pump outer rotor radial clearance 0.114 - 0.260 (0.004 - 0.010)
Oil pump inner rotor to oil pump outer rotor tip clearance Below 0.180 (0.007)
Oil pump body to oil pump inner rotor axial clearance 0.030 - 0.070 (0.001 - 0.003)
Oil pump body to oil pump outer rotor axial clearance 0.050 - 0.110 (0.002 - 0.004)
Oil pump inner rotor to brazed portion of housing clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to oil pump cover clearance 0.040 - 0.097 (0.0016 - 0.0038)
Page 3679 of 4366
![INFINITI FX35 2007 Service Manual PRECAUTIONS LU-21
[VK45DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS003JB
LIQUID GASKET APPLICATION PROCE INFINITI FX35 2007 Service Manual PRECAUTIONS LU-21
[VK45DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS003JB
LIQUID GASKET APPLICATION PROCE](/manual-img/42/57018/w960_57018-3678.png)
PRECAUTIONS LU-21
[VK45DE]
C
D E
F
G H
I
J
K L
M A
LU
Revision: 2006 July 2007 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketNBS003JB
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating use) to remove adhering moisture, grease and foreign materials.
3. Apply liquid gasket to the liquid gasket application surface. Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
Within five minutes of liquid gasket application, install the mating component.
If liquid gasket protrudes, wipe it off immediately.
Do not retighten mounting bolts or nuts after the installation.
After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.
Page 3680 of 4366
LU-22
[VK45DE]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNBS003JC
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNBS003JD
Tool number
(Kent-Moore No.)
Tool name Description
ST25051001
(J25695-1)
Oil pressure gauge Measuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm
2 , 356 psi)
ST25052000
(J25695-2)
Hose Adapting oil pressure gauge to cylinder block
KV10115801
(J38956)
Oil filter wrench Removing and installing oil filter
a: 64.3 (2.531 in)
S-NT050
S-NT559
S-NT375
Tool name Description
Power tool Loosening nuts and bolts
Deep socket Removing and installing oil pressure switch
a: 26 mm (1.02 in)
PBIC0190E
PBIC2072E
