Page 3593 of 4366

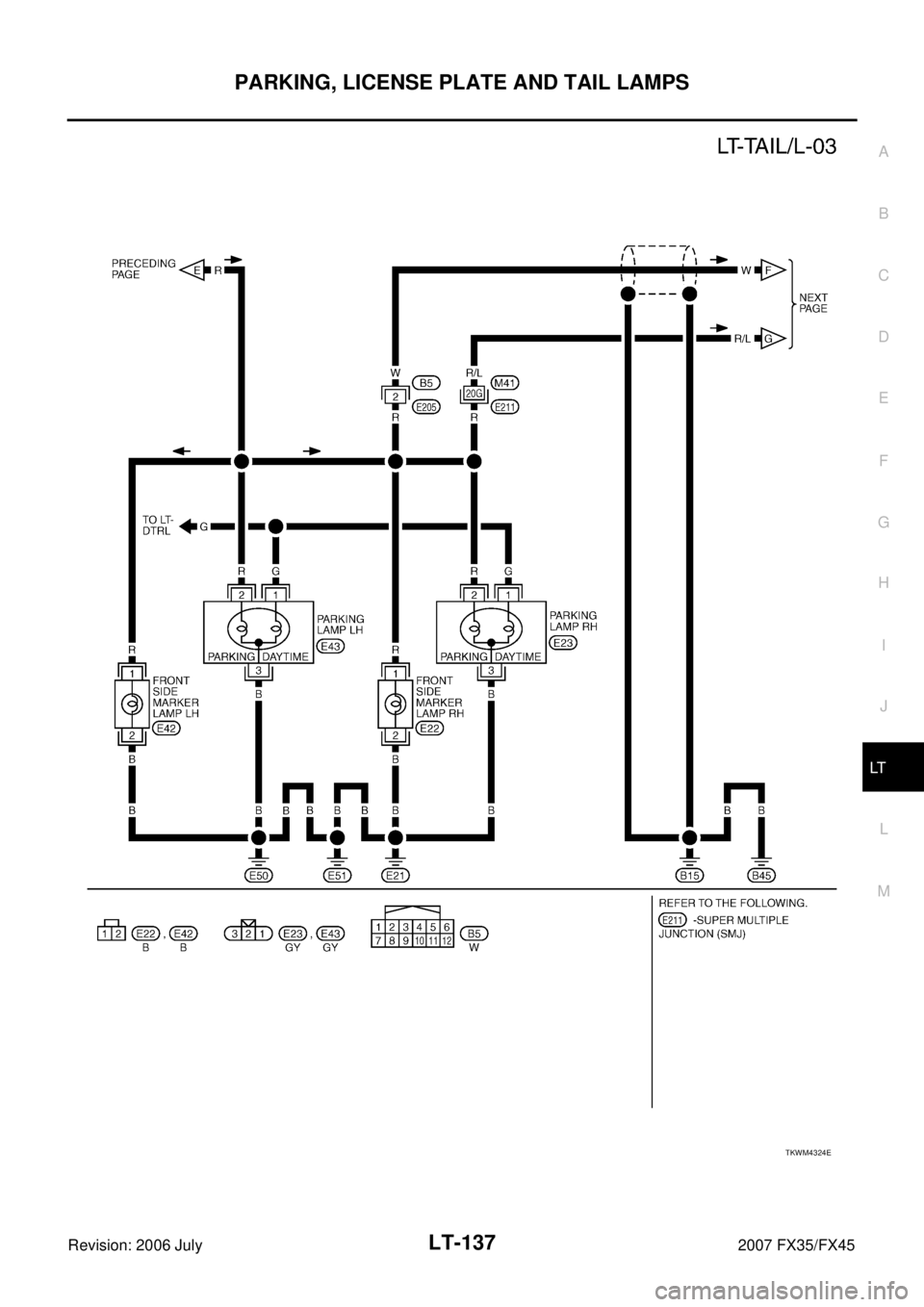

PARKING, LICENSE PLATE AND TAIL LAMPS LT-137
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
TKWM4324E
Page 3594 of 4366

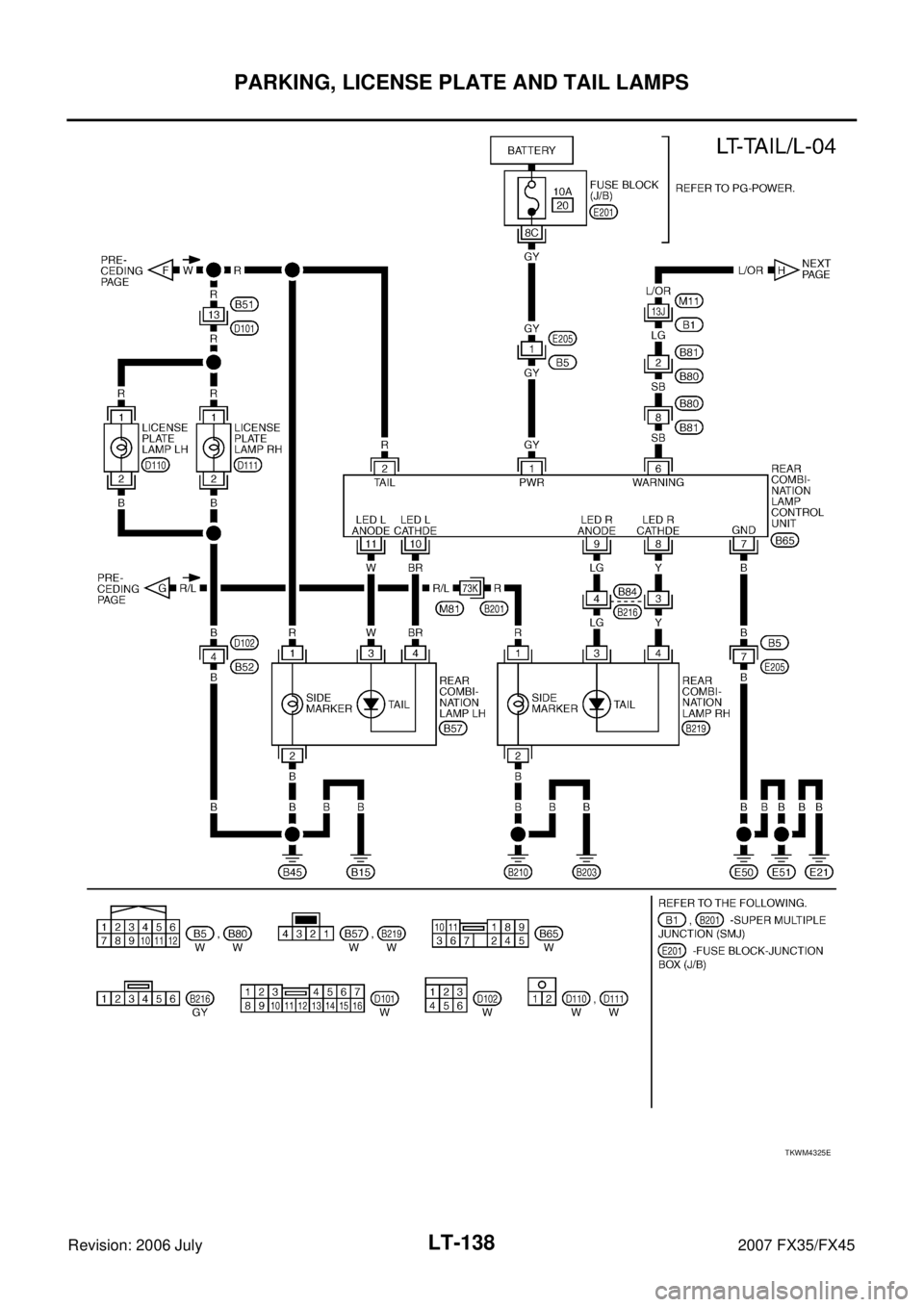

LT-138
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 July 2007 FX35/FX45
TKWM4325E
Page 3595 of 4366

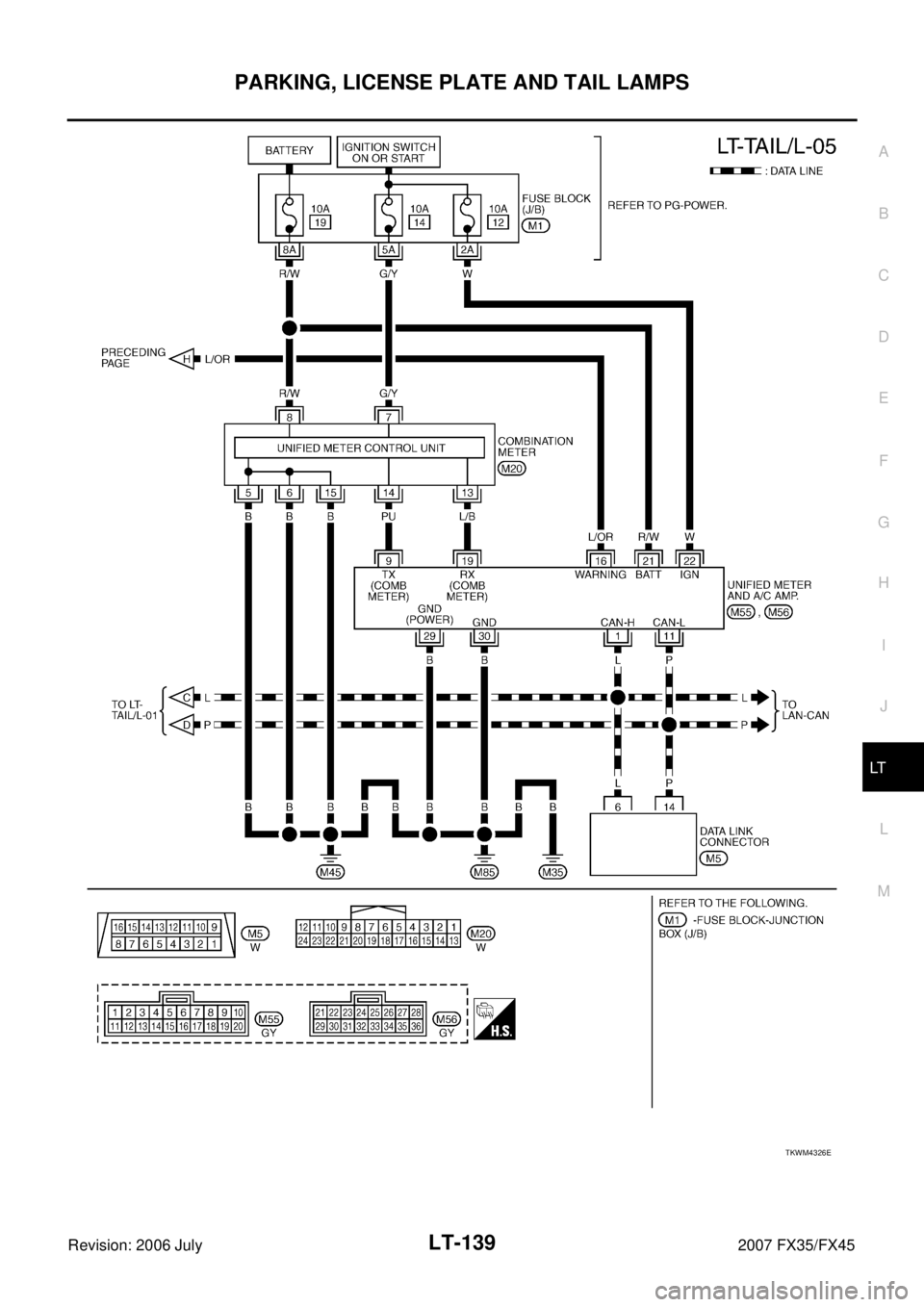

PARKING, LICENSE PLATE AND TAIL LAMPS LT-139
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
TKWM4326E
Page 3596 of 4366

LT-140
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for BCMNKS003H5
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-II. Refer to LT-
11 7 , "DATA MONITOR" .
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
2GY Combination
switch input 5 ON Lighting, turn,
wiper switch
(Wiper intermittent
dial position 4) OFF Approx. 0 V
Lighting switch 1ST Approx. 1.0 V
11 L G Ignition switch
(ACC) ACC — Battery voltage
33 G Combination
switch output 4 ON Lighting, turn,
wiper switch
(Wiper intermittent
dial position 4) OFF
Approx. 7.2 V
Lighting switch 1ST
(The same result with
lighting switch 2ND)
Approx. 1.2 V
38 W/L Ignition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 L/R Battery power
supply OFF — Battery voltage
49 B Ground ON — Approx. 0 V
52 B Ground ON — Approx. 0 V
55 G Battery power
supply OFF — Battery voltage
PKIB4959J
PKIB4960J
PKIB4958J
Page 3597 of 4366

PARKING, LICENSE PLATE AND TAIL LAMPS LT-141
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for IPDM E/RNKS003H6
Terminals and Reference Value for Rear Combination Lamp Control UnitNKS003NA
Refer to LT- 9 8 , "Terminals and Reference Value for Rear Combination Lamp Control Unit" .
How to Proceed With Trouble DiagnosisNKS003H7
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 1 3 1 , "
System Description" .
3. Perform Preliminary Check. Refer to LT- 1 4 1 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do parking, license plate, side marker and tail lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckNKS003H8
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
Refer to LT-135, "Wiring Diagram — TAIL/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
22 R Parking, license plate,
side marker, and tail
lamps ON
Lighting switch
1ST position OFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN − H— — —
49 R CAN − L— — —
60 B Ground ON — Approx. 0 V
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
IPDM E/R Battery 71
Rear combination lamp control unit Battery 20
Page 3598 of 4366
LT-142
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 July 2007 FX35/FX45
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II Functions (BCM)NKS003H9
Refer to LT- 1 8 , "CONSULT-II Functions (BCM)" .
CONSULT-II Functions (IPDM E/R)NKS003HA
Refer to LT- 2 0 , "CONSULT-II Functions (IPDM E/R)" .
(+)
(-) Ignition switch position
BCM con- nector Terminal OFF ACC ON
M3 11
Ground Approx. 0 V
Battery
voltage Battery
voltage
38 Approx. 0 V Approx. 0 V Battery
voltage
M4 42
Battery
voltage Battery
voltage Battery
voltage
55 Battery
voltage Battery
voltage Battery
voltage
PKIA5204E
BCM connector Terminal Continuity
M4 49 Ground
Ye s
52
SKIA5294E
Page 3599 of 4366

PARKING, LICENSE PLATE AND TAIL LAMPS LT-143
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

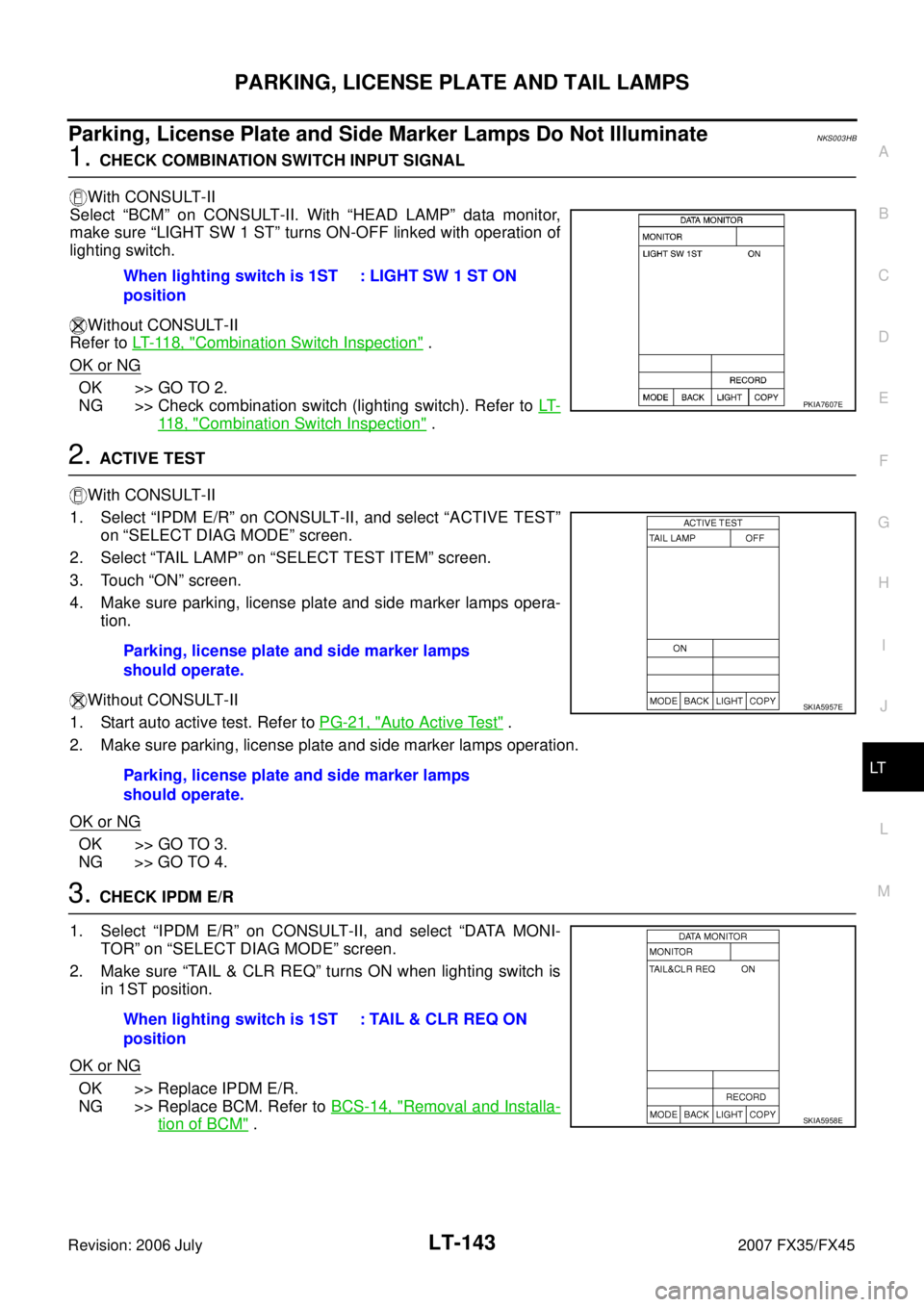

Parking, License Plate and Side Marker Lamps Do Not IlluminateNKS003HB
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “LIGHT SW 1 ST” turns ON-OFF linked with operation of
lighting switch.
Without CONSULT-II
Refer to LT- 11 8 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (lighting switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
2. ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “TAIL LAMP” on “SELECT TEST ITEM” screen.
3. Touch “ON” screen.
4. Make sure parking, license plate and side marker lamps opera- tion.
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. Make sure parking, license plate and side marker lamps operation.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK IPDM E/R
1. Select “IPDM E/R” on CONSULT-II, and select “DATA MONI- TOR” on “SELECT DIAG MODE” screen.
2. Make sure “TAIL & CLR REQ” turns ON when lighting switch is in 1ST position.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace BCM. Refer to BCS-14, "
Removal and Installa-
tion of BCM" .
When lighting switch is 1ST
position : LIGHT SW 1 ST ON
PKIA7607E
Parking, license plate and side marker lamps
should operate.
Parking, license plate and side marker lamps
should operate.
SKIA5957E
When lighting switch is 1ST
position : TAIL & CLR REQ ON
SKIA5958E
Page 3600 of 4366

LT-144
PARKING, LICENSE PLATE AND TAIL LAMPS
Revision: 2006 July 2007 FX35/FX45

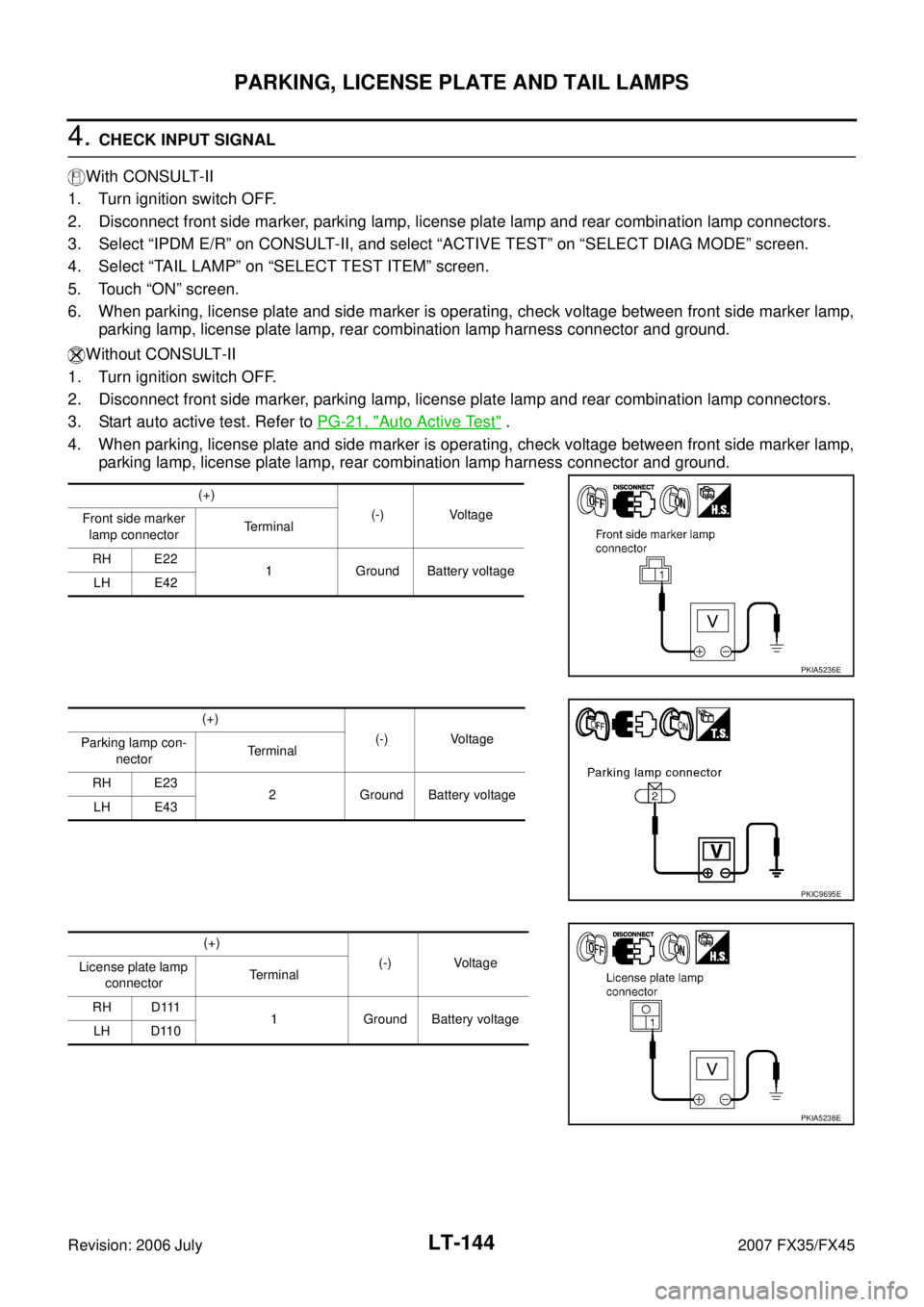

4. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front side marker, parking lamp, license plate lamp and rear combination lamp connectors.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “TAIL LAMP” on “SELECT TEST ITEM” screen.
5. Touch “ON” screen.
6. When parking, license plate and side marker is operating, check voltage between front side marker lamp, parking lamp, license plate lamp, rear combination lamp harness connector and ground.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front side marker, parking lamp, license plate lamp and rear combination lamp connectors.
3. Start auto active test. Refer to PG-21, "
Auto Active Test" .
4. When parking, license plate and side marker is operating, check voltage between front side marker lamp, parking lamp, license plate lamp, rear combination lamp harness connector and ground.
(+)
(-) Voltage
Front side marker
lamp connector Terminal
RH E22 1 Ground Battery voltage
LH E42
PKIA5236E
(+)
(-) Voltage
Parking lamp con-
nector Terminal
RH E23 2 Ground Battery voltage
LH E43
PKIC9695E
(+)
(-) Voltage
License plate lamp
connector Te r m i n a l
RH D111 1 Ground Battery voltage
LH D110
PKIA5238E
