ASCD BRAKE SWITCH EC-1305
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and stop lamp switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK STOP LAMP SWITCH
Refer to EC-1305, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace stop lamp switch.
13. CHECK INTERMITTENT INCIDENT
Refer to EC-812, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionNBS004HQ
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.

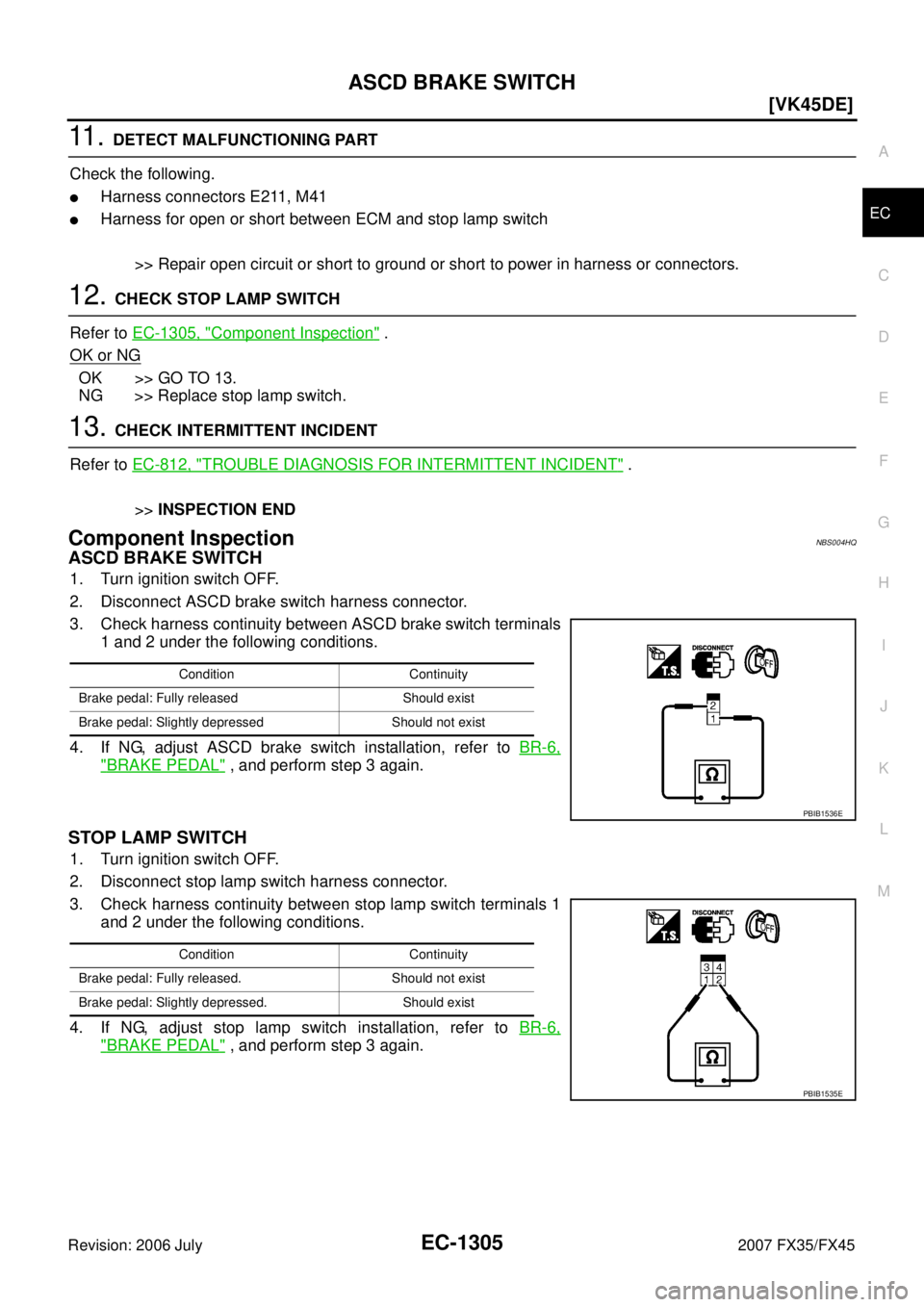

3. Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
4. If NG, adjust ASCD brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
4. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
Condition Continuity
Brake pedal: Fully released Should exist
Brake pedal: Slightly depressed Should not exist
PBIB1536E
Condition Continuity
Brake pedal: Fully released. Should not exist
Brake pedal: Slightly depressed. Should exist
PBIB1535E
Page 2682 of 4366
![INFINITI FX35 2007 Service Manual EC-1306
[VK45DE]
ASCD INDICATOR
Revision: 2006 July 2007 FX35/FX45
ASCD INDICATORPFP:24814
Component DescriptionNBS004HR
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two INFINITI FX35 2007 Service Manual EC-1306
[VK45DE]
ASCD INDICATOR
Revision: 2006 July 2007 FX35/FX45
ASCD INDICATORPFP:24814
Component DescriptionNBS004HR
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two](/manual-img/42/57018/w960_57018-2681.png)
EC-1306
[VK45DE]
ASCD INDICATOR
Revision: 2006 July 2007 FX35/FX45
ASCD INDICATORPFP:24814
Component DescriptionNBS004HR
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and
SET, and is integrated in combination meter.
CRUISE lamp illuminates when MAIN switch on ASCD steering switch is turned ON to indicated that ASCD
system is ready for operation.
SET lamp illuminates when following conditions are met.
CRUISE lamp is illuminated.
SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of
ASCD setting.
SET lamp remains lit during ASCD control.
Refer to EC-697, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeNBS004HS
Specification data are reference value.
MONITOR ITEM CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ON MAIN switch: Pressed at the 1st time
→
at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
When vehicle speed is between
40 km/h (25 MPH) and 144 km/h
(89 MPH) ASCD: Operating ON
ASCD: Not operating OFF
Page 2683 of 4366
ASCD INDICATOR EC-1307
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

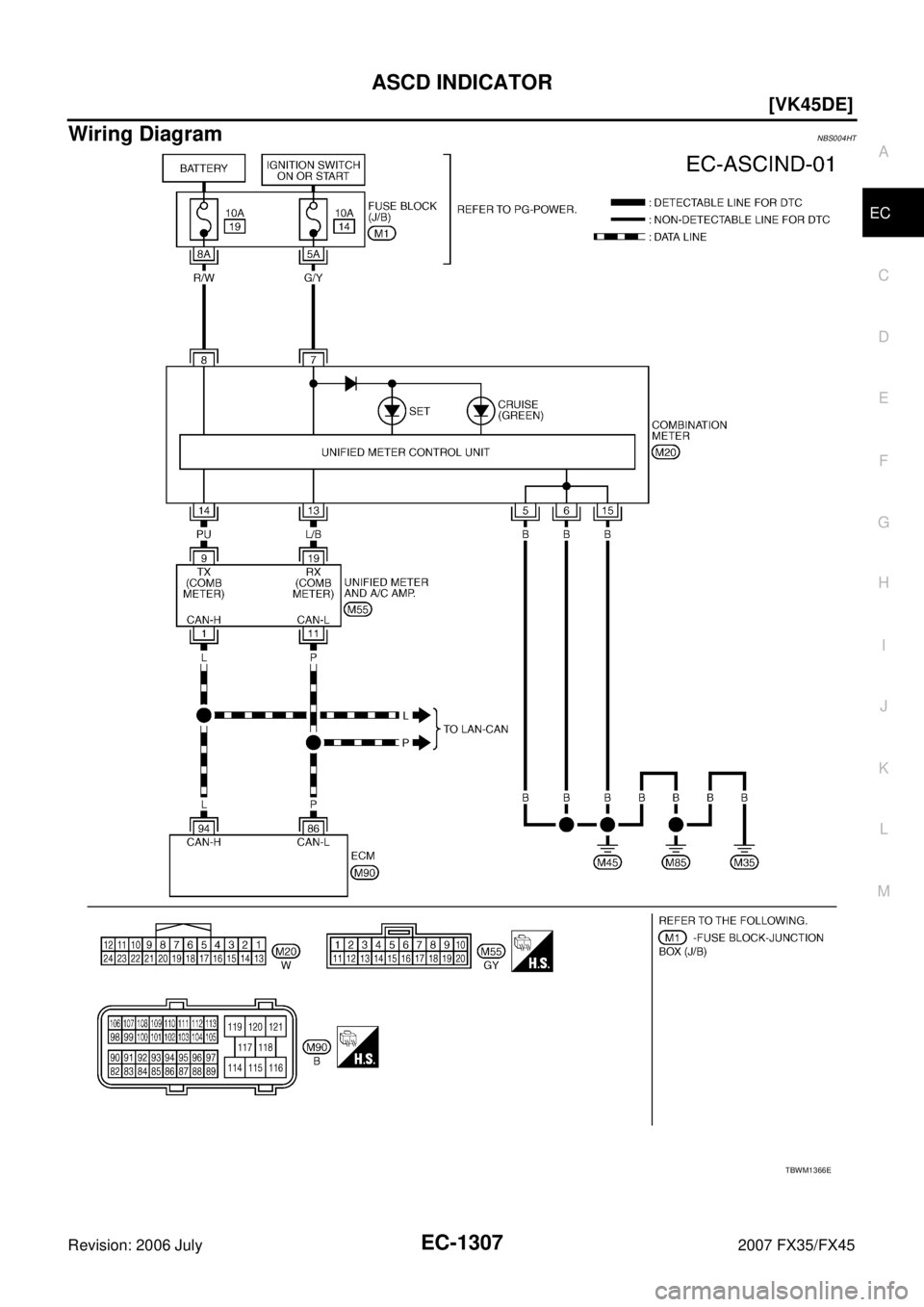

Wiring DiagramNBS004HT
TBWM1366E
Page 2684 of 4366
EC-1308
[VK45DE]
ASCD INDICATOR
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNBS004HU
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
2. CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnosis for DTC U1000, U1001. Refer to EC-820, "
DTC U1000, U1001 CAN
COMMUNICATION LINE" .
3. CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-31, "
SELF-DIAG RESULTS" .
OK or NG
OK >> GO TO 4.
NG >> Go to DI-34, "
DTC [B2202] Meter Communication Circuit" .
4. CHECK INTERMITTENT INCIDENT
Refer to EC-812, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP
Ignition switch: ON MAIN switch: Pressed at the 1st
time → at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
When vehicle speed is
between 40 km/h (25 MPH)
and 144 km/h (89 MPH) ASCD: Operating ON
ASCD: Not operating OFF
Page 2685 of 4366
![INFINITI FX35 2007 Service Manual ELECTRICAL LOAD SIGNAL EC-1309
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionNBS004HE
The electrical load signal (Headl INFINITI FX35 2007 Service Manual ELECTRICAL LOAD SIGNAL EC-1309
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionNBS004HE
The electrical load signal (Headl](/manual-img/42/57018/w960_57018-2684.png)
ELECTRICAL LOAD SIGNAL EC-1309
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
ELECTRICAL LOAD SIGNALPFP:25350
DescriptionNBS004HE
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from BCM to ECM via IPDM E/R.
CONSULT-II Reference Value in Data Monitor ModeNBS004HF
Specification data are reference values.
Diagnostic ProcedureNBS004HG
1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-II and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
Ignition switch: ON Rear window defogger switch: ON
and/or lighting switch: 2nd position ON
Rear window defogger switch and light-
ing switch: OFF OFF
HEATER FAN SW
Engine: After warming up, idle
the engine Heater fan switch: ON ON
Heater fan switch: OFF OFF
Condition Indication
Rear window defogger switch: ON ON
Rear window defogger switch: OFF OFF
PBIB0103E
Condition Indication
Lighting switch: ON at 2nd position ON
Lighting switch: OFF OFF
PBIB0103E
Page 2686 of 4366
EC-1310
[VK45DE]
ELECTRICAL LOAD SIGNAL
Revision: 2006 July 2007 FX35/FX45
3. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Select “HEATER FAN SW” and check indication under the following
conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
4. CHECK REAR WINDOW DEFOGGER SYSTEM
Refer to GW-67, "
REAR WINDOW DEFOGGER" .
>> INSPECTION END
5. CHECK HEADLAMP SYSTEM
Refer to LT- 6 , "
HEADLAMP - XENON TYPE -" .
>> INSPECTION END
6. CHECK HEATER FAN CONTROL SYSTEM
Refer to AT C - 4 0 , "
TROUBLE DIAGNOSIS" .
>> INSPECTION END
Condition Indication
Heater fan control switch: ON ON
Heater fan control switch: OFF OFF
PBIB1995E
Page 2687 of 4366
![INFINITI FX35 2007 Service Manual FUEL INJECTOR EC-1311
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
FUEL INJECTORPFP:16600
Component DescriptionNBS004GY
The fuel injector is a small, precise sol INFINITI FX35 2007 Service Manual FUEL INJECTOR EC-1311
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
FUEL INJECTORPFP:16600
Component DescriptionNBS004GY
The fuel injector is a small, precise sol](/manual-img/42/57018/w960_57018-2686.png)
FUEL INJECTOR EC-1311
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
FUEL INJECTORPFP:16600
Component DescriptionNBS004GY

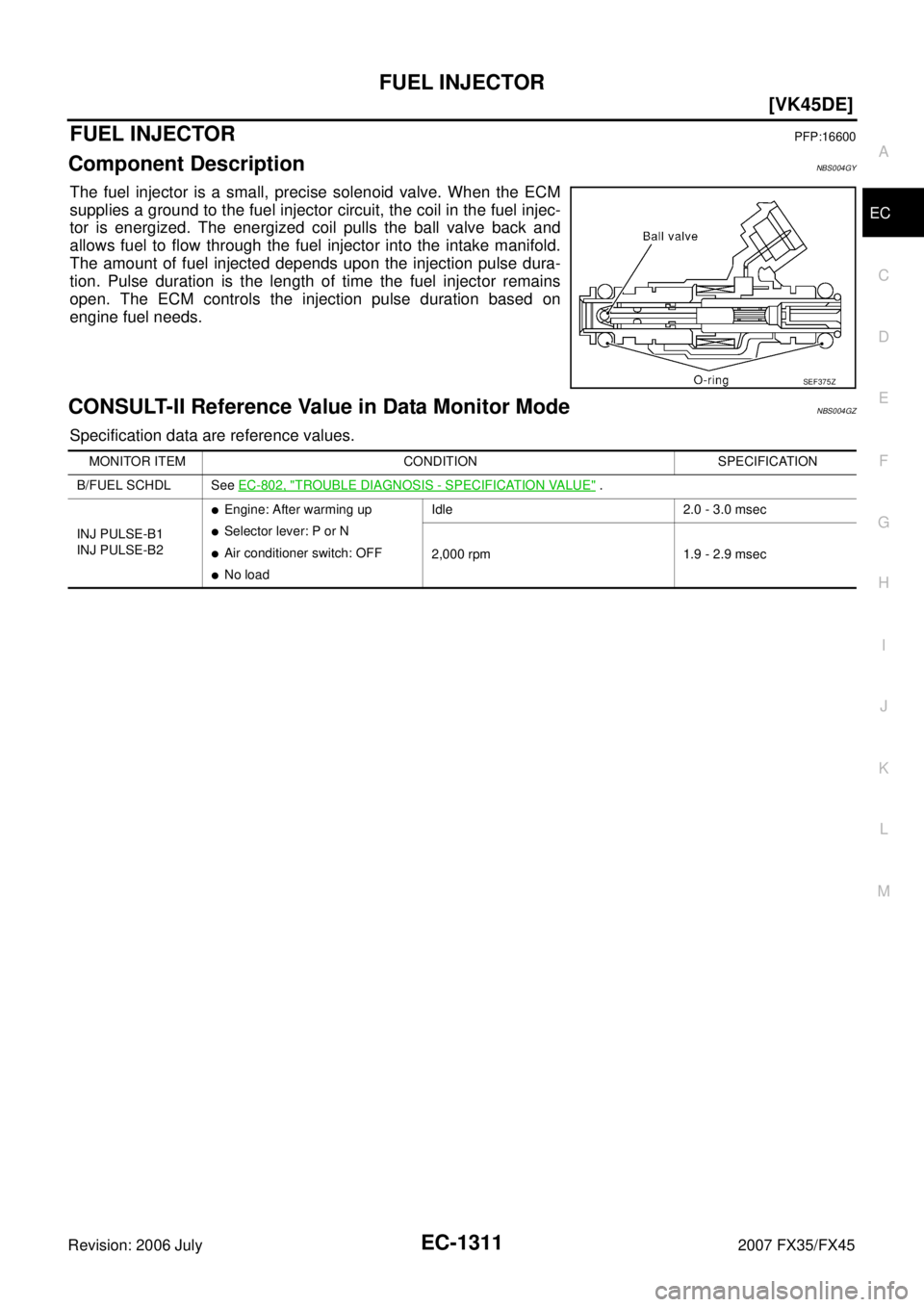

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeNBS004GZ
Specification data are reference values.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL See EC-802, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
Page 2688 of 4366
EC-1312
[VK45DE]
FUEL INJECTOR
Revision: 2006 July 2007 FX35/FX45

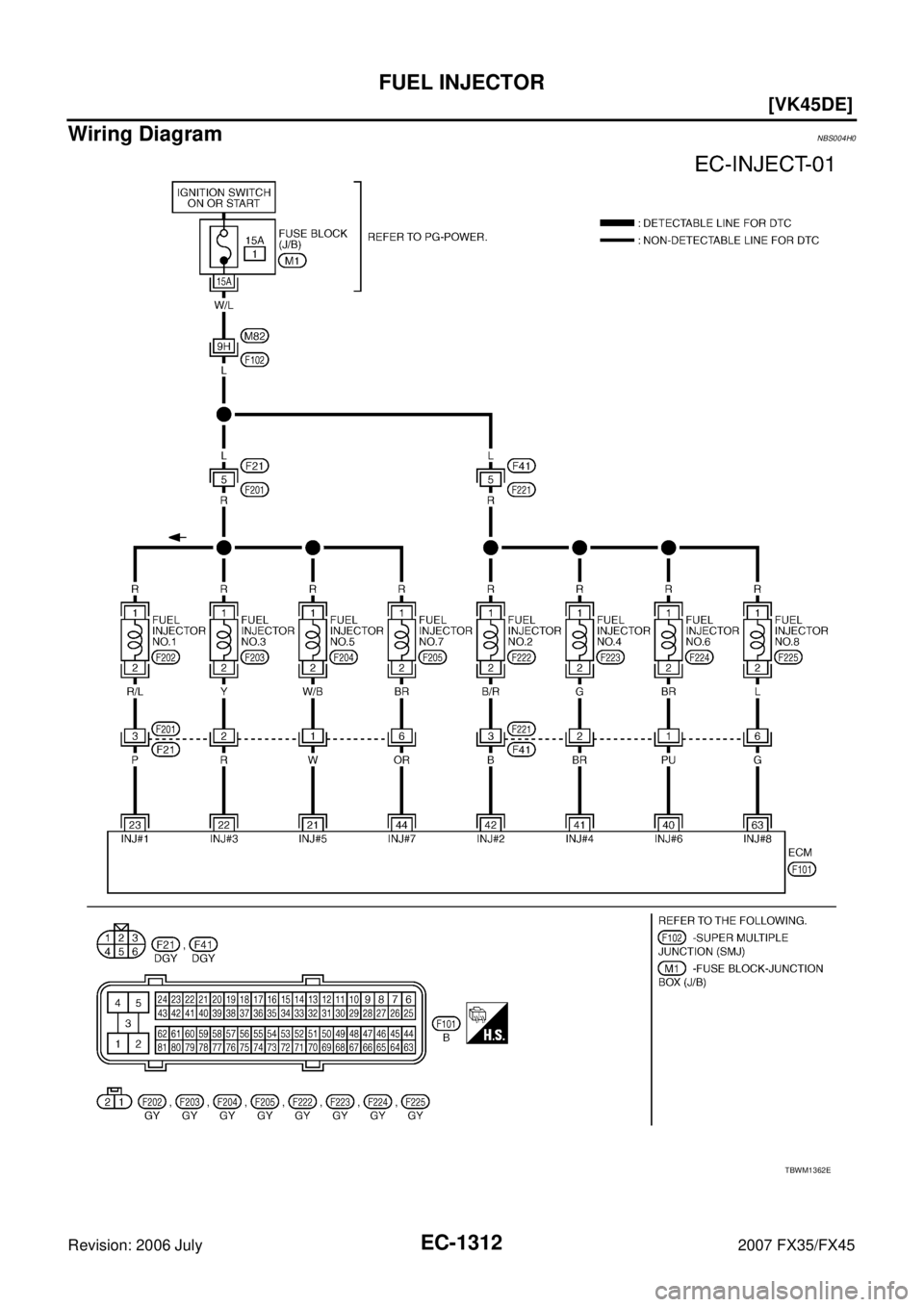

Wiring DiagramNBS004H0
