Page 4057 of 4366

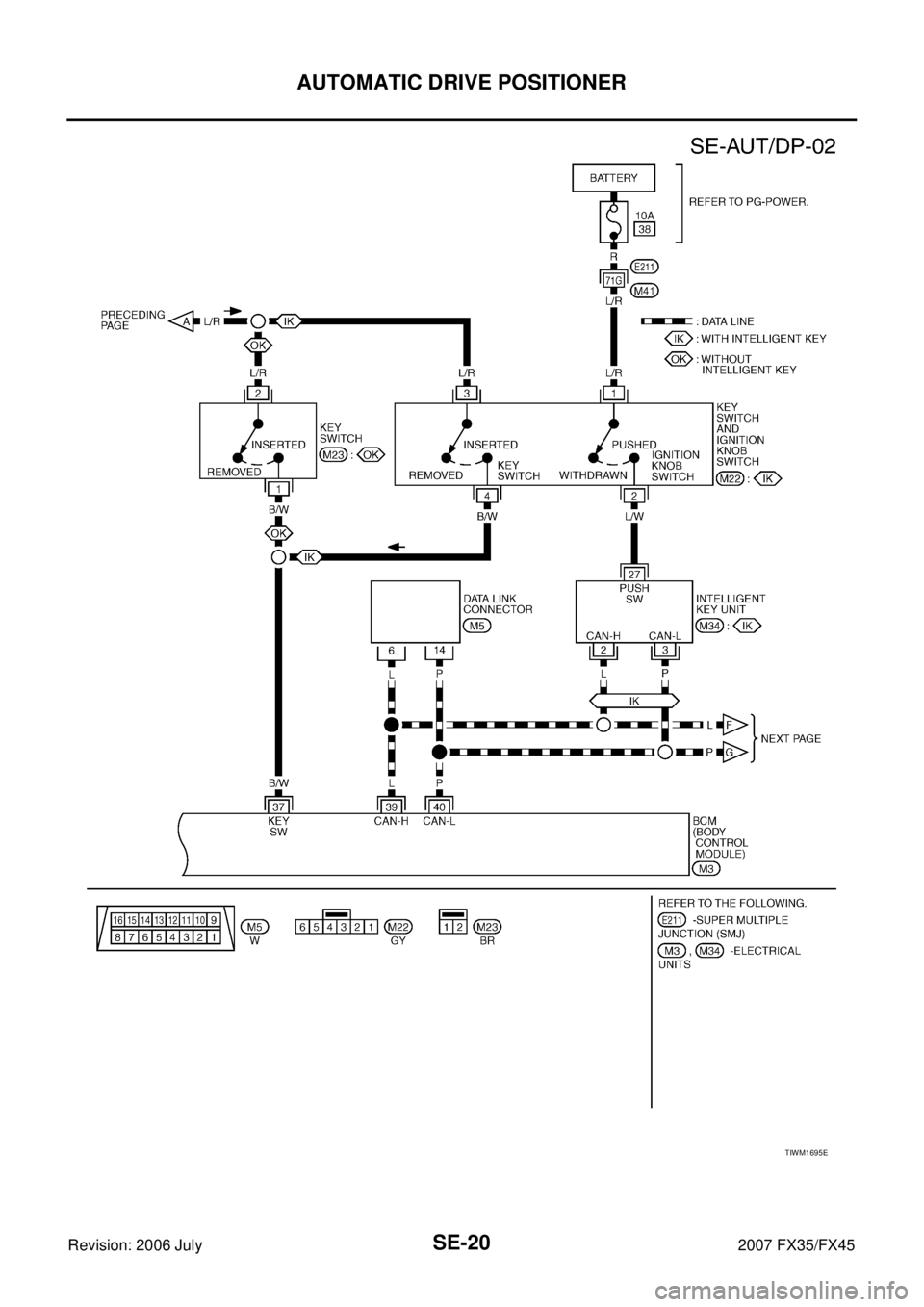

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-19 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 Wiring Diagram — AUT/DP —NIS001UT TIWM1694E

Page 4058 of 4366

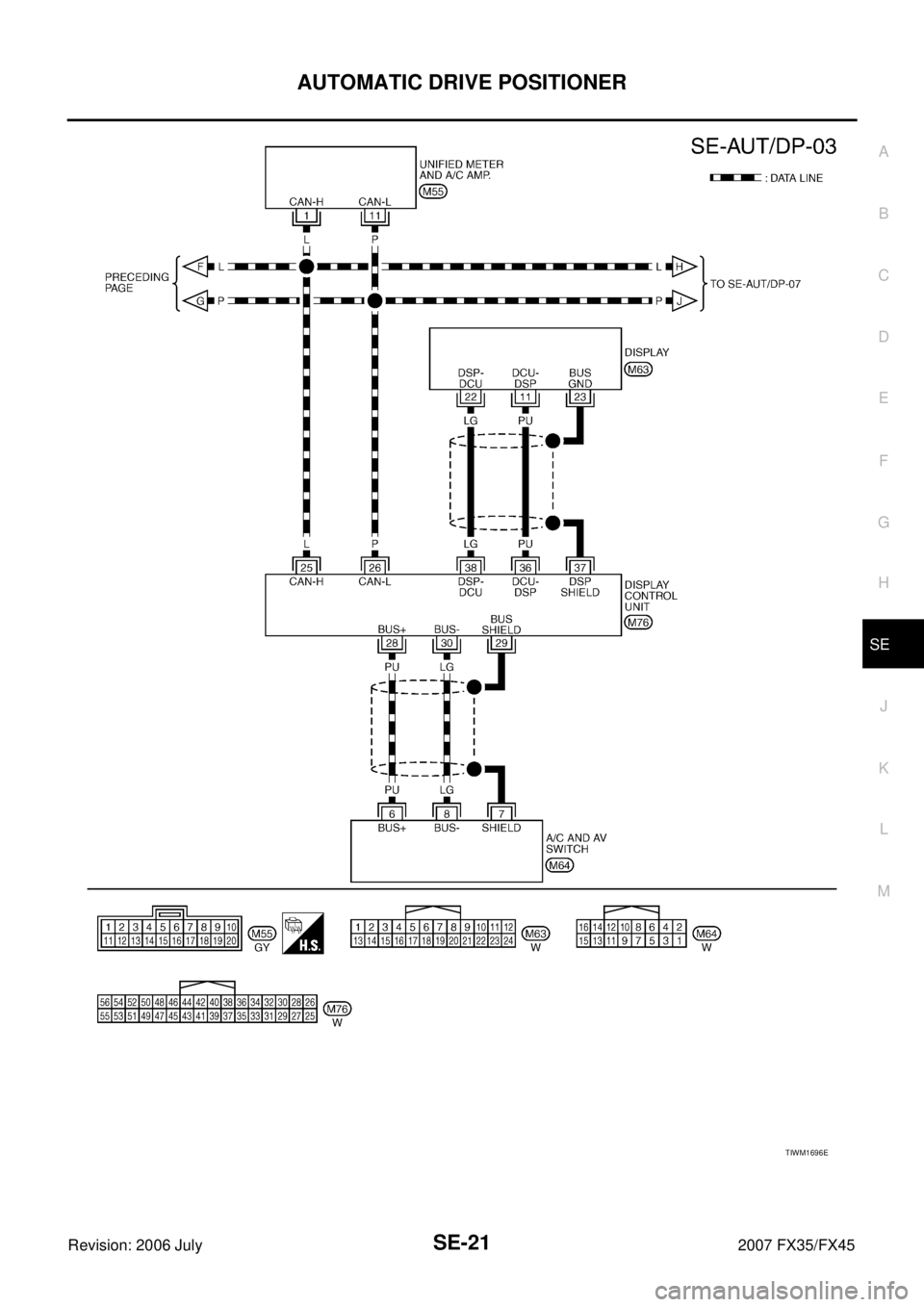

INFINITI FX35 2007 Service Manual SE-20 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 TIWM1695E

Page 4059 of 4366

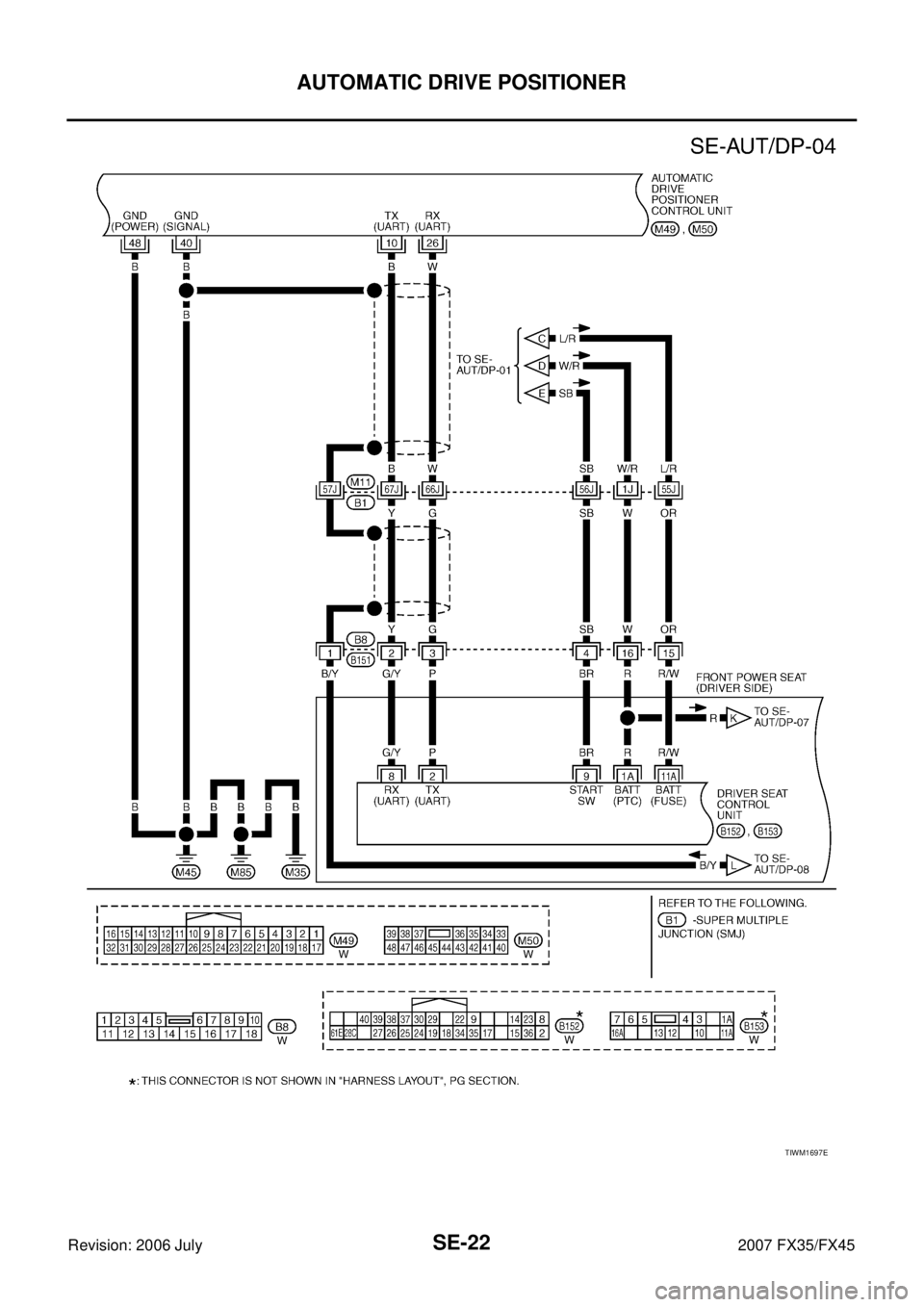

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-21 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 TIWM1696E

Page 4060 of 4366

INFINITI FX35 2007 Service Manual SE-22 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 TIWM1697E

Page 4061 of 4366

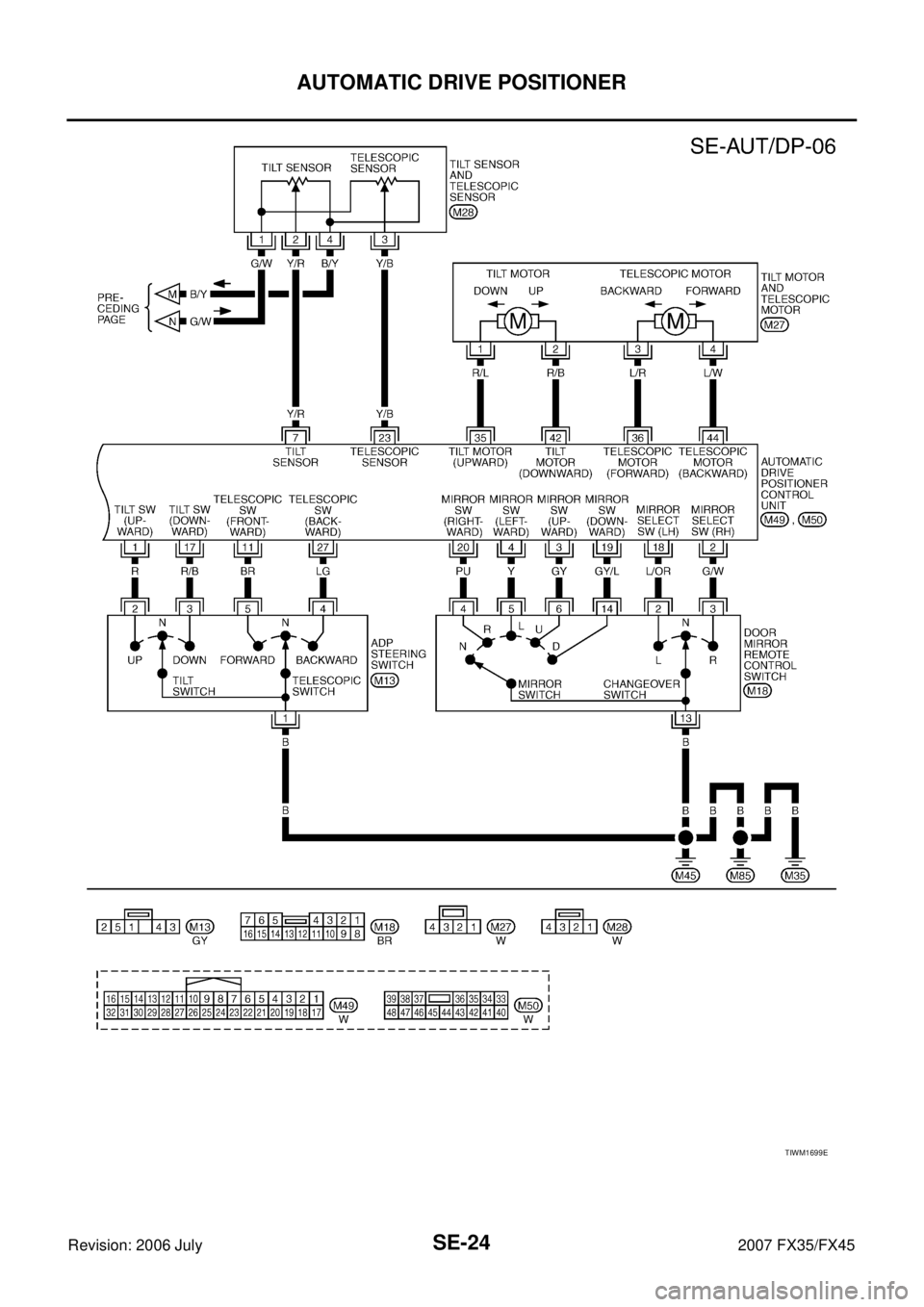

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-23 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 TIWM1698E

Page 4062 of 4366

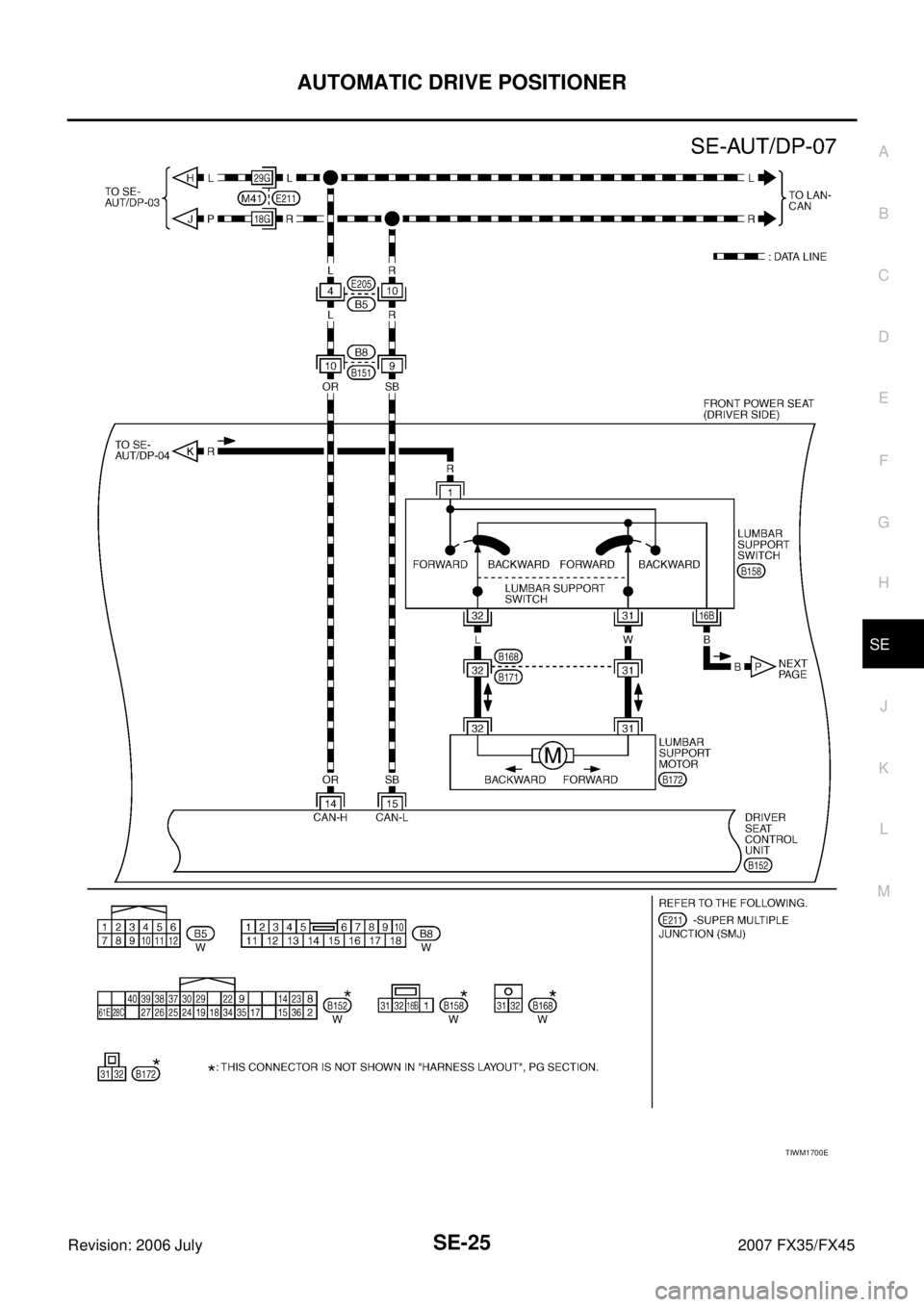

INFINITI FX35 2007 Service Manual SE-24 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 TIWM1699E

Page 4063 of 4366

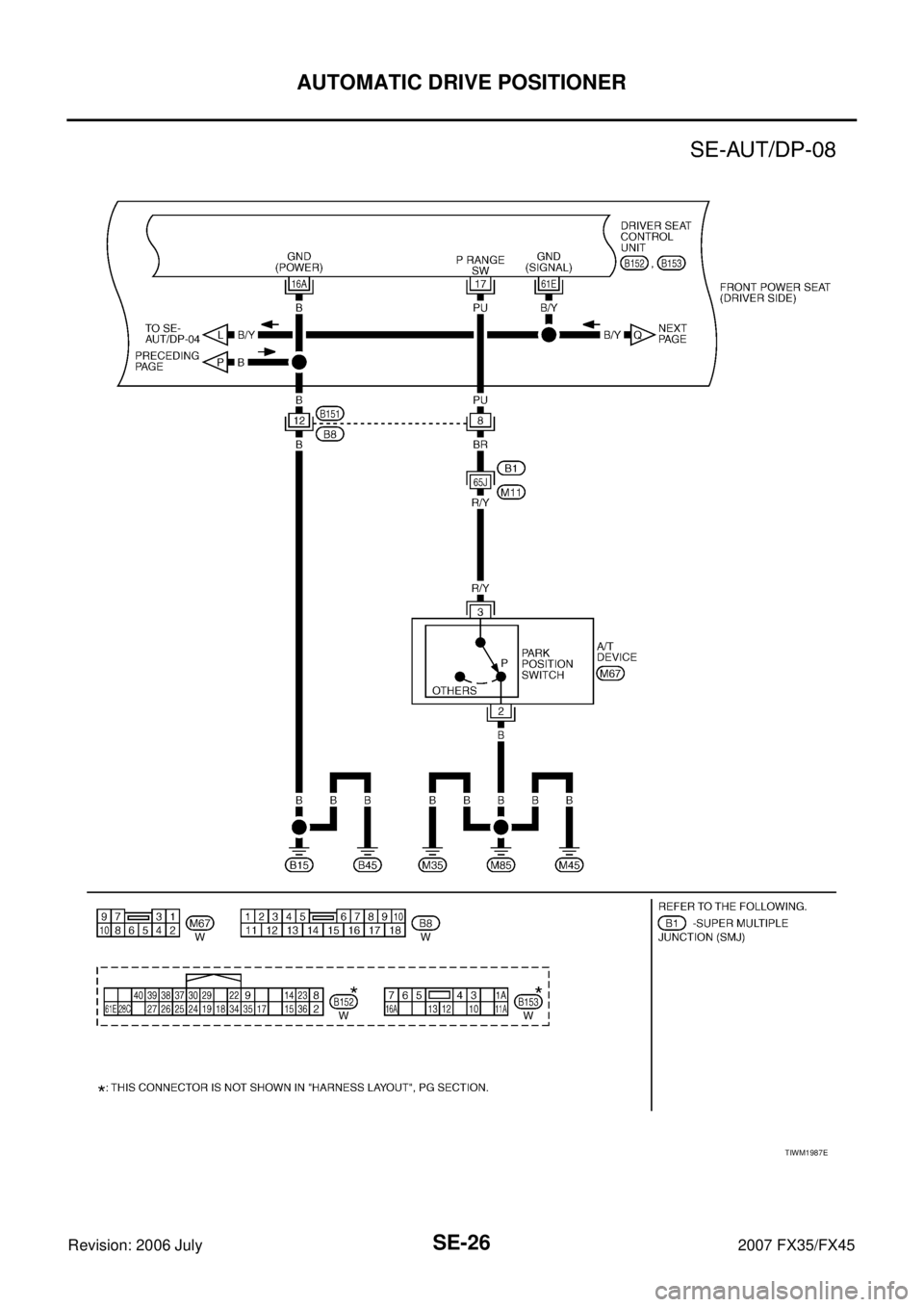

INFINITI FX35 2007 Service Manual AUTOMATIC DRIVE POSITIONER SE-25 C D E F G H J K L M A B SE Revision: 2006 July 2007 FX35/FX45 TIWM1700E

Page 4064 of 4366

INFINITI FX35 2007 Service Manual SE-26 AUTOMATIC DRIVE POSITIONER Revision: 2006 July 2007 FX35/FX45 TIWM1987E
