RADIATOR CO-43
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
11. Lift up and remove radiator.
CAUTION:
Do not damage or scratch A/C condenser and radiator core
when removing.
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-38, "
LEAK CHECK" .
Start and warm up engine. Visually Check if there is no leaks of engine coolant and A/T fluid.
Checking Radiator CapNBS003KL
Check valve seat of radiator cap.
–Check if valve seat is swollen to the extent that the edge of the
plunger cannot be seen when watching it vertically from the top.
–Check if valve seat has no soil and damage.
Pull negative-pressure valve to open it, and make sure that it
close completely when released.
–Make sure that there is no dirt or damage on the valve seat of
radiator cap negative-pressure valve.
–Make sure that there are no unusualness in the opening and
closing conditions of negative-pressure valve.
Check radiator cap relief pressure.
–When connecting radiator cap to the radiator cap tester adapter
(SST) and the radiator cap tester (Commercial service tool),
apply engine coolant to the cap seal surface.
Replace radiator cap if there is an unusualness.
PBIC1536E
PBIC2816E
SMA967B
Standard : 78 - 98 kPa (0.8 - 1.0 kg/cm2 , 11 - 14 psi)
Limit : 59 kPa (0.6 kg/cm
2 , 9 psi)
SLC755A
Page 1234 of 4366
![INFINITI FX35 2007 Service Manual CO-44
[VK45DE]
RADIATOR
Revision: 2006 July 2007 FX35/FX45
CAUTION:
When installing a radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue
or foreign material.
Checki INFINITI FX35 2007 Service Manual CO-44
[VK45DE]
RADIATOR
Revision: 2006 July 2007 FX35/FX45
CAUTION:
When installing a radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue
or foreign material.
Checki](/manual-img/42/57018/w960_57018-1233.png)
CO-44
[VK45DE]
RADIATOR
Revision: 2006 July 2007 FX35/FX45
CAUTION:
When installing a radiator cap, thoroughly wipe out the radiator filler neck to remove any waxy residue
or foreign material.
Checking RadiatorNBS003KM
Check radiator for mud or clogging. If necessary, clean radiator as follows:
CAUTION:
Be careful not to bend or damage the radiator fins.
When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radi-
ator shroud and horns. Then tape the harness and electrical connectors to prevent water from
entering.
1. Apply water by hose to the back side of the radiator core vertically downward.
2. Apply water again to all radiator core surface once per minute.
3. Stop washing if any stains no longer flow out from radiator.
4. Blow air into the back side of radiator core vertically downward.
Use compressed air lower than 490 kPa (5 kg/cm2 , 71 psi) and keep distance more than 30 cm (11.8
in).
5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.
Page 1235 of 4366
RADIATOR (ALUMINUM TYPE) CO-45
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
RADIATOR (ALUMINUM TYPE)PFP:21460
ComponentsNBS005RX
Disassembly and AssemblyNBS003KN
PREPARATION

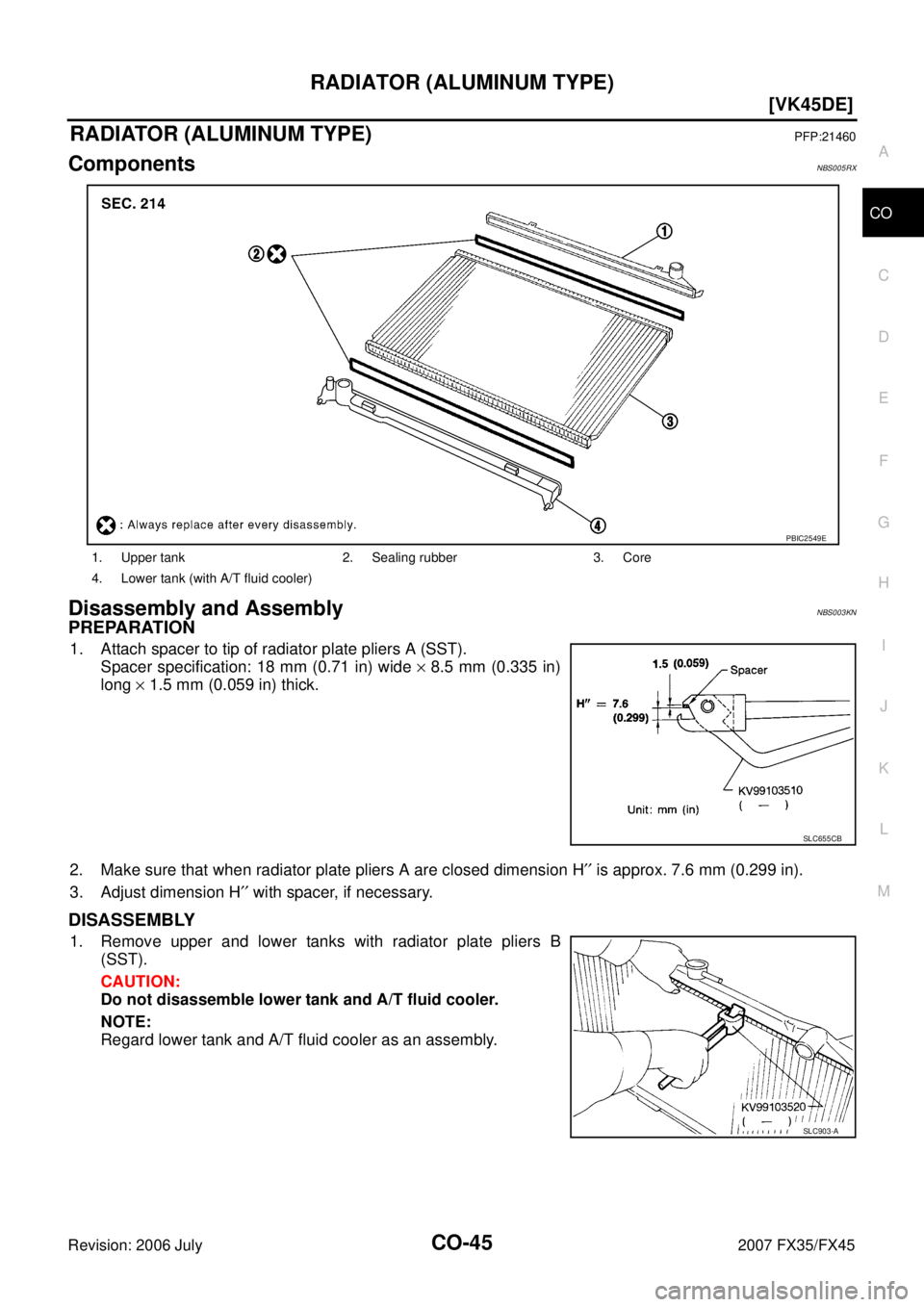

1. Attach spacer to tip of radiator plate pliers A (SST).
Spacer specification: 18 mm (0.71 in) wide × 8.5 mm (0.335 in)
long × 1.5 mm (0.059 in) thick.
2. Make sure that when radiator plate pliers A are closed dimension H ′′ is approx. 7.6 mm (0.299 in).
3. Adjust dimension H ′′ with spacer, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with radiator plate pliers B
(SST).
CAUTION:
Do not disassemble lower tank and A/T fluid cooler.
NOTE:
Regard lower tank and A/T fluid cooler as an assembly.
1. Upper tank 2. Sealing rubber 3. Core
4. Lower tank (with A/T fluid cooler)
PBIC2549E
SLC655CB
SLC903-A
Page 1236 of 4366
CO-46
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 July 2007 FX35/FX45

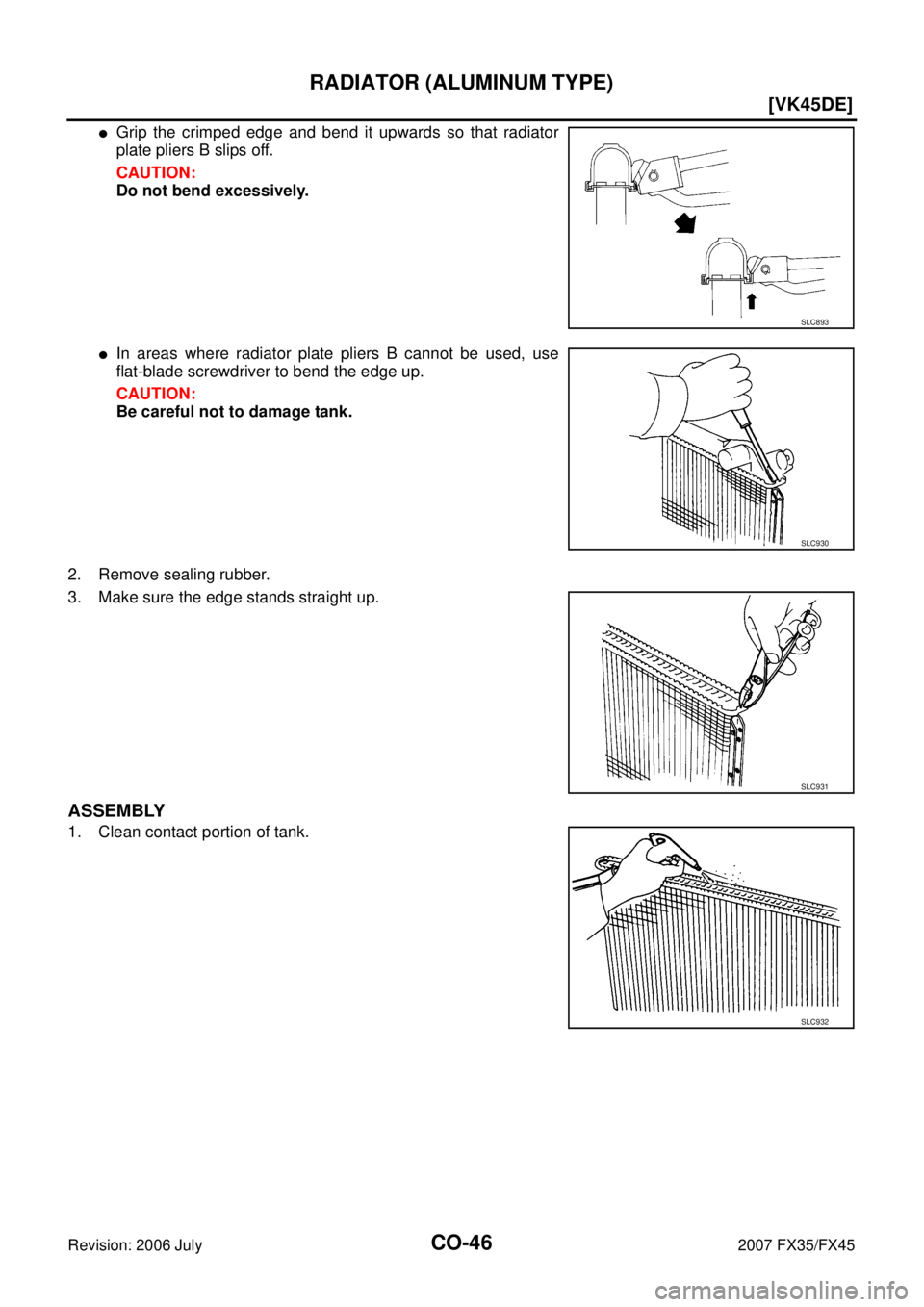

Grip the crimped edge and bend it upwards so that radiator
plate pliers B slips off.
CAUTION:
Do not bend excessively.
In areas where radiator plate pliers B cannot be used, use
flat-blade screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932
Page 1237 of 4366
RADIATOR (ALUMINUM TYPE) CO-47
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
2. Install new sealing rubber while pushing it with fingers.
CAUTION:
Be careful not to twist sealing rubber.

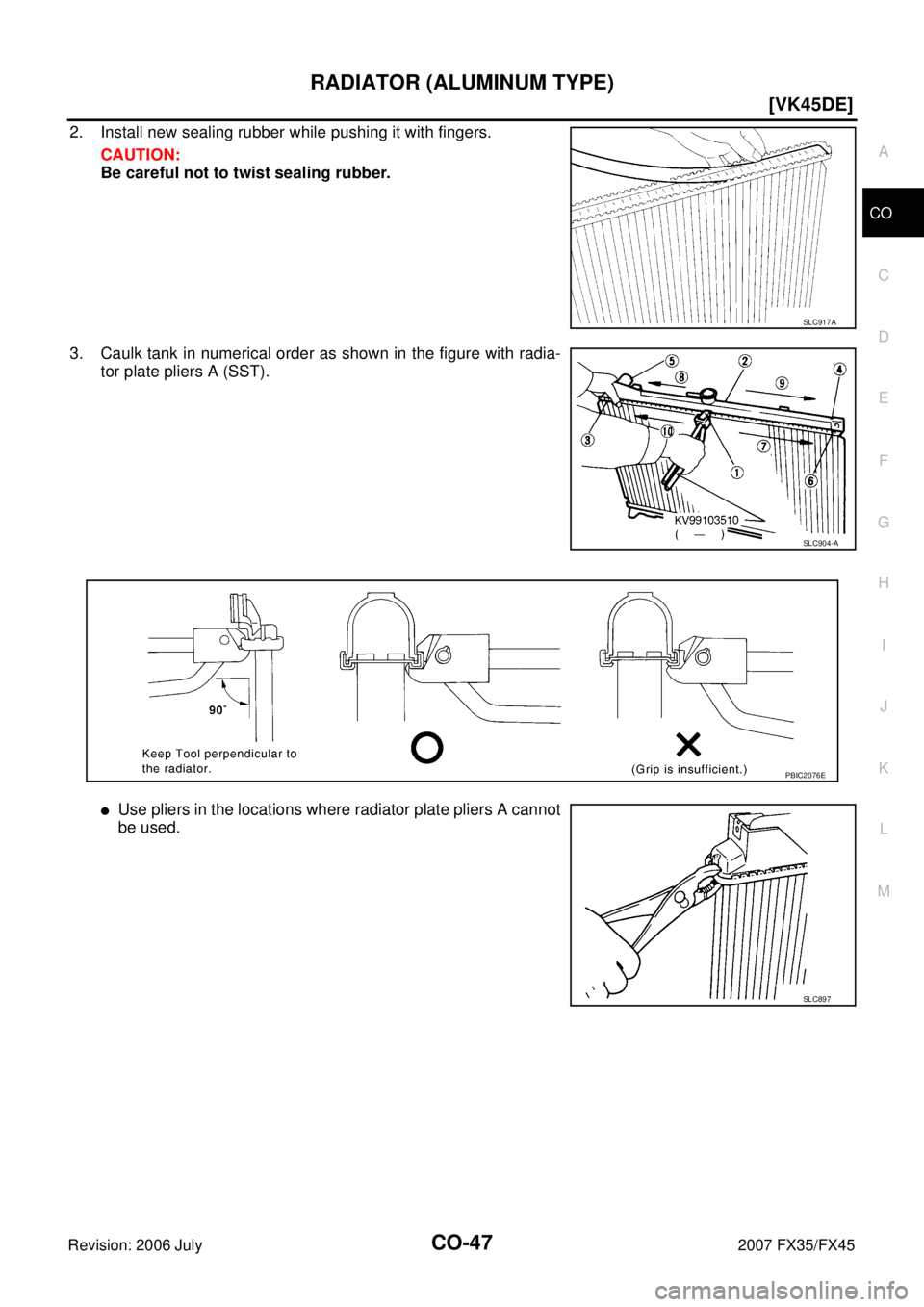

3. Caulk tank in numerical order as shown in the figure with radia- tor plate pliers A (SST).
Use pliers in the locations where radiator plate pliers A cannot
be used.
SLC917A
SLC904-A
PBIC2076E
SLC897
Page 1238 of 4366
![INFINITI FX35 2007 Service Manual CO-48
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 July 2007 FX35/FX45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-48, "
INSPECTION" INFINITI FX35 2007 Service Manual CO-48
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 July 2007 FX35/FX45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-48, "
INSPECTION"](/manual-img/42/57018/w960_57018-1237.png)
CO-48
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2006 July 2007 FX35/FX45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-48, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (SST) and radia-
tor cap tester (commercial service tool).
provide used radiator and connect it to tested radiator using
radiator hoses as shown in the figure.
NOTE:
The used radiator should be tested beforehand to confirm it
has no leakage. If used one is not available, it is possible to
use new service part as a radiator testing tool.
WARNING:
To prevent the risk of hose coming undone while under pressure, securely fasten it down with
hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
2. Check for leakage by soaking radiator in water container with the testing pressure applied. Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)PBIC1658E
PBIC1699E
Page 1239 of 4366
![INFINITI FX35 2007 Service Manual COOLING FAN CO-49
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
COOLING FANPFP:21140
Components (Crankshaft Driven type)NBS005RY
Removal and InstallationNBS003KO
INFINITI FX35 2007 Service Manual COOLING FAN CO-49
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
COOLING FANPFP:21140
Components (Crankshaft Driven type)NBS005RY
Removal and InstallationNBS003KO](/manual-img/42/57018/w960_57018-1238.png)
COOLING FAN CO-49
[VK45DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
COOLING FANPFP:21140
Components (Crankshaft Driven type)NBS005RY
Removal and InstallationNBS003KO
REMOVAL
1. Remove air duct (inlet). Refer to EM-177, "AIR CLEANER AND AIR DUCT" .
2. Remove engine front undercover with power tool.
3. Remove radiator shroud (lower). Refer to CO-41, "
RADIATOR" .
4. Remove drive belts. Refer to EM-174, "
DRIVE BELTS" .
5. Remove fan coupling and cooling fan assembly. CAUTION:
Do not damage or scratch radiator core when removing.
6. Remove cooling fan from fan coupling.
INSPECTION AFTER REMOVAL
Fan Coupling
Inspect fan coupling for oil leakage and bimetal conditions.
If anything is found, replace fan coupling.
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
INSTALLATION
Note the following, install in the reverse order of removal.

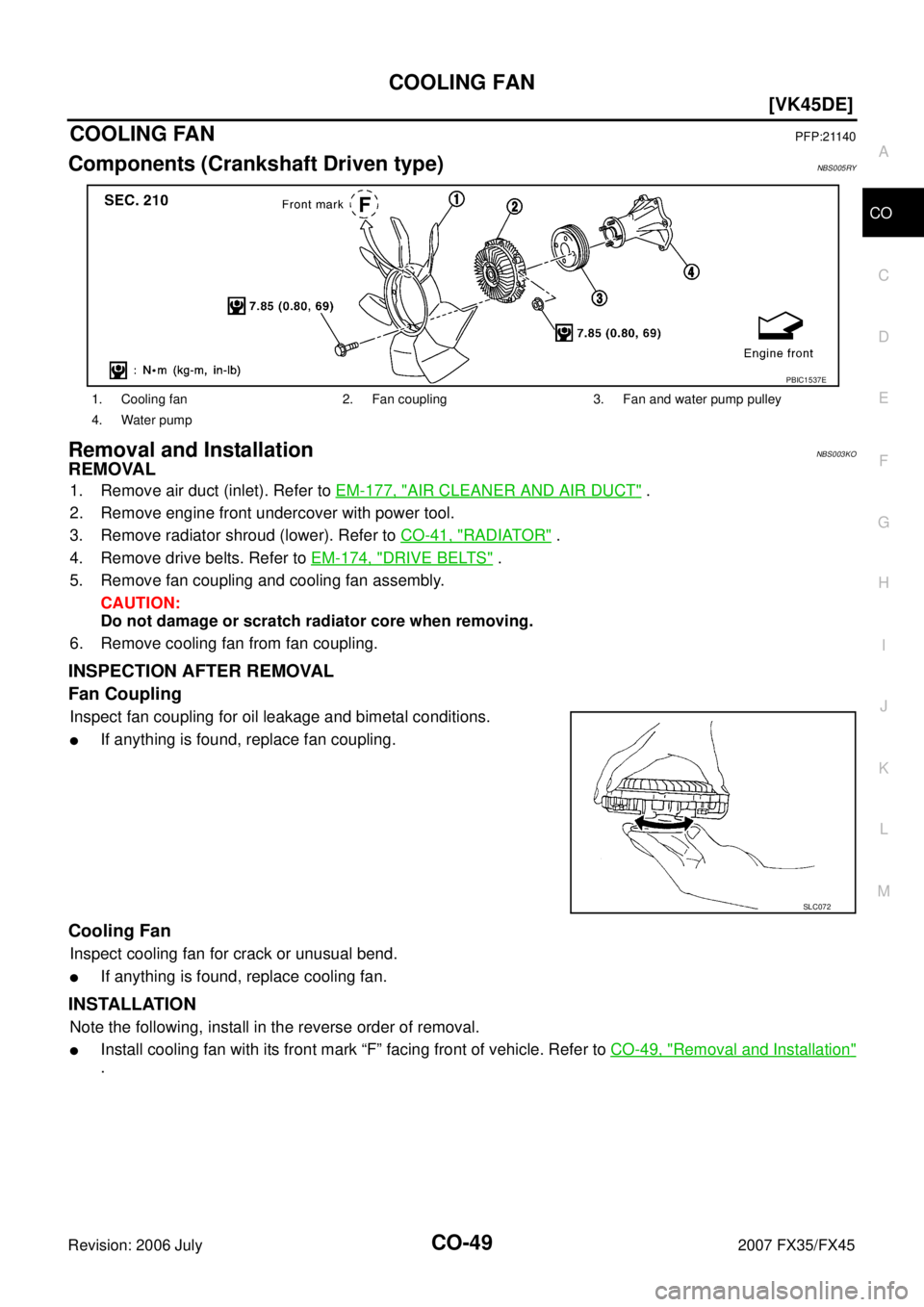

Install cooling fan with its front mark “F” facing front of vehicle. Refer to CO-49, "Removal and Installation"
.
1. Cooling fan 2. Fan coupling 3. Fan and water pump pulley
4. Water pump
PBIC1537E
SLC072
Page 1240 of 4366
CO-50
[VK45DE]
COOLING FAN
Revision: 2006 July 2007 FX35/FX45
Components (Motor Driven Type)NBS005RZ
Removal and InstallationNBS003KP
REMOVAL
1. Remove front grille. Refer to EI-22, "FRONT GRILLE" .
2. Disconnect harness connector from fan motor.
3. Remove cooling fan assembly. CAUTION:
Do not damage or scratch A/C condenser when removed.
INSTALLATION
Install in the reverse order of removal.

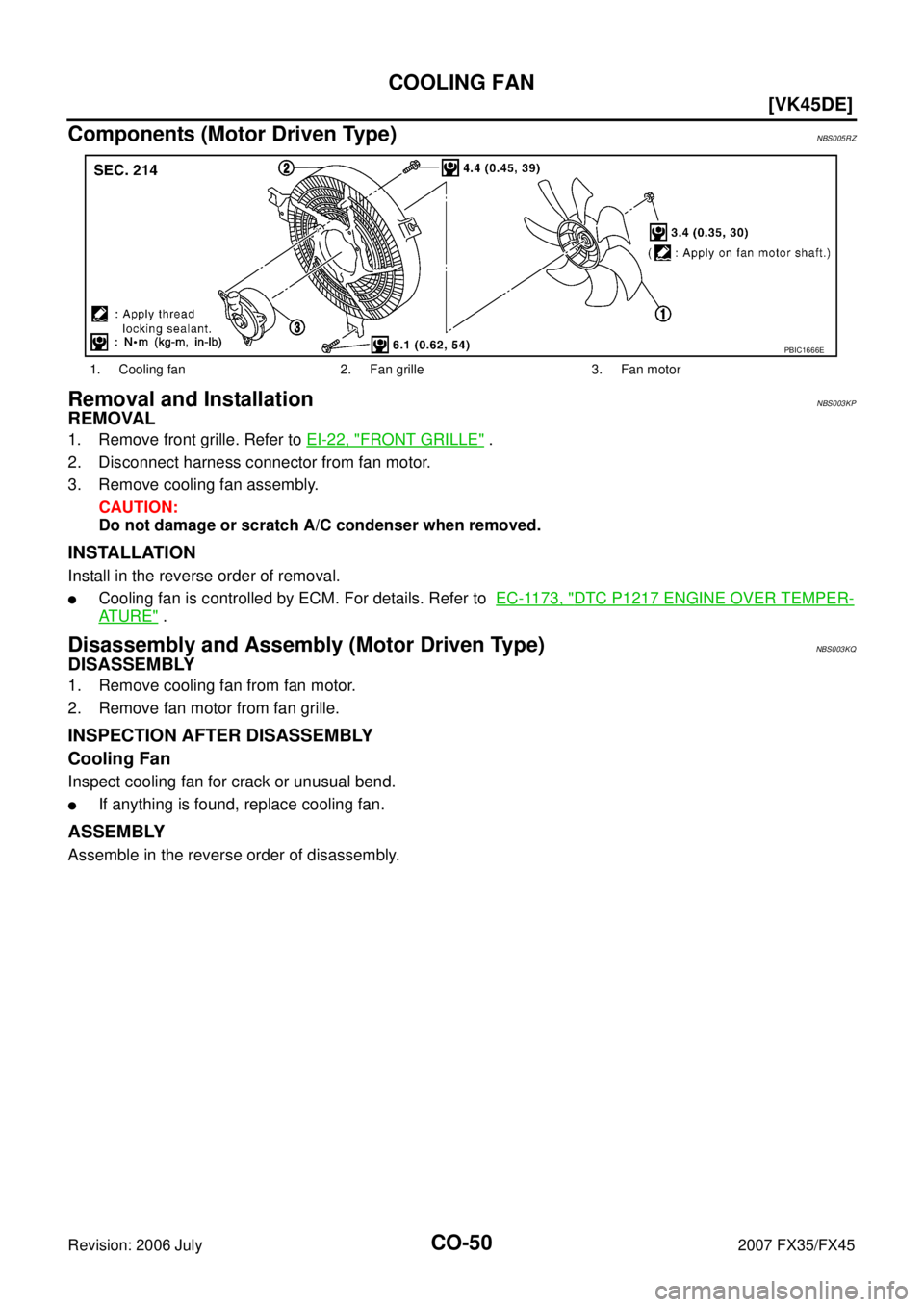

Cooling fan is controlled by ECM. For details. Refer to EC-1173, "DTC P1217 ENGINE OVER TEMPER-
