DTC P0550 PSP SENSOR EC-473
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS003T3
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-153, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
12 R/G Power steering pressure
sensor [Engine is running]
Steering wheel: Being turned.
0.5 - 4.5V
[Engine is running]
Steering wheel: Not being turned. 0.4 - 0.8V
67 B/W Sensor ground [Engine is running]
Warm-up condition
Idle speed Approximately 0V
68 BR Sensor power supply
(Power steering pressure
sensor) [Ignition switch: ON]
Approximately 5V
PBIB2625E
Page 1850 of 4366
![INFINITI FX35 2007 Service Manual EC-474
[VQ35DE]
DTC P0550 PSP SENSOR
Revision: 2006 July 2007 FX35/FX45
2. CHECK POWER STEERING PRESSURE (PSP) SENSOR POWER SUPPLY CIRCUIT
1. Disconnect power steering pressure (PSP) sensor harness c INFINITI FX35 2007 Service Manual EC-474
[VQ35DE]
DTC P0550 PSP SENSOR
Revision: 2006 July 2007 FX35/FX45
2. CHECK POWER STEERING PRESSURE (PSP) SENSOR POWER SUPPLY CIRCUIT
1. Disconnect power steering pressure (PSP) sensor harness c](/manual-img/42/57018/w960_57018-1849.png)
EC-474
[VQ35DE]
DTC P0550 PSP SENSOR
Revision: 2006 July 2007 FX35/FX45
2. CHECK POWER STEERING PRESSURE (PSP) SENSOR POWER SUPPLY CIRCUIT
1. Disconnect power steering pressure (PSP) sensor harness con- nector.
2. Turn ignition switch ON.

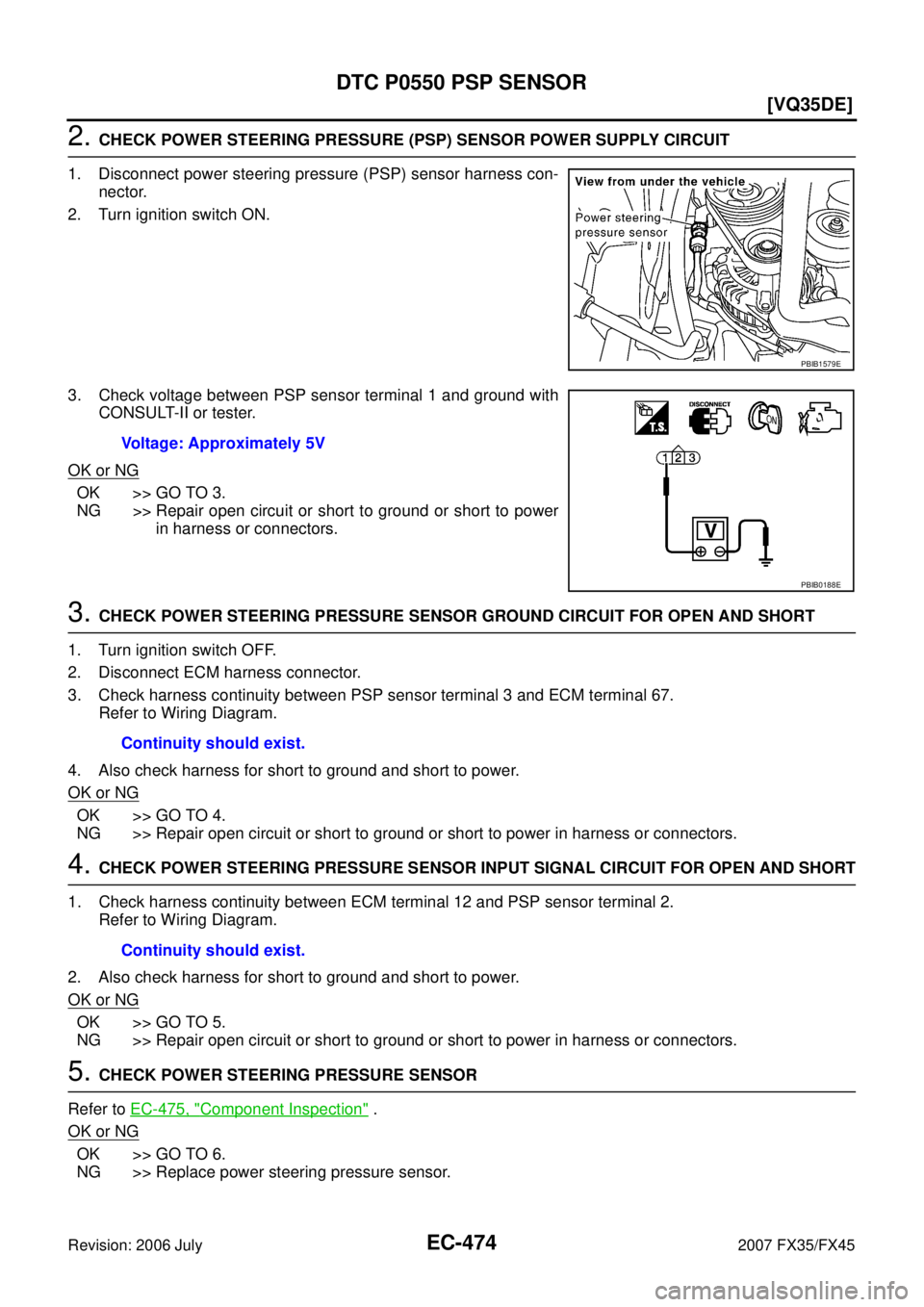

3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK POWER STEERING PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK POWER STEERING PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK POWER STEERING PRESSURE SENSOR
Refer to EC-475, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace power steering pressure sensor.
PBIB1579E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.
Continuity should exist.
Page 1851 of 4366
DTC P0550 PSP SENSOR EC-475
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
6. CHECK INTERMITTENT INCIDENT
Refer to EC-147, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionNBS003T4
POWER STEERING PRESSURE SENSOR
1. Reconnect all harness connectors disconnected.
2. Start engine and let it idle.
3. Check voltage between ECM terminal 12 and ground under the following conditions.
Removal and InstallationNBS003T5
POWER STEERING PRESSURE SENSOR
Refer to PS-41, "HYDRAULIC LINE" .
Condition Voltage
Steering wheel: Being turned 0.5 - 4.5V
Steering wheel: Not being turned 0.4 - 0.8V
MBIB0126E
Page 1852 of 4366
![INFINITI FX35 2007 Service Manual EC-476
[VQ35DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 July 2007 FX35/FX45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS003TI
Battery voltage is supplied to the ECM even when the ign INFINITI FX35 2007 Service Manual EC-476
[VQ35DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 July 2007 FX35/FX45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS003TI
Battery voltage is supplied to the ECM even when the ign](/manual-img/42/57018/w960_57018-1851.png)
EC-476
[VQ35DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 July 2007 FX35/FX45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS003TI
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicNBS003TJ
DTC Confirmation ProcedureNBS003TK
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II

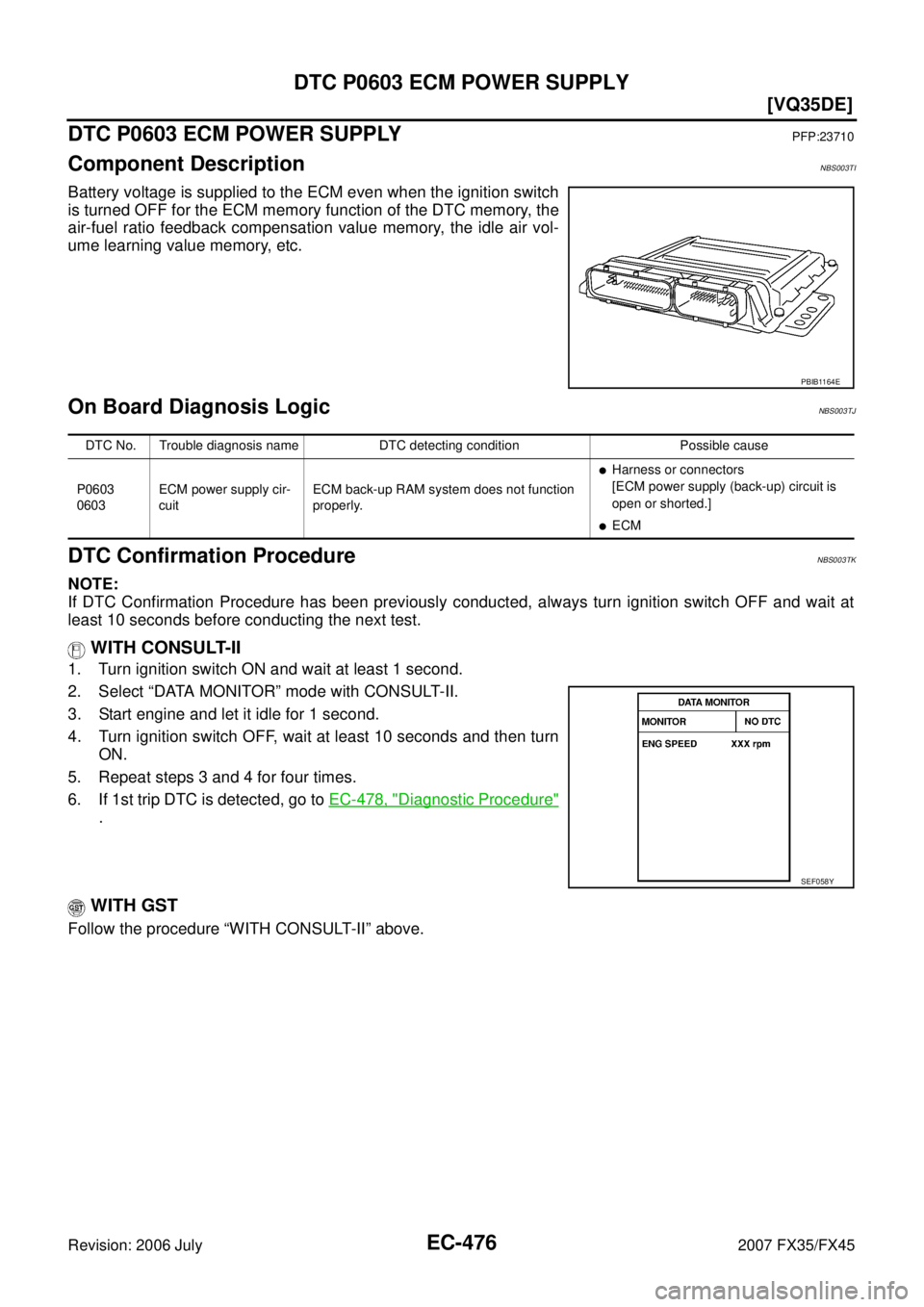

1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Repeat steps 3 and 4 for four times.
6. If 1st trip DTC is detected, go to EC-478, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0603
0603 ECM power supply cir-
cuit ECM back-up RAM system does not function
properly.
Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]
ECM
SEF058Y
Page 1853 of 4366
DTC P0603 ECM POWER SUPPLY EC-477
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

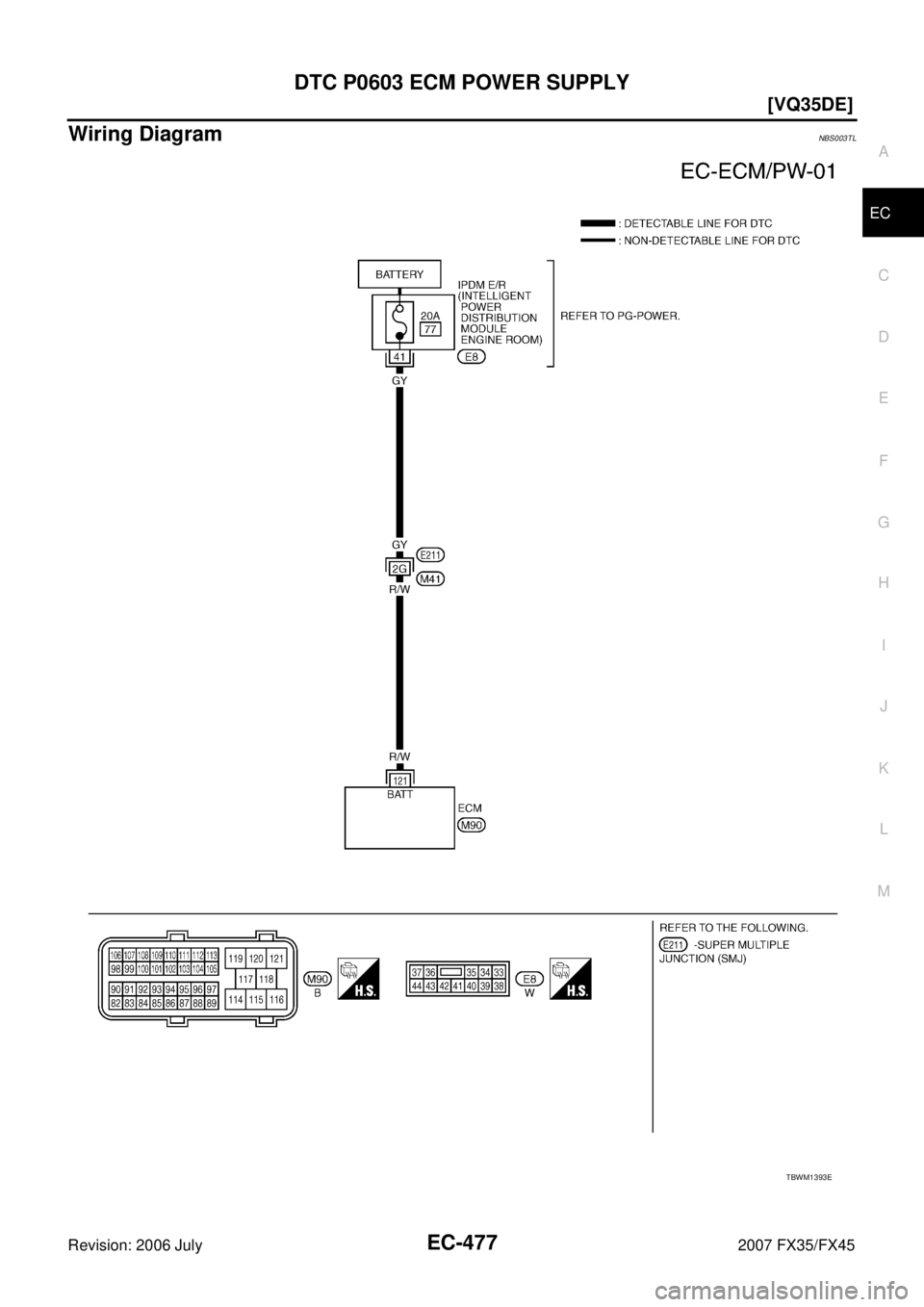

Wiring DiagramNBS003TL
