2007 INFINITI FX35 Service Manual

bluetooth service reset dead battery oil reset sat nav fuse box location

Load previous 8 pages

Page 1321 of 4366

INFINITI FX35 2007 Service Manual WARNING CHIME DI-75
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
Seat Belt Buckle Switch (Driver Side) Signal InspectionNKS003I9
1. CHECK UNIFIED METER AND A/C AMP. INPUT

Page 1322 of 4366

INFINITI FX35 2007 Service Manual DI-76
WARNING CHIME
Revision: 2006 July 2007 FX35/FX45
Component InspectionNKS003IA
FRONT DOOR SWITCH (DRIVER SIDE)
Check continuity between terminal 1 and door switch case ground.
KEY SWITCH
Check co

Page 1323 of 4366

INFINITI FX35 2007 Service Manual LANE DEPARTURE WARNING SYSTEM DI-77
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
LANE DEPARTURE WARNING SYSTEM PFP:28442
Precautions for Lane Departure Warning (LDW) syst

LANE DEPARTURE WARNING SYSTEM DI-77
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
LANE DEPARTURE WARNING SYSTEM PFP:28442
Precautions for Lane Departure Warning (LDW) systemNKS00311
WARNING:
Lane Departure Warning (LDW) is only a warning device to inform the driver of an unintended lane
departure. It will not steer the vehicle or prevent loss of control. It is the driver's responsibility to stay
alert, drive safely, keep the vehicle in the traveling lane, and be in control of the vehicle at all times.
LDW system does not operate under the following conditions:
–At speeds below approx. 72 km/h (45 MPH).
–If it cannot detect lane markers.
LDW system may not function properly under the following conditions:
–On roads where a water puddle, dirt or snow is covering the lane markers.
–On roads where the lane markers are faded or are not painted clearly.
–On roads where the lane markers are painted yellow.
LDW system may not monitor the lane markers in certain road, weather or driving conditions.
–On roads where there are sharp curves.
–Where the traveling lane merges or separates.
–On roads where the discontinued lane markers are present, such as near tollgates, etc.
–On roads where there are not general lane markers.
–On roads where the lane width is too narrow.
–During bad weather (rain, fog, snow, etc.).
–When strong light (for example, at sunrise or sunset) is directly shining on the front of the vehicle.
–When entering or exiting a tunnel where sudden changes in brightness occur.
–When traveling close to the vehicle in front of you, which causes obstruction of the camera unit
range.
–When the vehicle's traveling direction does not align with the lane marker.
–When rain, snow or dirt adhere to the windshield in front of the camera unit.
Excessive noise interferes with warning system chime sound and the chime may not be heard.
CAUTION:
To keep the LDW system operating properly, be sure to observe the following:
Always keep the windshield clean. The sensing capability of the camera unit depends on the con-
dition of the windshield. See “Appearance and care” for cleaning instruction.
Never strike or damage the areas around the camera unit.
Never touch the camera lens.
Never attach a sticker (including transparent material) or install an accessory near the camera
unit.
Never place reflective materials, such as a white paper or mirrors on the instrument panel. Reflec-
tion of the sunlight may adversely affect the camera unit's lane marker detection capability.
System DescriptionNKS00312
LDW SYSTEM OPERATION
The Lane Departure Warning (LDW) system warns the driver when the vehicle is traveling close to either
the left or the right of the traveling lane.
The system monitors lane markers of the traveling lane using the LDW camera unit. When the LDW cam-
era unit detects that the vehicle is traveling close to either the left or the right of the traveling lane, the
LDW indicator lamp flashes and a chime sounds to alert the driver.
NOTE:
When activating turn signal, LDW system does not give a warning to the lane marker on the turn signal
side.
The LDW system can be turned on or off by pushing the LDW switch. When the system is on, the LDW
system ON indicator illuminates.
The LDW system has an automatic mode and manual mode.

Page 1324 of 4366

INFINITI FX35 2007 Service Manual DI-78
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 July 2007 FX35/FX45
In the automatic mode
–LDW system automatically turns on, when the ignition switch is turned to the ON position.
–LDW system

Page 1325 of 4366

INFINITI FX35 2007 Service Manual LANE DEPARTURE WARNING SYSTEM DI-79
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45
System Diagram
Components Description
NOTE:
*: This indicates in a few seconds for the

Page 1326 of 4366

INFINITI FX35 2007 Service Manual DI-80
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 July 2007 FX35/FX45
Action TestNKS00314
LDW SYSTEM RUNNING TEST
WARNING:
Be careful when performing road test.
Understand “Precautions” and “

Page 1327 of 4366

INFINITI FX35 2007 Service Manual LANE DEPARTURE WARNING SYSTEM DI-81
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2006 July 2007 FX35/FX45

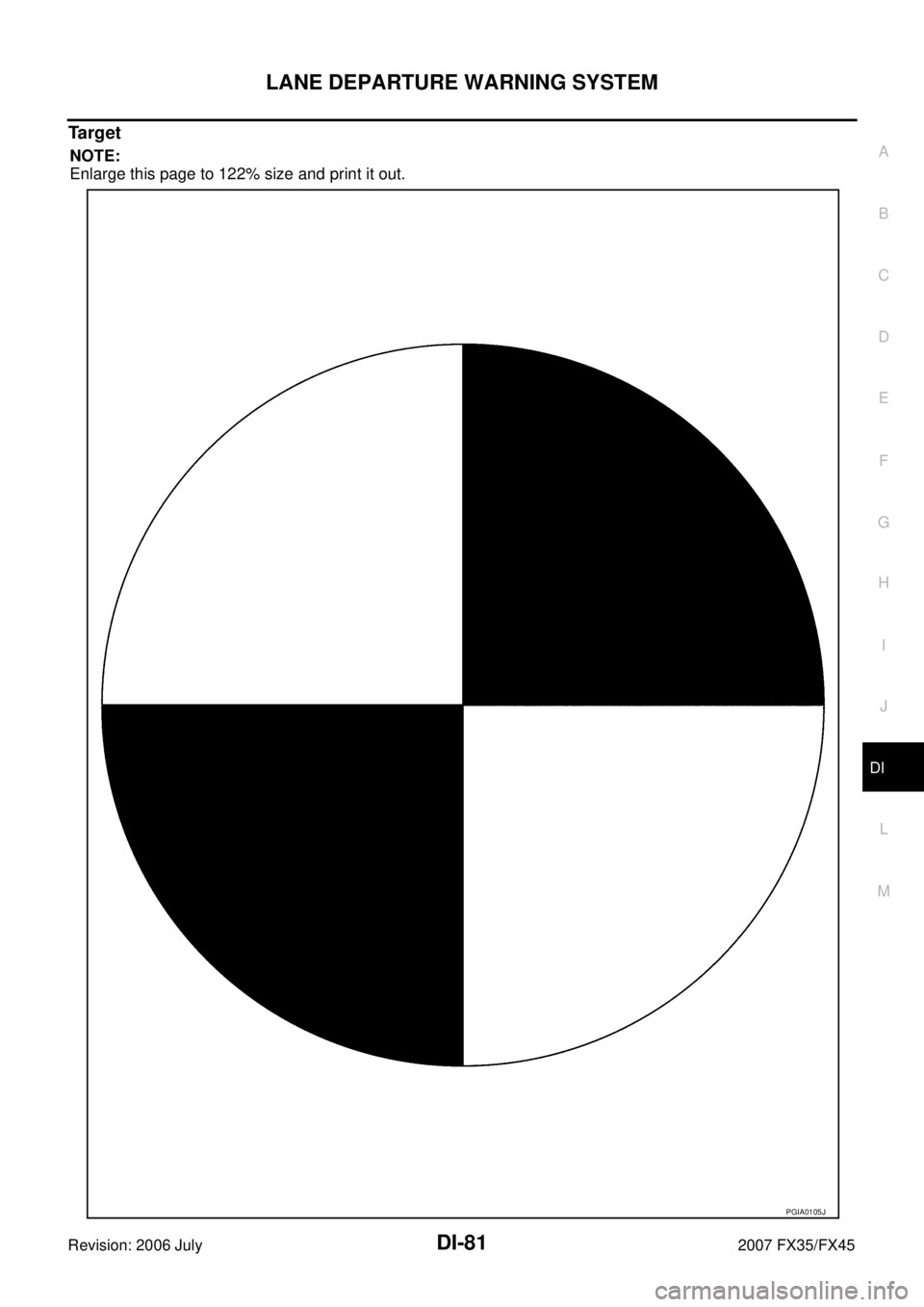

Ta r g e t
NOTE:
Enlarge this page to 122% size and print it out.
PGIA0105J

Page 1328 of 4366

INFINITI FX35 2007 Service Manual DI-82
LANE DEPARTURE WARNING SYSTEM
Revision: 2006 July 2007 FX35/FX45

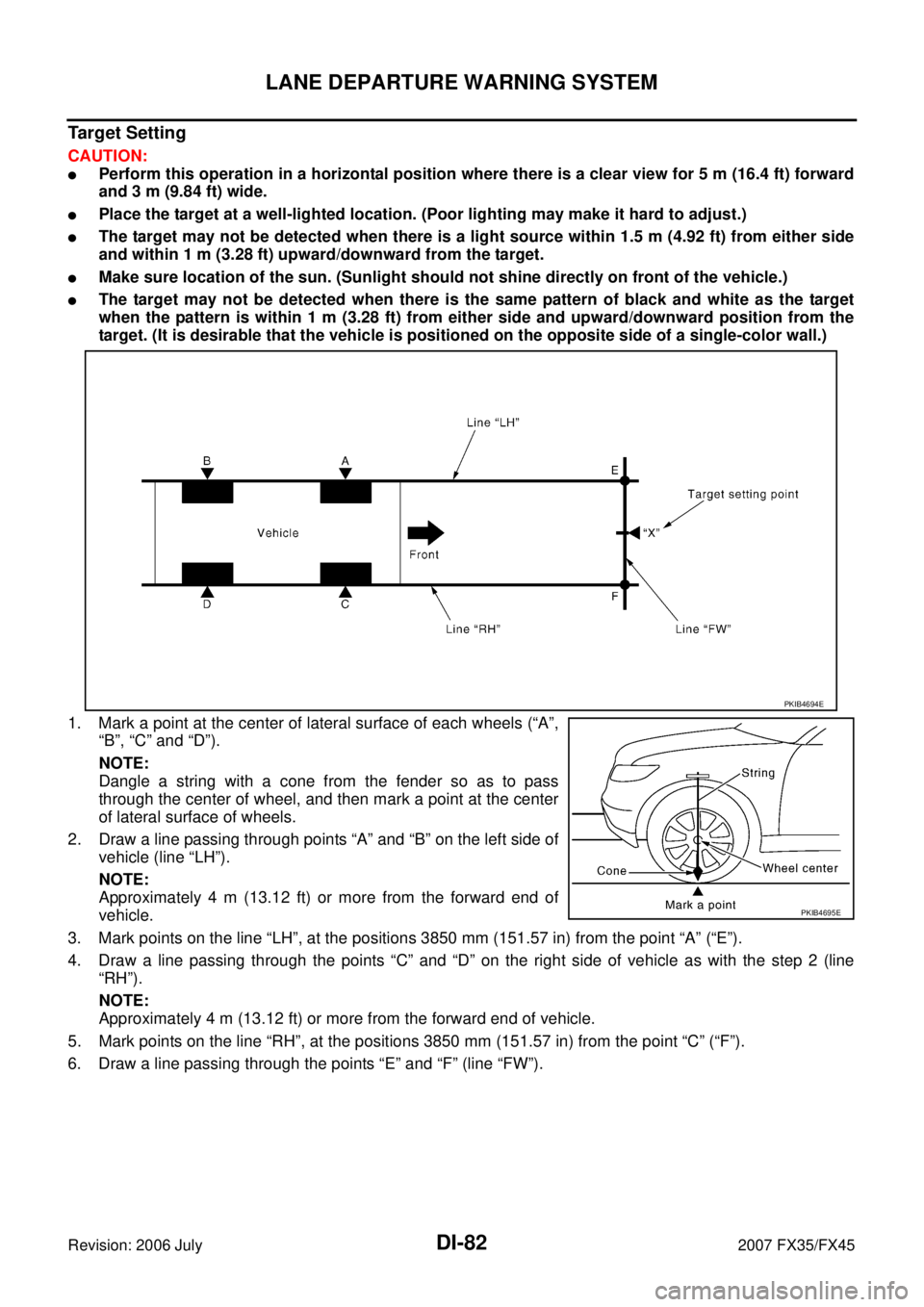

Target Setting
CAUTION:
Perform this operation in a horizontal position where there is a clear view for 5 m (16.4 ft) forward
a
