INFINITI FX35 2007 Service Manual FLOOR TRIM EI-41
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45

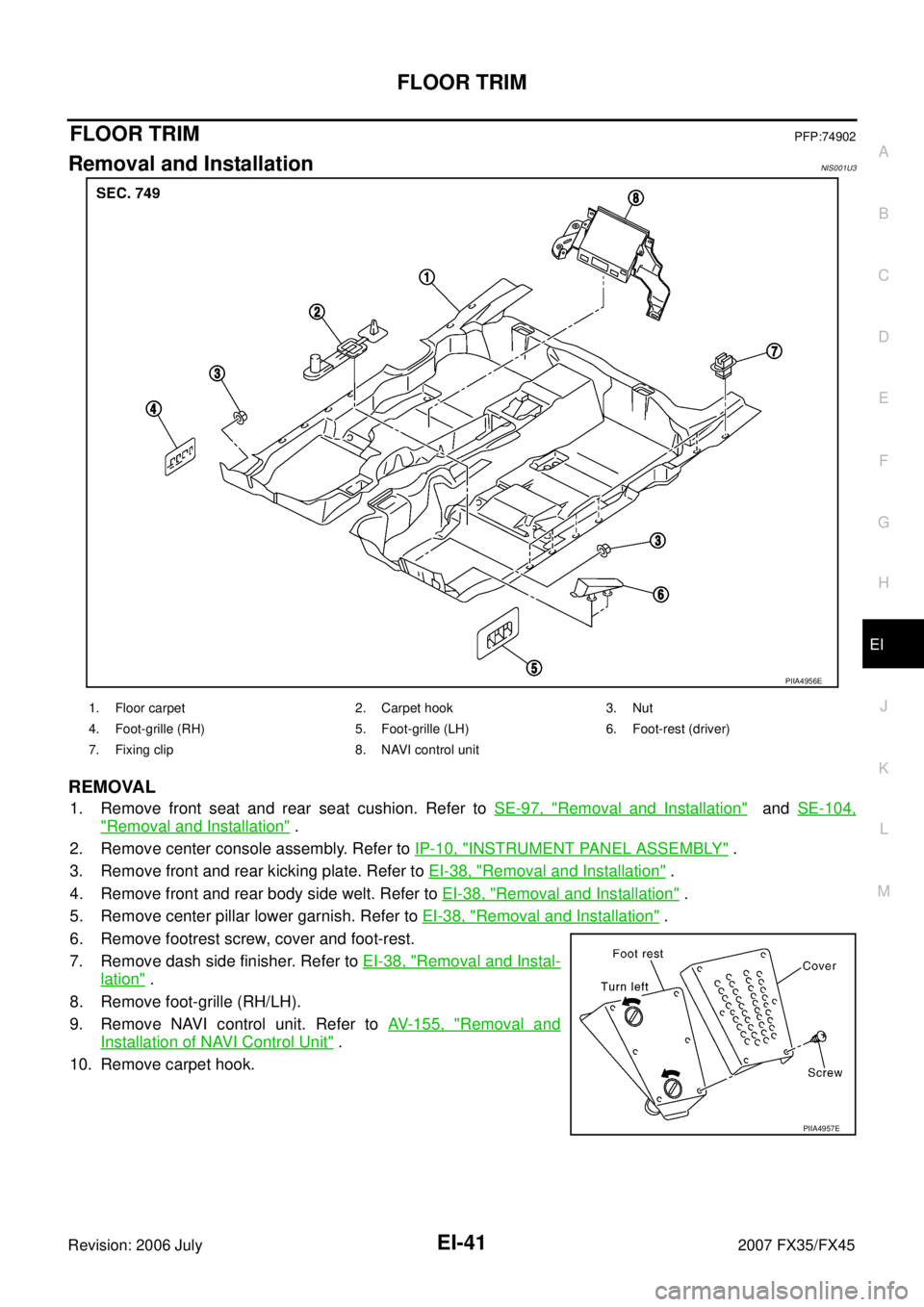

FLOOR TRIMPFP:74902
Removal and InstallationNIS001U3
REMOVAL
1. Remove front seat and rear seat cushion. Ref

Page 2786 of 4366

INFINITI FX35 2007 Service Manual EI-42
FLOOR TRIM
Revision: 2006 July 2007 FX35/FX45
11. Remove floor carpet from carpet fixing clip and remove floor car-
pet.
INSTALLATION
Install in the reverse order of removal.
PIIA1223E

Page 2787 of 4366

INFINITI FX35 2007 Service Manual HEADLINING EI-43
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45

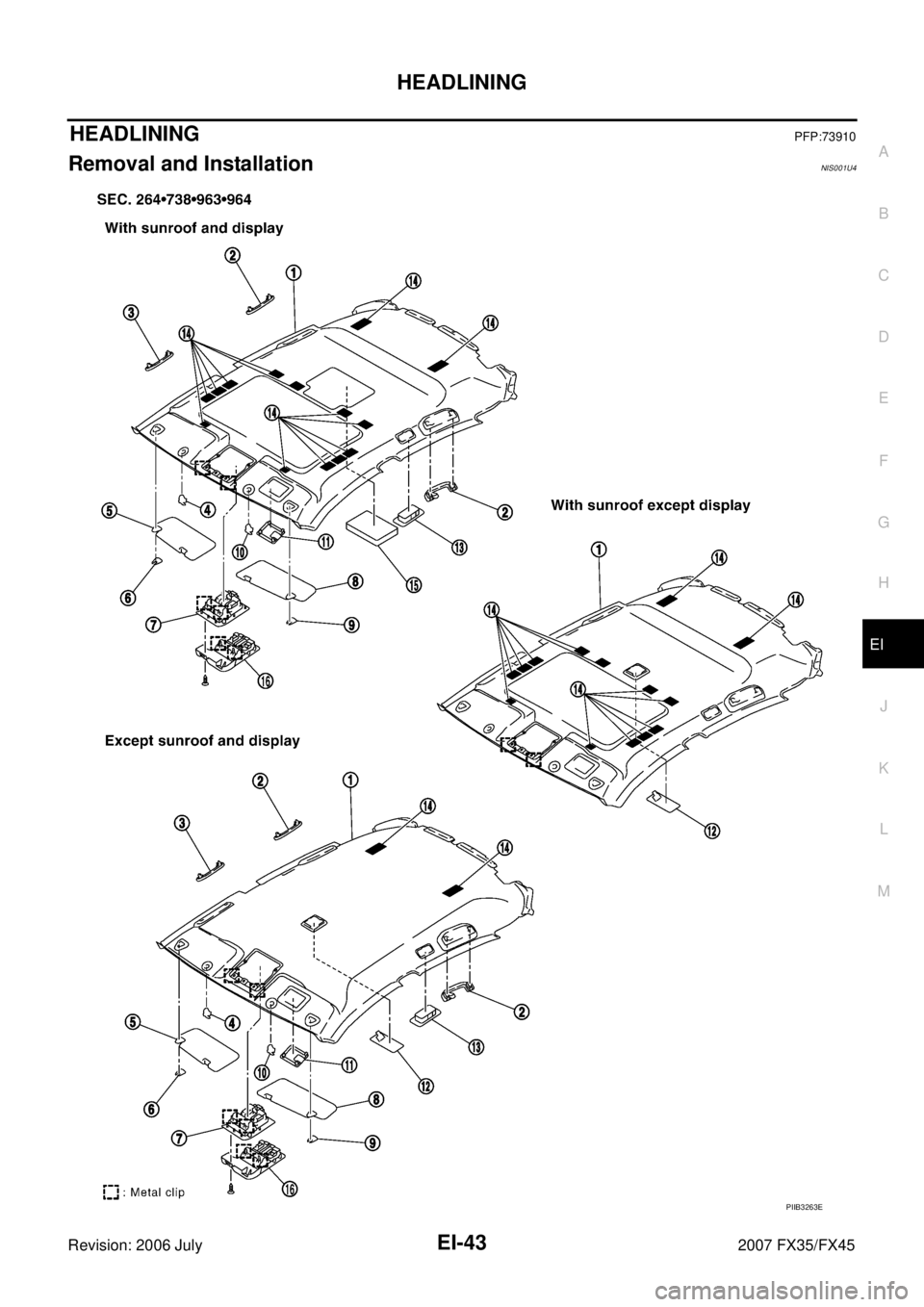

HEADLININGPFP:73910
Removal and InstallationNIS001U4
PIIB3263E

Page 2788 of 4366

INFINITI FX35 2007 Service Manual EI-44
HEADLINING
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Remove front pillar garnish. Refer to EI-38, "Removal and Installation" .
2. Remove kicking plate (front/rear). Refer to EI-38, "
Remo

Page 2789 of 4366

INFINITI FX35 2007 Service Manual LUGGAGE FLOOR TRIM EI-45
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45

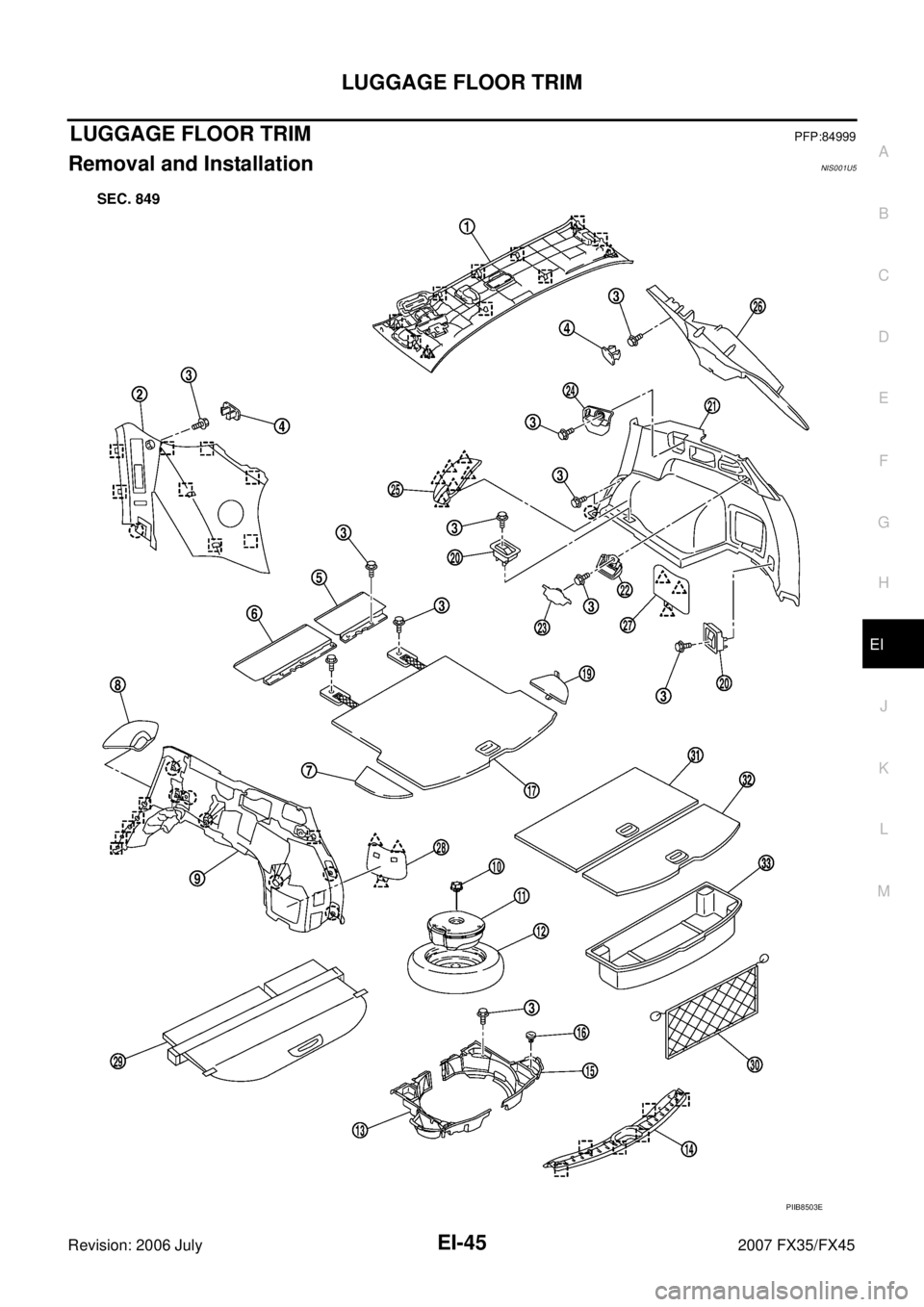

LUGGAGE FLOOR TRIMPFP:84999
Removal and InstallationNIS001U5
PIIB8503E

Page 2790 of 4366

INFINITI FX35 2007 Service Manual EI-46
LUGGAGE FLOOR TRIM
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Remove tonneau cover.
2. Remove luggage side hook and remove net hook (RH/LH).
3. Remove luggage floor board assembly. Remove bo

EI-46
LUGGAGE FLOOR TRIM
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Remove tonneau cover.
2. Remove luggage side hook and remove net hook (RH/LH).
3. Remove luggage floor board assembly. Remove bolt with power tool.
4. Remove luggage floor side board assembly (RH/LH).
5. Remove back door weather strip.
6. Remove rear plate assembly.
7. Remove roof rear garnish assembly.
8. Remove luggage floor cover assembly (RH/LH).
9. Remove rear door kicking plate (RH/LH).
10. Remove rear body side welt.
11. Remove rear seat cushion and seatback. Refer to SE-104, "
Removal and Installation" .
12. Remove rear wheel house finisher assembly (RH/LH).
13. Remove luggage side finisher assembly bolt and remove luggage side finisher assembly (RH/LH).
14. Remove bolt, and then remove parcel shelf holder.
15. Remove rear parcel shelf cap.
16. Remove bolt, and then remove rear parcel hook.
17. Remove rear seat belt anchor (RH/LH). Refer to SB-6, "
Removal and Installation of Rear Seat Belt" .
18. Remove rear pillar upper garnish assembly cap and bolt, then remove rear pillar upper garnish assembly (RH/LH).
19. Remove spare tire clamp.
20. Remove sub-woofer box connector and remove sub-woofer box.
21. Remove spare tire.
22. Remove towing hook, wheel nut wrench, spanner, tire stopper, jack rod and jack complete.
23. Remove luggage side box bolt and luggage side box assembly (RH/LH).
INSTALLATION
Install in the reverse order of removal.
1. Roof rear garnish assembly 2. Rear pillar upper garnish assembly (LH) 3. Bolt
4. Cap 5. Luggage floor cover assembly (RH) 6. Luggage floor cover assembly (LH)
7. Luggage floor side board assembly (LH) 8. Rear wheel house finisher assembly
(LH) 9. Luggage side finisher assembly
(LH)
10. Clamp 11. Sub woofer box 12. Spare tire
13. Luggage side box (LH) 14. Rear plate assembly 15. Luggage side box (RH)
16. Cap 17. Luggage floor board assembly 18. Luggage floor board assembly (option for Canada)
19. Luggage floor side board assembly (RH) 20. Net hook 21. Luggage side finisher assembly
(RH)
22. Rear parcel shelf hook 23. Rear parcel shelf cap 24. Rear parcel shelf holder
25. Rear wheel house finisher assembly (RH) 26. Rear pillar upper garnish assembly
(RH) 27. Luggage finisher mask (RH)
28. Luggage finisher mask (LH) 29. Tonneau cover 30. Net
31. Luggage floor center front board (Run flat type) 32. Luggage floor center rear board
(Run flat type) 33. Luggage floor box assembly
(Run flat type)
Clip Pawl Metal clip

Page 2791 of 4366

INFINITI FX35 2007 Service Manual BACK DOOR TRIM EI-47
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45

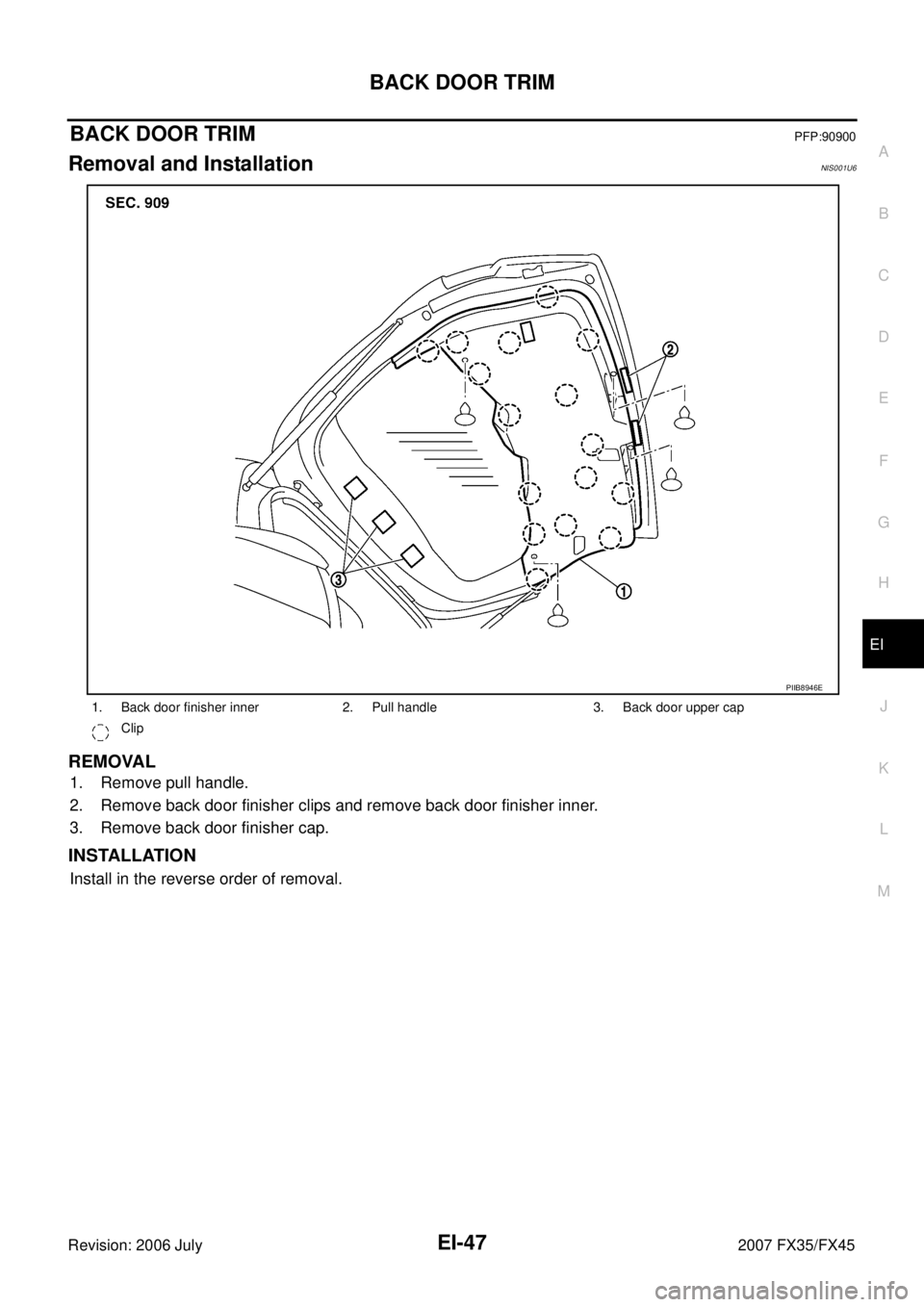

BACK DOOR TRIMPFP:90900
Removal and InstallationNIS001U6
REMOVAL
1. Remove pull handle.
2. Remove back

Page 2792 of 4366

INFINITI FX35 2007 Service Manual EI-48
BACK DOOR TRIM
Revision: 2006 July 2007 FX35/FX45
