2007 INFINITI FX35 Service Manual

spare tire brakes automatic transmission service interval reset emergency towing gearbox

Load previous 8 pages

Page 3001 of 4366

INFINITI FX35 2007 Service Manual TIMING CHAIN EM-209
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the fig

Page 3002 of 4366

INFINITI FX35 2007 Service Manual EM-210
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45

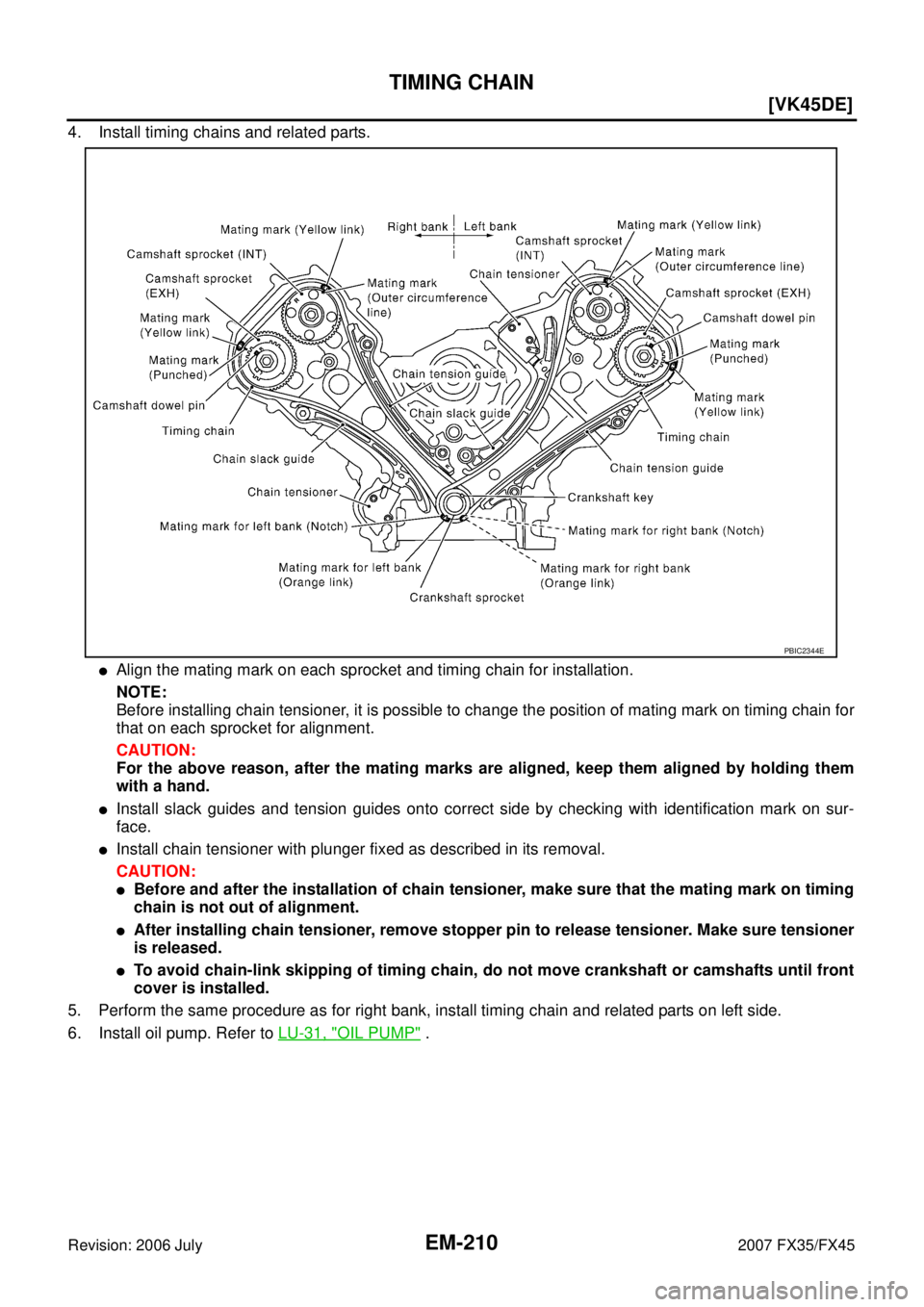

4. Install timing chains and related parts.
Align the mating mark on each sprocket and timing chain for installation.
NOTE:
Before in

Page 3003 of 4366

INFINITI FX35 2007 Service Manual TIMING CHAIN EM-211
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the d

Page 3004 of 4366

INFINITI FX35 2007 Service Manual EM-212
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
a. Install new O-rings onto cylinder heads (right and left bank) and
cylinder block.
b. Apply a continuous bead of liquid gasket with

Page 3005 of 4366

INFINITI FX35 2007 Service Manual TIMING CHAIN EM-213
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
b. Install new O-rings on front cover.
c. Apply a continuous bead of liquid gasket with tube pr

Page 3006 of 4366

INFINITI FX35 2007 Service Manual EM-214
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
f. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. The
angle between two n

EM-214
[VK45DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
f. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. The
angle between two notches is 90 degrees.
15. Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
16. Install in the reverse order of removal after this step. NOTE:
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in guide may gen-
erate a pounding noise during and just after engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The followings are procedures for checking fluids leak, lubricates leak and exhaust gases leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS"
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC2346E
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

Page 3007 of 4366

INFINITI FX35 2007 Service Manual CAMSHAFT EM-215
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

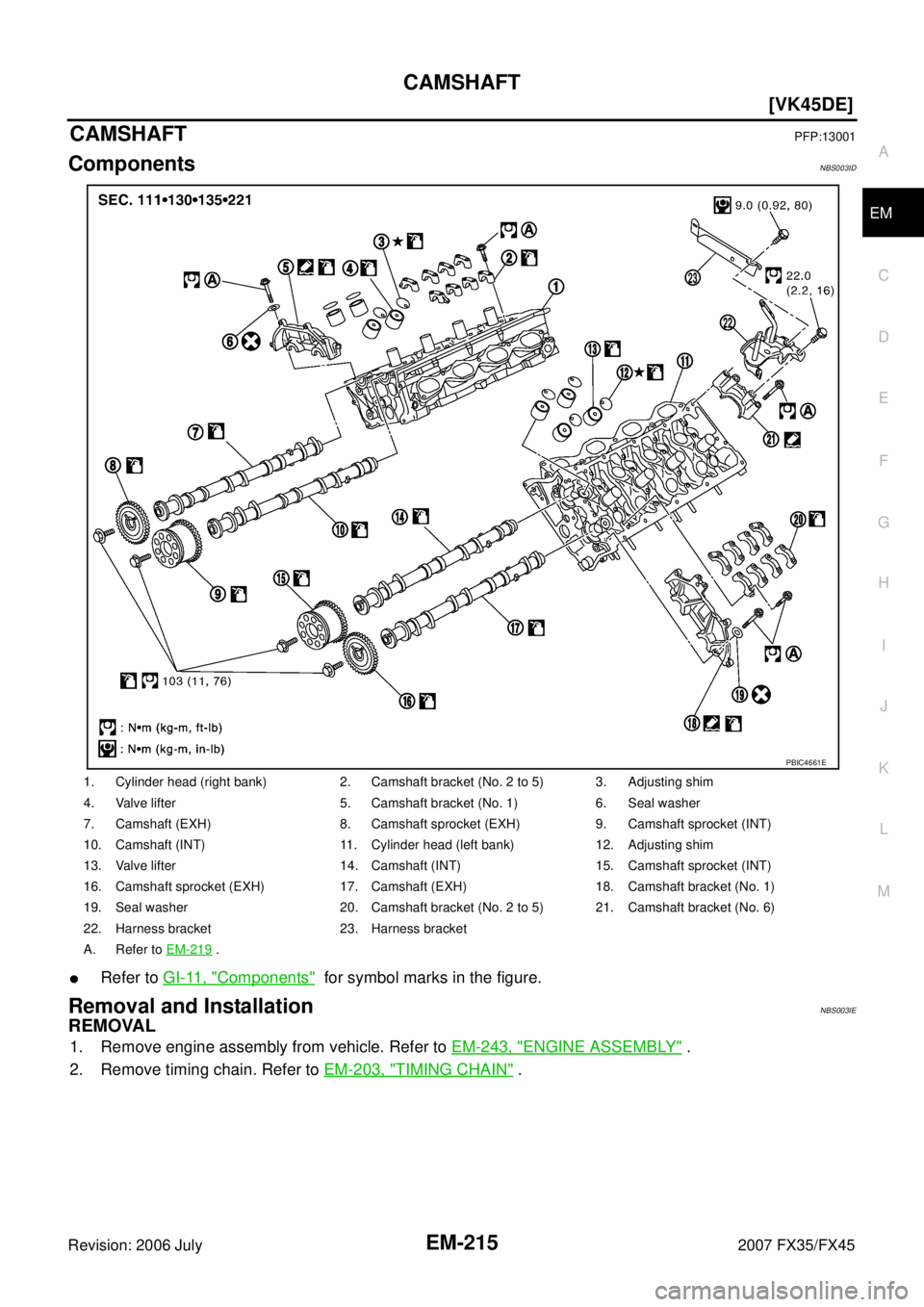

CAMSHAFTPFP:13001
ComponentsNBS003ID
Refer to GI-11, "Components" for symbol marks in the figure.

Page 3008 of 4366

INFINITI FX35 2007 Service Manual EM-216
[VK45DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
3. With hexagonal part of camshaft locked with wrench, loosen
bolts securing camshaft sprocket to remove camshaft sprocket.
CAUTION:
Do
