INFINITI FX35 2007 Service Manual DTC P0011, P0021 IVT CONTROL EC-825
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionNBS0042O

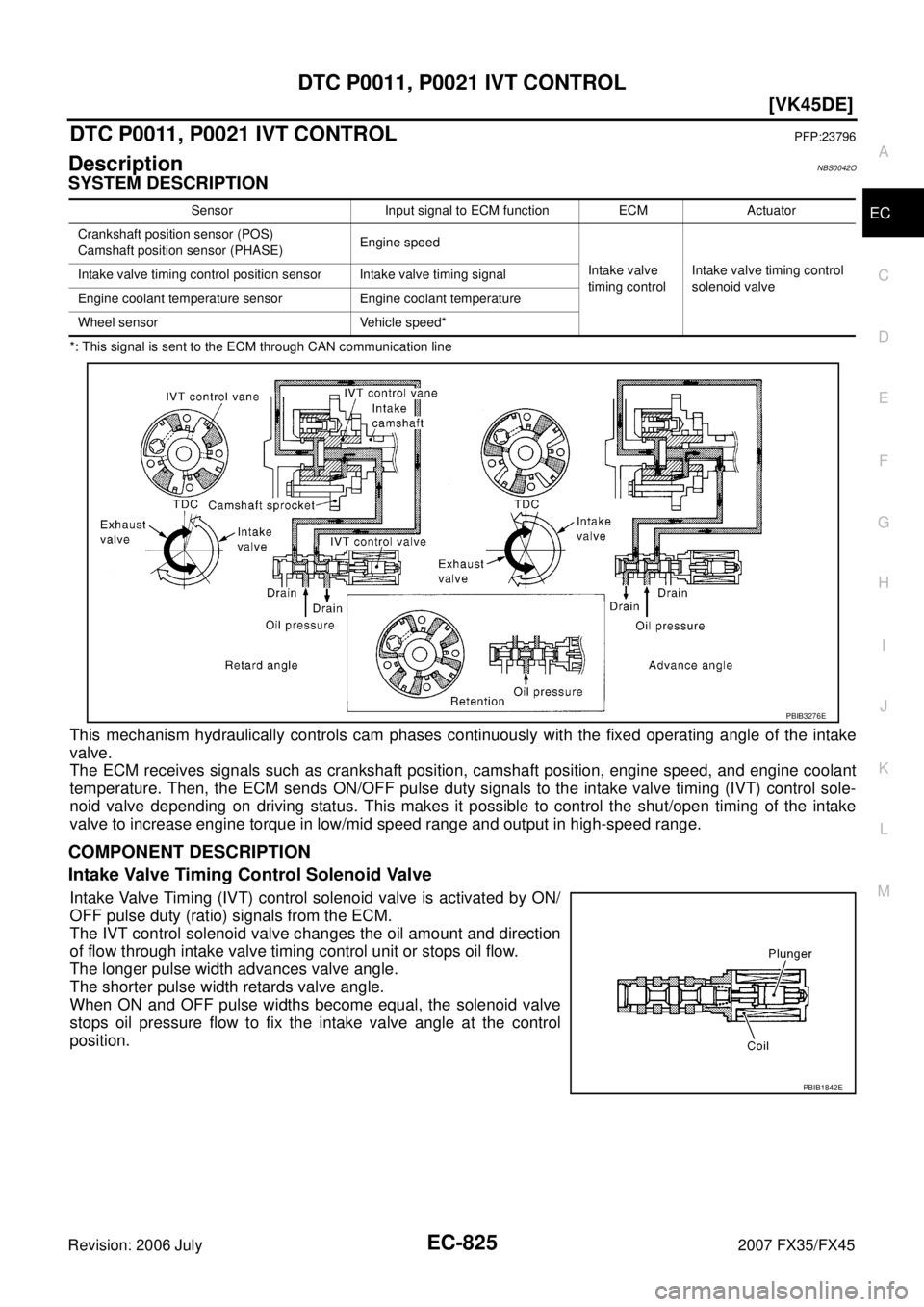

SYSTEM DESCRIPTION
*:

Page 2202 of 4366

INFINITI FX35 2007 Service Manual EC-826
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 July 2007 FX35/FX45
Intake Valve Timing Control Position Sensor
Intake valve timing control position sensors are located in the front of
cy

EC-826
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 July 2007 FX35/FX45
Intake Valve Timing Control Position Sensor
Intake valve timing control position sensors are located in the front of
cylinder heads in both bank 1 and bank 2.
This sensor uses a Hall IC.
The cam position is determined by the intake camshaft sprocket con-
cave (in three places). The ECM provides feedback to the intake
valve timing control for appropriate target valve open-close timing
according to drive conditions based on detected cam position.
CONSULT-II Reference Value in Data Monitor ModeNBS0042P
Specification data are reference values.
On Board Diagnosis LogicNBS0042Q
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
SEF359Z
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
INT/V TIM (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
−5° - 5 °CA
2,000 rpm Approx. 0 ° - 20 °CA
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 0% - 2%
2,000 rpm Approx. 25% - 50%
DTC No. Trouble diagnosis name Detecting condition Possible cause
P0011
0011
(Bank 1)
Intake valve timing control
performance A
The alignment of the intake valve timing
control has been misresistered.
Harness or connectors
(Intake valve timing control solenoid
valve circuit is open or shorted.)
Harness or connectors
(Intake valve timing control position
sensor circuit is open or shorted.)
Intake valve timing control solenoid
valve
Intake valve timing control position
sensor
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Accumulation of debris to the signal
pick-up portion of the camshaft
sprocket
Timing chain installation
Foreign matter caught in the oil
groove for intake valve timing control
P0021
0021
(Bank 2) B
There is a gap between angle of target
and phase-control angle degree.
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function

Page 2203 of 4366

INFINITI FX35 2007 Service Manual DTC P0011, P0021 IVT CONTROL EC-827
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC Confirmation ProcedureNBS0042R
CAUTION:
Always drive at a safe speed.
NOTE

DTC P0011, P0021 IVT CONTROL EC-827
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC Confirmation ProcedureNBS0042R
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with DTC P0075, P0081, P1140 or P1145, first perform the trou-
ble diagnosis for EC-852
or EC-1161 .
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec- onds.
4. Maintain the following conditions for at least 20 consecutive sec- onds.
5. If 1st trip DTC is detected, go to EC-831, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec- onds.
4. If 1st trip DTC is detected, go to EC-831, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70 °C (158 °F)
Selector lever 1st or 2nd position
Driving location uphill Driving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
ENG SPEED Idle
COOLAN TEMP/S More than 70 °C (158 °F)
Selector lever P or N position
PBIB0164E
ENG SPEED 1,700 - 3,175 rpm (A constant rotation is maintained.)
COOLAN TEMP/S 70 - 105 °C (158 - 221 °F)
Selector lever 1st or 2nd position
Driving location uphill Driving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
PBIB0164E

Page 2204 of 4366

INFINITI FX35 2007 Service Manual EC-828
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 July 2007 FX35/FX45

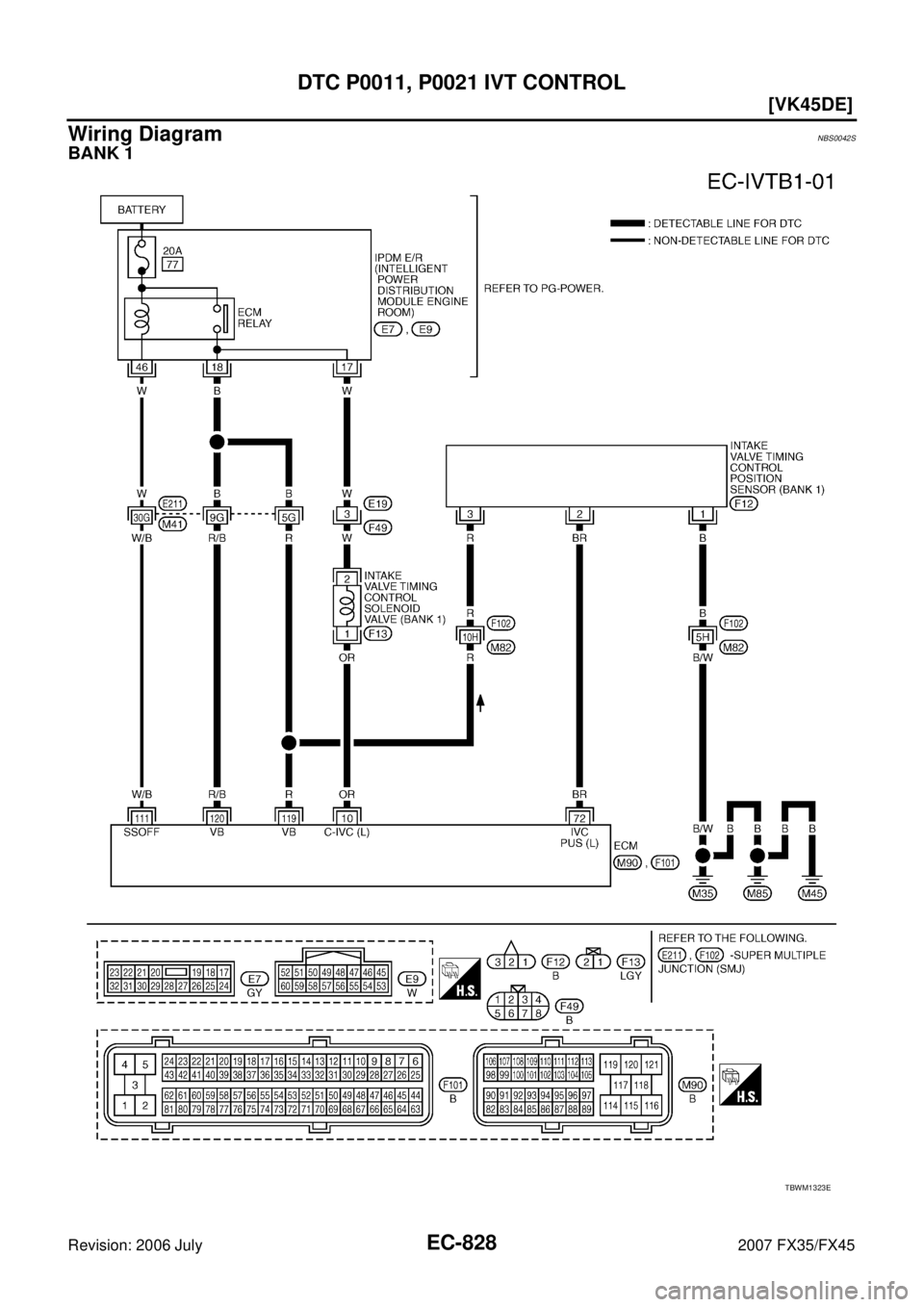

Wiring DiagramNBS0042S
BANK 1
TBWM1323E

Page 2205 of 4366

INFINITI FX35 2007 Service Manual DTC P0011, P0021 IVT CONTROL EC-829
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal a

Page 2206 of 4366

INFINITI FX35 2007 Service Manual EC-830
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 July 2007 FX35/FX45

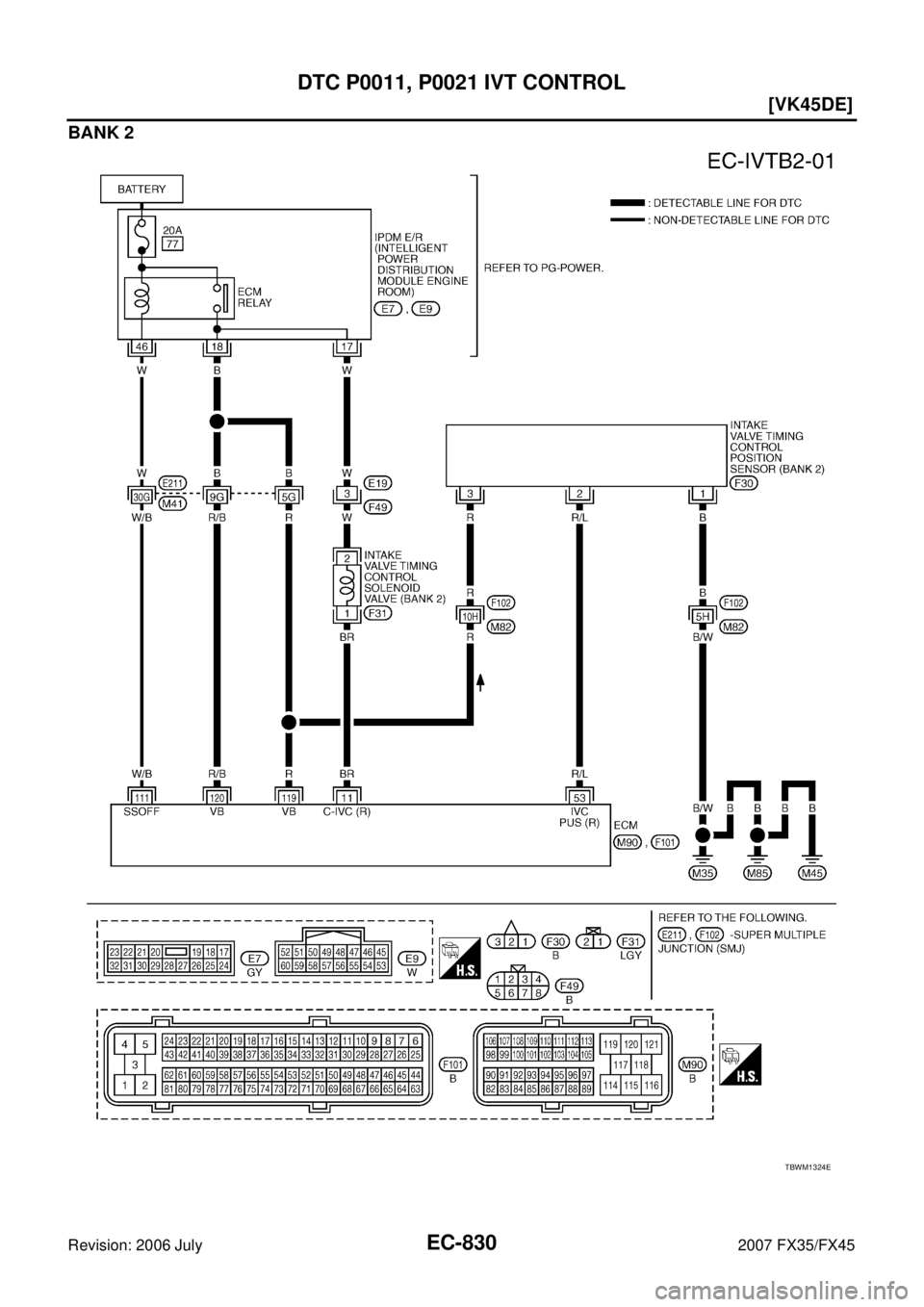

BANK 2
TBWM1324E

Page 2207 of 4366

INFINITI FX35 2007 Service Manual DTC P0011, P0021 IVT CONTROL EC-831
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal a

Page 2208 of 4366

INFINITI FX35 2007 Service Manual EC-832
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 July 2007 FX35/FX45
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Re
