2007 INFINITI FX35 Service Manual

dashboard open hood cabin filter dead battery clutch battery replacement

Page 1585 of 4366

INFINITI FX35 2007 Service Manual DTC P0117, P0118 ECT SENSOR EC-209
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0117, P0118 ECT SENSORPFP:22630
Component DescriptionNBS003NR
The engine coo

DTC P0117, P0118 ECT SENSOR EC-209
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0117, P0118 ECT SENSORPFP:22630
Component DescriptionNBS003NR

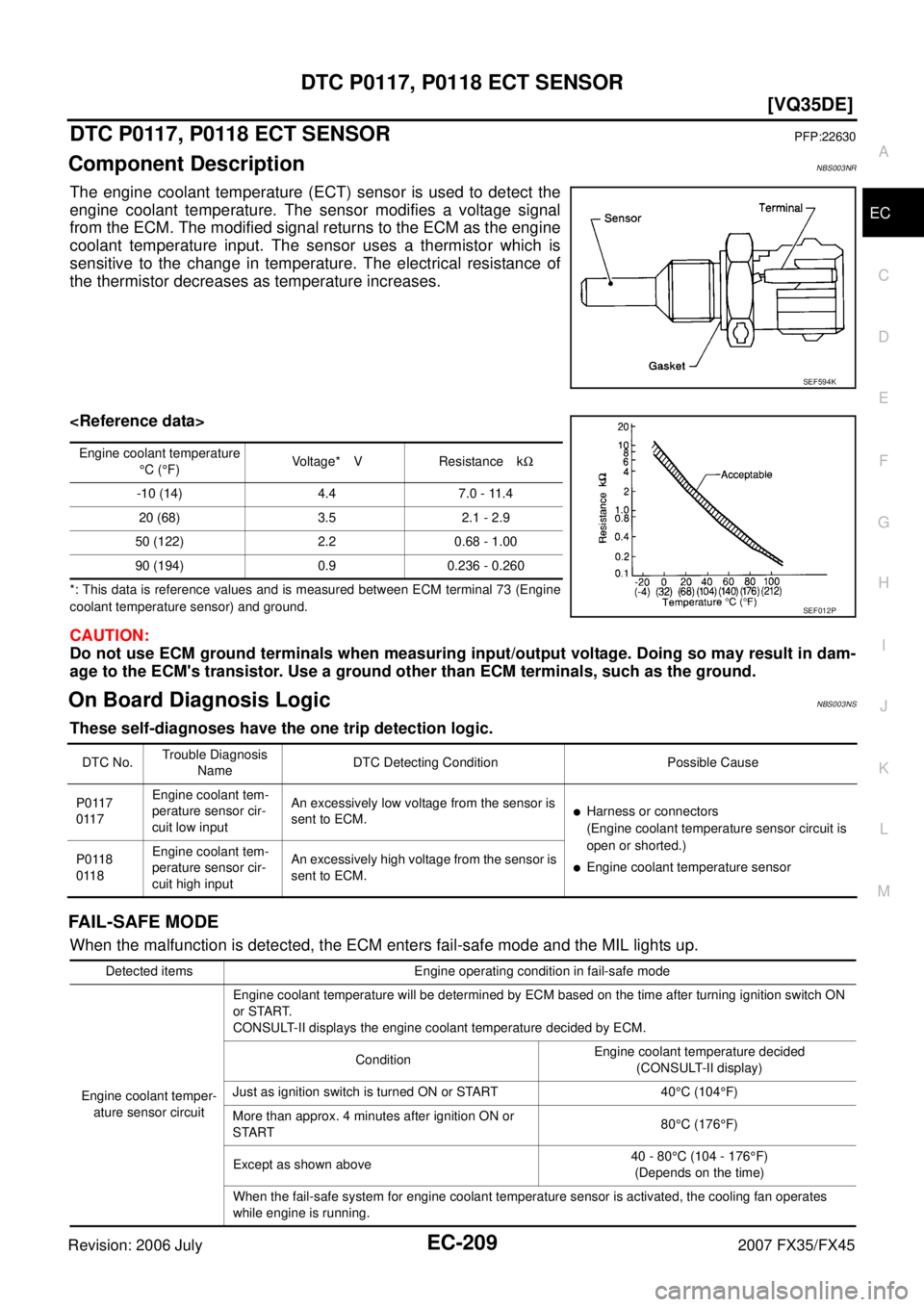

The engine coolant temperature (ECT) sensor is used to detect the
engine coolant temperature. The sensor modifies a voltage signal
from the ECM. The modified signal returns to the ECM as the engine
coolant temperature input. The sensor uses a thermistor which is
sensitive to the change in temperature. The electrical resistance of
the thermistor decreases as temperature increases.

*: This data is reference values and is measured between ECM terminal 73 (Engine
coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicNBS003NS
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
SEF594K
Engine coolant temperature
° C ( °F) Voltage* V Resistance k
Ω
-10 (14) 4.4 7.0 - 11.4 20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No. Trouble Diagnosis
Name DTC Detecting Condition Possible Cause
P0117
0117 Engine coolant tem-
perature sensor cir-
cuit low input An excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(Engine coolant temperature sensor circuit is
open or shorted.)
Engine coolant temperature sensor
P0118
0118 Engine coolant tem-
perature sensor cir-
cuit high input An excessively high voltage from the sensor is
sent to ECM.
Detected items Engine operating condition in fail-safe mode
Engine coolant temper- ature sensor circuit Engine coolant temperature will be determined by ECM based on the time after turning ignition switch ON
or START.
CONSULT-II displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned ON or START 40 °C (104 °F)
More than approx. 4 minutes after ignition ON or
START 80
°C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling fan operates
while engine is running.

Page 1586 of 4366

INFINITI FX35 2007 Service Manual EC-210
[VQ35DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 July 2007 FX35/FX45
DTC Confirmation ProcedureNBS003NT
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn igniti

Page 1587 of 4366

INFINITI FX35 2007 Service Manual DTC P0117, P0118 ECT SENSOR EC-211
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

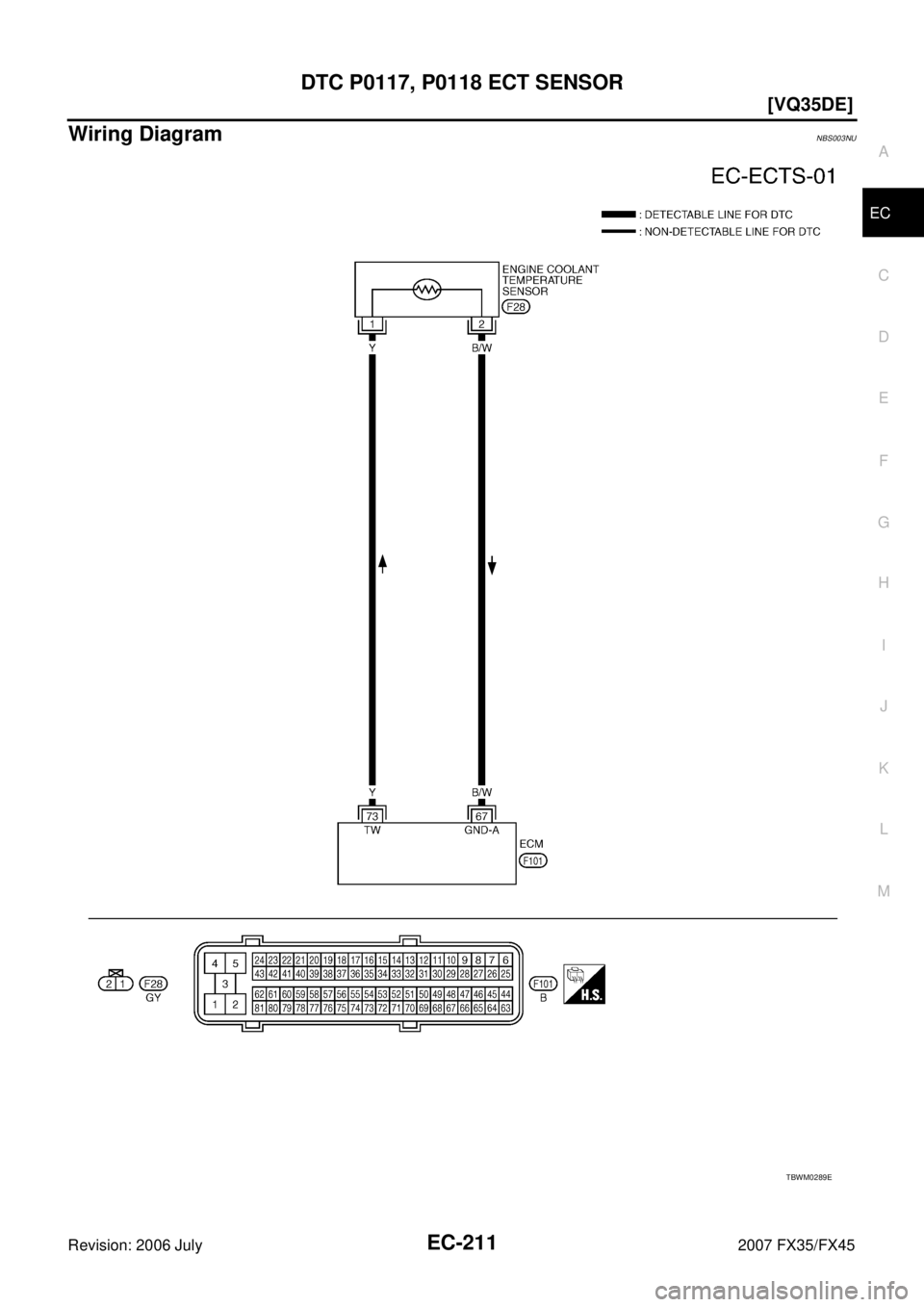

Wiring DiagramNBS003NU
TBWM0289E

Page 1588 of 4366

INFINITI FX35 2007 Service Manual EC-212
[VQ35DE]
DTC P0117, P0118 ECT SENSOR
Revision: 2006 July 2007 FX35/FX45
Diagnostic ProcedureNBS003NV
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground sc

Page 1589 of 4366

INFINITI FX35 2007 Service Manual DTC P0117, P0118 ECT SENSOR EC-213
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
3. CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OF

Page 1590 of 4366

INFINITI FX35 2007 Service Manual EC-214
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 July 2007 FX35/FX45
DTC P0122, P0123 TP SENSORPFP:16119
Component DescriptionNBS003NY
Electric throttle control actuator consists of throttle

EC-214
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 July 2007 FX35/FX45
DTC P0122, P0123 TP SENSORPFP:16119
Component DescriptionNBS003NY
Electric throttle control actuator consists of throttle control motor,
throttle position (TP) sensor, etc. The throttle position sensor
responds to the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
CONSULT-II Reference Value in Data Monitor ModeNBS003NZ
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicNBS003O0
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122 Throttle position sensor
2 circuit low input An excessively low voltage from the TP sensor
2 is sent to ECM.
Harness or connectors
(TP sensor 2 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 2)
Accelerator pedal position sensor
(APP sensor 2)
P0123
0123 Throttle position sensor
2 circuit high input An excessively high voltage from the TP sen-
sor 2 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 1591 of 4366

INFINITI FX35 2007 Service Manual DTC P0122, P0123 TP SENSOR EC-215
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC Confirmation ProcedureNBS003O1
NOTE:
If DTC Confirmation Procedure has been p

Page 1592 of 4366

INFINITI FX35 2007 Service Manual EC-216
[VQ35DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 July 2007 FX35/FX45

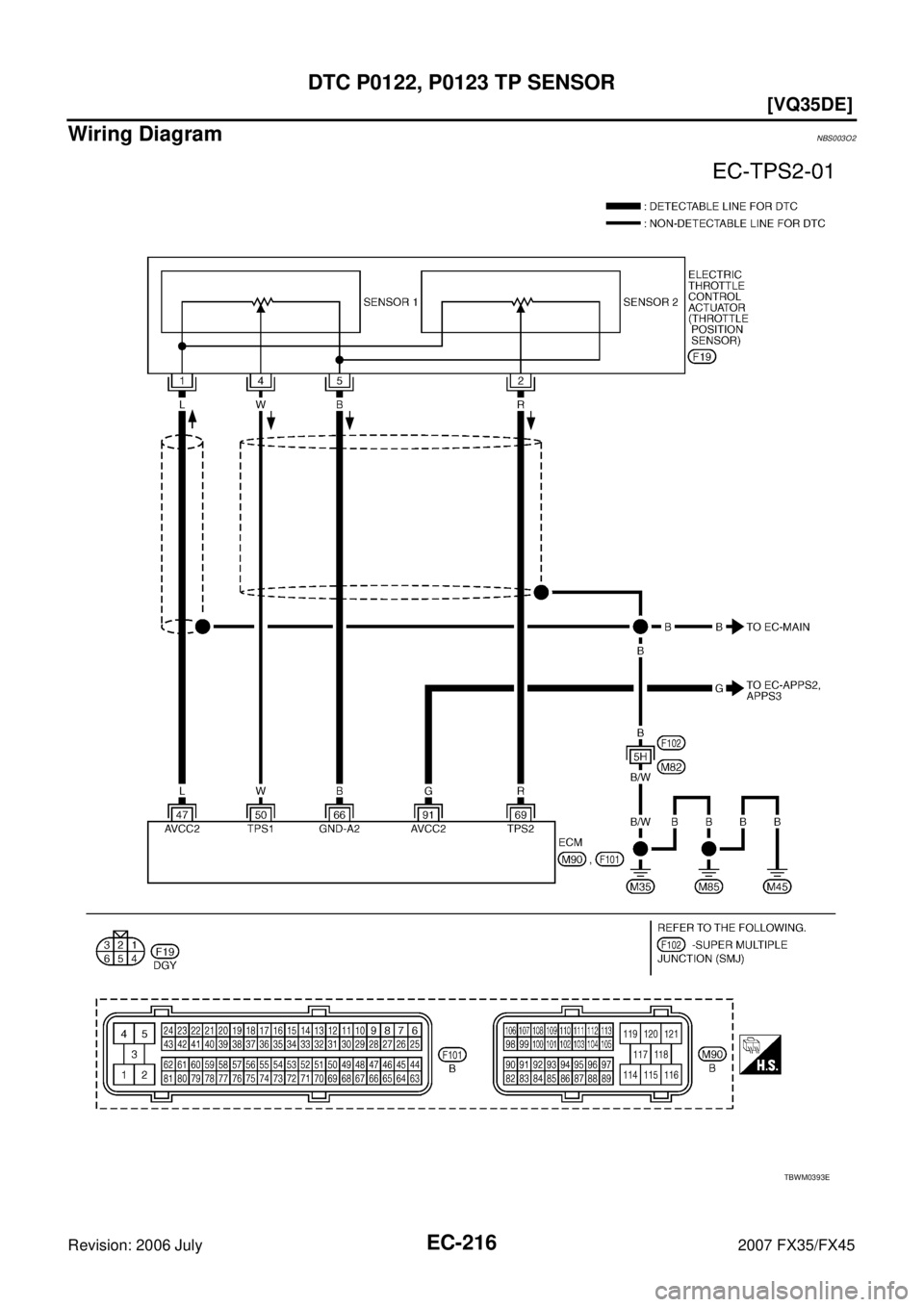

Wiring DiagramNBS003O2
TBWM0393E
