INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS EC-129
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-I

Page 1506 of 4366

INFINITI FX35 2007 Service Manual EC-130
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH dash panel nea

Page 1507 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS EC-131
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
5. Perform each diagnostic mode according to each service proce-
dure.
For further informa

Page 1508 of 4366

INFINITI FX35 2007 Service Manual EC-132
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Reference Value in Data MonitorNBS003M8
Remarks:
Specification data are reference values.
Specification data a

EC-132
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Reference Value in Data MonitorNBS003M8
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification da ta in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indica-
tion. Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-137, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-137, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1
A/F ALPHA-B2 See
EC-137, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70 °C (158 °F)
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming up Maintaining engine speed at 2,000
rpm Fluctuates around 1.5 V
HO2S2 (B1)
HO2S2 (B2)
Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load 0 - 0.3V
←→ Approx. 0.6 -
1.0V
HO2S2 MNTR(B1)
HO2S2 MNTR(B2) LEAN
←→ RICH
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedometer
indication. Almost the same speed as the
speedometer indication
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
EVAP SYS PRES
Ignition switch: ON Approx. 1.8 - 4.8V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
AIR COND SIG
Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.) ON
P/N POSI SW
Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engine Steering wheel: Not being turned OFF
Steering wheel: Being turned ON
LOAD SIGNAL
Ignition switch: ON Rear window defogger switch is ON
and/or lighting switch is in 2nd ON
Rear window defogger switch is OFF
and lighting switch is OFF OFF
IGNITION SW
Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW
Engine: After warming up, idle
the engine Heater fan: Operating. ON
Heater fan: Not operating OFF

Page 1509 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS EC-133
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
BRAKE SWIgnition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depress

TROUBLE DIAGNOSIS EC-133
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
BRAKE SWIgnition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 13
° - 18 ° BTDC
2,000 rpm 25 ° - 45 ° BTDC
CAL/LD VALUE
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 5% - 35%
2,500 rpm 5% - 35%
MASS AIRFLOW
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
PURG VOL C/V
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
(Accelerator pedal is not depressed
even slightly, after engine starting) 0%
2,000 rpm —
INT/V TIM(B1)
INT/V TIM(B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle
−5 ° - 5 °CA
When revving engine up to 2,000 rpm
quickly Approx. 0
° - 30 °CA
INT/V SOL(B1)
INT/V SOL(B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 0% - 2%
When revving engine up to 2,000 rpm
quickly Approx. 0% - 50%
AIR COND RLY
Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates) ON
FUEL PUMP RLY
For 1 second after turning ignition switch ON
Engine running or cranking ON
Except above conditions OFF
VENT CONT/V
Ignition switch: ON OFF
THRTL RELAY
Ignition switch: ON ON
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFF Engine coolant temperature is 97
°C
(207 °F) or less OFF
Engine coolant temperature is
between 98 °C (208 °F) and 99 °C
(210 °F) LOW
Engine coolant temperature is
between 100 °C (212 °F) and 104 °C
(219 °F) MID
Engine coolant temperature is 105 °C
(221 °F) or more HI
MONITOR ITEM CONDITION SPECIFICATION

Page 1510 of 4366

INFINITI FX35 2007 Service Manual EC-134
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they di

EC-134
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminals voltage signal.

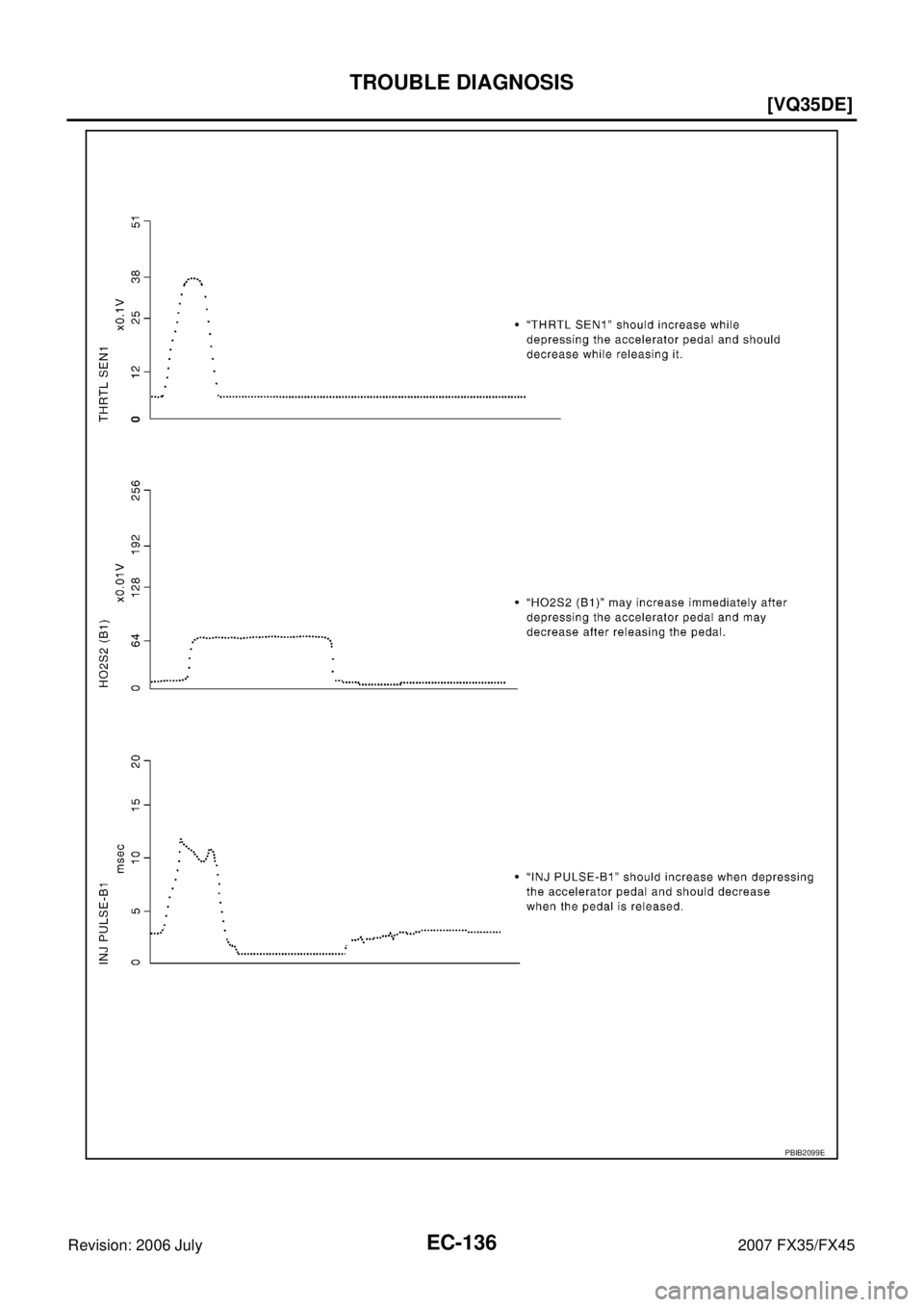

Major Sensor Reference Graph in Data Monitor ModeNBS003M9
The following are the major sensor reference graphs in “DATA MONITOR” mode.
HO2S2 HTR (B1)
HO2S2 HTR (B2)
Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON
Engine speed: Above 3,600 rpm OFF
I/P PULLY SPD
Vehicle speed: More than 20 km/h (12 MPH) Almost the same speed as the
speedometer indication
VEHICLE SPEED
Turn drive wheels and compare the CONSULT-II value with speedometer
indication. Almost the same speed as the
speedometer indication
TRVL AFTER MIL
Ignition switch: ON Vehicle has traveled after MIL has
turned ON. 0 - 65,535 km
(0 - 40,723 mile)
SNOW MODE SW
Ignition switch: ON Snow mode switch: ON ON
Snow mode switch: OFF OFF
A/F S1 HTR(B1)
A/F S1 HTR(B2)
Engine: After warming up, idle the engine 0 - 100%
AC PRESS SEN
Engine: Idle
Both A/C switch and blower fan switch: ON
(Compressor operates) 1.0 - 4.0V
VHCL SPEED SE
Turn drive wheels and compare speedometer indication with the CON-
SULT-II value. Almost the same speed as the
CONSULT-II value
SET VHCL SPD
Engine: Running ASCD: Operating. The preset vehicle speed is
displayed.
MAIN SW
Ignition switch: ON MAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ON CANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ON RESUME/ACCELERATE switch:
Pressed ON
RESUME/ACCELERATE switch:
Released OFF
SET SW
Ignition switch: ON SET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DIST SW
Ignition switch: ON DISTANCE switch: Depressed ON
DISTANCE switch: Released OFF
CRUISE LAMP
Ignition switch: ON MAIN switch: pressed at the 1st time
→ at the 2nd time ON
→ OFF
SET LAMP
MAIN switch: ON
When vehicle speed is between
40km/h (25MPH) and 144km/h
(89MPH) ASCD: Operating ON
ASCD: Not operating OFF
MONITOR ITEM CONDITION SPECIFICATION

Page 1511 of 4366

INFINITI FX35 2007 Service Manual TROUBLE DIAGNOSIS EC-135
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

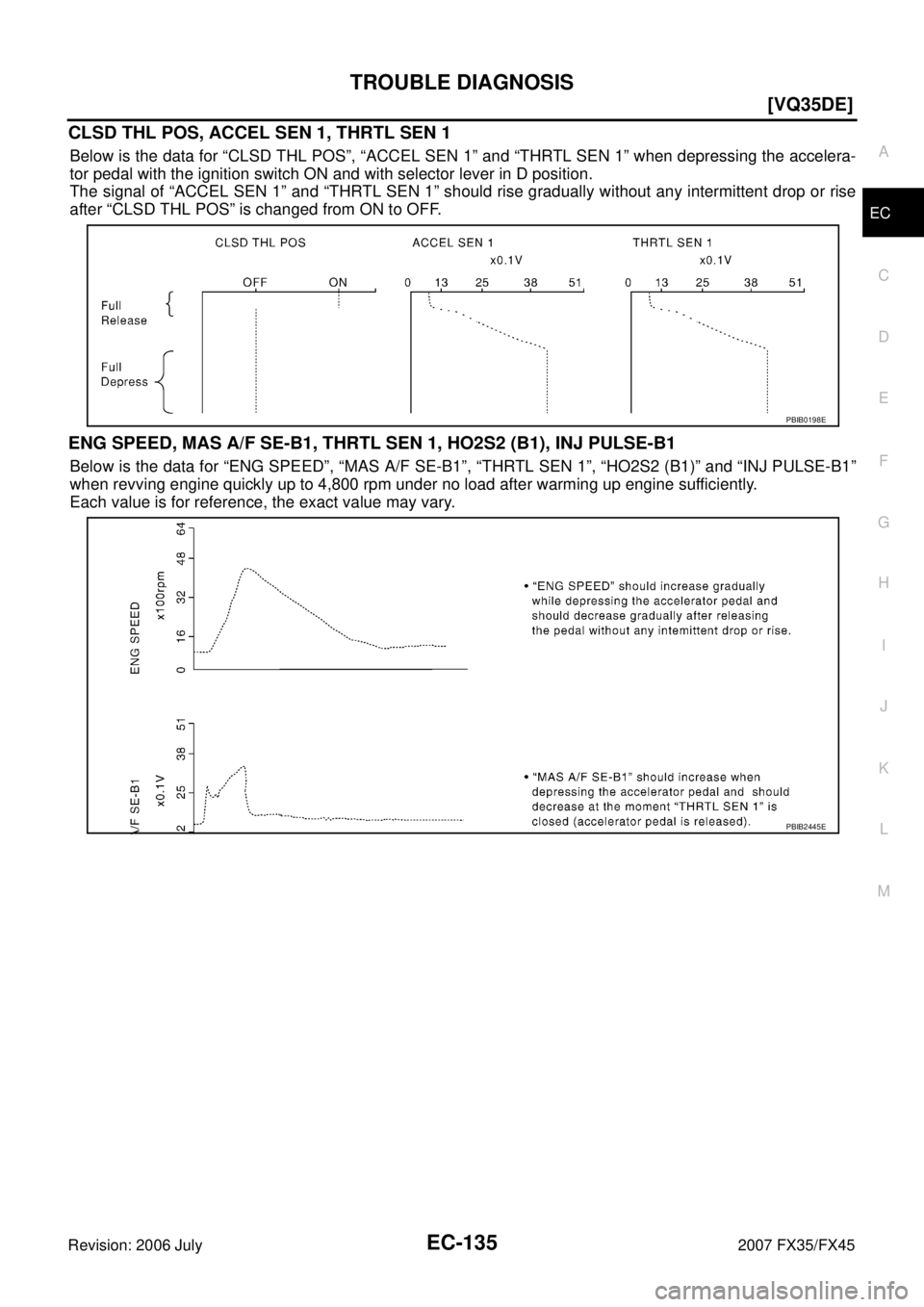

CLSD THL POS, ACCEL SEN 1, THRTL SEN 1
Below is the data for “CLSD THL POS”, “ACCEL S

Page 1512 of 4366

INFINITI FX35 2007 Service Manual EC-136
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
PBIB2099E
