Page 2761 of 4366

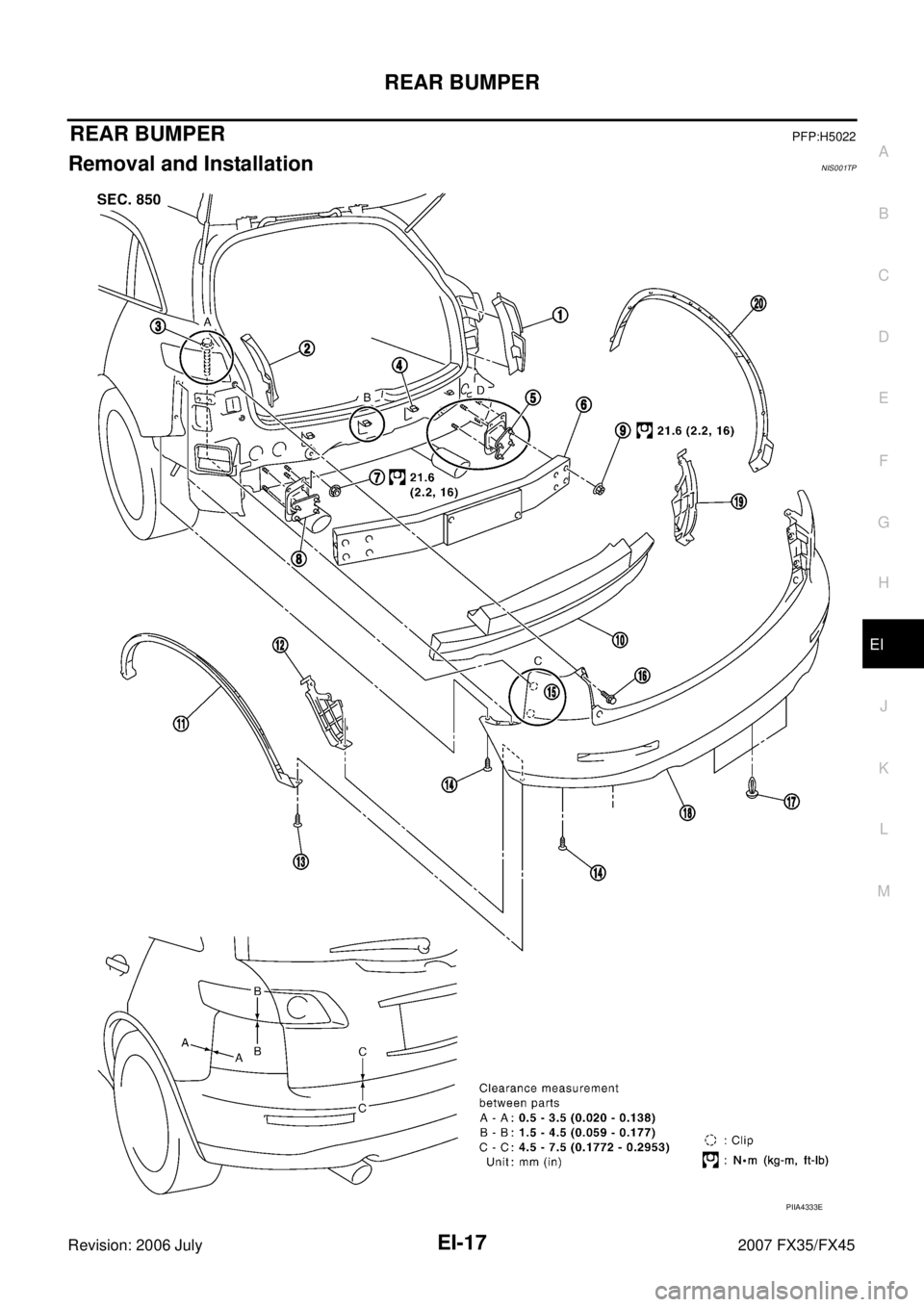

INFINITI FX35 2007 Service Manual REAR BUMPER EI-17 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 REAR BUMPERPFP:H5022 Removal and InstallationNIS001TP PIIA4333E

Page 2762 of 4366

INFINITI FX35 2007 Service Manual EI-18 REAR BUMPER Revision: 2006 July 2007 FX35/FX45 CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with oil. REMOVAL 1. Remove bumper sid

Page 2763 of 4366

INFINITI FX35 2007 Service Manual REAR BUMPER EI-19 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 8. Remove bumper fascia assembly. CAUTION: When removing bumper fascia, 2 workers are required so as to p

Page 2764 of 4366

INFINITI FX35 2007 Service Manual EI-20 REAR BUMPER Revision: 2006 July 2007 FX35/FX45 3. Remove rear reflex reflector assembly screw and remove rear reflex reflector assembly. Assembly Assemble in the reverse order of disassembly. R

Page 2765 of 4366

INFINITI FX35 2007 Service Manual REAR BUMPER EI-21 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 REMOVAL AND INSTALLATION OF REAR FILLET MOLDING ASSEMBLY Removal 1. Remove bolts of fillet molding assemb

Page 2766 of 4366

INFINITI FX35 2007 Service Manual EI-22 FRONT GRILLE Revision: 2006 July 2007 FX35/FX45 FRONT GRILLEPFP:62310 Removal and InstallationNIS001TQ CAUTION: Apply protection tape around outer circumference of front grille (bumper fascia s

Page 2767 of 4366

INFINITI FX35 2007 Service Manual COWL TOP EI-23 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 COWL TOPPFP:66100 Removal and InstallationNIS001TR REMOVAL 1. Remove clips of hood ledge cover and remove hood

Page 2768 of 4366

INFINITI FX35 2007 Service Manual EI-24 FENDER PROTECTOR Revision: 2006 July 2007 FX35/FX45 FENDER PROTECTORPFP:63840 Removal and InstallationNIS001TS REMOVAL 1. Remove bolts of fender protector front. 2. Remove clips of fender prote
