Page 1297 of 4366

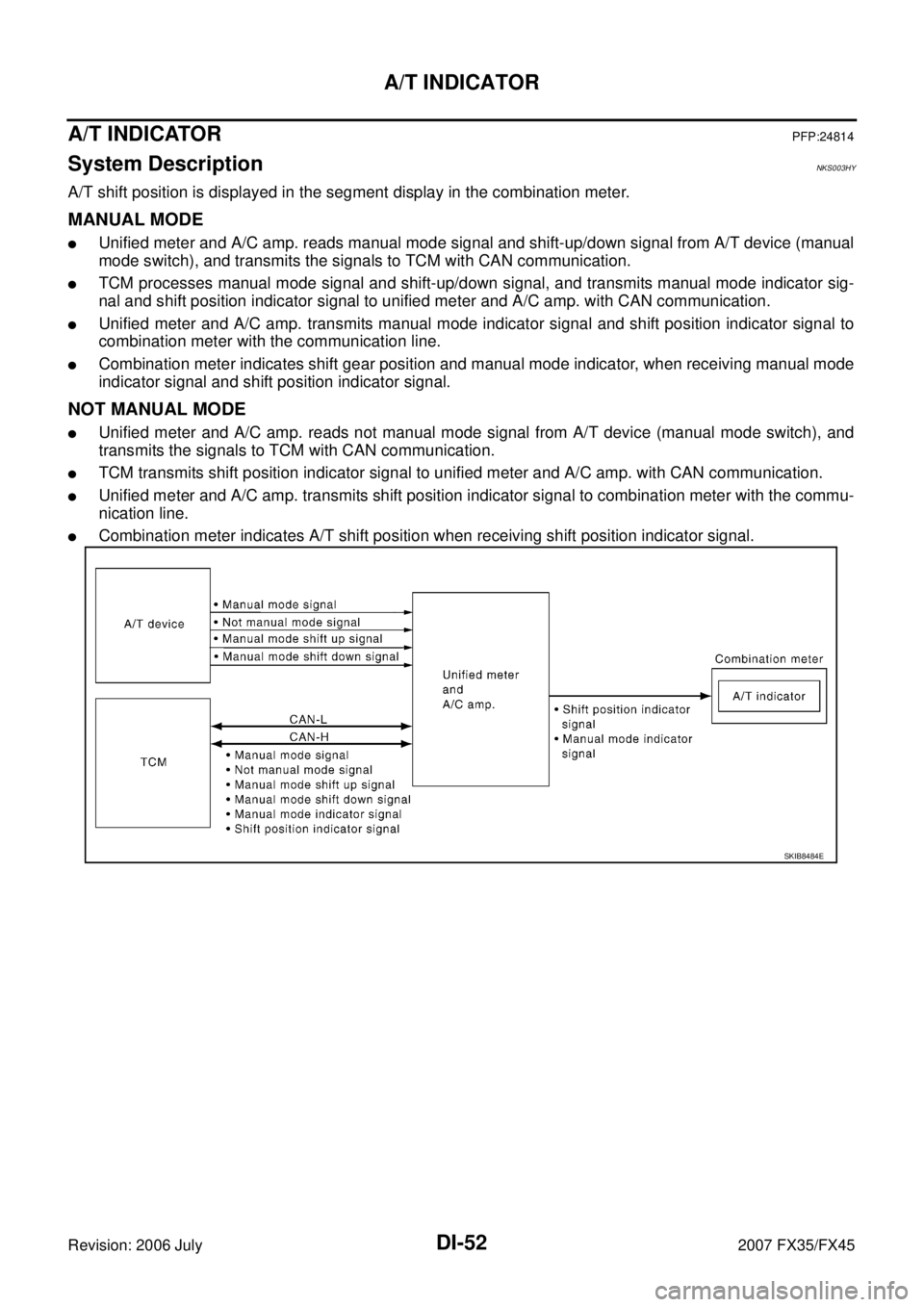

INFINITI FX35 2007 Service Manual WARNING LAMPS DI-51 C D E F G H I J L M A B DI Revision: 2006 July 2007 FX35/FX45 Component InspectionNKS0030G OIL PRESSURE SWITCH Check continuity between oil pressure switch and ground.

Page 1298 of 4366

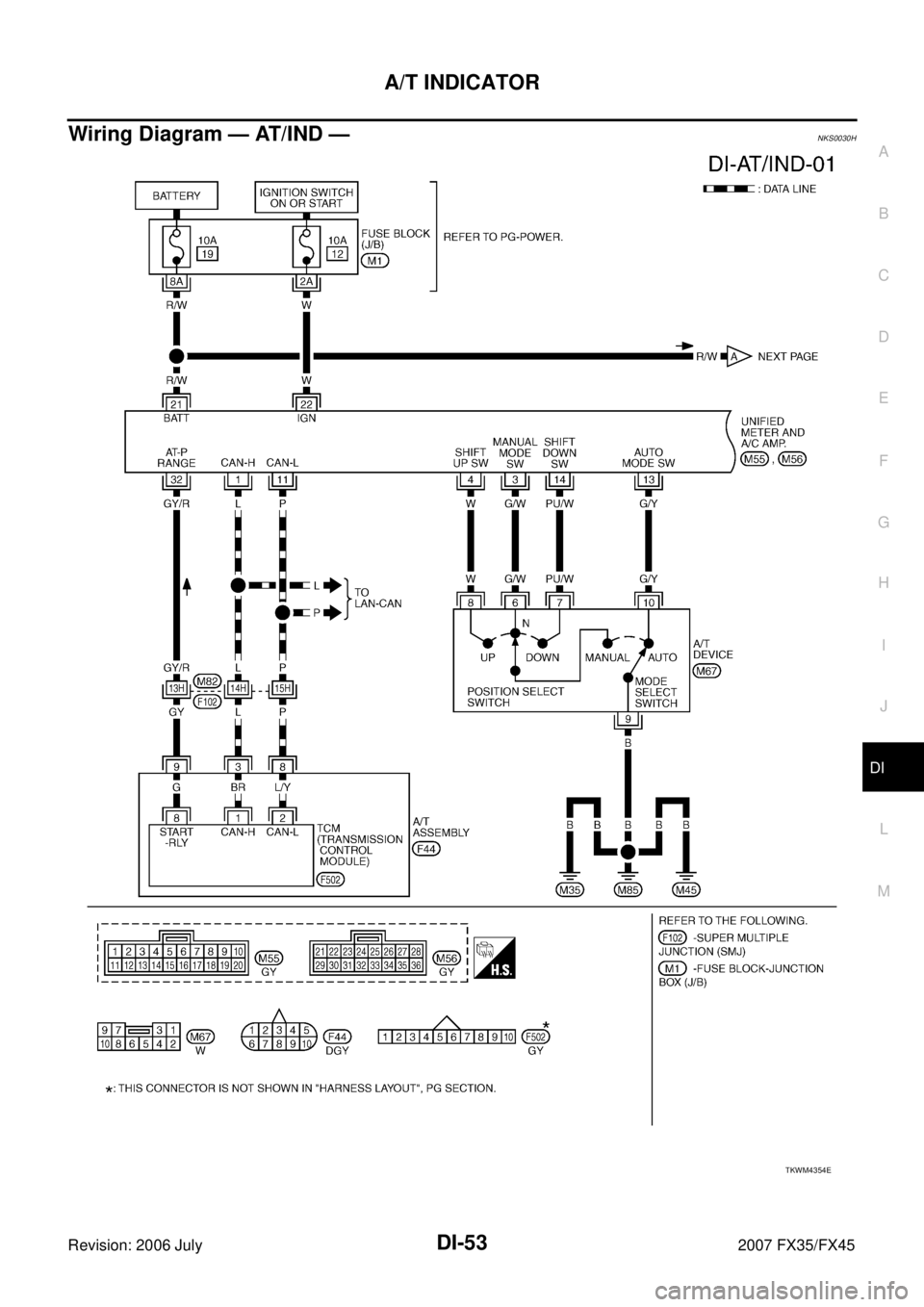

INFINITI FX35 2007 Service Manual DI-52 A/T INDICATOR Revision: 2006 July 2007 FX35/FX45 A/T INDICATORPFP:24814 System DescriptionNKS003HY A/T shift position is displayed in the segment display in the combination meter. MANUAL MODE U

Page 1299 of 4366

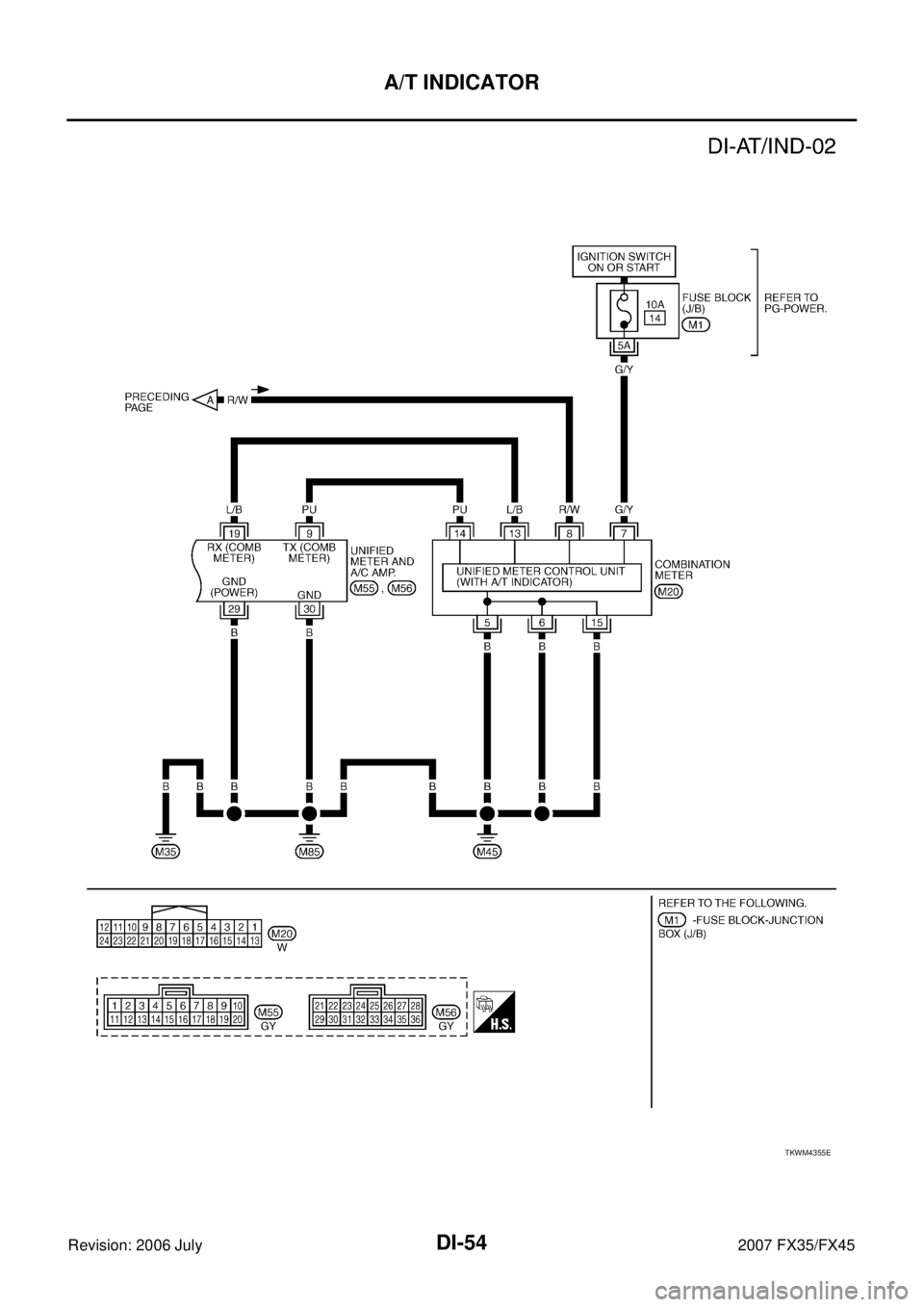

INFINITI FX35 2007 Service Manual A/T INDICATOR DI-53 C D E F G H I J L M A B DI Revision: 2006 July 2007 FX35/FX45 Wiring Diagram — AT/IND —NKS0030H TKWM4354E

Page 1300 of 4366

INFINITI FX35 2007 Service Manual DI-54 A/T INDICATOR Revision: 2006 July 2007 FX35/FX45 TKWM4355E

Page 1301 of 4366

INFINITI FX35 2007 Service Manual A/T INDICATOR DI-55 C D E F G H I J L M A B DI Revision: 2006 July 2007 FX35/FX45 A/T Indicator Is MalfunctionNKS0030I 1. CHECK SEGMENTS OF A/T INDICATOR Perform self-diagnosis mode of c

Page 1302 of 4366

INFINITI FX35 2007 Service Manual DI-56 WARNING CHIME Revision: 2006 July 2007 FX35/FX45 WARNING CHIMEPFP:24814 System DescriptionNKS0030J Buzzer for warning chime system is installed in the combination meter. The buzzer sounds when

Page 1303 of 4366

INFINITI FX35 2007 Service Manual WARNING CHIME DI-57 C D E F G H I J L M A B DI Revision: 2006 July 2007 FX35/FX45 IGNITION KEY WARNING CHIME (WITHOUT INTELLIGENT KEY) With the key inserted into the key switch, and the i

Page 1304 of 4366

INFINITI FX35 2007 Service Manual DI-58 WARNING CHIME Revision: 2006 July 2007 FX35/FX45 LIGHT WARNING CHIME With ignition switch in LOCK or ACC position, drivers door is opened, and lighting switch in 1ST or 2ND posi- tion, the lig
