Page 3785 of 4366

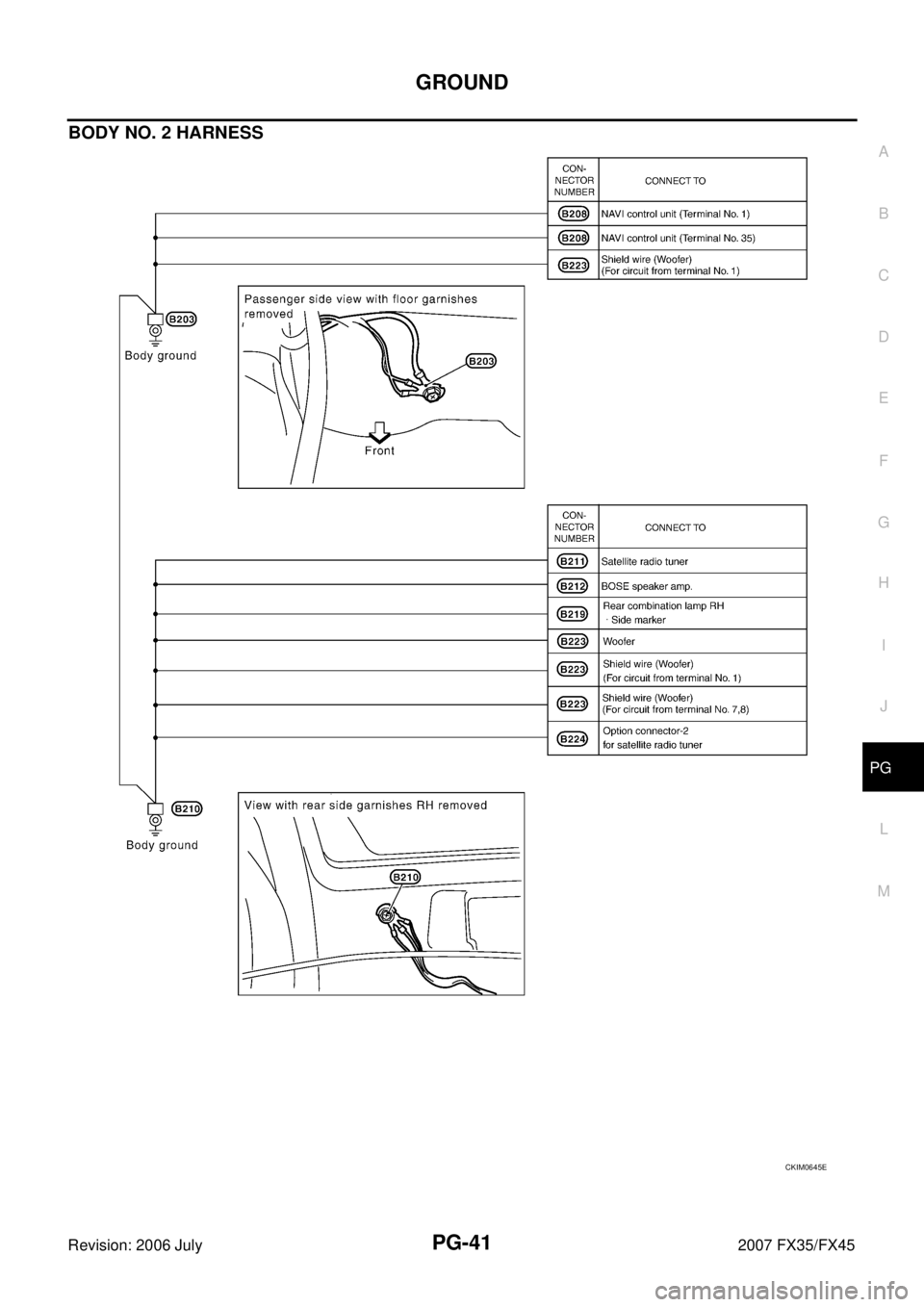

INFINITI FX35 2007 Service Manual GROUND PG-41 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 BODY NO. 2 HARNESS CKIM0645E

Page 3786 of 4366

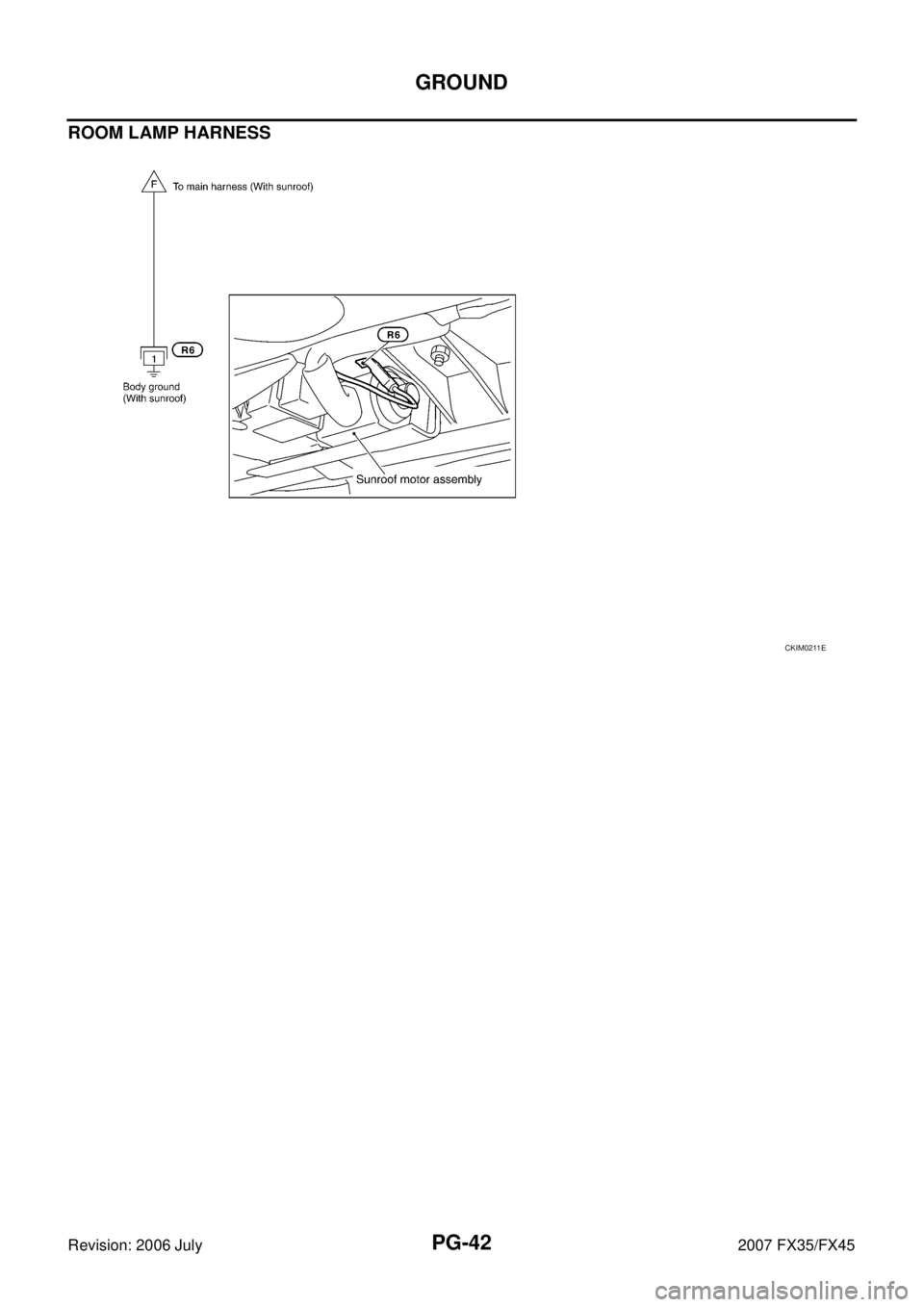

INFINITI FX35 2007 Service Manual PG-42 GROUND Revision: 2006 July 2007 FX35/FX45 ROOM LAMP HARNESS CKIM0211E

Page 3787 of 4366

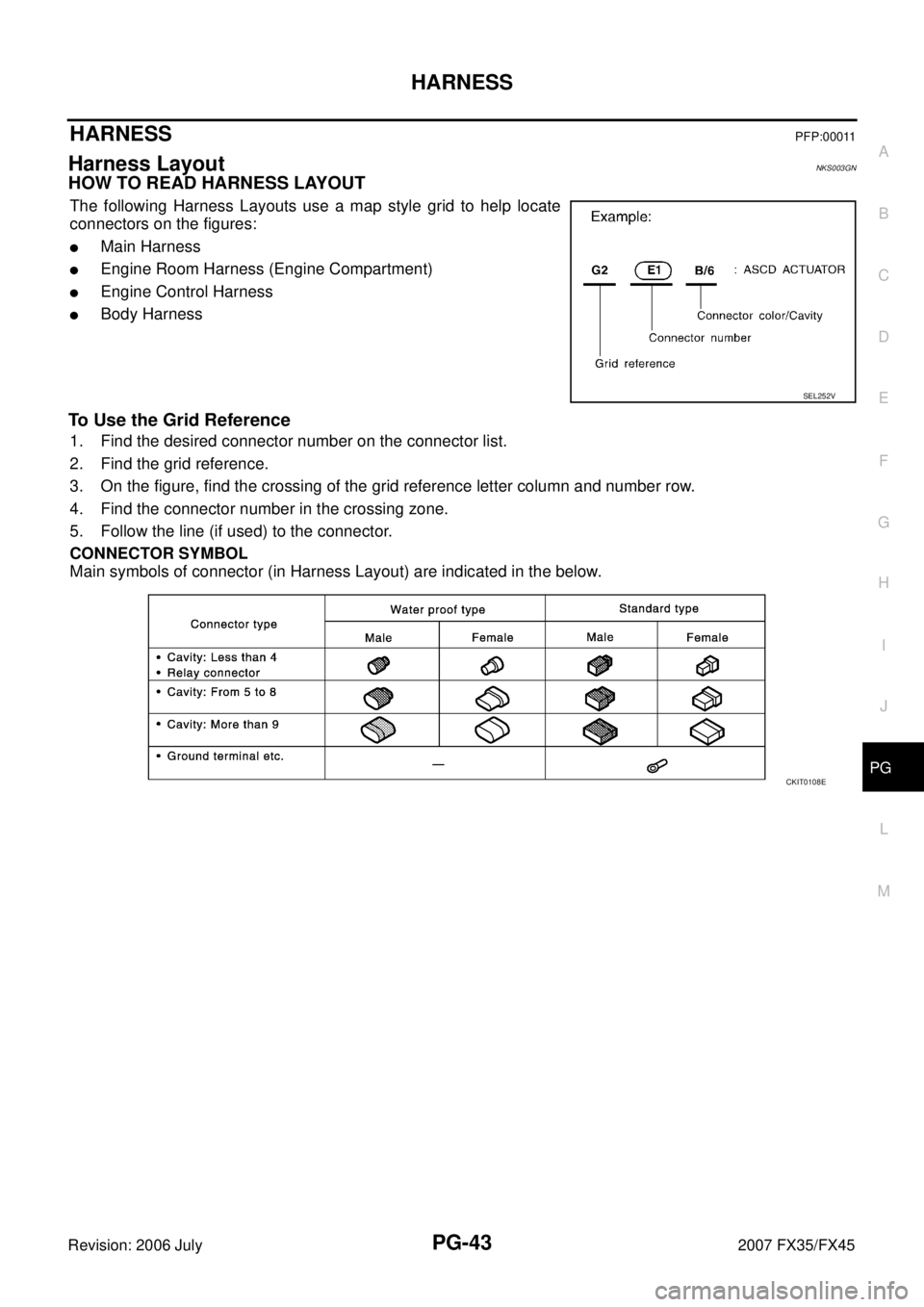

INFINITI FX35 2007 Service Manual HARNESS PG-43 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 HARNESS PFP:00011 Harness Layout NKS003GN HOW TO READ HARNESS LAYOUT The following Harness Layouts use a map st

Page 3788 of 4366

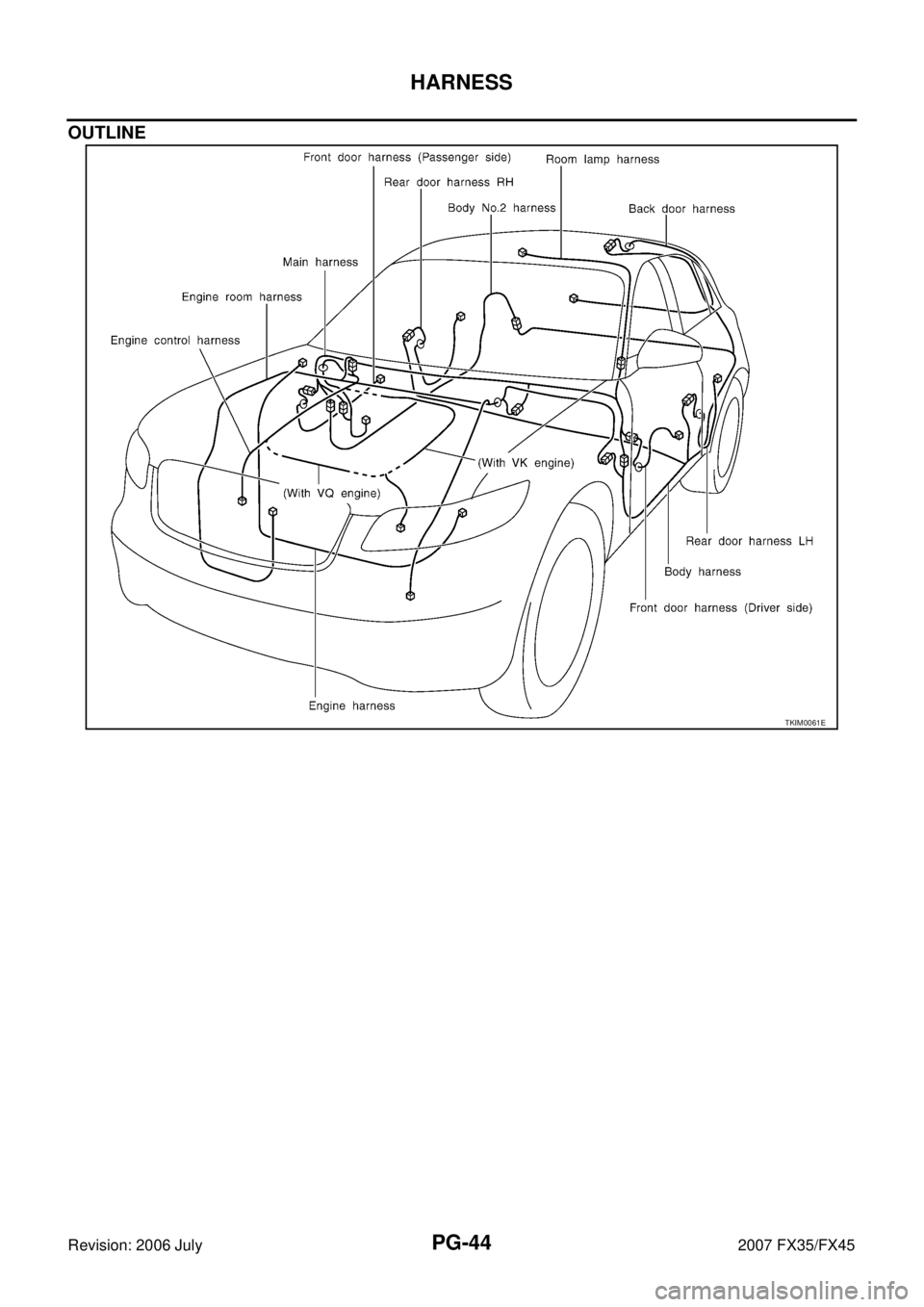

INFINITI FX35 2007 Service Manual PG-44 HARNESS Revision: 2006 July 2007 FX35/FX45 OUTLINE TKIM0061E

Page 3789 of 4366

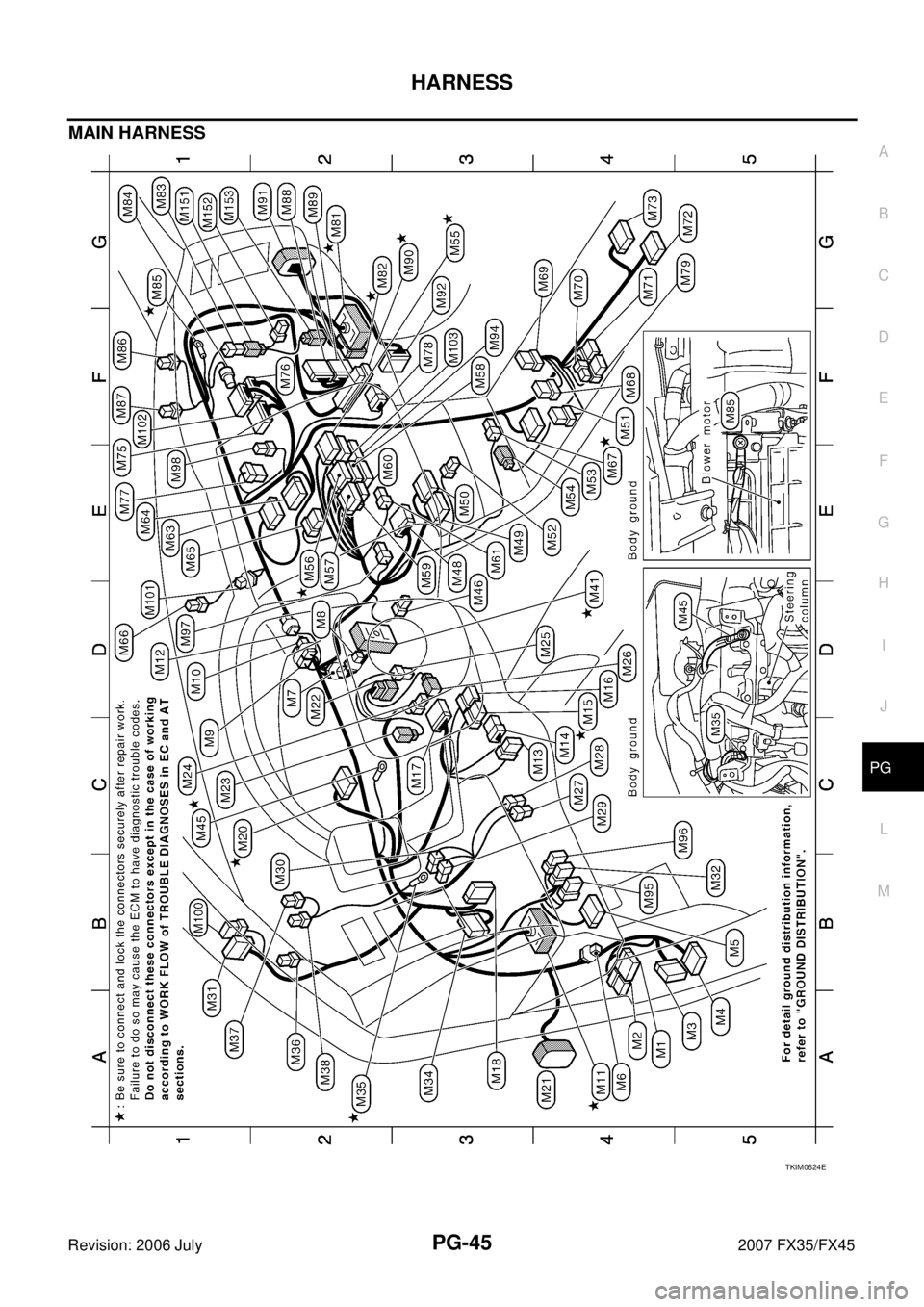

INFINITI FX35 2007 Service Manual HARNESS PG-45 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 MAIN HARNESS TKIM0624E

Page 3790 of 4366

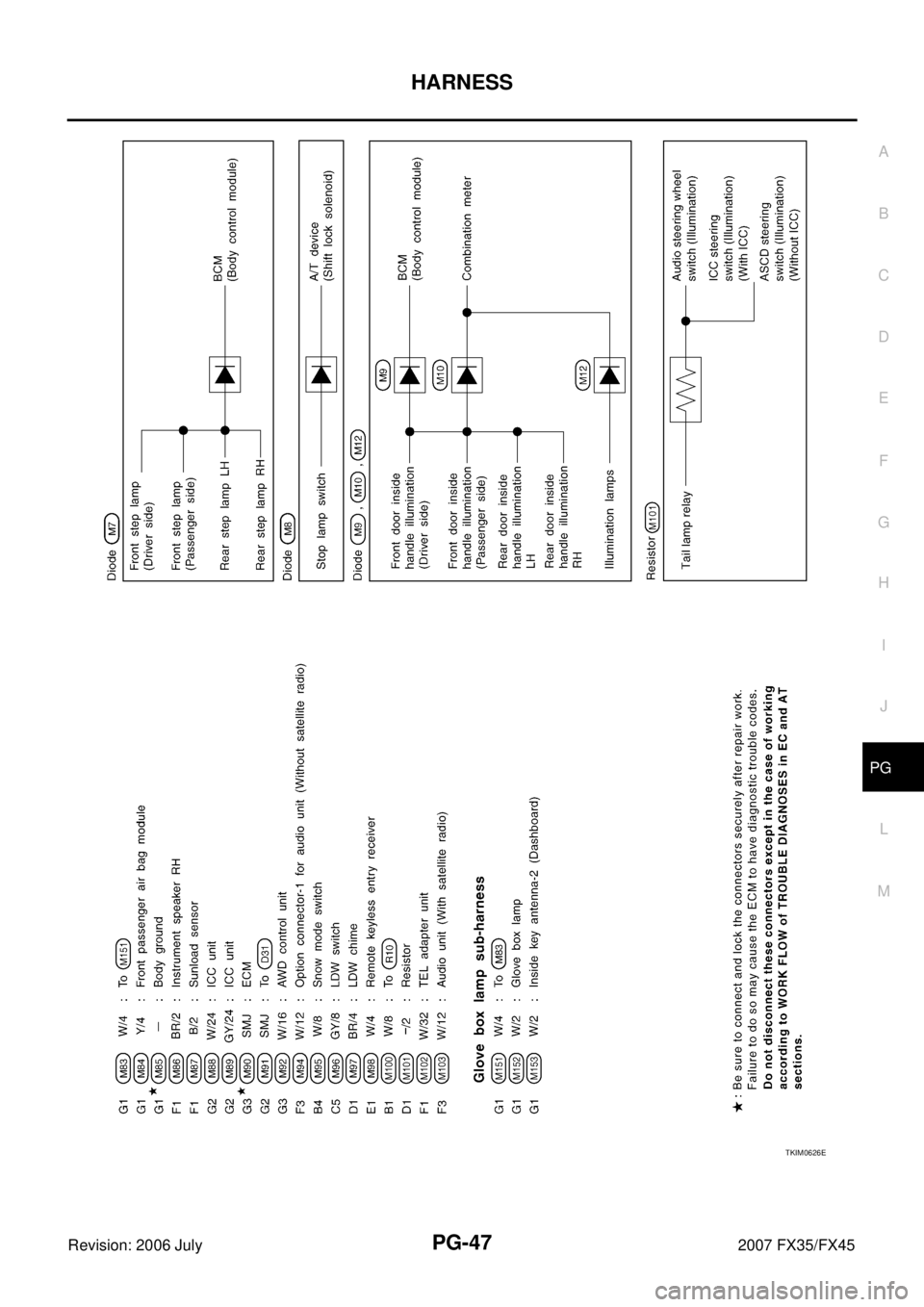

INFINITI FX35 2007 Service Manual PG-46 HARNESS Revision: 2006 July 2007 FX35/FX45 TKIM0625E

Page 3791 of 4366

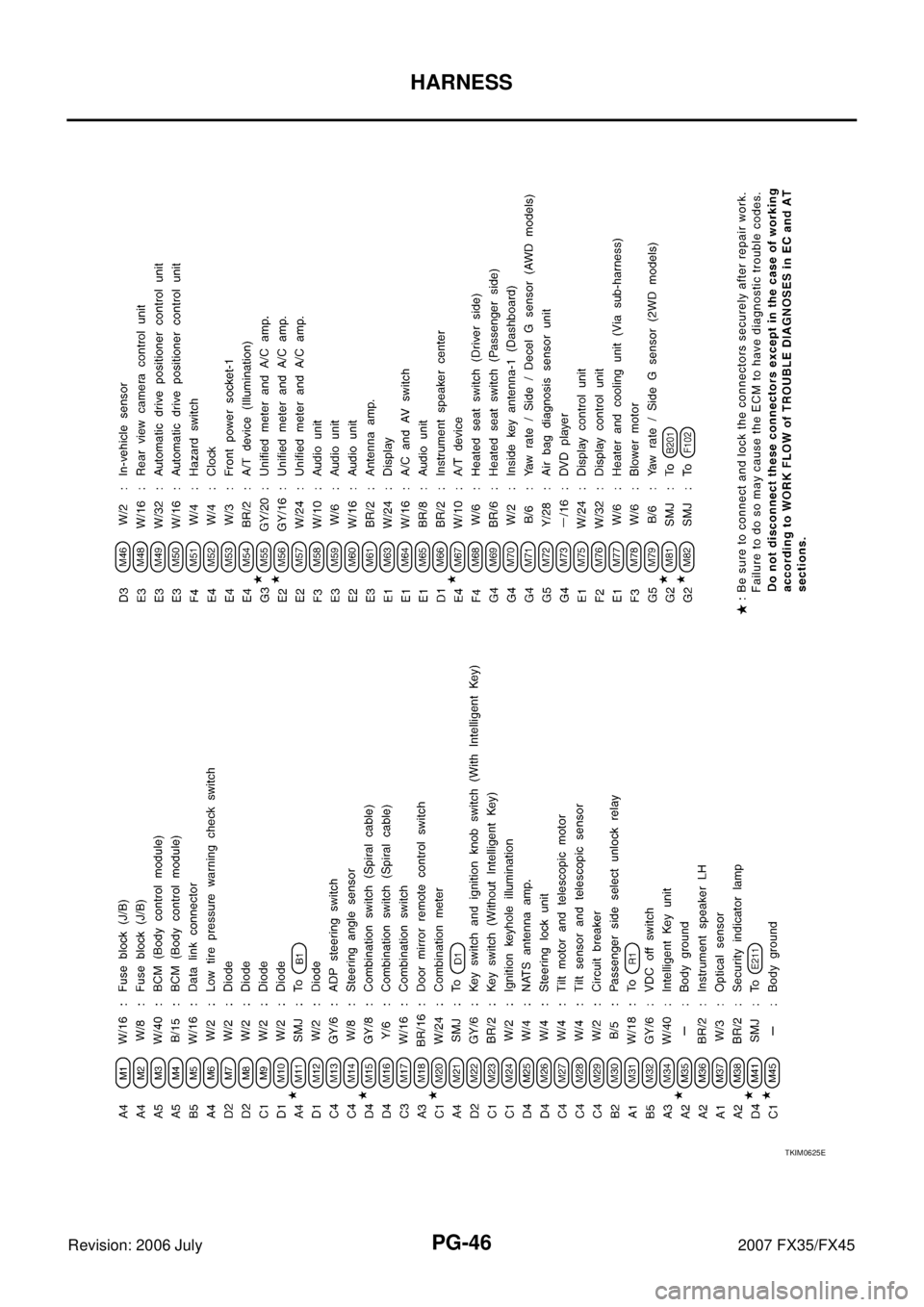

INFINITI FX35 2007 Service Manual HARNESS PG-47 C D E F G H I J L M A B PG Revision: 2006 July 2007 FX35/FX45 TKIM0626E

Page 3792 of 4366

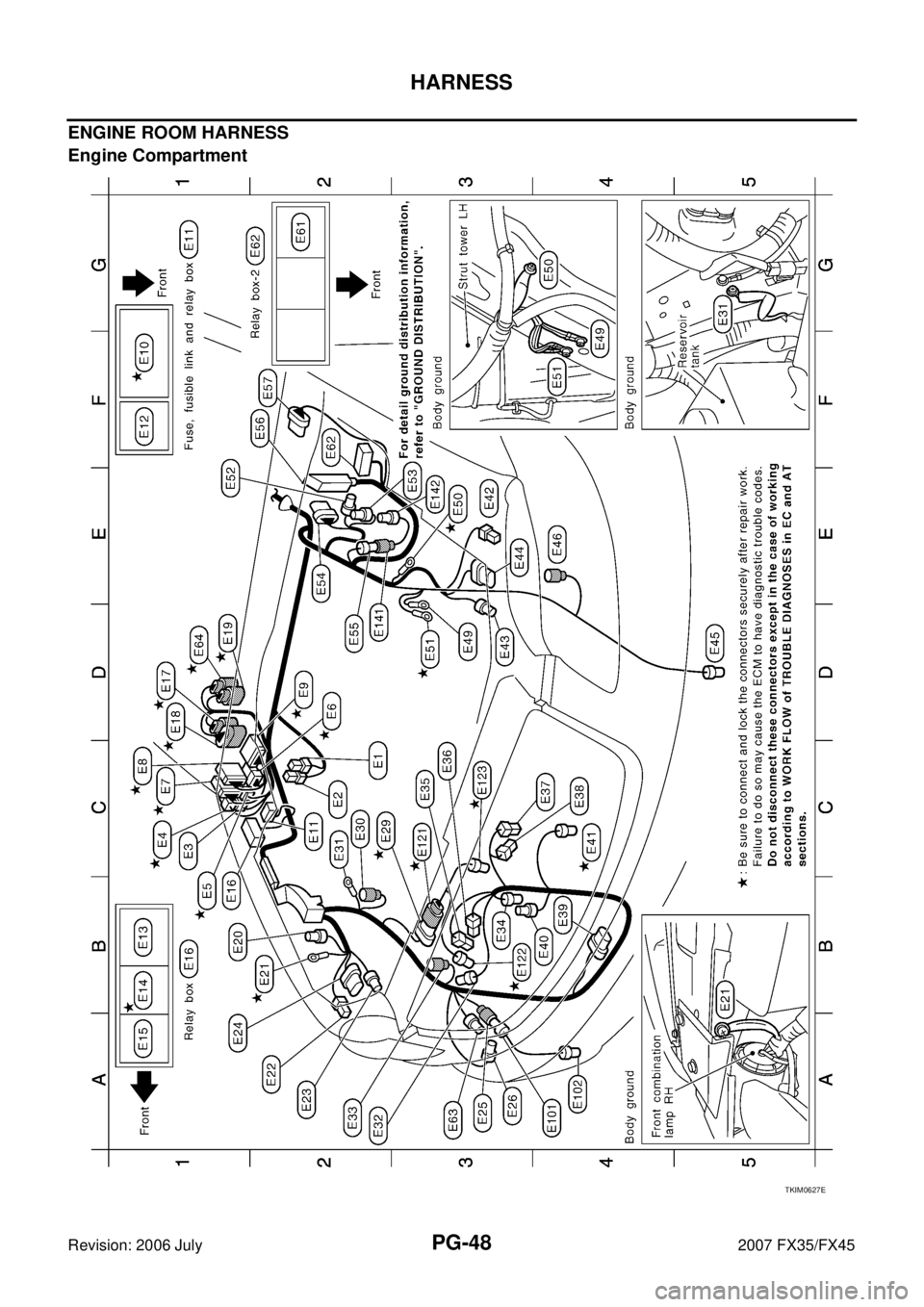

INFINITI FX35 2007 Service Manual PG-48 HARNESS Revision: 2006 July 2007 FX35/FX45 ENGINE ROOM HARNESS Engine Compartment TKIM0627E
