Page 593 of 4366

INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-147 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 INSTALLATION Installation is basically the reverse order of removal. CAUTION: Replace O-rings o

Page 594 of 4366

INFINITI FX35 2007 Service Manual ATC-148 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 INSTALLATION Installation is basically the reverse order of removal. CAUTION: Replace O-rings of high-pressure flexible hose with new one

Page 595 of 4366

INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-149 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 5. Remove low-pressure pipe 1. CAUTION: Cap or wrap the joint of low-pressure pipe 1 and 2 with

Page 596 of 4366

INFINITI FX35 2007 Service Manual ATC-150 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 5. Disconnect one-touch joint between high-pressure pipe 1 and 2. a. Set a disconnector (SST: 9253089908) on A/C piping. b. Slide a discon

Page 597 of 4366

INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-151 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 5. Remove high-pressure pipe 1 from vehicle clips. 6. Disconnect one-touch joints. a. Set a dis

Page 598 of 4366

INFINITI FX35 2007 Service Manual ATC-152 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 When recharging refrigerant, check for leaks. Removal and Installation of Liquid TankNJS000F9 REMOVAL 1. Use a refrigerant collecting equi

Page 599 of 4366

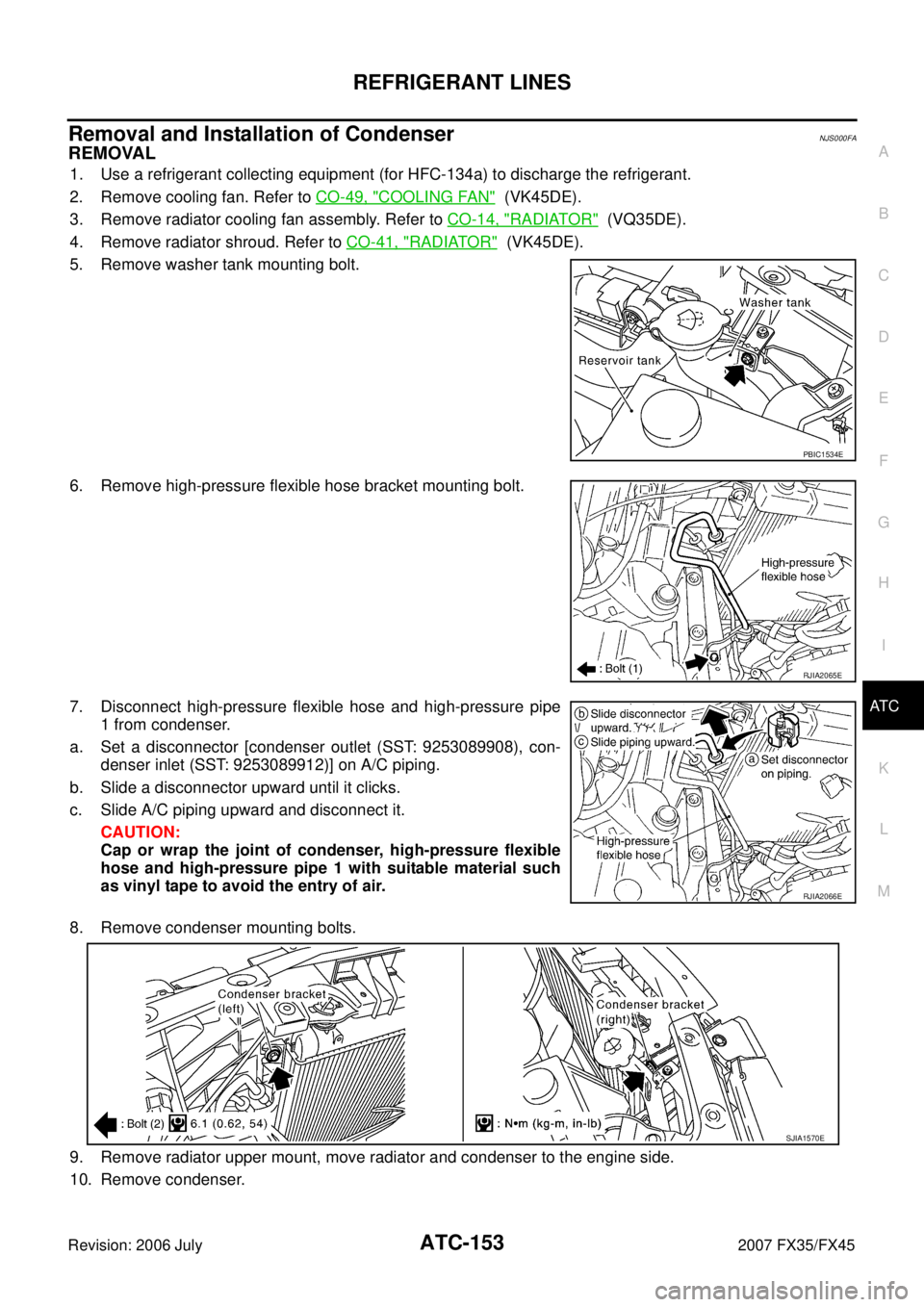

INFINITI FX35 2007 Service Manual REFRIGERANT LINES ATC-153 C D E F G H I K L M A B AT C Revision: 2006 July 2007 FX35/FX45 Removal and Installation of CondenserNJS000FA REMOVAL 1. Use a refrigerant collecting equipment (

Page 600 of 4366

INFINITI FX35 2007 Service Manual ATC-154 REFRIGERANT LINES Revision: 2006 July 2007 FX35/FX45 CAUTION: Be careful not to damage the core surface of the condenser and the radiator. INSTALLATION Installation is basically the reverse o
