Page 3601 of 4366

INFINITI FX35 2007 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-145 C D E F G H I J L M A B LT Revision: 2006 July 2007 FX35/FX45 OK or NG OK >> GO TO 6. NG >> GO TO 5. (+) (-) Voltage Rear combination lam

Page 3602 of 4366

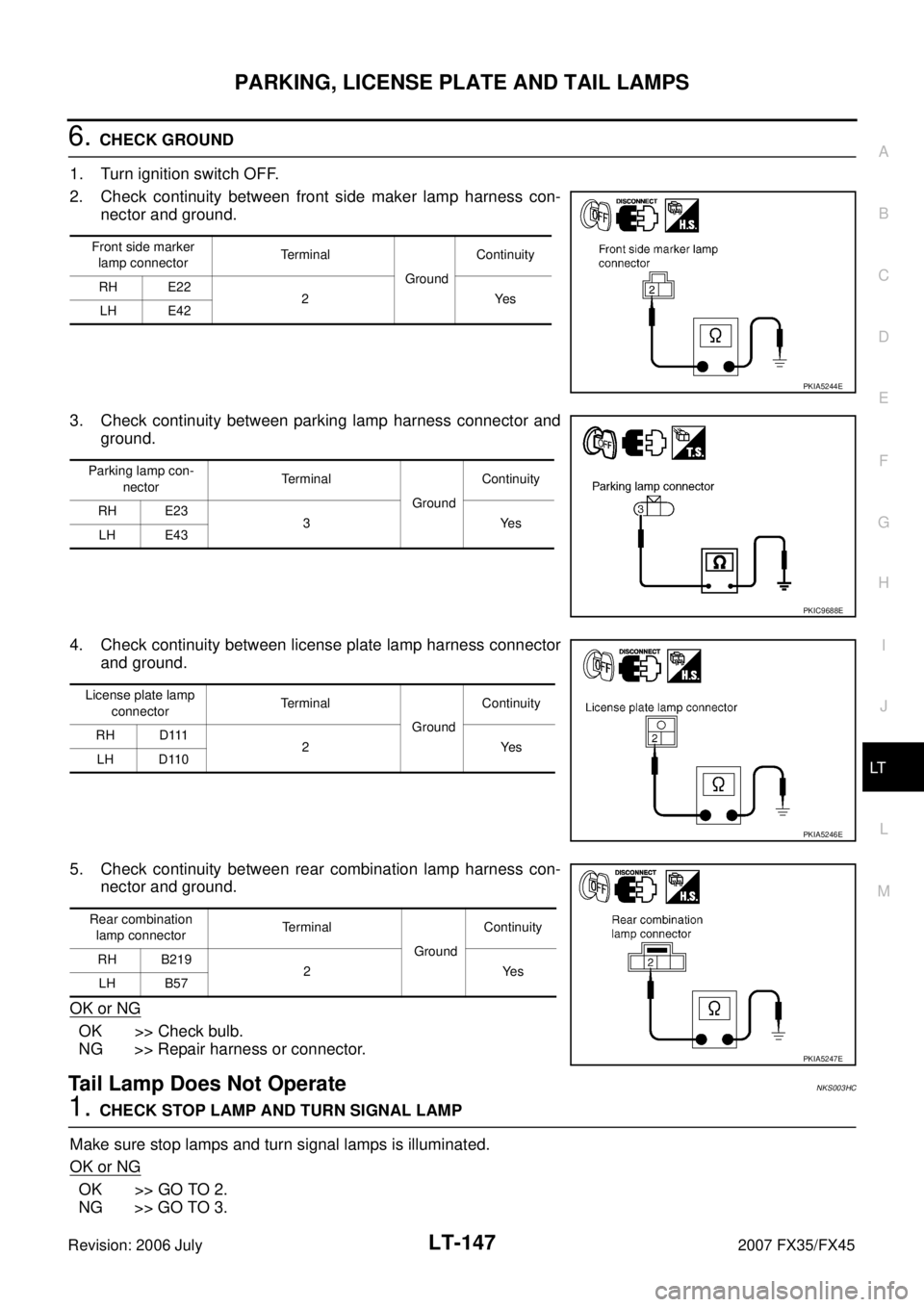

INFINITI FX35 2007 Service Manual LT-146 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2006 July 2007 FX35/FX45 5. CHECK PARKING, LICENSE PLATE AND SIDE MARKER LAMPS CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R con

Page 3603 of 4366

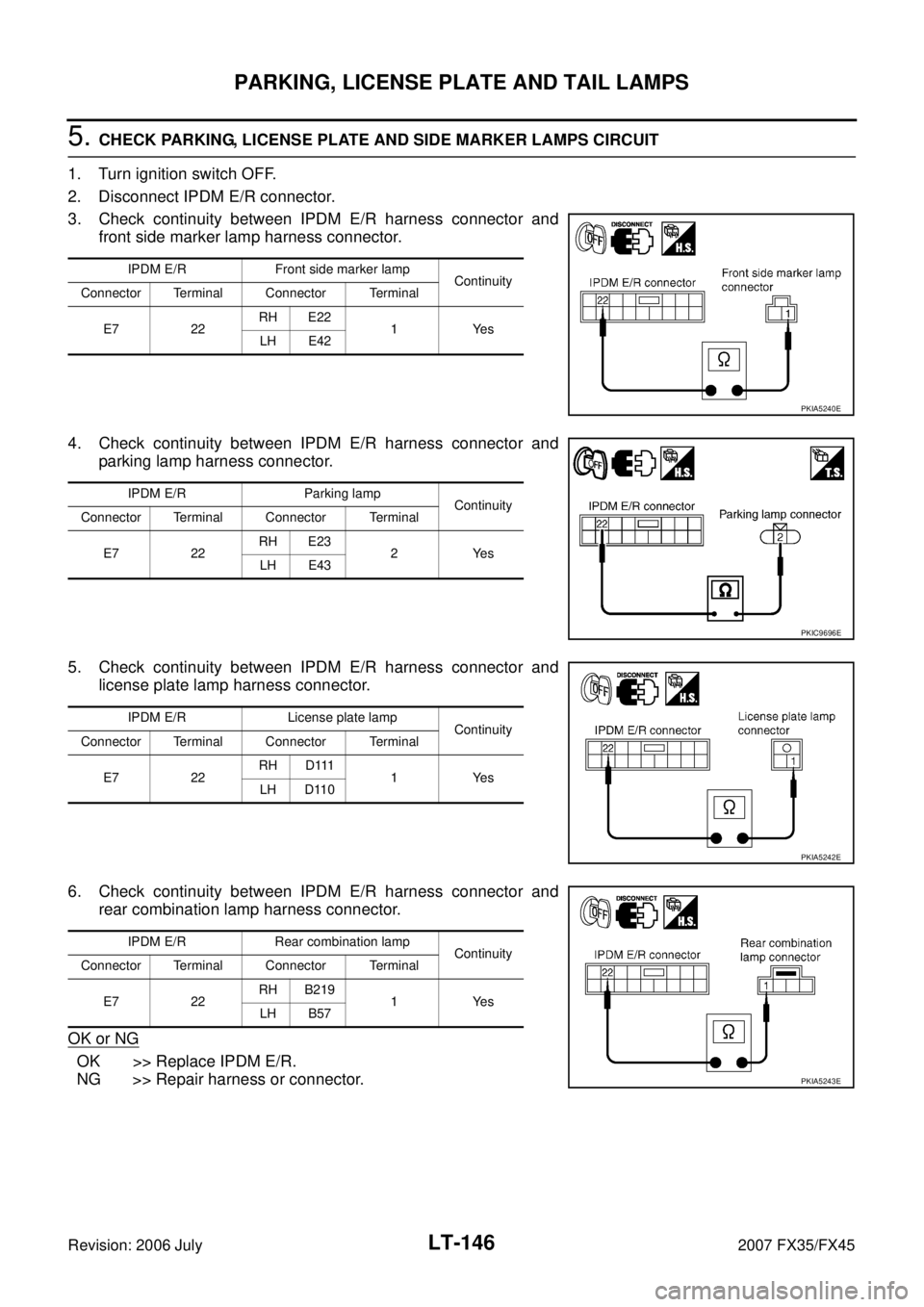

INFINITI FX35 2007 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-147 C D E F G H I J L M A B LT Revision: 2006 July 2007 FX35/FX45 6. CHECK GROUND 1. Turn ignition switch OFF. 2. Check continuity between front

Page 3604 of 4366

INFINITI FX35 2007 Service Manual LT-148 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2006 July 2007 FX35/FX45 2. CHECK INPUT SIGNAL Check voltage between rear combination lamp control unit harness connector and ground. OK or NG

Page 3605 of 4366

INFINITI FX35 2007 Service Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-149 C D E F G H I J L M A B LT Revision: 2006 July 2007 FX35/FX45 5. CHECK REAR COMBINATION LAMPS CIRCUIT 1. Disconnect rear combination lamp RH

Page 3606 of 4366

INFINITI FX35 2007 Service Manual LT-150 PARKING, LICENSE PLATE AND TAIL LAMPS Revision: 2006 July 2007 FX35/FX45 License Plate LampNKS003HE BULB REPLACEMENT, REMOVAL AND INSTALLATION 1. Remove screws and remove license plate lamp fro

Page 3607 of 4366

INFINITI FX35 2007 Service Manual REAR COMBINATION LAMP LT-151 C D E F G H I J L M A B LT Revision: 2006 July 2007 FX35/FX45 REAR COMBINATION LAMPPFP:26554 Bulb ReplacementNKS003HK REAR FENDER SIDE (REAR SIDE MARKER LAMP

Page 3608 of 4366

INFINITI FX35 2007 Service Manual LT-152 INTERIOR ROOM LAMP Revision: 2006 July 2007 FX35/FX45 INTERIOR ROOM LAMPPFP:26410 Component Parts and Harness Connector LocationNKS002YM System DescriptionNKS002YN When the room lamp and person
