INFINITI FX35 2007 Service Manual DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY EC-1241
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured betwe

Page 2618 of 4366

INFINITI FX35 2007 Service Manual EC-1242
[VK45DE]
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY
Revision: 2006 July 2007 FX35/FX45
2. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2

Page 2619 of 4366

INFINITI FX35 2007 Service Manual DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY EC-1243
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
7. DETECT MALFUNCTIONING PART
Check the following.
Harness c

Page 2620 of 4366

INFINITI FX35 2007 Service Manual EC-1244
[VK45DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 July 2007 FX35/FX45
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionNBS004AP
NOTE:
If DTC P2101 is displa

EC-1244
[VK45DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 July 2007 FX35/FX45
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTIONPFP:16119
DescriptionNBS004AP
NOTE:
If DTC P2101 is displayed with DTC P2100 or P2119, first perform the trouble diagnosis for DTC P2100
or P2119. Refer to EC-1238, "
DTC P2100, P2103 THROTTLE CONTROL MOTOR RELAY" or EC-1256,
"DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR" .
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
On Board Diagnosis LogicNBS004AQ
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureNBS004AR
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V when engine
is running.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 2 seconds.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If DTC is detected, go to EC-1246, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2101
2101 Electric throttle control
performance Electric throttle control function does not oper-
ate properly.
Harness or connectors
(Throttle control motor circuit is open or
shorted)
Electric throttle control actuator
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
SEF058Y

Page 2621 of 4366

INFINITI FX35 2007 Service Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION EC-1245
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

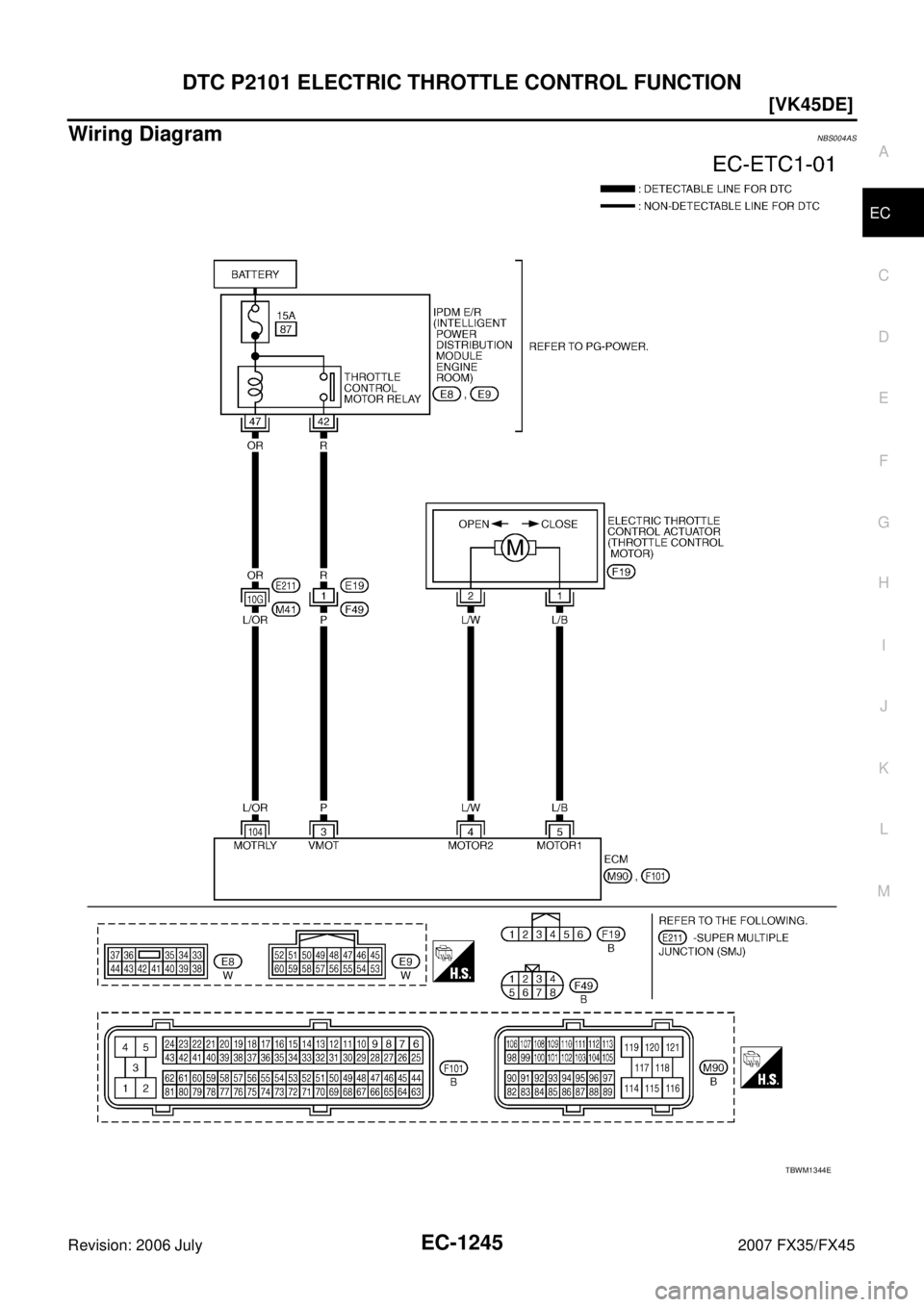

Wiring DiagramNBS004AS
TBWM1344E

Page 2622 of 4366

INFINITI FX35 2007 Service Manual EC-1246
[VK45DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
Pulse signa

Page 2623 of 4366

INFINITI FX35 2007 Service Manual DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION EC-1247
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45

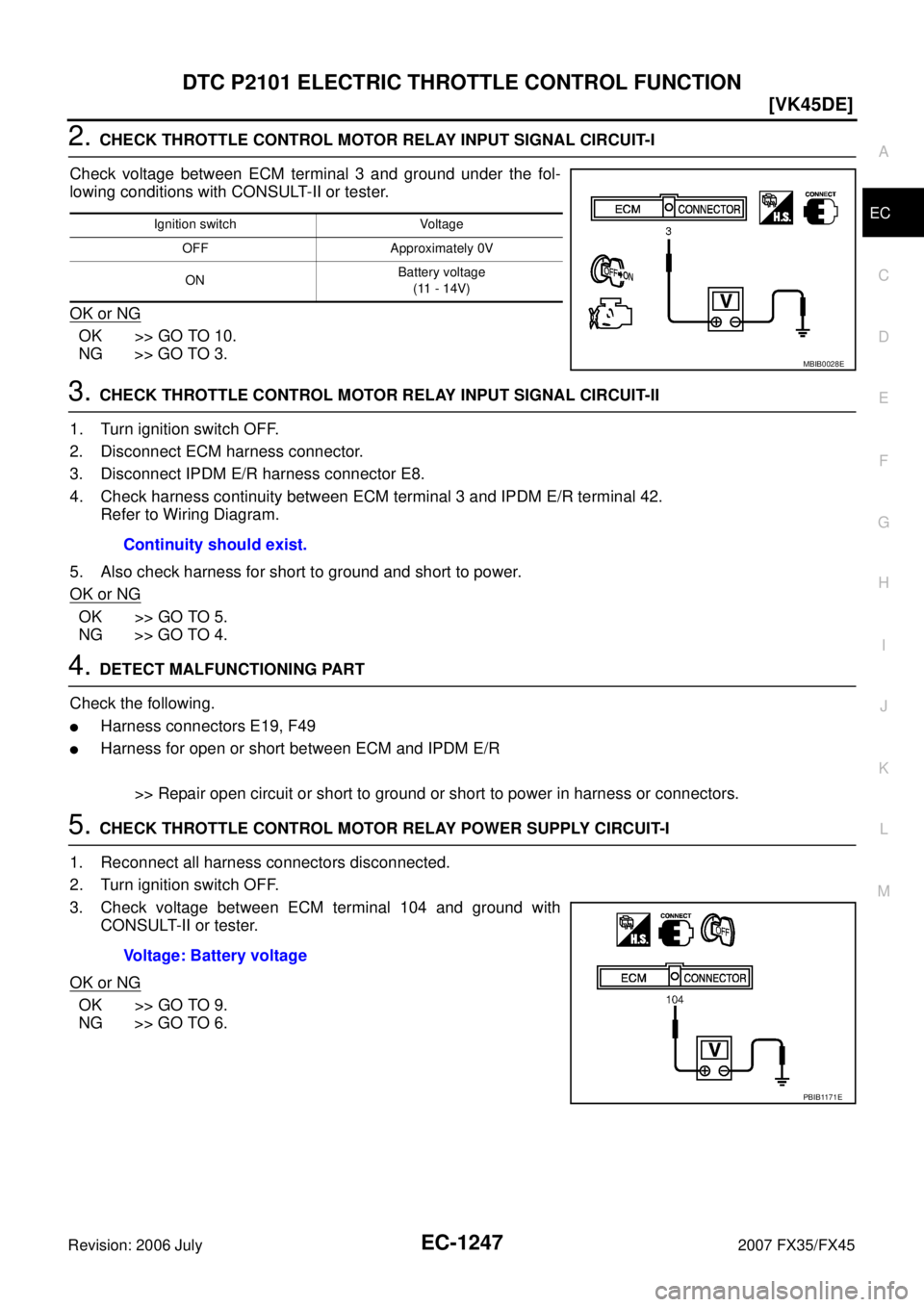

2. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
C

Page 2624 of 4366

INFINITI FX35 2007 Service Manual EC-1248
[VK45DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2006 July 2007 FX35/FX45
6. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II
1. Disconnect ECM harness connector.
2.
