Page 4257 of 4366

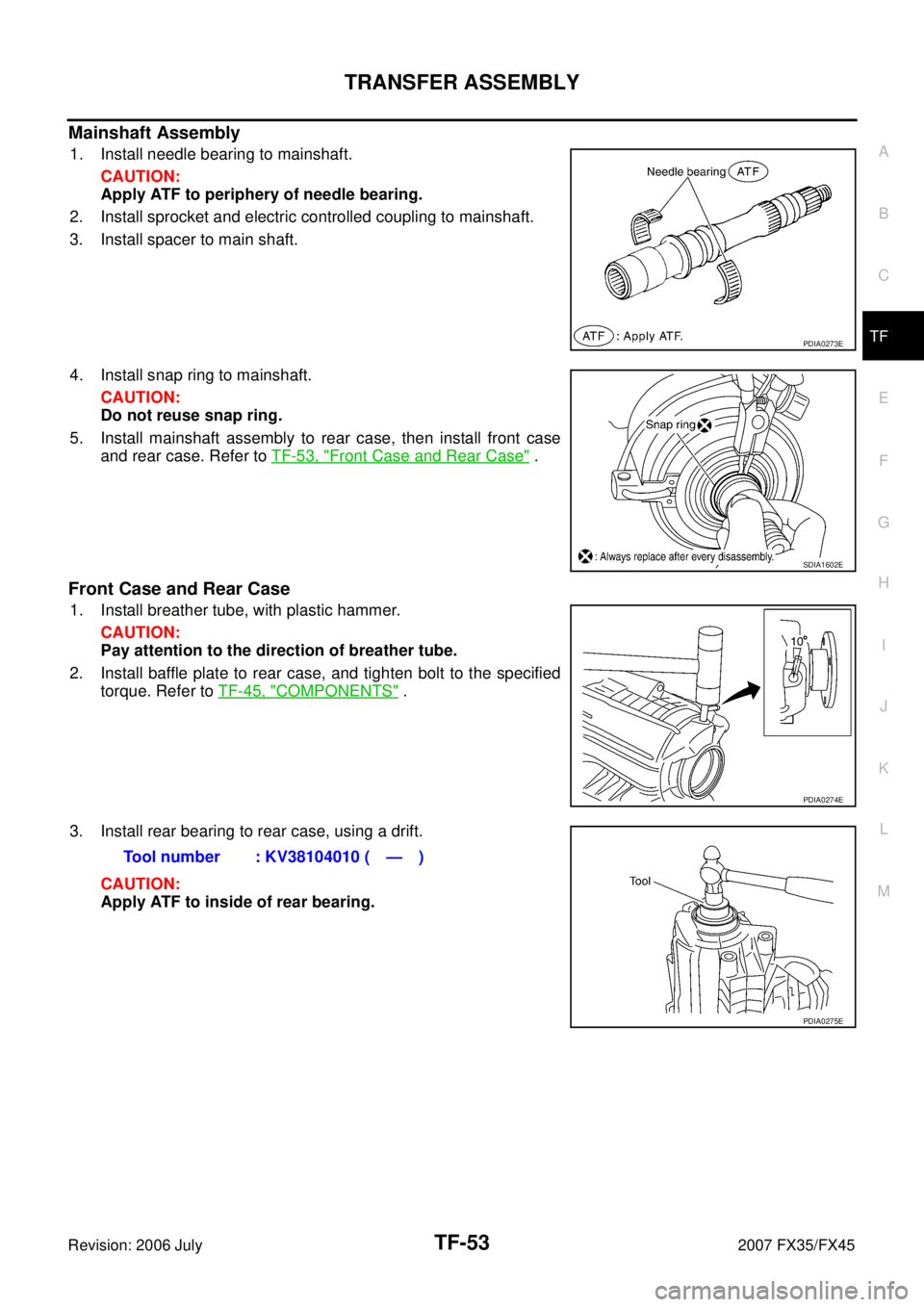

INFINITI FX35 2007 Service Manual TRANSFER ASSEMBLY TF-53 C E F G H I J K L M A B TF Revision: 2006 July 2007 FX35/FX45 Mainshaft Assembly 1. Install needle bearing to mainshaft. CAUTION: Apply ATF to periphery of needle

Page 4258 of 4366

INFINITI FX35 2007 Service Manual TF-54 TRANSFER ASSEMBLY Revision: 2006 July 2007 FX35/FX45 4. Install snap ring to rear case. CAUTION: Do not reuse snap ring. 5. Install mainshaft assembly to rear case, using a drift. CAUTION:

Page 4259 of 4366

INFINITI FX35 2007 Service Manual TRANSFER ASSEMBLY TF-55 C E F G H I J K L M A B TF Revision: 2006 July 2007 FX35/FX45 11. Install oil gutter to rear case. CAUTION: The tip of oil gutter should be put into rear case gro

Page 4260 of 4366

INFINITI FX35 2007 Service Manual TF-56 TRANSFER ASSEMBLY Revision: 2006 July 2007 FX35/FX45 16. Apply liquid gasket to mating surface of rear case. Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, " Recommended

Page 4261 of 4366

INFINITI FX35 2007 Service Manual TRANSFER ASSEMBLY TF-57 C E F G H I J K L M A B TF Revision: 2006 July 2007 FX35/FX45 20. Install rear oil seal to rear case, using a drift. CAUTION: Do not reuse rear oil seal. Apply A

Page 4262 of 4366

INFINITI FX35 2007 Service Manual TF-58 TRANSFER ASSEMBLY Revision: 2006 July 2007 FX35/FX45 Use Genuine Silicone RTV or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants" . CAUTION: Remove old sealant and oil

Page 4263 of 4366

INFINITI FX35 2007 Service Manual SERVICE DATA AND SPECIFICATIONS (SDS) TF-59 C E F G H I J K L M A B TF Revision: 2006 July 2007 FX35/FX45 SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030 General SpecificationsNDS000AP Appl

Page 4264 of 4366

INFINITI FX35 2007 Service Manual TF-60 SERVICE DATA AND SPECIFICATIONS (SDS) Revision: 2006 July 2007 FX35/FX45
