INFINITI FX35 2007 Service Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION
A
B
PG
Revision: 2006 July 2007 FX35/FX45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUP

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION
A
B
PG
Revision: 2006 July 2007 FX35/FX45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING CIRCUIT ...................... 3
Schematic ........................................................... ..... 3
Wiring Diagram — POWER — ............................ ..... 4
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ........................................... ..... 4
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” .................................... ... 10
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” ............................... ... 12
Fuse .................................................................... ... 16
Fusible Link ......................................................... ... 16
Circuit Breaker .................................................... ... 16
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ................................... ... 17
System Description ............................................. ... 17
SYSTEMS CONTROLLED BY IPDM E/R ........ ... 17
CAN COMMUNICATION LINE CONTROL ...... ... 17
IPDM E/R STATUS CONTROL ........................ ... 18
CAN Communication System Description ........... ... 18
CAN Communication Unit ................................... ... 18
Function of Detecting Ignition Relay Malfunction ... 18
CONSULT-II Function (IPDM E/R) ...................... ... 19
CONSULT-II INSPECTION PROCEDURE ...... ... 19
SELF-DIAG RESULTS ..................................... ... 19
DATA MONITOR .............................................. ... 19
ACTIVE TEST .................................................. ... 20
Auto Active Test .................................................. ... 21
DESCRIPTION ................................................. ... 21
OPERATION PROCEDURE ............................ ... 21
INSPECTION IN AUTO ACTIVE TEST MODE ... 22
Schematic ........................................................... ... 24
IPDM E/R Terminal Arrangement ........................ ... 25
IPDM E/R Power/Ground Circuit Inspection ....... ... 26
Inspection With CONSULT-II (Self-Diagnosis) .... ... 27
Removal and Installation of IPDM E/R ................ ... 28
REMOVAL ........................................................ ... 28
INSTALLATION ................................................ ... 28 GROUND ................................................................
... 29
Ground Distribution .............................................. ... 29
MAIN HARNESS .............................................. ... 29
ENGINE ROOM HARNESS ............................. ... 32
ENGINE HARNESS/VK ENGINE MODELS ..... ... 35
ENGINE HARNESS/VQ ENGINE MODELS .... ... 36
ENGINE CONTROL HARNESS/VK ENGINE
MODELS .......................................................... ... 37
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS .......................................................... ... 38
BODY HARNESS ............................................. ... 39
BODY NO. 2 HARNESS .................................. ... 41
ROOM LAMP HARNESS ................................. ... 42
HARNESS .............................................................. ... 43
Harness Layout ................................................... ... 43
HOW TO READ HARNESS LAYOUT .............. ... 43
OUTLINE .......................................................... ... 44
MAIN HARNESS .............................................. ... 45
ENGINE ROOM HARNESS ............................. ... 48
ENGINE HARNESS/VK ENGINE MODELS ..... ... 51
ENGINE HARNESS/VQ ENGINE MODELS .... ... 52
ENGINE CONTROL HARNESS/VK ENGINE
MODELS .......................................................... ... 53
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS .......................................................... ... 55
BODY HARNESS ............................................. ... 57
BODY NO. 2 HARNESS .................................. ... 59
ROOM LAMP HARNESS ................................. ... 60
FRONT DOOR HARNESS ............................... ... 61
REAR DOOR HARNESS ................................. ... 62
BACK DOOR HARNESS ................................. ... 63
Wiring Diagram Codes (Cell Codes) ................... ... 64
ELECTRICAL UNITS LOCATION ......................... ... 67
Electrical Units Location ...................................... ... 67
ENGINE COMPARTMENT ............................... ... 67
PASSENGER COMPARTMENT ...................... ... 68
LUGGAGE COMPARTMENT ........................... ... 70
HARNESS CONNECTOR ...................................... ... 71
Description ........................................................... ... 71
HARNESS CONNECTOR (TAB-LOCKING

Page 3746 of 4366

INFINITI FX35 2007 Service Manual PG-2Revision: 2006 July 2007 FX35/FX45
TYPE) ...............................................................
... 71
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .........................................

Page 3747 of 4366

INFINITI FX35 2007 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-3
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 July 2007 FX35/FX45
POWER SUPPLY ROUTING CIRCUITPFP:24110
SchematicNKS003G6

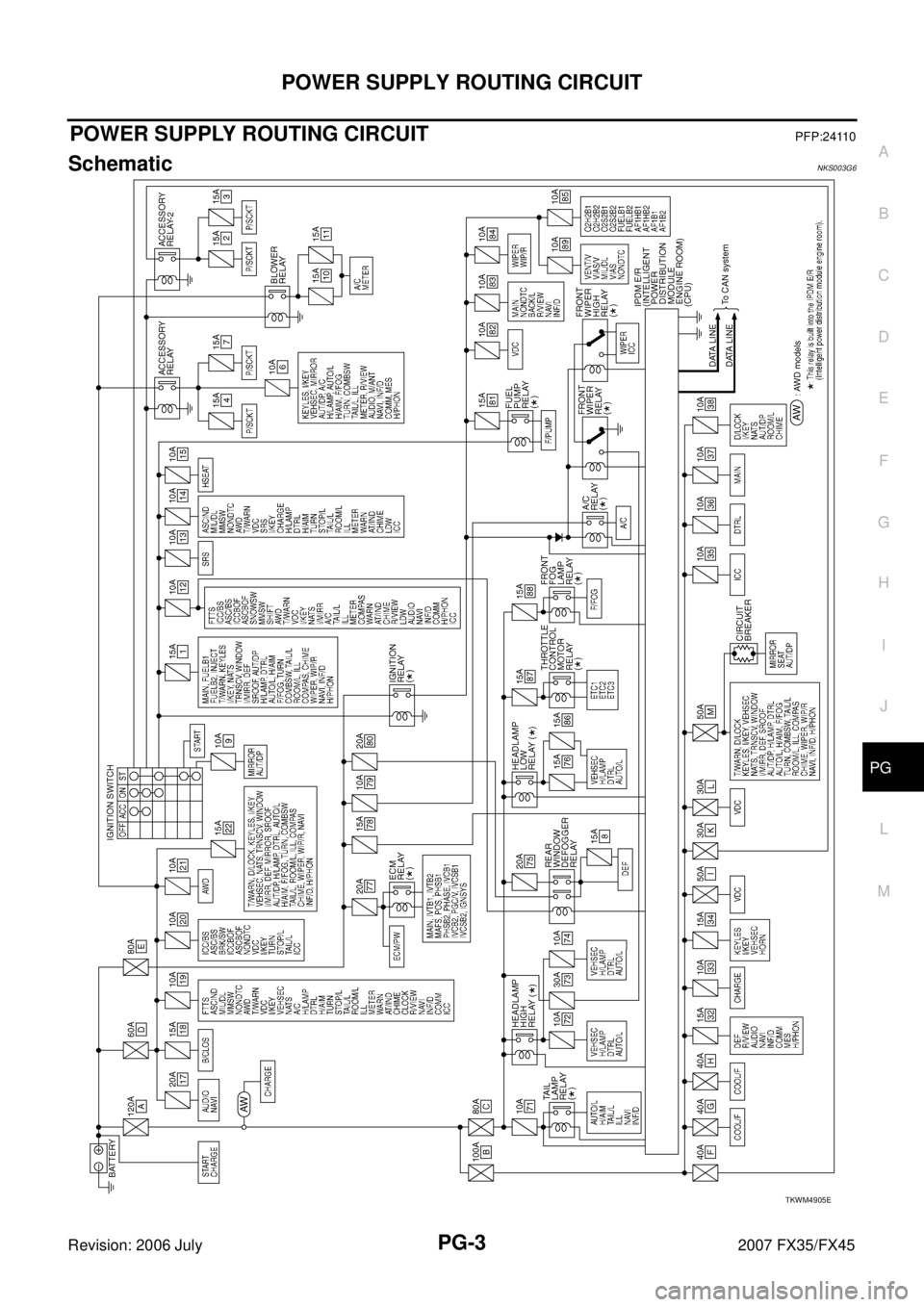

TKWM4905E

Page 3748 of 4366

INFINITI FX35 2007 Service Manual PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: 2006 July 2007 FX35/FX45

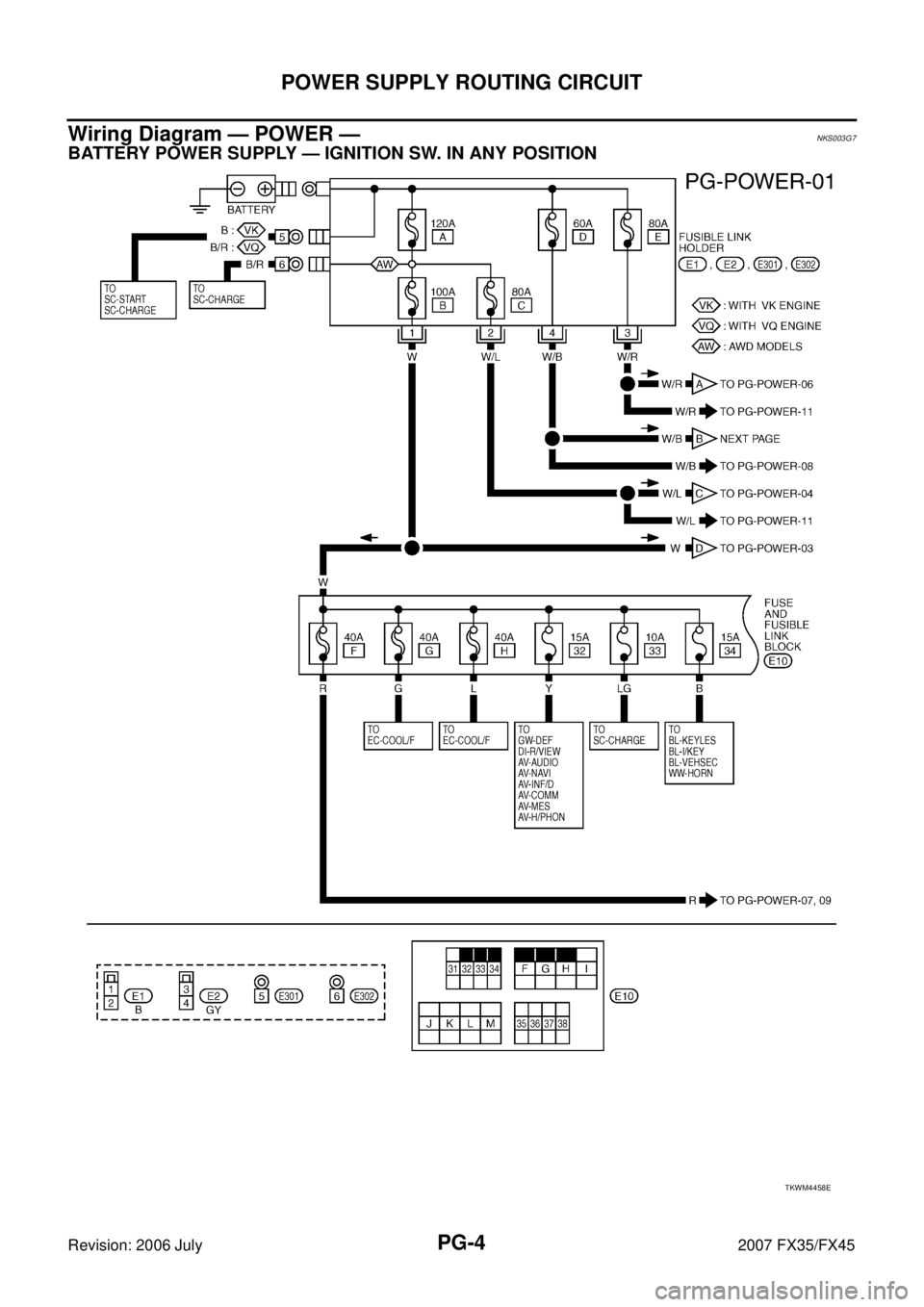

Wiring Diagram — POWER —NKS003G7
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWM4458E

Page 3749 of 4366

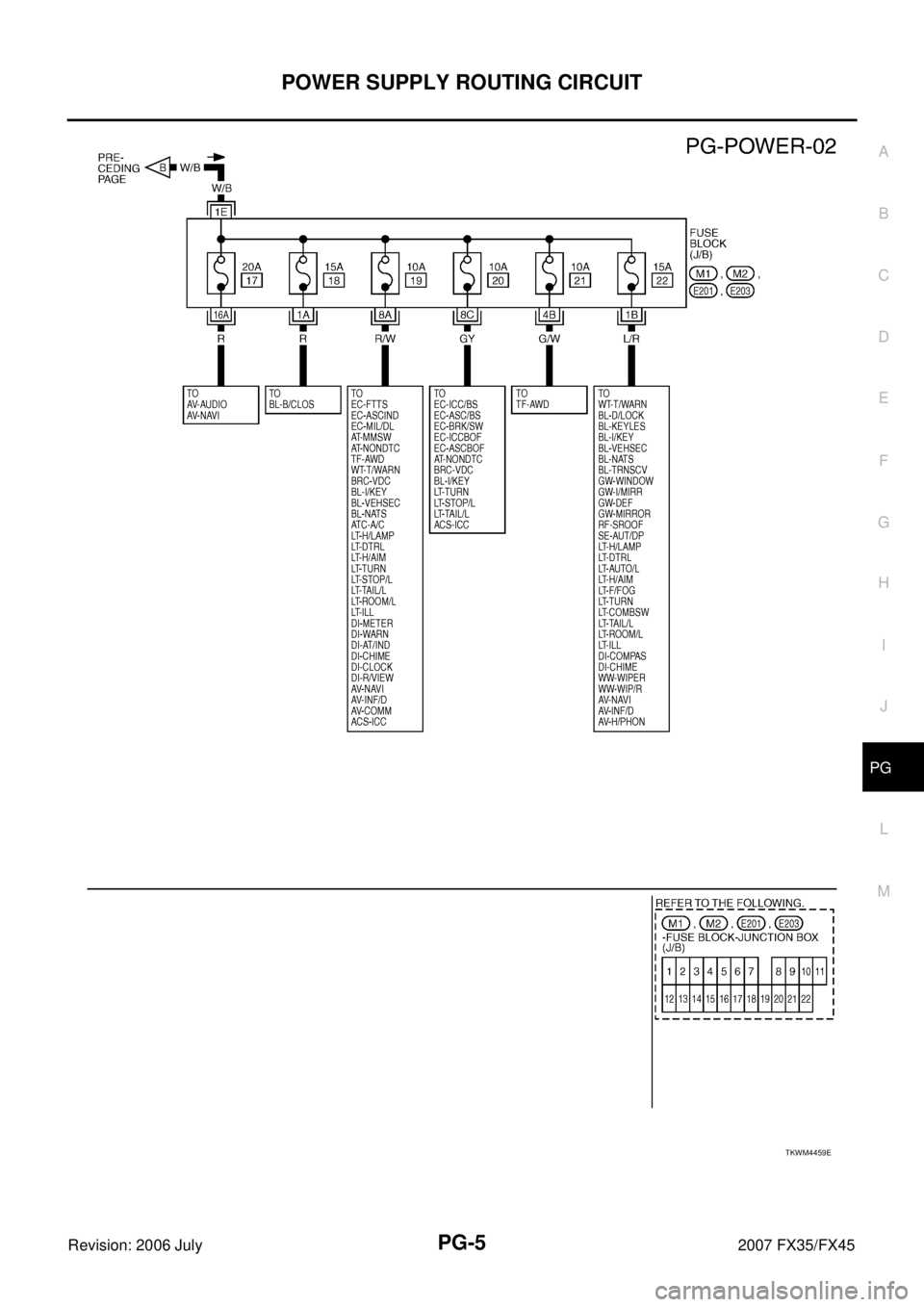

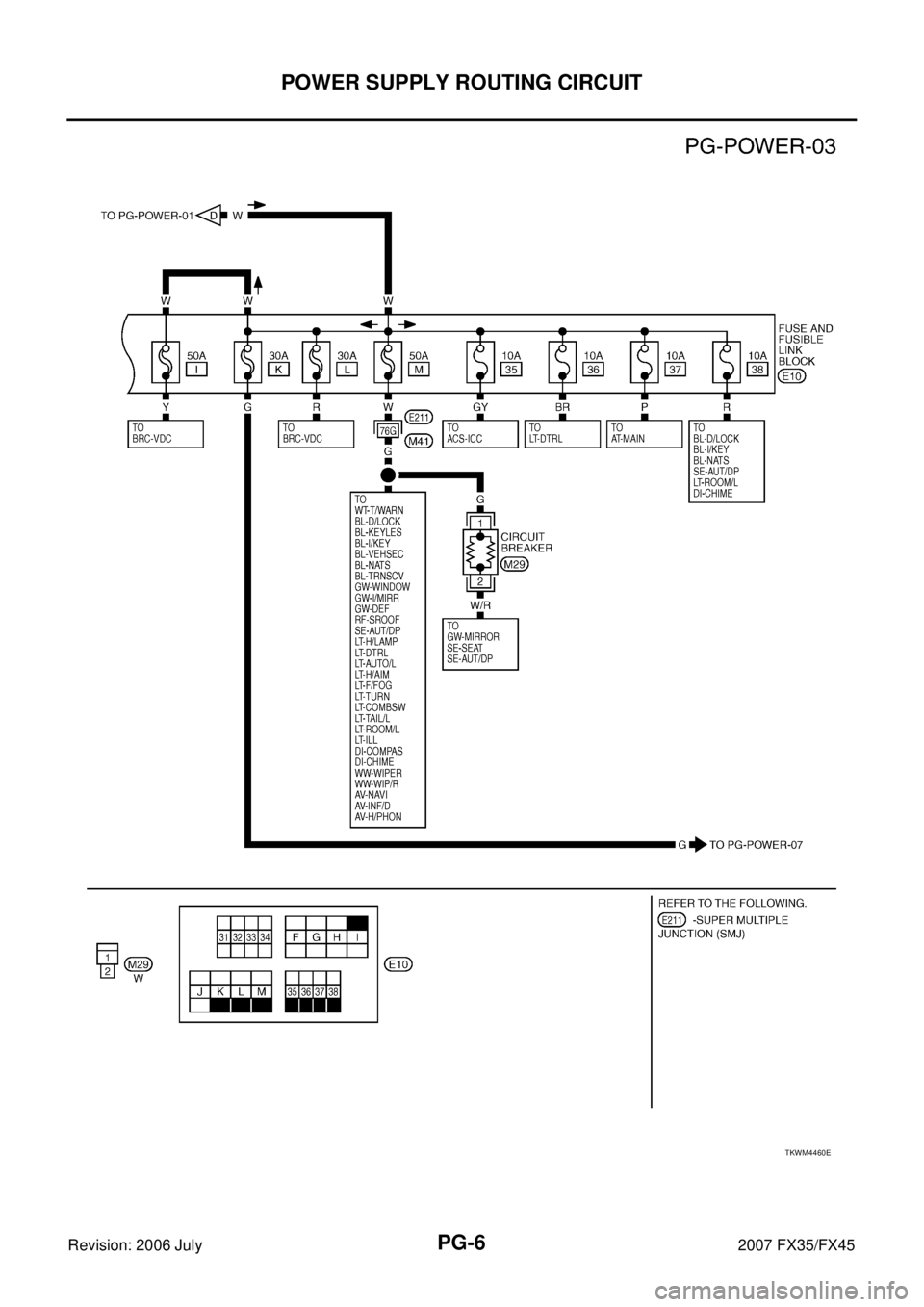

INFINITI FX35 2007 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-5
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 July 2007 FX35/FX45
TKWM4459E

Page 3750 of 4366

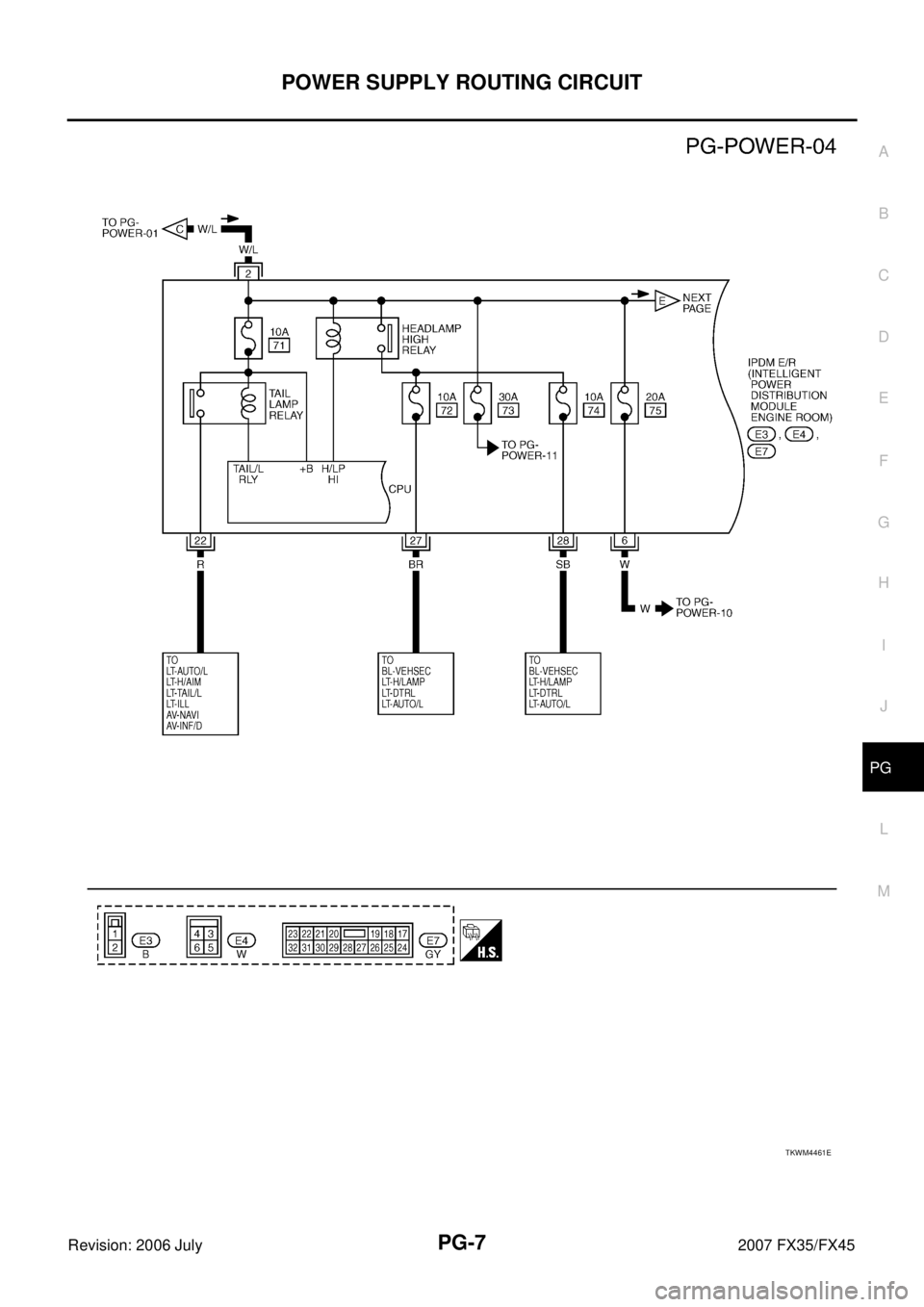

INFINITI FX35 2007 Service Manual PG-6
POWER SUPPLY ROUTING CIRCUIT
Revision: 2006 July 2007 FX35/FX45
TKWM4460E

Page 3751 of 4366

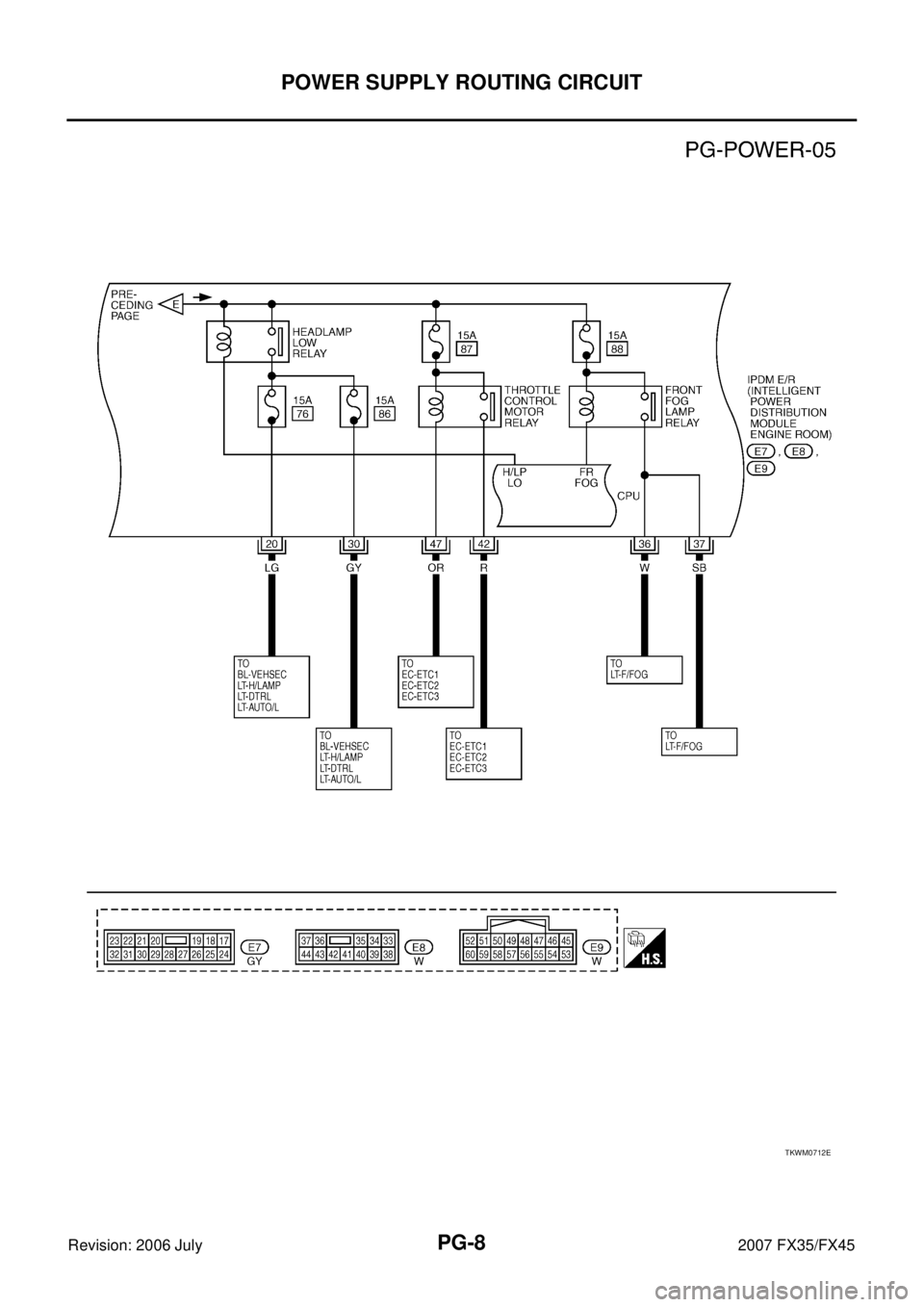

INFINITI FX35 2007 Service Manual POWER SUPPLY ROUTING CIRCUIT PG-7
C
D E
F
G H
I
J
L
M A
B
PG
Revision: 2006 July 2007 FX35/FX45
TKWM4461E

Page 3752 of 4366

INFINITI FX35 2007 Service Manual PG-8
POWER SUPPLY ROUTING CIRCUIT
Revision: 2006 July 2007 FX35/FX45
TKWM0712E
