INFINITI FX35 2007 Service Manual DTC P1564 ASCD STEERING SWITCH EC-1201
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each termina

Page 2578 of 4366

INFINITI FX35 2007 Service Manual EC-1202
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 July 2007 FX35/FX45

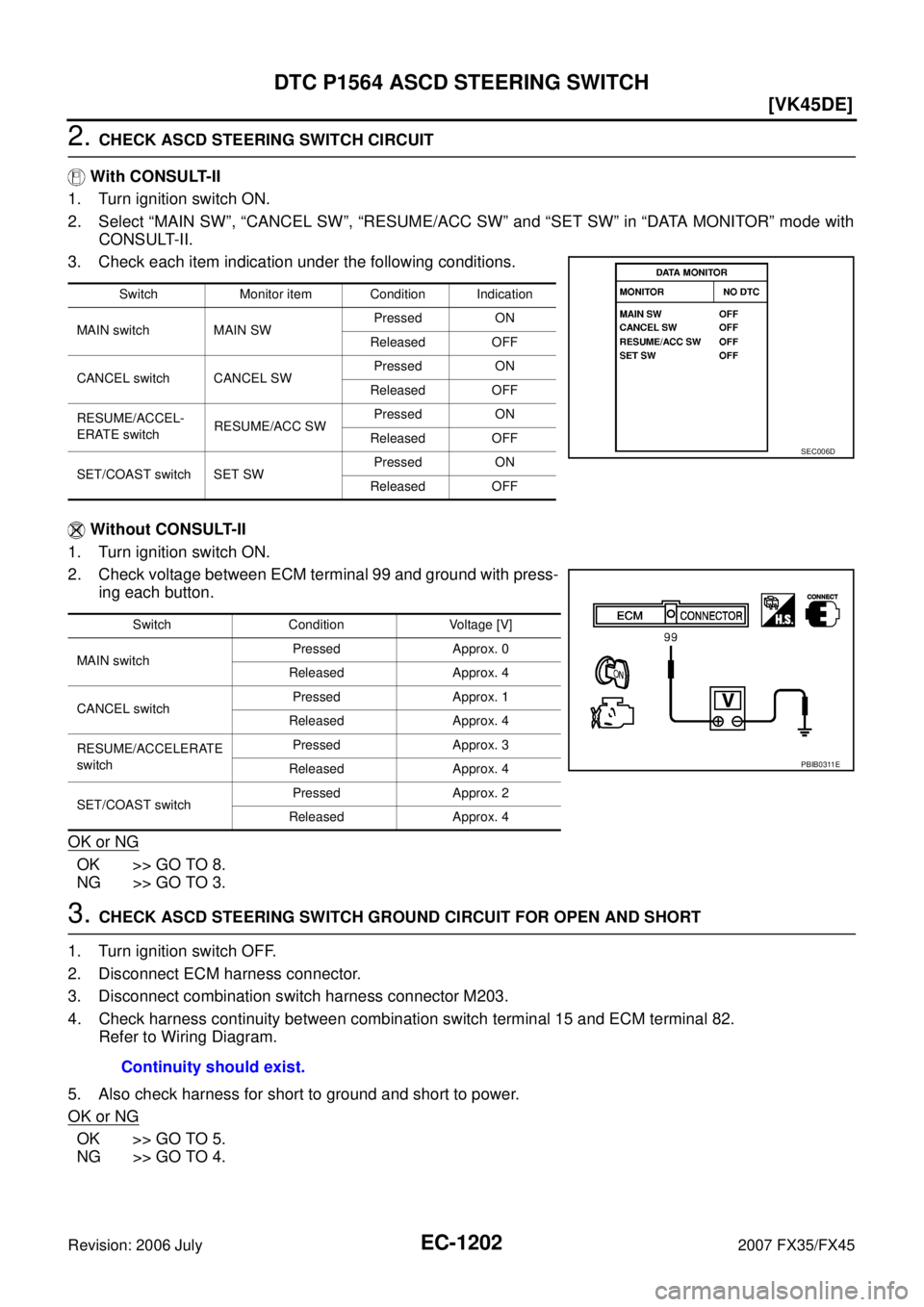

2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANC

Page 2579 of 4366

INFINITI FX35 2007 Service Manual DTC P1564 ASCD STEERING SWITCH EC-1203
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
4. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spir

Page 2580 of 4366

INFINITI FX35 2007 Service Manual EC-1204
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 July 2007 FX35/FX45
Component InspectionNBS004E6
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M

Page 2581 of 4366

INFINITI FX35 2007 Service Manual DTC P1568 ICC FUNCTION EC-1205
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS004E7
This self-diagnosis

DTC P1568 ICC FUNCTION EC-1205
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS004E7
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1568 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-820, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1568 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-823, "
DTC U1010 CAN COMMUNICATION" .
If DTC P1568 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1148, "
DTC P0605 ECM"
DTC Confirmation ProcedureNBS004E8
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch on ICC steering switch.
4. Drive the vehicle at more than 40 km/h (25 MPH).
5. Press SET/COAST switch.
6. If DTC is detected, go to EC-1205, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS004E9
1. REPLACE ICC UNIT
1. Replace ICC unit.
2. Perform ACS-11, "
ACTION TEST" .
3. Check DTC of ICC unit. Refer to ACS-42, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
>> INSPECTION END
DTC No. Trouble Diagnosis
Name DTC Detecting Condition Possible Cause
P1568
1568 ICC function ECM detects a difference between signals
from ICC unit is out of specified range.
Harness or connectors
(The CAN communication line is open or
shorted.)
ICC unit
ECM
SEF058Y

Page 2582 of 4366

INFINITI FX35 2007 Service Manual EC-1206
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 July 2007 FX35/FX45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS004EA
When the brake pedal is depressed, ICC brake switch is

EC-1206
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 July 2007 FX35/FX45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS004EA
When the brake pedal is depressed, ICC brake switch is turned OFF
and stop lamp switch is turned ON. ECM detects the state of the
brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeNBS004EB
Specification data are reference values.
On Board Diagnosis LogicNBS004EC
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1148, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2558E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)
Ignition switch: ON Brake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P1572
1572 ICC brake switch A)
When the vehicle speed is above 30 km/h
(19 MPH), ON signals from the stop lamp
switch and the ICC brake switch are sent
to ECM at the same time.
Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ICC brake switch circuit is shorted.)
Stop lamp switch
ICC brake switch
ICC brake hold relay
Incorrect stop lamp switch installation
Incorrect ICC brake switch installation
ECM
B)
ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving

Page 2583 of 4366

INFINITI FX35 2007 Service Manual DTC P1572 ICC BRAKE SWITCH EC-1207
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC Confirmation ProcedureNBS004ED
CAUTION:
Always drive vehicle at a safe speed

Page 2584 of 4366

INFINITI FX35 2007 Service Manual EC-1208
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 July 2007 FX35/FX45

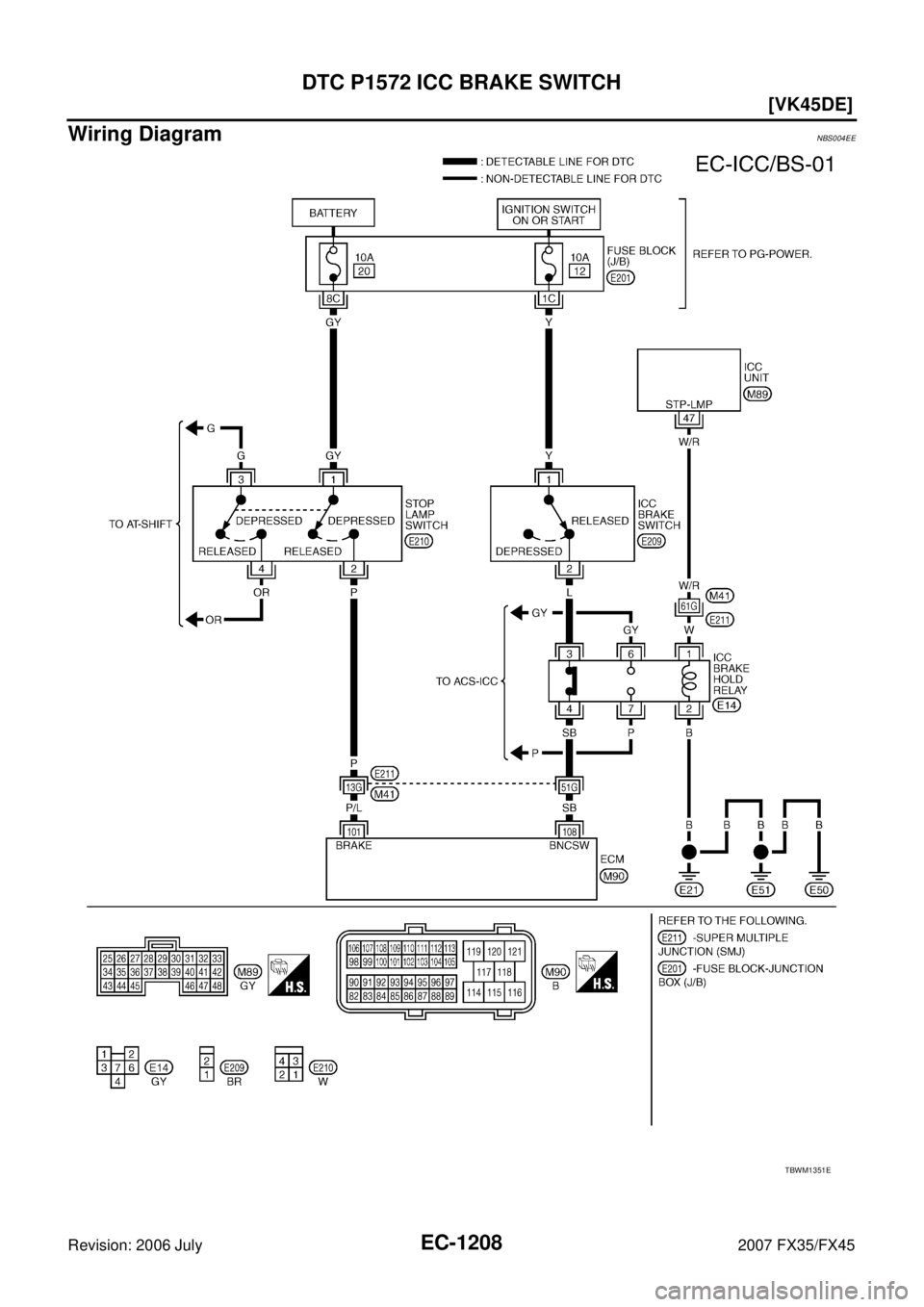

Wiring Diagram NBS004EE
TBWM1351E
