Page 4337 of 4366

FRONT WIPER AND WASHER SYSTEM WW-31
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
After Front Wiper Operate for 10 Seconds, They Stop for 20 Seconds, and After
Repeating the Operations Five Times, They Become Inoperative
NKS0032Q
CAUTION:
When auto-stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.
This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROTECTION”
item shows “BLOCK”.
1. CHECK WIPER MOTOR SIGNAL
With CONSULT-ll
Select “IPDM E/R” by CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
wiper operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace IPDM E/R.
NG >> GO TO 2.
2. CHECK WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connec- tor.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 32 and front wiper motor harness connector E57 terminal
5.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 32 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK FRONT WIPER MOTOR
1. Connect IPDM E/R connector and front wiper connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R harness connector E7 termi- nal 32 and ground while front wiper motor is stopped and while it
is operating.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace front wiper motor.
PKIA7614E
32 – 5 : Continuity should exist.
32 – Ground : Continuity should not exist.
PKIA5195E
(+) (-) Condition Voltage
IPDM E/R connector Terminal
E7 32 Ground Wiper stopped Approx. 0 V
Wiper operating Battery voltage
PKIA5196E
Page 4338 of 4366
WW-32
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
Front Wiper Does Not StopNKS0032R
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “FR WIPER INT”, “FR WIPER LOW”, “FR
WIPER HI”, and “FR WASHER SW” turn ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT- 11 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace IPDM E/R.
NG >> Check combination switch (wiper switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
PKIB0110E
Page 4339 of 4366

FRONT WIPER AND WASHER SYSTEM WW-33
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45

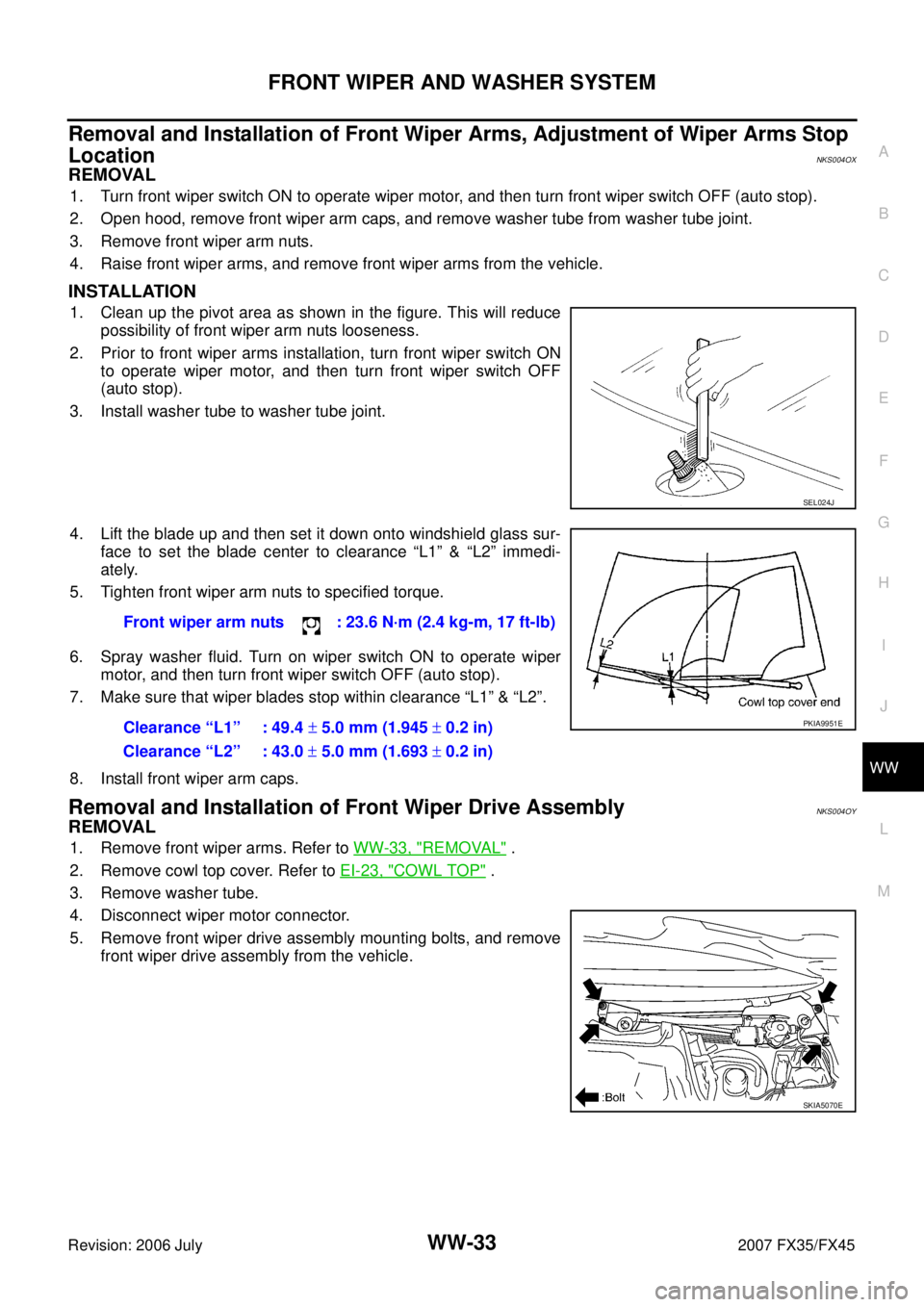

Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop
Location
NKS004OX
REMOVAL
1. Turn front wiper switch ON to operate wiper motor, and then turn front wiper switch OFF (auto stop).
2. Open hood, remove front wiper arm caps, and remove washer tube from washer tube joint.
3. Remove front wiper arm nuts.
4. Raise front wiper arms, and remove front wiper arms from the vehicle.
INSTALLATION
1. Clean up the pivot area as shown in the figure. This will reduce possibility of front wiper arm nuts looseness.
2. Prior to front wiper arms installation, turn front wiper switch ON to operate wiper motor, and then turn front wiper switch OFF
(auto stop).
3. Install washer tube to washer tube joint.
4. Lift the blade up and then set it down onto windshield glass sur- face to set the blade center to clearance “L1” & “L2” immedi-
ately.
5. Tighten front wiper arm nuts to specified torque.
6. Spray washer fluid. Turn on wiper switch ON to operate wiper motor, and then turn front wiper switch OFF (auto stop).
7. Make sure that wiper blades stop within clearance “L1” & “L2”.
8. Install front wiper arm caps.
Removal and Installation of Front Wiper Drive Assembly NKS004OY
REMOVAL
1. Remove front wiper arms. Refer to WW-33, "REMOVAL" .
2. Remove cowl top cover. Refer to EI-23, "
COWL TOP" .
3. Remove washer tube.
4. Disconnect wiper motor connector.
5. Remove front wiper drive assembly mounting bolts, and remove front wiper drive assembly from the vehicle.
SEL024J
Front wiper arm nuts : 23.6 N·m (2.4 kg-m, 17 ft-lb)
Clearance “L1” : 49.4 ± 5.0 mm (1.945 ± 0.2 in)
Clearance “L2” : 43.0 ± 5.0 mm (1.693 ± 0.2 in)
PKIA9951E
SKIA5070E
Page 4340 of 4366

WW-34
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
1. Install front wiper drive assembly to the vehicle.
2. Connect wiper motor connector. Turn front wiper switch ON to operate wiper motor, and then turn front
wiper switch OFF (auto stop).
3. Install washer tube to washer tube joint.
4. Install cowl top cover. Refer to EI-23, "
COWL TOP" .
5. Install front wiper arms and arm caps. Refer to WW-33, "
INSTALLATION" .
6. Install front wiper arm washer tube.

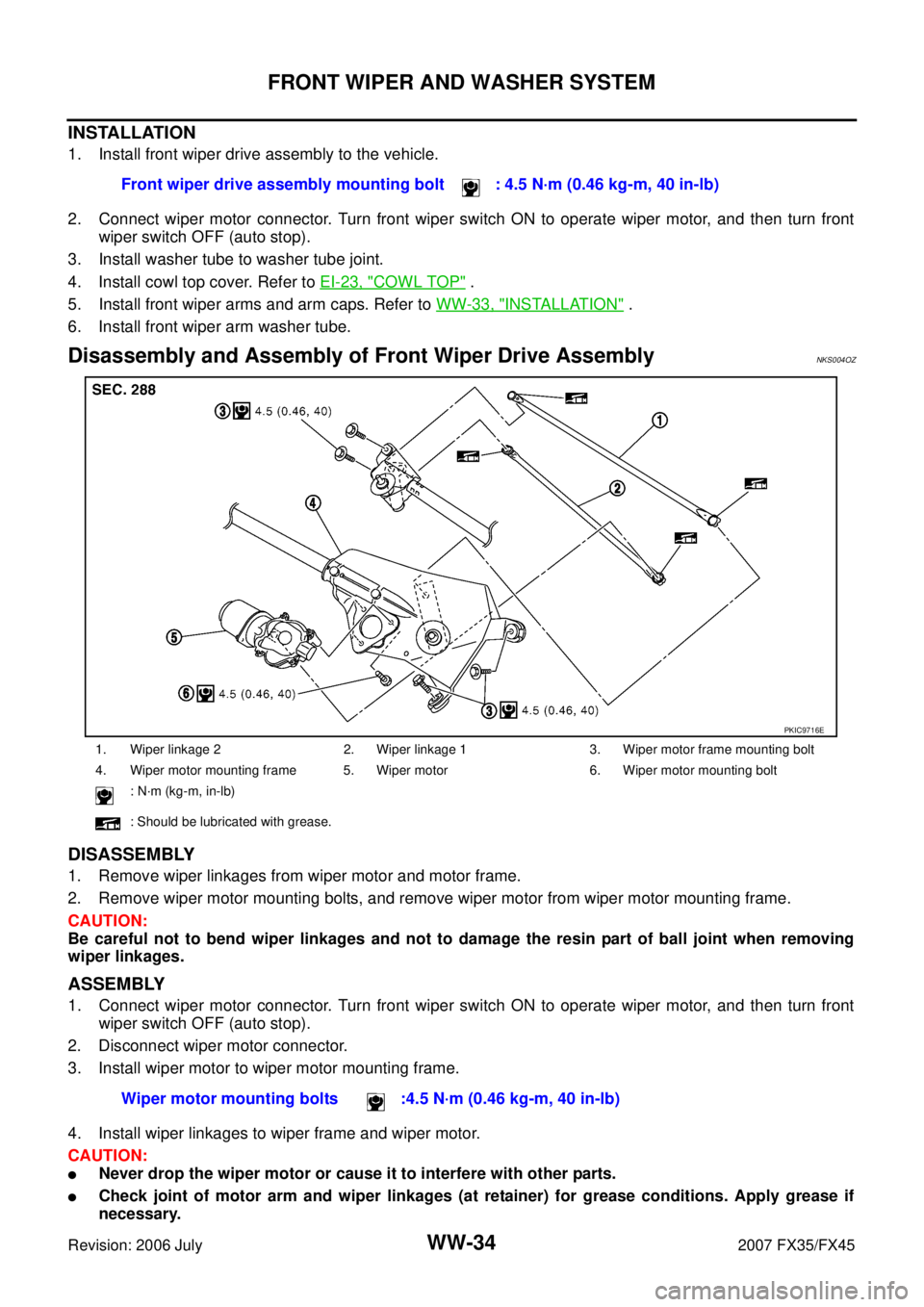

Disassembly and Assembly of Front Wiper Drive AssemblyNKS004OZ
DISASSEMBLY
1. Remove wiper linkages from wiper motor and motor frame.
2. Remove wiper motor mounting bolts, and remove wiper motor from wiper motor mounting frame.
CAUTION:
Be careful not to bend wiper linkages and not to damage the resin part of ball joint when removing
wiper linkages.
ASSEMBLY
1. Connect wiper motor connector. Turn front wiper switch ON to operate wiper motor, and then turn front
wiper switch OFF (auto stop).
2. Disconnect wiper motor connector.
3. Install wiper motor to wiper motor mounting frame.
4. Install wiper linkages to wiper frame and wiper motor.
CAUTION:
Never drop the wiper motor or cause it to interfere with other parts.
Check joint of motor arm and wiper linkages (at retainer) for grease conditions. Apply grease if
necessary. Front wiper drive assembly mounting bolt : 4.5 N·m (0.46 kg-m, 40 in-lb)
1. Wiper linkage 2 2. Wiper linkage 1 3. Wiper motor frame mounting bolt
4. Wiper motor mounting frame 5. Wiper motor 6. Wiper motor mounting bolt : N·m (kg-m, in-lb)
: Should be lubricated with grease.
PKIC9716E
Wiper motor mounting bolts :4.5 N·m (0.46 kg-m, 40 in-lb)
Page 4341 of 4366
FRONT WIPER AND WASHER SYSTEM WW-35
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45

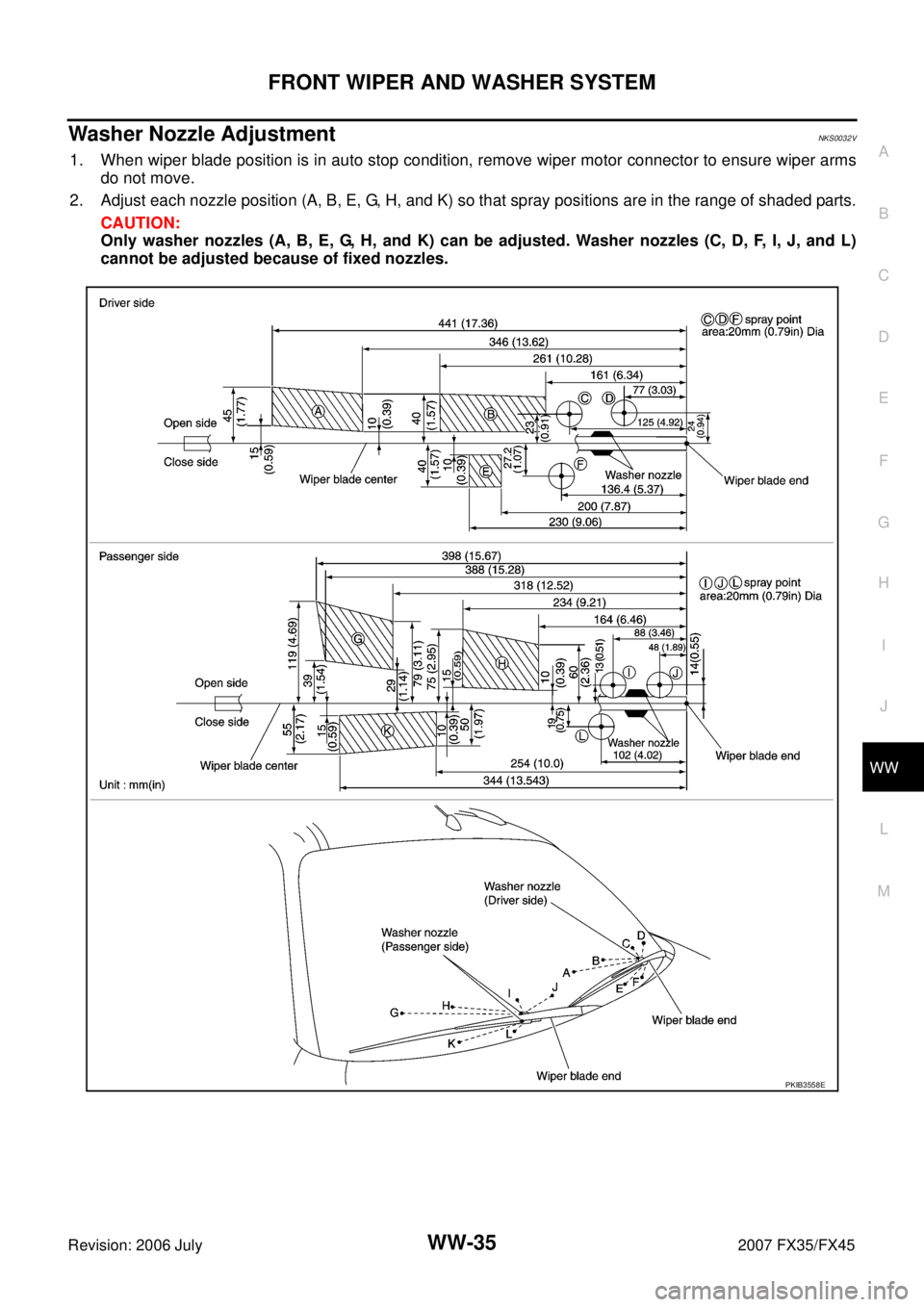

Washer Nozzle AdjustmentNKS0032V
1. When wiper blade position is in auto stop condition, remove wiper motor connector to ensure wiper arms
do not move.
2. Adjust each nozzle position (A, B, E, G, H, and K) so that spray positions are in the range of shaded parts. CAUTION:
Only washer nozzles (A, B, E, G, H, and K) can be adjusted. Washer nozzles (C, D, F, I, J, and L)
cannot be adjusted because of fixed nozzles.
PKIB3558E
Page 4342 of 4366
WW-36
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
Washer Tube LayoutNKS0032W
Removal and Installation of Front Washer NozzleNKS0032X
Replace wiper arm assembly. Refer to WW-33, "Removal and Installation of Front Wiper Arms, Adjustment of
Wiper Arms Stop Location" .
CAUTION:
Removal/installation of the washer nozzle as a unit must not be done.
Removal and Installation of Front Washer Tube JointNKS0032Y
REMOVAL
1. Remove upwards while pressing the pawls on reverse side.
2. Remove washer tube.
INSTALLATION
Installation is the reverse order of removal.
SKIA5073E
PKID0570E
PKIA1159E
Page 4343 of 4366

FRONT WIPER AND WASHER SYSTEM WW-37
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45

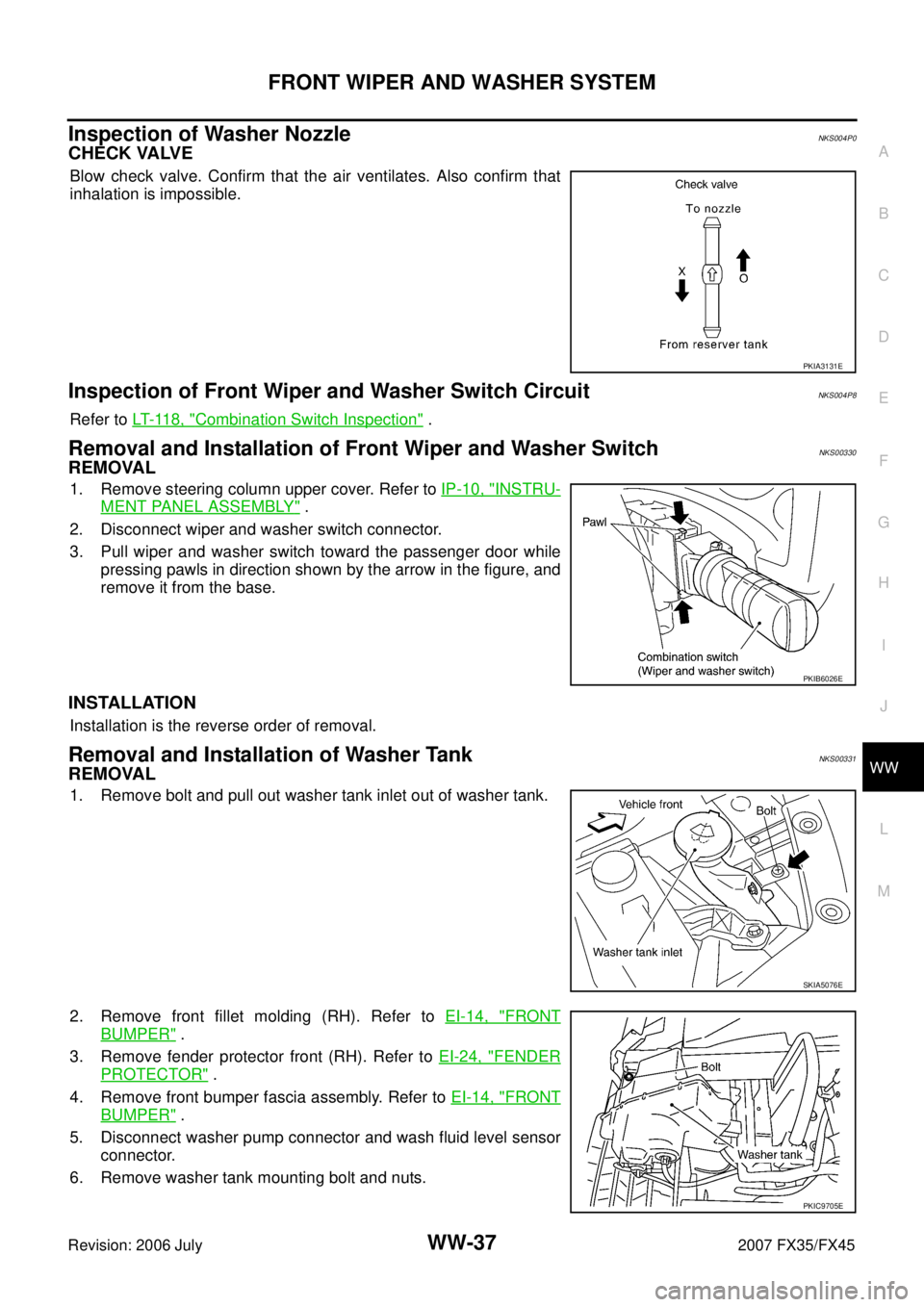

Inspection of Washer NozzleNKS004P0
CHECK VALVE
Blow check valve. Confirm that the air ventilates. Also confirm that
inhalation is impossible.
Inspection of Front Wiper and Washer Switch CircuitNKS004P8
Refer to LT- 11 8 , "Combination Switch Inspection" .
Removal and Installation of Front Wiper and Washer SwitchNKS00330
REMOVAL
1. Remove steering column upper cover. Refer to IP-10, "INSTRU-
MENT PANEL ASSEMBLY" .
2. Disconnect wiper and washer switch connector.
3. Pull wiper and washer switch toward the passenger door while pressing pawls in direction shown by the arrow in the figure, and
remove it from the base.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Washer TankNKS00331
REMOVAL
1. Remove bolt and pull out washer tank inlet out of washer tank.
2. Remove front fillet molding (RH). Refer to EI-14, "
FRONT
BUMPER" .
3. Remove fender protector front (RH). Refer to EI-24, "
FENDER
PROTECTOR" .
4. Remove front bumper fascia assembly. Refer to EI-14, "
FRONT
BUMPER" .
5. Disconnect washer pump connector and wash fluid level sensor connector.
6. Remove washer tank mounting bolt and nuts.
PKIA3131E
PKIB6026E
SKIA5076E
PKIC9705E
Page 4344 of 4366

WW-38
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45

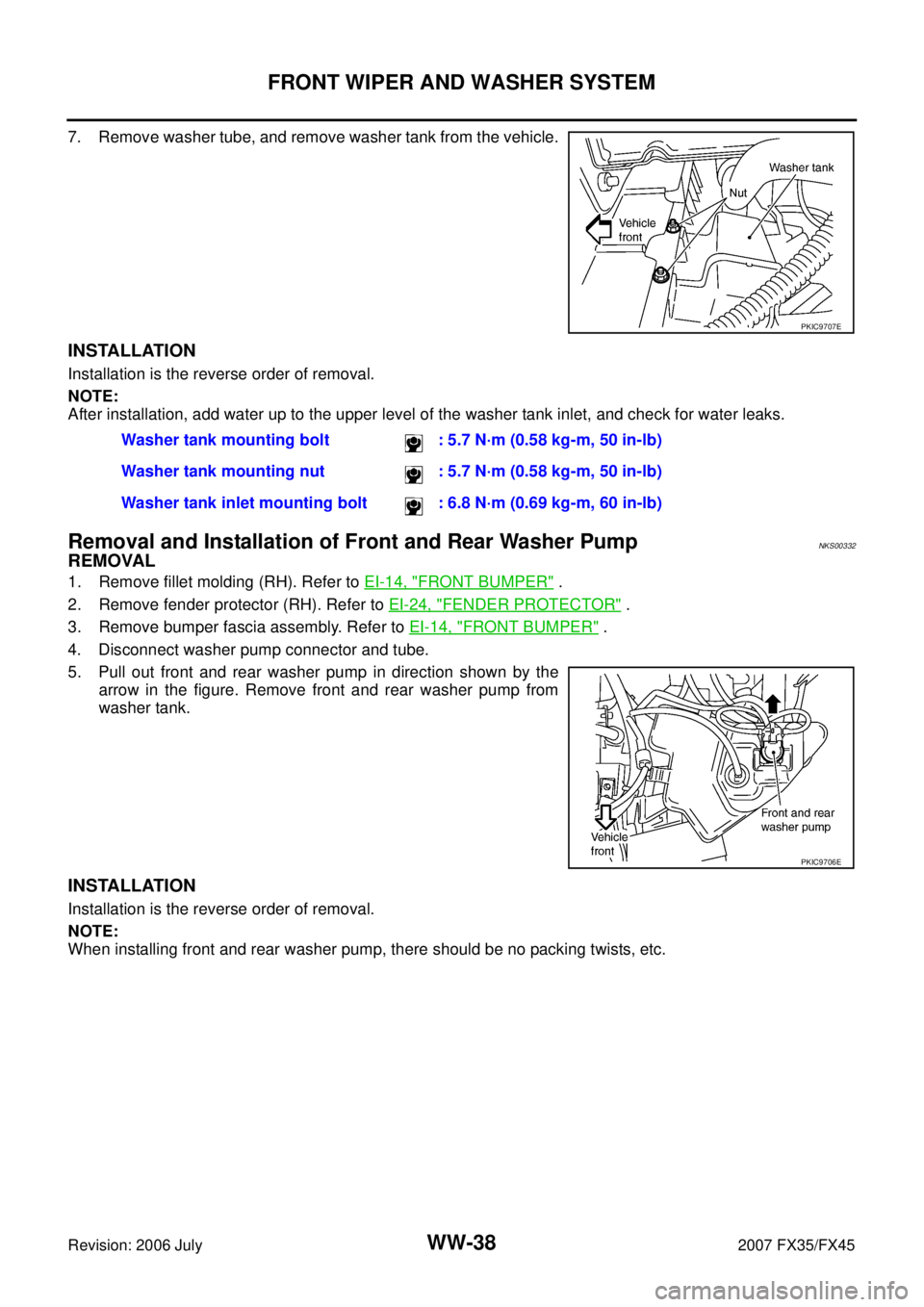

7. Remove washer tube, and remove washer tank from the vehicle.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.
Removal and Installation of Front and Rear Washer PumpNKS00332
REMOVAL
1. Remove fillet molding (RH). Refer to EI-14, "FRONT BUMPER" .
2. Remove fender protector (RH). Refer to EI-24, "
FENDER PROTECTOR" .
3. Remove bumper fascia assembly. Refer to EI-14, "
FRONT BUMPER" .
4. Disconnect washer pump connector and tube.
5. Pull out front and rear washer pump in direction shown by the arrow in the figure. Remove front and rear washer pump from
washer tank.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
When installing front and rear washer pump, there should be no packing twists, etc.
PKIC9707E
Washer tank mounting bolt : 5.7 N·m (0.58 kg-m, 50 in-lb)
Washer tank mounting nut : 5.7 N·m (0.58 kg-m, 50 in-lb)
Washer tank inlet mounting bolt : 6.8 N·m (0.69 kg-m, 60 in-lb)
PKIC9706E
