Page 3329 of 4366

INFINITI FX35 2007 Service Manual DOOR MIRROR GW-91 C D E F G H J K L M A B GW Revision: 2006 July 2007 FX35/FX45 Schematic (With Electric Foldable Door Mirror)NIS00290 TIWM1732E

Page 3330 of 4366

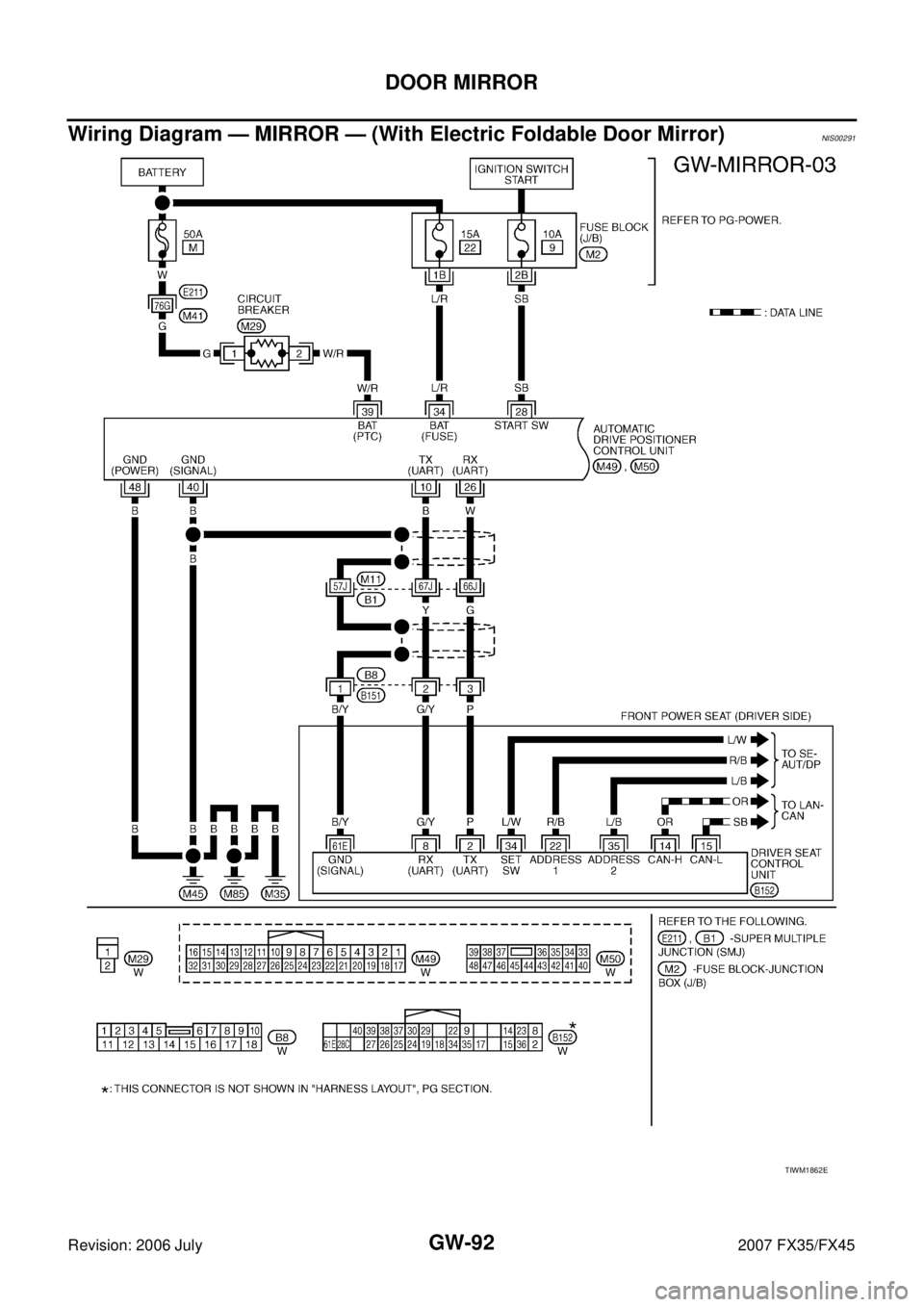

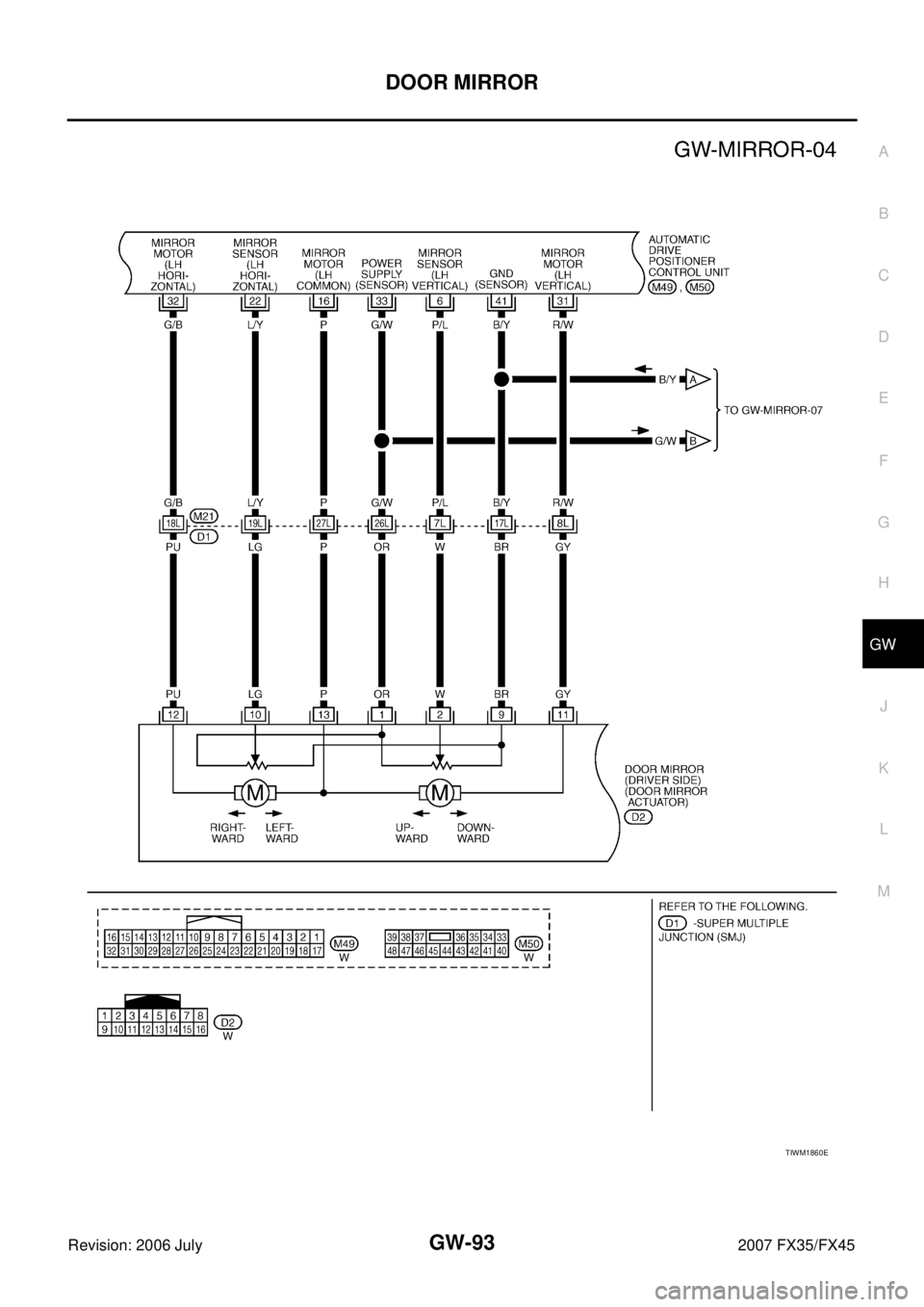

INFINITI FX35 2007 Service Manual GW-92 DOOR MIRROR Revision: 2006 July 2007 FX35/FX45 Wiring Diagram — MIRROR — (With Electric Foldable Door Mirror)NIS00291 TIWM1862E

Page 3331 of 4366

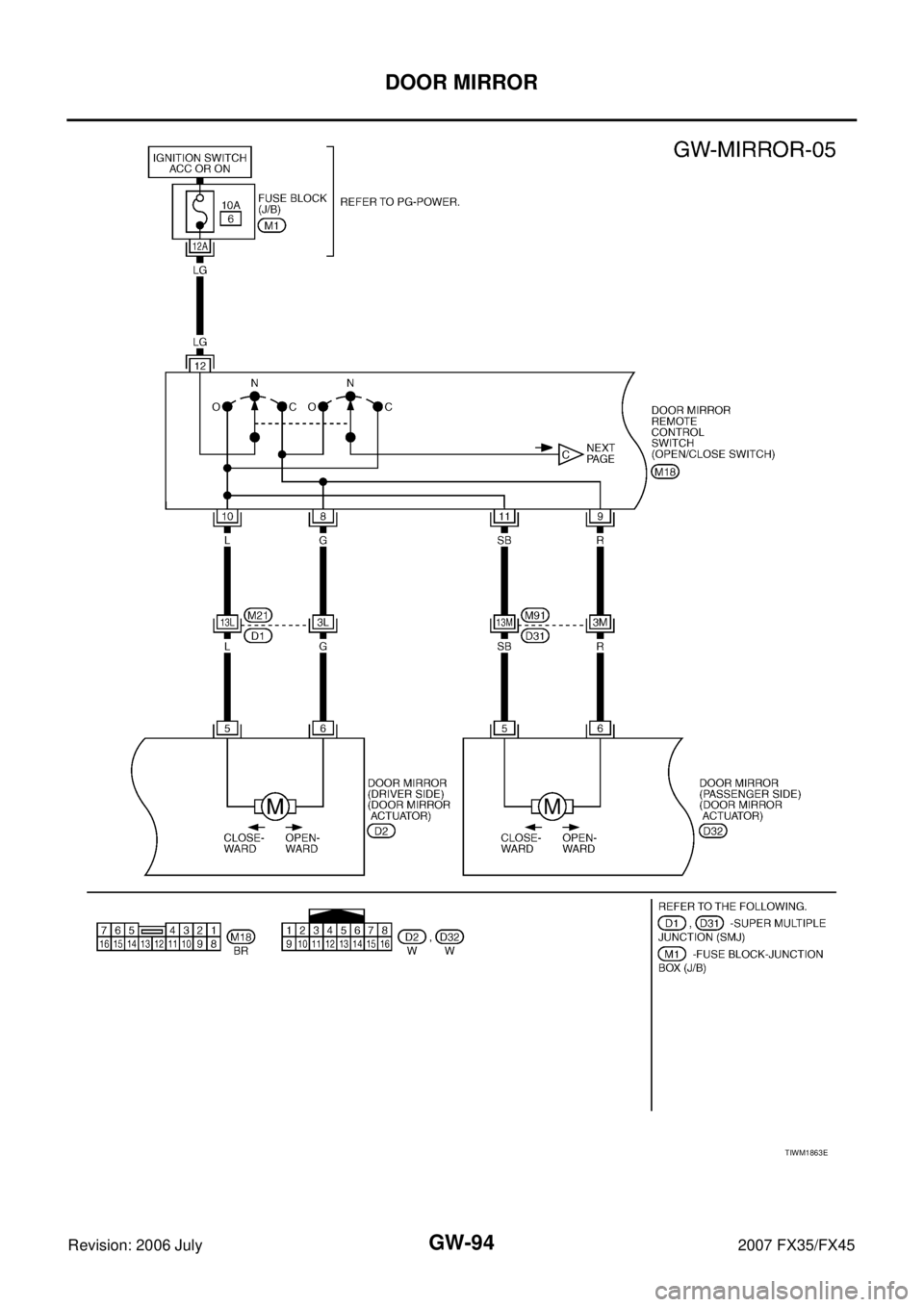

INFINITI FX35 2007 Service Manual DOOR MIRROR GW-93 C D E F G H J K L M A B GW Revision: 2006 July 2007 FX35/FX45 TIWM1860E

Page 3332 of 4366

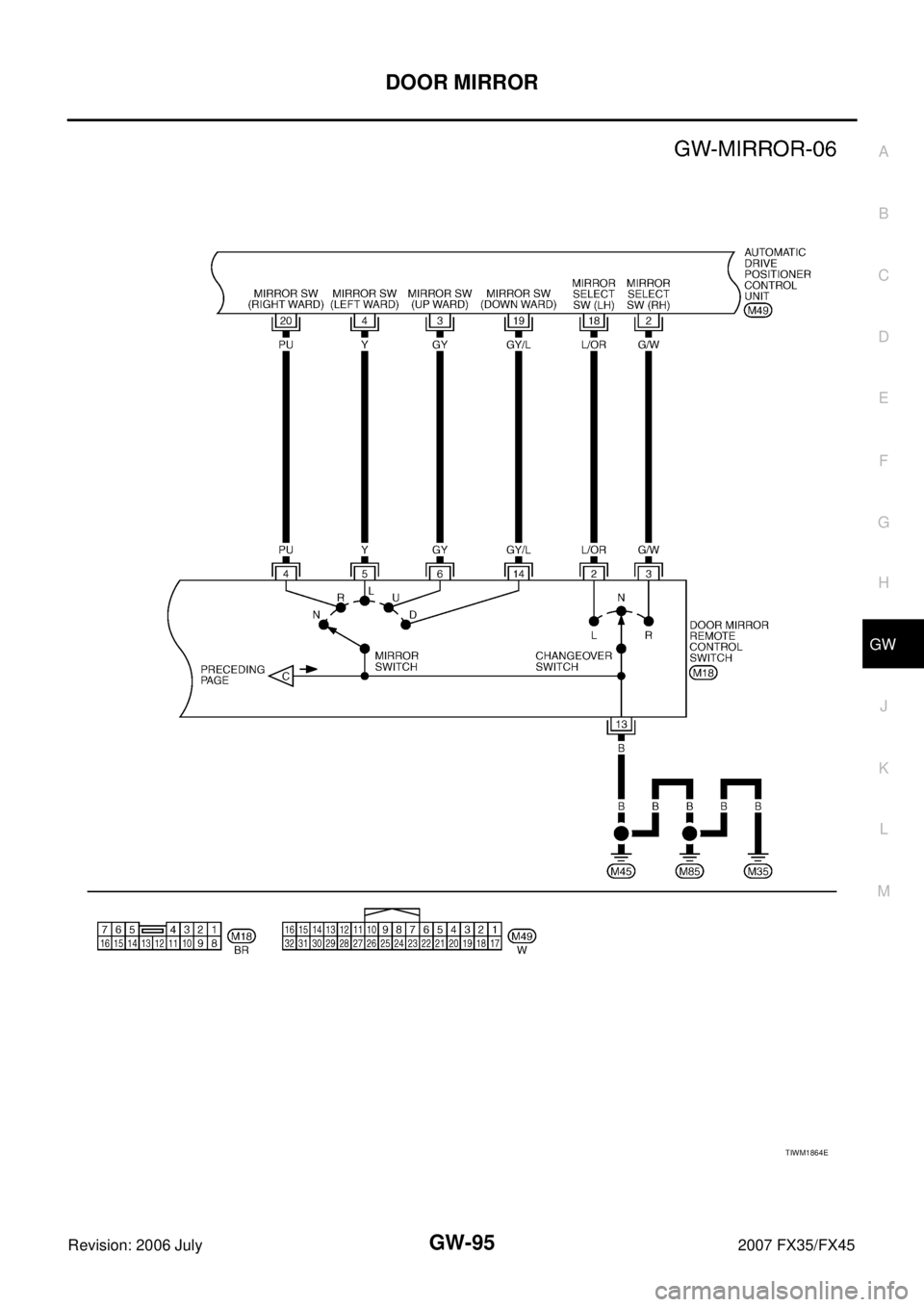

INFINITI FX35 2007 Service Manual GW-94 DOOR MIRROR Revision: 2006 July 2007 FX35/FX45 TIWM1863E

Page 3333 of 4366

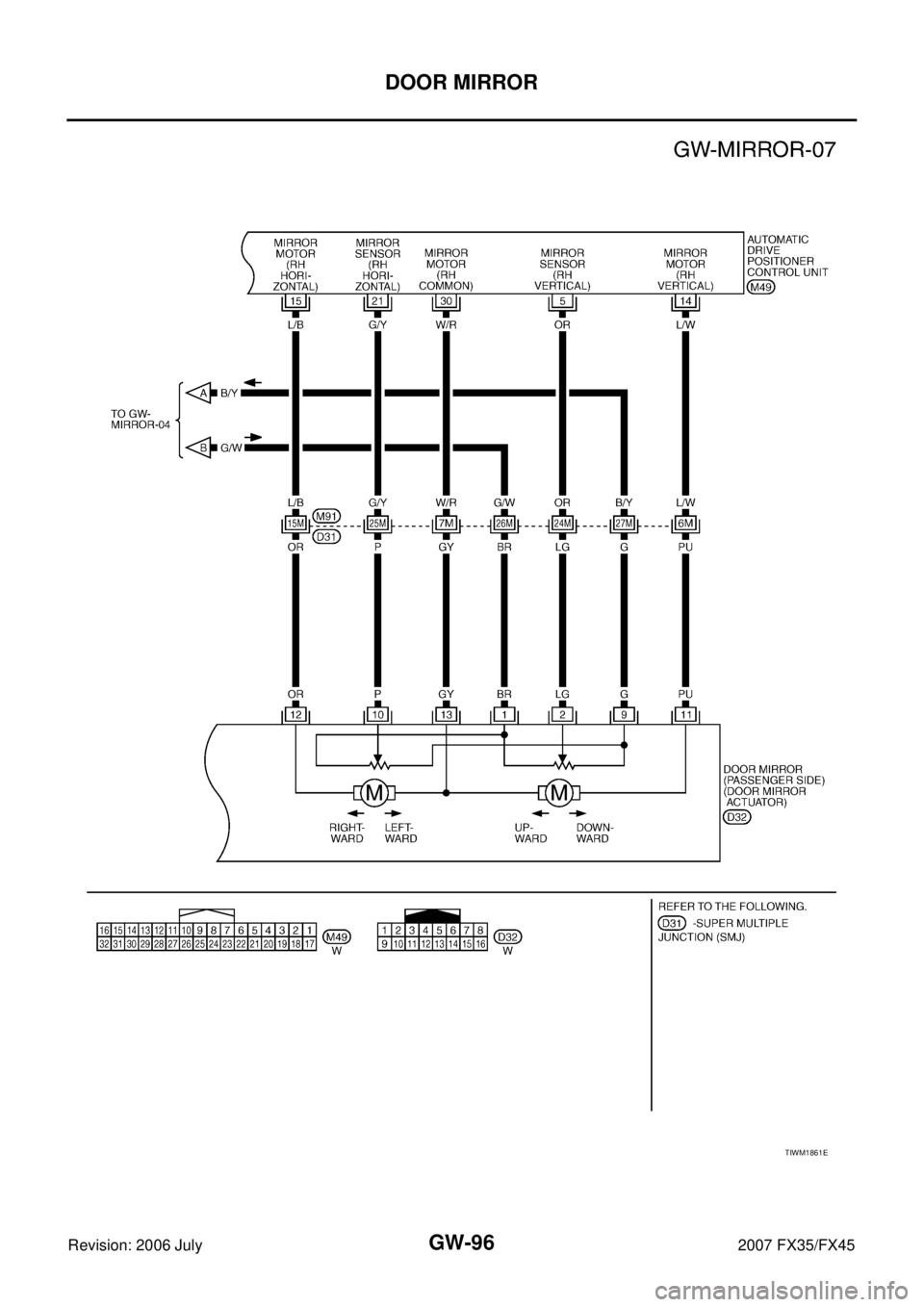

INFINITI FX35 2007 Service Manual DOOR MIRROR GW-95 C D E F G H J K L M A B GW Revision: 2006 July 2007 FX35/FX45 TIWM1864E

Page 3334 of 4366

INFINITI FX35 2007 Service Manual GW-96 DOOR MIRROR Revision: 2006 July 2007 FX35/FX45 TIWM1861E

Page 3335 of 4366

INFINITI FX35 2007 Service Manual DOOR MIRROR GW-97 C D E F G H J K L M A B GW Revision: 2006 July 2007 FX35/FX45 Trouble DiagnosisNIS001SN A trouble diagnosis of a automatic drive positioner interlocking door mirror is r

Page 3336 of 4366

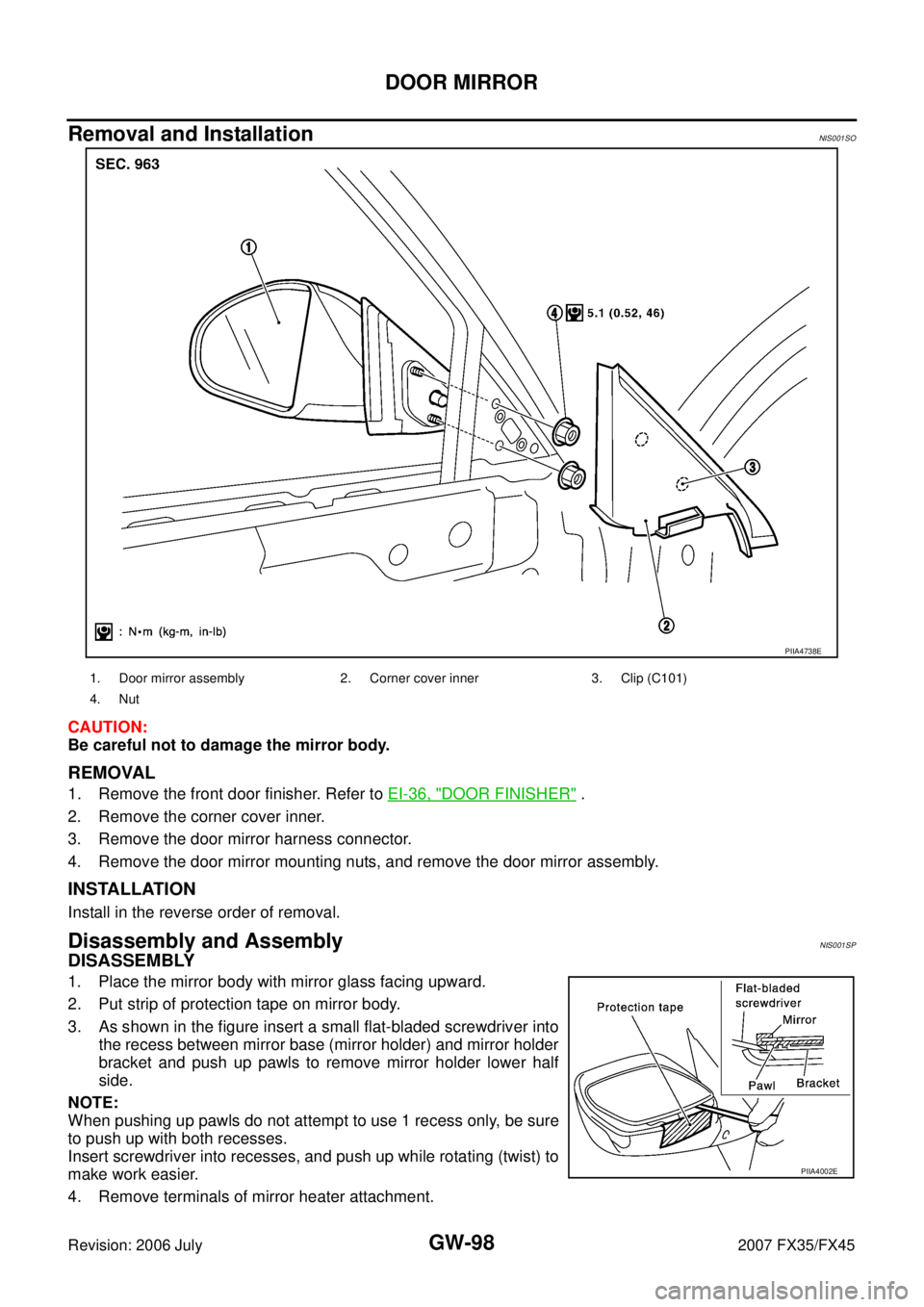

INFINITI FX35 2007 Service Manual GW-98 DOOR MIRROR Revision: 2006 July 2007 FX35/FX45 Removal and InstallationNIS001SO CAUTION: Be careful not to damage the mirror body. REMOVAL 1. Remove the front door finisher. Refer to EI-36, "
