INFINITI FX35 2007 Service Manual DTC P0130, P0150 A/F SENSOR 1 EC-233
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal

Page 1610 of 4366

INFINITI FX35 2007 Service Manual EC-234
[VQ35DE]
DTC P0130, P0150 A/F SENSOR 1
Revision: 2006 July 2007 FX35/FX45

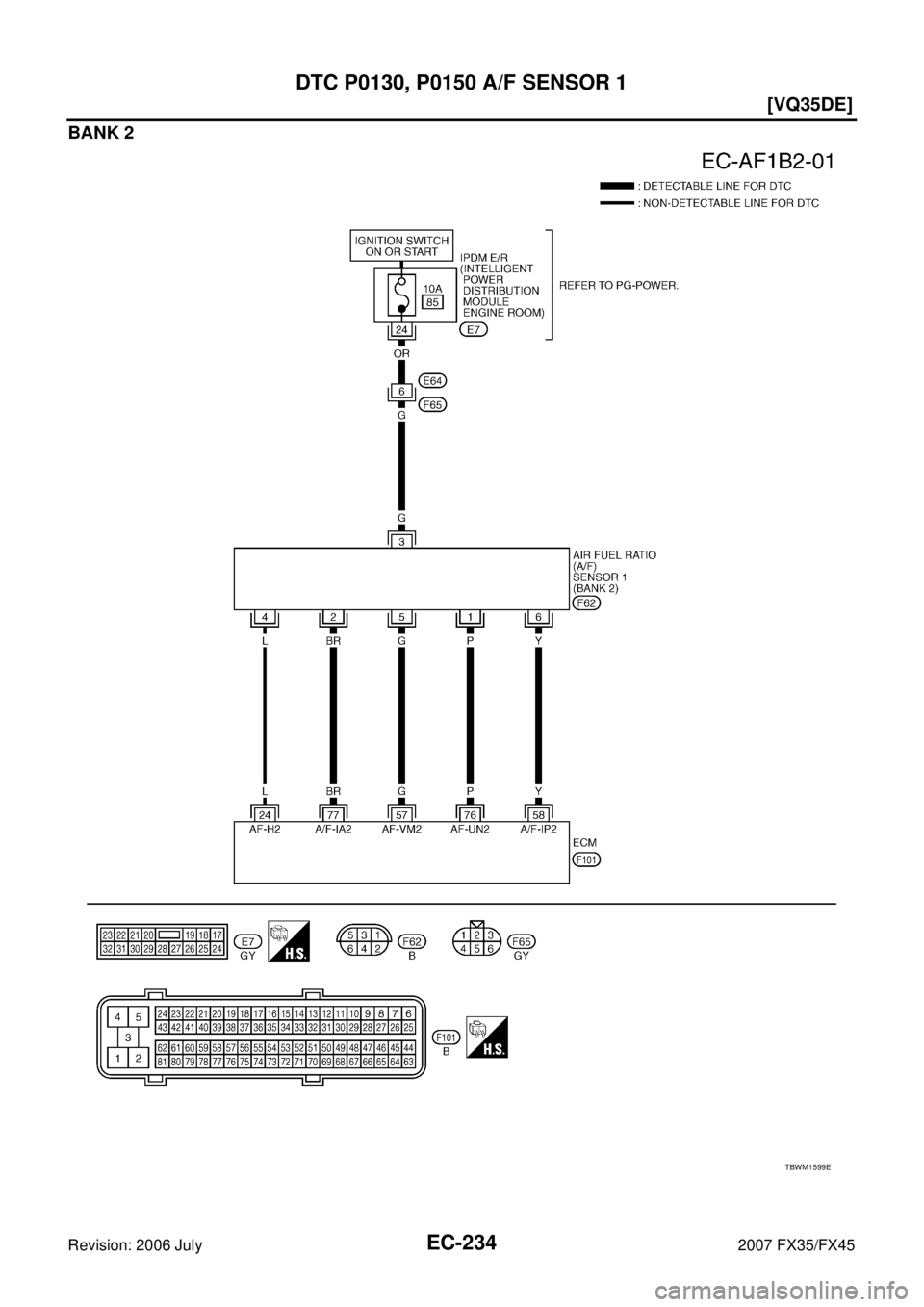

BANK 2
TBWM1599E

Page 1611 of 4366

INFINITI FX35 2007 Service Manual DTC P0130, P0150 A/F SENSOR 1 EC-235
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Specification data are reference values and are measured between each terminal

Page 1612 of 4366

INFINITI FX35 2007 Service Manual EC-236
[VQ35DE]
DTC P0130, P0150 A/F SENSOR 1
Revision: 2006 July 2007 FX35/FX45

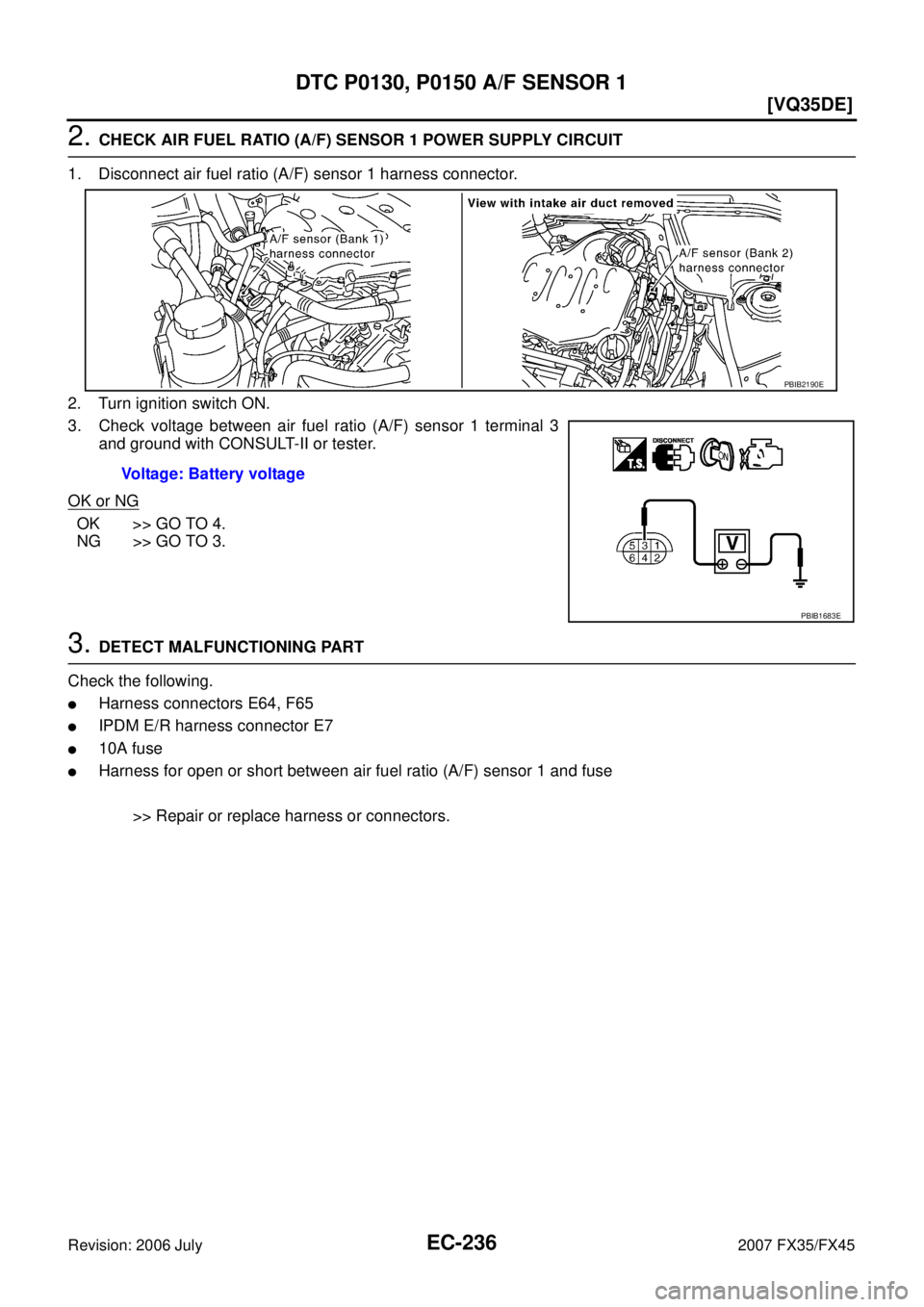

2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A/F) sensor 1 harness connec

Page 1613 of 4366

INFINITI FX35 2007 Service Manual DTC P0130, P0150 A/F SENSOR 1 EC-237
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
4. CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition s

Page 1614 of 4366

INFINITI FX35 2007 Service Manual EC-238
[VQ35DE]
DTC P0130, P0150 A/F SENSOR 1
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNBS003W2
AIR FUEL RATIO (A/F) SENSOR 1
Refer to EM-26, "EXHAUST MANIFOLD AND THREE WAY CATALYST

Page 1615 of 4366

INFINITI FX35 2007 Service Manual DTC P0131, P0151 A/F SENSOR 1 EC-239
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0131, P0151 A/F SENSOR 1PFP:22693
Component DescriptionNBS003V3
The air fu

DTC P0131, P0151 A/F SENSOR 1 EC-239
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0131, P0151 A/F SENSOR 1PFP:22693
Component DescriptionNBS003V3
The air fuel ratio (A/F) sensor is a planar dual-cell limit current sen-
sor. The sensor element of the air fuel ratio (A/F) sensor is the com-
bination of a Nernst concentration cell (sensor cell) with an oxygen-
pump cell, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range (0.7 < < air).
The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.
An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at = 1. Therefore, the air fuel ratio (A/F) sen-
sor is able to indicate air/fuel ratio by this pumping of current. In
addition, a heater is integrated in the sensor to ensure the required
operating temperature of 700 - 800 °C (1,292 - 1,472 °F).
CONSULT-II Reference Value in Data Monitor ModeNBS003V4
Specification data are reference values.
On Board Diagnosis LogicNBS003V5
To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the air fuel ratio (A/
F) sensor 1 signal is not inordinately low.
SEF579Z
SEF580Z
MONITOR ITEM CONDITION SPECIFICATION
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming up Maintaining engine speed at
2,000 rpm Fluctuates around 1.5V
DTC No. Trouble diagnosis name DTC detecting condition Possible Cause
P0131
0131
(Bank 1) Air fuel ratio (A/F) sensor 1
circuit low voltage The A/F signal computed by ECM from the air
fuel ratio (A/F) sensor 1 signal is constantly
approx. 0V.
Harness or connectors
[Air fuel ratio (A/F) sensor 1 circuit
is open or shorted.]
Air fuel ratio (A/F) sensor 1
P0151
0151
(Bank 2)

Page 1616 of 4366

INFINITI FX35 2007 Service Manual EC-240
[VQ35DE]
DTC P0131, P0151 A/F SENSOR 1
Revision: 2006 July 2007 FX35/FX45
DTC Confirmation ProcedureNBS003V6
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn igni
