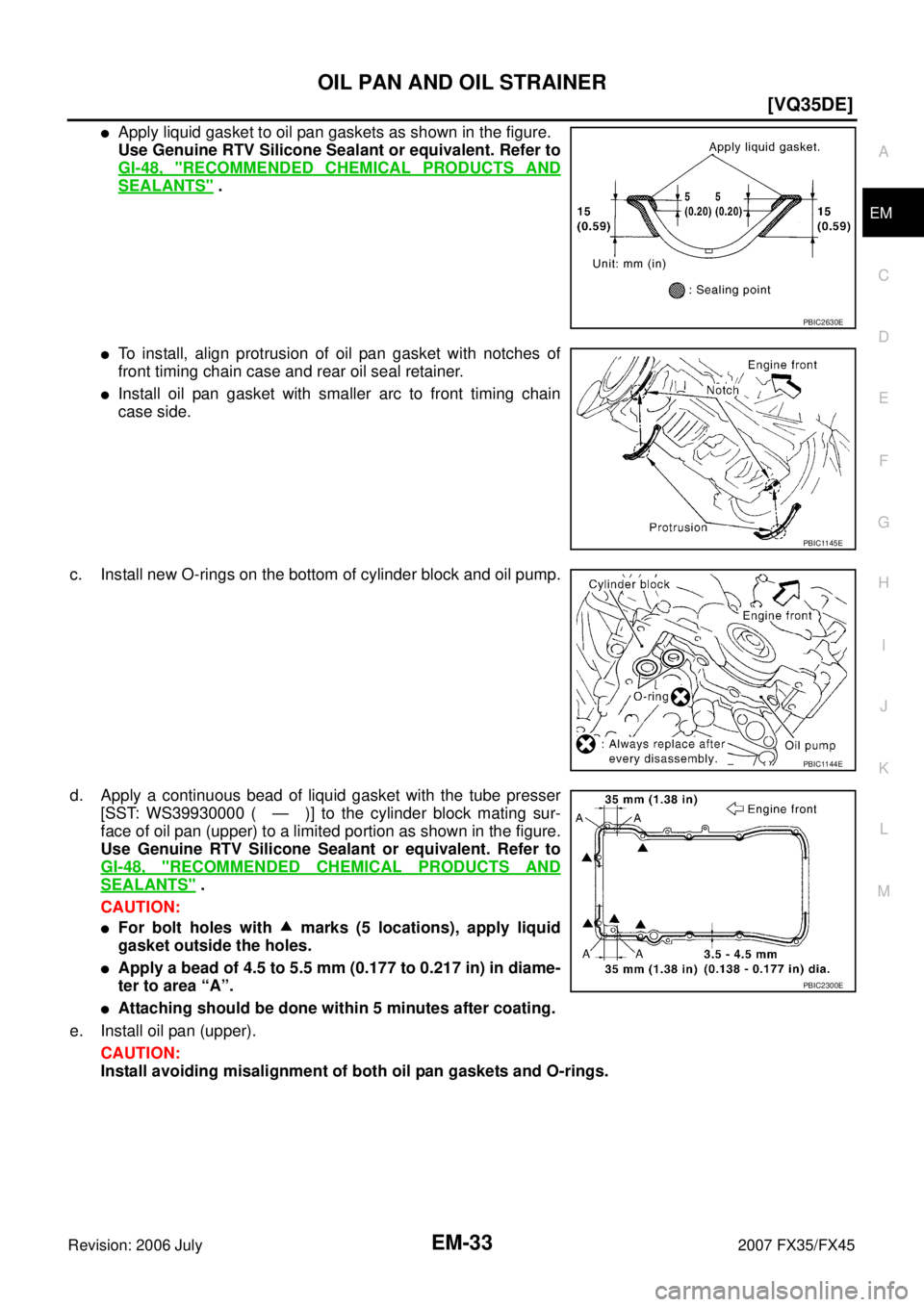

INFINITI FX35 2007 Service Manual OIL PAN AND OIL STRAINER EM-33
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Apply liquid gasket to oil pan gaskets as shown in the figure.
Use Genuine RTV Sili

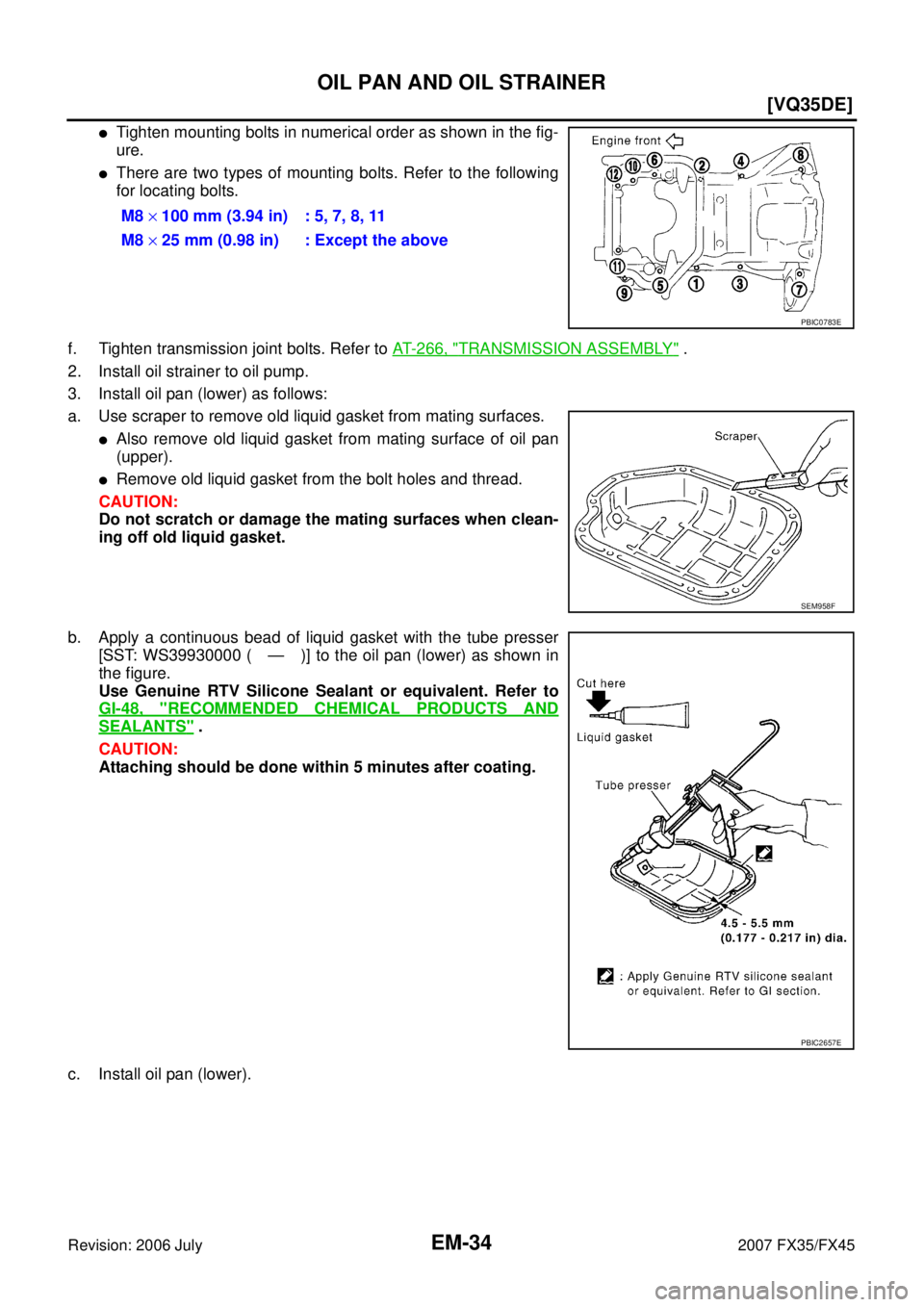

Page 2826 of 4366

INFINITI FX35 2007 Service Manual EM-34
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
Tighten mounting bolts in numerical order as shown in the fig-
ure.
There are two types of mounting bolts. Refer to the fo

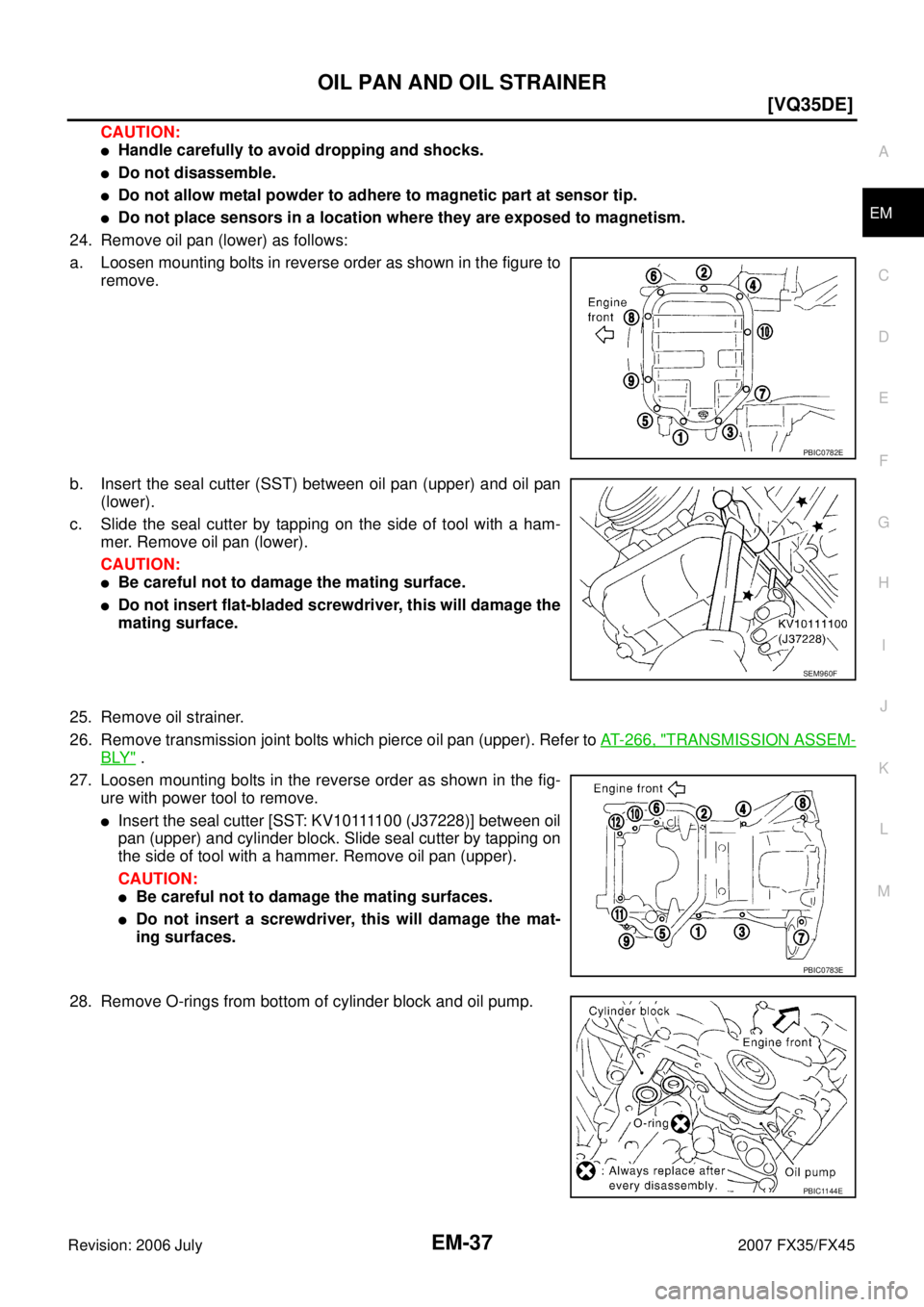

Page 2827 of 4366

INFINITI FX35 2007 Service Manual OIL PAN AND OIL STRAINER EM-35
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Tighten mounting bolts in numerical order as shown in the fig-
ure.
4. Install oil

Page 2828 of 4366

INFINITI FX35 2007 Service Manual EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
Removal and Installation (AWD Models)NBS003GE
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil

EM-36
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
Removal and Installation (AWD Models)NBS003GE
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
To remove oil pan (lower) only, take step 5, then step 24. Removal of step 1, hood assembly (step 2) and step
4 are unnecessary.
1. Remove front tire.
2. Remove hood assembly. Refer to BL-13, "
HOOD" .
3. Remove front and rear engine undercover with power tool.
4. Remove front cross bar with power tool. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
5. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
8. Remove air hose from air duct to mass air flow sensor side and electric throttle control actuator side. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
9. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
10. Remove front drive shaft (LH and RH) and side shaft. Refer to FAX-12, "
FRONT DRIVE SHAFT" .
11. Remove side shaft. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
12. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-8, "
Special Service Tools" .
13. Remove front suspension member. Refer to FSU-17, "
FRONT SUSPENSION MEMBER" .
14. Remove engine mounting bracket, engine mounting bracket (lower) and insulator. Refer to EM-113,
"ENGINE ASSEMBLY" .
15. Remove front propeller shaft. Refer to PR-4, "
FRONT PROPELLER SHAFT" .
16. Remove oil filter and oil filter bracket. Refer to LU-12, "
OIL FILTER BRACKET (AWD)" .
17. Remove alternator stay. Refer to SC-24, "
CHARGING SYSTEM" .
18. Remove idler pulley and bracket. Refer to EM-15, "
DRIVE BELTS" .
19. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
20. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 6 6 , "
TRANSMISSION
ASSEMBLY" .
21. Remove front final drive assembly. Refer to FFD-13, "
FRONT FINAL DRIVE ASSEMBLY" .
22. Remove starter motor. Refer to SC-11, "
STARTING SYSTEM" .
23. Remove crankshaft position sensor (POS).
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil filter bracket 11. Oil filter bracket gasket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Rear plate cover 17. Crankshaft position sensor (POS) 18 O-ring (small)
19. O-ring (large) 20. Axle pipe
Slinger bolts: : 28.0 N·m (2.9 kg-m, 21 ft-lb)

Page 2829 of 4366

INFINITI FX35 2007 Service Manual OIL PAN AND OIL STRAINER EM-37
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not

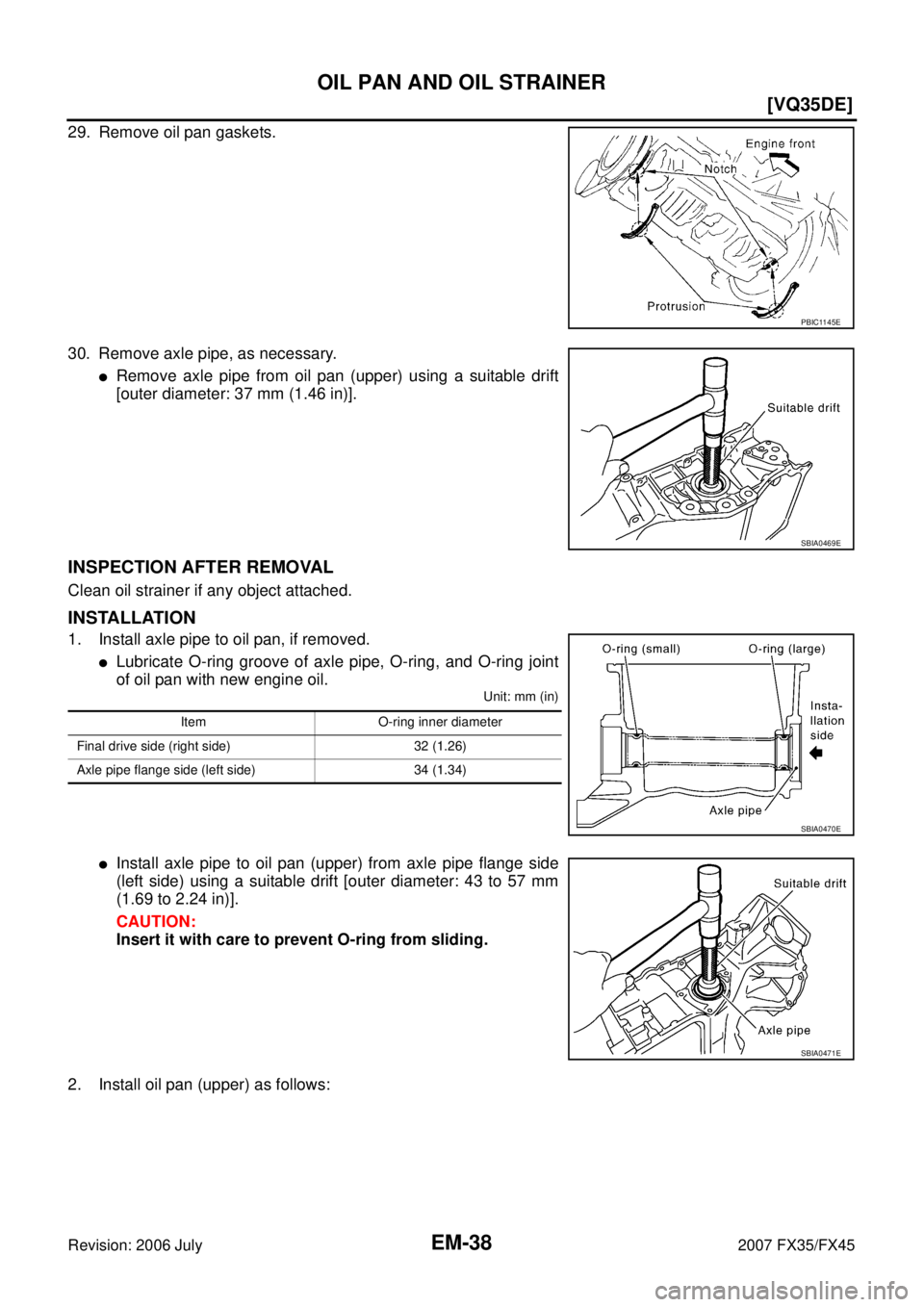

Page 2830 of 4366

INFINITI FX35 2007 Service Manual EM-38
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
29. Remove oil pan gaskets.
30. Remove axle pipe, as necessary.
Remove axle pipe from oil pan (upper) using a suitable drif

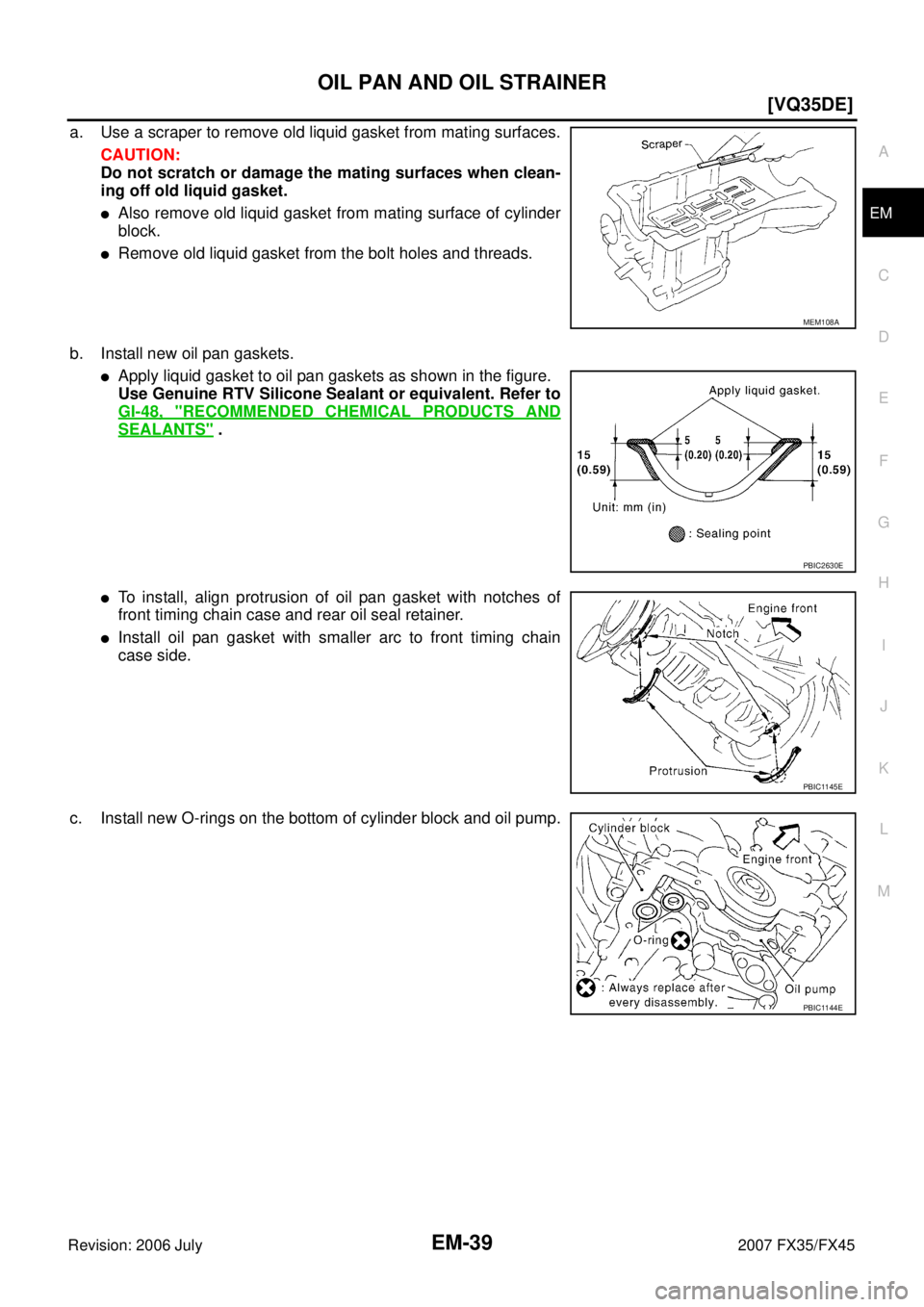

Page 2831 of 4366

INFINITI FX35 2007 Service Manual OIL PAN AND OIL STRAINER EM-39
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
a. Use a scraper to remove old liquid gasket from mating surfaces.
CAUTION:
Do not

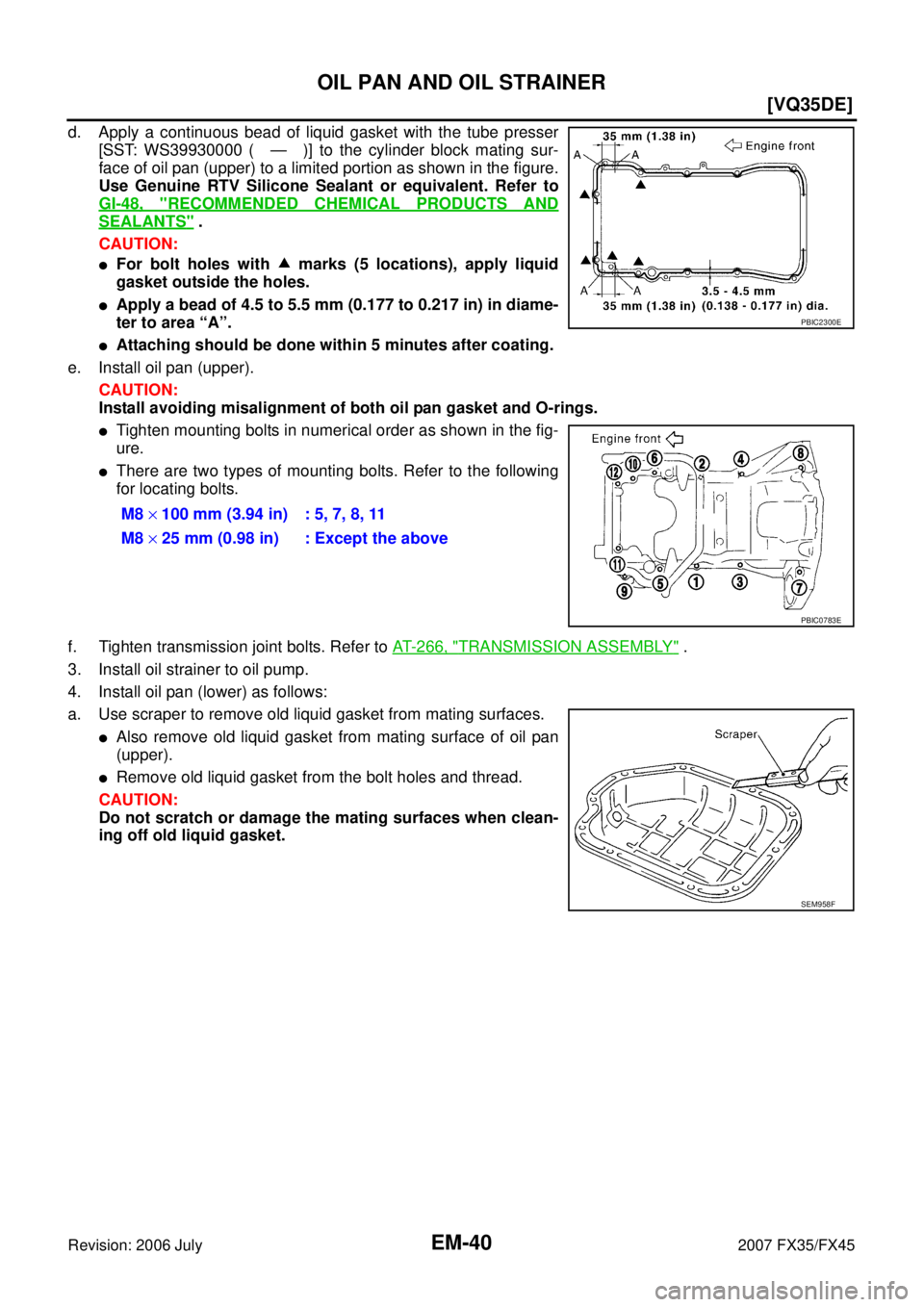

Page 2832 of 4366

INFINITI FX35 2007 Service Manual EM-40
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
d. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to the cylinder block mating sur
