Page 2753 of 4366

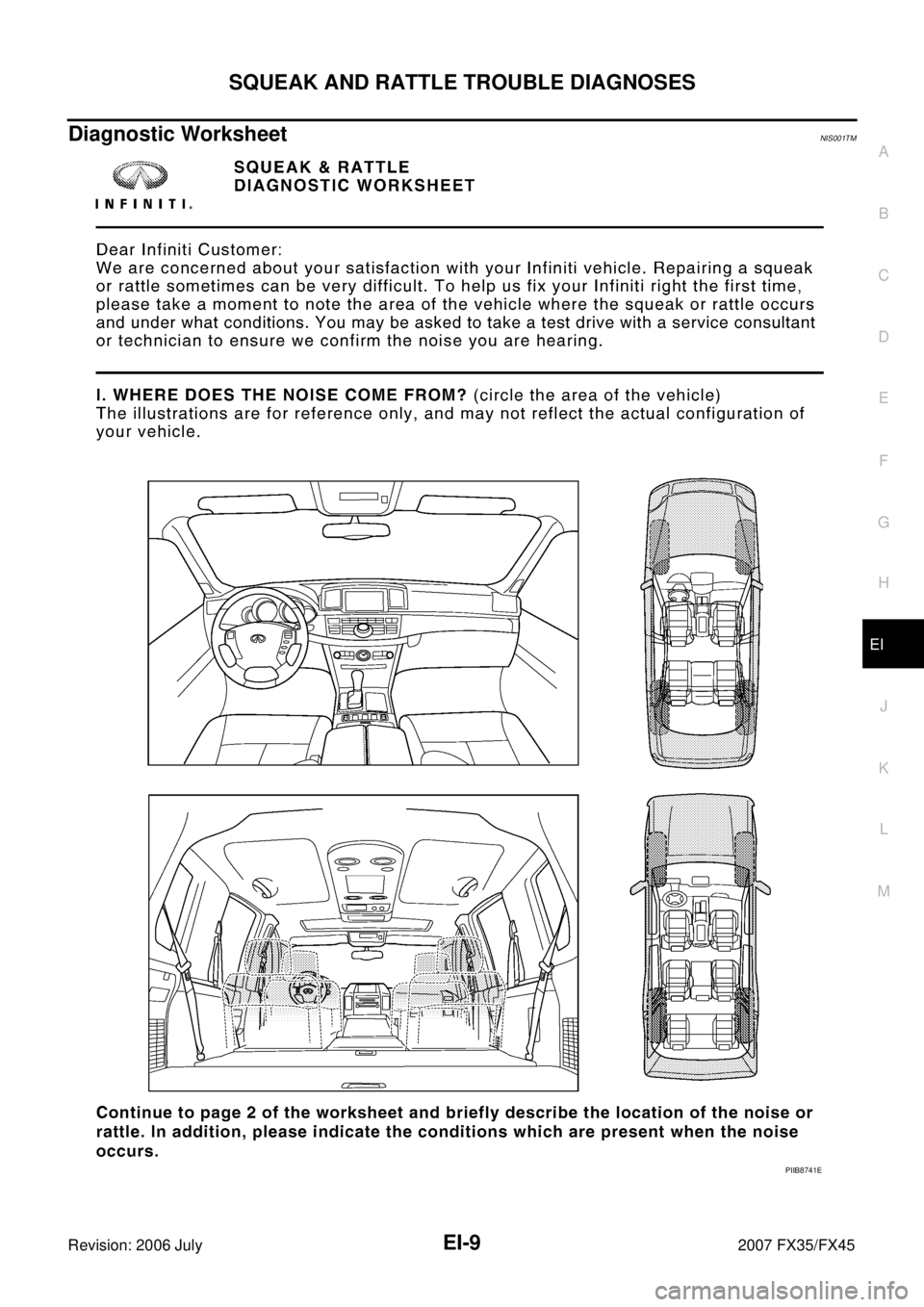

INFINITI FX35 2007 Service Manual SQUEAK AND RATTLE TROUBLE DIAGNOSES EI-9 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 Diagnostic WorksheetNIS001TM PIIB8741E

Page 2754 of 4366

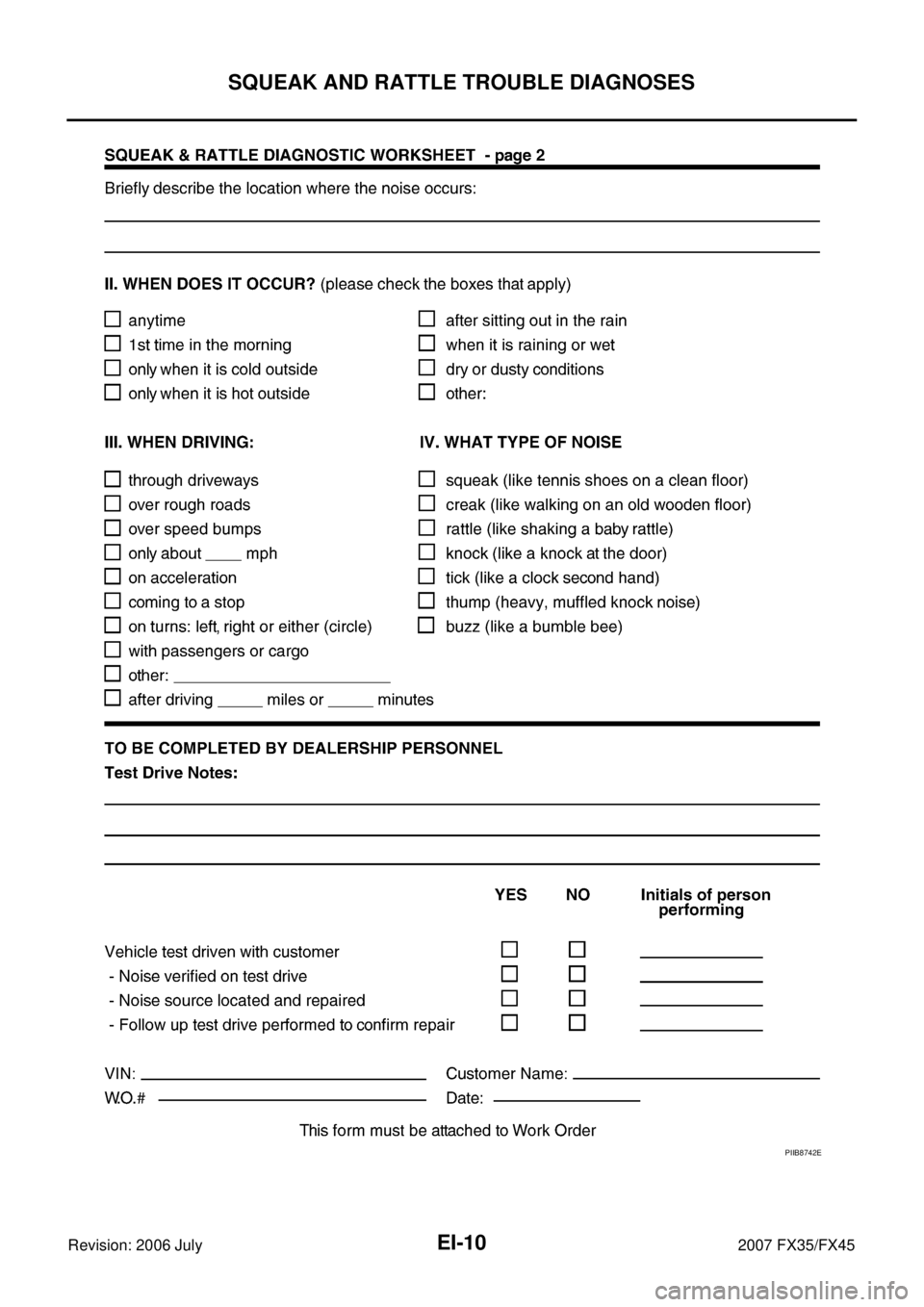

INFINITI FX35 2007 Service Manual EI-10 SQUEAK AND RATTLE TROUBLE DIAGNOSES Revision: 2006 July 2007 FX35/FX45 PIIB8742E

Page 2755 of 4366

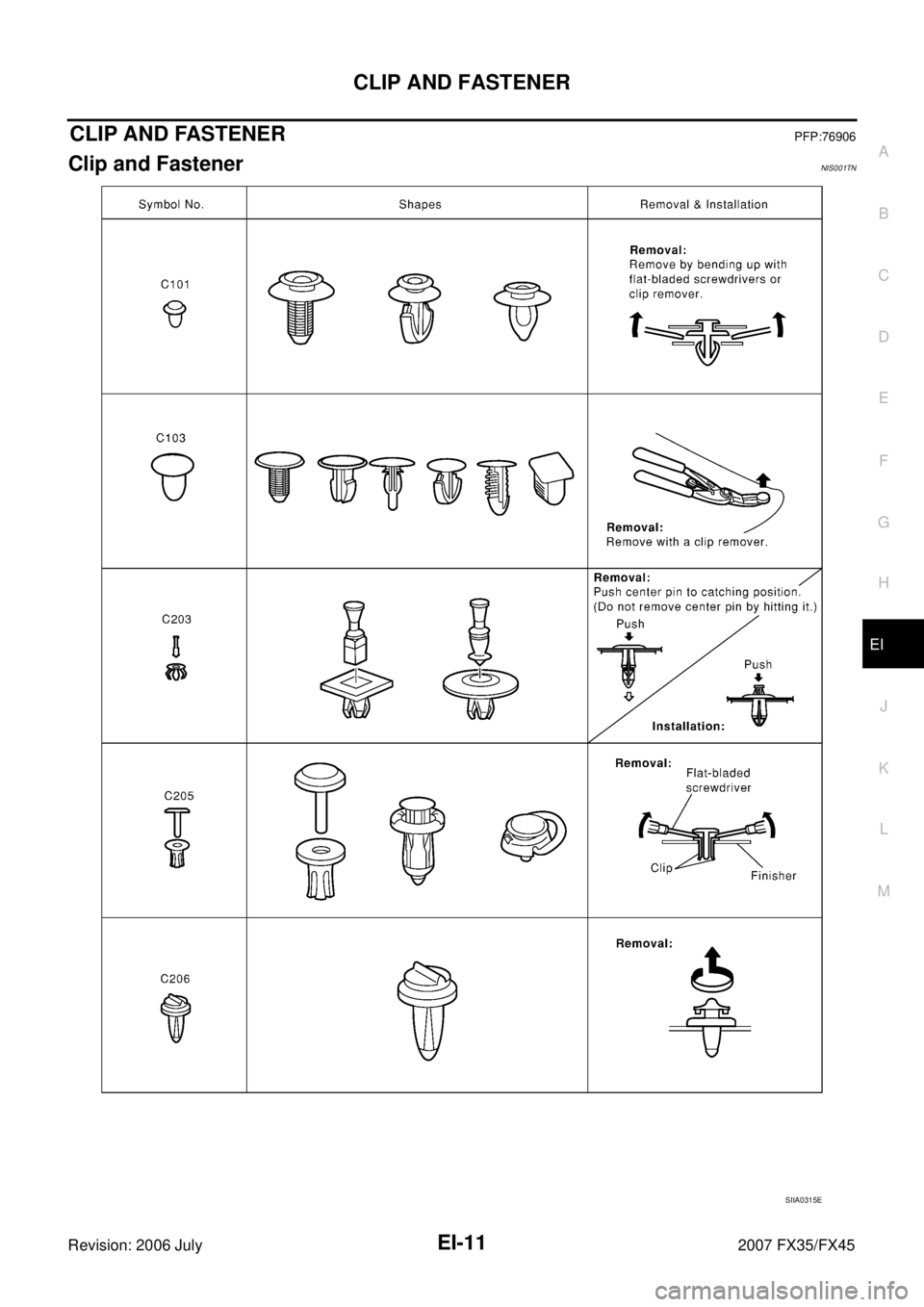

INFINITI FX35 2007 Service Manual CLIP AND FASTENER EI-11 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 CLIP AND FASTENERPFP:76906 Clip and FastenerNIS001TN SIIA0315E

Page 2756 of 4366

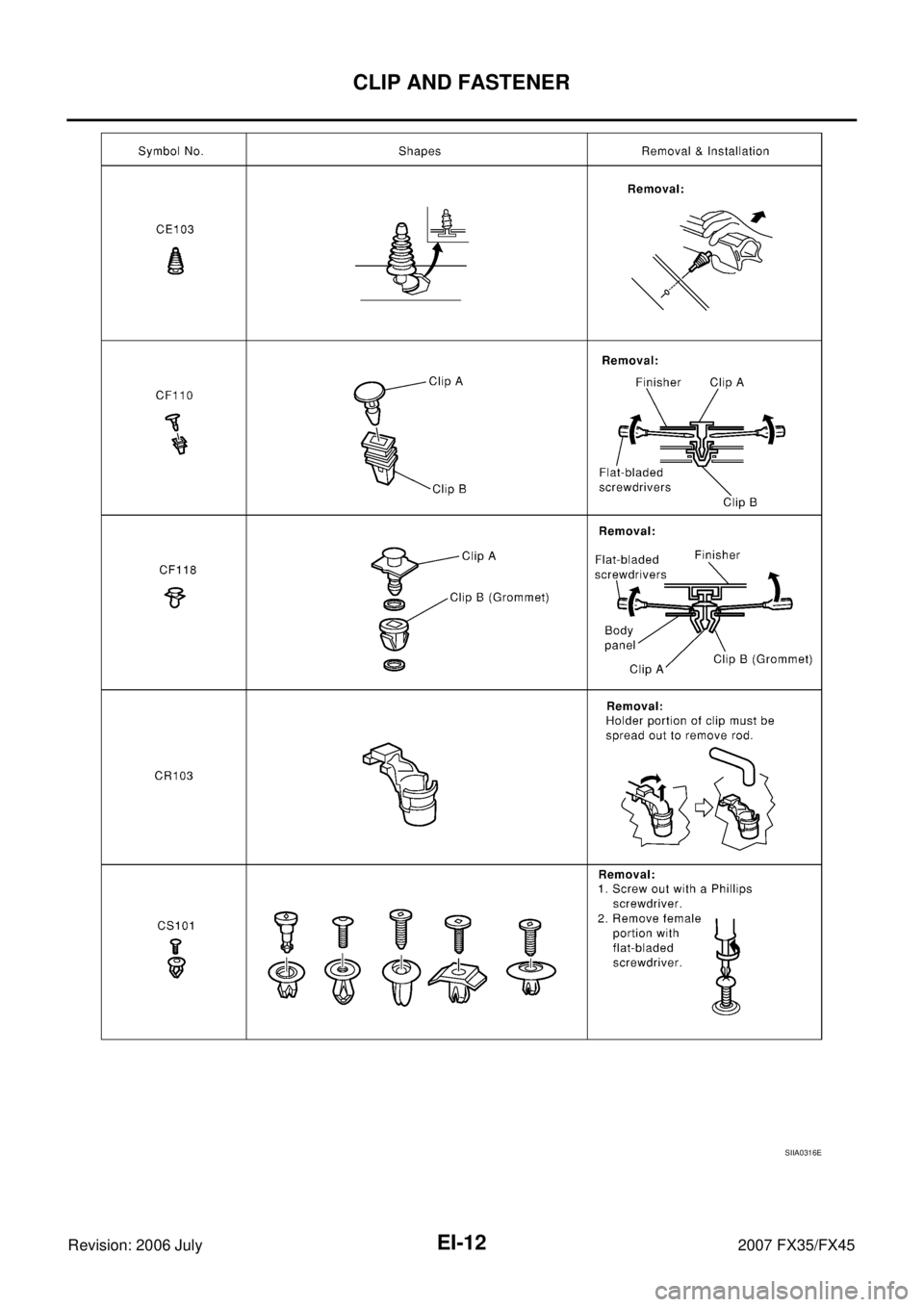

INFINITI FX35 2007 Service Manual EI-12 CLIP AND FASTENER Revision: 2006 July 2007 FX35/FX45 SIIA0316E

Page 2757 of 4366

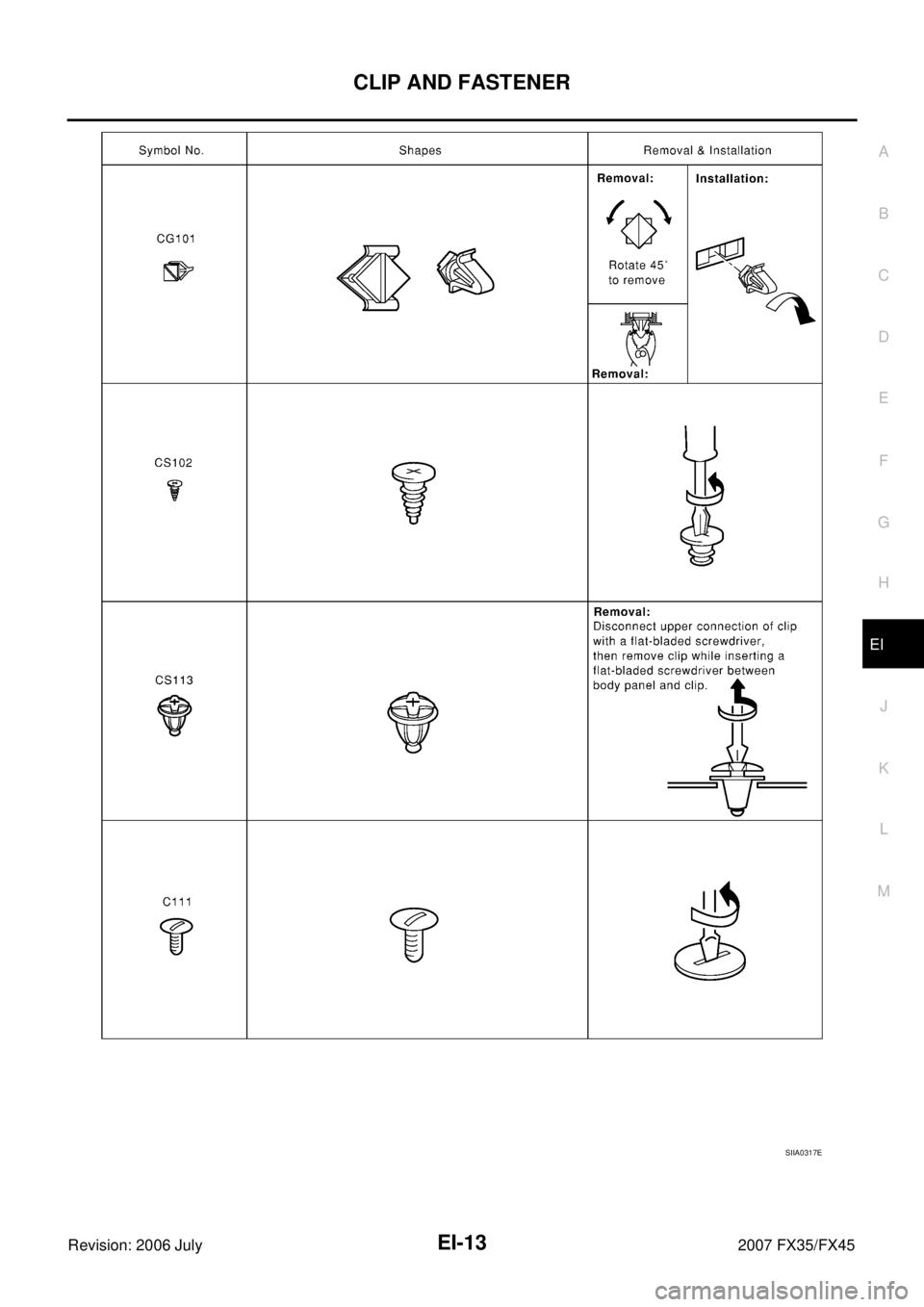

INFINITI FX35 2007 Service Manual CLIP AND FASTENER EI-13 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 SIIA0317E

Page 2758 of 4366

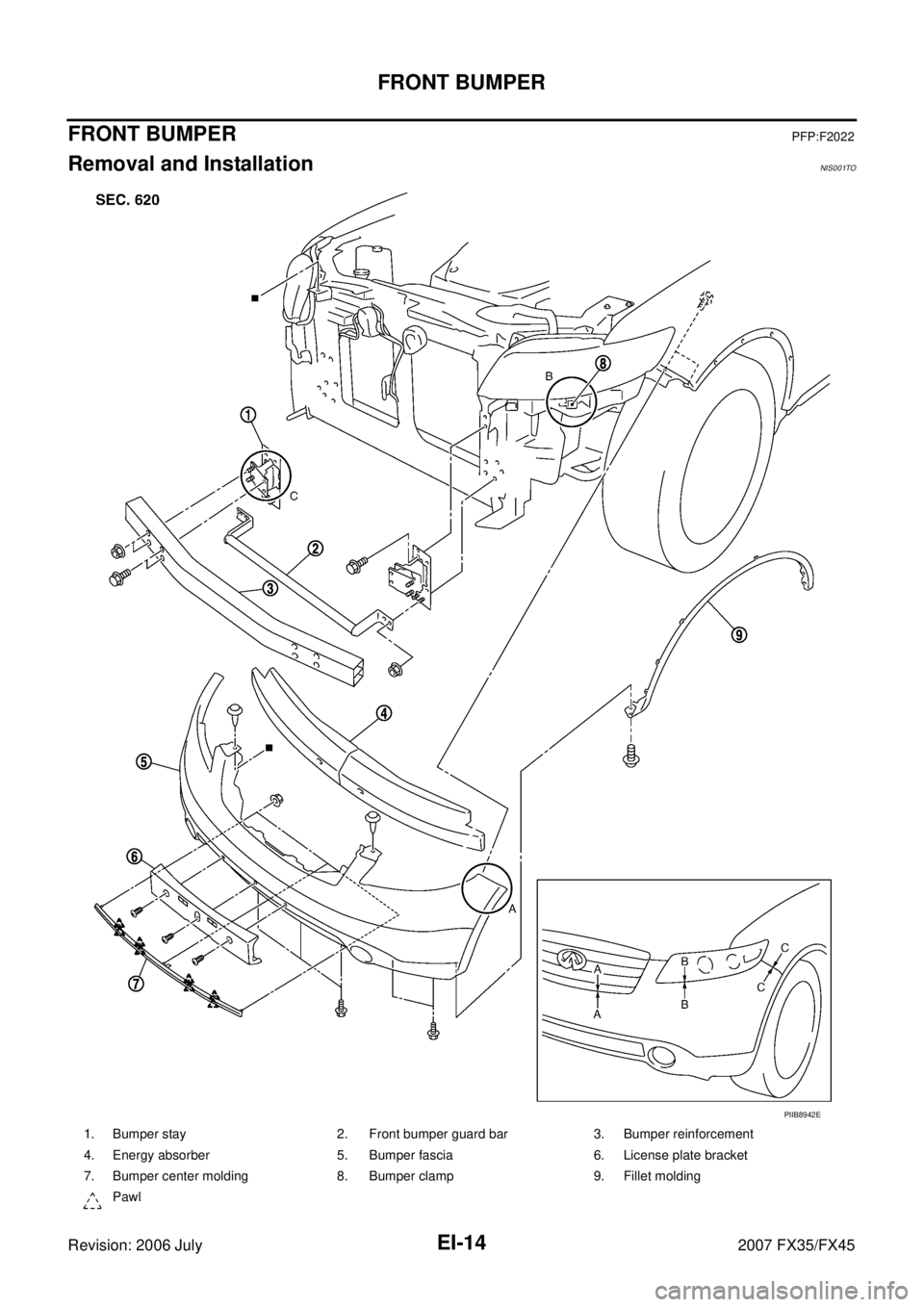

INFINITI FX35 2007 Service Manual EI-14 FRONT BUMPER Revision: 2006 July 2007 FX35/FX45 FRONT BUMPERPFP:F2022 Removal and InstallationNIS001TO 1. Bumper stay 2. Front bumper guard bar 3. Bumper reinforcement 4. Energy absorber 5. Bum

Page 2759 of 4366

INFINITI FX35 2007 Service Manual FRONT BUMPER EI-15 C D E F G H J K L M A B EI Revision: 2006 July 2007 FX35/FX45 CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent conta

Page 2760 of 4366

INFINITI FX35 2007 Service Manual EI-16 FRONT BUMPER Revision: 2006 July 2007 FX35/FX45 12. Remove nuts of bumper stay, and remove bumper stay. Remove nuts with power tool. 13. Remove nuts of front bumper guard bar, and remove front
