INTAKE MANIFOLD EM-25
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER REMOVAL
Surface Distortion

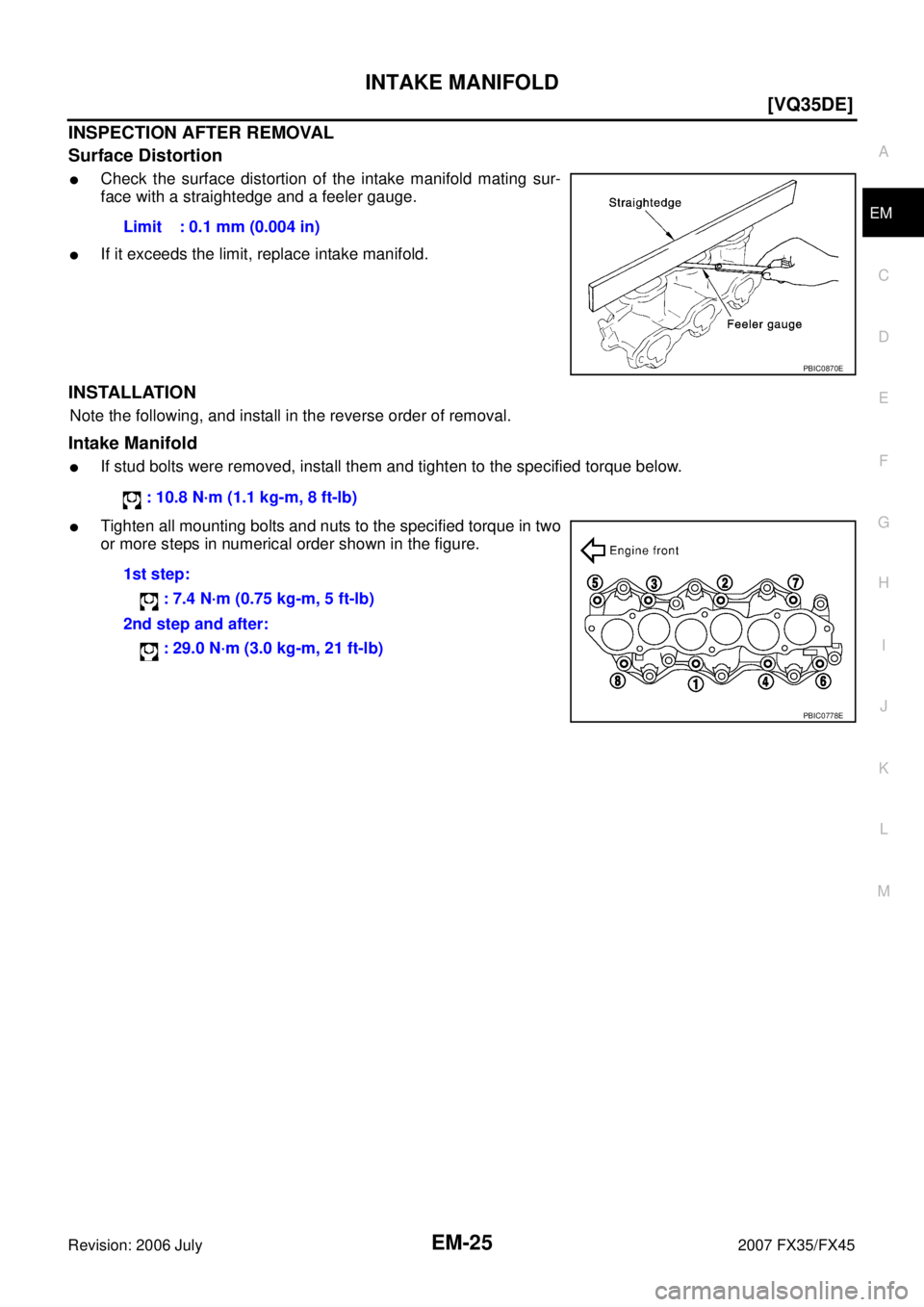

Check the surface distortion of the intake manifold mating sur-
face with a straightedge and a feeler gauge.
If it exceeds the limit, replace intake manifold.
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold
If stud bolts were removed, install them and tighten to the specified torque below.
Tighten all mounting bolts and nuts to the specified torque in two
or more steps in numerical order shown in the figure. Limit : 0.1 mm (0.004 in)
PBIC0870E
: 10.8 N·m (1.1 kg-m, 8 ft-lb)
1st step: : 7.4 N·m (0.75 kg-m, 5 ft-lb)
2nd step and after: : 29.0 N·m (3.0 kg-m, 21 ft-lb)
PBIC0778E
Page 2818 of 4366
![INFINITI FX35 2007 Service Manual EM-26
[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 July 2007 FX35/FX45
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004

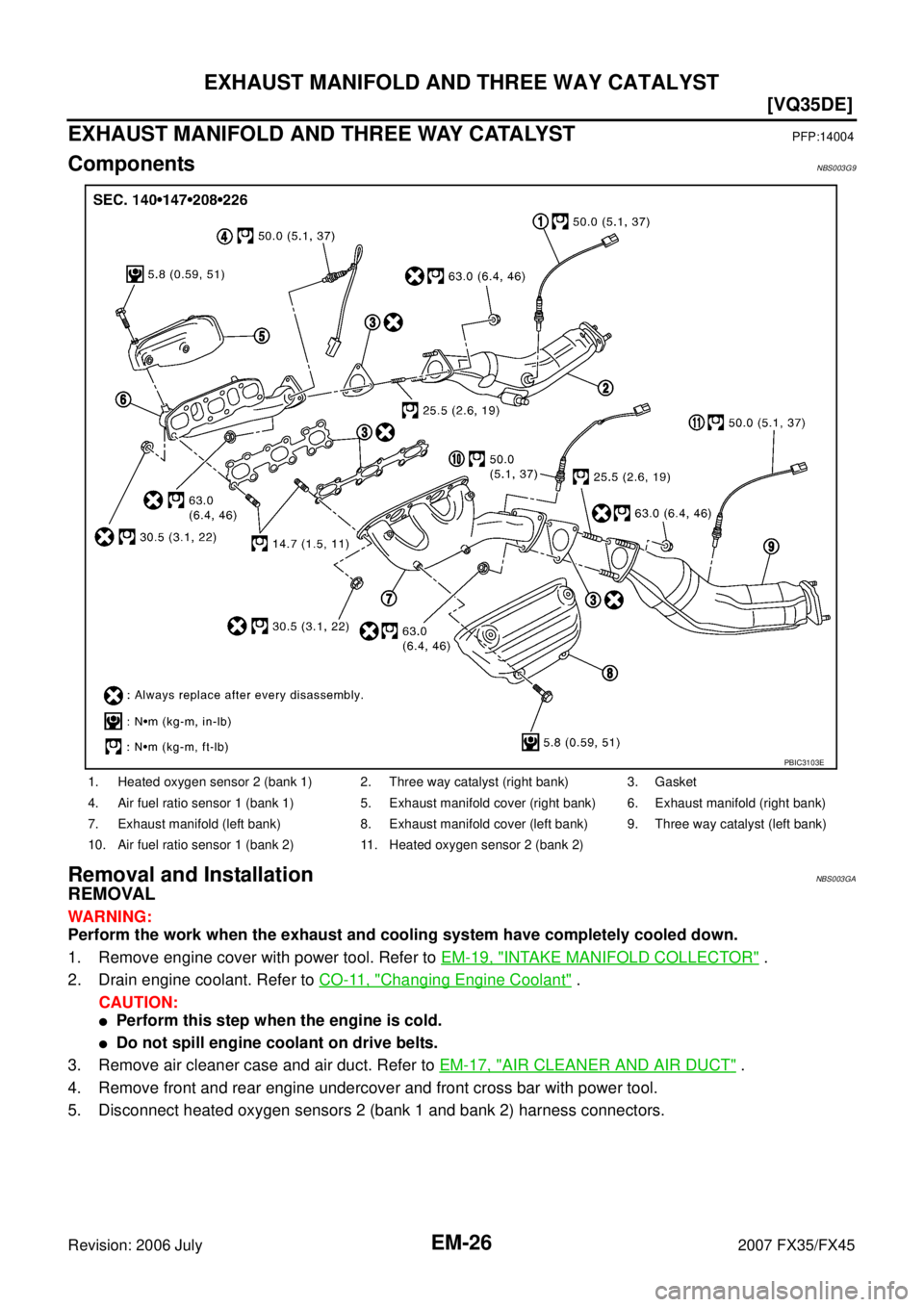

ComponentsNBS003G9
Removal and InstallationNBS003GA
REMOVAL
W INFINITI FX35 2007 Service Manual EM-26
[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 July 2007 FX35/FX45
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
ComponentsNBS003G9
Removal and InstallationNBS003GA
REMOVAL
W](/manual-img/42/57018/w960_57018-2817.png)
EM-26
[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 July 2007 FX35/FX45
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
ComponentsNBS003G9
Removal and InstallationNBS003GA
REMOVAL
WARNING:
Perform the work when the exhaust and cooling system have completely cooled down.
1. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
2. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
3. Remove air cleaner case and air duct. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
4. Remove front and rear engine undercover and front cross bar with power tool.
5. Disconnect heated oxygen sensors 2 (bank 1 and bank 2) harness connectors.
1. Heated oxygen sensor 2 (bank 1) 2. Three way catalyst (right bank) 3. Gasket
4. Air fuel ratio sensor 1 (bank 1) 5. Exhaust manifold cover (right bank) 6. Exhaust manifold (right bank)
7. Exhaust manifold (left bank) 8. Exhaust manifold cover (left bank) 9. Three way catalyst (left bank)
10. Air fuel ratio sensor 1 (bank 2) 11. Heated oxygen sensor 2 (bank 2)
PBIC3103E
Page 2819 of 4366
![INFINITI FX35 2007 Service Manual EXHAUST MANIFOLD AND THREE WAY CATALYST EM-27
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
6. Using the heated oxygen sensor wrench (SST), remove heated
oxygen INFINITI FX35 2007 Service Manual EXHAUST MANIFOLD AND THREE WAY CATALYST EM-27
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
6. Using the heated oxygen sensor wrench (SST), remove heated
oxygen](/manual-img/42/57018/w960_57018-2818.png)
EXHAUST MANIFOLD AND THREE WAY CATALYST EM-27
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
6. Using the heated oxygen sensor wrench (SST), remove heated
oxygen sensors 2 (bank 1 and bank 2).
CAUTION:
Be careful not to damage heated oxygen sensor.
Discard any heated oxygen sensor which has been
dropped onto a hard surface such as a concrete floor;
replace with a new sensor.
7. Remove exhaust mounting bracket between three way catalysts (right and left bank) and transmission. Refer to EX-3, "
EXHAUST SYSTEM" .
8. Remove three way catalysts (right and left bank).
9. Disconnect air fuel ratio sensor 1 (bank 1 and bank 2) harness connectors and remove harness clip.
10. Using the heated oxygen sensor wrench (SST), remove air fuel ratio sensor 1 (bank 1 and bank 2).
CAUTION:
Be careful not to damage air fuel ratio sensor.
Discard any air fuel ratio sensor which has been dropped
onto a hard surface such as a concrete floor; replace with
a new sensor.
11. Remove water pipe and heater pipe on both right and left side. Refer to CO-29, "
WATER OUTLET AND
WATER PIPING" .
12. Remove exhaust manifold cover (right and left bank).

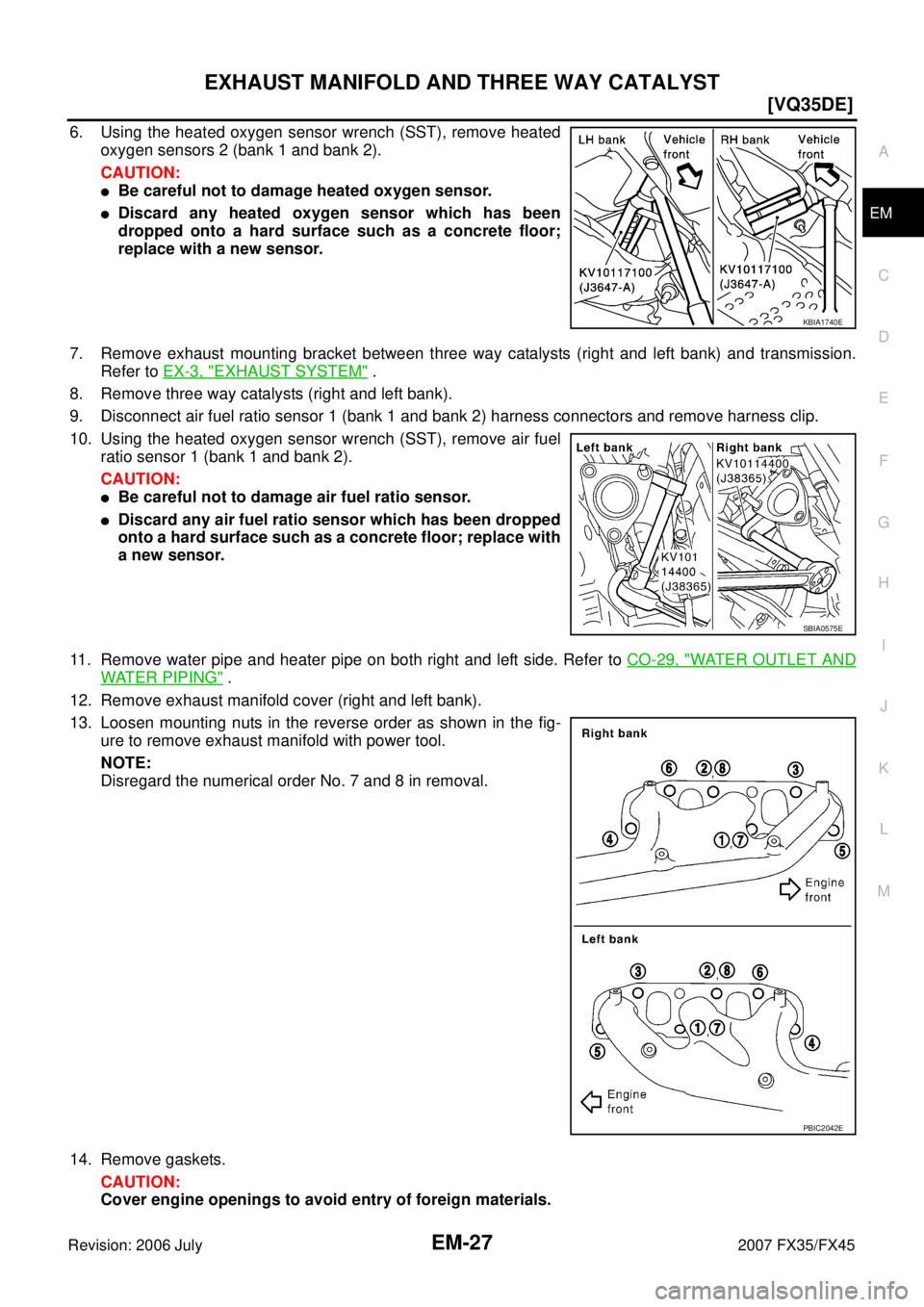

13. Loosen mounting nuts in the reverse order as shown in the fig- ure to remove exhaust manifold with power tool.
NOTE:
Disregard the numerical order No. 7 and 8 in removal.
14. Remove gaskets. CAUTION:
Cover engine openings to avoid entry of foreign materials.
KBIA1740E
SBIA0575E
PBIC2042E
Page 2820 of 4366
![INFINITI FX35 2007 Service Manual EM-28
[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of the exhaust manifold mating sur- INFINITI FX35 2007 Service Manual EM-28
[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of the exhaust manifold mating sur-](/manual-img/42/57018/w960_57018-2819.png)
EM-28
[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of the exhaust manifold mating sur-
face with a straightedge and a feeler gauge.
If it exceeds the limit, replace exhaust manifold.
INSTALLATION
Note the following, and install in the reverse order of removal.
Exhaust Manifold Gasket

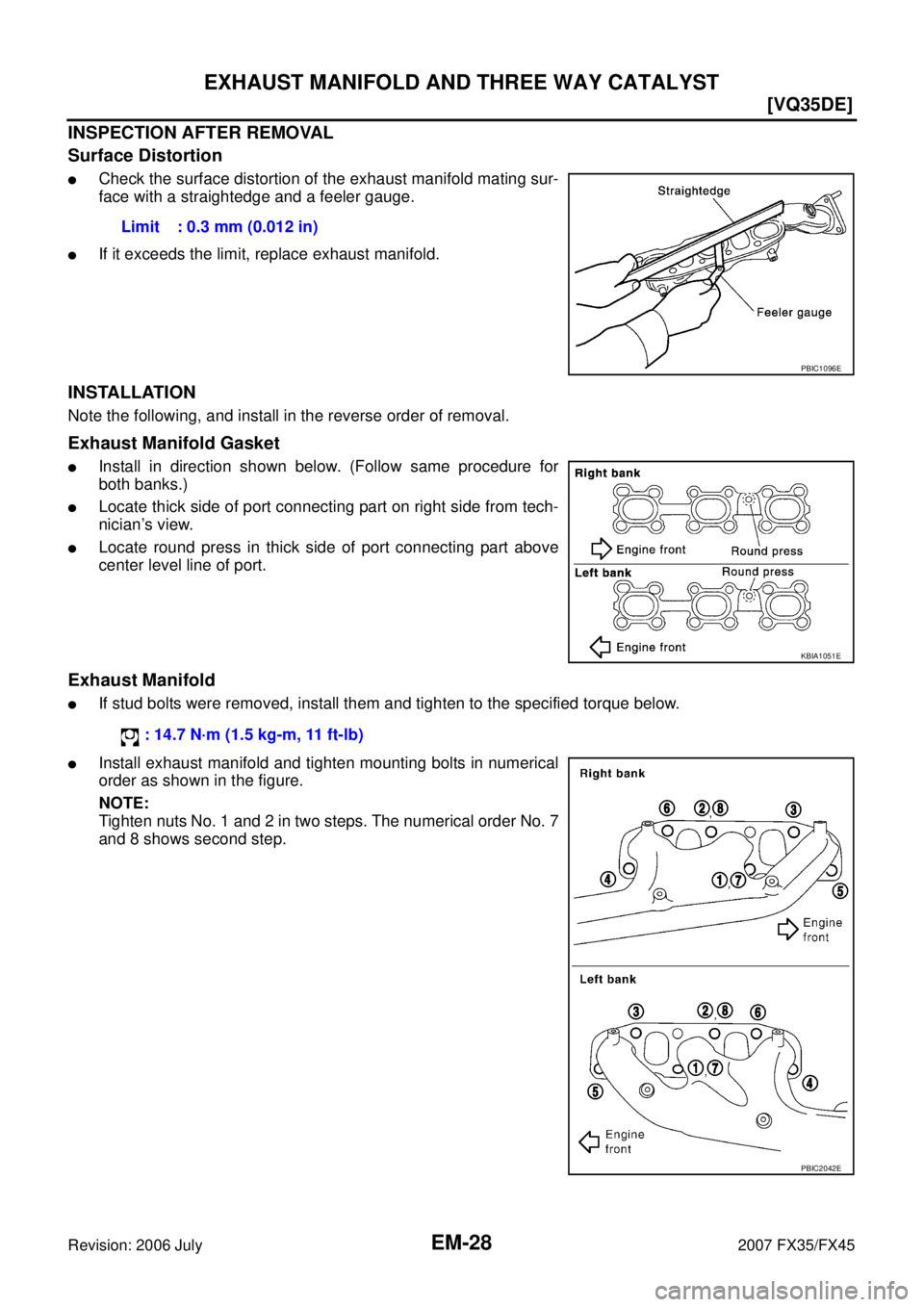

Install in direction shown below. (Follow same procedure for
both banks.)
Locate thick side of port connecting part on right side from tech-
nician’s view.
Locate round press in thick side of port connecting part above
center level line of port.
Exhaust Manifold
If stud bolts were removed, install them and tighten to the specified torque below.
Install exhaust manifold and tighten mounting bolts in numerical
order as shown in the figure.
NOTE:
Tighten nuts No. 1 and 2 in two steps. The numerical order No. 7
and 8 shows second step. Limit : 0.3 mm (0.012 in)
PBIC1096E
KBIA1051E
: 14.7 N·m (1.5 kg-m, 11 ft-lb)
PBIC2042E
Page 2821 of 4366
EXHAUST MANIFOLD AND THREE WAY CATALYST EM-29
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Air Fuel Ratio Sensor 1 and Heated Oxygen Sensor 2
CAUTION:
Before installing a new air fuel ratio sensor 1 and new heated oxygen sensor 2, clean exhaust sys-
tem threads using heated oxygen sensor thread cleaner tool (Commercial Service Tool: J-43897-
18 or J-43897-12) and apply anti-seize lubricant.
Do not over torque air fuel ratio sensor 1 and heated oxygen sensor 2. Doing so may cause dam-
age to air fuel ratio sensor 1 and heated oxygen sensor 2, resulting in the “MIL” coming on.
Page 2822 of 4366
![INFINITI FX35 2007 Service Manual EM-30
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
OIL PAN AND OIL STRAINERP F P : 1111 0

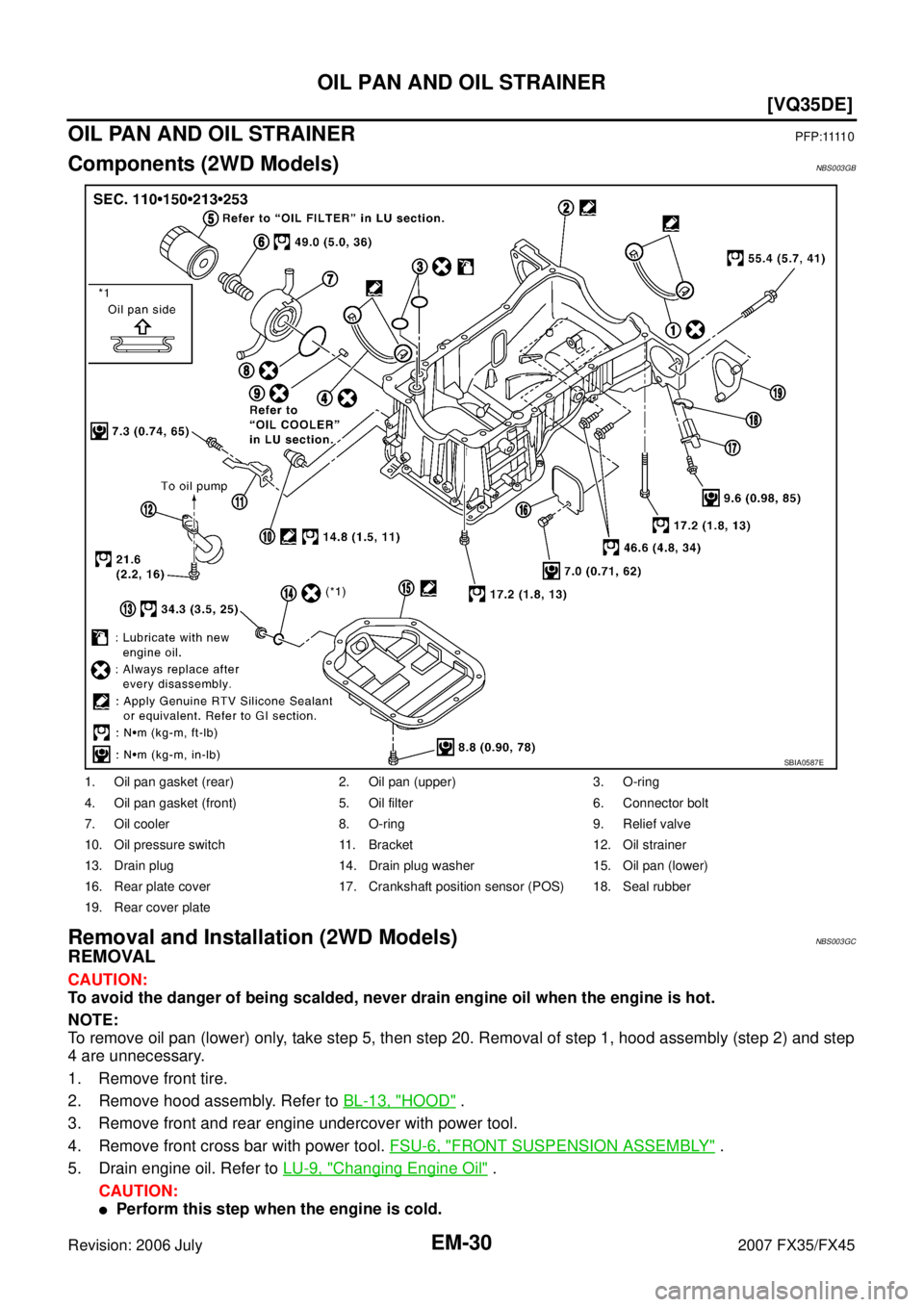

Components (2WD Models)NBS003GB
Removal and Installation (2WD Models)NBS003GC
REMOVAL
INFINITI FX35 2007 Service Manual EM-30
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
OIL PAN AND OIL STRAINERP F P : 1111 0
Components (2WD Models)NBS003GB
Removal and Installation (2WD Models)NBS003GC
REMOVAL](/manual-img/42/57018/w960_57018-2821.png)
EM-30
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
OIL PAN AND OIL STRAINERP F P : 1111 0
Components (2WD Models)NBS003GB
Removal and Installation (2WD Models)NBS003GC
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
To remove oil pan (lower) only, take step 5, then step 20. Removal of step 1, hood assembly (step 2) and step
4 are unnecessary.
1. Remove front tire.
2. Remove hood assembly. Refer to BL-13, "
HOOD" .
3. Remove front and rear engine undercover with power tool.
4. Remove front cross bar with power tool. FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
5. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil pressure switch 11. Bracket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Rear plate cover 17. Crankshaft position sensor (POS) 18. Seal rubber
19. Rear cover plate
SBIA0587E
Page 2823 of 4366
![INFINITI FX35 2007 Service Manual OIL PAN AND OIL STRAINER EM-31
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-11, INFINITI FX35 2007 Service Manual OIL PAN AND OIL STRAINER EM-31
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-11,](/manual-img/42/57018/w960_57018-2822.png)
OIL PAN AND OIL STRAINER EM-31
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
8. Remove air hose from air duct to mass air flow sensor side and electric throttle control actuator side. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
9. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-8, "
Special Service Tools" .
10. Remove front suspension member. Refer to FSU-17, "
FRONT SUSPENSION MEMBER" .
11. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
12. Remove alternator stay. Refer to SC-24, "
CHARGING SYSTEM" .
13. Remove starter motor. Refer to SC-11, "
STARTING SYSTEM" .
14. Remove idler pulley and bracket assembly. Refer to EM-64, "
TIMING CHAIN" .
15. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-14, "
OIL
COOLER" .
16. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT- 2 6 6 , "
TRANSMISSION
ASSEMBLY" .
17. Remove crankshaft position sensor (POS).
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
18. Remove oil filter, as necessary. Refer to LU-10, "
OIL FILTER" .
19. Remove oil cooler, as necessary. Refer to LU-14, "
OIL COOLER" .
20. Remove oil pan (lower) as follows:

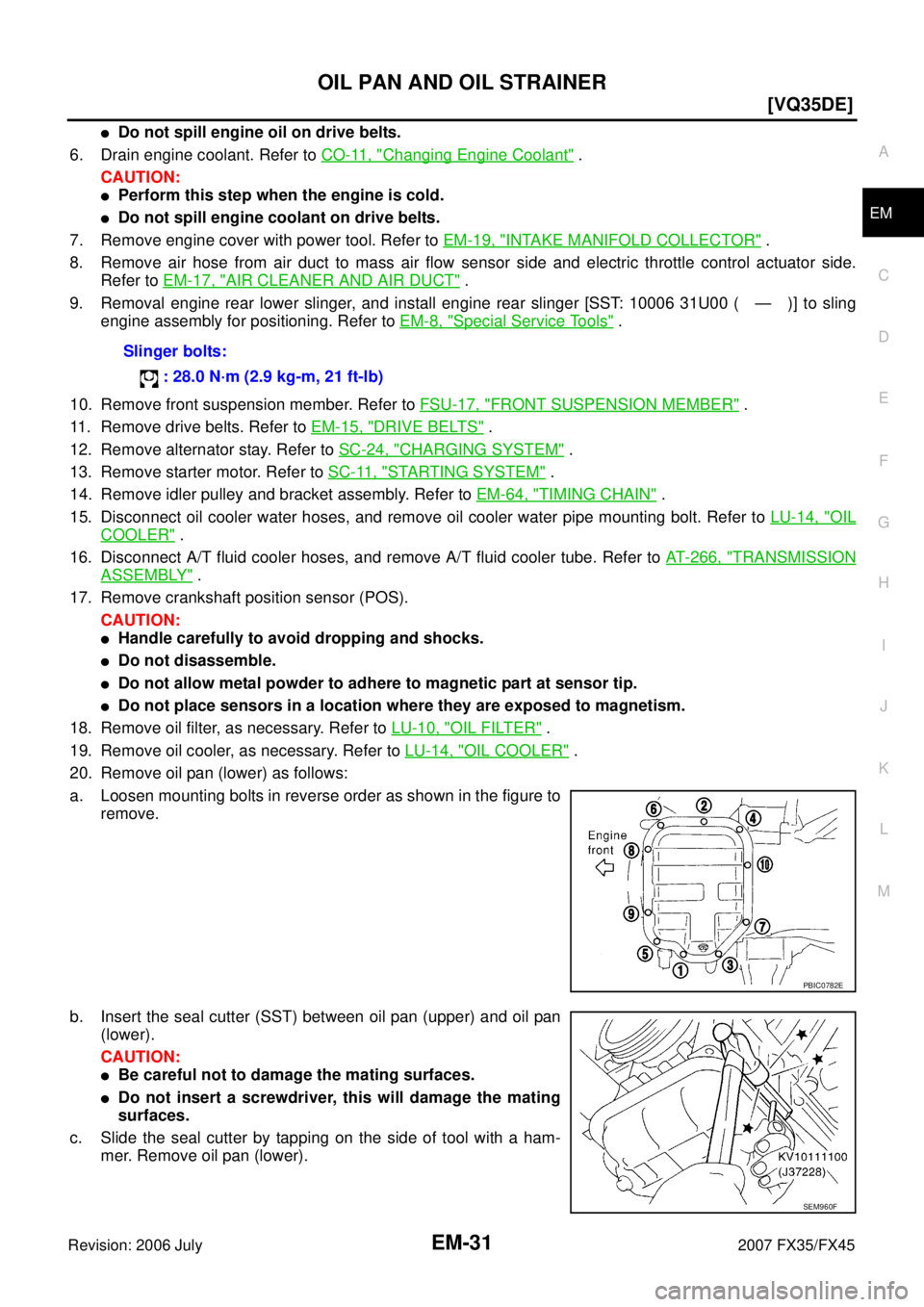

a. Loosen mounting bolts in reverse order as shown in the figure to remove.
b. Insert the seal cutter (SST) between oil pan (upper) and oil pan (lower).
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert a screwdriver, this will damage the mating
surfaces.
c. Slide the seal cutter by tapping on the side of tool with a ham- mer. Remove oil pan (lower). Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
PBIC0782E
SEM960F
Page 2824 of 4366
![INFINITI FX35 2007 Service Manual EM-32
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
21. Remove oil strainer.

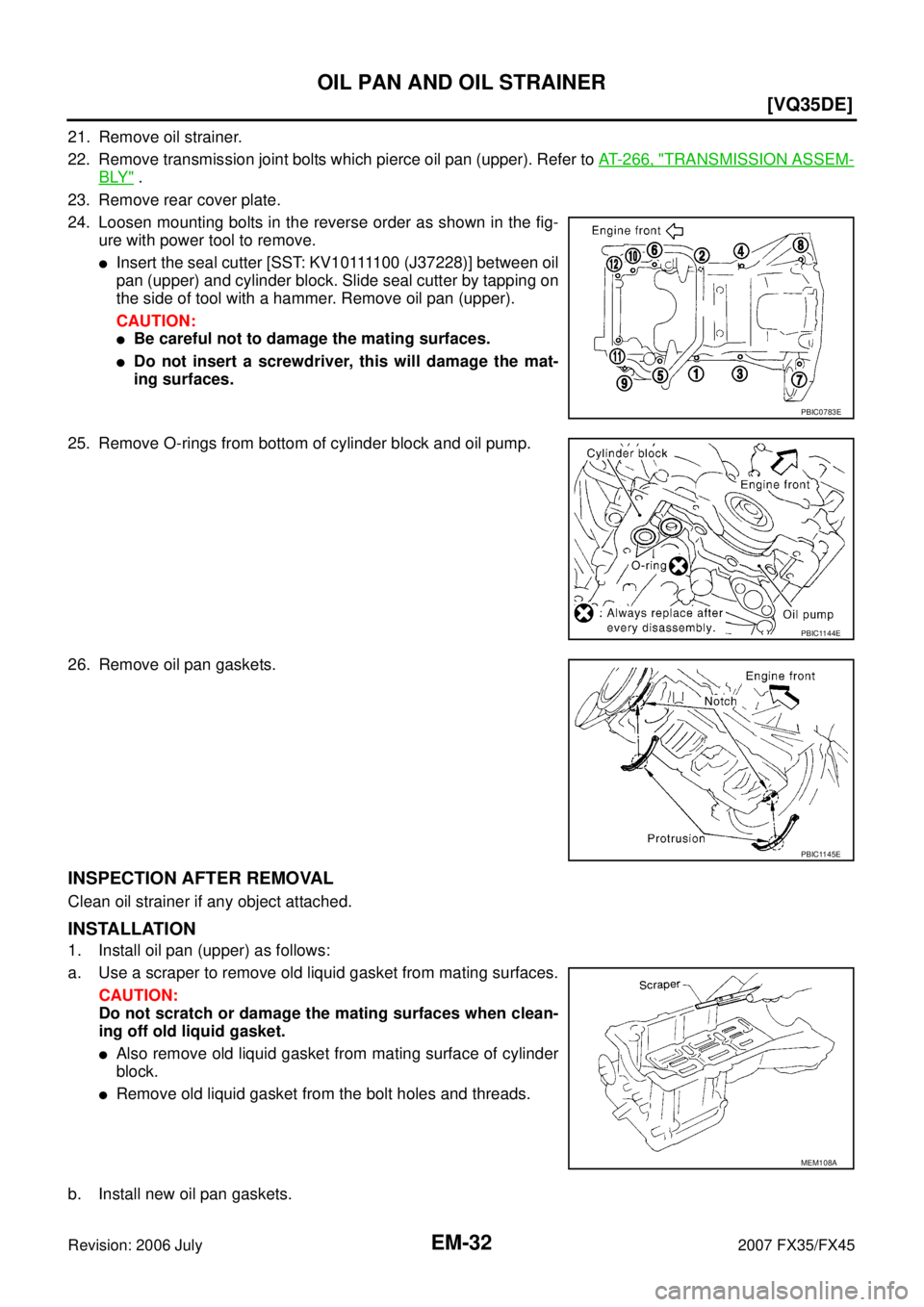

22. Remove transmission joint bolts which pierce oil pan (upper). Refer to AT- 2 6 6 , "
TRANSMI INFINITI FX35 2007 Service Manual EM-32
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
21. Remove oil strainer.
22. Remove transmission joint bolts which pierce oil pan (upper). Refer to AT- 2 6 6 , "
TRANSMI](/manual-img/42/57018/w960_57018-2823.png)
EM-32
[VQ35DE]
OIL PAN AND OIL STRAINER
Revision: 2006 July 2007 FX35/FX45
21. Remove oil strainer.
22. Remove transmission joint bolts which pierce oil pan (upper). Refer to AT- 2 6 6 , "
TRANSMISSION ASSEM-
BLY" .
23. Remove rear cover plate.
24. Loosen mounting bolts in the reverse order as shown in the fig- ure with power tool to remove.
I n s e r t t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] b e t w e e n o i l
pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with a hammer. Remove oil pan (upper).
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert a screwdriver, this will damage the mat-
ing surfaces.
25. Remove O-rings from bottom of cylinder block and oil pump.
26. Remove oil pan gaskets.
INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSTALLATION
1. Install oil pan (upper) as follows:
a. Use a scraper to remove old liquid gasket from mating surfaces. CAUTION:
Do not scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
Also remove old liquid gasket from mating surface of cylinder
block.
Remove old liquid gasket from the bolt holes and threads.
b. Install new oil pan gaskets.
PBIC0783E
PBIC1144E
PBIC1145E
MEM108A
