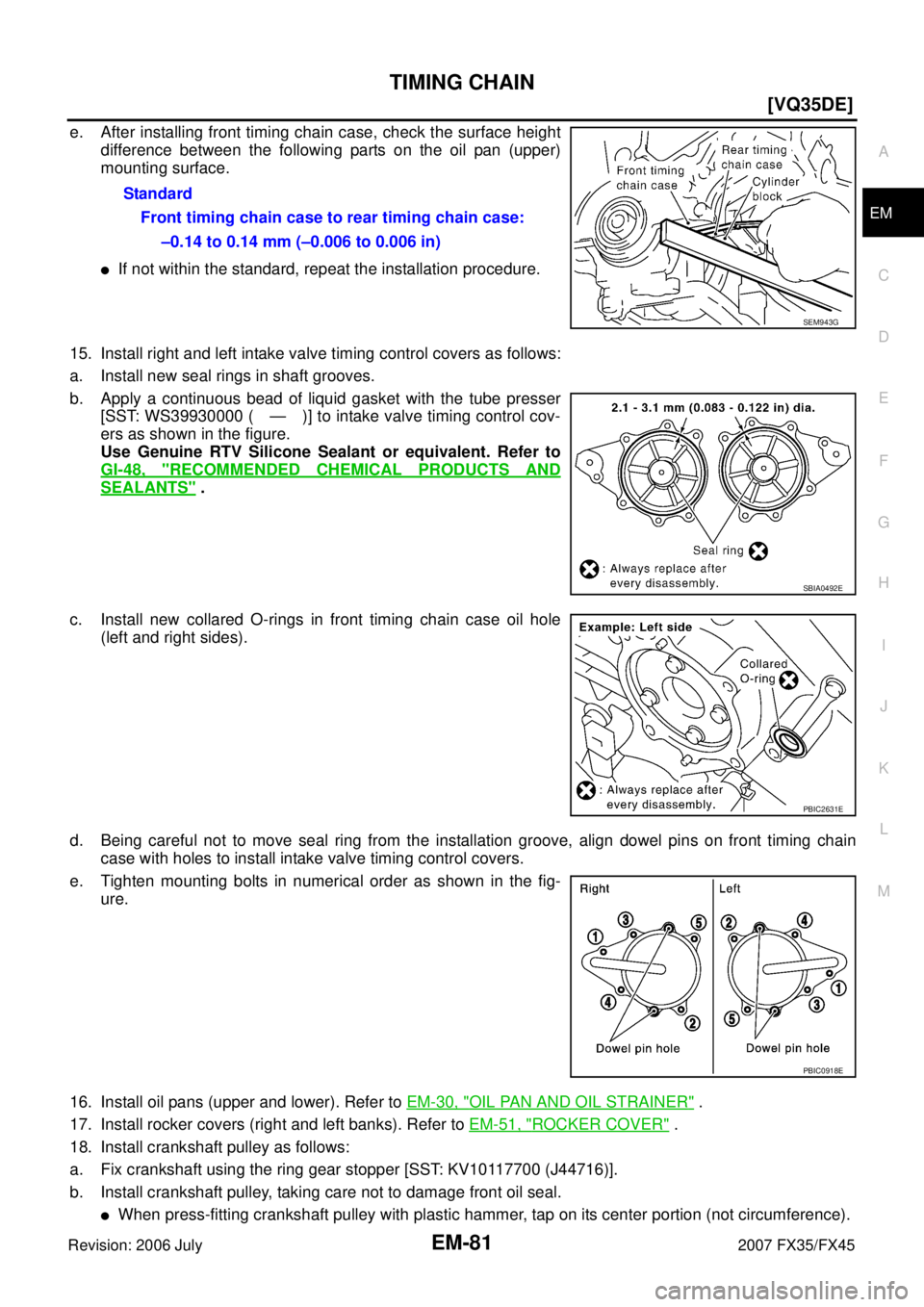

TIMING CHAIN EM-81
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
e. After installing front timing chain case, check the surface height
difference between the following parts on the oil pan (upper)
mounting surface.
If not within the standard, repeat the installation procedure.
15. Install right and left intake valve timing control covers as follows:
a. Install new seal rings in shaft grooves.
b. Apply a continuous bead of liquid gasket with the tube presser [SST: WS39930000 ( — )] to intake valve timing control cov-
ers as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
c. Install new collared O-rings in front timing chain case oil hole (left and right sides).
d. Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain case with holes to install intake valve timing control covers.
e. Tighten mounting bolts in numerical order as shown in the fig- ure.
16. Install oil pans (upper and lower). Refer to EM-30, "
OIL PAN AND OIL STRAINER" .
17. Install rocker covers (right and left banks). Refer to EM-51, "
ROCKER COVER" .
18. Install crankshaft pulley as follows:
a. Fix crankshaft using the ring gear stopper [SST: KV10117700 (J44716)].
b. Install crankshaft pulley, taking care not to damage front oil seal.
When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference). Standard
Front timing chain case to rear timing chain case: –0.14 to 0.14 mm (–0.006 to 0.006 in)
SEM943G
SBIA0492E
PBIC2631E
PBIC0918E
Page 2874 of 4366
![INFINITI FX35 2007 Service Manual EM-82
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
c. Tighten crankshaft pulley bolt.
d. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
e. Fur INFINITI FX35 2007 Service Manual EM-82
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
c. Tighten crankshaft pulley bolt.
d. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
e. Fur](/manual-img/42/57018/w960_57018-2873.png)
EM-82
[VQ35DE]
TIMING CHAIN
Revision: 2006 July 2007 FX35/FX45
c. Tighten crankshaft pulley bolt.
d. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
e. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. The
angle between two notches is 90 degrees.
19. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns smoothly.
20. For the following operations, perform steps in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil
and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
: 44.1 N·m (4.5 kg-m, 33 ft-lb)
PBIC4821E
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Page 2875 of 4366
CAMSHAFT EM-83
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

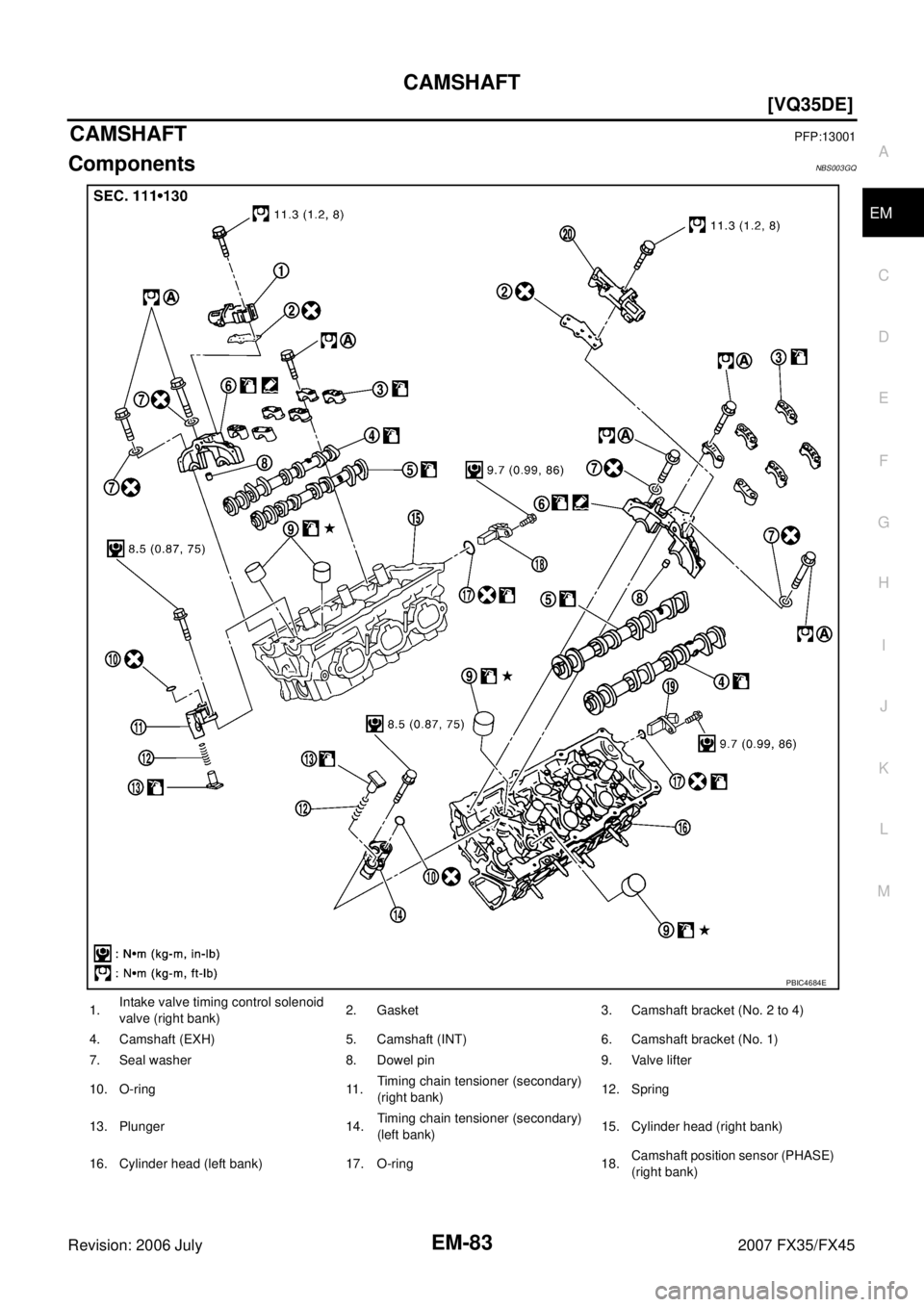

CAMSHAFTPFP:13001
ComponentsNBS003GQ
1. Intake valve timing control solenoid
valve (right bank) 2. Gasket 3. Camshaft bracket (No. 2 to 4)
4. Camshaft (EXH) 5. Camshaft (INT) 6. Camshaft bracket (No. 1)
7. Seal washer 8. Dowel pin 9. Valve lifter
10. O-ring 11. Timing chain tensioner (secondary)
(right bank) 12. Spring
13. Plunger 14. Timing chain tensioner (secondary)
(left bank) 15. Cylinder head (right bank)
16. Cylinder head (left bank) 17. O-ring 18. Camshaft position sensor (PHASE)
(right bank)
PBIC4684E
Page 2876 of 4366
![INFINITI FX35 2007 Service Manual EM-84
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS003GR
REMOVAL
1. Remove front timing chain case, ca INFINITI FX35 2007 Service Manual EM-84
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS003GR
REMOVAL
1. Remove front timing chain case, ca](/manual-img/42/57018/w960_57018-2875.png)

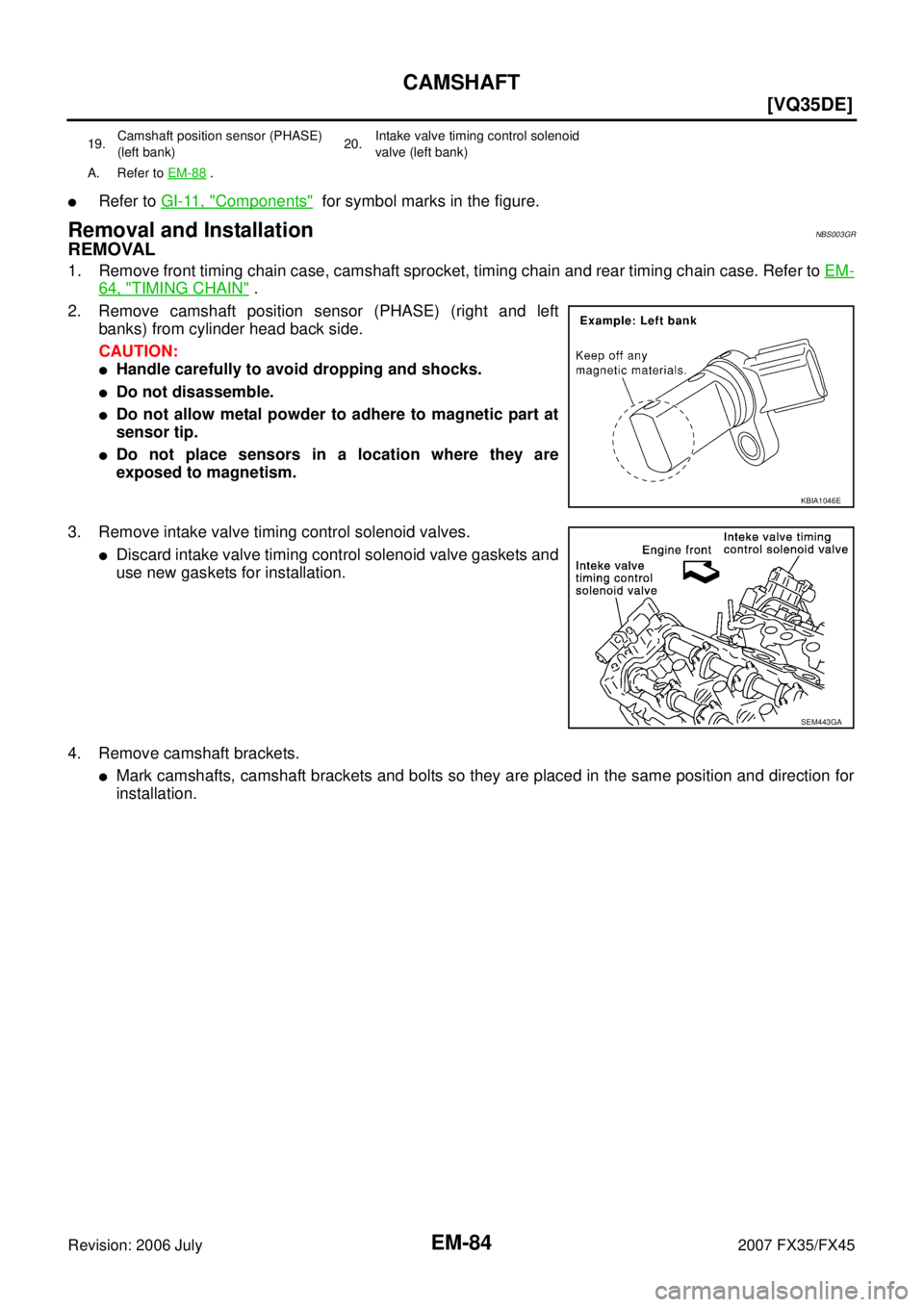

EM-84
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS003GR
REMOVAL
1. Remove front timing chain case, camshaft sprocket, timing chain and rear timing chain case. Refer to EM-
64, "TIMING CHAIN" .
2. Remove camshaft position sensor (PHASE) (right and left banks) from cylinder head back side.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at
sensor tip.
Do not place sensors in a location where they are
exposed to magnetism.
3. Remove intake valve timing control solenoid valves.
Discard intake valve timing control solenoid valve gaskets and
use new gaskets for installation.
4. Remove camshaft brackets.
Mark camshafts, camshaft brackets and bolts so they are placed in the same position and direction for
installation.
19. Camshaft position sensor (PHASE)
(left bank) 20. Intake valve timing control solenoid
valve (left bank)
A. Refer to EM-88
.
KBIA1046E
SEM443GA
Page 2877 of 4366
![INFINITI FX35 2007 Service Manual CAMSHAFT EM-85
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Equally loosen camshaft bracket bolts in several steps in
reverse order as shown in the figure.
5. INFINITI FX35 2007 Service Manual CAMSHAFT EM-85
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Equally loosen camshaft bracket bolts in several steps in
reverse order as shown in the figure.
5.](/manual-img/42/57018/w960_57018-2876.png)
CAMSHAFT EM-85
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Equally loosen camshaft bracket bolts in several steps in
reverse order as shown in the figure.
5. Remove camshaft.
6. Remove valve lifter.
Identify installation positions, and store them without mixing them up.
7. Remove timing chain tensioner (secondary) from cylinder head.
Remove timing chain tensioner (secondary) with its stopper
pin attached.
NOTE:
Stopper pin was attached when timing chain (secondary) was
removed.
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on precise flat table, and support No. 2 and 4 jour- nals of camshaft.
CAUTION:
Do not support No. 1 journal (on the side of camshaft
sprocket) because it has a different diameter from the other
three locations.
2. Set a dial indicator vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure the camshaft runout on a dial indicator. (Total indicator reading)
4. If it exceeds the limit, replace camshaft.
PBIC2050E
PBIC2111E
Standard : Less than 0.02 mm (0.0008 in)
Limit : 0.05 mm (0.0020 in)PBIC0929E
Page 2878 of 4366
![INFINITI FX35 2007 Service Manual EM-86
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Camshaft Cam Height
1. Measure the camshaft cam height with a micrometer.
2. If wear exceeds the limit, replace camshaft.
Camshaft Journal O INFINITI FX35 2007 Service Manual EM-86
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Camshaft Cam Height
1. Measure the camshaft cam height with a micrometer.
2. If wear exceeds the limit, replace camshaft.
Camshaft Journal O](/manual-img/42/57018/w960_57018-2877.png)

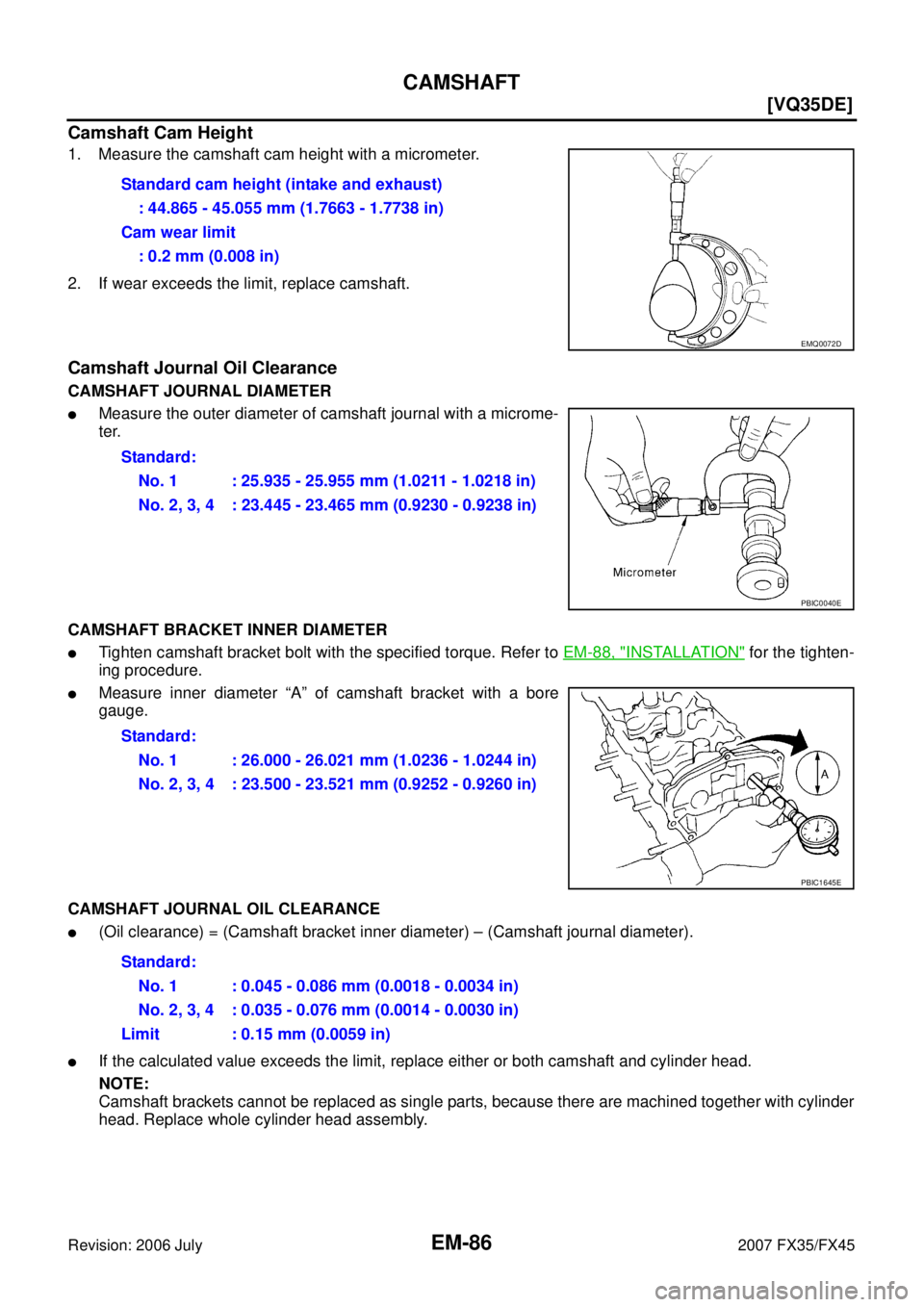

EM-86
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Camshaft Cam Height
1. Measure the camshaft cam height with a micrometer.
2. If wear exceeds the limit, replace camshaft.
Camshaft Journal Oil Clearance
CAMSHAFT JOURNAL DIAMETER
Measure the outer diameter of camshaft journal with a microme-
ter.
CAMSHAFT BRACKET INNER DIAMETER
Tighten camshaft bracket bolt with the specified torque. Refer to EM-88, "INSTALLATION" for the tighten-
ing procedure.
Measure inner diameter “A” of camshaft bracket with a bore
gauge.
CAMSHAFT JOURNAL OIL CLEARANCE
(Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter).
If the calculated value exceeds the limit, replace either or both camshaft and cylinder head.
NOTE:
Camshaft brackets cannot be replaced as single parts, because there are machined together with cylinder
head. Replace whole cylinder head assembly. Standard cam height (intake and exhaust)
: 44.865 - 45.055 mm (1.7663 - 1.7738 in)
Cam wear limit : 0.2 mm (0.008 in)
EMQ0072D
Standard:No. 1 : 25.935 - 25.955 mm (1.0211 - 1.0218 in)
No. 2, 3, 4 : 23.445 - 23.465 mm (0.9230 - 0.9238 in)
PBIC0040E
Standard: No. 1 : 26.000 - 26.021 mm (1.0236 - 1.0244 in)
No. 2, 3, 4 : 23.500 - 23.521 mm (0.9252 - 0.9260 in)
PBIC1645E
Standard: No. 1 : 0.045 - 0.086 mm (0.0018 - 0.0034 in)
No. 2, 3, 4 : 0.035 - 0.076 mm (0.0014 - 0.0030 in)
Limit : 0.15 mm (0.0059 in)
Page 2879 of 4366
![INFINITI FX35 2007 Service Manual CAMSHAFT EM-87
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Camshaft End Play
Install a dial indicator in thrust direction on front end of camshaft.
Measure th INFINITI FX35 2007 Service Manual CAMSHAFT EM-87
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Camshaft End Play
Install a dial indicator in thrust direction on front end of camshaft.
Measure th](/manual-img/42/57018/w960_57018-2878.png)
CAMSHAFT EM-87
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
Camshaft End Play
Install a dial indicator in thrust direction on front end of camshaft.
Measure the end play of a dial indicator when camshaft is
moved forward/backward (in direction to axis).
Measure the following parts if out of the limit.
–Dimension “A” for camshaft No. 1 journal
–Dimension “B” for cylinder head No. 1 journal bearing
Refer to the standards above, and then replace camshaft and/or
cylinder head.
Camshaft Sprocket Runout
1. Put V-block on precise flat table, and support No. 2 and 4 journals of camshaft.
CAUTION:
Do not support No. 1 journal (on the side of camshaft sprocket) because it has a different diameter
from the other three locations.
2. Measure the camshaft sprocket runout with a dial indicator. (Total indicator reading)
If it exceeds the limit, replace camshaft sprocket.
Valve Lifter
Check if surface of valve lifter has any wear or cracks.
If anything above is found, replace valve lifter. Refer to EM-154,
"Available Valve Lifter" .
Standard : 0.115 - 0.188 mm (0.0045 - 0.0074 in)
Limit : 0.24 mm (0.0094 in)
SEM864E
Standard : 27.500 - 27.548 mm (1.0827 - 1.0846 in)
Standard : 27.360 - 27.385 mm (1.0772 - 1.0781 in)
KBIA2404J
Limit : 0.15 mm (0.0059 in)
PBIC0930E
KBIA0182E
Page 2880 of 4366
![INFINITI FX35 2007 Service Manual EM-88
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Valve Lifter Clearance
VALVE LIFTER OUTER DIAMETER
Measure the outer diameter at 1/2 height of valve lifter with a
micrometer since valve l INFINITI FX35 2007 Service Manual EM-88
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Valve Lifter Clearance
VALVE LIFTER OUTER DIAMETER
Measure the outer diameter at 1/2 height of valve lifter with a
micrometer since valve l](/manual-img/42/57018/w960_57018-2879.png)
EM-88
[VQ35DE]
CAMSHAFT
Revision: 2006 July 2007 FX35/FX45
Valve Lifter Clearance
VALVE LIFTER OUTER DIAMETER
Measure the outer diameter at 1/2 height of valve lifter with a
micrometer since valve lifter is in barrel shape.
VALVE LIFTER HOLE DIAMETER
Measure the inner diameter of valve lifter hole of cylinder head
with an inside micrometer.
VALVE LIFTER CLEARANCE
(Valve lifter clearance) = (Valve lifter hole diameter) – (Valve lifter outer diameter)
If the calculated value is out of the standard, referring to each standard of valve lifter outer diameter and
valve lifter hole diameter, replace either or both valve lifter and cylinder head.
INSTALLATION
1. Install timing chain tensioners (secondary) on both sides of cyl-
inder head.
Install timing chain tensioner with its stopper pin attached.
Install timing chain tensioner with sliding part facing down-
ward on right-side cylinder head, and with sliding part facing
upward on left-side cylinder head.
Install new O-ring as shown in the figure.
2. Install valve lifter.
Install it in the original position.
3. Install camshafts. Standard (Intake and exhaust)
: 33.977 - 33.987 mm (1.3377 - 1.3381 in)
JEM798G
Standard (Intake and exhaust): 34.000 - 34.016 mm (1.3386 - 1.3392 in)
SEM867E
Standard (Intake and exhaust): 0.013 - 0.039 mm (0.0005 - 0.0015 in)
PBIC2111E
