Page 857 of 4366

INFINITI FX35 2007 Service Manual POWER DOOR LOCK SYSTEM BL-45 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 2. CHECK KEY SWITCH (WITH INTELLIGENT KEY) 1. Disconnect key switch and ignition knob switch co

Page 858 of 4366

INFINITI FX35 2007 Service Manual BL-46 POWER DOOR LOCK SYSTEM Revision: 2006 July 2007 FX35/FX45 Check Door Lock and Unlock SwitchNIS001MA 1. CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL With CONSULT-II Check door lock and unloc

Page 859 of 4366

INFINITI FX35 2007 Service Manual POWER DOOR LOCK SYSTEM BL-47 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 2. CHECK POWER WINDOW SERIAL LINK CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect BCM, powe

Page 860 of 4366

INFINITI FX35 2007 Service Manual BL-48 POWER DOOR LOCK SYSTEM Revision: 2006 July 2007 FX35/FX45 3. CHECK DOOR LOCK AND UNLOCK SWITCH GROUND HARNESS Check continuity between power window main switch (door lock and unlock switch) co

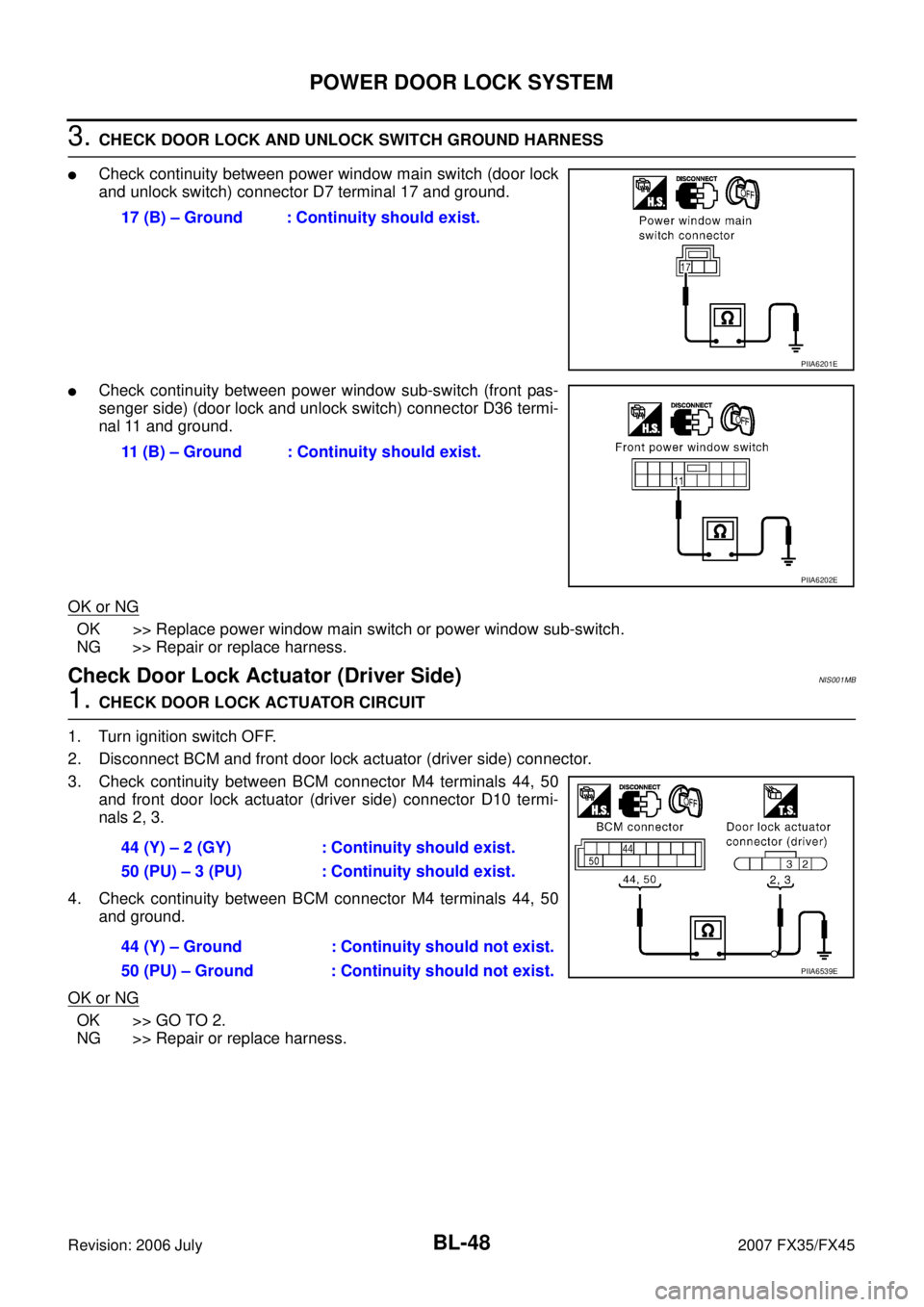

Page 861 of 4366

INFINITI FX35 2007 Service Manual POWER DOOR LOCK SYSTEM BL-49 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 2. CHECK OUTPUT SIGNAL 1. Connect BCM and door lock actuator (driver side) connector. 2. Check

Page 862 of 4366

INFINITI FX35 2007 Service Manual BL-50 POWER DOOR LOCK SYSTEM Revision: 2006 July 2007 FX35/FX45 2. CHECK DOOR LOCK ACTUATOR SIGNAL Check voltage between BCM connector M4 terminals 50, 51 and ground. OK or NG OK >> Replace front

Page 863 of 4366

INFINITI FX35 2007 Service Manual POWER DOOR LOCK SYSTEM BL-51 C D E F G H J K L M A B BL Revision: 2006 July 2007 FX35/FX45 Check Front Door Key Cylinder Switch (Lock) NIS001ME 1. CHECK FRONT DOOR KEY CYLINDER SWITCH INP

Page 864 of 4366

INFINITI FX35 2007 Service Manual BL-52 POWER DOOR LOCK SYSTEM Revision: 2006 July 2007 FX35/FX45 Check Front Door Key Cylinder Switch (Unlock) NIS001MF 1. CHECK FRONT DOOR KEY CYLINDER SWITCH INPUT SIGNAL (UNLOCK SIGNAL) With CONSUL
