Page 3969 of 4366

INFINITI FX35 2007 Service Manual RSU-1
REAR SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION
A
B
RSU
Revision: 2006 July 2007 FX35/FX45
REAR SUSPENSION
PRECAUTIONS ...........................................

RSU-1
REAR SUSPENSION
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION
A
B
RSU
Revision: 2006 July 2007 FX35/FX45
REAR SUSPENSION
PRECAUTIONS .......................................................... 2
Cautions .............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 4
NVH Troubleshooting Chart ................................ ..... 4
REAR SUSPENSION ASSEMBLY ........................ ..... 5
On-Vehicle Inspection and Service ..................... ..... 5
INSPECTION OF BALL JOINT END PLAY ..... ..... 5
SHOCK ABSORBER INSPECTION ................ ..... 5
Wheel Alignment Inspection ................................ ..... 5
DESCRIPTION ................................................. ..... 5
PRELIMINARY INSPECTION .......................... ..... 5
GENERAL INFORMATION AND RECOMMEN-
DATIONS ......................................................... ..... 5
THE ALIGNMENT PROCESS ......................... ..... 6
CAMBER INSPECTION ................................... ..... 6
TOE-IN ............................................................. ..... 6
Removal and installation ..................................... ..... 7
COMPONENTS ............................................... ..... 7
REMOVAL ........................................................ ..... 8
INSTALLATION ................................................ ..... 8
SHOCK ABSORBER ............................................. ..... 9
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSPECTION AFTER REMOVAL .................... ..... 9
INSTALLATION ................................................ ..... 9
Disassembly and Assembly ................................ ..... 9
DISASSEMBLY ................................................ ..... 9
INSPECTION AFTER DISASSEMBLY ............ ... 10
ASSEMBLY ...................................................... ... 10 SUSPENSION ARM ...............................................
... 11
Removal and Installation ..................................... ... 11
REMOVAL ........................................................ ... 11
INSPECTION AFTER REMOVAL .................... ... 11
INSTALLATION ................................................ ... 12
RADIUS ROD ......................................................... ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSPECTION AFTER REMOVAL .................... ... 13
INSTALLATION ................................................ ... 13
FRONT LOWER LINK ........................................... ... 14
Removal and Installation ..................................... ... 14
REMOVAL ........................................................ ... 14
INSPECTION AFTER REMOVAL .................... ... 14
INSTALLATION ................................................ ... 14
REAR LOWER LINK & COIL SPRING .................. ... 15
Removal and Installation ..................................... ... 15
REMOVAL ........................................................ ... 15
INSPECTION AFTER REMOVAL .................... ... 15
INSTALLATION ................................................ ... 15
STABILIZER BAR .................................................. ... 16
Removal and Installation ..................................... ... 16
REMOVAL ........................................................ ... 16
INSPECTION AFTER REMOVAL .................... ... 16
INSTALLATION ................................................ ... 16
REAR SUSPENSION MEMBER ............................ ... 17
Removal and Installation ..................................... ... 17
REMOVAL ........................................................ ... 17
INSPECTION AFTER REMOVAL .................... ... 17
INSTALLATION ................................................ ... 17
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 18
Wheel Alignment (Unladen*) ............................... ... 18
Ball Joint .............................................................. ... 18
Wheelarch Height (Unladen*) .............................. ... 18

Page 3970 of 4366

INFINITI FX35 2007 Service Manual RSU-2
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45
PRECAUTIONSPFP:00001
CautionsNES000G0
When installing rubber bushings, final tightening must be carried out under unladen conditions with tires
o

Page 3971 of 4366

INFINITI FX35 2007 Service Manual PREPARATION RSU-3
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNES000G1
The actual shapes of Kent-Moore tools may differ from t

Page 3972 of 4366

INFINITI FX35 2007 Service Manual RSU-4
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2006 July 2007 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartNES000G3
Use chart

Page 3973 of 4366

INFINITI FX35 2007 Service Manual REAR SUSPENSION ASSEMBLY RSU-5
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2006 July 2007 FX35/FX45
REAR SUSPENSION ASSEMBLYPFP:55020
On-Vehicle Inspection and ServiceNES000HU
Make sure the mou

REAR SUSPENSION ASSEMBLY RSU-5
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2006 July 2007 FX35/FX45
REAR SUSPENSION ASSEMBLYPFP:55020
On-Vehicle Inspection and ServiceNES000HU
Make sure the mounting conditions (looseness, back lash) of each component and component status (wear,
damage) are normal.
INSPECTION OF BALL JOINT END PLAY
Measure axial end play by installing and moving up/down with an
iron pry bar or something similar between suspension arm and axle.
CAUTION:
Be careful not to damage ball joint boot.
SHOCK ABSORBER INSPECTION
Check shock absorber for oil leakage, damage and replace if necessary.
Wheel Alignment InspectionNES000HV
DESCRIPTION
Measure wheel alignment under unladen conditions. “Unladen conditions” means that fuel, engine cool-
ant, and lubricant are full. Spare tire, jack, hand tools and mats in designated positions.
PRELIMINARY INSPECTION
Check tires for improper air pressure and wear.
Check road wheels for runout.
Check wheel bearing axial end play.
Check ball joint axial end play of suspension arm.
Check shock absorber operation.
Check each mounting point of axle and suspension for looseness and deformation.
Check each link, arm and member for cracks, deformation, and other damage.
Check vehicle posture.
GENERAL INFORMATION AND RECOMMENDATIONS
A four-wheel thrust alignment should be performed.
–This type of alignment is recommended for any NISSAN/INFINITI vehicle.
–The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel is
centered.
–The alignment rack itself should be capable of accepting any NISSAN/INFINITI vehicle.
–The rack should be checked to ensure that it is level.
Make sure the machine is properly calibrated.
–Your alignment equipment should be regularly calibrated in order to give correct information.
–Check with the manufacturer of your specific equipment for their recommended Service/Calibration
Schedule. Standard value
Axial end play : 0 mm (0 in)
SEIA0245J

Page 3974 of 4366

INFINITI FX35 2007 Service Manual RSU-6
REAR SUSPENSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
THE ALIGNMENT PROCESS
IMPORTANT:
Use only the alignment specifications listed in this Service Manual.
When displaying the alignment

Page 3975 of 4366

INFINITI FX35 2007 Service Manual REAR SUSPENSION ASSEMBLY RSU-7
C
D
F
G H
I
J
K L
M A
B
RSU
Revision: 2006 July 2007 FX35/FX45
Removal and installationNES000HY
COMPONENTS
PEIA0054E

Page 3976 of 4366

INFINITI FX35 2007 Service Manual RSU-8
REAR SUSPENSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Remove tires from vehicle with power tool.
2. Remove brake caliper with power tool. Hang it in a place where it will not i

RSU-8
REAR SUSPENSION ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
REMOVAL
1. Remove tires from vehicle with power tool.
2. Remove brake caliper with power tool. Hang it in a place where it will not interfere with work. Refer to BR-
25, "REAR DISC BRAKE" .
NOTE:
Avoid depressing brake pedal while brake caliper is removed.
3. Remove wheel sensor from rear final drive, then remove wheel sensor harness from rear suspension member.
4. Remove height sensor harness from rear suspension member (if equipped).
5. Remove center muffler and main muffler. Refer to EX-3, "
Components" .
6. Remove stabilizer bar. Refer to RSU-16, "
Removal and Installation" .
7. Remove rear propeller shaft. Refer to PR-9, "
Removal and Installation" .
8. Separate attachments between parking brake cable and vehicle and rear suspension member.
9. Remove rear lower link and coil spring. Refer to RSU-14, "
Removal and Installation" .
10. Remove fixing bolt in lower side of shock absorber with power tool.
11. Set jack under rear final drive.
12. Remove fixing bolts and nuts of tunnel stay and member stay with power tool, then remove those parts from vehicle.
13. Remove fixing bolts and nuts of rear pin stay with power tool and then remove rear pin stay from vehicle.
14. Gradually lowering jack, remove rear suspension assembly.
INSTALLATION
Refer to RSU-7, "Removal and installation" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.
Perform final tightening of installation position of links (rubber bushing) under unladen conditions with tires
on level ground. Check wheel alignment. Refer to RSU-5, "
Wheel Alignment Inspection" .
After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

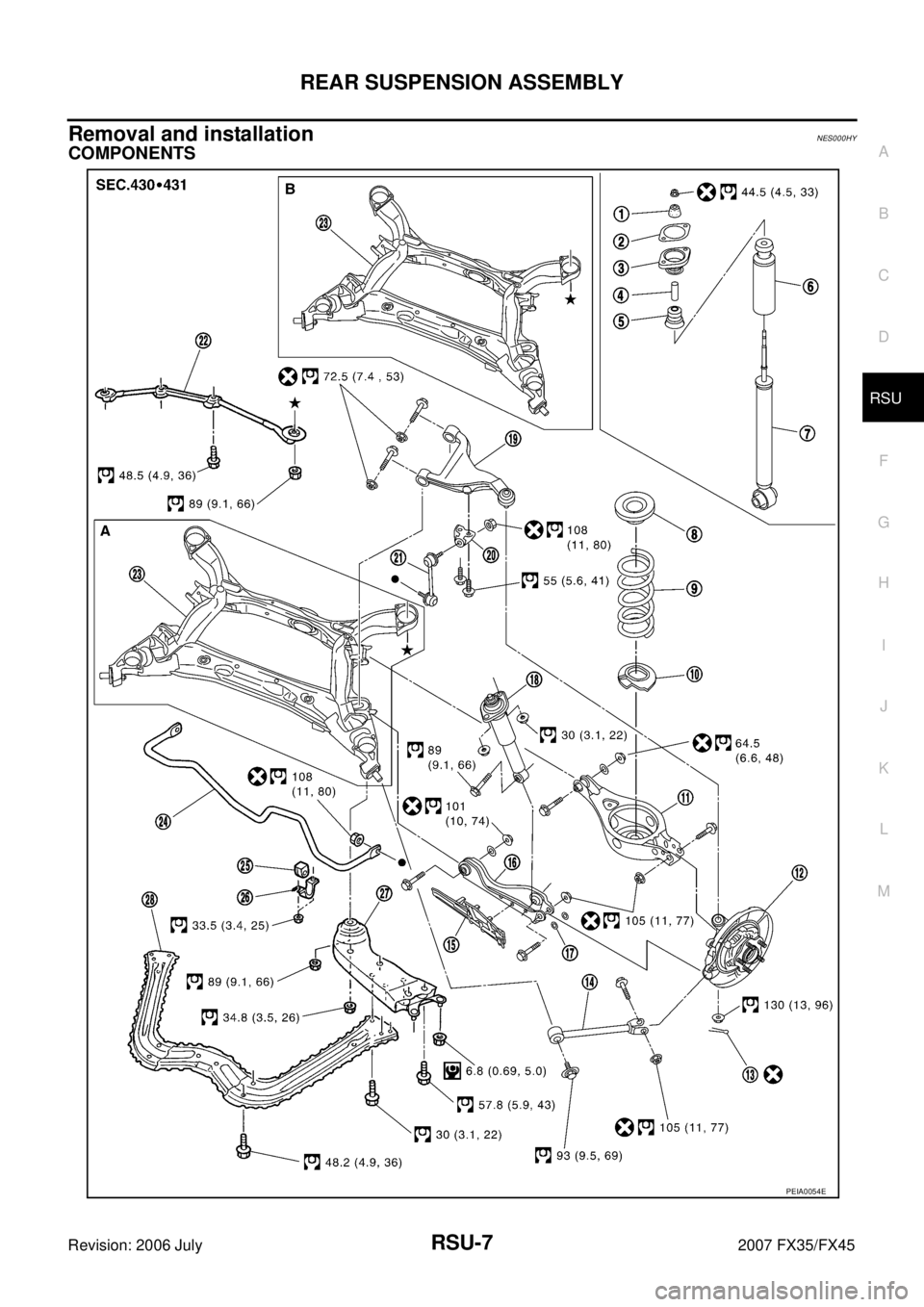

1. Bushing 2. Mounting seal 3. Mounting seal bracket
4. Distance tube 5. Bound bumper cover 6. Bound bumper
7. Shock absorber 8. Upper seat 9. Coil spring
10. Rubber seat 11. Rear lower link 12. Axle assembly
13. Cotter pin 14. Radius rod 15. Front lower link protector
16. Front lower link 17. Stopper rubber 18. Shock absorber assembly
19. Suspension arm 20. Stabilizer connecting rod mounting bracket 21. Stabilizer connecting rod
22. Rear pin stay 23. Rear suspension member 24. Stabilizer bar
25. Stabilizer bushing 26. Stabilizer clamp 27. Member stay
28. Tunnel stay A: With height sensor B: Without height sensor
Refer to GI-11, "
Components" , for the symbols in the figure.
